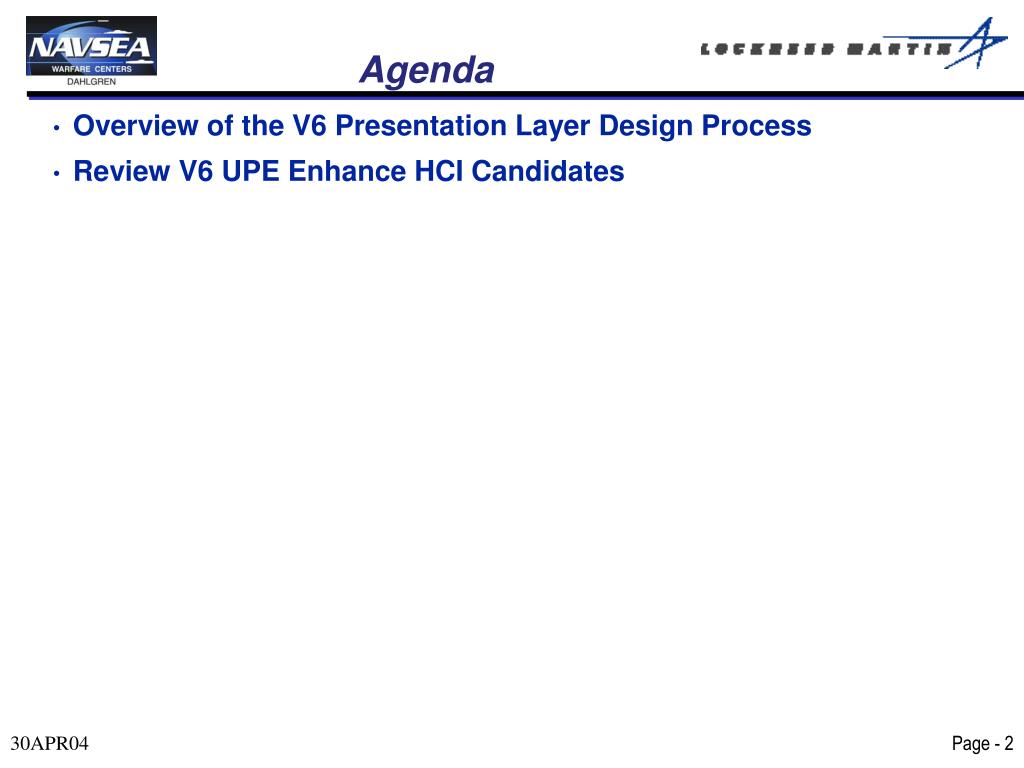

Agenda

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Agenda

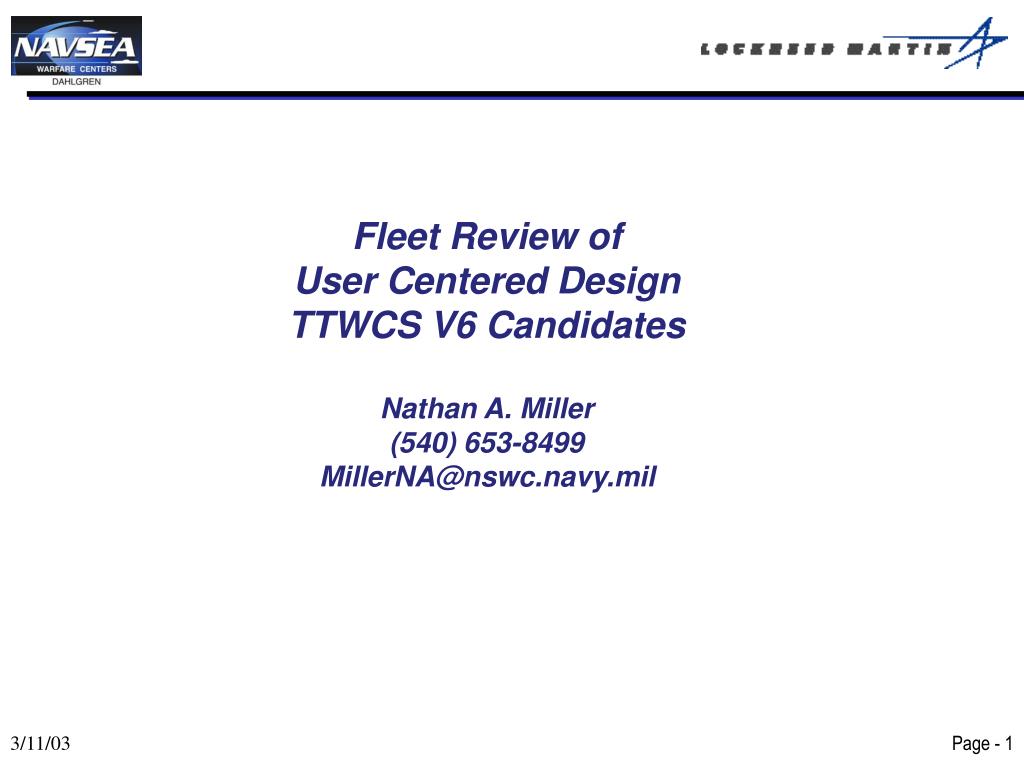

Fleet Review of User Centered DesignTTWCS V6 Candidates Nathan A. Miller(540) [email protected]


Agenda

Agenda

  • Overview of the V6 Presentation Layer Design Process

  • Review V6 UPE Enhance HCI Candidates


Background twcs upgrades

Tomahawk Weapon Control System Upgrades

Background - Twcs Upgrades

  • Advantages

    • Continuous influx of new functionality

    • Correct system defects

    • Improves conduct of system tasking

    • Upgrade User Interface

      • User input

      • Refine individual window design

  • Problem:

    • User Interface issues - Non- holistic approach to entire presentation layer

      • Duplicate info across several windows

      • Non-intuitive task flow

      • Unnecessary actions (i.e., button clicks) to accomplish a task


Ttwcs v6 user interface improvements

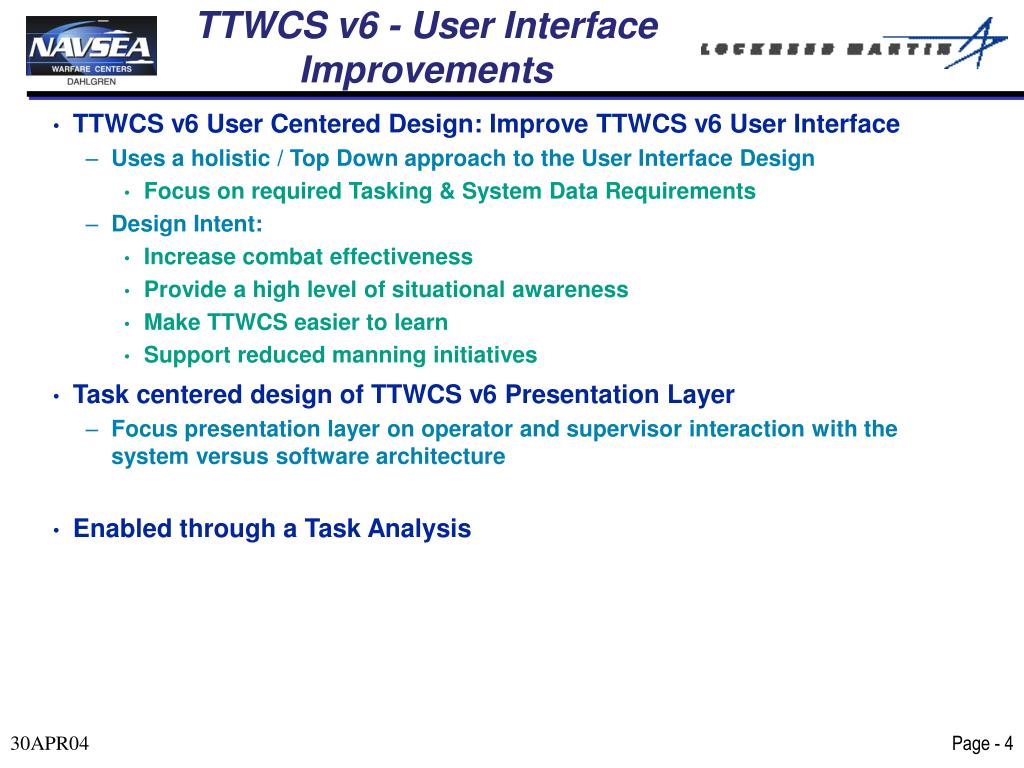

TTWCS v6 - User Interface Improvements

  • TTWCS v6 User Centered Design: Improve TTWCS v6 User Interface

    • Uses a holistic / Top Down approach to the User Interface Design

      • Focus on required Tasking & System Data Requirements

    • Design Intent:

      • Increase combat effectiveness

      • Provide a high level of situational awareness

      • Make TTWCS easier to learn

      • Support reduced manning initiatives

  • Task centered design of TTWCS v6 Presentation Layer

    • Focus presentation layer on operator and supervisor interaction with the system versus software architecture

  • Enabled through a Task Analysis


Task analysis definitions

Task Analysis Definitions

  • Purpose of Task Analysis

    • Overall vision for TTWCS v6 is to increase Land Attack Warfighter effectiveness without increasing workload on the operator.

    • While increasing effectiveness, it is desired to maintain a high level of situational awareness and safety.

    • These goals can be enabled via task-centered design, which begins with conducting a Task Analysis.

  • Why Task Analysis for v6?

    • Task centered design streamlines user workflow, minimizing non-necessary or repetitive actions

    • Saving time / promote situational awareness performing complex tasks under stringent time constraints in a stressful environment.

    • Task centered design is unachievable without understanding user tasks.

    • At a minimum, most critical tasks must be analyzed to create a baseline of Task Analysis for follow-on versions of TTWCS.

    • Task Analysis also supports training design.


Ttwcs v6 user interface development process

TTWCS v6 User Interface Development Process

Develop HCI

Concept

Develop Initial

HCI Design

Develop Detailed

HCI Design

Develop Final

HCI Design

  • Task Analysis

  • Sys Reqs

Windows

Design

Update

Hi-Fi Proto

  • Hi-Fi Proto

  • Interactive

Lo-Fi

Prototype

Usability

Assessment

Usability

Assessment

Automation

Strategy

Usability

Assessment

  • Final HCI Design

  • Windows Update

  • Final HCI Spec Update

  • Detailed HCI Design

  • Windows Update

  • Draft HCI Spec Update

  • HCI Concept

  • List of Windows

  • Info Reqs/ Window

  • Automation/ Window

  • Initial HCI Des

  • Windows Update

  • Draft HCI Spec


Task analysis process products

Determine

Tasks Priority

Identify Tasks

Tasks Hierarchy

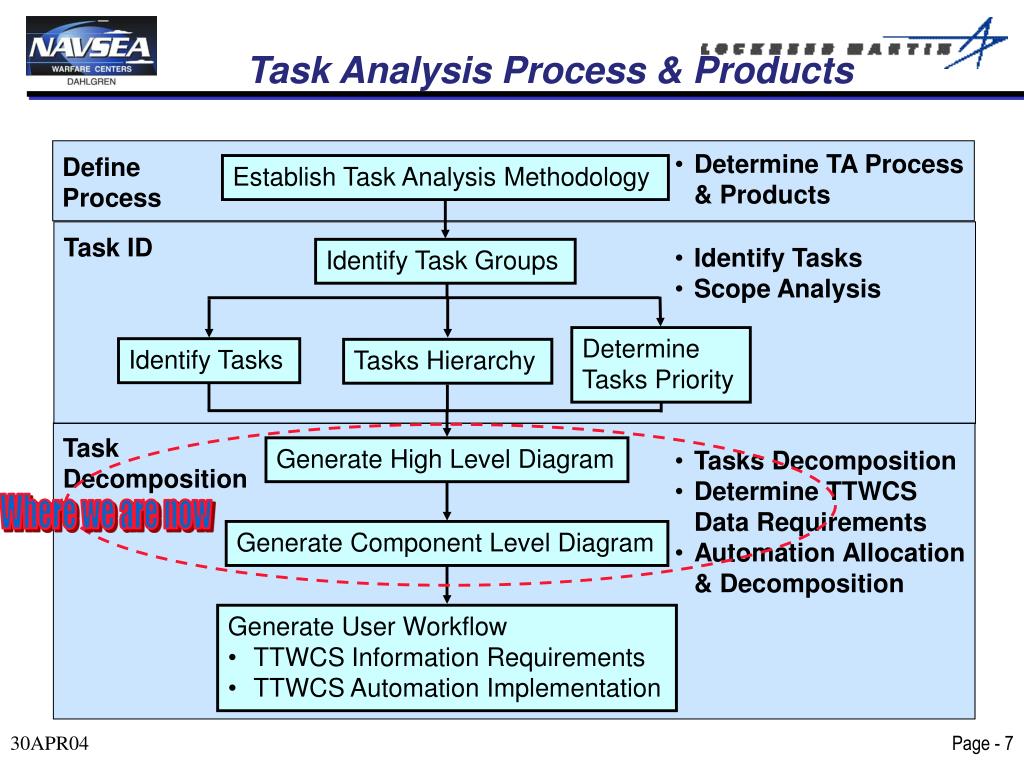

Task Analysis Process & Products

  • Determine TA Process & Products

Define

Process

Establish Task Analysis Methodology

Task ID

  • Identify Tasks

  • Scope Analysis

Identify Task Groups

Task

Decomposition

Generate High Level Diagram

  • Tasks Decomposition

  • Determine TTWCS Data Requirements

  • Automation Allocation & Decomposition

Where we are now

Generate Component Level Diagram

  • Generate User Workflow

  • TTWCS Information Requirements

  • TTWCS Automation Implementation

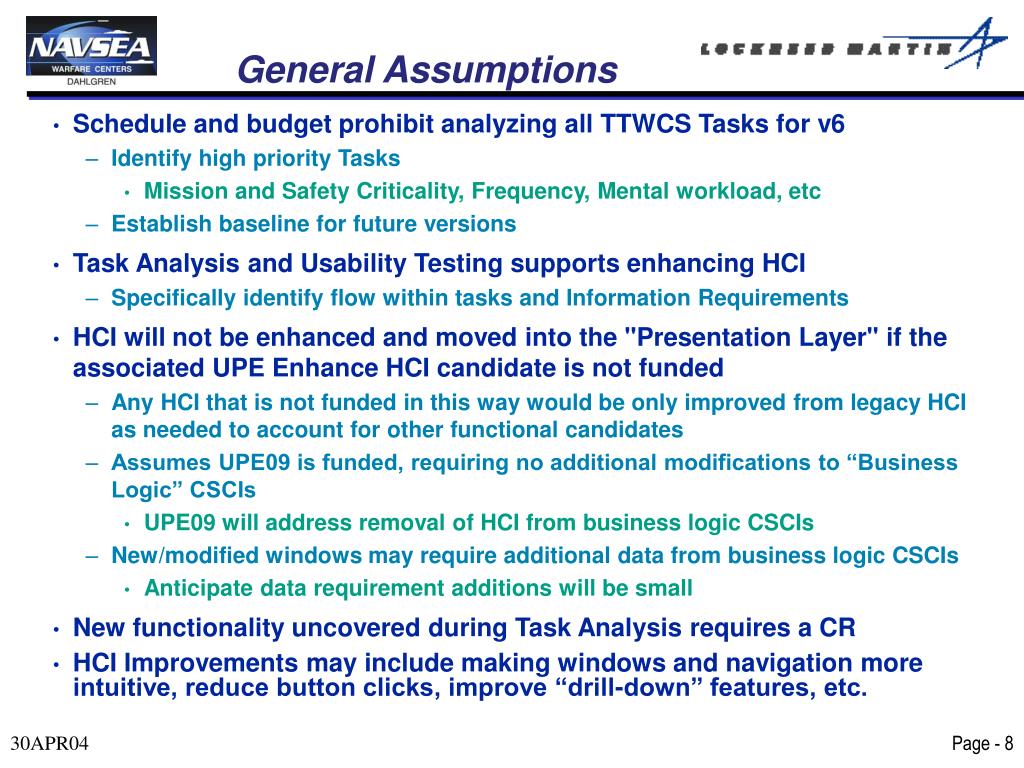

General assumptions

General Assumptions

  • Schedule and budget prohibit analyzing all TTWCS Tasks for v6

    • Identify high priority Tasks

      • Mission and Safety Criticality, Frequency, Mental workload, etc

    • Establish baseline for future versions

  • Task Analysis and Usability Testing supports enhancing HCI

    • Specifically identify flow within tasks and Information Requirements

  • HCI will not be enhanced and moved into the "Presentation Layer" if the associated UPE Enhance HCI candidate is not funded

    • Any HCI that is not funded in this way would be only improved from legacy HCI as needed to account for other functional candidates

    • Assumes UPE09 is funded, requiring no additional modifications to “Business Logic” CSCIs

      • UPE09 will address removal of HCI from business logic CSCIs

    • New/modified windows may require additional data from business logic CSCIs

      • Anticipate data requirement additions will be small

  • New functionality uncovered during Task Analysis requires a CR

  • HCI Improvements may include making windows and navigation more intuitive, reduce button clicks, improve “drill-down” features, etc.


Task sets

Task Sets

  • Task Analysis is divided into Four Serial Sets to aid in decomposition

    • Task Set 1: Go Path

    • Task Set 2: Failure Analysis + Post Launch

    • Task Set 3: Situational Awareness

    • Task Set 4: Safety Critical Tasks


Task list

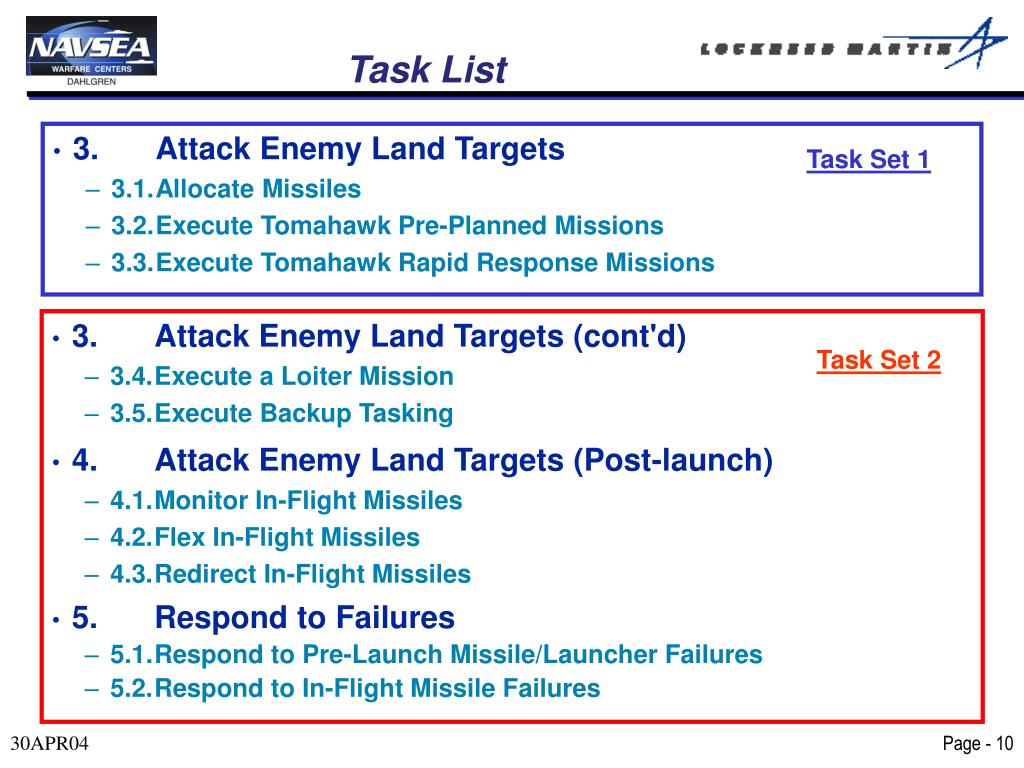

Task List

  • 3.Attack Enemy Land Targets

    • 3.1.Allocate Missiles

    • 3.2.Execute Tomahawk Pre-Planned Missions

    • 3.3.Execute Tomahawk Rapid Response Missions

Task Set 1

  • 3.Attack Enemy Land Targets (cont'd)

    • 3.4.Execute a Loiter Mission

    • 3.5.Execute Backup Tasking

  • 4.Attack Enemy Land Targets (Post-launch)

    • 4.1.Monitor In-Flight Missiles

    • 4.2.Flex In-Flight Missiles

    • 4.3.Redirect In-Flight Missiles

  • 5.Respond to Failures

    • 5.1.Respond to Pre-Launch Missile/Launcher Failures

    • 5.2.Respond to In-Flight Missile Failures

Task Set 2


Task list1

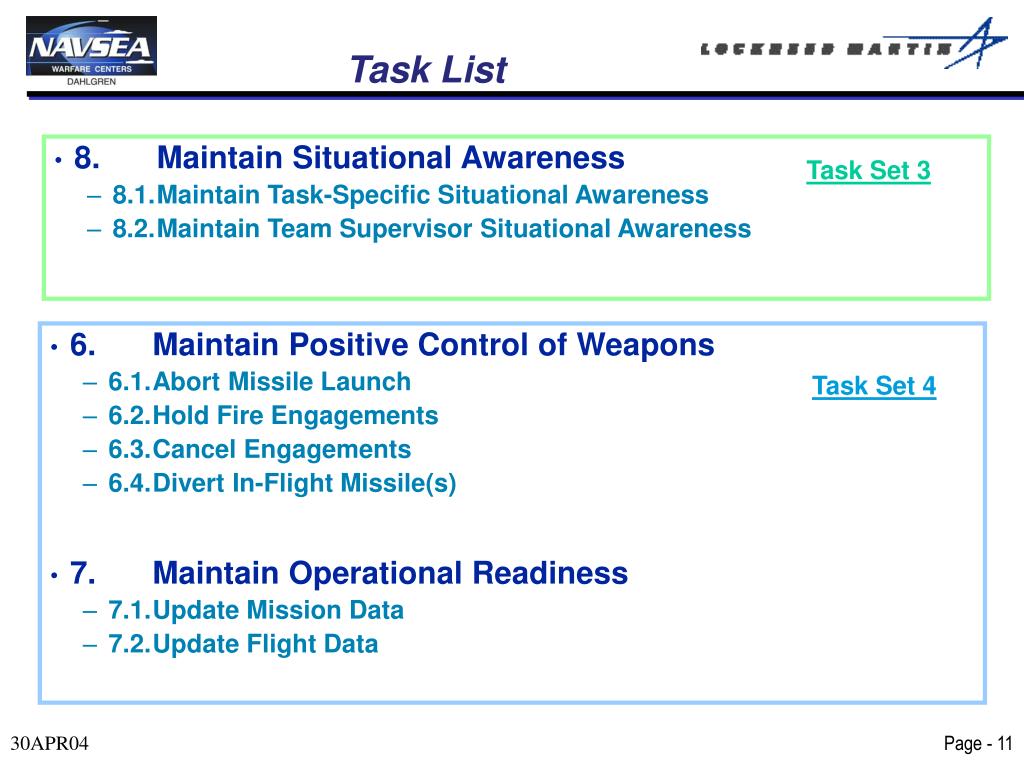

Task List

  • 8.Maintain Situational Awareness

    • 8.1.Maintain Task-Specific Situational Awareness

    • 8.2.Maintain Team Supervisor Situational Awareness

Task Set 3

  • 6.Maintain Positive Control of Weapons

    • 6.1.Abort Missile Launch

    • 6.2.Hold Fire Engagements

    • 6.3.Cancel Engagements

    • 6.4.Divert In-Flight Missile(s)

  • 7.Maintain Operational Readiness

    • 7.1.Update Mission Data

    • 7.2.Update Flight Data

Task Set 4

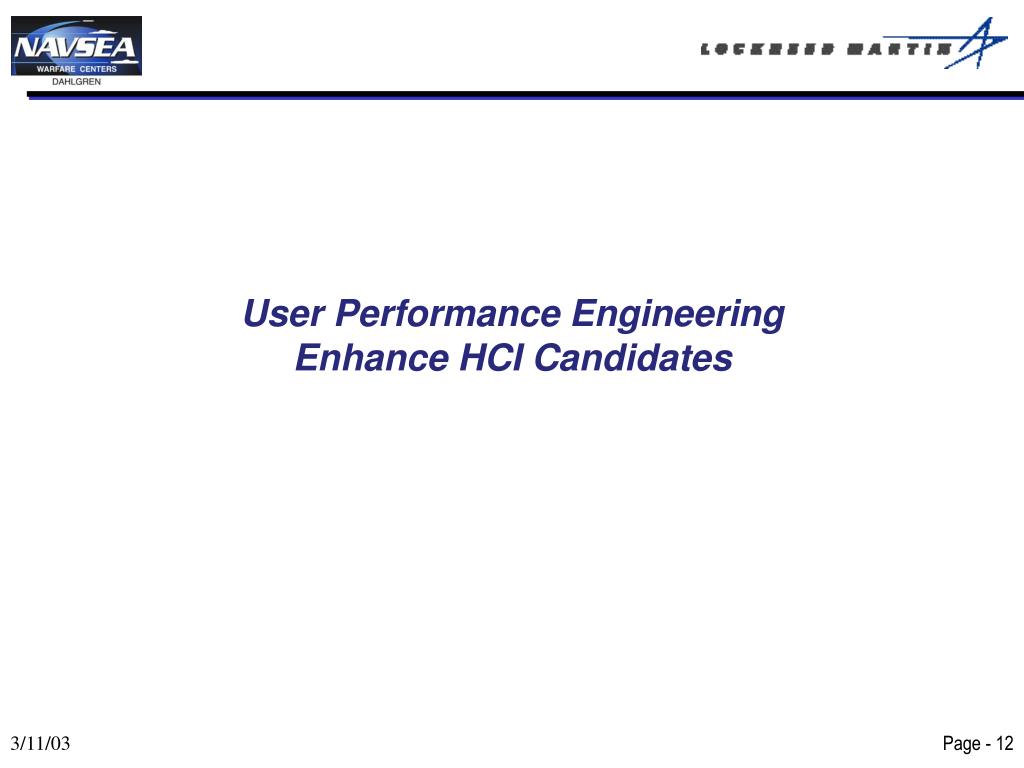

User performance engineering enhance hci candidates

User Performance EngineeringEnhance HCI Candidates


Ssa prioritized user centered design candidates

SSA-Prioritized User Centered Design Candidates


Upe13 enhance hci for tasking management overview

UPE13: Enhance HCI for Tasking Management Overview

  • Summary Description

    • Improve HCI that addresses Tasking Management using User Centered Design Process

      • Create / Edit Strike Package

      • Create / Edit Communications Plan

      • Validate ESP

      • Send / Edit Exception Report

  • Fleet Benefit

    • Improve ability to manually enter, modify and manage Strike Packages

      • Provides logical & sequential task flow to TTWCS HCI when creating, editing and validating Electronic Strike Packages (ESPs)

    • New Capabilities:

      • Reduce operator error rates when processing strike packages

      • Add Auto-Ready Spare to Assignment Type

      • Improve ability to create / modify the Communications Plan for a Strike Package

      • Provides logical & sequential task flow to TTWCS HCI

    • Improve process to reduce potential of operator error from causing Tasking conflicts

  • Fleet Importance: High

  • CR Summary

    • TOTAL:21

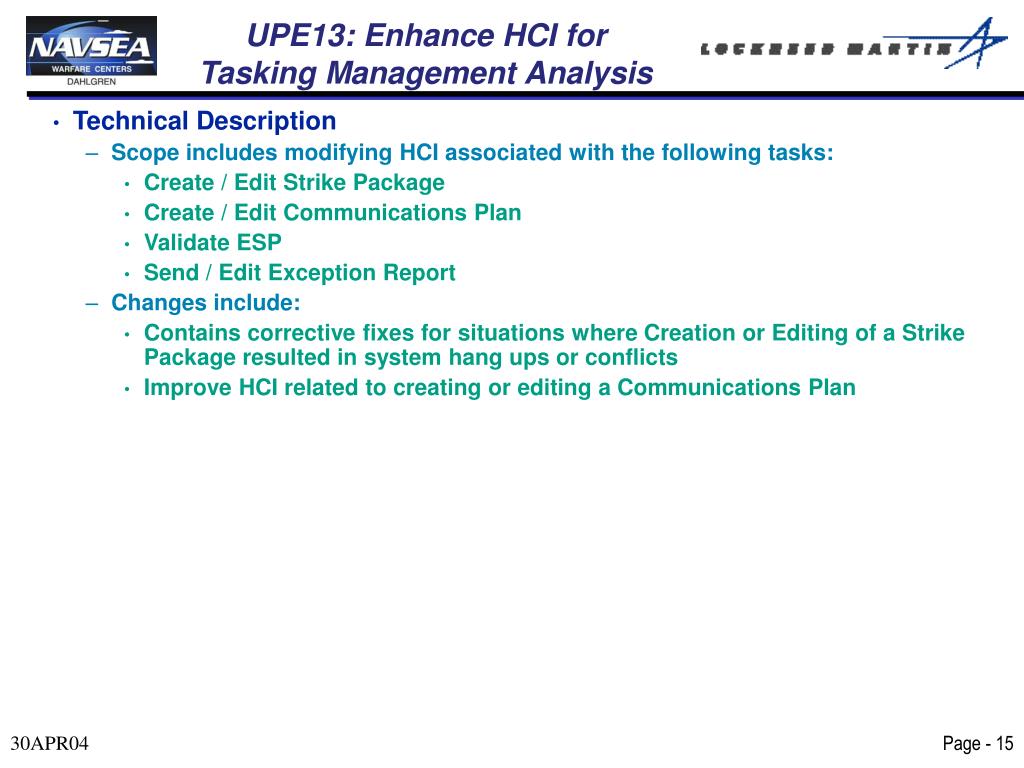

Upe13 enhance hci for tasking management analysis

UPE13: Enhance HCI for Tasking Management Analysis

  • Technical Description

    • Scope includes modifying HCI associated with the following tasks:

      • Create / Edit Strike Package

      • Create / Edit Communications Plan

      • Validate ESP

      • Send / Edit Exception Report

    • Changes include:

      • Contains corrective fixes for situations where Creation or Editing of a Strike Package resulted in system hang ups or conflicts

      • Improve HCI related to creating or editing a Communications Plan


Upe13 enhance hci for tasking management analysis1

UPE13: Enhance HCI for Tasking Management Analysis

  • Effort: Medium to High

  • External Dependencies: None

  • Risk: Medium-to-High

    • Technical Risk: Medium

    • Schedule Risk: Medium-to-High

  • Addresses 21 CRsEliminates 1 TIP entries


Upe14 enhance hci for engagement planning overview

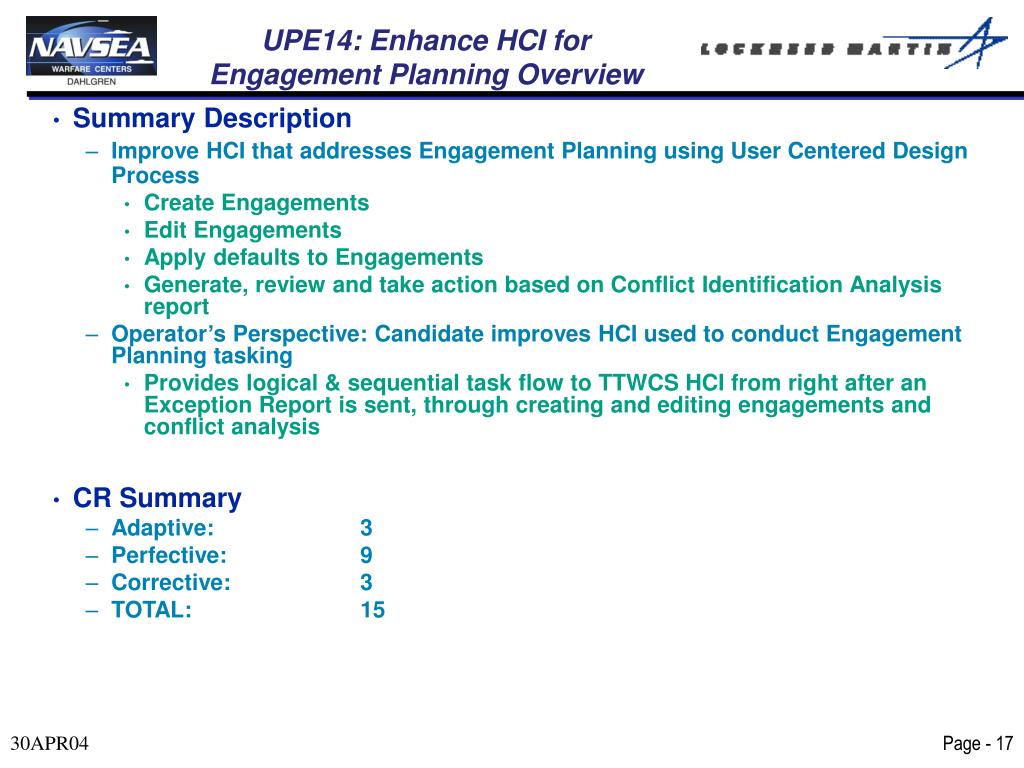

UPE14: Enhance HCI for Engagement Planning Overview

  • Summary Description

    • Improve HCI that addresses Engagement Planning using User Centered Design Process

      • Create Engagements

      • Edit Engagements

      • Apply defaults to Engagements

      • Generate, review and take action based on Conflict Identification Analysis report

    • Operator’s Perspective: Candidate improves HCI used to conduct Engagement Planning tasking

      • Provides logical & sequential task flow to TTWCS HCI from right after an Exception Report is sent, through creating and editing engagements and conflict analysis

  • CR Summary

    • Adaptive:3

    • Perfective:9

    • Corrective:3

    • TOTAL:15


Upe14 enhance hci for engagement planning analysis

UPE14: Enhance HCI for Engagement Planning Analysis

  • Technical Description

    • Scope includes modifying HCI associated with the following tasks:

      • Create Engagements

      • Edit Engagements

      • Apply defaults to Engagements

      • Generate, review and take action based on Conflict Identification Analysis report

    • New Capabilities:

      • Increased Automation of Waypoint Selection and Editing

      • Evaluate option to apply the current system planning parameters to selected engagements

      • Improve usability of the Conflict Analysis Report


Upe14 enhance hci for engagement planning analysis1

UPE14: Enhance HCI for Engagement Planning Analysis

  • Technical Description (cont)

    • Changes include:

      • Evaluate changing from AOU terminology to MTST Ellipse terminology

      • Evaluate displaying Block IV Branch ID in Engagement Window

      • Evaluate option to apply the current system planning parameters to selected engagements

      • Evaluate how to reference engagements (e.g., by MSN / TLD / Plan #) to provide for correlation across the system

      • Evaluate ability to globally Add option to apply changes to all existing engagements on the System Planning Parameters Window

      • Evaluate increased Automation of Waypoint Selection and Editing

        • Allow the operator to modify waypoints whenever they are selected without requiring "TLAM PLAN" window to be displayed before the operator can do anything to waypoints graphically.

        • Allow overriding the flight path without selecting "manual" from the TLAM PLAN window.


Upe14 enhance hci for engagement planning analysis2

UPE14: Enhance HCI for Engagement Planning Analysis

  • Fleet Benefit

    • Improve ability to edit Engagements and apply default parameters

    • Improve the way engagements are referenced to allow for easier tracking of an engagement from creation to execution

    • Reduce chances of human error by simplifying process and improving tracking of engagements

  • Fleet Importance: High

  • Effort: Medium

  • External Dependencies: None

  • Risk: Medium

  • Addresses 15 CRsEliminates 0 TIP entries


Upe15 enhance hci for engagement review and approval overview

UPE15: Enhance HCI for Engagement Review and Approval Overview

  • Summary Description

    • Improve HCI that addresses Engagement Review and Approval using User Centered Design Process

      • Review Engagements

      • Approve Engagements

      • Send SCOs

      • Operator’s Perspective: Candidate improves HCI used to conduct Engagement Review and Approval

      • Provides logical & sequential task flow to TTWCS HCI used to conduct Engagement Review and Approval including sending SCOs.

    • New Capabilities:

      • Facilitate process and show status of all engagement reviews

      • Improve the process to send SCOs off-hull

  • CR Summary

    • Adaptive:0

    • Perfective:2

    • Corrective:0

    • TOTAL:2


Upe15 enhance hci for engagement review and approval analysis

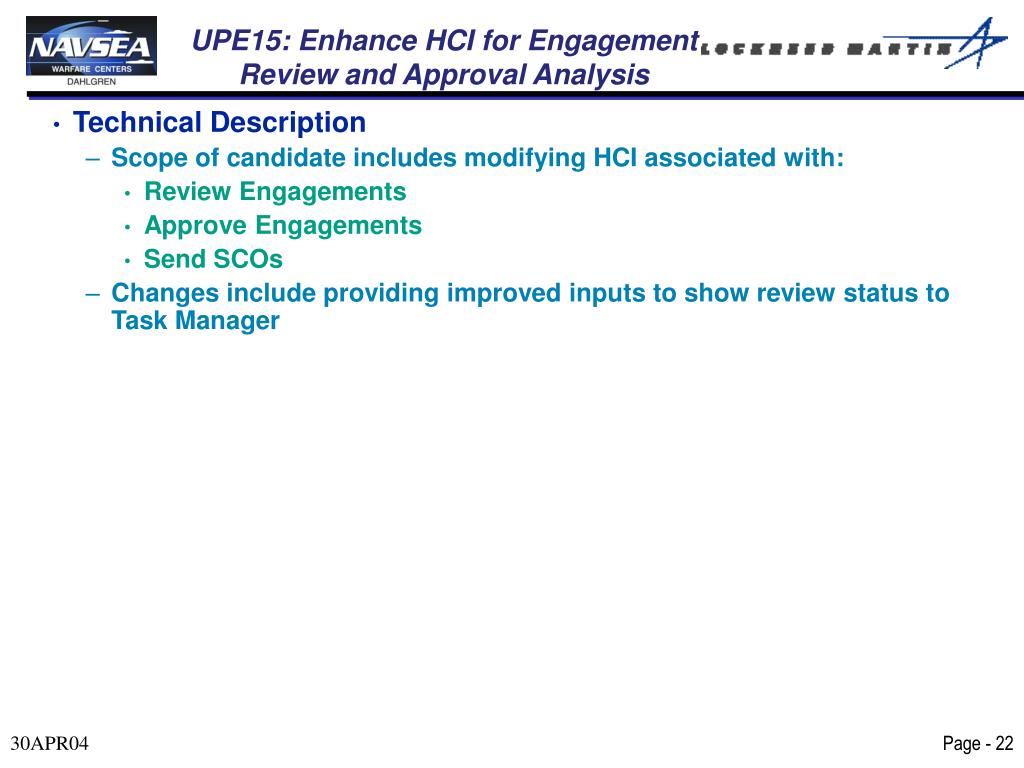

UPE15: Enhance HCI for Engagement Review and Approval Analysis

  • Technical Description

    • Scope of candidate includes modifying HCI associated with:

      • Review Engagements

      • Approve Engagements

      • Send SCOs

    • Changes include providing improved inputs to show review status to Task Manager


Upe15 enhance hci for engagement review and approval analysis1

UPE15: Enhance HCI for Engagement Review and Approval Analysis

  • Fleet Benefit

    • Reduce chances of human error by simplifying process and improving tracking of engagements

  • Fleet Importance: Medium

  • Effort: Medium

  • External Dependencies: None

  • Risk: Low

  • Addresses 2 CRsEliminates 0 TIP entries


Upe16 enhance hci for missile selection and preparation overview

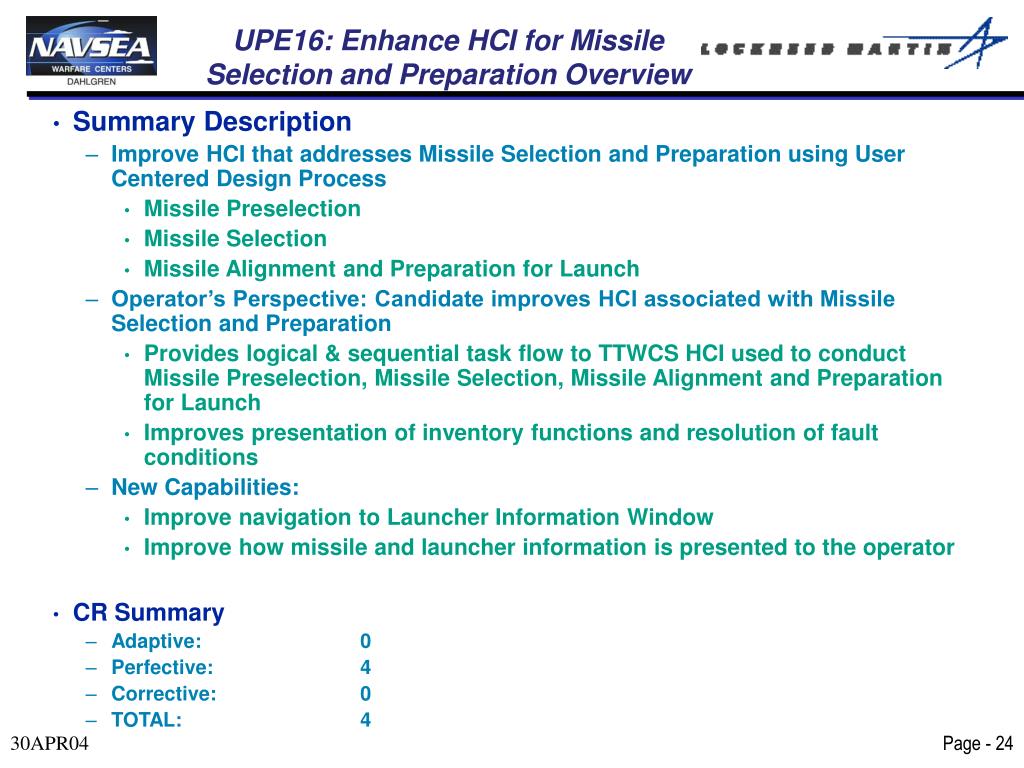

UPE16: Enhance HCI for Missile Selection and Preparation Overview

  • Summary Description

    • Improve HCI that addresses Missile Selection and Preparation using User Centered Design Process

      • Missile Preselection

      • Missile Selection

      • Missile Alignment and Preparation for Launch

    • Operator’s Perspective: Candidate improves HCI associated with Missile Selection and Preparation

      • Provides logical & sequential task flow to TTWCS HCI used to conduct Missile Preselection, Missile Selection, Missile Alignment and Preparation for Launch

      • Improves presentation of inventory functions and resolution of fault conditions

    • New Capabilities:

      • Improve navigation to Launcher Information Window

      • Improve how missile and launcher information is presented to the operator

  • CR Summary

    • Adaptive:0

    • Perfective:4

    • Corrective:0

    • TOTAL:4


Upe16 enhance hci for missile selection and preparation analysis

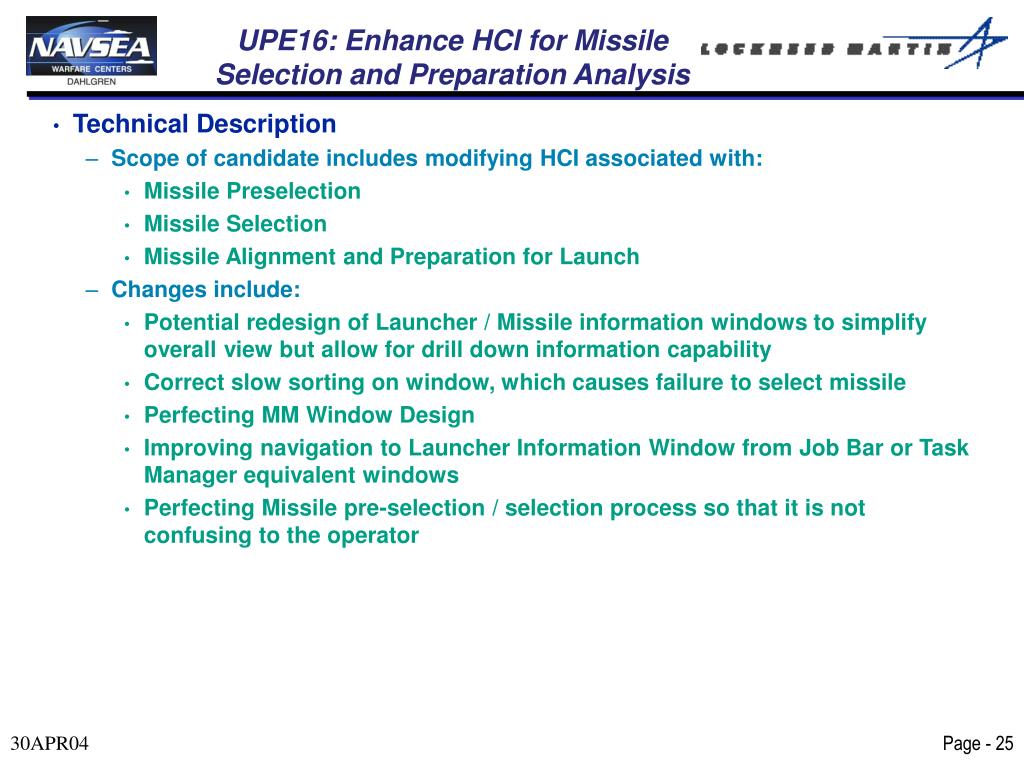

UPE16: Enhance HCI for Missile Selection and Preparation Analysis

  • Technical Description

    • Scope of candidate includes modifying HCI associated with:

      • Missile Preselection

      • Missile Selection

      • Missile Alignment and Preparation for Launch

    • Changes include:

      • Potential redesign of Launcher / Missile information windows to simplify overall view but allow for drill down information capability

      • Correct slow sorting on window, which causes failure to select missile

      • Perfecting MM Window Design

      • Improving navigation to Launcher Information Window from Job Bar or Task Manager equivalent windows

      • Perfecting Missile pre-selection / selection process so that it is not confusing to the operator


Upe16 enhance hci for missile selection and preparation analysis1

UPE16: Enhance HCI for Missile Selection and Preparation Analysis

  • Fleet Benefit

    • Make Missile Selection process more intuitive

    • Allow greater capability to use Cell Allocation as a planning tool

  • Fleet Importance: Medium

  • Effort: Medium

  • External Dependencies: None

  • Risk: Medium

  • Addresses 4 CRsEliminates 0 TIP entries


Upe17 enhance hci for mission execution overview

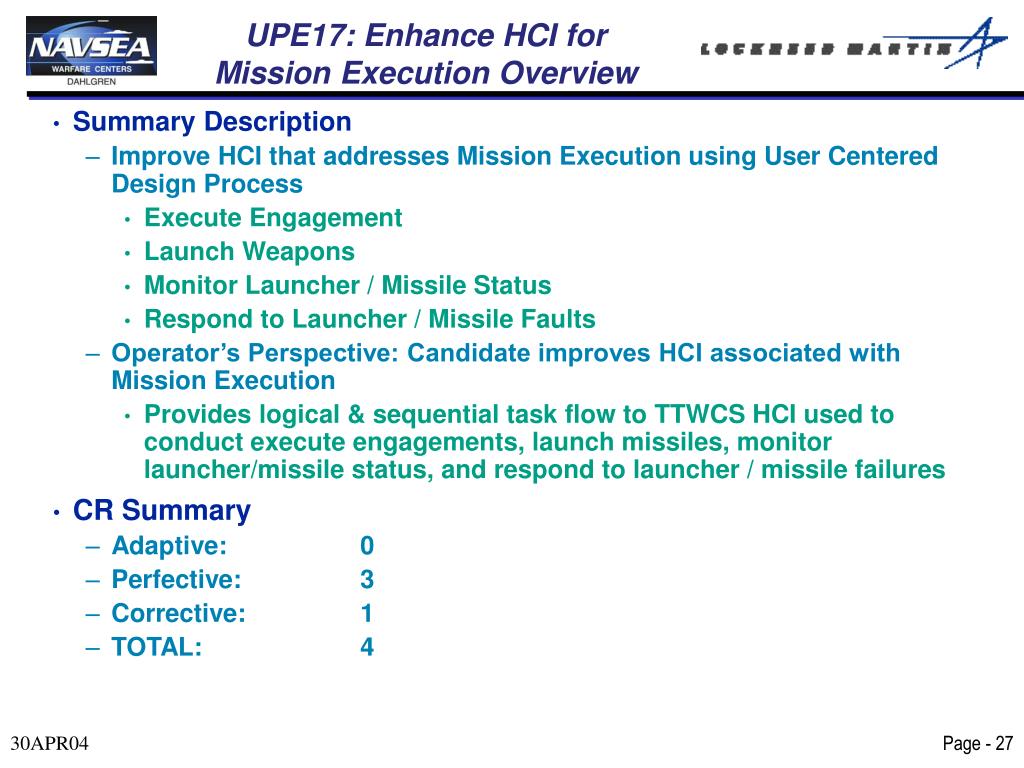

UPE17: Enhance HCI forMission Execution Overview

  • Summary Description

    • Improve HCI that addresses Mission Execution using User Centered Design Process

      • Execute Engagement

      • Launch Weapons

      • Monitor Launcher / Missile Status

      • Respond to Launcher / Missile Faults

    • Operator’s Perspective: Candidate improves HCI associated with Mission Execution

      • Provides logical & sequential task flow to TTWCS HCI used to conduct execute engagements, launch missiles, monitor launcher/missile status, and respond to launcher / missile failures

  • CR Summary

    • Adaptive:0

    • Perfective:3

    • Corrective:1

    • TOTAL:4


Upe17 enhance hci for mission execution analysis

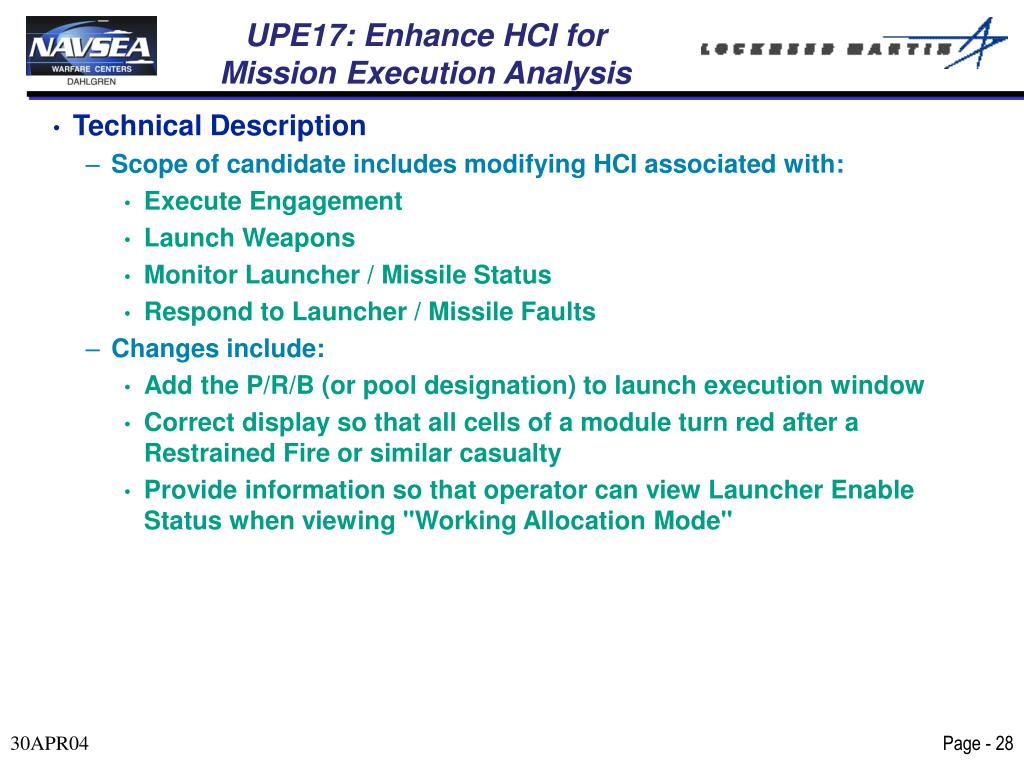

UPE17: Enhance HCI forMission Execution Analysis

  • Technical Description

    • Scope of candidate includes modifying HCI associated with:

      • Execute Engagement

      • Launch Weapons

      • Monitor Launcher / Missile Status

      • Respond to Launcher / Missile Faults

    • Changes include:

      • Add the P/R/B (or pool designation) to launch execution window

      • Correct display so that all cells of a module turn red after a Restrained Fire or similar casualty

      • Provide information so that operator can view Launcher Enable Status when viewing "Working Allocation Mode"


Upe17 enhance hci for mission execution analysis1

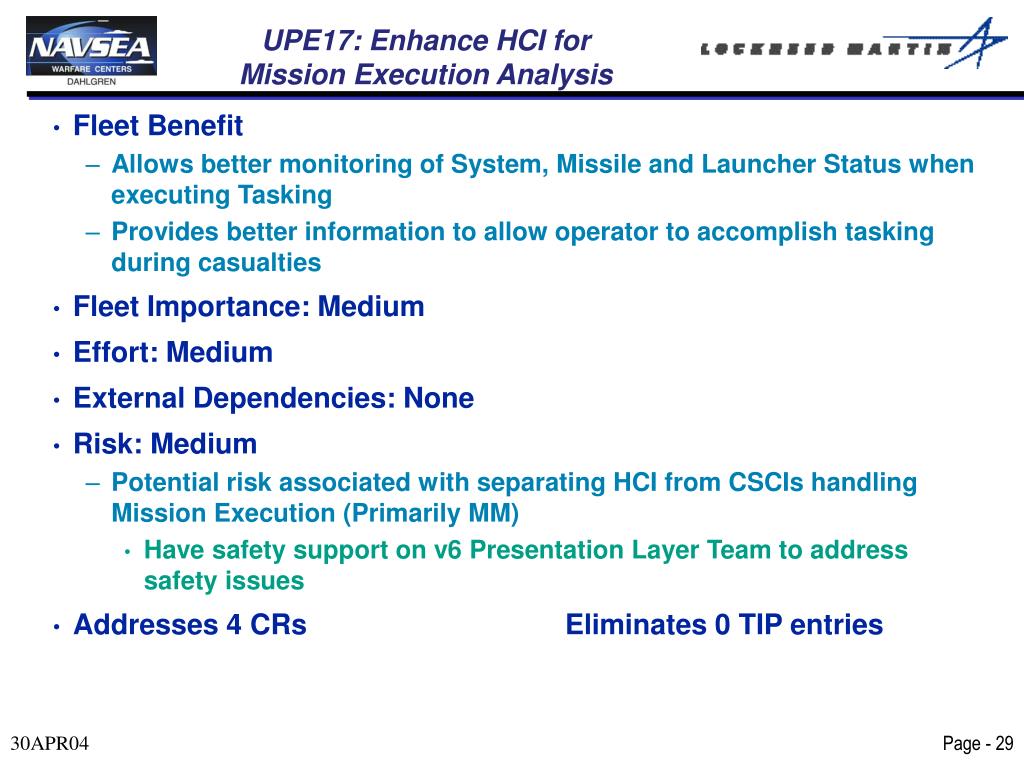

UPE17: Enhance HCI forMission Execution Analysis

  • Fleet Benefit

    • Allows better monitoring of System, Missile and Launcher Status when executing Tasking

    • Provides better information to allow operator to accomplish tasking during casualties

  • Fleet Importance: Medium

  • Effort: Medium

  • External Dependencies: None

  • Risk: Medium

    • Potential risk associated with separating HCI from CSCIs handling Mission Execution (Primarily MM)

      • Have safety support on v6 Presentation Layer Team to address safety issues

  • Addresses 4 CRsEliminates 0 TIP entries


Upe18 enhance hci for onboard mission planning overview

UPE18: Enhance HCI for Onboard Mission Planning Overview

  • Summary Description

    • Improve HCI that addresses Onboard Mission Planning using User Centered Design Process

      • Create LPMP Missions

      • Generate exception reports for LPMPs

      • Perform ACMS accountability Tasking

    • Operator’s Perspective: Candidate improves HCI used to execute CFF missions and create LPMPs associated with Onboard Mission Planning

      • Provides logical & sequential task flow to TTWCS HCI used to to execute CFF missions and create LPMPs

  • CR Summary

    • Adaptive:0

    • Perfective:4

    • Corrective:4

    • TOTAL:8


Upe18 enhance hci for onboard mission planning analysis

UPE18: Enhance HCI for Onboard Mission Planning Analysis

  • Technical Description

    • Scope of candidate includes modifying HCI associated with:

      • Create LPMP Missions

      • Generate exception report for LPMPs

      • Perform ACMS accountability functions

    • Changes include:

      • May result in modification to CFF and LPMP Mission Creation windows

      • Communicate overlays change to TcC

      • LPMP Creation/FPPWP Entry FPPWP Altitude Discrepancy

      • Correct window to remove implication that LPMP will calculate a loiter altitude

      • Enhancement to auto exception reports and mission creation

      • Allow only valid inputs to the LPMP Altitude entry box in Operator Controls

      • Fix status returned for LPMP retarget failure due to Tc2Mh LOC


Upe18 enhance hci for onboard mission planning analysis1

UPE18: Enhance HCI for Onboard Mission Planning Analysis

  • Fleet Benefit

    • Allow for more intuitive creation of LPMP missions and other Onboard Mission Planning functions to result in more reliable results

  • Fleet Importance: Medium

  • Effort: Medium

  • External Dependencies: None

  • Risk: Medium

  • Addresses 21 CRsEliminates 1 TIP entries


Upe19 enhance hci for post launch management overview

UPE19: Enhance HCI for Post Launch Management Overview

  • Summary Description

    • Enhance HCI associated with Post Launch Management

      • Monitor In-Flight Missiles

      • Flex In-Flight Missiles

      • Redirect In-Flight Missiles

    • Operator’s Perspective: Candidate improves HCI used to conduct post launch management

      • Provides logical & sequential task flow to TTWCS HCI used to monitor in-flight missiles, flex in-flight missiles, and redirect in-flight missiles

  • CR Summary

    • Adaptive:1

    • Perfective:12

    • Corrective:8

    • TOTAL:21


Upe19 enhance hci for post launch management analysis

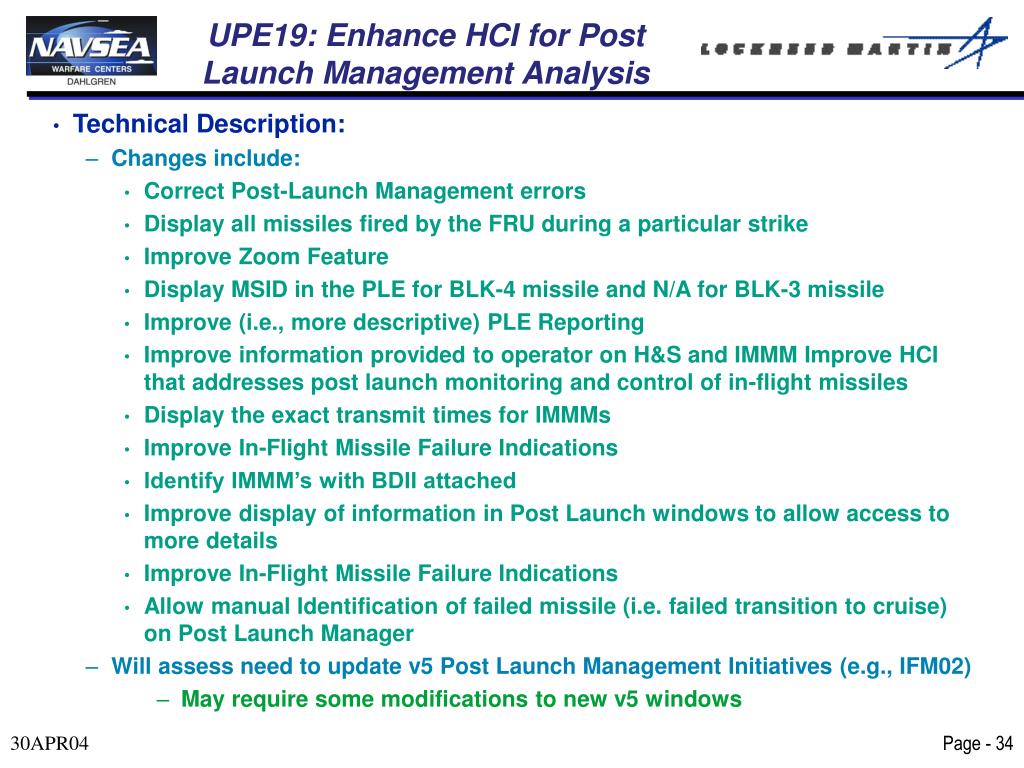

UPE19: Enhance HCI for Post Launch Management Analysis

  • Technical Description:

    • Changes include:

      • Correct Post-Launch Management errors

      • Display all missiles fired by the FRU during a particular strike

      • Improve Zoom Feature

      • Display MSID in the PLE for BLK-4 missile and N/A for BLK-3 missile

      • Improve (i.e., more descriptive) PLE Reporting

      • Improve information provided to operator on H&S and IMMM Improve HCI that addresses post launch monitoring and control of in-flight missiles

      • Display the exact transmit times for IMMMs

      • Improve In-Flight Missile Failure Indications

      • Identify IMMM’s with BDII attached

      • Improve display of information in Post Launch windows to allow access to more details

      • Improve In-Flight Missile Failure Indications

      • Allow manual Identification of failed missile (i.e. failed transition to cruise) on Post Launch Manager

    • Will assess need to update v5 Post Launch Management Initiatives (e.g., IFM02)

      • May require some modifications to new v5 windows


Upe19 enhance hci for post launch management analysis1

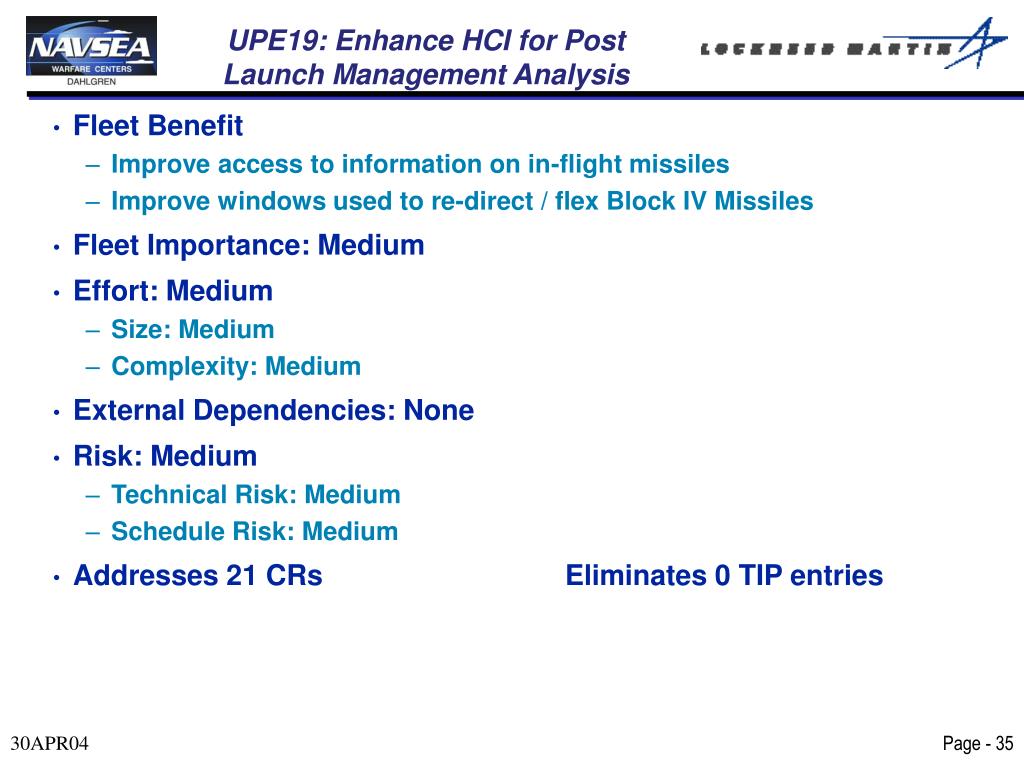

UPE19: Enhance HCI for Post Launch Management Analysis

  • Fleet Benefit

    • Improve access to information on in-flight missiles

    • Improve windows used to re-direct / flex Block IV Missiles

  • Fleet Importance: Medium

  • Effort: Medium

    • Size: Medium

    • Complexity: Medium

  • External Dependencies: None

  • Risk: Medium

    • Technical Risk: Medium

    • Schedule Risk: Medium

  • Addresses 21 CRsEliminates 0 TIP entries


Upe12 enhance hci for maintaining situational awareness overview

UPE12: Enhance HCI for Maintaining Situational Awareness Overview

  • Summary Description

    • Enhance existing/develop new HCI to improve situational awareness:

      • Maintain Task-Specific Situational Awareness (TTWCS Operator Viewpoint)

      • Maintain Team Supervisor Situational Awareness (ECO/TAO/CO Viewpoint)

  • Fleet Benefit

    • Provide better Situational Awareness of Strike Status and required actions to the TTWCS operator

    • Improve supervisory-level summary displays

      • Drill-Down and De-cluttering capabilities

      • Provide max-follow on salvo size

    • Standardization nomenclature on new/modified v6 Windows (e.g., eliminate “LAC-C” terminology)

    • Provides logical & sequential task flow to TTWCS HCI

  • Fleet Importance: High

  • CR Summary

    • Adaptive:9

    • Perfective:5

    • Corrective:0

    • TOTAL:14


  • Upe12 enhance hci for maintaining situational awareness analysis

    UPE12: Enhance HCI for Maintaining Situational Awareness Analysis

    • Technical Description

      • Potential redesign of “Task Manager”

        • Includes making Engagement Status more clear on TM

        • Improve sorting features

      • Potential redesign of “TTWCS Summary Display”

        • Add Drill Down capability, Max Follow-on Salvo, De-cluttering features, Pre-Planned missions and Launch Basket and Composite Launch Basket to this display

        • Improve ability to evaluate missile flight path by providing single screen that shows:

          • Correct missile path

          • Accurate land masses

          • Display stand-off distances per LAC intentions

          • All airspace control measures

        • Will not require the addition of any digital chart interfaces currently not used by TTWCS

        • Improve nomenclature on new/modified v6 Windows

        • Use fleet terminology consistently (e.g. Eliminate “LAC” references and use NTTP standard naming format

        • Use consistent reference of “Plan” or “Engagement” across system

        • Improve the way Plan # / TLD / MSN is shown across system.


    Upe12 enhance hci for maintaining situational awareness analysis1

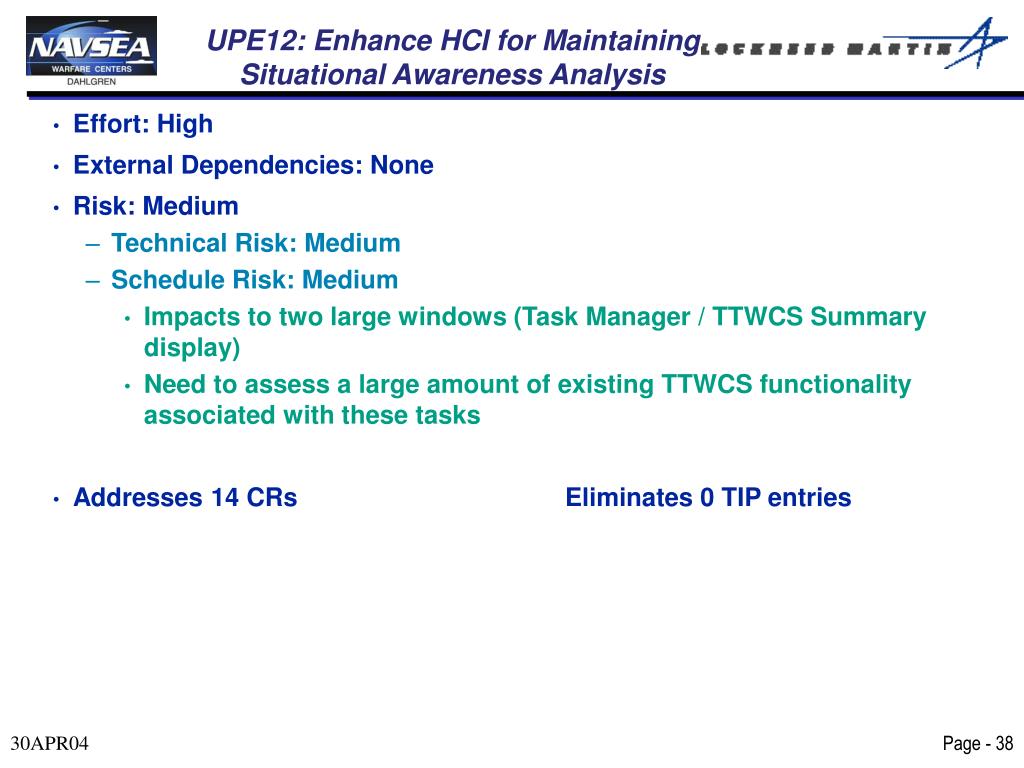

    UPE12: Enhance HCI for Maintaining Situational Awareness Analysis

    • Effort: High

    • External Dependencies: None

    • Risk: Medium

      • Technical Risk: Medium

      • Schedule Risk: Medium

        • Impacts to two large windows (Task Manager / TTWCS Summary display)

        • Need to assess a large amount of existing TTWCS functionality associated with these tasks

    • Addresses 14 CRsEliminates 0 TIP entries


    Other enhance hci candidates upe21 22 23 24

    Other Enhance HCI Candidates (UPE21, 22, 23 & 24)

    • Enhance HCI for Pre-Strike/Post-Strike Activities (UPE21)

      • Provides an improved operator interface for conducting pre-strike and post strike duties

    • Enhance HCI for System Administration (UPE22)

      • Provides an improved operator interface for system administration duties

    • Improve User Efficiency for Training (UPE23)

      • Improves Training windows

    • Enhance HCI for PML Management (UPE24)

      • Provides an improved operator interface for management of the PML


  • Login
