DASE ContentAuthoring SystemTVPLUSi™ Station

Deok-jung Kim

Aircode

[email protected]


Contents

Contents

  • DASE Application vs. Internet Application

  • What’s possible withDASE

  • Dynamic Content: The Real World

  • Set-Top-Box: the other half

  • Resource needed for DASE Applications

  • Cost Effectiveness

  • DASE Experience

CDTV: ATSC Seminar


Itv dase vs internet

iTV (DASE) vs. Internet

  • TV is relax media but PC is intensive media

  • Internet always online, TV is broadcast defined

  • Internet (PC) Application runs on more powerful H/W then DTV

  • DASE: 1 page browser, Internet: scrollable.

CDTV: ATSC Seminar


What s possible with dase

What’s possible with DASE

  • Program dependent data service:

    • Contents and applications selected to maximize relevancy and compelling complement to A/V content

    • Example: Music, Drama

CDTV: ATSC Seminar


What s possible with dase1

What’s possible with DASE

  • Program dependent data service :

    • Example: Quiz, Sports

CDTV: ATSC Seminar


What s possible with dase2

What’s possible with DASE

  • Program independent data service with A/V

    • Normal DTV program will include data services.

    • Weather Service, Stock Service, etc.

CDTV: ATSC Seminar


What s possible with dase3

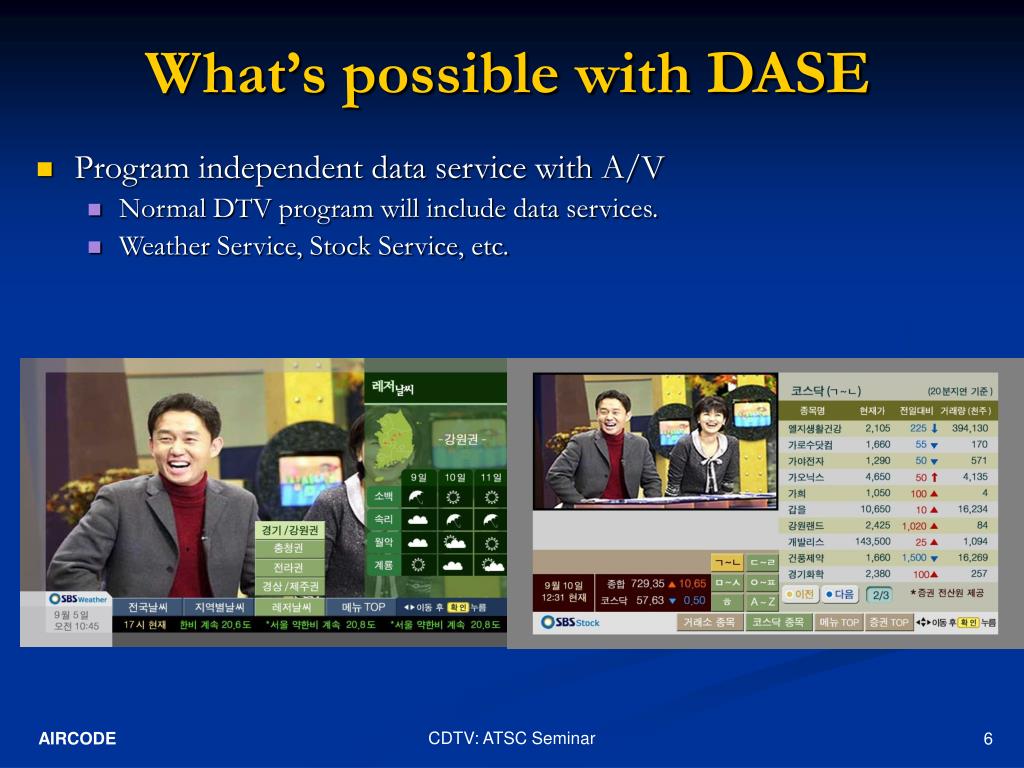

What’s possible with DASE

  • Data-only Virtual Channel without A/V

    • Low cost ; no A/V

    • Needs to be highly attractive and useful

    • Example: Education, Game

CDTV: ATSC Seminar


What s possible with dase4

What’s possible with DASE

  • Data-only Virtual Channel with out A/V

    • Example: Game, Weather, Traffic, etc.

CDTV: ATSC Seminar


Dynamic content the real world

Dynamic Content: The Real World

  • Dynamic data delivery protocol in DASE Specification

    • Addressable section

    • Carousel update

    • Stream event

  • Application must be able to handle dynamic data

  • Dynamic data pushing system

  • Data Gathering from 3rd data source

    • Various database formats

  • Testing/Verifying System and Environment

CDTV: ATSC Seminar


Consideration of set top box

Consideration of Set-Top-Box

  • Environment Limitations

    • CPU power: 200MIPS – Pentium, 100Mhz; Memory

    • Middleware optimization

  • Font - unpredictable layout concerns

    • Metrics

    • Screen resolution (DPI): 72DPI – 1:1 Pixel/pt, optimized resolution

    • Outline font

  • Content Size

    • Images and Text data

    • STB available memory

    • Bandwidth: range 1Mbps ~ 500kbps

  • Color depth and color palette: safe zone: 256. Compelling content need > 16bit color

  • Remote control

    • Color button order

    • Navigation: Direction Key , Pointing device (mouse type)

  • Overlap policy of translucent with AWT Graphic and Image

CDTV: ATSC Seminar


Resources for dase application

Resources for DASE Application

  • Human resources

    • Content producer

    • XDML Programmer, Java Programmer

    • Designer

    • DB Engineer

    • System Engineer

  • Equipments

    • Graphic tool

    • Programming tool

    • Head-end Server System (PSIP,MUX,REMUX,Modulator…etc. )

  • Content Providers

    • Various DBMS and DB Schema

    • DB or System Engineer

CDTV: ATSC Seminar


Typical head end system

Typical Head-end system

KBS Head-end System

CDTV: ATSC Seminar


Cost effectiveness

Cost Effectiveness

  • Authoring tool

    • For Non-engineers: Designers, non Java/XDML programming ability

    • Re-usability

    • Quick to make DASE Application

    • No education cost. For DASE and Java, XML…

  • Testing Head-end System: verifier

    • Simple : low cost broadcasting equipment

    • Easy to use : no system engineer

    • Immediately inject data and cast to STB for reduce testing time and effort.

  • Dynamic content connection with Content Provider : DCS

    • Universal dynamic content server

    • XML, DB, Text format data input

    • Various DB connectivity

    • Easy to use : no system engineer need.

CDTV: ATSC Seminar


Tvplusi station

TVPLUSi™ Station

CDTV: ATSC Seminar


Tvplusi author

TVPLUSi™ Author

  • Designed for designers

  • Market tested in rigors of actual deployment

  • Support for real-time content: Key benefit in World Cup, Asian Game

  • Features

    • Easy-to-use graphics user interface (GUI)

    • Import images created by popular 3rd party tools

    • Color preview simulation allows view of content’s color as it will appear on client STB

    • ‘master page’ that can lessen workload

    • ‘widget’ makes modifying contents easier than ever

    • Convenient TV resizing to place Audio Visual anywhere

CDTV: ATSC Seminar


Tvplusi author1

TVPLUSi™ Author

  • Default library of images

  • Preview simulator

  • Code generation

    • output format : source code, not only byte code

  • Optimization: Code, graphic, palette

  • Automatic ‘same image scan’ optimize content size

  • Automatic AWT graphic generation reduces graphic size

  • In-house vector drawing graphic engine

  • Automatic control of MPEG2 i-frame

  • Hardware Abstract Layer ( different STB H/W)

  • Built-in real-time data encapsulation

    • Real time application data update interoperate with Aircode’s dynamic content server

CDTV: ATSC Seminar


Tvplusi verifier

TVPLUSi™ Verifier

  • Portable all-in-one system capable of transmission and STB interoperability testing of iTV contents that integrate data broadcasting system and digital broadcasting system

  • Proven in market as indispensably effective tool to verify content before live broadcast

  • Features(in case of ATSC-DASE)

    • Generate PSIP/SDF

    • Inject data carousel, addressable section encoded data into Mux or ReMux

    • Pump MPEG-2 SPTS, MPTS

    • Embedded DASE data encoder

    • SMPTE-310M TS output

    • Digital Video Storage: > 20GB Ultra DMA

    • PCI type 8VSB Modulator

CDTV: ATSC Seminar


Tvplusi dcs

TVPLUSi™ DCS

  • Real-time application server

  • Provides input gathering and editing interface for multi content provider’s data

  • Provides dynamic contents transformation through synchronizing with various external format(DB,XML,Text…)

  • Provides minimized and practical real-time service situation by enhancing with TVPLUS i ™ Verifier

  • Input format

    • DB(Oracle, Sybase,..ODBC), Text file, XML, AAT(TVPLUS i™ Author)

  • Output format: text, XML

  • Output : TVPLUS i™ Verifier, TVPLUS i™ Server

CDTV: ATSC Seminar


Dase experience

DASE Experience

  • 2002 World Cup

Background image

AV area

Contents area

Navigation Menu

  • Top menu

  • Full screen

  • Exit

Service Menu

Weather

World Cup news

Weather

Traffic

Data broadcast Info.

Kid’s game

Game

CDTV: ATSC Seminar


Dase experience1

DASE Experience

  • 2002 Asian Game

Today

Schedule:

Swimming

Menu: Today schedule, Ranking, Asian Game Info., News

using color button.

CDTV: ATSC Seminar


Dase experience2

DASE Experience

  • SBS weather, news, stock, traffic service

Map

Weather

Sub menu:

Local Selection

Date & Clock

Main Manu : National weather, local weather, Laser weather, top menu

CDTV: ATSC Seminar


Thank you

Thank you

  • Questions?

    • Contact: DeokJung Kim

    • Email: [email protected]

CDTV: ATSC Seminar
