  1. Silhouette Clipping Pedro V. Sander Xianfeng Gu Steven J. Gortler Harvard University Hugues H. Hoppe John M. Snyder Microsoft Research

  2. poorsilhouette + texture/bump map Mesh simplification original mesh coarse mesh

  3. Silhouette clipping original mesh coarse mesh + texture/bump map silhouette clipped

  4. Silhouette clipping original mesh coarse mesh + texture/bump map silhouette clipped

  5. Silhouette clipping demo

  6. Overview coarse mesh rendered original mesh normal map [Soucy et al 96] [Cignoni et al 98] [Cohen et al 98] Preprocess Runtime

  7. Overview coarse hull rendered original mesh normal map stencil mask 2D silhouette edge hierarchy Preprocess Runtime

  8. Overview coarse hull rendered silhouetteclipped original mesh normal map 2D silhouette edge hierarchy Preprocess Runtime

  9. Major contributions • Progressive hull • Texture creation • Silhouette extraction • Stencil setting

  10. Major contributions • Progressive hull • Texture creation • Silhouette extraction • Stencil setting

  11. Major contributions • Progressive hull • Texture creation • Silhouette extraction • Stencil setting

  12. Major contributions • Progressive hull • Texture creation • Silhouette extraction • Stencil setting

  13. Major contributions • Progressive hull • Texture creation • Silhouette extraction • Stencil setting

  14. Coarse hull Original mesh Coarse hull Given mesh, create coarse mesh that encloses it.

  15. Progressive hull • Progressive mesh sequence • Every mesh encloses all finer meshes.

  16. Edge collapse • Perform greedy sequence of collapses. • Ensure new mesh encloses old mesh: Linear programming problem Mi Mi-1

  17. Linear programming (2D)

  18. Linear programming (2D)

  19. Linear programming (2D)

  20. Linear programming (2D)

  21. Linear programming (2D)

  22. Linear programming (2D)

  23. Linear programming (2D) new vertexposition

  24. Linear programming (2D)

  25. Progressive hull demo

  26. Texture creation coarse hull rendered [Cignoni et al 98] [Soucy et al 96] original mesh normal map

  27. Texture creation vertex normals coarse original closest-point [Cignoni et al 98] normal-shooting Ours

  28. Silhouette extraction Given mesh and viewpoint, return edges on silhouette.

  29. What is a silhouette edge? • Edge is on silhouette iff one adjacent triangle faces towards viewpoint: not silhouette silhouette

  30. Related schemes • [Markosian et al 97]probabilistic • [Gooch et al 99] assumes orthographic view • [Barequet et al 99] [Hertzmann & Zorin 00] dual-space formulation • [Kumar et al 96] [Johannsen & Carter 98] backface culling • Ours: optimized hierarchy of anchored conesextracts 3,500 sil edges of 100,000 edges at 250 fps

  31. Hierarchical culling • Each node contains: • cluster of mesh edges • spatial culling primitive

  32. Hierarchical culling • Each node contains: • cluster of mesh edges • spatial culling primitive

  33. Spatial culling primitive Given cluster of edges,check if there are no silhouette edges. True if adjacent triangles are all front-facing or all back-facing. 2D cross-section

  34. Spatial culling primitive Given cluster of edges,check if there are no silhouette edges. True if adjacent triangles are all front-facing or all back-facing. 2D cross-section

  35. Spatial culling primitive Given cluster of edges,check if there are no silhouette edges. True if adjacent triangles are all front-facing or all back-facing.

  36. Spatial culling primitive Given cluster of edges,check if there are no silhouette edges. True if adjacent triangles are all front-facing or all back-facing.

  37. Spatial culling primitive Given cluster of edges,check if there are no silhouette edges. True if adjacent triangles are all front-facing or all back-facing.

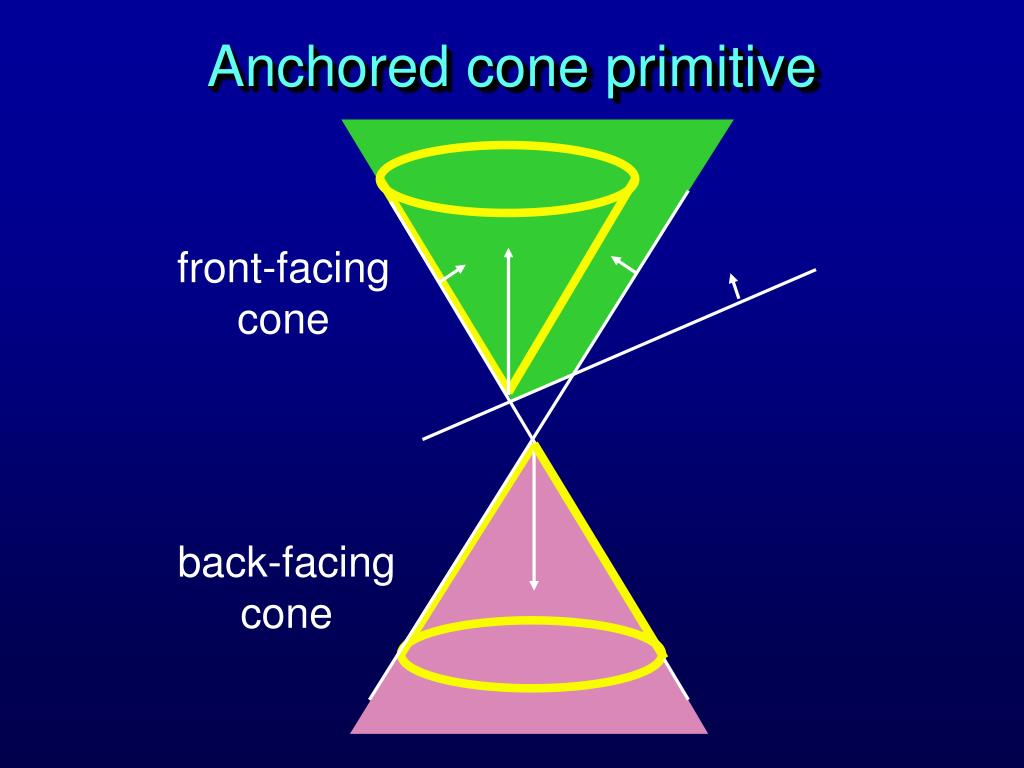

  38. Anchored cone primitive front-facing cone back-facing cone

  39. Anchored cone primitive • Calculate central axisGilbert’s algorithm • Calculate cone angle • Calculate anchor positionsLinear programming

  40. Anchored cone primitive • Calculate central axisGilbert’s algorithm • Calculate cone angle • Calculate anchor positionsLinear programming

  41. Anchored cone primitive • Calculate central axisGilbert’s algorithm • Calculate cone angle • Calculate anchor positionsLinear programming

  42. Hierarchy construction • Bottom-up greedy joining two clusters parent merge adopt

  43. Hierarchy construction • Each root has probability of culling. • We compute an expected extraction cost for each root, and the forest. • Choose next join operation to maximally decrease expected extraction cost.

  44. Silhouette extraction video

  45. Performance

  46. Performance

  47. Performance

  48. Performance

  49. Performance

  50. Performance
