Presentation Transcript


Roaming mo sms billing

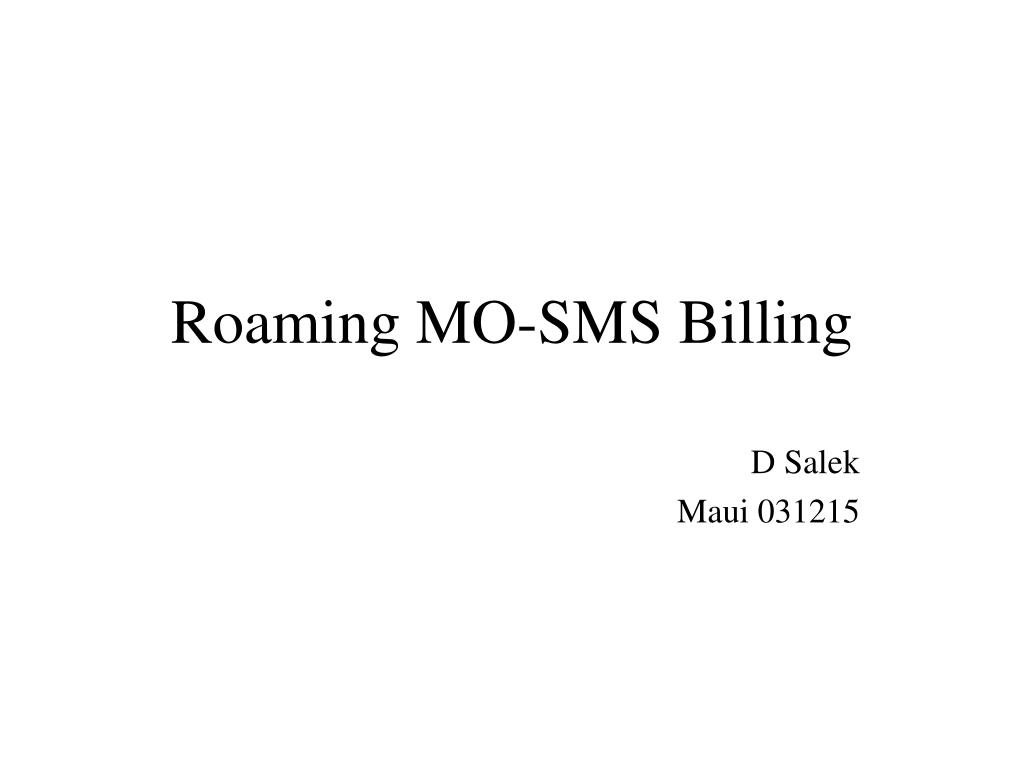

Roaming MO-SMS Billing

D Salek

Maui 031215


Contents

Contents

  • Assumptions

  • Message Flow

  • Intercarrier billing

  • Subscriber Billing

  • Next Steps


Assumptions

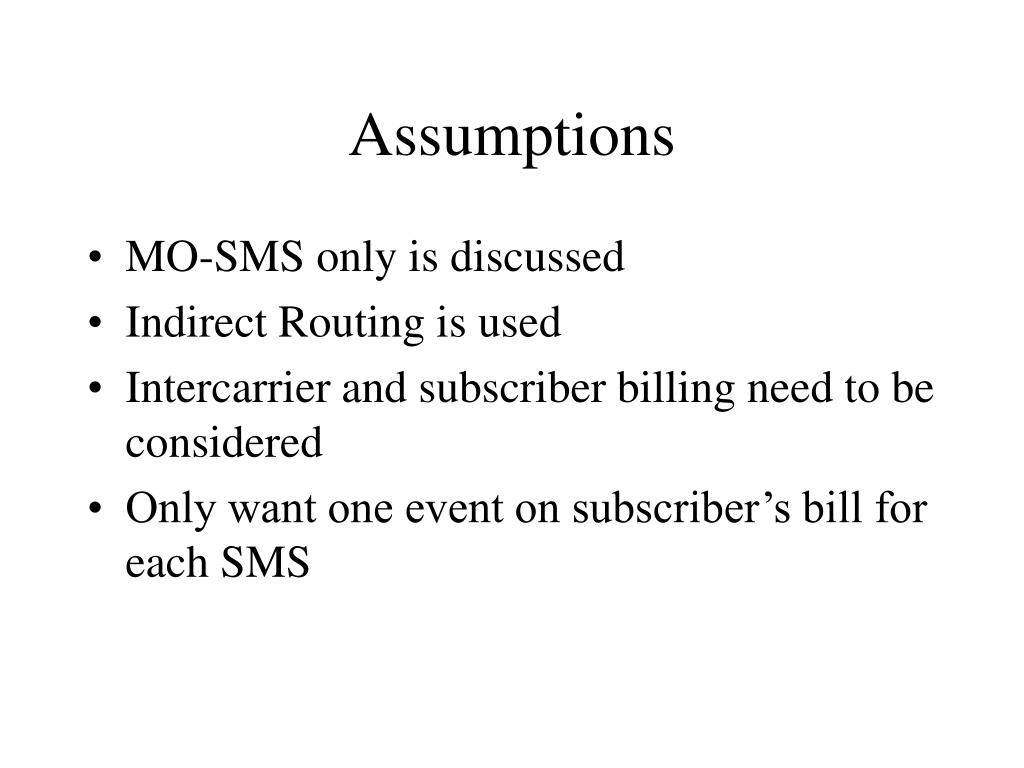

Assumptions

  • MO-SMS only is discussed

  • Indirect Routing is used

  • Intercarrier and subscriber billing need to be considered

  • Only want one event on subscriber’s bill for each SMS


Message flow

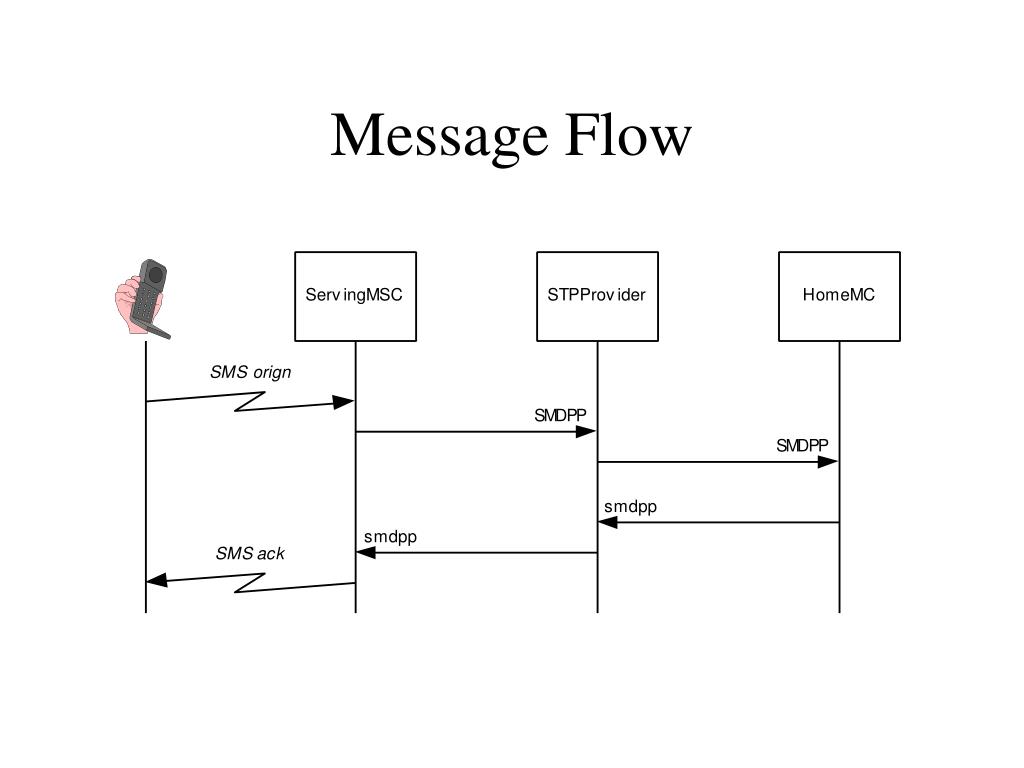

Message Flow


Intercarrier settlement

Intercarrier Settlement

Options

  • Bill-and-keep

  • Estimate usage based on inbound roamers

  • STP report

  • Rely on home carrier

  • MSC generate CDR


Telstra mo sms ciber

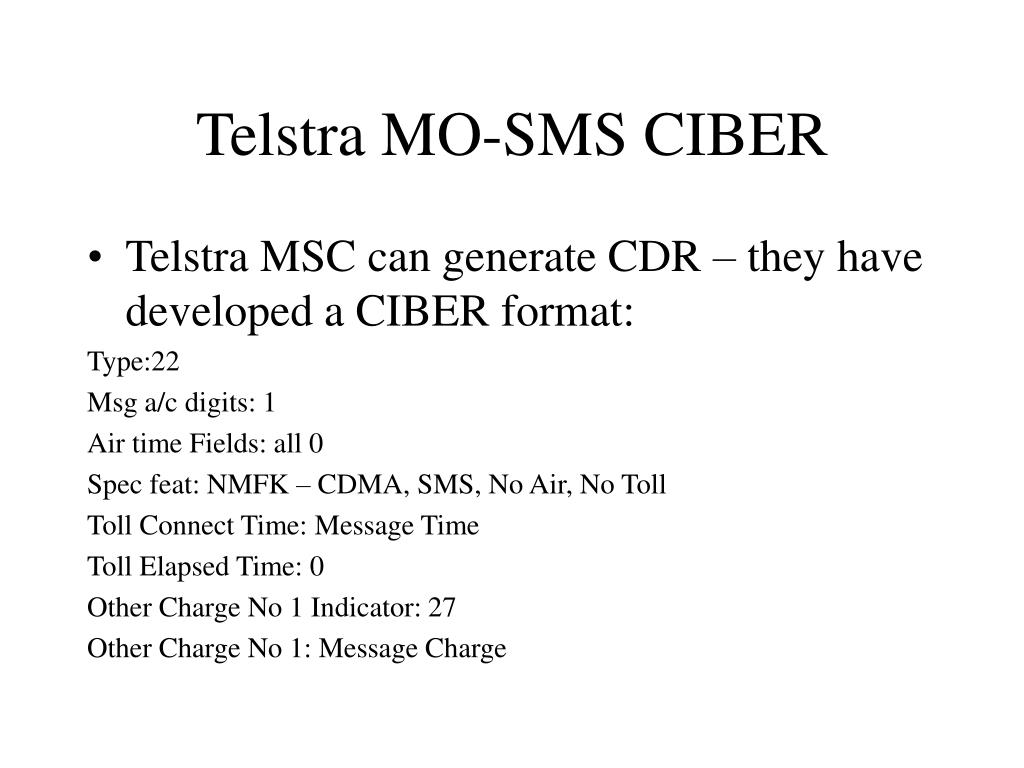

Telstra MO-SMS CIBER

  • Telstra MSC can generate CDR – they have developed a CIBER format:

    Type:22

    Msg a/c digits: 1

    Air time Fields: all 0

    Spec feat: NMFK – CDMA, SMS, No Air, No Toll

    Toll Connect Time: Message Time

    Toll Elapsed Time: 0

    Other Charge No 1 Indicator: 27

    Other Charge No 1: Message Charge


Subscriber billing

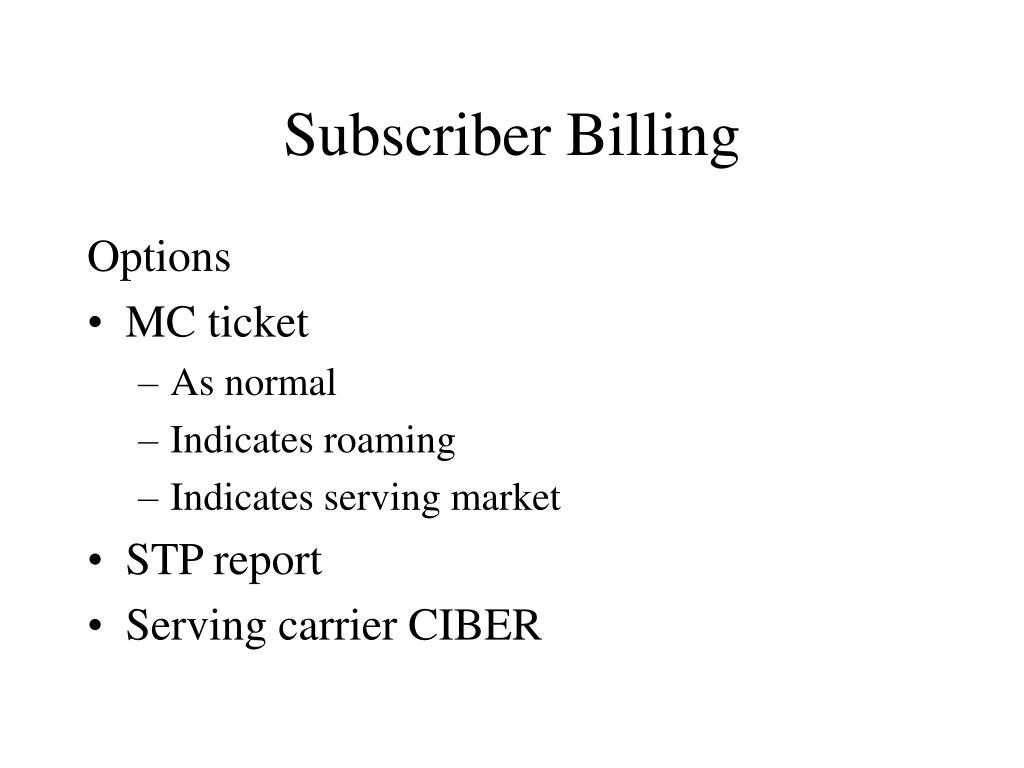

Subscriber Billing

Options

  • MC ticket

    • As normal

    • Indicates roaming

    • Indicates serving market

  • STP report

  • Serving carrier CIBER


Next steps

Next Steps?

  • Any preferences?

  • Approach vendors for MSC CDR

  • Modify SMDPP to identify serving carrier
