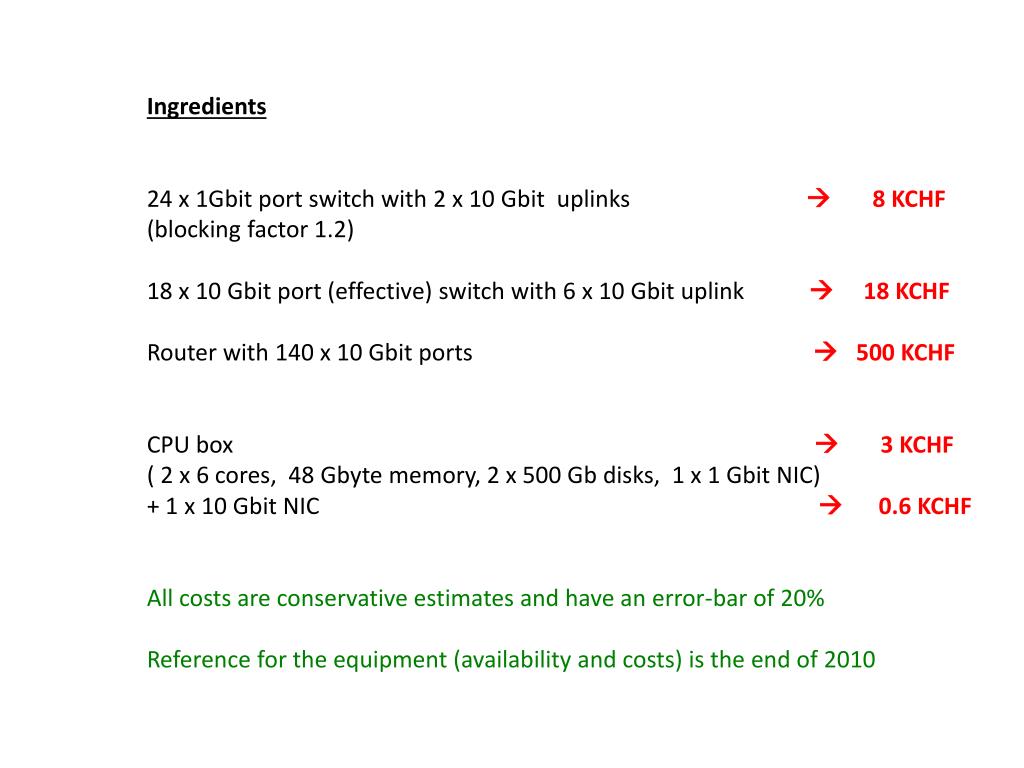

Ingredients 24 x 1Gbit port switch with 2 x 10 Gbit uplinks  8 KCHF (blocking factor 1.2) 18 x 10 Gbit port (effective) switch with 6 x 10 Gbit uplink  18 KCHF

emory
Download Presentation

Ingredients

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Ingredients 24 x 1Gbit port switch with 2 x 10 Gbit uplinks  8 KCHF (blocking factor 1.2) 18 x 10 Gbit port (effective) switch with 6 x 10 Gbit uplink  18 KCHF Router with 140 x 10 Gbit ports  500 KCHF CPU box  3 KCHF ( 2 x 6 cores, 48 Gbyte memory, 2 x 500 Gb disks, 1 x 1 Gbit NIC) + 1 x 10 Gbit NIC  0.6 KCHF All costs are conservative estimates and have an error-bar of 20% Reference for the equipment (availability and costs) is the end of 2010

  2. 1 Gbit switch LKr and global event building 1 Gbit lines = copper 10 Gbit lines = fibre 10 Gbit router 10 Gbit switch Architecture sketch Flexibility on what is at the pit and what is in the center Don’t assume 9 KB jumbo frames ! 10 Gbit lines 10 Gbit lines LKr readout 10 Gbit lines 10 Gbit lines 1 Gbit switch 1 Gbit lines 1 Gbit lines Other detector readout Computer Center Level 2/3 filter farm • Assume • 900 LKr readout channels (38 switches == 76 x 10 Gbit ports) • ?450? Other detector channels (19 switches == 38 x 10 Gbit ports) • 50 kHz, 100 KB/event  5GB/s event building;10 s spill  50 GB memory total; • 216 cores  4 ms/event max. event building (10 Gbitswitch == 6 x 10 Gbit ports) • leaves 20 x 10 Gbit ports for level 2/3 farm , 50 KHz , 5GB/s  110ms/event reco-time • 480 cpu nodes == 5760 cores •  11 water-cooled racks + infrastructure Cost estimate Network = ~ 1.1 MCHF Cpu nodes = ~ 1.5 MCHF
