Pdr presentation

PDR Presentation

Team JHK

Experiment TIC

February 27, 2003


Science objective
Science Objective

Our goal is to learn if IR radiation is dependent on temperature or altitude in the upper atmosphere. We are also going to study temperature as a function of altitude during ascent.


Payload design

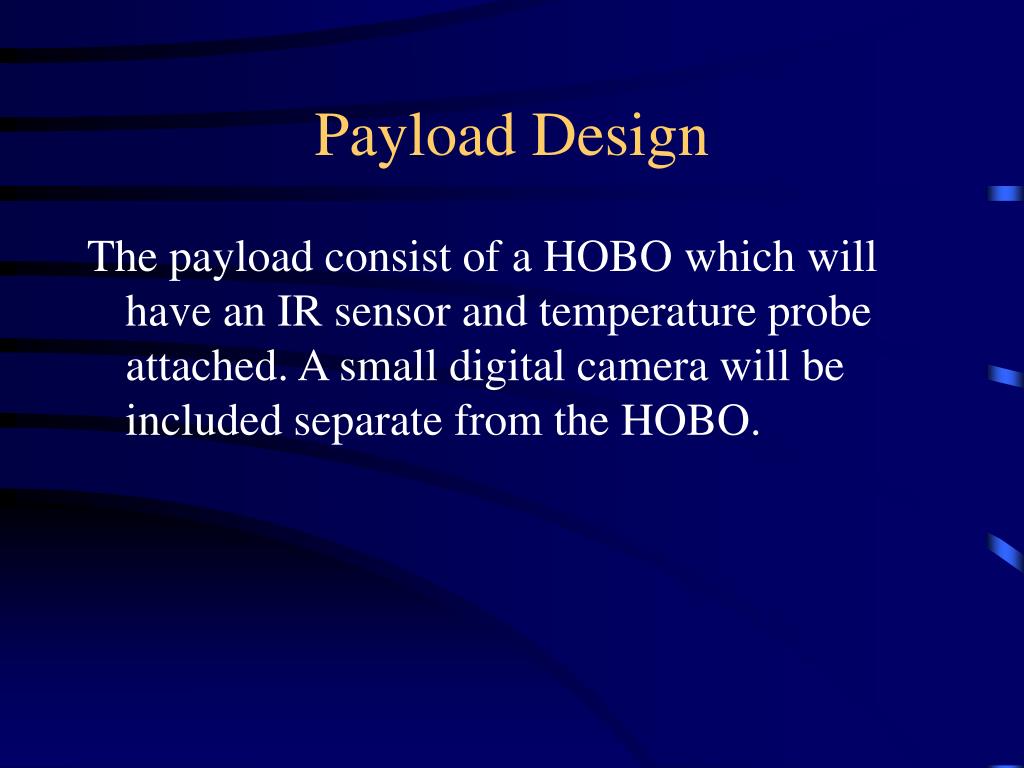

Payload Design

The payload consist of a HOBO which will have an IR sensor and temperature probe attached. A small digital camera will be included separate from the HOBO.


Fabrication and testing
Fabrication and Testing

  • First, the I-V converter & amplifier will need to be designed and constructed. Next, the temperature probe will be directly connected to the hobo, while the IR sensor and hobo will be connected using the IV converter & amplifier. That will complete the fabrication of the hobo system. The camera will be only need to be programmed to sample at the determined rate, before the camera system is ready for testing. The whole and individual pieces will each be tested in detail to make sure it operates properly using the methods stated in the construction plan


Fabrication test list

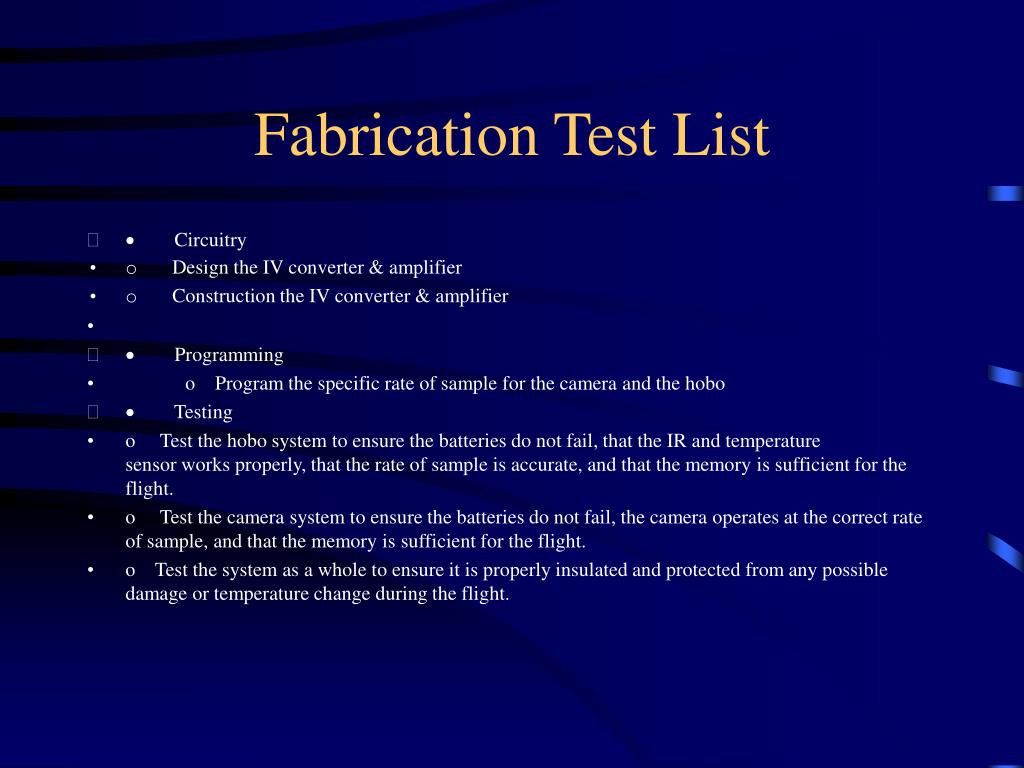

Fabrication Test List

  • ·        Circuitry

  • o       Design the IV converter & amplifier

  • o       Construction the IV converter & amplifier

  • ·        Programming

  • o Program the specific rate of sample for the camera and the hobo

  • ·        Testing

  • o Test the hobo system to ensure the batteries do not fail, that the IR and temperature sensor works properly, that the rate of sample is accurate, and that the memory is sufficient for the flight.

  • o Test the camera system to ensure the batteries do not fail, the camera operates at the correct rate of sample, and that the memory is sufficient for the flight.

  • o Test the system as a whole to ensure it is properly insulated and protected from any possible damage or temperature change during the flight.


Mission operations

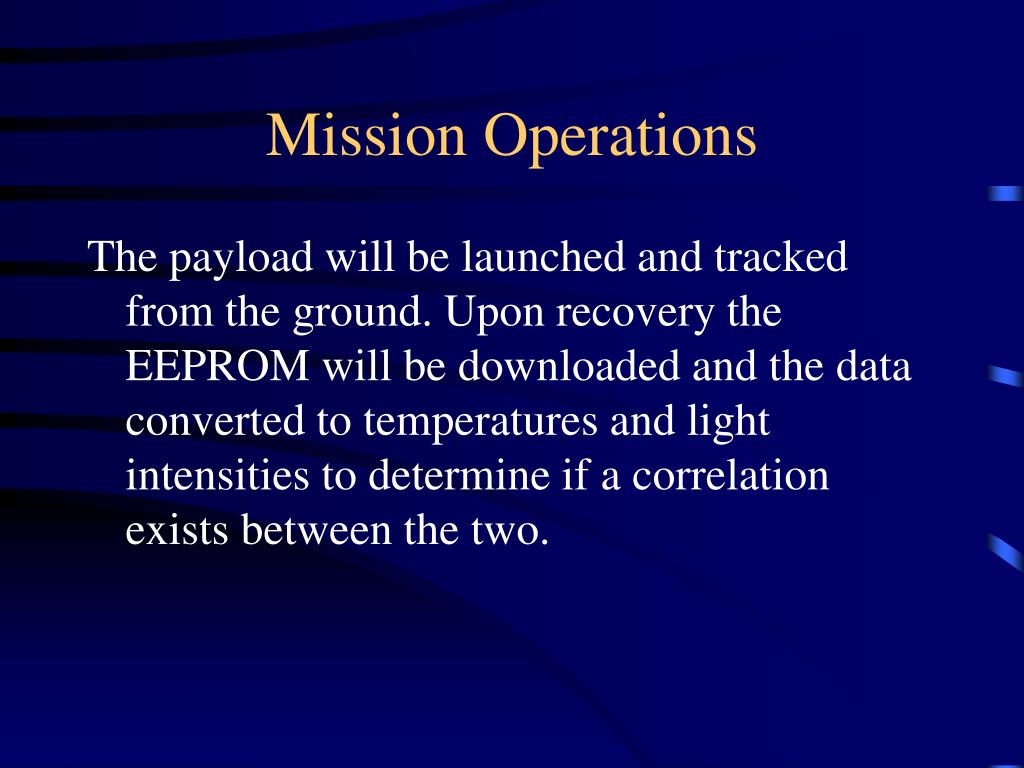

Mission Operations

The payload will be launched and tracked from the ground. Upon recovery the EEPROM will be downloaded and the data converted to temperatures and light intensities to determine if a correlation exists between the two.


Weight budget
Weight Budget

Item Weight

HOBO + Battery 50g

Temperature Probe 10g

IR Sensor 10g

Camera + Battery 42g

I-V Converter/Amplifier 50g

Total Weight 162g

Leftover weight for box and insulation 838g


Data analysis
Data Analysis

Temperature and IR light intensity will be measured every ten seconds during the flight. All data will be stored on board and recovered with the payload. Software needs to be developed to convert voltages from the sensors to temperature and IR light intensity.


Power budget
Power Budget

HOBO- 1s/10s x 20mA(max current) x 2 sensors = 4mA, 4mA x 6 hours = 24 mA/ hr

Will require a 5V battery > 25mA/hr

Camera- 1s/180s x 25mA = .138mA, .138mA x 6 hours = .833mA/hr

Will require a AAA battery > 1mA/hr

Op Amp- 1s/10s x 20mA(max current) = 2mA, 2mA x 6 hours = 12 mA/ hr

Will require a 5V battery > 13mA/ hr

All of batteries will be lithium batteries ordered from Energizer


Master budget
Master Budget

Items to be PurchasedEstimated CostInfrared Sensor $200

Digital Camera $40 HOBO $120

Batteries $20

OpAmp $20

Total Estimated Cost $400

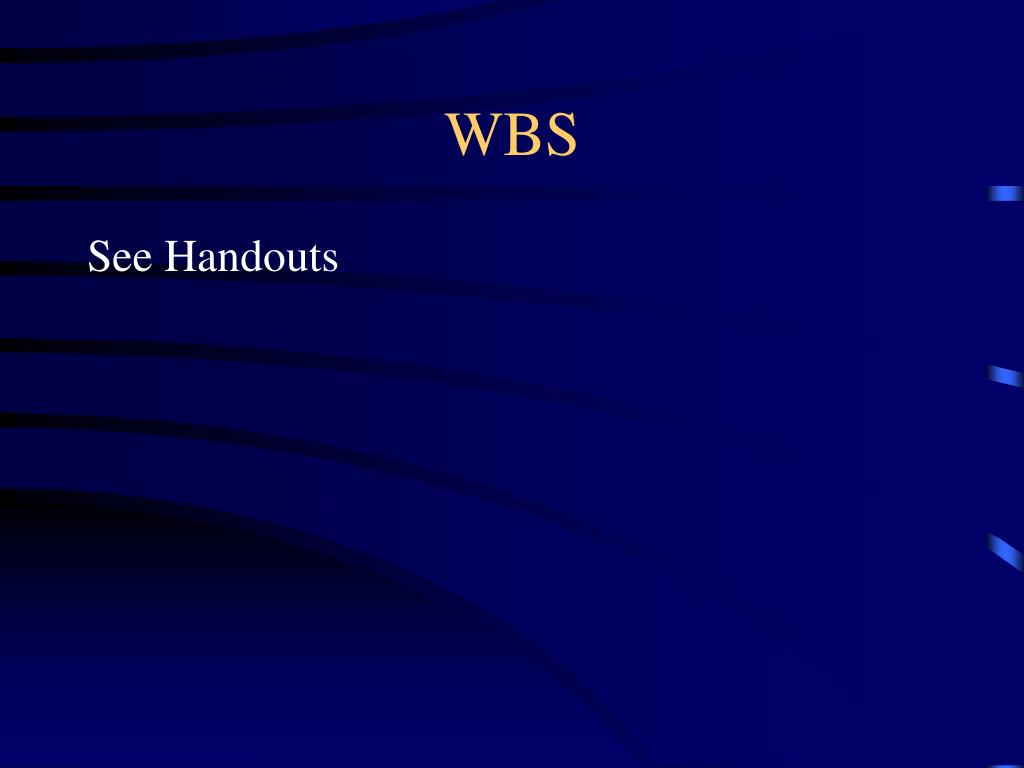

WBS

See Handouts


Credits
Credits

1.    Online Source: National Institute of Water and Atmospheric Research (NIWA), February 16, 2003, http://www.niwa.co.nz/edu/students/faq/layers

2.      Online Source: Online Journey through Astronomy, February 16, 2003, http://csep10/phys/utk/edu/astr161/lect/earth/atmosphere.html

3.      Online Source: NASA Website, February 16, 2003, http://liftoff.msfc.nasa.gov/academy/space/atmosphere/html

4.      Online Source: Earth Zone Website: Absorption, Radiation, & Greenhouse, February 23, 2003, http://207.10.97.102/earthzone/lessons/07meteor/greenhouse.html

5.      Online Source: University of Chicago, February 23, 2003, http://geosci.uchicago.edu/~archer/EnvChem/Labs/modtran.lite.html

6.      Online Source: Caltech University, February 23, 2003, http://www.ipac.caltech.edu/Outreach/Edu/infrared.html

7.      Online Source: Seiko Instruments, February 23, 2003, http://www.sih.com.hk.html

8.      Catalog Source: Edmund Industrial Optics, Optics and Optical Instruments Catalog, 2002, p. 191

Online Source: US Sensor Corporation, February 23, 2003, http://www.ussensor.com/products/precintr.html
