  1. Partner Webinar February 21st, 2013

  2. Ruckus ZoneFlex 7352/72Midrange APs Dual-band 802.11n 2x2:2 Indoor Access Point

  3. ZoneFlex 7352 & 7372 in a nutshell 1.6” (4cm) 6.2” (15.8cm) 6.2” (15.8cm) • 802.11abgn 2x2:2 Access Points • ZF 7352: Single Band (2.4 GHz) • ZF 7372: Dual Band Concurrent • ZF 7372-E: External Antenna Version • Mobile ready Polarization Diversity (PD-MRC) • Spectrum Analysis • Advanced location capabilities • BeamFlex adaptive antennas, 128 patterns per band • Advanced 802.11n features: STBC, LDPC, MLD, TxBF, A-MPDU & A-MSDU Packet Aggregation • Supports up to 512 clients per 7372 • Industry standard 802.3af/at or 12VDC • Mounting support for acoustical ceiling, hard wall/ceiling, and accessory bracket featuring pad-lock security. Pin-hole security mechanism for wall mount. • Software support: ZD/FM 9.5.1

  4. Indoor 2-stream Dual Band APs

  5. Improvements over ZF7363 (1) Product Improvement User Benefit Dual polarity antennas and PD-MRC support Performance robustness regardless of client device orientation Polarization Diversity Transmit Beamforming Increased signal strength received by client Improved client downlink performance Ability to measure RF energy across frequencies Spectrum Analysis feature in release 9.6 – graphic of RF power versus frequency Spectrum Analysis RTT-Based Client Distance Measurement Ability to measure precise distance to clients Support for Network Based Positioning* Requires future software support

  6. Improvements over ZF7363 (2) Product Improvement User Benefit Optimized spreading of spatial streams across MIMO antennas Space Time Block Coding (STBC) Improved client downlink performance Low Density Parity Check (LDPC) Improved PHY error detection & correction Improved client uplink performance Maximum Likelihood Decoding (MLD) Improved receive signal demodulation Improved client uplink performance Packet Aggregation Increased MAC-layer link efficiency Improved client downlink performance

  7. Adaptive Polarization Diversity 5x Device orientation accounts for up to 5x performance differential among products HORIZONTAL POLARIZATION VERTICAL POLARIZATION • Better reception (PD-MRC) forweak and hard to “hear” devices • Better transmission to devices constantly changing their orientation

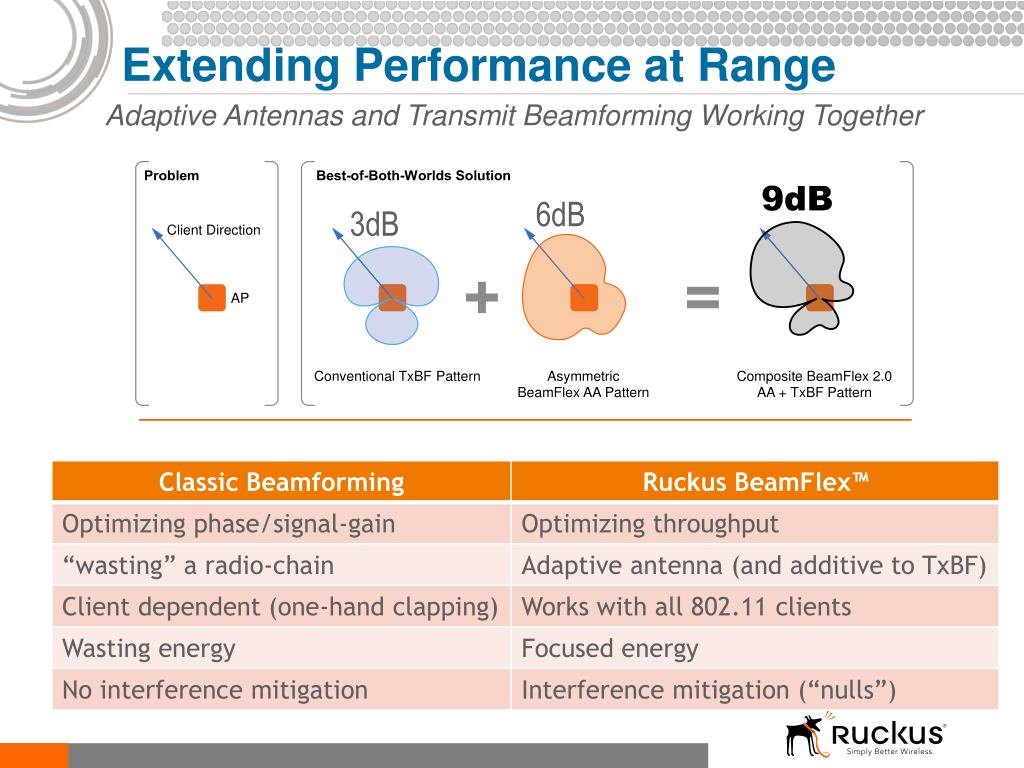

  8. Extending Performance at Range Adaptive Antennas and Transmit Beamforming Working Together 9dB 6dB 3dB

  9. Competition

  10. THANK YOU
