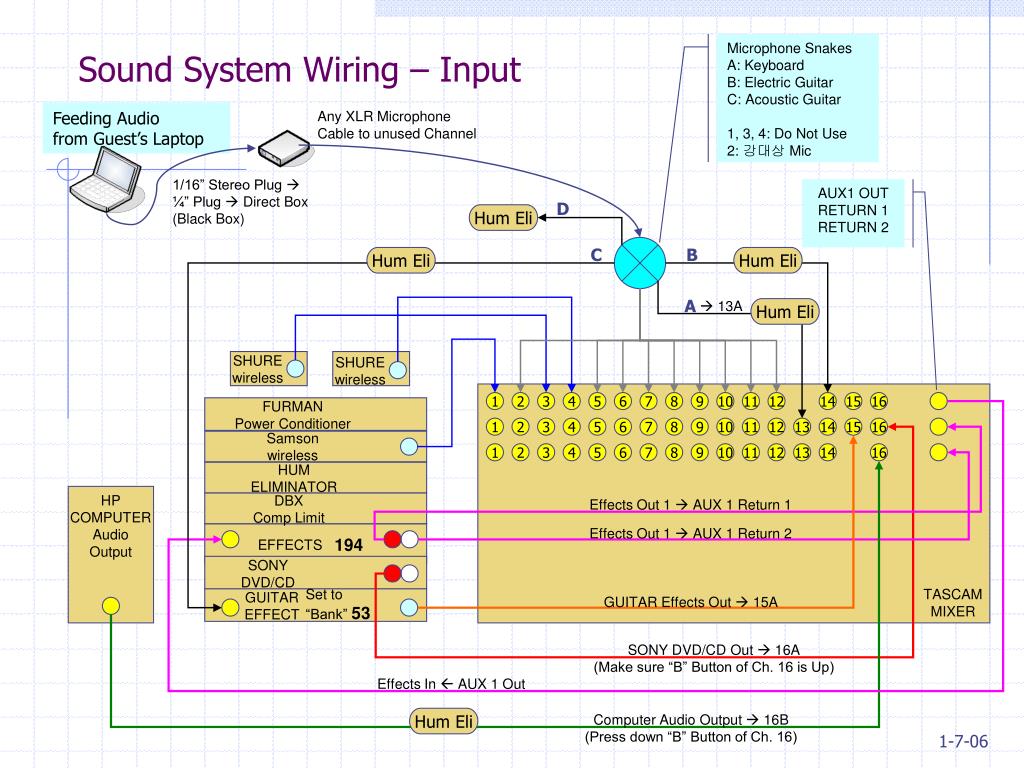

Sound System Wiring – Input

Microphone Snakes

A: Keyboard

B: Electric Guitar

C: Acoustic Guitar

1, 3, 4: Do Not Use

2: 강대상 Mic

Feeding Audio

from Guest’s Laptop

Any XLR Microphone

Cable to unused Channel

1/16” Stereo Plug 

¼” Plug  Direct Box

(Black Box)

AUX1 OUT

RETURN 1

RETURN 2

D

Hum Eli

C

B

Hum Eli

Hum Eli

A

 13A

Hum Eli

SHURE

wireless

SHURE

wireless

FURMAN

Power Conditioner

1

2

3

4

5

6

7

8

9

10

11

12

14

15

16

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

Samson

wireless

1

2

3

4

5

6

7

8

9

10

11

12

13

14

16

HUM

ELIMINATOR

HP

COMPUTER

Audio

Output

DBX

Comp Limit

Effects Out 1  AUX 1 Return 1

EFFECTS

Effects Out 1  AUX 1 Return 2

194

SONY

DVD/CD

Set to “Bank” 53

TASCAM

MIXER

GUITAR

EFFECT

GUITAR Effects Out  15A

SONY DVD/CD Out  16A

(Make sure “B” Button of Ch. 16 is Up)

Effects In  AUX 1 Out

Computer Audio Output  16B

(Press down “B” Button of Ch. 16)

Hum Eli

1-7-06
