Presentation Transcript

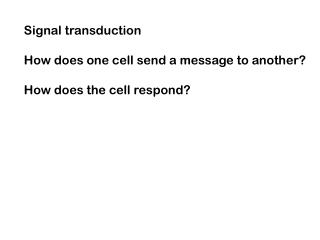

Slide1 l.jpg

Signal transduction

How does one cell send a message to another?

How does the cell respond?

Slide3 l.jpg

The cell “signal” is a chemical (can be a gas)

It binds to a specific receptor on the target cell

Response mechanisms are activated in the

target cell

Response often involves gene transcription

Slide5 l.jpg

Paracrine signaling



“Autocrine”- sometimes released chemical

acts on the cell itself

Endocrine (hormonal) signaling

chemical is released into blood or

other circulatory fluid

often produced by specialized glands

Slide6 l.jpg

Synaptic signaling- in nervous system

electrical signal transmitted along

specialized nerve cell membrane

Conducting cell: neuron

Most animals have a nervous system: they

vary in complexity but they all

a.receive information from the


b. process the information

c. trigger a response (usually from

muscles or glands)

Slide7 l.jpg

Types of neurons (in vertebrates):

Interneuron- located entirely within CNS,

integrates functions in CNS

Sensory (from sensory receptor to CNS)

Motor (from CNS to effector organ)

somatic- stimulates skeletal muscles

autonomic- affects smooth and cardiac

muscle, also glandular secretion

Slide9 l.jpg

Parts of a neuron

Cell body- contains the nucleus and other


Dendrites- transmit electrical impulses TO the

cell body

Axon- transmits impulse AWAY from the cell body

axons can be several feet long

“Axon hillock” is located near the cell body

nerve impulses originate there

Slide10 l.jpg

Structures of neurons




Slide11 l.jpg

Electrical activity in axons

Resting membrane potential in neurons

is –70 mV

Large negatively charged molecules inside

the cell

Positively charged ions outside the cell

(more Na out than K in)

All cells have a membrane potential, but nerve,

muscle and a few other types of cells have

electrical excitability

Slide12 l.jpg

Permeability to ion changes

Occurs in a very small area on the membrane

Depolarization- potential difference approaches


Repolarization- back to the resting potential

Hyperpolarization- potential difference increases

positive charges leave cell

negative charges enter cell

Slide13 l.jpg

Gated ion channels for K and Na

(lots of these at axon hillock)

Resting cell is more permeable to K than Na

Depolarization- membrane becomes permeable

to Na, and Na can diffuse into cell

After Na gates close, K gates open and K diffuses

out of the cell

Slide15 l.jpg

Action potentials

When completed, Na/K pumps restore balance

of the ions

Takes place on a very small part of membrane

occurrence is rapid

Slide17 l.jpg

Action potentials are very rapid

Inactivation occurs until membranes are


Stronger stimuli stimulate more and more axons

(more action potentials are stimulated, but

their amplitude does not change)

Slide19 l.jpg

Conduction of nerve impulses

Unmyelinated axon- wave of action potentials

spreads along length of axon

Amplitude of action potential does not change

Myelinated axon- conduction rate is much


Slide22 l.jpg

Synapse- connection between a neuron and

a second cell

From presynaptic to postsynaptic neuron

Release of neurotransmitters (chemicals)

A few electrical synapses in nervous system,

In smooth muscle and heart

gap junctions

Slide23 l.jpg

Chemical synapses


Presynaptic neuron has synaptic vesicles

Fusion of vesicles is mediated by calcium

Calmodulin is activated

Protein kinase activated

Synaptic vesicles fuse with membrane

Neurotransmitters diffuse across cleft and

bind to receptors

Slide25 l.jpg

Voltage-regulated channels in presynaptic axon

Chemically regulated channels in

postsynaptic membrane (i.e., binding of

neurotransmitter is triggering event)

Ion channels are opened, depolarization occurs

Can be excitatory or inhibitory

Depends on which receptors are engaged

Integration of impulses in dendrites and cell

body of postsynaptic neuron

Slide26 l.jpg

What are some chemicals that act as neuro-






They are classified structurally (monoamine,

catecholamine, peptide, etc.)

and have different functions

Slide27 l.jpg

What do specific neurotransmitters do?

Depends on:

region of brain affected (where neurotrans-

mitters are made)

which cells have receptors

what kind of receptor: excitatory or inhibitory

Example: dopamine (a monoamine, derived from


Slide28 l.jpg

Dopamine is active in different regions of brain

Mesolimbic- limbic system; behavior and reward

(in midbrain)

Many addictive drugs activate these pathways

(i.e., enhance dopamine effects; cocaine

blocks dopamine reuptake. Addiction occurs

because cells become unable to respond to

“normal” levels)

Nicotine seems to promote dopamine release in

this region

Slide29 l.jpg

Schizophrenia: too much dopamine in these


Treatments block a particular type of

dopamine receptor

Slide30 l.jpg


Nigrostriatal- neurons in substantia nigra region

of brain involved in initiation of skeletal


Parkinson’s disease- degeneration of neurons

in this region that produce and/or

respond to dopamine

L-DOPA and MAO inhibitors- increase dopamine


Slide31 l.jpg

Control mechanisms:

Neurotransmitter must be cleared quickly or

it will overstimulate target cell

-Uptake by presynaptic neuron (by transporter


-Degradation by specific enzyme in presynaptic


-By post-synaptic neuron (produces an enzyme

that degrades the neurotransmitter)

Slide32 l.jpg

  • Summary

  • The nervous system is comprised of the

    • central nervous system (brain, spinal cord)

    • and the periphery (cranial and spinal nerves)

    • Periphery is divided into autonomic and motor

    • neurons.

    • 2. Cells of the nervous system are glial cells and

    • neurons. Neurons conduct nervous impulses,

    • glial cells “support” neurons.

    • 3. Myelination affects the speed at which impulse

    • is delivered.

Slide33 l.jpg

4. Neurons conduct electrical and chemical

signaling. Action potential starts at a very

small area of the membrane and is conducted

along the length of the membrane.

Action potential rises with Na influx and falls

with K efflux.

5. Speed of transmission is affected by a.) presence

of myelin, and b.) the diameter of the neuron.

(faster in larger neurons)

6. Neurotransmitters deliver signals across


Slide34 l.jpg

7. Sometimes signal is excitatory, sometimes


8. Neurotransmitters are typically small fast-

acting molecules. Effect depends on the

type of target cell and the type of receptor

9. Regulation is very important. Both presynaptic

and postsynaptic cells may produce

substances that either promote reuptake of

or inactivate the neurotransmitter.
