Presentation Transcript


How to implement h 323 l.jpg

How To Implement H.323

Presented at the

Joint Techs Workshop

28 - 31 January 2001

University of Hawaii, Honolulu, HA

By Larry Amiot (NWU/I2) and

Tyler Miller Johnson (UNC)


Today s agenda l.jpg

Today’s Agenda

  • Video Conferencing Environment

  • H.323 Video Conferencing

    • Basics

    • ITU Standard

    • Addressing and Zone Management

  • H.323 Deployment

  • Internet2 Video Conferencing Service

  • Applications in the Educational Environment


Video conferencing environment l.jpg

Video Conferencing Environment


Digital video in the educational environment l.jpg

Digital Video In The Educational Environment

  • Classroom presentations- need for video clips

  • Colloquiums- need to broadcast on the network

  • Homework Assignments- Video-based reference material

  • Collaborative classes- need for remote interaction between class participants

  • Committee meetings- need for remote interaction between participants

  • Informal collaboration- need for remote interaction between colleagues

  • Conference presentations- need for remote interaction between presenters and audience


Parts of the puzzle l.jpg

Parts of the Puzzle

  • Web-based Virtual Classroom

  • Collaborative Tools

    • Application sharing

    • White board

    • Chat window

  • Video Conferencing

  • Real-time Streamed Video

  • Archived Video


Video conferencing alternatives l.jpg

Video Conferencing Alternatives

  • ISDN-based

    • H.320 (Legacy)

  • Internet-based

    • Access Grid

      http://www-fp.mcs.anl.gov/fl/accessgrid/

    • Virtual Room Videoconferencing System (VRVS)

      http://vrvs.cern.ch/

    • MPEG2 Multicast

    • H.323


H 323 video conferencing l.jpg

H.323 Video Conferencing

  • H.323 Video Conferencing is becoming widely used in the educational environment.

    • Staff meetings

    • Working Group meetings

    • Collaborations

    • Interactive classes

    • Conference tracks


Videnet a business case l.jpg

ViDeNet: A Business Case

  • ViDeNet is one current model for deployment

  • Voice-Over-IP integration driving the business case

  • Research applications driving video implementations


H 323 video conferencing9 l.jpg

H.323 Video Conferencing

Basics

ITU Standard

Addressing and Zone Management


H 323 standard l.jpg

H.323 Standard

  • Umbrella set of standards defining real-time multimedia communications and conferencing over packet-based networks

  • International Telecommunications Union (ITU) finalized Version 1 in 1996

  • Version 2 approved January 1998

  • Part of the family H.32x standards


H 323 standard11 l.jpg

H.323 Standard

  • Version 2 added

    • Security (H.235)

      • Authentication/Authorization

      • Integrity

      • Privacy

      • Non-Repudiation

    • Fast call setup

    • T.120/H.323 integration

    • Supplementary services

      • Call transfer

      • Call diversion


H 323 standard12 l.jpg

H.323 Standard

  • H.323 Components

    • Terminals (Clients)

    • Gateways

    • GateKeepers

    • Multipoint Control Units (MCU’s)


H 323 standard13 l.jpg

H.323 Standard

  • H.323 standard covers

    • Voice- required

    • Video- optional

    • Data- optional


Slide14 l.jpg

GateKeeper

MCU

H.323

Real Video

Web Browser

H.323 Video Conferencing

INTERNET

H.323 Clients


Pieces of h 323 l.jpg

Pieces of H.323

  • Audio Codecs

    • G.711 (required), G.722, G.723, G.728, G.729

  • Video Codecs

    • H.261 (required), H.263

  • Data Sharing

    • T.120, T.125 Annex A (multicast)

  • Call Control

    • H.245

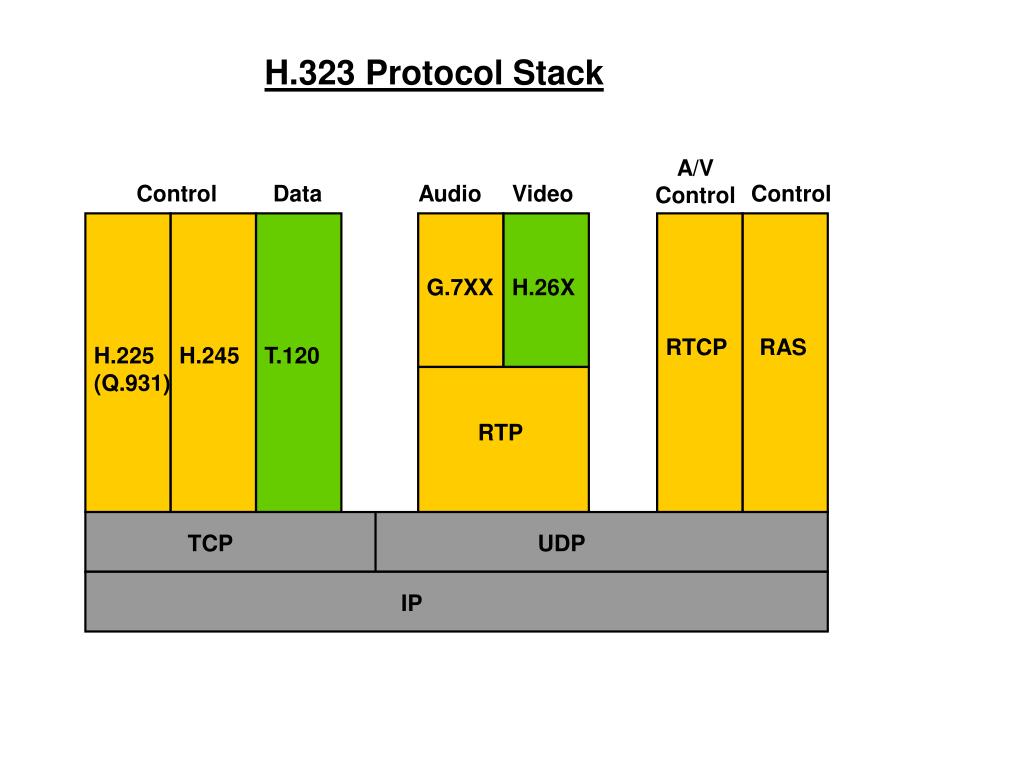

Slide16 l.jpg

H.323 Protocol Stack

A/V Control

Control

Data

Audio

Video

Control

G.7XX

H.26X

RTCP

RAS

H.225 (Q.931)

H.245

T.120

RTP

TCP

UDP

IP


H 323 standard17 l.jpg

H.323 Standard

  • Gatekeeper required functions

    • Address translation

    • Admissions control

    • Bandwidth control

    • Zone management

  • Optional functions

    • Call control signaling

    • Call authorization

    • Bandwidth management

    • Call management


H 323 zone l.jpg

H.323 Zone

  • Gatekeeper (master control)

  • Multipoint Control Unit (MCU)

  • Gateway

  • Endpoints


Addressing h 323 concepts l.jpg

AddressingH.323 Concepts

  • Three intraZone Dialing Modes

    • By IP address – not recommended

    • By Alias (trjohns1 or [email protected])

    • By Extension (226.6101)

  • Interzone Dialing

    • ‘Neighbor’ tables – current ViDeNet practice

    • Automatic Destination Zone Resolution

      • Peer to peer

      • Hierarchical


Addressing interfacing to the pstn l.jpg

0 (168 245 929) 226.6101

Extension

Zone Prefix

Exit Zone Prefix

AddressingInterfacing to the PSTN

Gatekeeper

EndPoint

226.6101

+1 (919) 226.6101

Gateway

PSTN

IP Network


Videnet peer to peer gatekeepers l.jpg

And Directory Services

MetaDirectory

LDAP

LDAP

LDAP

LDAP

ViDeNet Peer to Peer Gatekeepers


H 323 standard22 l.jpg

H.323 Standard

  • Gateways are optional elements of H.323 that communicate with:

    • PSTN analog terminals

    • H.320 terminals via ISDN networks

    • H.321 terminals over ATM

    • H.324 terminals over PSTN networks

    • Other


Slide23 l.jpg

MCU

H.323 Video Conferencing

H.320

ISDN

GateKeeper

Gateway

H.323

Real Video

INTERNET

Web Browser

H.323 Clients


H 323 deployment l.jpg

H.323 Deployment


H 323 deployment events l.jpg

100%

POTS

Video

H.450 Fancy Services

Voice

Unified Messaging

RELIABILITY

DEPLOYMENT

H.235 Security

NT Gatekeeper

Unix Gatekeeper

Ethernet Power

USB Desktops

Cable TV Over IP

H.323 Phones

VC Appliances

Rack Mount CODECs

Wireless H.323

LDAP Gatekeeper

PCI Desktops

Cell

H.323

0%

1998

1999

2000

2001

2002

2003

2004

2005

H.323 Deployment Events


Choose your connection l.jpg

H.323

FABRIC

Conference Room Appliance

Performance: Very Good

Price: $2500 - $8000

Desktop Video

Performance: Fair to Good

Price: $500 - $1000

Teleclass Codec

Performance: Excellent

Price: $10,000

IP Phone

Performance: Excellent

Price: $150 - $500

Wireless IP Phone

Performance: Very Good

Price: $250 - $600

Soft Phone

Performance: Fair

Price: $0 - $50

Fax / Modem Appliance

Performance: Good

Price: $150 -$500

Choose Your Connection


In the zone l.jpg

Endpoints

H.323 FABRIC

Gatekeeper

Cluster

Management Server (Directory Services)

Embedded, Distributed,

Load Balancing

NT / Unix / VxWorks

Unix

Win2000

Cluster

Gateway

Farm

Embedded, Distributed,

Load Balancing

NT / Unix / VxWorks

Messaging

Servers

Services

MCU

Farm

PSTN

Trunks

Embedded, Distributed,

Load Balancing

NT / Unix / VxWorks

In The Zone


Popular equipment l.jpg

Gatekeepers

RADVision NGK-100/200

RADVision embedded gatekeeper

RADVision ECM / ViaIP400 *beta

Cisco MCM

MCUs

RADVision MCU-323

RADVision ViaIP 400 platform, 100-port *beta

Accord (including h.321 gateway)

Siemens LP5100 - IP telephone ($400)

Gateways

RADVision L2W-323

RADVision VIU

Endpoints

Polycom VS4000 - discrete codec ($10,000)

Polycom ViewStation - conference room in a box ($4000)

VCON ViGo Standard - desktop / laptop USB solution ($550)

VCON ViGo PRO - desktop / laptop USB solution/ Speaker, 2Mbps, & multicast support ($1199)

Polycom ViaVideo - desktop / laptop USB solution ($400)

Siemens LP5100 - IP telephone ($400)

Popular Equipment


Slide29 l.jpg

Audio & Video Streams (N*2*384Kbps)

MCU

H.323 Video Conferencing

Bandwidth Requirements


Staffing for h 323 l.jpg

Staffing for H.323

  • Offering H.323 Services Requires

    • Account Management

      • ‘Free-love’ zones

      • Explicitly defined users

    • Systems Administration

    • Directory Services

    • Monitoring 7x24

    • Web Documentation

    • Training

    • Initial Client Installation

    • Purchasing Assistance and Consultation

    • Help Desk


Videnet participants 50 and counting l.jpg

ViDeNet Participants50 and counting …

Texas A&M University

University of Akron - Wayne College

University of Alabama

University of Colorado at Denver

University of Hawaii

University of Illinois at Chicago

University of Illinois at Urbana-Champaign

University of Missouri at Kansas City

University of New Brunswick (Canada)

University of North Carolina

University of Pennsylvania

University of South Carolina

University of Tennessee

University of Virginia

Virginia Commonwealth University

Wright State University (Ohio)

Yale University (Connecticut)

American University in Cairo (Egypt)

Aristotle University of Thessaloniki (Greece)

Beijing Institute of Technology (China)

Canarie (Canada)

CiCV (France)

CINECA (Italy)

The College of William and Mary (Virginia)

Columbia University (New York)

ESnet (US Nuclear Laboratories)

The Georgia Institute of Technology

HEAnet (Ireland)

IIUCC (Israel)

Indiana University

Internet2

Louisiana State University

MCNC (North Carolina)

Mississippi State University

National Sun Yat-Sen University (Taiwan)

National Technical University of Athens

North Carolina State University

NYSERnet (New York)

OARNet (Ohio)

Ohio State University

Oklahoma State University

OneNet (Oklahoma)

Pennsylvania State University

Procter and Gamble (Ohio)

RADVision (Tel Aviv)

SURFnet (the Netherlands)

Tel Hai College (Israel)


Internet2 video conferencing service l.jpg

Internet2 Video Conferencing Service


Collaborative video conferencing services over internet2 initiative l.jpg

Collaborative Video Conferencing Services over Internet2 Initiative

  • Provide a service that is intended to enable one-to-one, one-to-group, and group-to-group collaborative conferencing in support of personal communication, meetings, conferences, and shared education for Internet2 members (primary and sponsored) and their international counterparts.


Basic tenets of service l.jpg

Basic Tenets of Service

  • Independent of geographic or national boundaries

  • Video conferencing viewed as current best collaborative environment

  • Gateways between technologies will be necessary

  • Gateways must be transparent to end users

  • Need to consider voice/telephony integration


Key technical issues l.jpg

Key Technical Issues

  • A Global Dialing Plan

  • A Global Directory Service

  • A Scheduling Mechanism for the use of shared resources

  • Improvements and coordination in “back room” functionality and control

  • Interoperability with other significant communication services (gateways)


Key technical issues continued l.jpg

Key Technical Issues (Continued)

  • QoS

  • Multicast

  • H.235 Security

    • Authentication/Authorization

    • Integrity

    • Privacy

    • Non-Repudiation

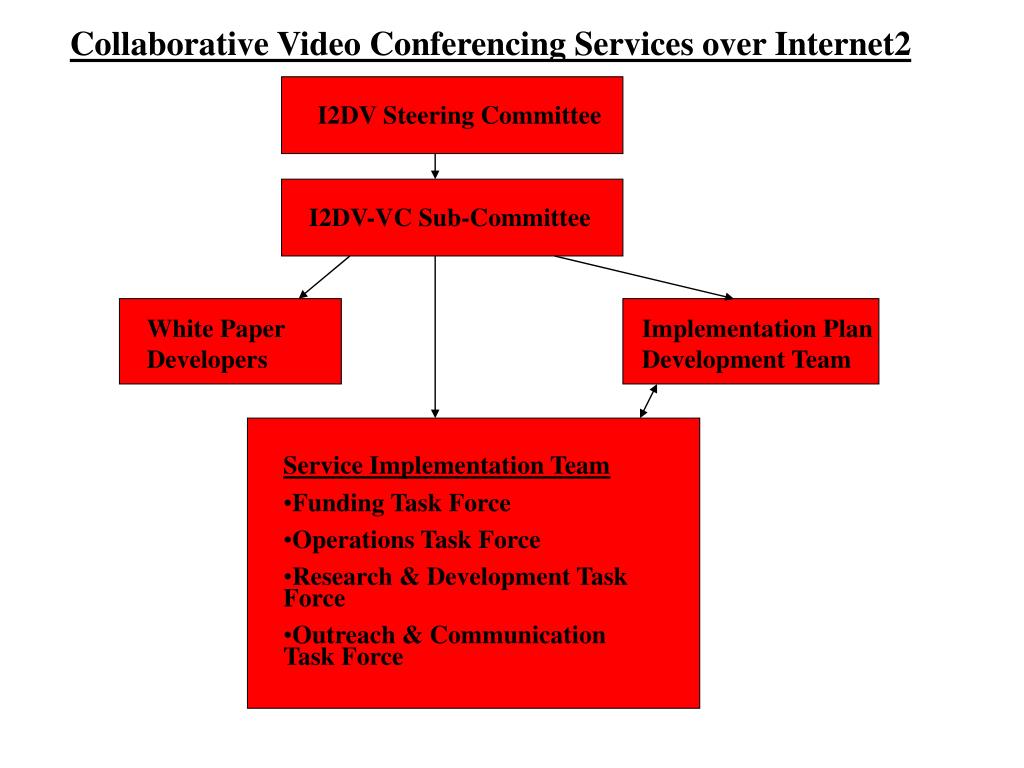

Slide37 l.jpg

White Paper Developers

  • Service Implementation Team

  • Funding Task Force

  • Operations Task Force

  • Research & Development Task Force

  • Outreach & Communication Task Force

Collaborative Video Conferencing Services over Internet2

I2DV Steering Committee

I2DV-VC Sub-Committee

Implementation Plan Development Team


Proposed prototype service l.jpg

Proposed Prototype Service

  • Focus on deployment not research

  • Start with single technology

  • Recommended that that prototype service be based on H.323 technology

  • Based on contributed resources

  • Based on distributed management

  • Based on distributed systems

  • Emphasis on Gateways (centralized if necessary)


Applications in the educational environment l.jpg

Applications in the Educational Environment

By Dr. Robert Dixon, Ohio State University


H 323 examples l.jpg

H.323 Examples

  • Megaconference1

    • Fall 1999 Internet2 meeting

    • Over 50 sites from all over the world

    • 384Kbps

    • Cascaded MCUs

  • Megaconference2

    • www.mega-net.net/megaconference


Megaconference2 l.jpg

Megaconference2

  • Fall 2000 Internet2 meeting.

  • World’s first totally remote conference track.

  • Empty lectern.

  • Worldwide interactive audience.

  • 114 End points; 28 Multipoint Control Units.

  • The model for all future conferences on all subjects.

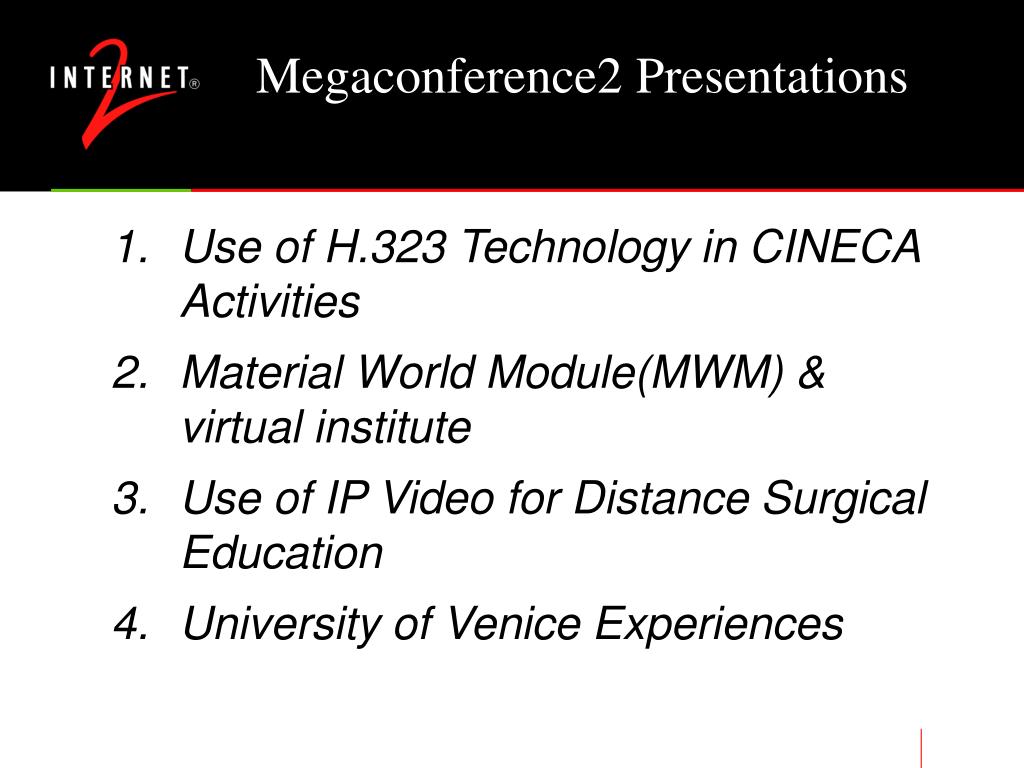

Megaconference2 presentations l.jpg

Megaconference2 Presentations

  • Use of H.323 Technology in CINECA Activities

  • Material World Module(MWM) & virtual institute

  • Use of IP Video for Distance Surgical Education

  • University of Venice Experiences


Use of ip video for distance surgical education l.jpg

Use of IP Video for Distance Surgical Education

  • Jerome Johnson (OSU), Presenter

  • Laparoscopic Surgery

    • Surgical instruments & small camera inserted through incision in abdomen

    • Surgery performed watching TV

    • Consultation via 2-Way Real-time video

    • Instruction via Real-time Video


Megaconference2 presentations45 l.jpg

Megaconference2 Presentations

  • Generation X and Generation D Learning in the ZPD with H.323: Literacy Strategy Lessons from Rural America

  • Wireless Distribution of H.323 Videoconferencing in a Trauma Center Emergency Department

  • Tools for Extending Classroom Walls via the Internet

  • Work and Life in an Antarctic Station


Work and life in an antarctic station l.jpg

Work and Life in an Antarctic Station

  • Hans Pfeiffenberger (Alfred Wegener Institute), Presenter

  • Neumayer Station in Antarctica at 70 deg. South

  • 384Kbps satellite link to Bremerhaven, Germany

  • Weekly conferences to interested school classes and museum visitors


Megaconference2 presentations47 l.jpg

Megaconference2 Presentations

  • LSVNP - A Managed Prototype for H.323 Zones

  • A Multi-University Internet-based (H.323) Graduate Course in Turbulence

  • Distance Learning using H.323; A Singapore-MIT experience

  • Bodyworks: Medicine, Technology, and the Body in the late 20th Century

  • Advanced Collaboration Tools to Support Multi-University Collaborative Learning in Organizational Communication


Collaborative learning in organizational communication l.jpg

Collaborative Learning in Organizational Communication

  • Noshir Contractor (UIUC), Presenter

  • Fall 1998 to Fall 2000

  • Real-time Graduate Seminar Courses

    • Globalization

    • Social Network Analysis

    • Communication Technologies & New Forms of Organizing

  • Faculty at:

    • University of Illinois

    • Purdue University

    • University of Southern California

    • University of Pennsylvania

    • University of California at Santa Barbara

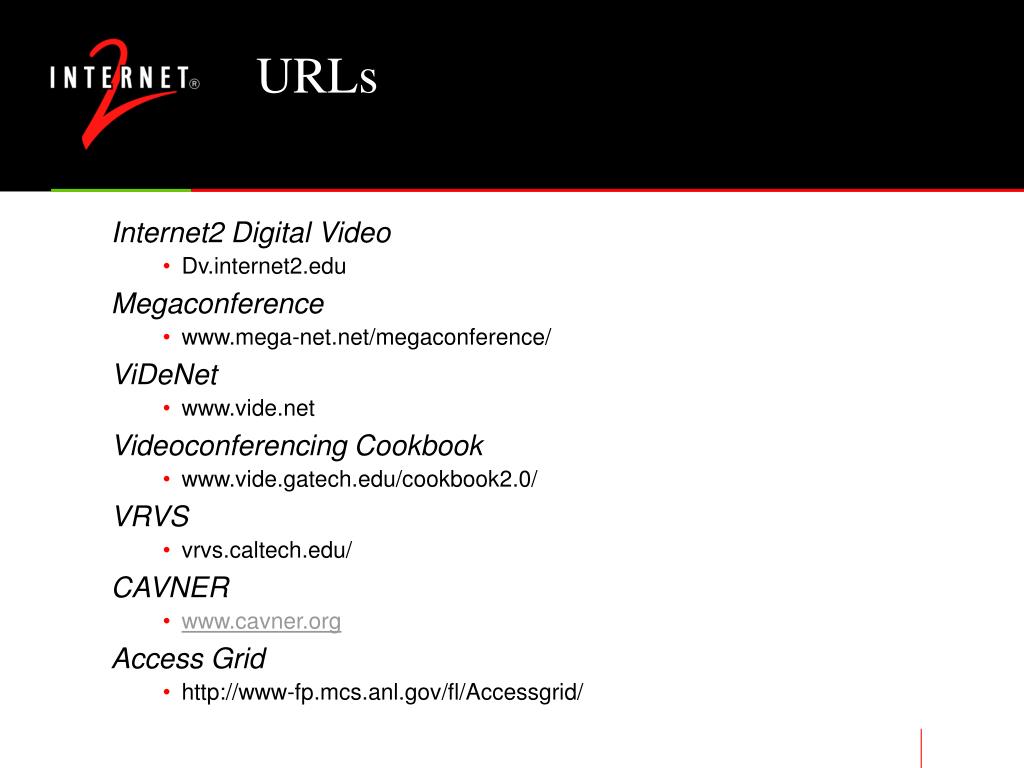

Slide49 l.jpg

URLs

  • Internet2 Digital Video

    • Dv.internet2.edu

  • Megaconference

    • www.mega-net.net/megaconference/

  • ViDeNet

    • www.vide.net

  • Videoconferencing Cookbook

    • www.vide.gatech.edu/cookbook2.0/

  • VRVS

    • vrvs.caltech.edu/

  • CAVNER

    • www.cavner.org

  • Access Grid

    • http://www-fp.mcs.anl.gov/fl/Accessgrid/


How to implement h 32350 l.jpg

How To Implement H.323

Presented at the

Joint Techs Workshop

28 - 31 January 2001

University of Hawaii, Honolulu, HA

By Larry Amiot (NWU/I2) and

Tyler Johnson (UNC)


  • Login
