Presentation Transcript
Progress toward dna barcoding the vast diversity of fungi l.jpg

Progress toward DNA barcoding the vast diversity of fungi

Dr. Amy Y. Rossman

USDA Agricultural Research Service

Systematic Mycology & Microbiology Laboratory

U.S. National Fungus Collections


Fungi are everywhere l.jpg
Fungi are everywhere!

Mushrooms

Polypores

Mycorrhizae

Morels

Truffles

Yeasts

Parasites

Saprobes

Molds


Slide3 l.jpg

Fungi are polyphyletic. True fungi are more closely related to animals than to any other major group of organisms. The Oomycetes including the cause of Sudden Oak Death (SOD) and late blight of potatoes are more closely related to heterokont algae than other fungi. Myxomycetes or slime molds are relatively closely related to protozoans.

Rhododendron with Sudden Oak Death

Oospores of Phytophthora ramorum, cause of SOD


Slide4 l.jpg
Based on ratio of fungi:plant of 5-6:1 in a few well-studied places. Only 5-10% are known, thus 90-95% have yet to be discovered.

Fungi are extremely diverse,

second only to the insects in number of species.

1.5 million species estimated to exist


Slide5 l.jpg

All Fungi Barcode of Life Planning Workshop places.

Smithsonian Conservation and Research Center

Front Royal, Virginia

13-15 May 2007


2 nd workshop on dna barcoding of fungi 17 september 2007 taipei taiwan l.jpg
2 places. nd Workshop on DNA Barcoding of Fungi17 September 2007, Taipei, Taiwan


Ectomycorrhizae l.jpg

FBI – Fungal Barcode Initiative places.

Connecting above ground with below ground fungi

Ectomycorrhizae

Bolete fruiting

Conifer forest in Northern California

photographed Feb. 15, 2003 by Eric Guinther.

Healthy forests


Aecidial state of black stem rust on unrelated host barberry l.jpg

FBI – Fungal Barcode Initiative places.

Connecting alternate states of plant pathogenic fungi

Aecidial state of black stem rust on unrelated host - barberry

Black stem rust

of wheat


Slide9 l.jpg

Many, many undescribed species of arbuscular mycorrhizal fungi in one deciduous forest in Japan.Yamoto, M. & K. Iwase. 2005. Mycoscience 46: 334-342.


Slide10 l.jpg

Environmental samples of fungi in alpine soils. fungi in one deciduous forest in Japan.

Are these unknown or just unsequenced lineages?

Schadt et al in Science 301:1359-1361. 2003


What region to use for dna barcode for fungi l.jpg
What region to use for DNA barcode for fungi? fungi in one deciduous forest in Japan.

COI

ITS of rDNA

ITS plus LSU

ITS plus tef, beta tubulin, RPB1


Slide12 l.jpg

COI in fungi in one deciduous forest in Japan.Penicillium and Aspergillus

http://www.botany.utoronto.ca/ResearchLabs/MallochLab/Malloch/Moulds

Seifert et al. (2007) PNAS. COI primers were designed from Penicillium marneffei and from two Aspergillus species.

COI distinguished most species in Penicillum sect. Penicillium.

And, the authors note a problem with COI introns . . .


Slide13 l.jpg

Seifert et al. 2007 fungi in one deciduous forest in Japan.


Slide14 l.jpg

Figure 3 fungi in one deciduous forest in Japan.

Taylor and Berbee 2006

Mycologia 98:838-849


Slide15 l.jpg

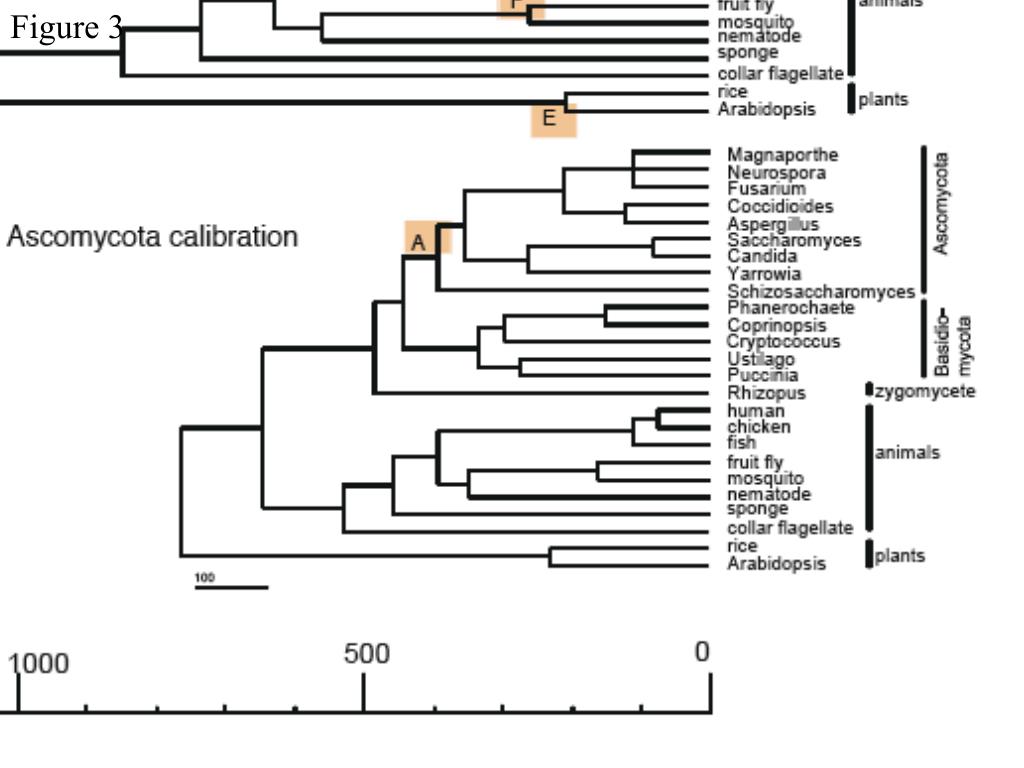

Figure 3 fungi in one deciduous forest in Japan.


Slide16 l.jpg

Figure 3 fungi in one deciduous forest in Japan.


Slide17 l.jpg

All Fungi Barcode of Life Planning Workshop fungi in one deciduous forest in Japan.

Decision on DNA Barcode for Fungi

ITS 1- 5.8S - ITS 2, ~525-700 bp


Slide18 l.jpg

All Fungi Barcode of Life Planning Workshop fungi in one deciduous forest in Japan.

Decision on DNA Barcode for Fungi

ITS 1- 5.8S - ITS 2, ~525-700 bp

Positives:

Stable priming regions, thus few primers can cover the fungi.

Variable regions provide specificity.

Size of one sequencing run, ~ 525-700bp.

Many ITS sequences already exist.

Negatives:

Not a good region for phylogenetics

ITS variation does not necessarily match phylogenetic species.


Slide19 l.jpg

UNITE - reliable identification of ectomycorrhizal fungi - DNA barcoding in action

Urmas Kõljalg

(University of Tartu, Estonia)

http://unite.ut.ee

Joe Bishoff, Francois Lutzoni, & Urmas Kõljalg


Slide20 l.jpg

1) DNA barcoding in actionFungal fruitbodies from which DNA are extracted must be maintained in public herbaria.

2) Only specimens that are well developed and show all the structures necessary for an accurate identification should be used as sources of DNA

3) All sequenced specimens must be identified by an experts and the name of the expert referenced in the database


Slide21 l.jpg

4) DNA barcoding in actionDNA from sequenced sporocarps should be saved and maintained along with the sporocarps

5) Sequences must be associated with specimen data

6) Whenever possible, specimens from which DNA is derived should be illustrated (e.g. photos)

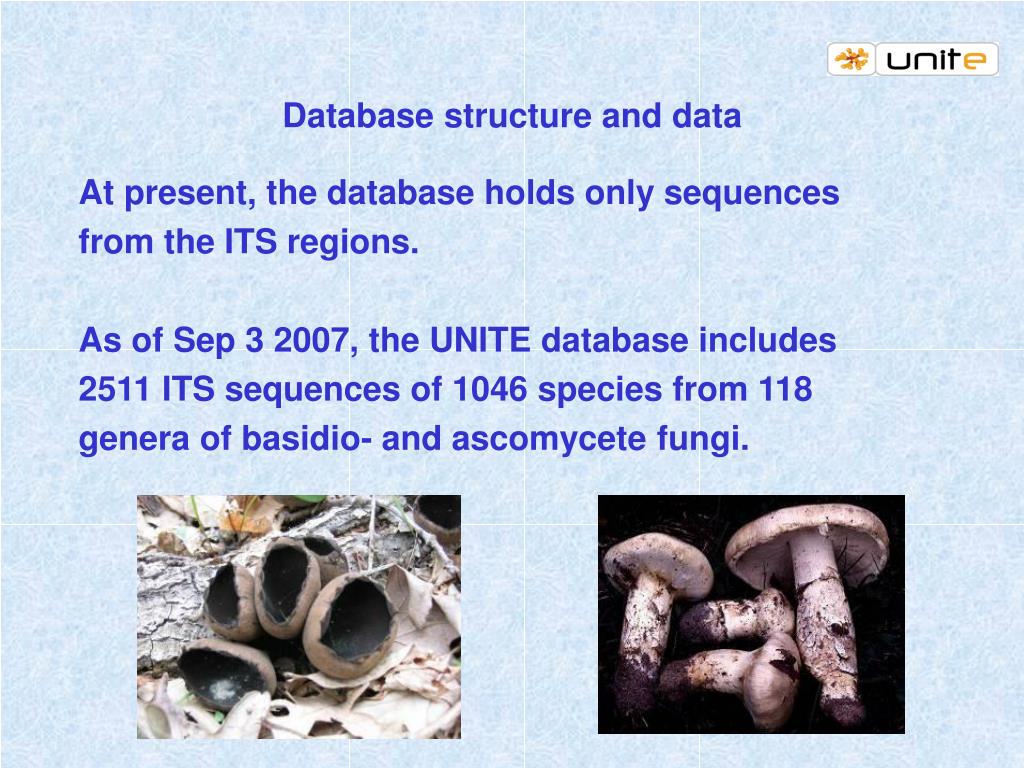

Slide22 l.jpg

Database structure and data DNA barcoding in action

At present, the database holds only sequences from the ITS regions.

As of Sep 3 2007, the UNITE database includes 2511 ITS sequences of 1046 species from 118 genera of basidio- and ascomycete fungi.


Slide25 l.jpg

Tomentella DNA barcoding in action & Thelephora

695 ITS sequences

fruit body 229

ectomycorrhiza 341

orchid mycorrhiza 72

etc.

Europe 402

N-America 202

S-America 33

Australasia 28

etc.


Slide26 l.jpg

Integrated multiloci BarCode system for DNA barcoding in actionHypocrea/Trichoderma species identification powered by sequence diagnosis, oligonucleotide BarCode and similarity search tools

Irina S. Druzhinina, Alexey G. Kopchinskiy, Christian P. Kubicek

Group of Fungal Evolution and Biodiversity

Research Area of Gene Technology and Applied Biochemistry

Institute of Chemical Engineering, Vienna University of Technology

AUSTRIA

Irina Druzhinina &

Barbara Paulus


Slide27 l.jpg

…become acquainted with DNA barcoding in actionTrichoderma

mitosporic genus of Hypocrea

Hypocreales, Ascomycota

present in nearly all soils and other diverse habitats

in soil, they frequently are the most prevalent culturable fungi

the third most important genus of industrial fungi

photo: W. Jaklitsch, 2005


Slide28 l.jpg

opportunistic pathogens of mammals DNA barcoding in action

mycopathogens

green mould disease of cultivated Agaricus and

Pleurotus in North America,

Europe and Asia

Skin lesion on the medial aspect of the wrist of a pediatric patient with aplastic anemia

Munoz et al. (1997): J. Clin. Microbiol. 35, 499-503

Hatvani, Kreditcs, 2006

…become acquainted with Trichoderma


Slide29 l.jpg

promoters of plant growth DNA barcoding in action

roots of faba bean (Vicia faba)

with Trichoderma

without Trichoderma

T. Belayneh, Ethiopia, 2005

…become acquainted with Trichoderma

endophytes

Trichoderma theobromicola reisolated from the upper portion of cacao stem 1 m after inoculation of cacao shoots with conidial suspension (Samuels et al., 2006)


Slide30 l.jpg

textile industry DNA barcoding in action

food industry and agriculture

used in poultry feed to increase the digestibility of hemicelluloses from barley or other crops

"biostoning" of denim fabrics to give rise to the soft, whitened fabric-stone-washed denim

…become acquainted with Trichoderma

efficient producers of many extracellular enzymes


Slide32 l.jpg

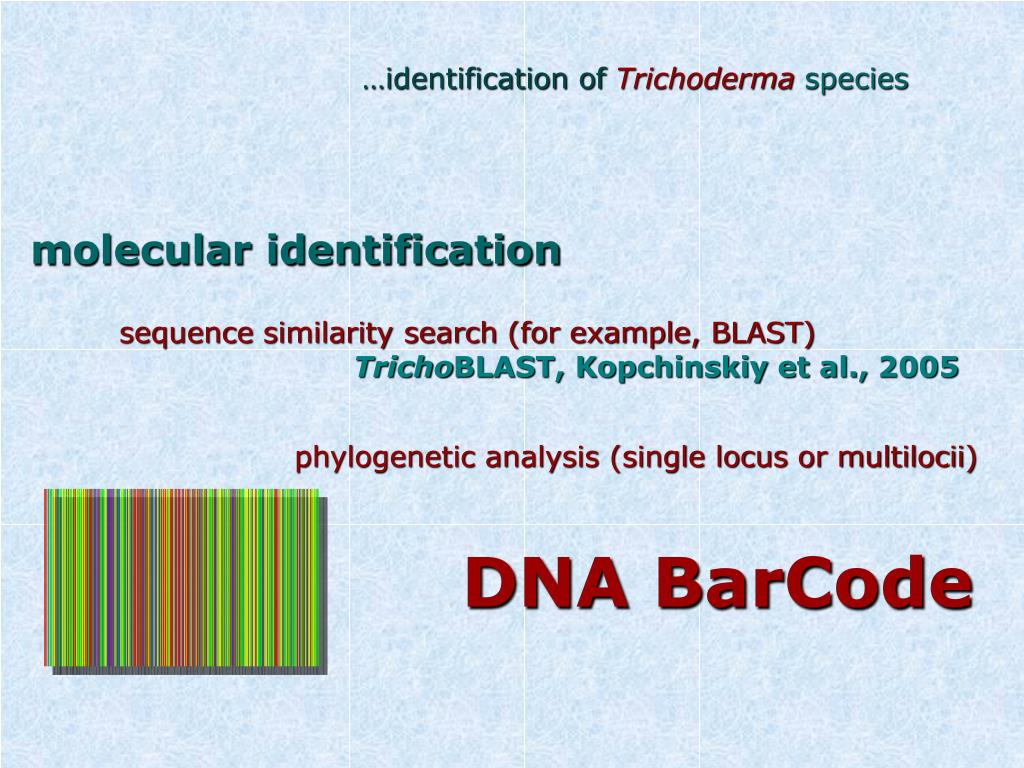

…identification of DNA barcoding in actionTrichoderma species

molecular identification

sequence similarity search (for example, BLAST)

TrichoBLAST, Kopchinskiy et al., 2005

phylogenetic analysis (single locus or multilocii)

DNA BarCode


Slide33 l.jpg

…an oligonucleotide BarCode for DNA barcoding in actionTrichoderma

>1500

ITS1 and 2 sequences

~180

ITS1 and 2 alleles

~100

species

Second gene region, tef, often needed forspecies identification


Slide34 l.jpg

Druzhinina DNA barcoding in actionet al., 2005

Jaklitsch et al., 2006b

…ITS1 and 2 phylogeny is concordant with other loci

Bayesian radial tree showing Hypocrea/Trichoderma phylogeny based on ITS1 and 2

Bayesian phylogenetic tree as inferred from the analysis of partial rpb2 sequences


Slide35 l.jpg

Rapid identification of indoor air fungi DNA barcoding in action

Aeroallergens, black mold (Stachybotrys chartarum)


Slide36 l.jpg

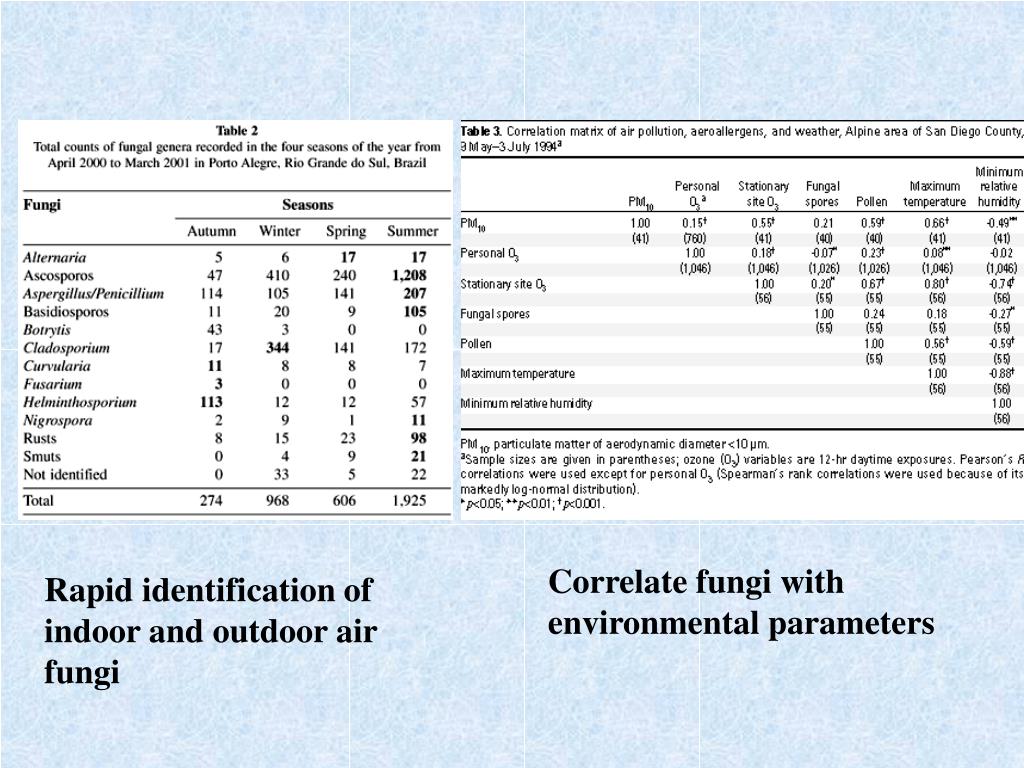

Correlate fungi with environmental parameters DNA barcoding in action

Rapid identification of indoor and outdoor air fungi


Slide37 l.jpg

Dirty dust. The global transport of dust carries microbes across oceans and continents.Image credit: NASA


Slide38 l.jpg

Symptoms and effects of across oceans and continents.Aspergillus infection on the sea fan Gorgoniaventalina. Infected sea fans are charaterized by lesions of necrotic tissue surrounded by a dark purple halo. Photo by Kiho Kim.


Slide39 l.jpg

Tracking movement of plant pathogenic fungi across oceans and continents.

2003: While soybean rust has not yet been identified in the United States, researchers say it's just a matter of time until it enters. The yellow areas indicate countries where soybean rust has been identified.

http://images.google.com/imgres?imgurl=http://cropwatch.unl.edu/photos/

2004: Discovered following Hurricane Hugo, urediniospores in upper atmosphere



Slide41 l.jpg

Mycologists are excited about DNA barcoding and have a number of projects in process.

For fungi, ITS is used almost universally and

was selected as the standard DNA barcode region.

In some groups ITS is not unique for individual species and must be combined with second gene.

For many groups of fungi, the basic systematic knowledge does not yet exist to develop DNA barcodes.

Mycologists are poised to tackle one or more big international collaborative projects.

No Fungi

No Future!
