A SEPTEMBERTO REMEMBER

A CATASTROPHIC DEBRIS FLOW

TRIGGERED BY HURRICANE IVAN


Overview of the event l.jpg
Overview of the Event

  • Torrential rains from Hurricanes Frances and Ivan drenched the mountains of North Carolina.

  • During heavy rains of Ivan, a landslide was triggered in Macon Co. near the top of Fishhawk Mountain.

  • A debris flow gathered momentum and raced two miles down Peeks Creek.

  • The Peeks Creek community was devastated by a mass of water, earth, trees, and boulders up to 15 tons.

    • Four people were killed and several were seriously injured.

    • 15 to 20 homes were destroyed or severely damaged.

    • The debris flow ended where Peeks Creek meets the Cullasaja River.


Outline l.jpg
OUTLINE

  • Meteorological Setting

  • What Happened

  • Geology of Landslides

This presentation is based primarily on the work of the following people:

Jonathan Lamb and Brian Campbell

National Weather Service

Richard Wooten and Rebecca Latham

North Carolina Geological Survey

Warren Cabe

Macon County Office of Emergency Management


Nc mountains normal yearly rainfall l.jpg

NC MOUNTAINSNORMAL YEARLY RAINFALL

Highest in the Eastern United States


Tracks of frances and ivan l.jpg
TRACKS OF FRANCES AND IVAN



Hurricane frances rainfall l.jpg
Hurricane Frances Rainfall




Frances rainfall amounts l.jpg
Frances Rainfall Amounts

Peeks

Creek

NORTH CAROLINA

GEORGIA


Ivan rainfall amounts l.jpg
Ivan Rainfall Amounts

Peeks

Creek

NORTH CAROLINA

GEORGIA


Francis ivan rain amounts l.jpg
Francis + Ivan Rain Amounts

Peeks

Creek

NORTH CAROLINA

GEORGIA


Peeks creek watershed l.jpg
Peeks Creek Watershed

Peeks Creek

Fishawk Mountain


Convective rainfall bursts prior to landslide l.jpg
Convective Rainfall Bursts Prior to Landslide

  • Remnants from NE Georgia supercells eventually merged and moved over eastern Macon Co. about 20 min. before debris flow occurred.

  • Based on radar reflectivities, enhanced rainfall rate occurred over Peeks Creek watershed 20-30 min before landslide started.

  • The soil’s liquid limit was exceeded, allowing the soil to liquefy and begin to flow.

KGSP Composite Reflectivity 0128-0203 UTC


Gsp wsr 88d 1 hr precip l.jpg
GSP WSR-88D 1-Hr Precip

KGSP One Hour Precipitation 0153-0213 UTC


Remnant supercell s track l.jpg
Remnant Supercell’s Track

  • Remnants of a supercell that spawned a tornado in Northeast Georgia moved directly over Fishhawk Mountain about 20 minutes before the slide occurred.

  • Broad, weak rotation in mid-levels as storm moved over Macon county.

  • 0.5° base-velocity data showed no anomalous low-level wind fields.

  • Convective cell could have brought stronger mid-level winds to the surface.

KGSP 0.5° SRM 0143-0203 UTC


Geographic points of interest l.jpg
Geographic Points of Interest

  • Fishhawk Mountain is part of a somewhat rare NW-SE ridge

  • Area is heavily forested

  • Very steep terrain

  • Relatively small watershed

  • Bedrock is near the surface in many locations

Photo courtesy of David Phillips


Landslide course showing scouring to bedrock on steep slope l.jpg
Landslide Course ShowingScouring to Bedrock on Steep Slope

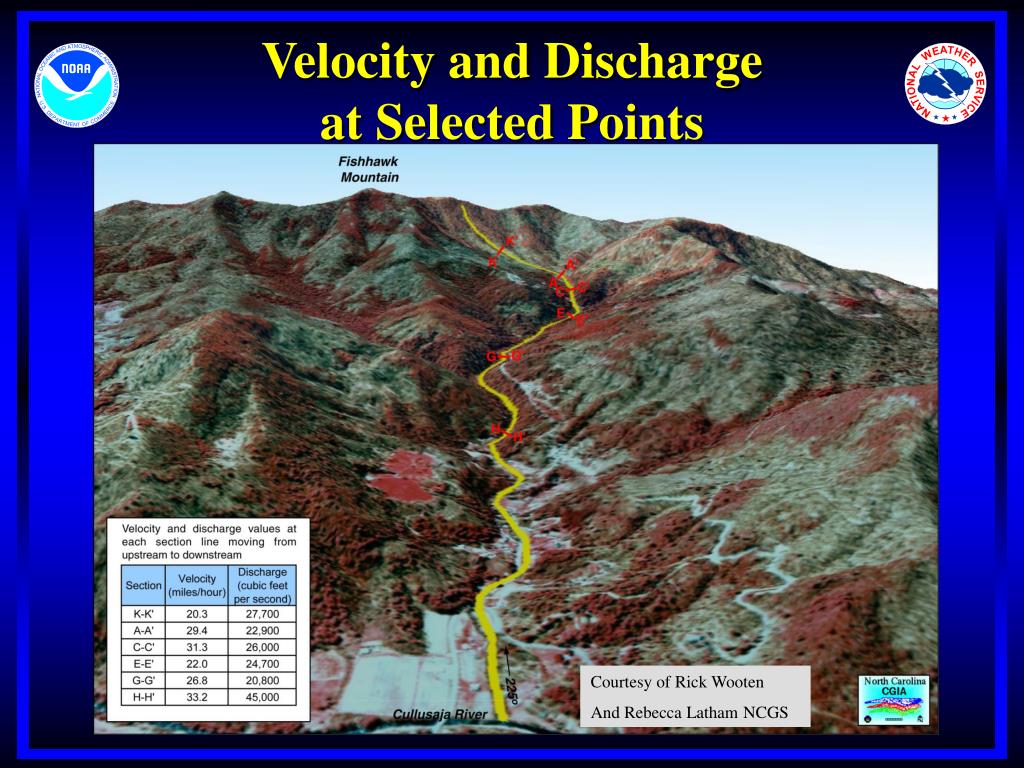

Velocity and discharge at selected points l.jpg
Velocity and Discharge at Selected Points

Courtesy of Rick Wooten

And Rebecca Latham NCGS


Initiation point significance l.jpg
Initiation Point Significance

  • We noticed a flowing spring at very top of slide area.

  • Water was trickling down rock sheet from top.

  • This may have pre-lubricated the rock sheet under the soil and reduced friction.

  • Soil is very thin and silty.

    • survey notes by Jonathan Lamb


Hydrologic factors l.jpg
Hydrologic Factors

  • Frances’ rains probably fully charged the aquifer.

  • Surface of confined aquifer rose significantly during Ivan.

  • Water flow through springs and other outlets increased dramatically.

  • A gush of water began at headwater of Peeks Creek during evening of 16 Sept.

  • Topsoil was already saturated from rains.


Two early hypotheses on triggering mechanism l.jpg

Natural dams formed in constricted areas of creek during Frances’ rains.

Silt, rocks and trees may have clogged narrow creek passages, forming natural ponds in one or two places.

Small slides upstream overloaded dams and caused a domino effect.

Resulted in a torrent of debris at the bottom of the mountain.

A microburst or small tornado felled trees in headwaters area.

The falling trees in thin, saturated soil, caused the ground to give way.

The landslide then gained momentum on the way down.

Natural spring was secondary to falling trees as the trigger.

Two Early Hypotheses on Triggering Mechanism


Natural dams hypothesis l.jpg
Natural Dams Hypothesis Frances’ rains.

  • Maybe, but probably wasn’t crucial in triggering the debris flow

  • Locations of possible water retention were much farther down the mountain

  • Burst of water from small retention ponds may have added some momentum to the flow

  • Possibility of precursor debris dams is still being investigated by the NC Geological Survey


Wind damage hypothesis l.jpg
Wind Damage Hypothesis Frances’ rains.

  • Possible contributor

  • Aerial photographs show spotty tree damage

  • But at initiation point, no adjacent vegetation appeared disturbed

  • Residents did report very gusty winds during the late evening and wind damage was widespread across the mountains

  • Even root stress from strong winds could have been enough to overload the soil’s cohesion

  • But the event can be explained without wind damage

Photo courtesy of David Phillips


Progression of debris flow l.jpg

Progression of Debris Flow Frances’ rains.

From Top to Bottom

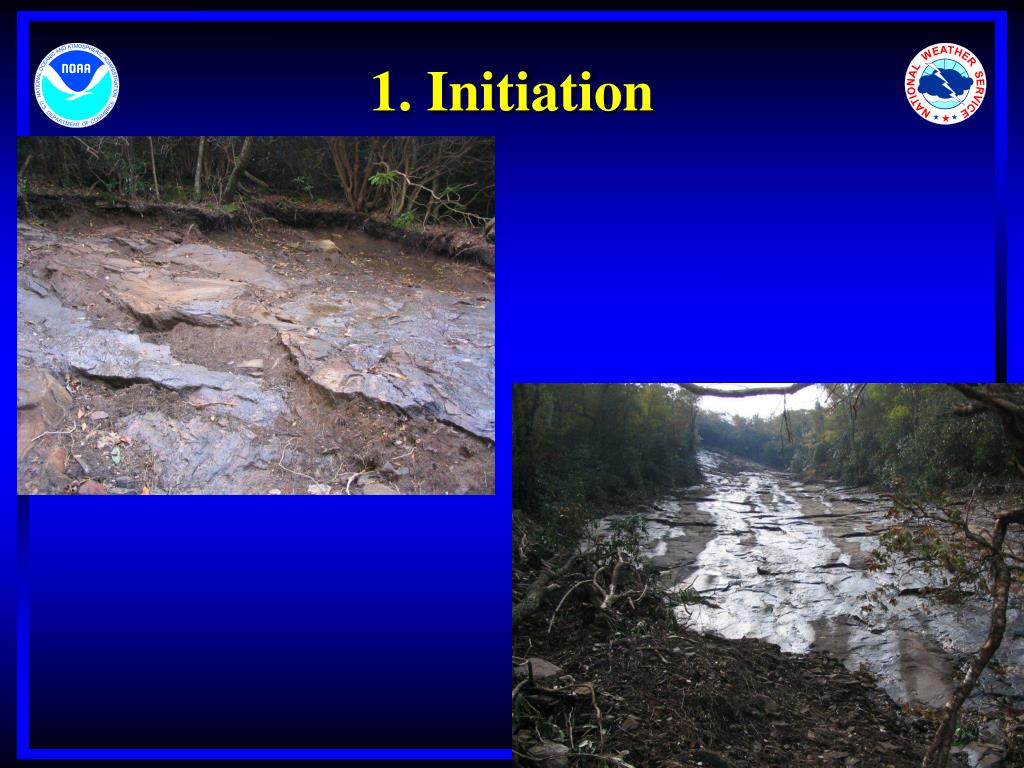

1 initiation l.jpg
1. Initiation Frances’ rains.


Slide27 l.jpg
2. Frances’ rains.

Debris flow probably gained mass and accelerated very quickly in the steep terrain near the top of Fishhawk Mountain.


Slide28 l.jpg
3. Frances’ rains.


4 scraped trees l.jpg

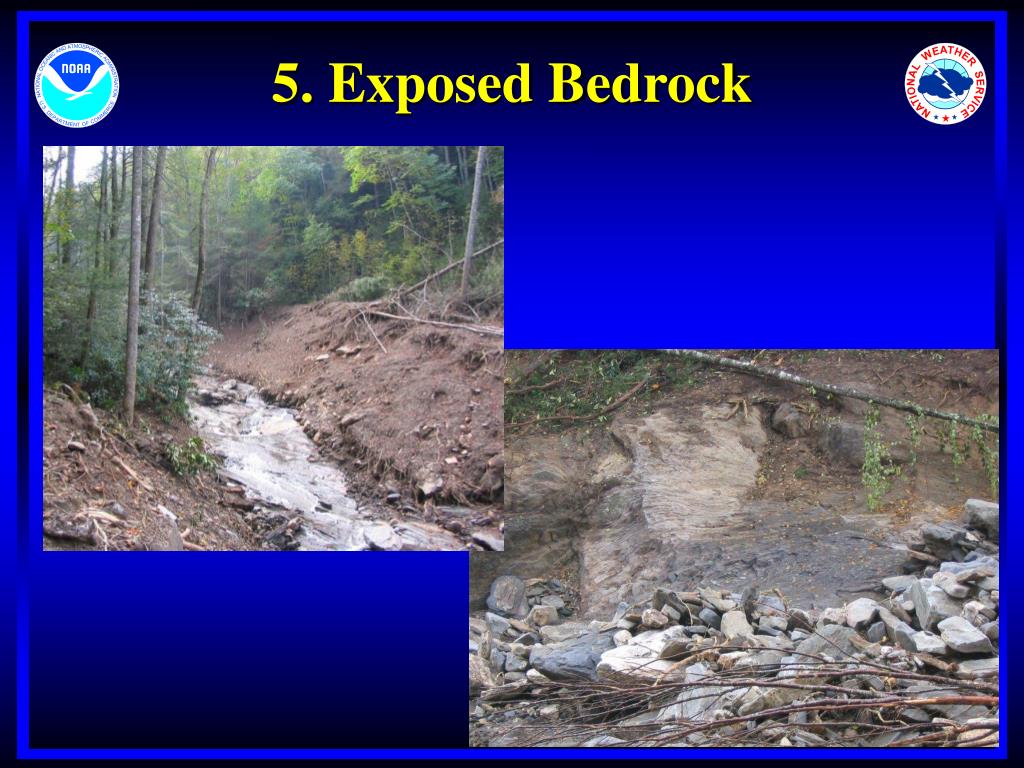

4. Scraped Trees Frances’ rains.


5 exposed bedrock l.jpg
5. Exposed Bedrock Frances’ rains.

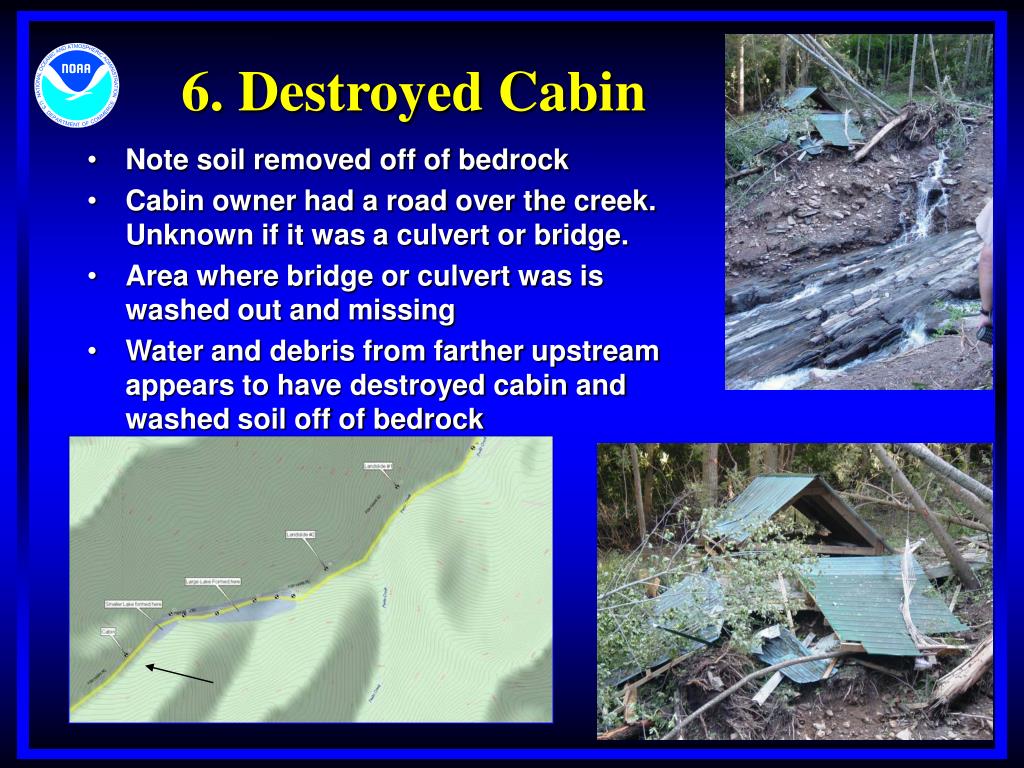

6 destroyed cabin l.jpg
6. Destroyed Cabin Frances’ rains.

  • Note soil removed off of bedrock

  • Cabin owner had a road over the creek. Unknown if it was a culvert or bridge.

  • Area where bridge or culvert was is washed out and missing

  • Water and debris from farther upstream appears to have destroyed cabin and washed soil off of bedrock


7 wide point l.jpg
7. Wide Point Frances’ rains.

Slope lessened about 1.2 miles from the top, causing the flow of debris to spread out. Notice the huge pile of trees, rocks and silt in the center.


Huge boulders moved l.jpg
Huge Boulders Moved Frances’ rains.


8 two small landslides l.jpg
8. Two Small Landslides Frances’ rains.

Photos by Brian Campbell, NWS


9 damaged destroyed homes l.jpg
9. Damaged/Destroyed Homes Frances’ rains.

Images courtesy of Brian Campbell(NWS ERH).

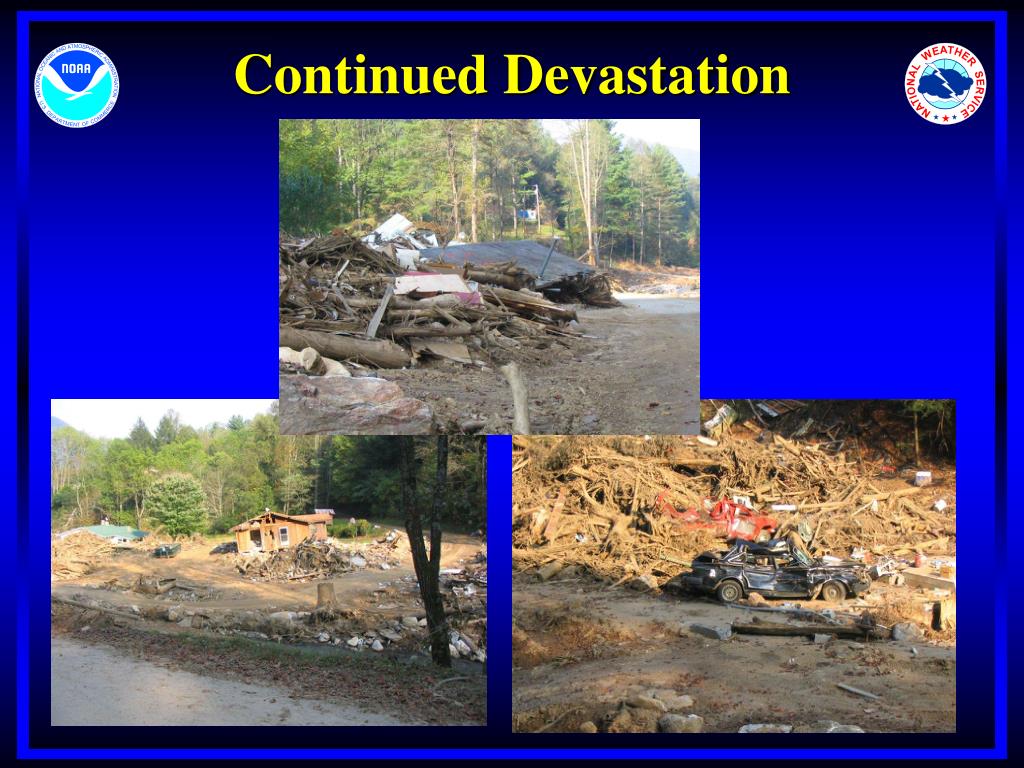

Continued devastation l.jpg
Continued Devastation Frances’ rains.

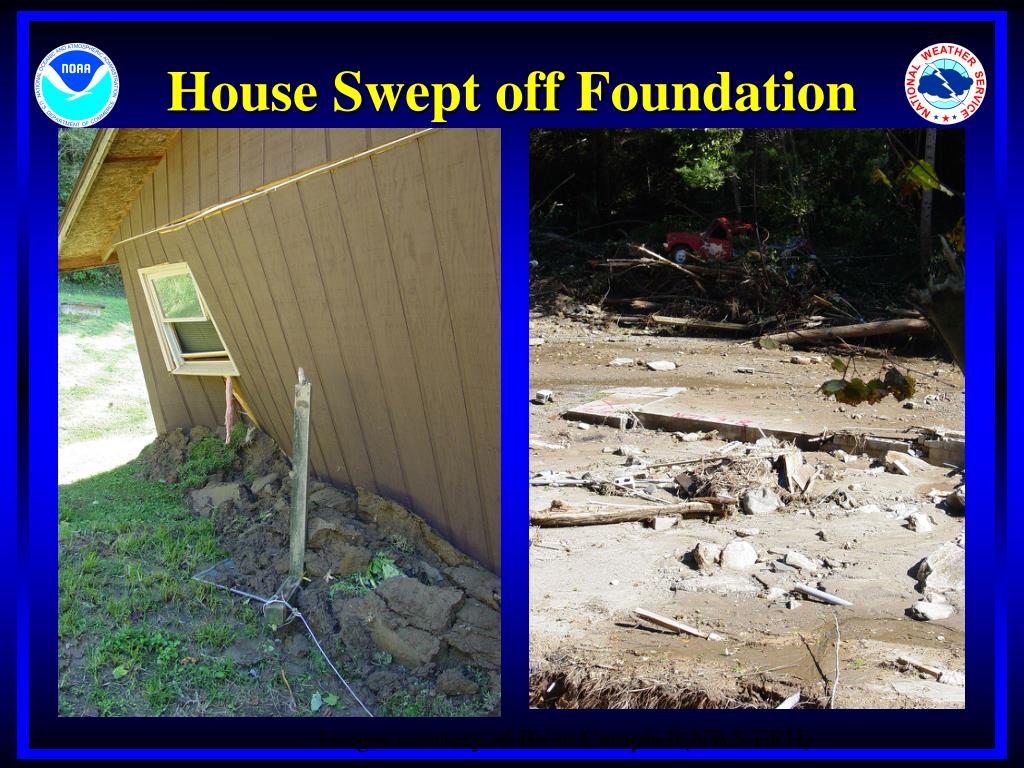

House swept off foundation l.jpg
House Swept off Foundation Frances’ rains.

Images courtesy of Brian Campbell(NWS ERH).


Debris flow ends as creek bed becomes wide and flat l.jpg
Debris Flow Ends as Creek Bed Frances’ rains.becomes Wide and Flat


Peeks creek empties into cullasaja river l.jpg
Peeks Creek Empties into Cullasaja River Frances’ rains.

  • Most accumulated debris had already been deposited upstream.

  • However, some house debris was found down the Cullasaja River.

  • One of the bodies was also found downstream several weeks later.


Fire rescue searches homes l.jpg
Fire/Rescue searches homes Frances’ rains.


Elevation profile l.jpg
Elevation Profile Frances’ rains.

  • Valley starts at approximately 3,622 feet

  • Runs downhill for 2.3 miles

  • Empties out in the river at 2,142 feet

  • Approximately 1500 foot drop in 2 miles

Courtesy of Brian Campbell


Elevation profile44 l.jpg
Elevation profile Frances’ rains.

  • Valley starts at approximately 3,622 feet

  • Runs downhill for 2.3 miles

  • Empties out in the river at 2,142 feet

  • Approximately 1500 foot drop in 2 miles


Landslides in north carolina l.jpg

Landslides in Frances’ rains.North Carolina

A Historical Perspective

Causes and Triggers

Rick Wooten - Rebecca Latham

North Carolina Geological Survey



Slide47 l.jpg

Rock Slide Frances’ rains.

I-40 Pigeon River Gorge

July 1997



Slide51 l.jpg

N.C. Geological Survey Frances’ rains.

Slope Movement Database


Slide52 l.jpg

Maggie Valley Frances’ rains.

Apartment Complex

On Debris Fan


Causes underlying geology geomorphology hydrology weather climate slope modifications l.jpg

  • TRIGGERS Frances’ rains.

  • Volcanic Eruptions

  • Earthquakes - Blasting

  • Freeze - Thaw

  • Precipitation – Water

  • Slope Modifications

CAUSES

Underlying Geology

Geomorphology

Hydrology

Weather-Climate

Slope Modifications



Blue ridge parkway landslide l.jpg
Blue Ridge Parkway Landslide Frances’ rains.

Landslide that destroyed a section of the Blue Ridge Parkway north of Mount Mitchell in Hurricane Frances.

Mt Mitchell received 23 in. of rain with Frances, 11 in. with Ivan, and 6 in. with Jeanne. The total for September was more than 46 in. (nearly 4 ft. of rain in one month!), the highest monthly total ever in North Carolina.



Slide61 l.jpg

High antecedent moisture conditions Frances’ rains.followed by high intensity rainfall.

5” of rain in 24 hours – reasonable threshold for localized slope movement events.

10” of rain in 24 hours:Widespread slope movements.More rainfall gauges would aid in refining these threshold values.


References links l.jpg

North Carolina Geological Survey Frances’ rains.http://www.geology.enr.state.nc.us

U.S. Geological Survey http://www.usgs.gov

National Weather Service http://www.nws.noaa.gov

Coweeta Ecological Laboratory http://coweeta.ecology.uga.edu

References, Links
