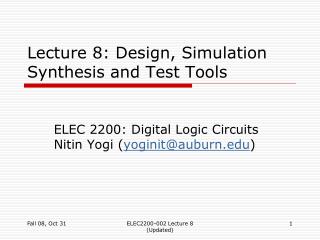

Lecture 8 design simulation synthesis and test tools l.jpg

Lecture 8: Design, Simulation Synthesis and Test Tools

ELEC 2200: Digital Logic CircuitsNitin Yogi (yoginit@auburn.edu)

ELEC2200-002 Lecture 8 (Updated)


X win32 l.jpg

X-Win32

  • X-Win32 is used to log into UNIX session

  • Use Windows Auburn login and password to log into X-Win32 session.

ELEC2200-002 Lecture 8 (Updated)


Slide3 l.jpg

Start X-Win32 from here

ELEC2200-002 Lecture 8 (Updated)


Windows security alert warning l.jpg

Windows Security Alert Warning

If Windows Security Alert window pops up, press OK

ELEC2200-002 Lecture 8 (Updated)


You might also get this screen l.jpg

You might also get this screen

Double click on “Scan for Unix/Linux hosts”

Click on any of the server names and click on “Select”

ELEC2200-002 Lecture 8 (Updated)


You might also get this screen6 l.jpg

You might also get this screen

Click “OK”

ELEC2200-002 Lecture 8 (Updated)


Slide7 l.jpg

X-Win32 Login Screen

ELEC2200-002 Lecture 8 (Updated)


Unix session l.jpg

UNIX session

  • Setup the softwares required to run the tools for simulation, synthesis and test

  • At the command prompt type the following command and hit “Enter”>> user-setup

Command prompt to type commands in

ELEC2200-002 Lecture 8 (Updated)


Slide9 l.jpg

User Setup screen

Click on button “Electronics Data Analysis (EDA)”

ELEC2200-002 Lecture 8 (Updated)


Slide10 l.jpg

3. Click the X button on the top right

2. Click on the following software packages:eda/Modelsim/6.4

eda/ICFlow/2006.1

eda/DFT/2006.3

1. Go to the bottom of the option screen

ELEC2200-002 Lecture 8 (Updated)


Slide11 l.jpg

Click on “Save and Quit”

ELEC2200-002 Lecture 8 (Updated)


Slide12 l.jpg

The Added modules will be displayed here

Press “Commit Changes”

ELEC2200-002 Lecture 8 (Updated)


X win32 reset l.jpg

X-Win32 reset

  • Exit X-Win32 and restart the X-Win32 session again as described earlier

ELEC2200-002 Lecture 8 (Updated)


Unix environment l.jpg

UNIX environment

  • When you log-in into X-Win32, the current default directory is the H: of windows system

  • Some useful UNIX commands

    • >> cd<directory_name>: change directory

    • >> cd .. : go up one directory

    • >> ls: list contents of directory

    • >> pwd: display the full path of the current dir.

    • >> mkdir: create directory

ELEC2200-002 Lecture 8 (Updated)


Setting the simulation environment l.jpg

Setting the simulation environment

  • In the current default directory, create another directory for your designs by using the mkdir command.

    • Ex. >> mkdir my_name

    • Do not use spaces while giving names as it may create problems in UNIX

    • This new directory can be accessed in windows in H drive

      • Ex. by accessing H:\my_name

  • Change to this new directory using the cd command

    • Ex. >> cd my_name

  • In the current design directory (ex. my_name) run the following commands:

    • >> vlib work

    • >> vmap work work

ELEC2200-002 Lecture 8 (Updated)


Example vhdl code l.jpg

Example VHDL code

Need to add this for compiling

library IEEE;

use IEEE.std_logic_1164.all;

use IEEE.numeric_std.all;

entity my_ckt is

port (

A: in bit;

B: in bit;

S: in bit;

X: out bit;

Y: out bit );

end my_ckt ;

architecture behav_seq of my_ckt is

signal Xtmp: bit;

begin p1: process (A,B,S,Xtmp)

begin

if (S=‘0’) then

Xtmp <= A;

else

Xtmp <= B;

end if;

if ((Xtmp = ‘0’) and (S = ‘0’)) then

Y <= ‘1’;

else

Y <= ‘0’;

end if;

X <= Xtmp;

end process p1;

end;

ELEC2200-002 Lecture 8 (Updated)


Designing compiling and simulating designs l.jpg

Designing, compiling and simulating designs

  • Write VHDL description in any text editor (notepad, wordpad) and save the file as *.vhd

  • To simulate any design, you need to compile your design first. Compile your VHDL design using the command:>> vcom <VHDL filename>e.g.>> vcom my_ckt.vhd

  • We shall use the tool ModelSim for simulating the designTo invoke ModelSim, use the following command:>> vsim <design_name>e.g.>> vsim my_ckt

ELEC2200-002 Lecture 8 (Updated)


Slide18 l.jpg

ELEC2200-002 Lecture 8 (Updated)


Slide19 l.jpg

1. Click on “View > List” to select it (displayed as a tick)

2. Click on “View > Objects” to select it (displayed as a tick)

ELEC2200-002 Lecture 8 (Updated)


Slide20 l.jpg

ELEC2200-002 Lecture 8 (Updated)


Slide21 l.jpg

1. Select the input and output signals by clicking and holding the CTRL key

2. Click “Edit > Copy”

ELEC2200-002 Lecture 8 (Updated)


Slide22 l.jpg

Click on the list window and then click “Edit > Paste”

ELEC2200-002 Lecture 8 (Updated)


Slide23 l.jpg

ELEC2200-002 Lecture 8 (Updated)


Slide24 l.jpg

Right click the input signal name and then click Force

ELEC2200-002 Lecture 8 (Updated)


Slide25 l.jpg

Enter the value of the signal over here and then click OK

If the signal is of type bit_vectoryou will assign binary values here. Ex. “010” for a signal of type bit_vector(2 downto 0)

ELEC2200-002 Lecture 8 (Updated)


Slide26 l.jpg

To simulate, click Simulate > Run > Run 100

ELEC2200-002 Lecture 8 (Updated)


Slide27 l.jpg

ELEC2200-002 Lecture 8 (Updated)


Slide28 l.jpg

ELEC2200-002 Lecture 8 (Updated)


Slide29 l.jpg

Click on the list window then on File > Export > Tabular list

ELEC2200-002 Lecture 8 (Updated)


Slide30 l.jpg

ELEC2200-002 Lecture 8 (Updated)


Useful resource l.jpg

Useful resource

  • VHDL Design and Simulation using ModelSim

    • http://www.eng.auburn.edu/department/ee/mgc/quickvhdl/modelsim.html

ELEC2200-002 Lecture 8 (Updated)


Synthesis l.jpg

Synthesis

  • We shall use the tool Leonardo to synthesize the behavioral description into structural level netlist

  • Command to invoke Leonardo is:>> leonardo

ELEC2200-002 Lecture 8 (Updated)


Slide33 l.jpg

Click on LeonardoSpectrum Level 3 and then click OK

ELEC2200-002 Lecture 8 (Updated)


Slide34 l.jpg

1. Click on Advanced FlowTabs

2. Under the “Technology” tab, click on the ASIC plus sign

ELEC2200-002 Lecture 8 (Updated)


Slide35 l.jpg

Click ADK then TSMC 0.18 micron (typ), then click on “Load Library”

ELEC2200-002 Lecture 8 (Updated)


Slide36 l.jpg

Click the “Input” tab and then the button besides “Open files”

ELEC2200-002 Lecture 8 (Updated)


Slide37 l.jpg

Select the required VHDL file and click “Open”

ELEC2200-002 Lecture 8 (Updated)


Slide38 l.jpg

Current selected designs will be displayed in this list

Click on the “Read” button to read the current selected VHDL design(s) into the tool

ELEC2200-002 Lecture 8 (Updated)


Slide39 l.jpg

1. Click on “Optimize” tab

2. Click the type of optimization: area or delay

3. Click “Optimize”

ELEC2200-002 Lecture 8 (Updated)


Slide40 l.jpg

1. Click on “Report” tab

2. Click on “Report Area”

ELEC2200-002 Lecture 8 (Updated)


Slide41 l.jpg

1. Select the report being displayed

1. Select the report being displayed

2. Select Edit > Copy to copy the report. This can then be pasted in MS Word

2. Select Edit > Copy to copy the report. This can then be pasted in MS Word

ELEC2200-002 Lecture 8 (Updated)


Slide42 l.jpg

Click on the “Report Delay” tab and then on the button “Report Delay”

ELEC2200-002 Lecture 8 (Updated)


Slide43 l.jpg

2. Select Edit > Copy to copy the report. This can then be pasted in MS Word

1. Select the report being displayed

ELEC2200-002 Lecture 8 (Updated)


Slide44 l.jpg

1. Select “Output” tab

2. Select the Verilog option in the Format menu and enter a name for the output netlist file (*.v)

3. Click “Write”

ELEC2200-002 Lecture 8 (Updated)


Changes in design performed by synthesis tool leonardo l.jpg

Changes in design performed by Synthesis tool Leonardo

  • Data-type changes

    • Integer data type in behavioral design is mapped to bit_vector data type (array of bits) in structural design

      • Ex. a signal A of integer data type of range -27 to +27-1 defined in the behavioral design is mapped/changed to a data type bit_vector(0 to 7)

    • Enumerated / User-defined data types are encoded as binary numbers

      • Ex. A signal of typetemperature with values (high, medium, low) defined at the behavioral level may be encoded as (00, 01, 11) at the structural level

ELEC2200-002 Lecture 8 (Updated)


Preparing for simulation of netlist l.jpg

Preparing for simulation of netlist

  • The netlist saved from Leonardo is in Verilog format (and not VHDL)

  • You need to compile your verilog netlist to simulate it

  • Before you compile your verilog netlist, you need to compile all the gate designs that your netlist uses.

  • The gate designs are in a file named adk.vhd at the location $ADK/technology

  • To compile the gate designs, type the following command in your current working directory at the command prompt:

    • >> vcom $ADK/technology/adk.vhd -work ./work/

ELEC2200-002 Lecture 8 (Updated)


Simulation of netlist l.jpg

Simulation of netlist

  • You need to compile your verilog netlist in order to simulate it.

    • Command to compile Verilog netlist:>> vlog <Verilog file_name>e.g. >> vlog my_ckt.v

  • Simulate the design using ModelSim

    • Command to invoke ModelSim:>> vsim <design_name>e.g.>> vsim my_ckt

ELEC2200-002 Lecture 8 (Updated)


Slide48 l.jpg

ELEC2200-002 Lecture 8 (Updated)


Test generation l.jpg

Test generation

  • We shall use the tool FlexTest to generate test vectors for the netlist

  • Command to invoke FlexTest:>> flextest

ELEC2200-002 Lecture 8 (Updated)


Slide50 l.jpg

1. Select the output netlist file generated by Leonardo using the Browse button

2. Click on the “Browse” button to select the ATPG Library

ELEC2200-002 Lecture 8 (Updated)


Slide51 l.jpg

1. Select the file adk.atpg in the directory /opt/ADK3.1/technology/

and then click OK

ELEC2200-002 Lecture 8 (Updated)


Slide52 l.jpg

Invoke FlexTest

ELEC2200-002 Lecture 8 (Updated)


Slide53 l.jpg

Click on “Done With Setup”

ELEC2200-002 Lecture 8 (Updated)


Slide54 l.jpg

Click on “Pattern Generation”

ELEC2200-002 Lecture 8 (Updated)


Slide55 l.jpg

Click on “Fault Universe”

ELEC2200-002 Lecture 8 (Updated)


Slide56 l.jpg

Click on “Typical”

ELEC2200-002 Lecture 8 (Updated)


Slide57 l.jpg

Click on “Pattern Source”

ELEC2200-002 Lecture 8 (Updated)


Slide58 l.jpg

Click on “Typical”

ELEC2200-002 Lecture 8 (Updated)


Slide59 l.jpg

Click on “Test Generation”

ELEC2200-002 Lecture 8 (Updated)


Slide60 l.jpg

Click on “Run with Existing Settings”

ELEC2200-002 Lecture 8 (Updated)


Slide61 l.jpg

Click on “Save Patterns”

ELEC2200-002 Lecture 8 (Updated)


Slide62 l.jpg

ELEC2200-002 Lecture 8 (Updated)


Slide63 l.jpg

1. Check “Save the Pattern Set to a File”

2. Enter a filename for the test vector file

3. Click OK

ELEC2200-002 Lecture 8 (Updated)


Opening the pattern file saved l.jpg

Opening the pattern file saved

  • You can open the pattern file you just saved in the windows environment using any text editor (notepad, wordpad, Word,etc.)

  • The pattern file you saved will be in your current working design directory

    • e.g. H:\my_name\

  • Next slide shows the pattern file

ELEC2200-002 Lecture 8 (Updated)


Slide65 l.jpg

Total no. of faults

Fault Coverage

Total no. of test cycles (vectors)

User CPU time

ELEC2200-002 Lecture 8 (Updated)
