Presentation Transcript


Introduction to scheme

Introduction to Scheme

L2Scm


Scheme

Scheme

  • Meta-language for coding interpreters

    • “clean” semantics

  • Scheme = LISP + ALGOL

    • simple uniform syntax; symbols and lists

    • block structure; static scoping

    • expression : evaluated for its value

    • statement : evaluated for its effect

  • Dynamic type checking

    • flexible but inefficient (rapid prototyping)

L2Scm


Expressions

Expressions

Literals Variables Procedure calls

  • Literals

    • numerals(2), strings(“abc”), boolean(#t), etc.

  • Variables

    • Identifier represents a variable. Variable reference denotes the value of its binding.

      x

  • 5

    ref

    L2Scm


    Expressible vs denotable values

    Expressible vs Denotable values

    • Booleans are expressible in (early) FORTRAN, but not denotable.

    • Functions are denotable in Pascal/C, but are not expressible.

    • In (functional subset of) Scheme, both value spaces are identical.

    • In (full) Scheme, variable references (pointers) are denotable but not expressible.

    L2Scm


    Scheme identifiers

    Scheme Identifiers

    • E.g., y,x5,+,two+two,zero?, etc

    • (Illegal) 5x,y)2,ab c, etc

    • Identifiers

      • reserved keywords

      • variables

        • pre-defined functions/constants

        • ordinary

    • functions = procedures

    L2Scm


    Procedure call application

    Procedure Call (application)

    • (operator-expr operand-expr ...)

      • prefix expression (proc/op arg1 arg2 arg3 ...)

    • Order of evaluation of the sub-expressions is “explicitly” left unspecified by Scheme.

      • cf. C is silent about it.

      • cf. Java specifies a left to right processing.

        (+ x (p 2 3))

        ((f 2 3) 5 6)

    L2Scm


    Special forms

    Special Forms

    • Definition

      • (define <var> <expr>)

        > (define false #f)

  • Conditional

    • (if <test> <then> <else>)

      > (if (zero? 5) 0 #t)

      > (if '() 'emptyList'never)

      emptyList

  • L2Scm


    Data types

    Data Types

    • values, operations, canonical representation

    • Type-checking

      • static : compile-time : efficient

      • dynamic : run-time : flexible

    • numbers: +, -, *, number?, =, etc.

    • booleans: #t, #f, boolean?, etc.

    • strings: string?, string->list, etc.

    L2Scm


    Symbols

    Symbols

    • Identifiers treated as primitive values.

      • Distinct from identifiers that name variables in the program text.

      • Distinct from strings (sequence of characters).

    • Primitive operations

      quote

      symbol?

    • Facilitates meta-programming

    L2Scm


    Lists

    Lists

    • Ordered sequence of elements of arbitrary types (Heterogeneous)

    • operations

      • car, cdr, cons, null?, ...

      • list, append, ...

      • cadr, caadr, caddddr, …

        (cadar X) = (car (cdr (car X)))

    L2Scm


    Pairs expression internal representation and print form

    Pairs: Expression, Internal Representation and Print form

    (cons 'a 'b)

    (cons 'a (cons 'b '()) )

    = (a . b)

    b

    a

    = (a . (b . ()) ) = (a b)

    ()

    a

    b

    L2Scm


    Domain equations for defining s expressions and lists

    Domain Equations for defining S-Expressions and Lists

    Sexpr = Atoms

    U

    SexprXSexpr

    List = ()

    U

    SexprXList

    L2Scm


    Equivalence syntactic vs semantic

    Equivalence : Syntactic vs Semantic

    (eq? (cons 3 '()) (cons 3 '()))

    #f

    (define a (cons 3 '()))

    (define b (cons 3 '()))

    (eq? a b)

    #f

    (define c a)

    (eq? a c)

    #t

    L2Scm

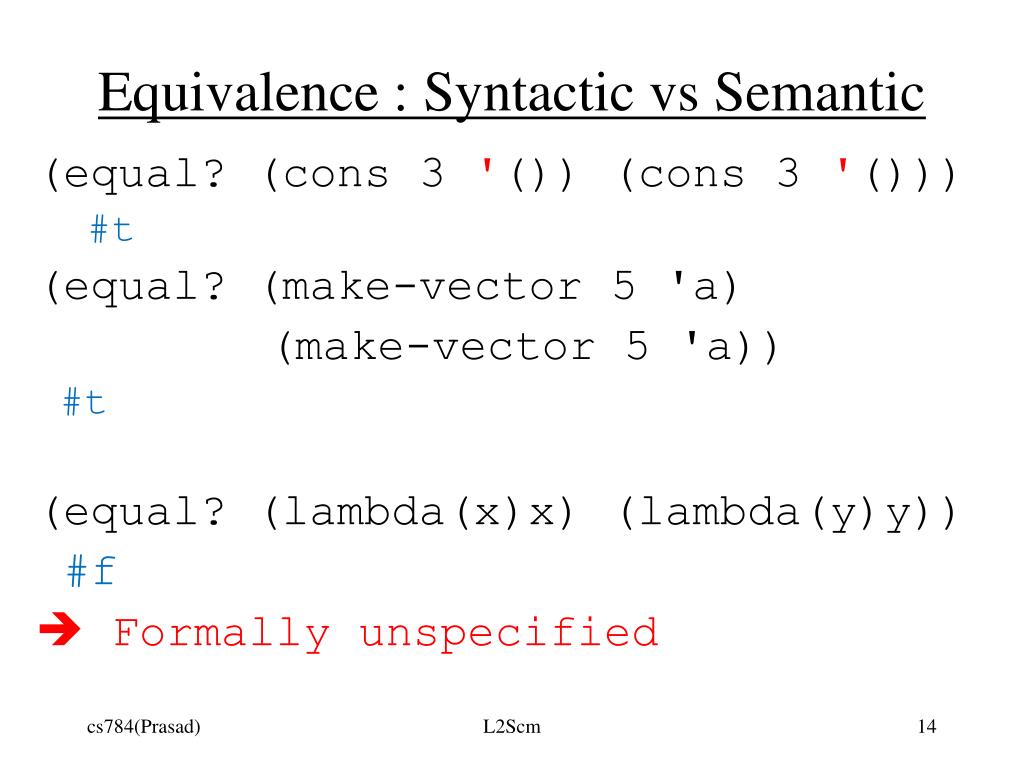

    Equivalence syntactic vs semantic1

    Equivalence : Syntactic vs Semantic

    (equal? (cons 3 '()) (cons 3 '()))

    #t

    (equal? (make-vector 5 'a)

    (make-vector 5 'a))

    #t

    (equal? (lambda(x)x) (lambda(y)y))

    #f

    Formallyunspecified

    L2Scm


    Vectors

    Vectors

    • Both records and arrays provide random access to components. However, records are heterogeneous, while arrays are homogeneous.

    • Vectors are heterogeneous structures that provide random access to components using a computable index.

    L2Scm


    Introduction to scheme

    • Constructors and accessors

      (define v (vector 1 (+ 1 2)))

      #(1 3)

      (vector-ref v 0)

      1

      (vector-length v)

      2

    • Index is 0-based.

    L2Scm


    Procedures

    Procedures

    • In Scheme, procedures are first-class objects. That is, they may be (i) passed to procedures or (ii) returned from procedures or (iii) stored in a data structure.

      (procedure? append)

      #t

      (if (procedure? 3) car cdr)

      #<procedure>

    L2Scm


    Introduction to scheme

    (( (if (procedure? procedure?)

    car cdr)

    (cons cdr car))

    '(list append))

    =

    ( (car (cons cdr car))

    '(list append))

    =

    (cdr '(list append))

    =

    (append)

    L2Scm


    Apply function

    Apply-function

    (apply cons '( x (y z)))

    = (cons 'x '(y z))

    = (x y z)

    (apply f '(a1 a2 ... an))

    = (f 'a1 'a2 ... 'an)

    (apply <func> <list-of-args>)

    L2Scm


    Apply function1

    Apply-function

    • Apply-function is not compelling if the function is of fixed arity and statically known.

    • Apply-function is indispensable if we wish to define variable arity function or the function will be computed dynamically.

    • Apply-function enables us to unify functions of different arities, and is an important component of an interpreter.

    L2Scm


    Introduction to scheme

    (apply apply

    (list procedure?

    (list apply)))

    = (apply apply

    [proc?-fn [ apply-fn ] ]

    )

    = (applyproc-fn

    [apply-fn] )

    = (procedure? apply)

    = #t

    L2Scm


    Anonymous functions

    Anonymous Functions

    (lambda<formals-list>

    <body-expr>)

    E.g.,

    ((lambda (n) (+ n 2)) (+ 1 4) ) = 7

    • Evaluate actual argument expressions

    • Bind these values to corresponding formals in formals-list

    • Evaluate body expression (static scoping)

    L2Scm


    Variable arity procedures

    Variable Arity Procedures

    (+ 1 2 3)

    (append '(1 (p q)) '() '(a b))

    (list 1.2 3/4 5)

    (lambda<formal> <body>)

    • <formal> is bound to the list of actual argument values supplied in a call.

    L2Scm


    Introduction to scheme

    (define mul

    (lambda x

    (if (null? x)

    1

    (* (car x)

    (applymul

    (cdrx))

    )

    )) ; 1 is identity w.r.t *

    ); assuming * is binary

    (mul 2 (+ 2 2) 5)

    L2Scm


    Binding constructs in scheme

    Binding constructs in Scheme

    • define

      • binds value to a name.

  • l-function application

    • binds formal parameters to actual argument values.

  • let-constructs

    • introduces local bindings

  • let

  • let*

  • letrec

  • L2Scm


    Let construct

    let-construct

    ( let

    ( (var1 exp1) … (varn expn))

    exp

    )

    • exp1 to expn are evaluated in the surrounding context.

    • var1,…,varn are visible only in exp.

    • (let ( (x 2) (y 7) ) y)

    • 7

    L2Scm


    Introduction to scheme

    • (let ( (x y) (y 7) ) y)

    • *error* “y” undefined

    • (define y 5)

    • (let ( (x y) (y 7) ) y)

    • 7

    • (let ( (x y) (y 7) ) x)

    • 5

    • (let ( (y 7) (x y) ) x)

    • 5 (not 7)

    L2Scm


    Introduction to scheme

    • (define y 5)

    • (let ( (y 7) (x y) ) x)

    • 5

    • (let ( (y 7) )

      (let ( (x y) ) x) )

    • 7

    • (let* ( (y 7) (x y) ) x)

    • 7

    • let* abbreviates nested-lets.

    • Recursive and mutually recursive functions cannot be defined using let and let*.

    L2Scm


    Letrec construct

    letrec-construct

    ( letrec

    ( (var1 exp1) … (varn expn))

    exp

    )

    • var1,…,varn are visible in exp1 to expn in addition to exp.

    • (letrec ( (x (lambda() y))

      (y (lambda() x)) )

      x

      )

    L2Scm


    Letrec construct1

    letrec-construct

    • (letrec ( (f (lambda(n) (if (zero? n) 1 (f (- 1 n)) )) ) )

      (f 5)

      )

    • 1

    • (letrec ( ( f (lambda () g) )

      ( g 2) )

      ( f )

      )

    • 2

    L2Scm


    Boolean connectives

    boolean connectives

    (or test1 test2 … testn)

    (and test1 test2 … testn)

    • or and and are not Scheme procedures.

    • They use short circuit evaluation rather than traditional call-by-value.

    L2Scm


    Branching constructs

    (cond

    (test1 exp1)

    (test2 exp2)

    (testn expn)

    (else exp)

    )

    (case key

    (keylist1 exp1)

    (keylist2 exp2)

    (keylistn expn)

    (else exp)

    )

    Branching constructs

    L2Scm
