Presentation Transcript


Film types and formats l.jpg

FILM TYPES AND FORMATS

The Essential Reference Guide for Filmmakers


Types of motion picture film l.jpg

Types of Motion Picture Film

  • Camera

  • Intermediate and Laboratory

  • Print


Camera films l.jpg

Camera Films

  • Captures the original image.

  • Negative film produces the reverse of the colors and/or tones our eye sees in the scene and must be printed on another film stock or transferred for final viewing.

  • Reversal film gives a positive image directly on the original camera film.


Camera film color balance l.jpg

Camera Film Color Balance

  • Camera films are balanced for 5500K daylight or 3200K tungsten.

  • Color films designated T are tungsten-balanced.

  • Color films designated D are daylight-balanced.


Intermediate and laboratory films l.jpg

Intermediate and Laboratory Films


Print films l.jpg

Print Films

  • Print film is used to print both the first work print (when work print is being used) and multiple copies of the final edited version.

Color Print

Camera Negative

DIRECT PRINTING

Master Positive

Duplicate Negative

RELEASE PRINTING


Film gauge l.jpg

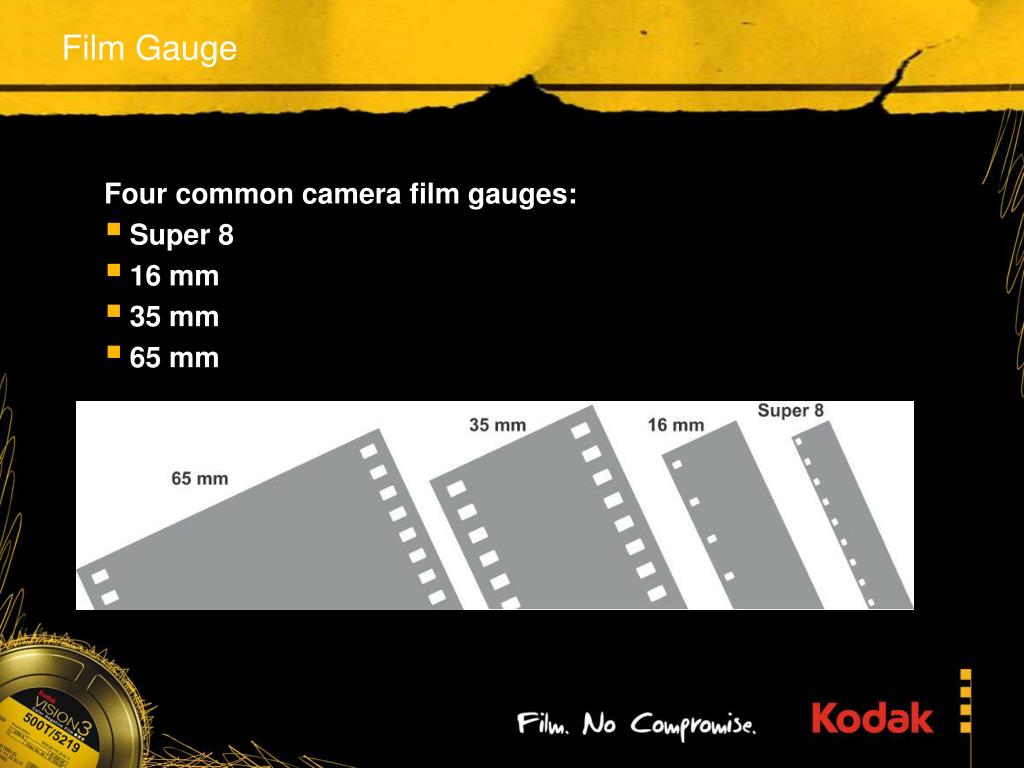

Film Gauge

  • Four common camera film gauges:

  • Super 8

  • 16 mm

  • 35 mm

  • 65 mm


Image format and aspect ratio l.jpg

Image Format and Aspect Ratio

  • Aspect ratio is independent of gauge.


1 37 1 and 1 33 1 l.jpg

1.37:1 and 1.33:1

Need to draw 1.33 dotted lines on this


1 85 1 l.jpg

1.85:1


2 40 1 l.jpg

2.40:1


1 66 1 l.jpg

1.66:1


1 78 1 l.jpg

1.78:1


70 mm l.jpg

70 mm


Shooting formats l.jpg

Shooting Formats

  • 1.37:1

  • 1.85:1

  • 1.66:1 (red) and 1.78:1 (cyan)


4 perf scope l.jpg

4-perf Scope

  • A scope negative and print. The entire area will become the 2.40:1 image when unsqueezed.


4 perf super 35 l.jpg

4-perf Super 35

  • The boxes in the images below show the aspects that can be taken from a Super 35 mm frame:

2.40:1

1.85:1

1.78:1 (16x9)


4 perf super 3518 l.jpg

4-perf Super 35

  • squeezed print of the 2.40:1

  • If shooting with a 1.85:1 aspect ratio, the image will also have to be resized to fit in a standard release format.


3 perf l.jpg

3-perf

  • 1.85:1

  • 1.78:1 (16x9)

  • 1.37:1 (4x3)


2 perf l.jpg

2-perf


Vistavision l.jpg

Vistavision


Hard matte l.jpg

Hard Matte


Super 16 l.jpg

Super 16

1.66:1

1.78:1 (16x9)

1.85:1


Super 1624 l.jpg

Super 16

  • WHY SUPER 16?


16 mm l.jpg

16 mm

  • Regular 16mm image on single-perf 16 mm stock

  • 16 mm image on double-perf stock


Super 8 l.jpg

Super 8


65 mm l.jpg

65 mm

We didn’t use this picture here in the book, does it work?


65 mm imax l.jpg

65 mm IMAX


Choosing a film stock l.jpg

Choosing a Film Stock

Suitability for


What are your shooting needs l.jpg

What are Your Shooting Needs?

  • Where will your film end up? On film, or other electronic or digital format?

  • Are you working with daylight or tungsten lighting?

  • Unpredictable shooting? Low light conditions?

  • Do you need medium speed with better image structure?

  • High color saturation?

  • Blue screen work?

  • Lower contrast, more open shadows, softer look?


Negative and reversal films l.jpg

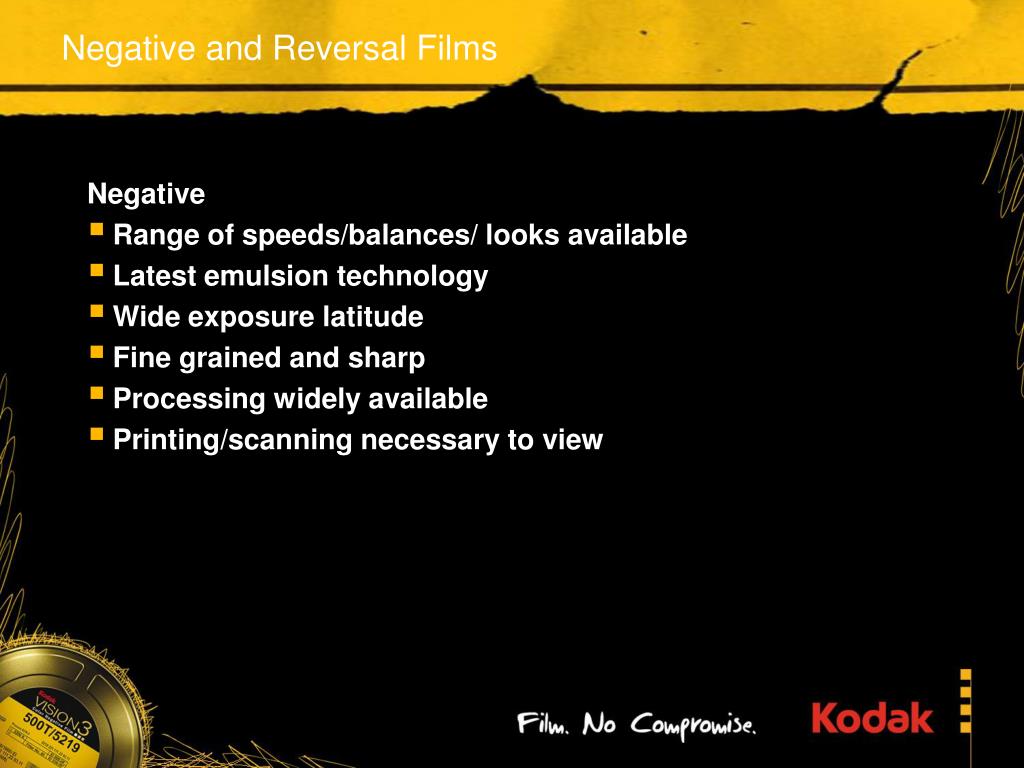

Negative and Reversal Films

  • Negative

  • Range of speeds/balances/ looks available

  • Latest emulsion technology

  • Wide exposure latitude

  • Fine grained and sharp

  • Processing widely available

  • Printing/scanning necessary to view


Negative and reversal films32 l.jpg

Negative and Reversal Films

  • Reversal

  • Direct positive image

  • Brilliant saturated colors

  • Fine grained and sharp

  • Narrow exposure latitude


Film speed l.jpg

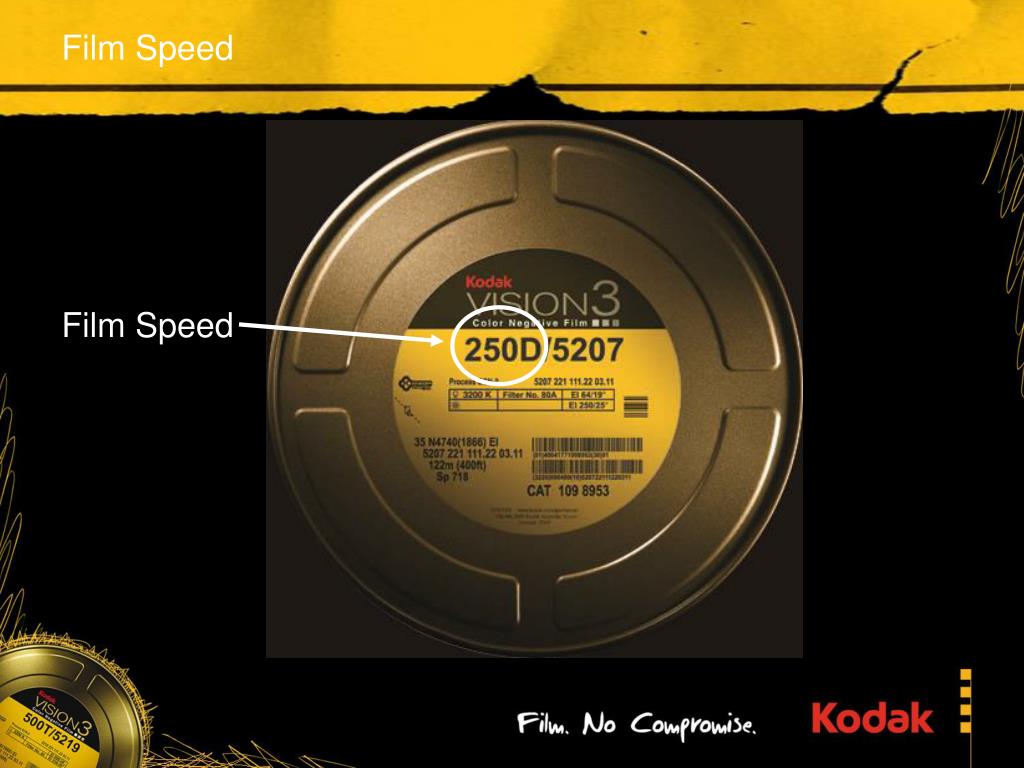

Film Speed

Film Speed


Color balance l.jpg

Color Balance

  • Daylight film exposed in Daylight

  • Daylight film exposed in Tungsten


Conclusion l.jpg

Conclusion

  • QUESTIONS?
