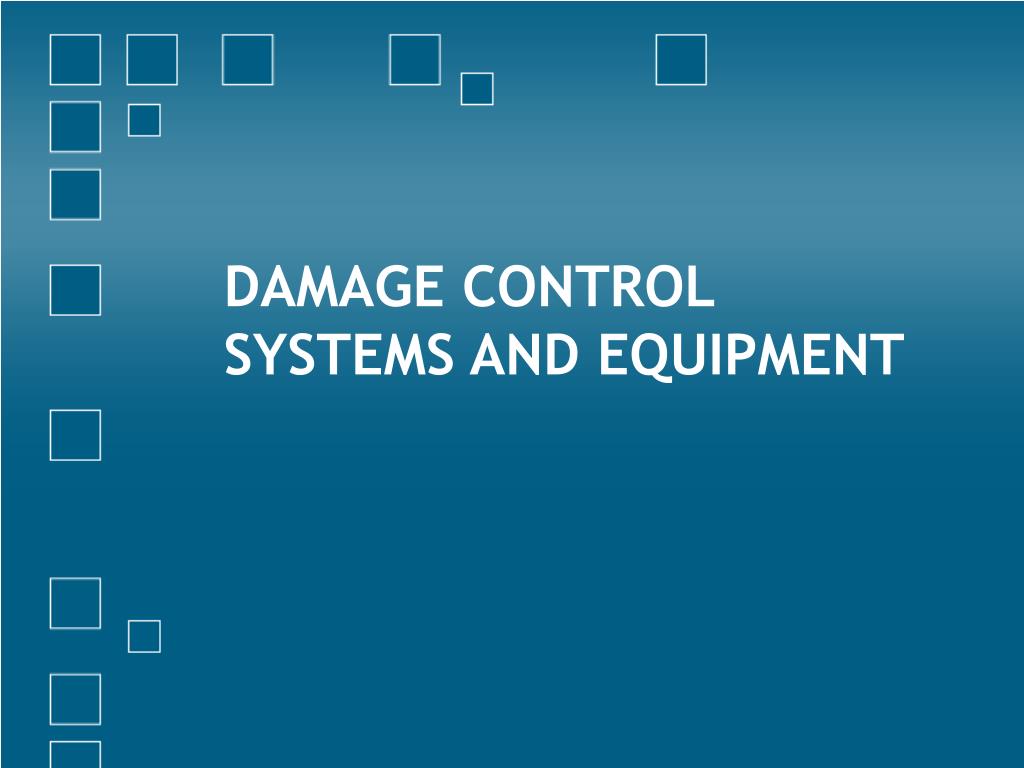

Damage control systems and equipment
Download
1 / 38

DAMAGE CONTROL SYSTEMS AND EQUIPMENT - PowerPoint PPT Presentation


  • 267 Views
  • Uploaded on

DAMAGE CONTROL SYSTEMS AND EQUIPMENT. Learning Objectives. Know the procedures, objectives and priorities in combating the progressive deterioration from fire and underwater hull damage

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'DAMAGE CONTROL SYSTEMS AND EQUIPMENT' - emily


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript

Learning objectives

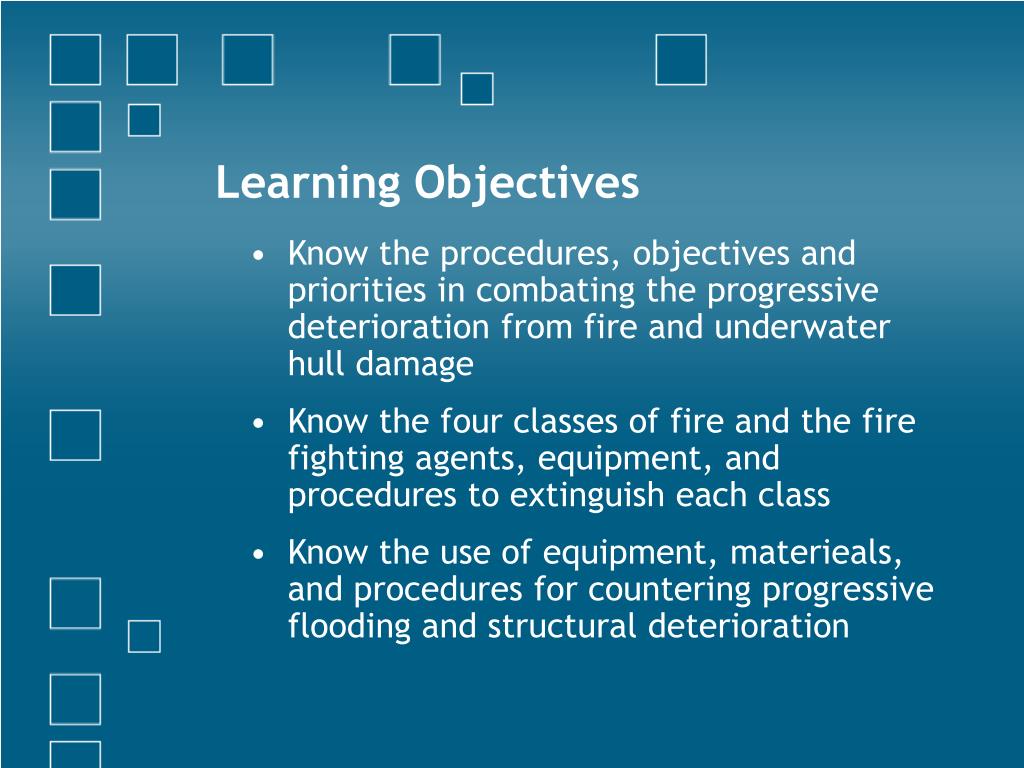

Learning Objectives

  • Know the procedures, objectives and priorities in combating the progressive deterioration from fire and underwater hull damage

  • Know the four classes of fire and the fire fighting agents, equipment, and procedures to extinguish each class

  • Know the use of equipment, materieals, and procedures for countering progressive flooding and structural deterioration


Learning objectives cont

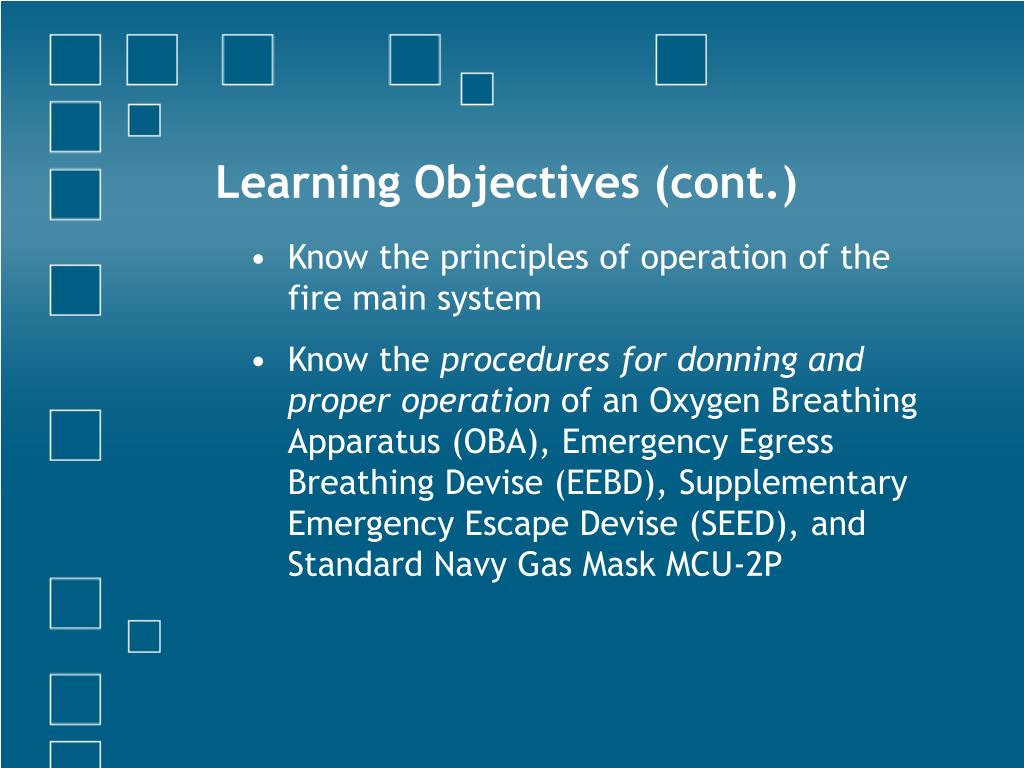

Learning Objectives (cont.)

  • Know the principles of operation of the fire main system

  • Know the procedures for donning and proper operation of an Oxygen Breathing Apparatus (OBA), Emergency Egress Breathing Devise (EEBD), Supplementary Emergency Escape Devise (SEED), and Standard Navy Gas Mask MCU-2P


Elements of fire tetrahedron
Elements of fire tetrahedron

  • Fuel

  • Heat

  • Oxygen

  • Free radicals (Chemical reaction)


Fuel

  • When a fire runs out of fuel it will stop.

  • Fuel can be removed naturally, as where the fire has consumed all the burnable fuel, or manually, by mechanically or chemically removing the fuel from the fire.

  • Examples: Paper, wood, oils/gas, wires, textiles/cloth, metal

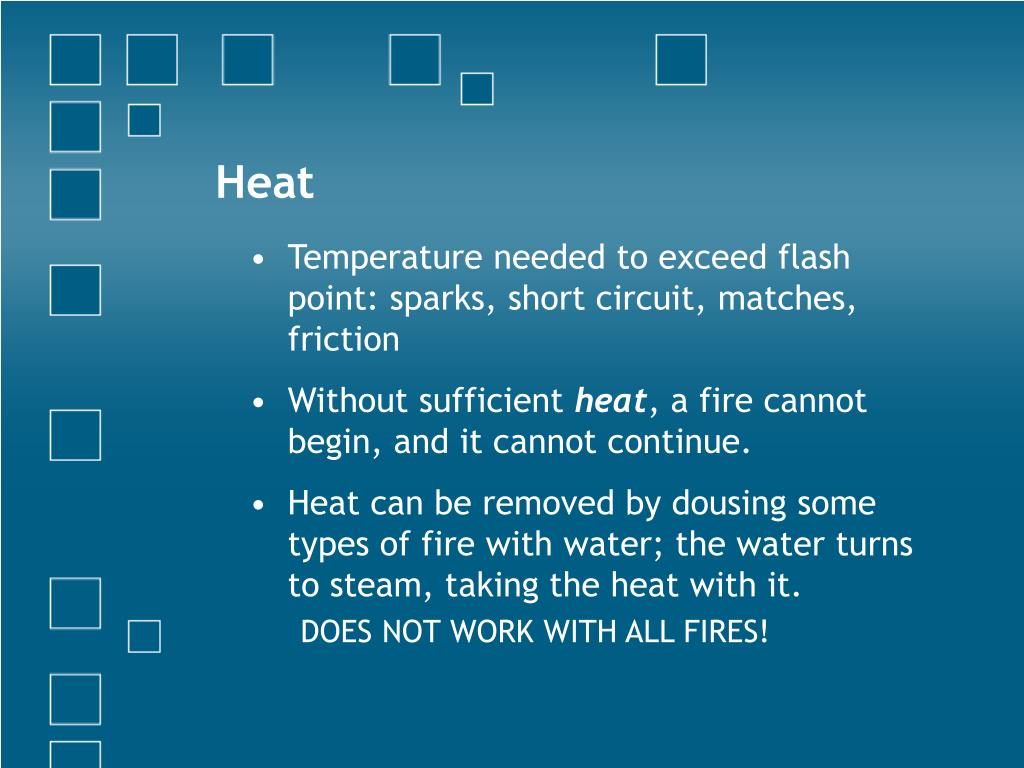

Heat

  • Temperature needed to exceed flash point: sparks, short circuit, matches, friction

  • Without sufficient heat, a fire cannot begin, and it cannot continue.

  • Heat can be removed by dousing some types of fire with water; the water turns to steam, taking the heat with it.

    DOES NOT WORK WITH ALL FIRES!


Oxygen
Oxygen

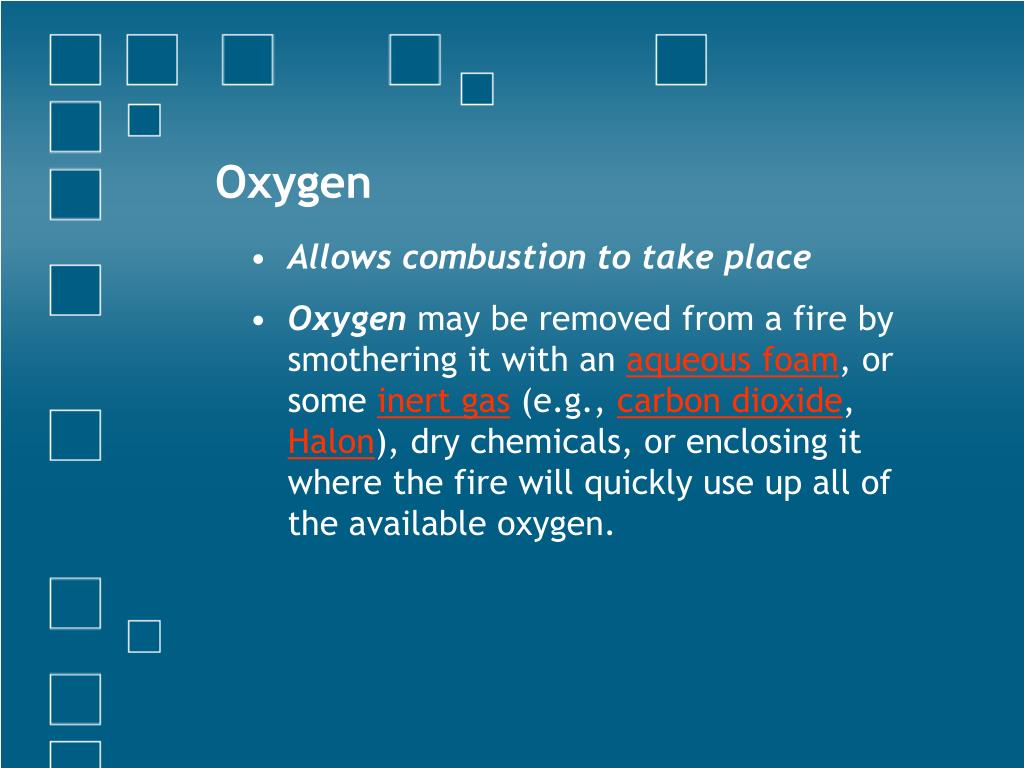

  • Allows combustion to take place

  • Oxygen may be removed from a fire by smothering it with an aqueous foam, or some inert gas (e.g., carbon dioxide, Halon), dry chemicals, or enclosing it where the fire will quickly use up all of the available oxygen.


Chemical reaction
Chemical Reaction

  • Free Radicals

  • Chemistry of Combustion

    • other specialized chemicals must be used to break the chain reaction of metallic combustion and stop the fire.

    • Lithium, Magnesium

  • What happens if you add water to these types of fires?



Classes of fire
Classes of Fire

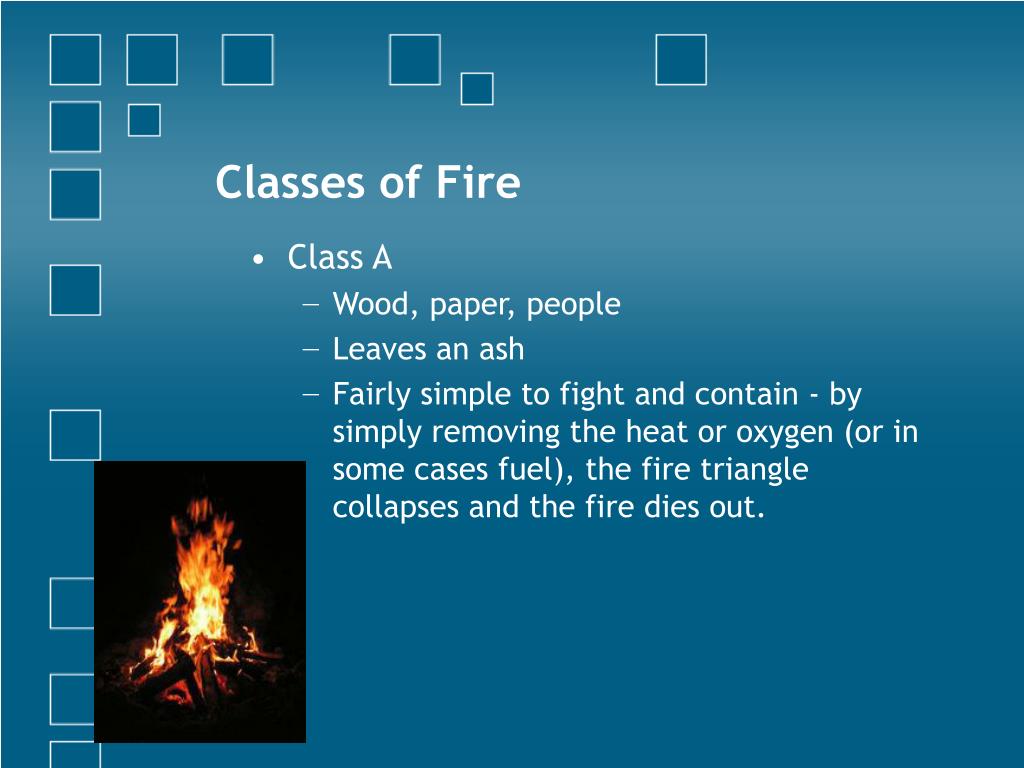

  • Class A

    • Wood, paper, people

    • Leaves an ash

    • Fairly simple to fight and contain - by simply removing the heat or oxygen (or in some cases fuel), the fire triangle collapses and the fire dies out.


  • Class B

    • Combustible fuels, hydrocarbons, solvents

    • More difficult to combat – water may spread fire

    • Chemical retardant, carbon dioxide fire extinguisher, protein based foam


  • Class C

    • Electrical

    • Difficulties in combating

      • Water – electrical shock

    • Protein foam to remove oxygen

    • Turn off power supply (  Class A)

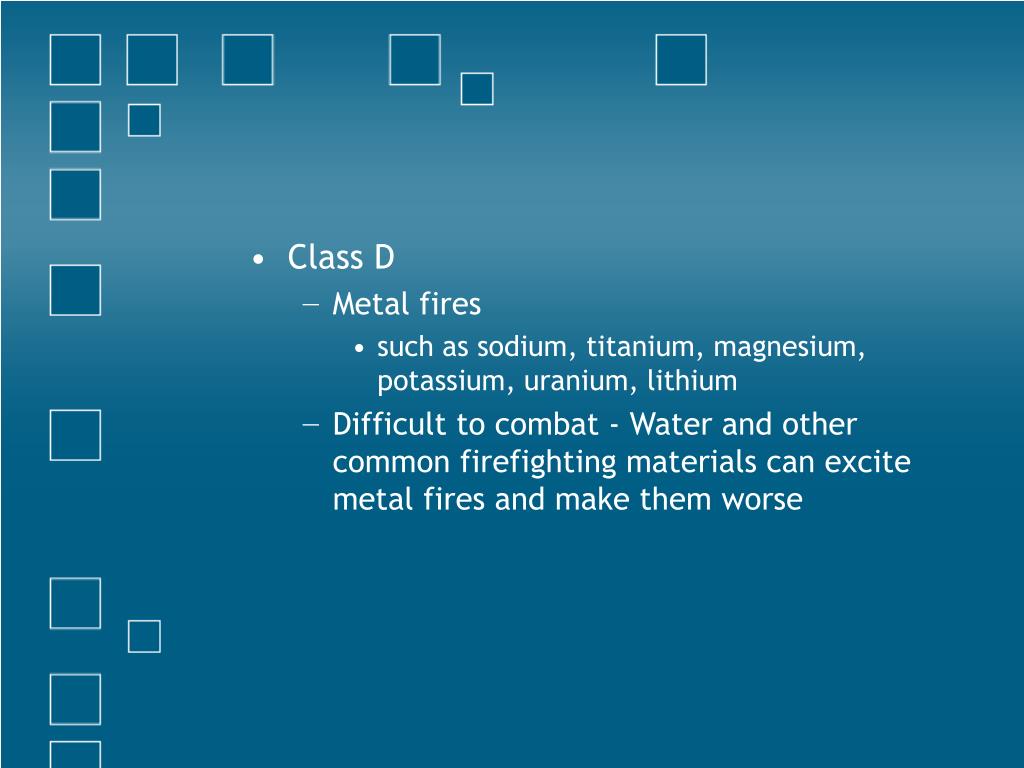

  • Class D

    • Metal fires

      • such as sodium, titanium, magnesium, potassium, uranium, lithium

    • Difficult to combat - Water and other common firefighting materials can excite metal fires and make them worse


Firemain system
Firemain System

  • Receives water pumped from ocean

  • Types of systems:

    • Single main – small ships

    • Horizontal Loop

    • Vertical Loop

    • Composite versions

  • Primary purpose – FIRE FIGHTING

  • Other uses: flushing, auxiliary machinery cooling, water washdown


Single main

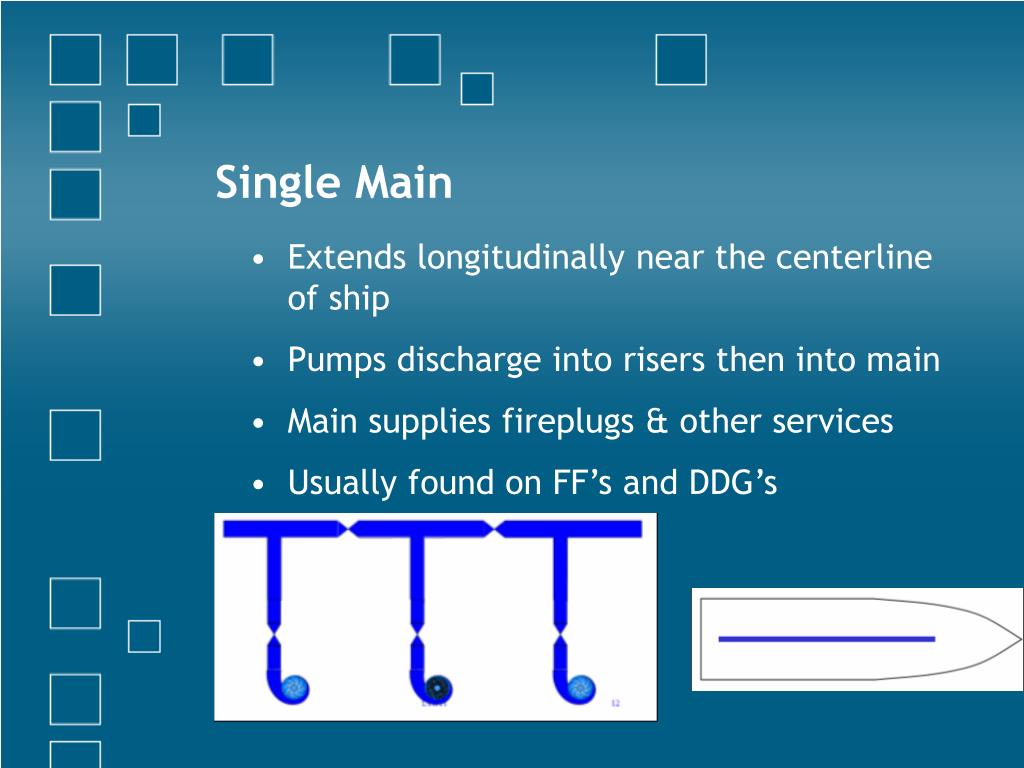

Single Main

  • Extends longitudinally near the centerline of ship

  • Pumps discharge into risers then into main

  • Main supplies fireplugs & other services

  • Usually found on FF’s and DDG’s


Horizontal loop

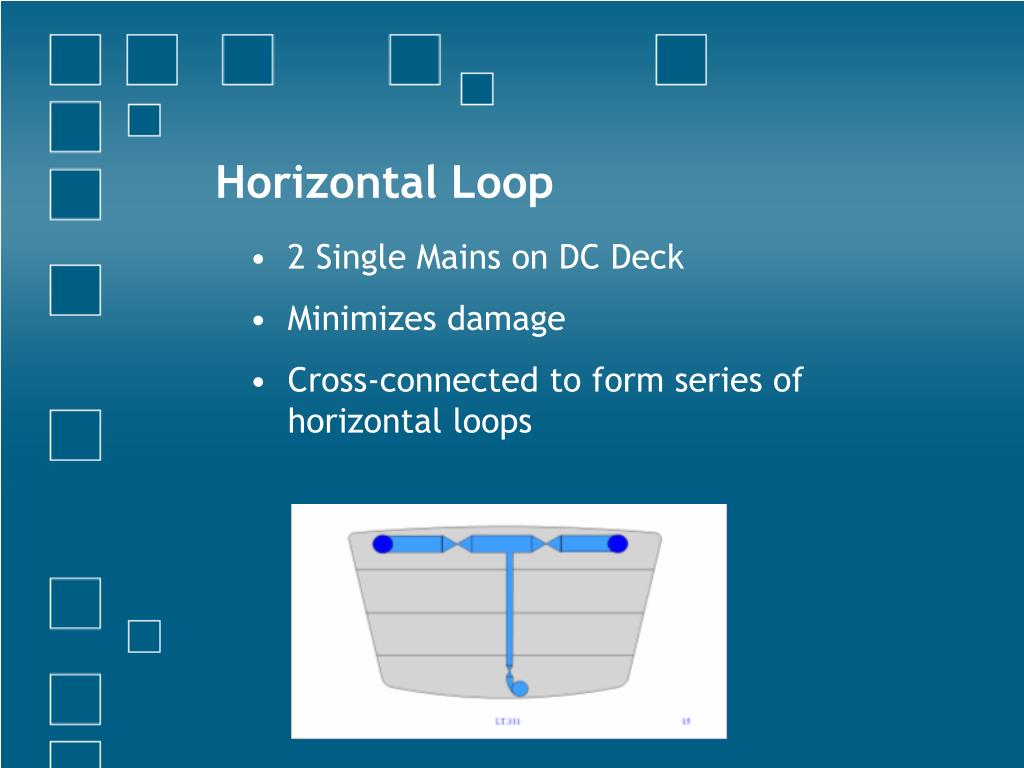

Horizontal Loop

  • 2 Single Mains on DC Deck

  • Minimizes damage

  • Cross-connected to form series of horizontal loops


Vertical loop
Vertical Loop

  • 2 Single Mains

  • Installed in oblique plane

  • Mains are cross-connected to form series of loops


Composite

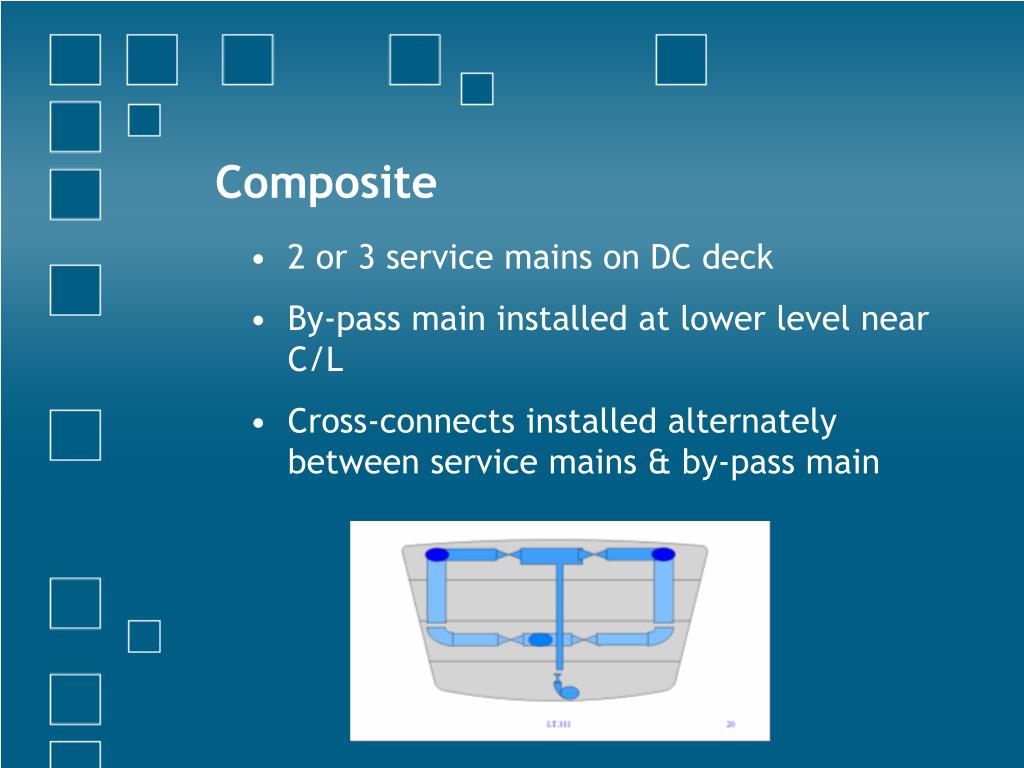

Composite

  • 2 or 3 service mains on DC deck

  • By-pass main installed at lower level near C/L

  • Cross-connects installed alternately between service mains & by-pass main


Fire station
Fire Station

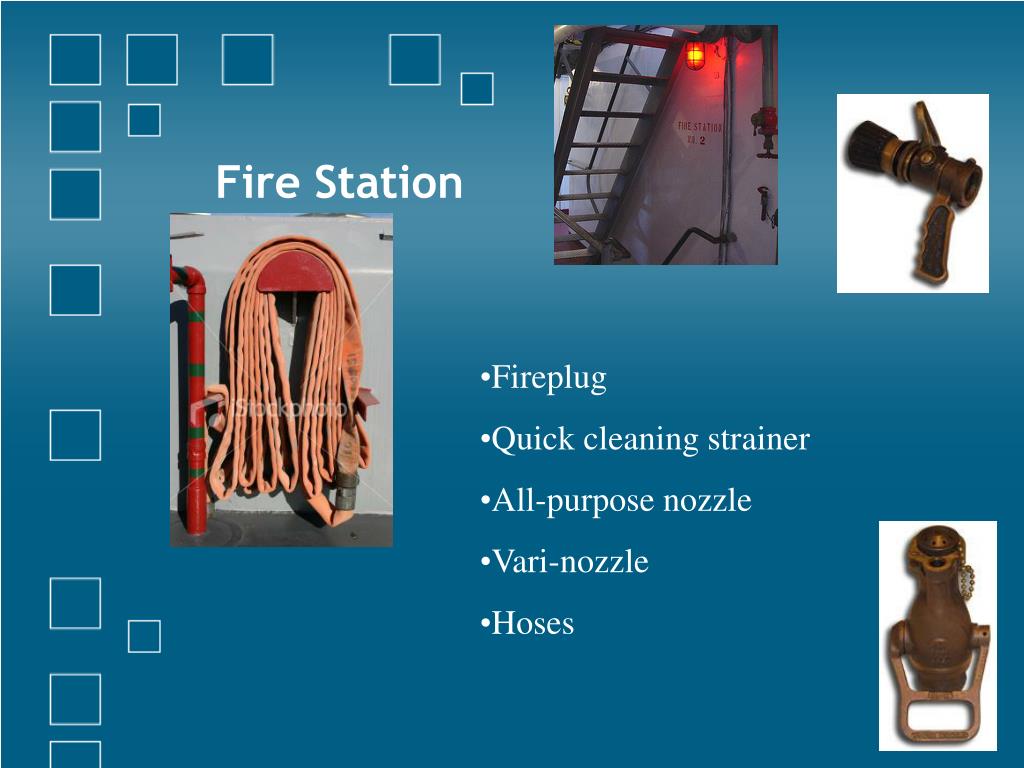

  • Fireplug

  • Quick cleaning strainer

  • All-purpose nozzle

  • Vari-nozzle

  • Hoses


Extinguishing agents
Extinguishing Agents

  • Water

    • Firemain system

    • Sprinkler system

  • AFFF (Aqueous film-forming foam)

    • 94% water / 6% foam mix

    • Excludes oxygen from the surface of the fuel

    • Extremely corrosive


Extinguishing agents1
Extinguishing Agents

  • Potassium bicarbonate (PKP)

    • Breaks combustion chain

    • Does not have cooling capability

    • May cause violent reaction in combustible metals

    • Non-toxic, however can cause

      breathing difficulty


Extinguishing agents2
Extinguishing Agents

  • Halon 1301 system

    • Colorless, odorless gas when release

    • Density ~ 5X that of air

    • Decomposed on contact w/ heat

    • Used in flooding systems

    • At concentrations needed to extinguish fire, dizziness and reduced dexterity


What type of extinguishing agent would you use
What type of extinguishing agent would you use?

  • Class A Fire

    • Water

    • Any

  • Class B Fire

    • AFFF

    • PKP

    • Twin agent (AFFF/PKP)

    • Halon 1301


Extinguishing agent for this fire
Extinguishing agent for this fire?

  • Class C Fire

    • CO2

    • Fog

    • PKP

  • Class D Fire

    • Solid stream, fog or jettison


Flooding

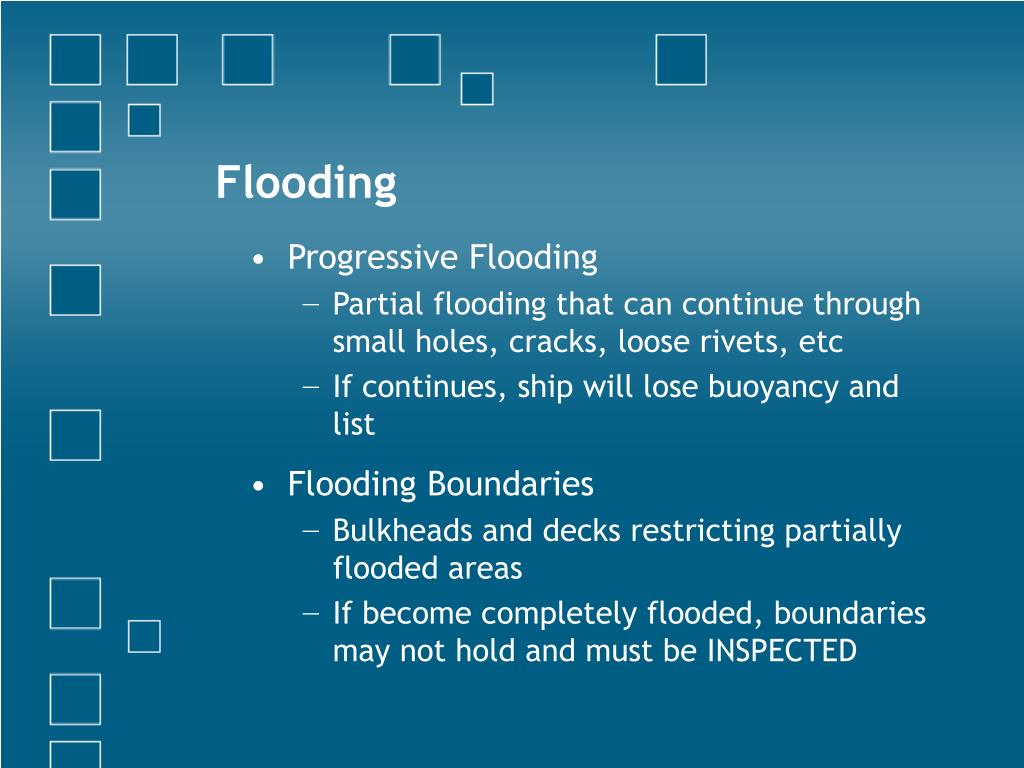

Flooding

  • Progressive Flooding

    • Partial flooding that can continue through small holes, cracks, loose rivets, etc

    • If continues, ship will lose buoyancy and list

  • Flooding Boundaries

    • Bulkheads and decks restricting partially flooded areas

    • If become completely flooded, boundaries may not hold and must be INSPECTED


Dewatering priorities
Dewatering Priorities

  • Effective allocation of resources

    • What if damage is too severe?

  • Stability

    • Loss of stability…

  • Flooding effect diagram


Causes of flooding
Causes of Flooding

  • Damage inflicted from external sources

    • Mines, torpedoes, bombs, running aground etc.

  • Fire fighting efforts

  • Acute or chronic leakage

  • Broken firemain or other piping system


Flood control
Flood Control

  • P-250 pump

    • gas operated portable pump

  • Electric submersible pump

    • lighter than P-250

    • submersible

    • can not be used for combustible liquids

  • Eductors

    • Increases rate of removal

    • Contaminated water


Repair of structural damage
Repair of Structural Damage

  • Shoring

    • Used to support ruptured decks, strengthen weakened bulkheads and decks, etc.

  • Types of shoring materials

    • Shore-portable beam

    • Wedge-triangular block

    • Strong back

    • Patches

  • Better to shore more than necessary than to risk structural failure


Supplemental air
Supplemental Air

  • Oxygen Breathing Apparatus (OBA)

    • Self contained O2 source

    • 1930s technology

    • Phase-out began in 2001


Supplemental air1
Supplemental Air

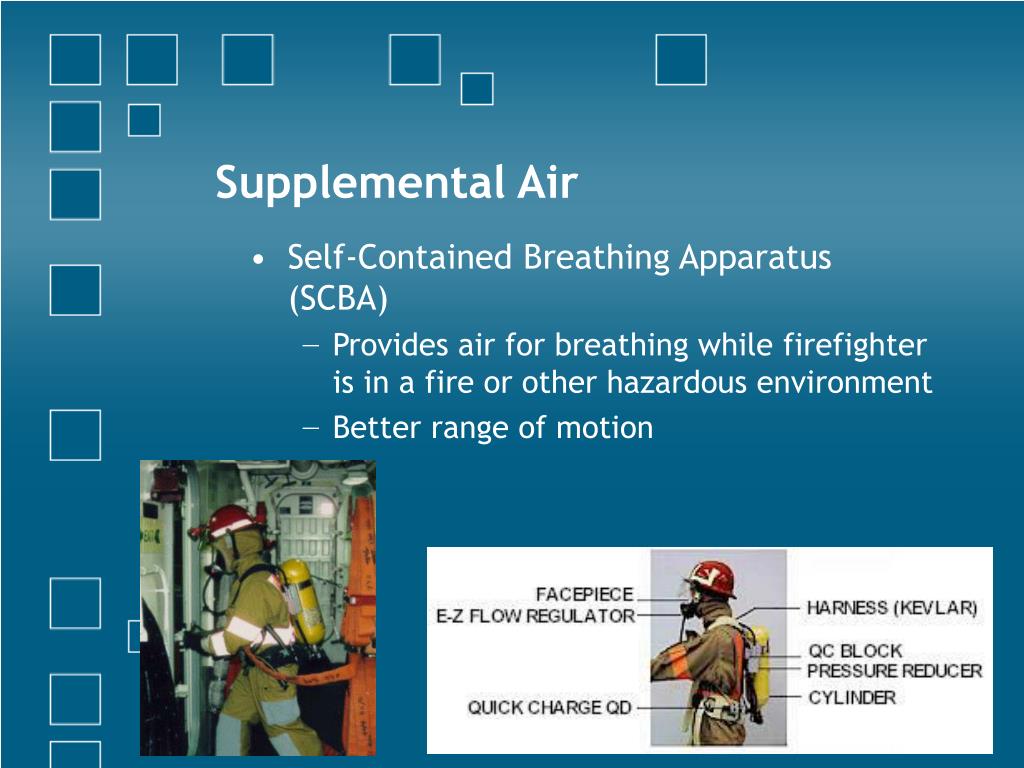

  • Self-Contained Breathing Apparatus (SCBA)

    • Provides air for breathing while firefighter is in a fire or other hazardous environment

    • Better range of motion


Supplemental air2
Supplemental Air

  • Emergency Egress Breathing Device (EEBD)

    • Donning – 10 sec

    • Provides Oxygen 10-15 minutes

    • Operating Temp: 10°F – 149°F


Supplemental air3
Supplemental Air

  • Supplementary Emergency Escape Device (SEED)

    • Worn on belt

    • 1.5 – 3 min of Oxygen

    • HEED (Helicopter)


Gas masks cbr attacks
Gas Masks / CBR Attacks

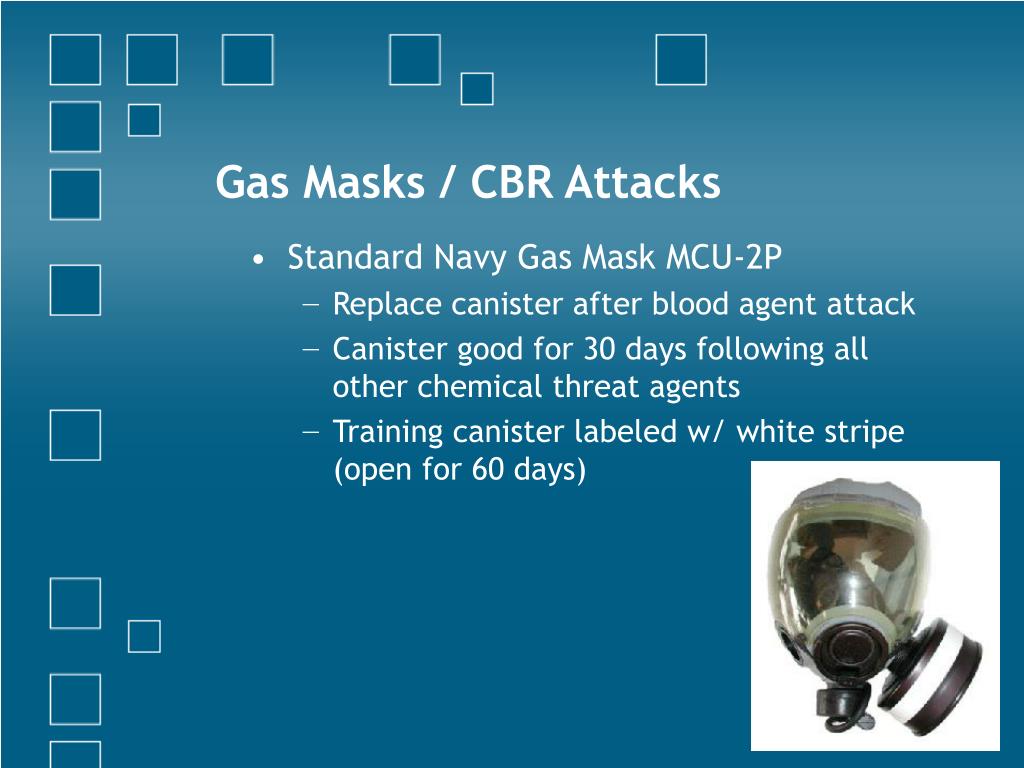

  • Standard Navy Gas Mask MCU-2P

    • Replace canister after blood agent attack

    • Canister good for 30 days following all other chemical threat agents

    • Training canister labeled w/ white stripe (open for 60 days)


Safety during dc operations

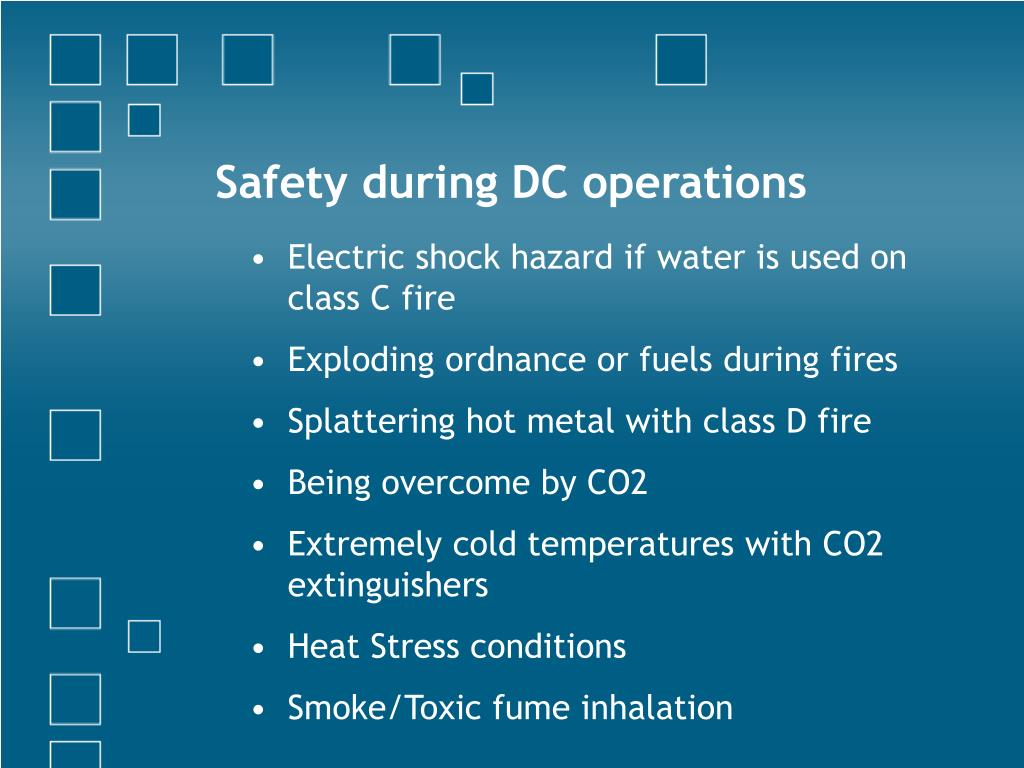

Safety during DC operations

  • Electric shock hazard if water is used on class C fire

  • Exploding ordnance or fuels during fires

  • Splattering hot metal with class D fire

  • Being overcome by CO2

  • Extremely cold temperatures with CO2 extinguishers

  • Heat Stress conditions

  • Smoke/Toxic fume inhalation

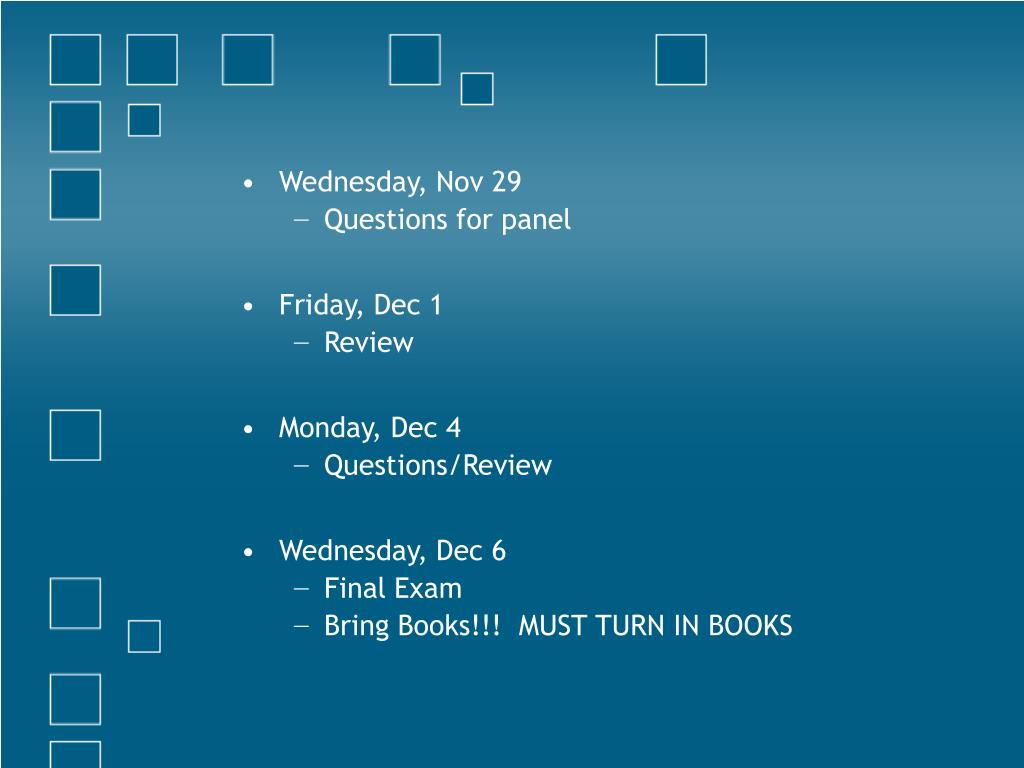

  • Wednesday, Nov 29

    • Questions for panel

  • Friday, Dec 1

    • Review

  • Monday, Dec 4

    • Questions/Review

  • Wednesday, Dec 6

    • Final Exam

    • Bring Books!!! MUST TURN IN BOOKS
