Presentation Transcript
The atmosphere gases l.jpg
The Atmosphere Gases

Compared to the size of the Earth , the atmosphere is a thin shell. The part of the atmosphere we know best - the troposphere - is an even thinner shell, only 12 kilometers (7.5 miles) thick. It is in the troposphere that all weather occurs; it is only here that life exists.

The thin atmosphere lighted by the setting Sun.

Atmosphere




Air composition at sea level l.jpg

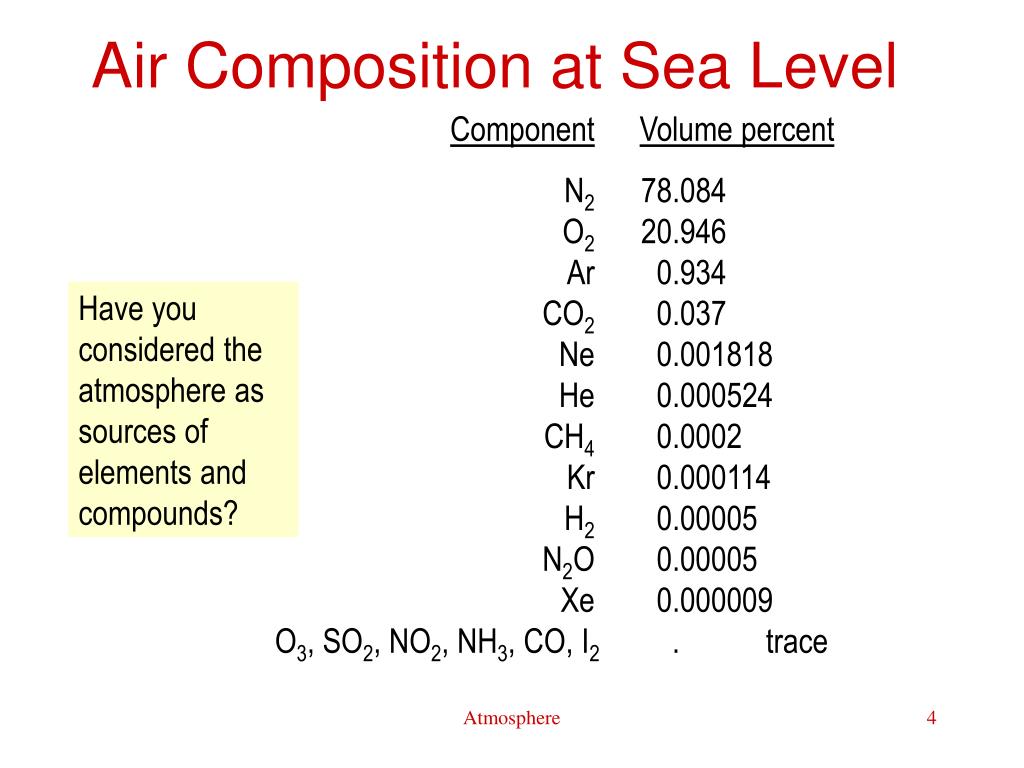

Air Composition at Sea Level

ComponentVolume percent

N2 78.084 O2 20.946 Ar 0.934 CO2 0.037 Ne 0.001818 He 0.000524 CH4 0.0002 Kr 0.000114 H2 0.00005 N2O 0.00005 Xe 0.000009 O3, SO2, NO2, NH3, CO, I2 . trace

Have you considered the atmosphere as sources of elements and compounds?

Atmosphere


Water vapor in the atmosphere l.jpg
Water Vapor in the Atmosphere

Explain these terms:

Absolute humidity

Partial pressure of water vaporVapor pressure of water

Relative humidity =

Variation of water vapor pressure

Partial pressure of water vaporVapor pressure of water

Discussed when we talk about gases, review please.

Atmosphere


H 2 o g in pacific during el nino oct 1997 l.jpg

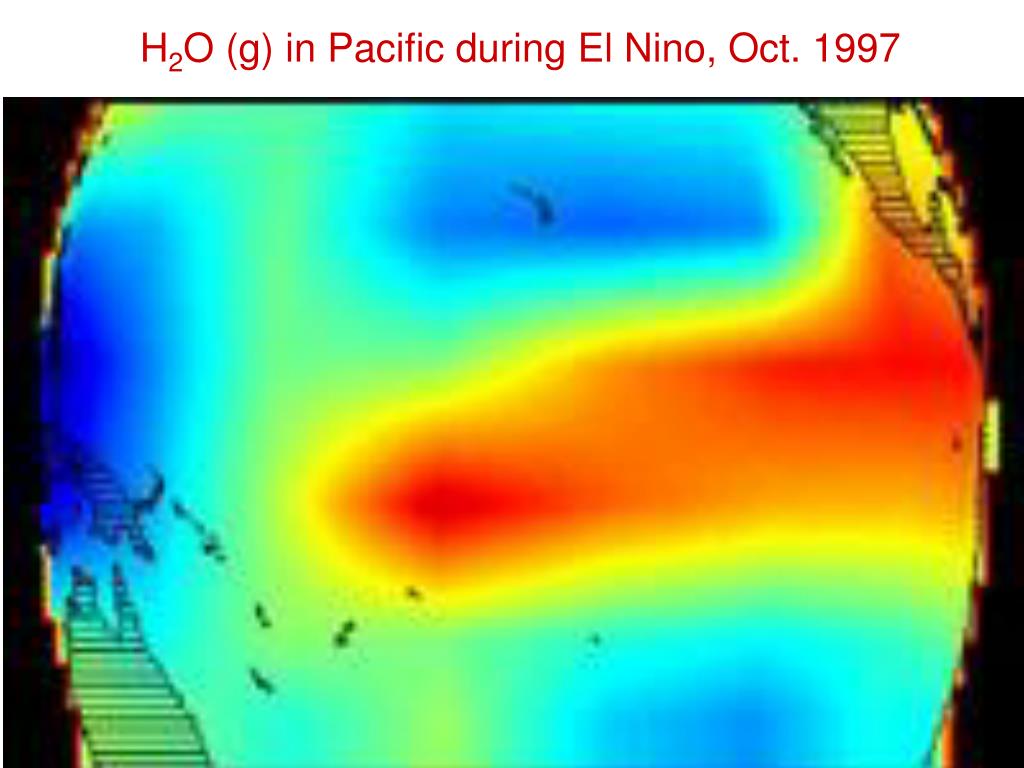

H2O (g) in Pacific during El Nino, Oct. 1997

Atmosphere


Thomson joule effect l.jpg
Thomson-Joule Effect

A gas cools during expansion. The amount of cooling is proportional to the pressure difference at the throttle, and increases substantially when the starting temperature of the gas is reduced.

Carl von Linde produced liquid air in 1895 using the Thomson-Joule effect. Under 1 bar air liquefies at 80 K. Simple throttling will not suffice to reach this temperature. Linde introduced "countercurrent cooling".

Atmosphere


Liquefaction of gases l.jpg
Liquefaction of Gases

Heat is always required to convert the liquid into its gas.

Reducing pressure lowers the b.p., and cools the liquid. Liquid (high P)  Liquid (low P &T) + Vapor

Compressor Evaporator

Atmosphere


Getting n 2 from air l.jpg
Getting N2 from Air

Distillation of liquid air separate O2 from N2.

Which has a higher b.p. O2 or N2?

Atmosphere


Physical properties of o 2 n 2 ar l.jpg
Physical Properties of O2, N2 & Ar

Property O2. N2. Ar

Melting point (K) 54.8 63.1 83.8 Boiling point (K) 90.2 77.4 87.3 Critical temperature (K) 154.6 126.2 150.8 Enthalpy of vaporization kJ mol-1 3.41 2.79 6.5

Color of liquid blue colorless colorless

Atmosphere


Nitrogen compounds l.jpg
Nitrogen Compounds

Ammonia and related compounds NH3, RNH2, RR’NH, NH4+, (NH2)2CO (urea), amino acids

Nitrogen oxides and related compounds N2O, (anesthetic) NO, (maintain blood pressure, thins blood vessels) N2O3, NO2, (photochemical smog, brown)  N2O4 (colorless) N2O5

Acids HNO3 HNO2

Atmosphere

How are some of these prepared?


Oxygen l.jpg

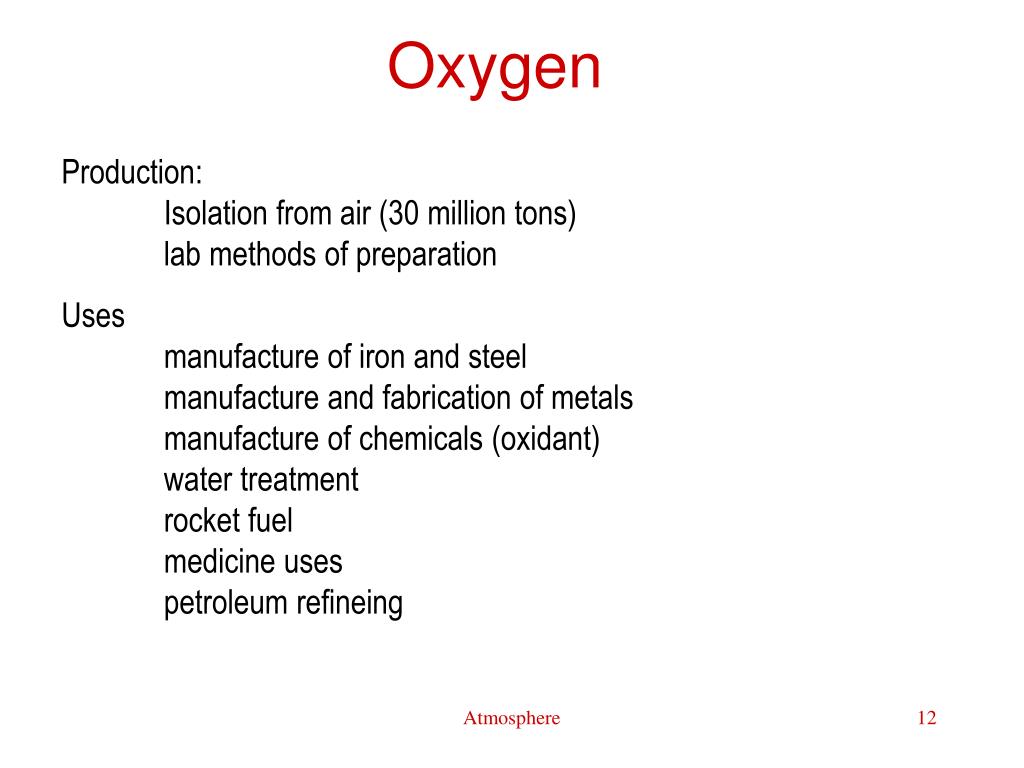

Oxygen

Production: Isolation from air (30 million tons) lab methods of preparation

Uses manufacture of iron and steel manufacture and fabrication of metals manufacture of chemicals (oxidant) water treatment rocket fuel medicine uses petroleum refineing

Atmosphere


Ozone l.jpg

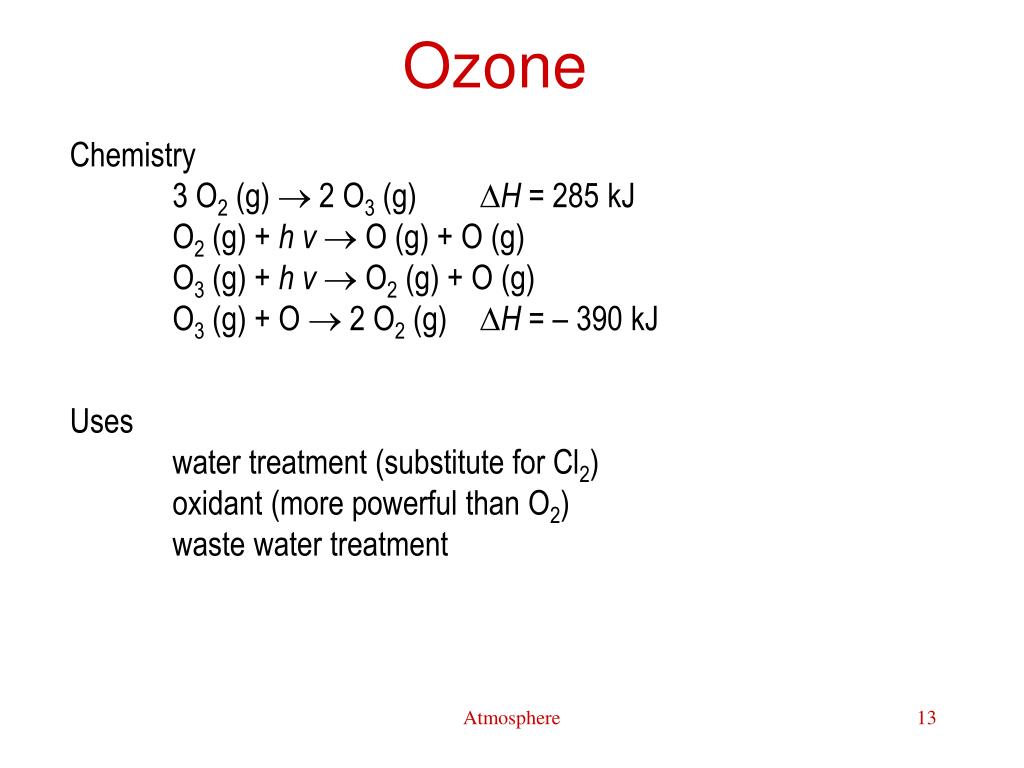

Ozone

Chemistry 3 O2 (g)  2 O3 (g) H = 285 kJ O2 (g) + h v  O (g) + O (g) O3 (g) + h v  O2 (g) + O (g) O3 (g) + O 2 O2 (g) H = – 390 kJ

Uses water treatment (substitute for Cl2) oxidant (more powerful than O2) waste water treatment

Atmosphere


Ozone in the atmosphere l.jpg
Ozone in the atmosphere

A major source of chlorine is Freons: CFCl3 (Freon 11), CF2Cl2 (Freon 12), C2F3Cl3 (Freon 113), C2F4Cl2 (Freon 114). Freons decompose in the troposphere. For example,

CFCl3® CFCl2 + ClCF2Cl3® CF2Cl + Cl.

Depletion of ozone by CFC

Cl + O3® ClO + O2 O3 + h v® O + O2, ClO + O ® Cl + O2 O + O3® O2 + O2.

Formation of ozone O2 + h v® O + O O2 + O ® O3 O2 + O + M ® O3 + M*

Absorption of UVB by ozone O3 + h v® O + O2 O3 + O ® 2 O2

Atmosphere


The carbon cycle l.jpg
The Carbon Cycle

Atmosphere

See diagram in text and other sources


Carbon dioxides in the atmosphere l.jpg
Carbon Dioxides in the Atmosphere

Variation of CO2 in the atmosphere

Atmosphere


Hydrogen l.jpg

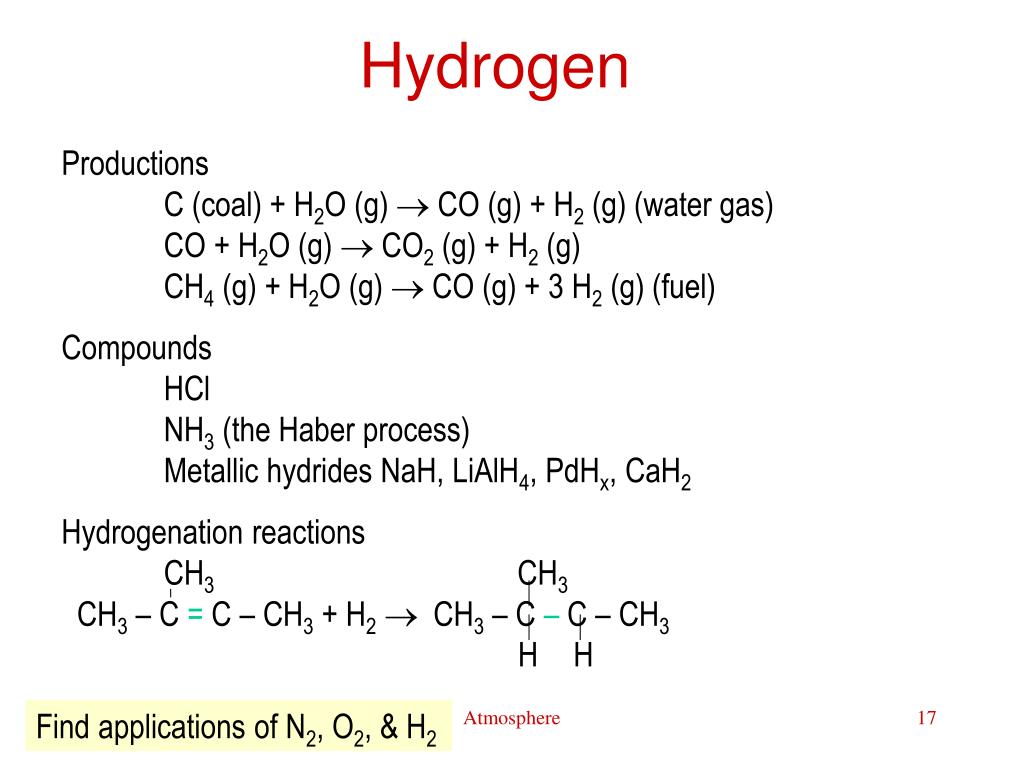

Hydrogen

Productions C (coal) + H2O (g) CO (g) + H2 (g) (water gas) CO + H2O (g) CO2 (g) + H2 (g) CH4 (g) + H2O (g) CO (g) + 3 H2 (g) (fuel)

Compounds HCl NH3 (the Haber process) Metallic hydrides NaH, LiAlH4, PdHx, CaH2

Hydrogenation reactions CH3 CH3 CH3 – C = C – CH3 + H2 CH3 – C – C – CH3 H H

Find applications of N2, O2, & H2

Atmosphere


Self study guide l.jpg
Self Study Guide

Expect quantitative test questions in chapter 8 as in other chapters.

Representative problems from Chapter 8 are: 30 – find enthalpy for NH3 + NO = N2 + H2O (balance, use Hf; soln is incomplete)36 – press of a gas containing 5e12 O3 molecules 39 – 55 L gas at 145 atm and 26o C, V = ___ at STP41 – density of 79% He and 21% O2 by volume at STP?47 – determine heat of combustion54 – stoichiometry problem56 – stoichiometry and gas problem59 – relative humidity (Chapt 8 problems)61 – partial pressure problem

There is no need to memorize sources and uses of the atmospheric gases.

Atmosphere
