  1. Priority Inheritance Protocols An Approach to Real Time Synchronization LUI SHA ,RAGUNATHAN RAJKUMAR ,JOHN P.LEHOCZKY IEEE TRANSACTIONS ON COMPUTERS, VOL. 39, NO. 9, SEPTEMBER 1990 Repesent : Shu Wei Ho

  2. Outline • Motivation • Simple solution • Basic priority inheritance protocol(BIP) • Deadlock • Chain blocking • Priority ceiling protocol(PCP) • Conclusion

  3. Motivation • Data Synchronization • Ex.

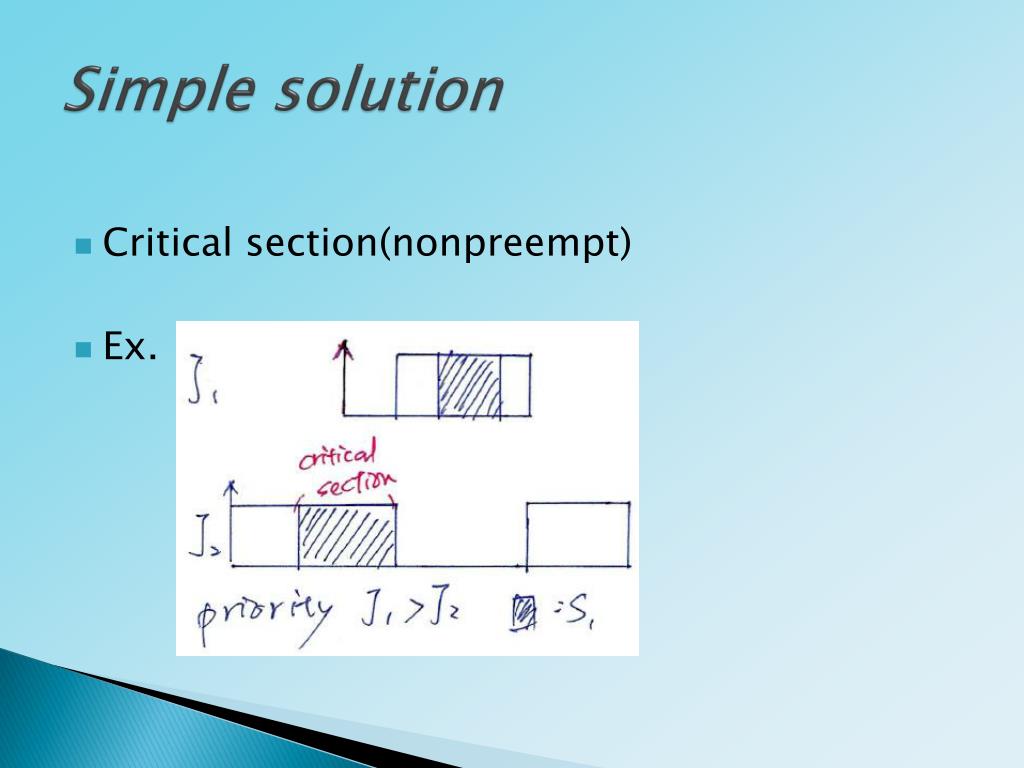

  4. Simple solution • Critical section(nonpreempt) • Ex.

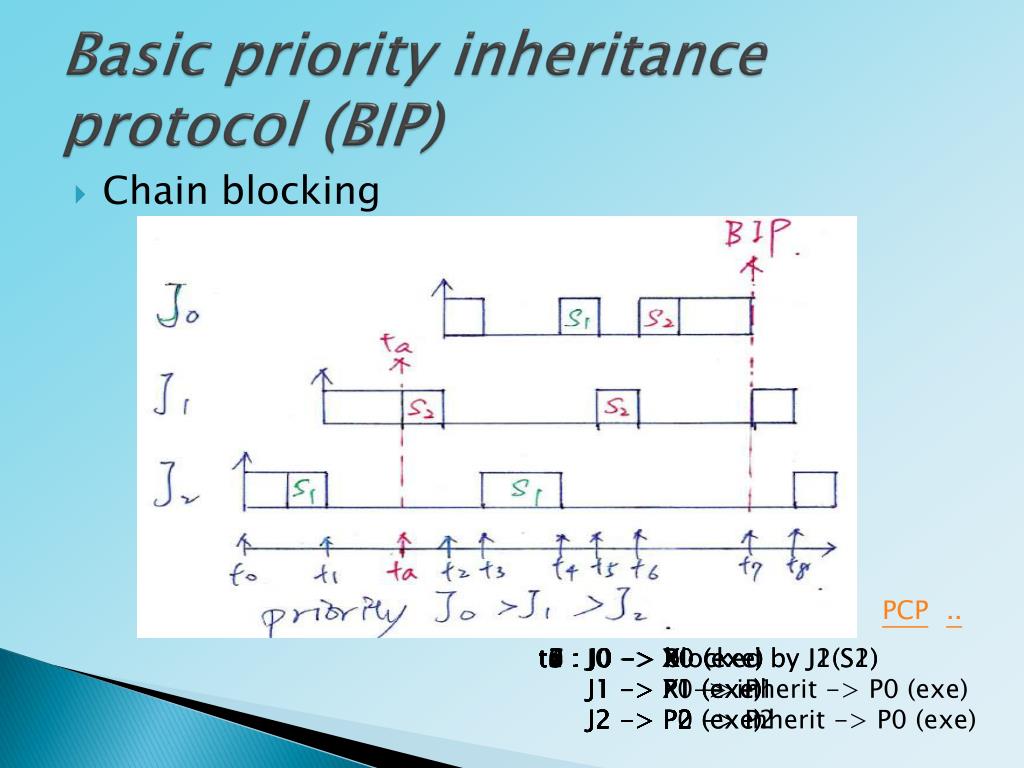

  5. Basic priority inheritance protocol (BIP) • Chain blocking PCP .. t0 : J0 -> X J1 -> X J2 -> P2 (exe) t1 : J0 -> X J1 -> P1 (exe) J2 -> P2 ta : J0 -> X J1 -> P1 (exe) J2 -> P2 t2 : J0 -> P0 (exe) J1 -> P1 J2 -> P2 t3 : J0 -> blocked by J2(S1) J1 -> P1 J2 -> P2 -> inherit -> P0 (exe) t4 : J0 -> P0 (exe) J1 -> P1 J2 -> P0 -> P2 t5 : J0 -> blocked by J1(S2) J1 -> P1-> inherit -> P0 (exe) J2 -> P2 t6 : J0 -> P0 (exe) J1 -> P0 -> P1 J2 -> P2 t7 : J0 -> X J1 -> P1 (exe) J2 -> P2 t8 : J0 -> X J1 -> X J2 -> P2 (exe)

  6. Deadlock 'Thread 1 SyncLock LeftVal SyncLock RightVal 'Perform operations on LeftVal and RightVal that require read and write. End SyncLock End SyncLock 'Thread 2 SyncLock RightVal SyncLock LeftVal 'Perform operations on RightVal and LeftVal that require read and write. End SyncLock End SyncLock PCP

  7. Priority ceiling protocol(PCP) • Set priority to each critical section Use S0-> J0(H)-> priority of S0 = P0(J0) S1-> J2 J1(H)-> priority of S1= P1(J1) S2-> J2 J1(H)-> priority of S2= P1(J1)

  8. Priority ceiling protocol(PCP) • Terminology • Task priority ( Jn -> Pn) • Resource Ceiling /System Ceiling (SC) • Inheritance Priority • Protocol • Priority driven scheduling • Lock/Unlock • Block/Unblock

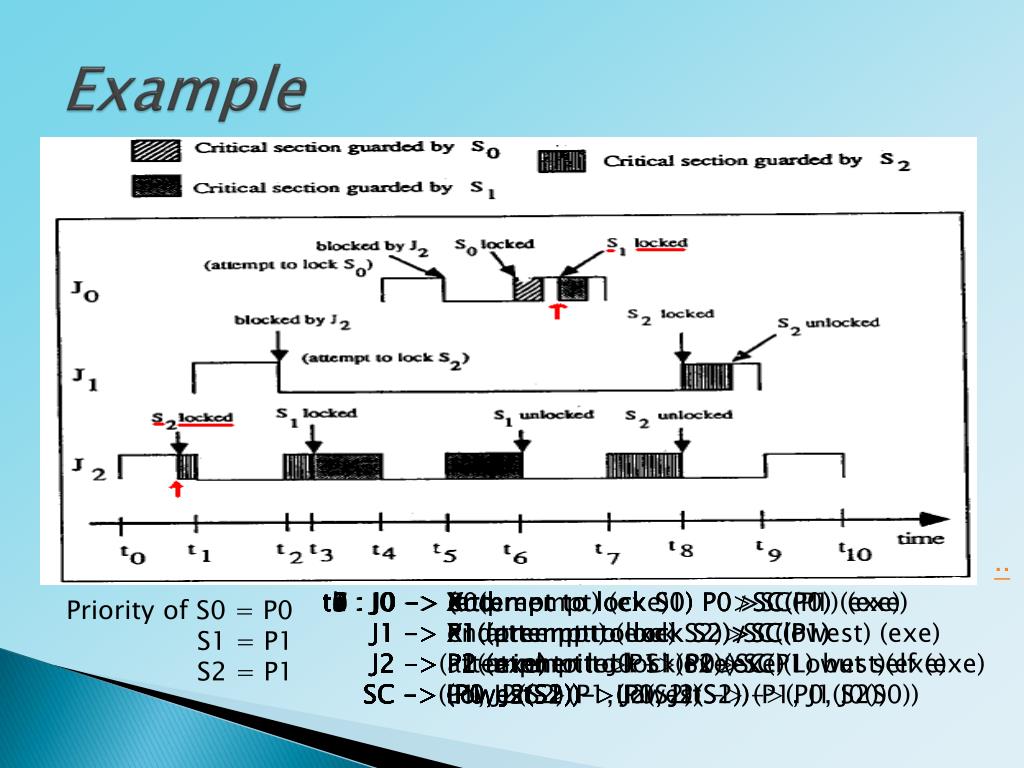

  9. Example .. t0 : J0 -> X J1 -> X J2 -> P2 (exe) SC -> Lowest ta : J0 -> X J1 -> X J2 -> P2(attempt to lock S2)>SC (Lowest)(exe) SC -> Lowest->(P1, J2(S2)) t1 : J0 -> X J1 -> P1 (preempt) (exe) J2 -> P2 SC -> (P1, J2(S2)) t2 : J0 -> X J1 -> P1 (attempt to lock S2)≯SC(P1) J2 -> P2->inherit->P1 (exe) SC ->(P1, J2(S2)) t3 : J0 -> X J1 -> P1 J2 ->(attempt to lock S1)P1≯SC(P1) but self (exe) SC -> (P1, J2(S2)) t4 : J0 -> P0(preempt) (exe) J1 -> P1 J2 -> P1 SC -> (P0, J2(S1)) t5 : J0 -> (attempt to lock S0) P0≯SC(P0) J1 -> P1 J2 -> P1->inherit J0 -> P0 (exe) SC -> (P0, J2(S1)) t6 : J0 -> (attempt to lock S0) P0>SC(P1) (exe) J1 -> P1 J2 -> P1 SC -> (P0, J2(S1))->(P1, J2(S2))->(P0, J0(S0)) tb : J0 -> (attempt to lock S1) P0 >SC(P1) (exe) J1 -> P1 J2 -> P1 SC -> (P1, J2(S2))->(P0, J1(S1)) t7 : J0 -> end J1 -> P1( attempt to lock S2)≯SC(P1) J2 -> P1 (exe) SC -> (P1, J2(S2)) t8 : J0 -> end J1 -> P1(attempt to lock S2)>SC(lowest) (exe) J2 -> P2 SC -> (P1, J2(S2))->Lowest -> (P1, J1(S2)) t9 : J0 -> end J1 -> end J2 -> P2 (exe) SC -> Lowest Priority of S0 = P0 S1 = P1 S2 = P1

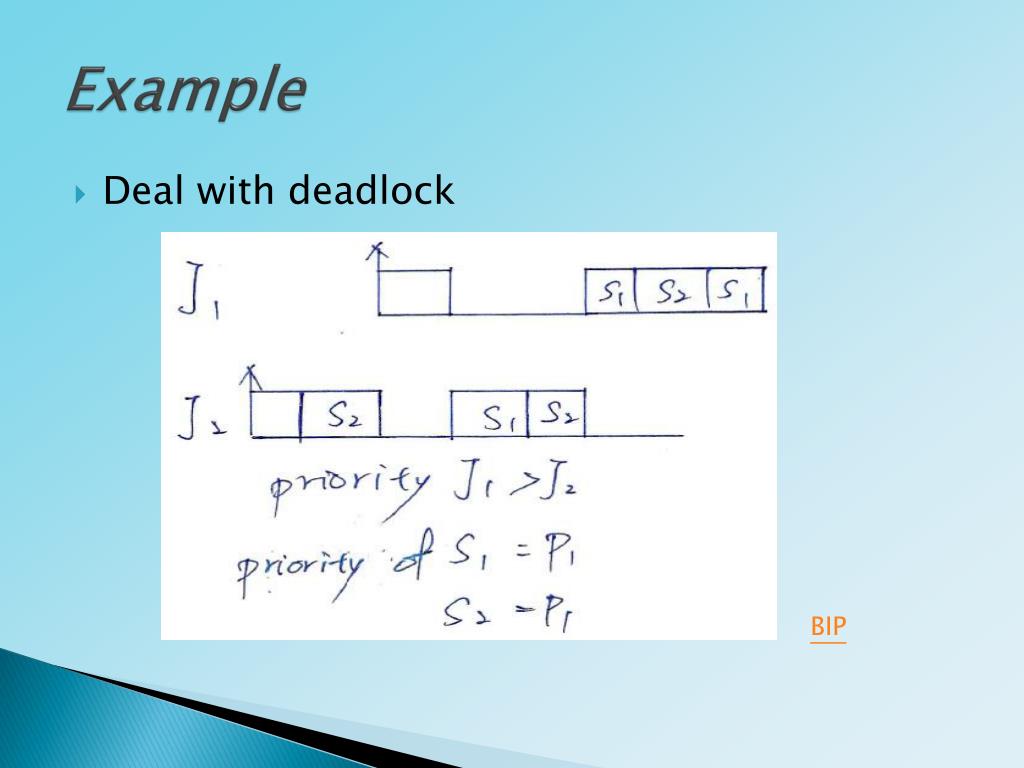

  10. Example • Deal with deadlock BIP

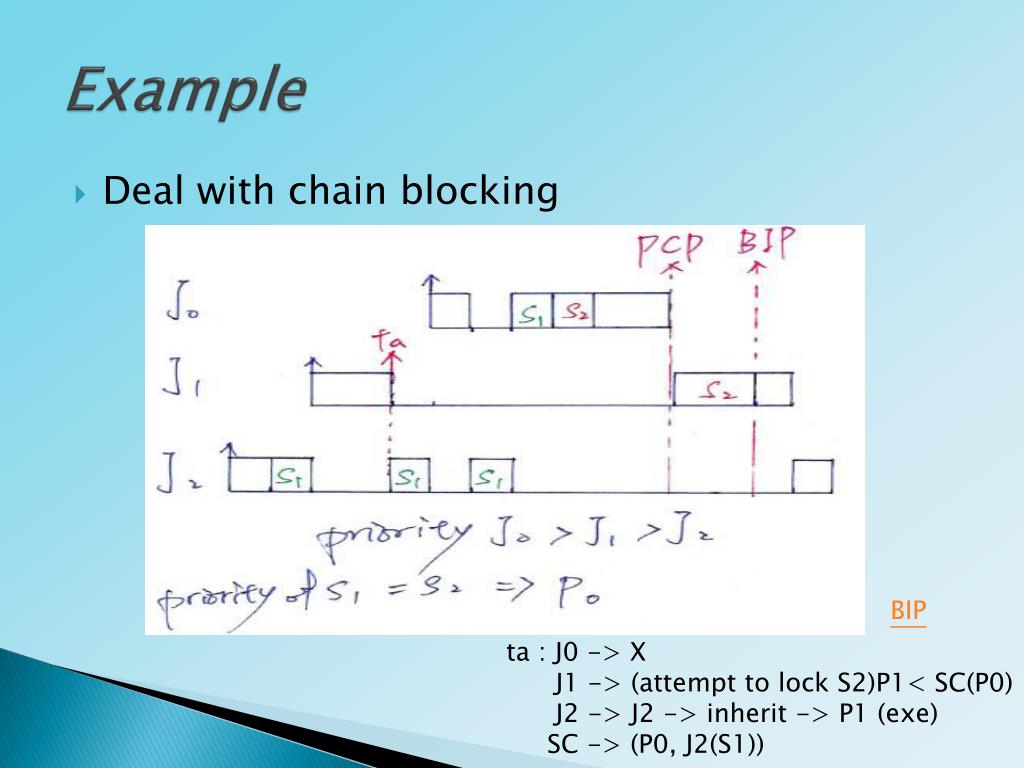

  11. Example • Deal with chain blocking BIP ta : J0 -> X J1 -> (attempt to lock S2)P1< SC(P0) J2 -> J2 -> inherit -> P1 (exe) SC -> (P0, J2(S1))

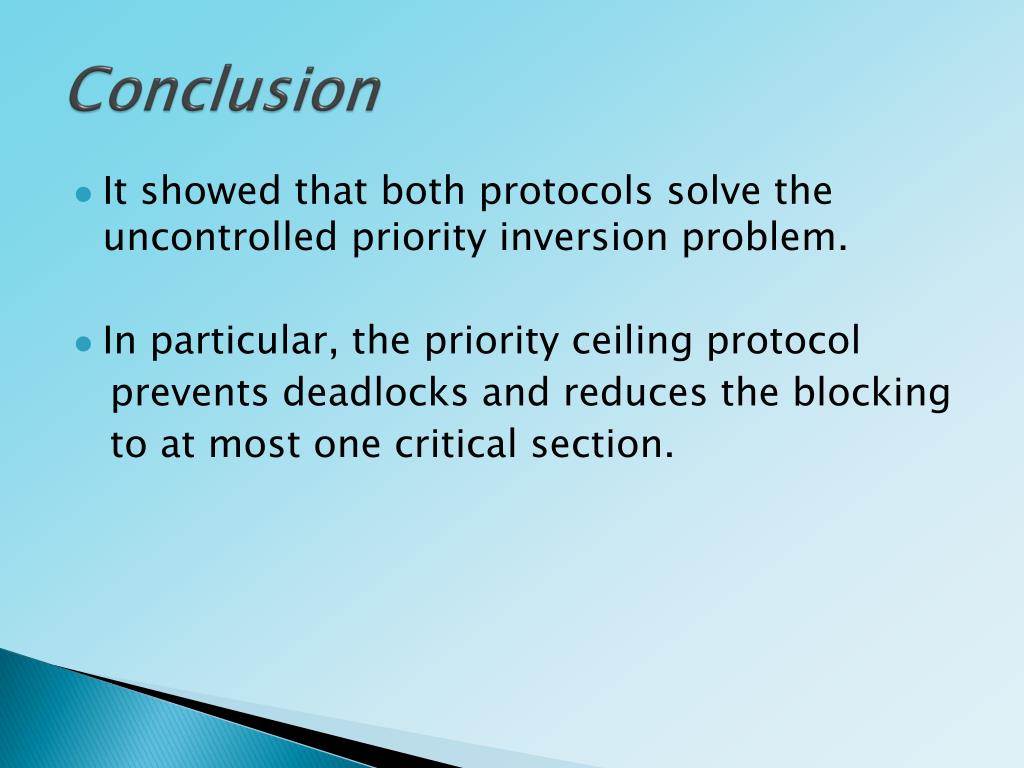

  12. Conclusion • It showed that both protocols solve the uncontrolled priority inversion problem. • In particular, the priority ceiling protocol prevents deadlocks and reduces the blocking to at most one critical section.
