Presentation Transcript


Isdn

ISDN

Integrated Service Digital Network


Definisi isdn

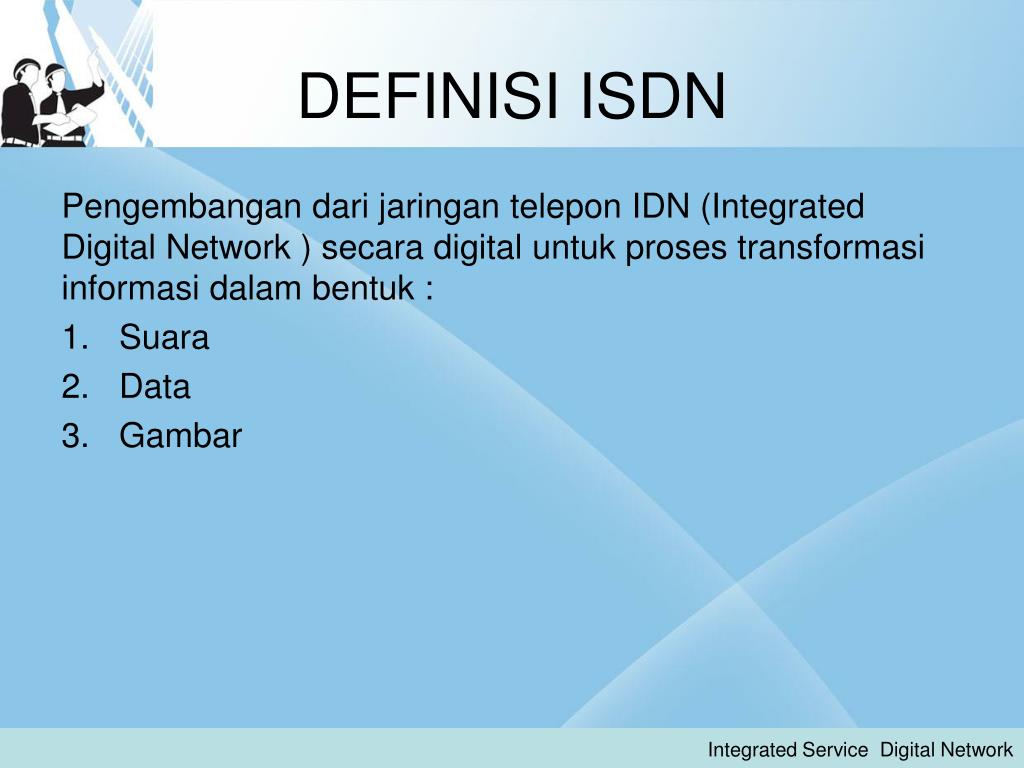

DEFINISI ISDN

Pengembangandarijaringantelepon IDN (Integrated Digital Network ) secara digital untukprosestransformasiinformasidalambentuk :

  • Suara

  • Data

  • Gambar

Integrated Service Digital Network

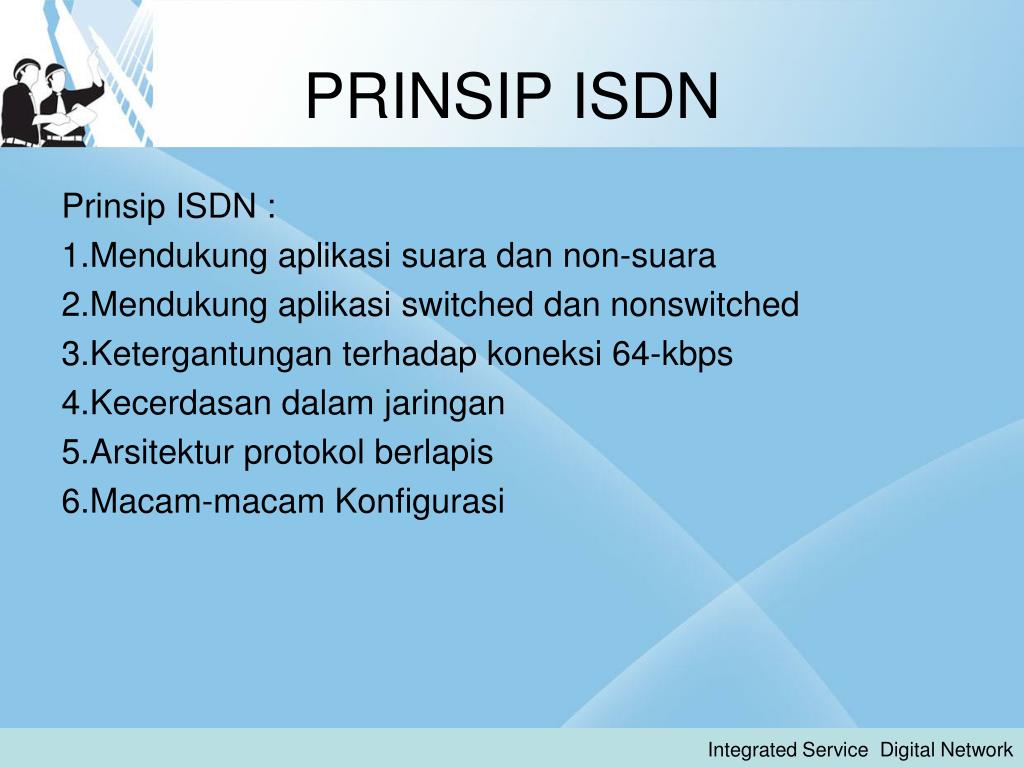

Prinsip isdn

PRINSIP ISDN

PrinsipISDN :

  • Mendukung aplikasi suara dan non-suara

  • Mendukung aplikasi switched dan nonswitched

  • Ketergantungan terhadap koneksi 64-kbps

  • Kecerdasan dalam jaringan

  • Arsitektur protokol berlapis

  • Macam-macam Konfigurasi

Integrated Service Digital Network


Konsep dasar isdn

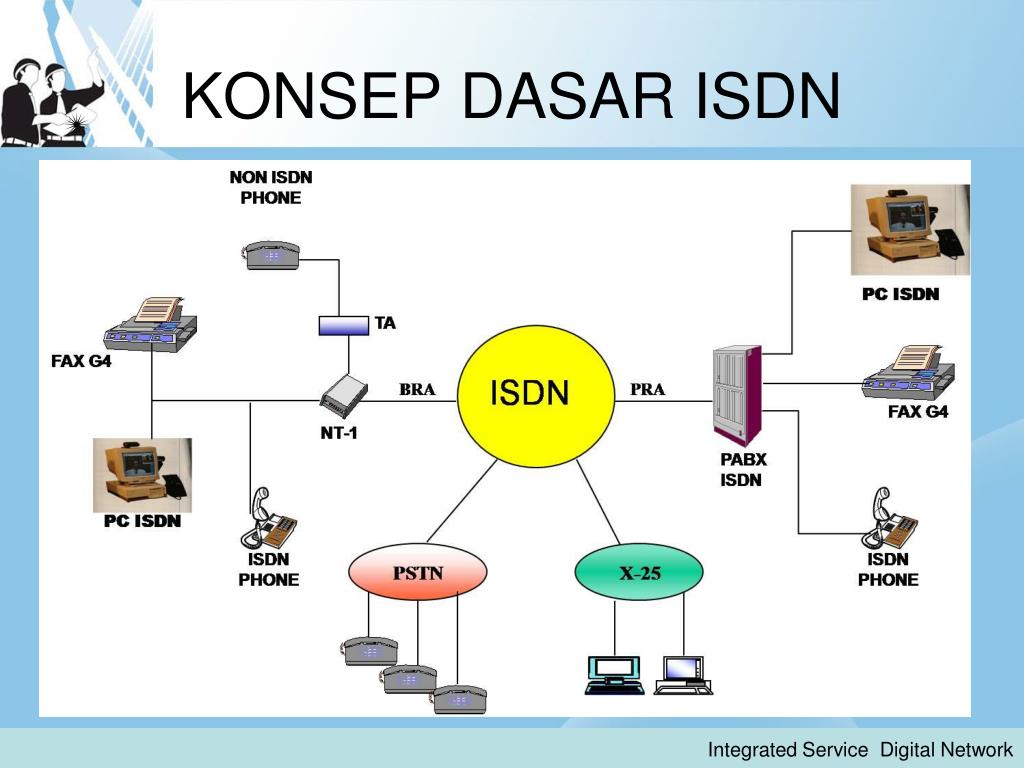

KONSEP DASAR ISDN

Integrated Service Digital Network


Keuntungan isdn

KEUNTUNGAN ISDN

  • High Speed & Quality

    > 10 kali lebihcepatdari PSTN ( > 9,6 Kbps )

  • Efficiency

    Satusaluranuntukberbagaijenislayanan (voice, data dan video)

  • Flexibility

    Single interface untuk terminal bervariasi

  • Cost Effective

    Teminaltunggaluntuk audio dan video

Integrated Service Digital Network

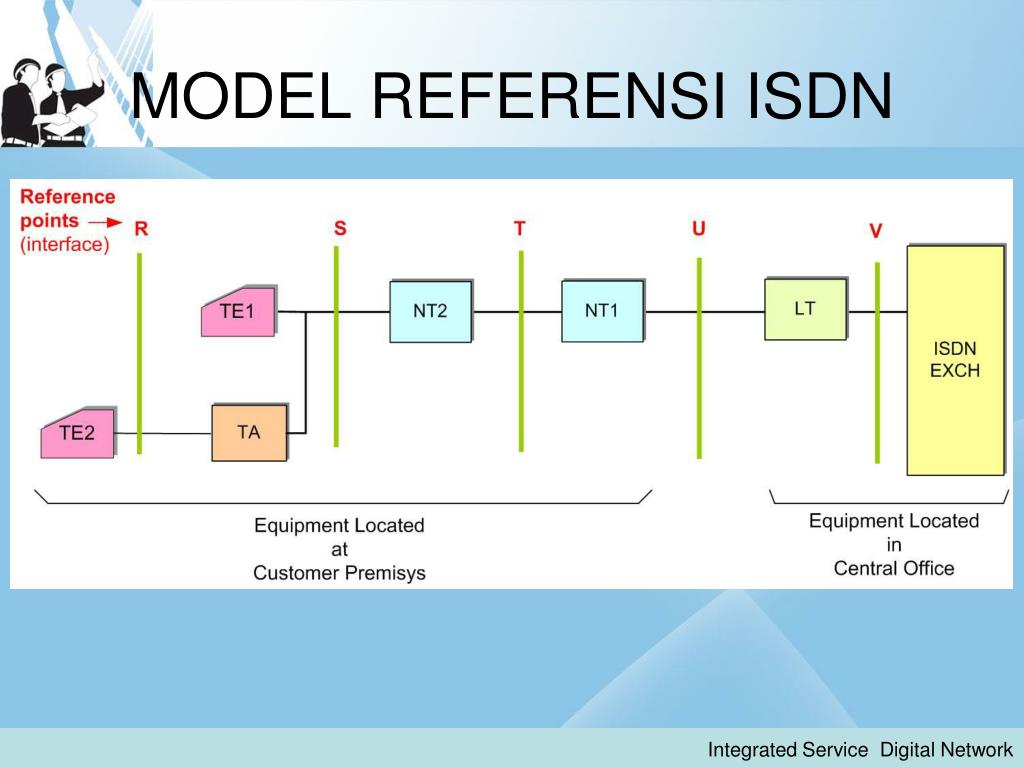

Model referensi isdn

MODEL REFERENSI ISDN

Integrated Service Digital Network


User interface isdn

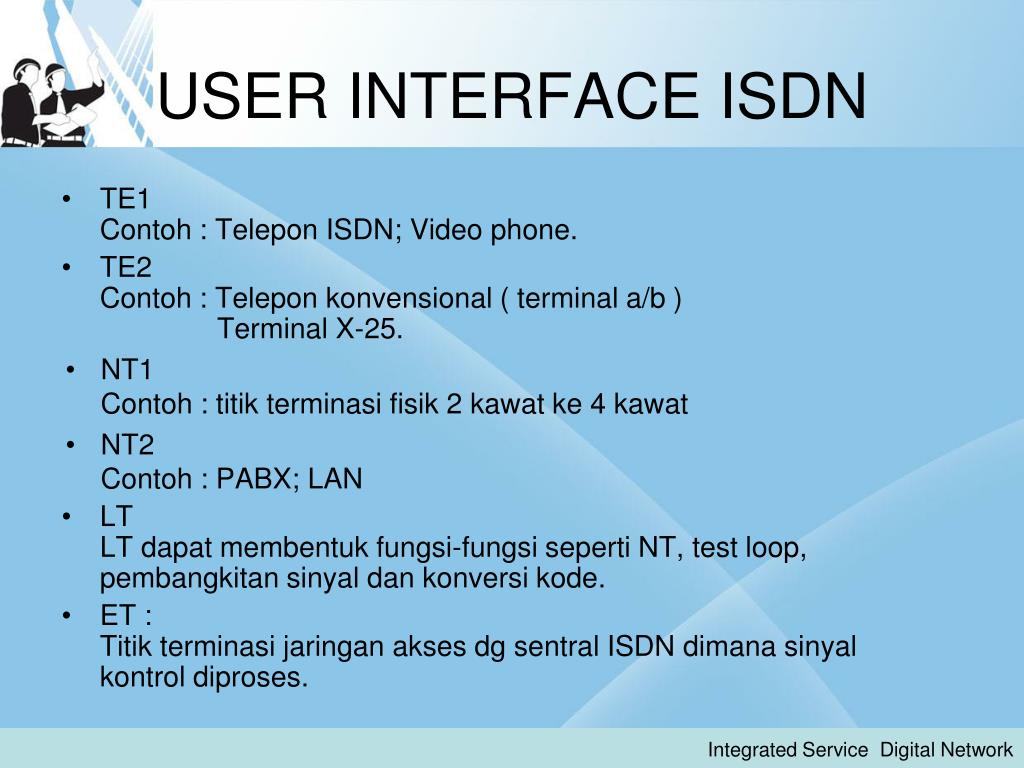

USER INTERFACE ISDN

  • TE1 Contoh : Telepon ISDN; Video phone.

  • TE2 Contoh : Teleponkonvensional ( terminal a/b ) Terminal X-25.

  • NT1 Contoh : titikterminasifisik 2 kawatke 4 kawat

  • NT2Contoh : PABX; LAN

  • LT LTdapatmembentukfungsi-fungsiseperti NT, test loop, pembangkitansinyaldankonversikode.

  • ET :Titikterminasijaringanakses dg sentral ISDN dimanasinyalkontroldiproses.

Integrated Service Digital Network


User interface

USER INTERFACE

Integrated Service Digital Network


User interface1

USER INTERFACE

  • Network Termination (NT)

    NT bisaberupa Modem atauperangkatPBX

  • Terminal Equipment 1 (TE1)

    Contoh: Telepon digital, Fax G4, Videophone

  • Terminal Equipment 2 (TE2)

    Contoh: PC, FAX analog (G3), Teleponanalog

  • Terminal Adapter (TA)

    Perangkat interface terminal non-ISDNU-Interface

    2-W subscriber line

  • S/T-Interface

    4-wire physical interface, untukkoneksiantara NT dengan TE1 atau NT dengan TA.

  • R-Interface

    Physical interface antara TA dengan TE2

Integrated Service Digital Network

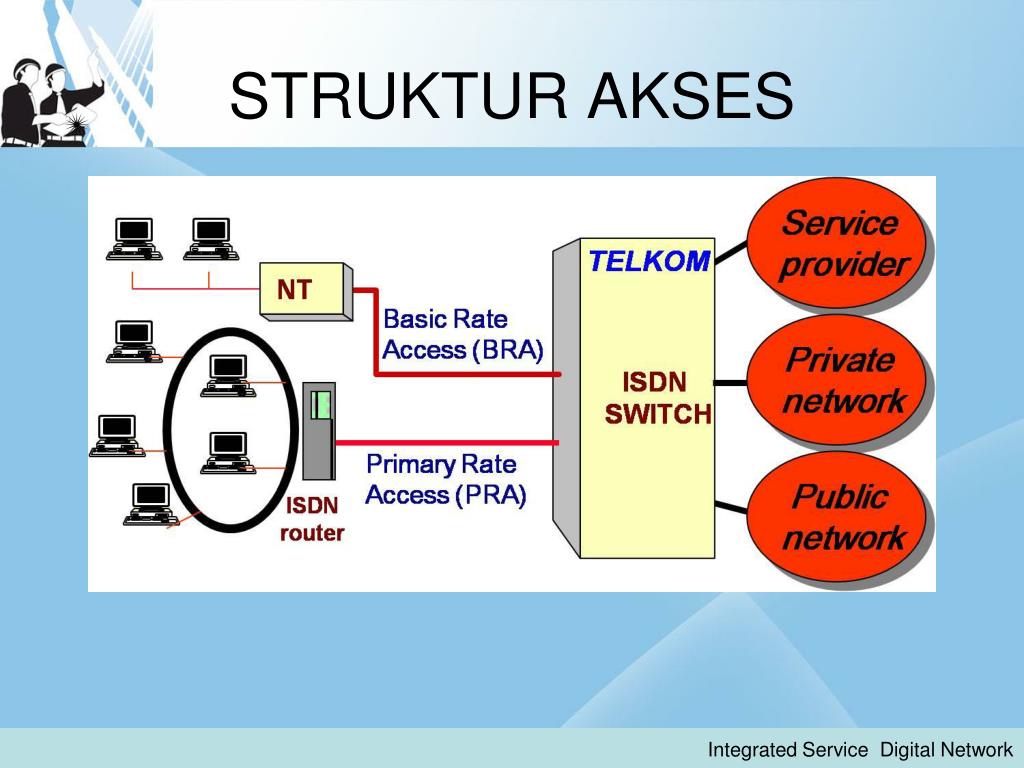

Struktur akses

STRUKTUR AKSES

Integrated Service Digital Network


Perangkat cpe isdn

PERANGKAT CPE ISDN

Integrated Service Digital Network

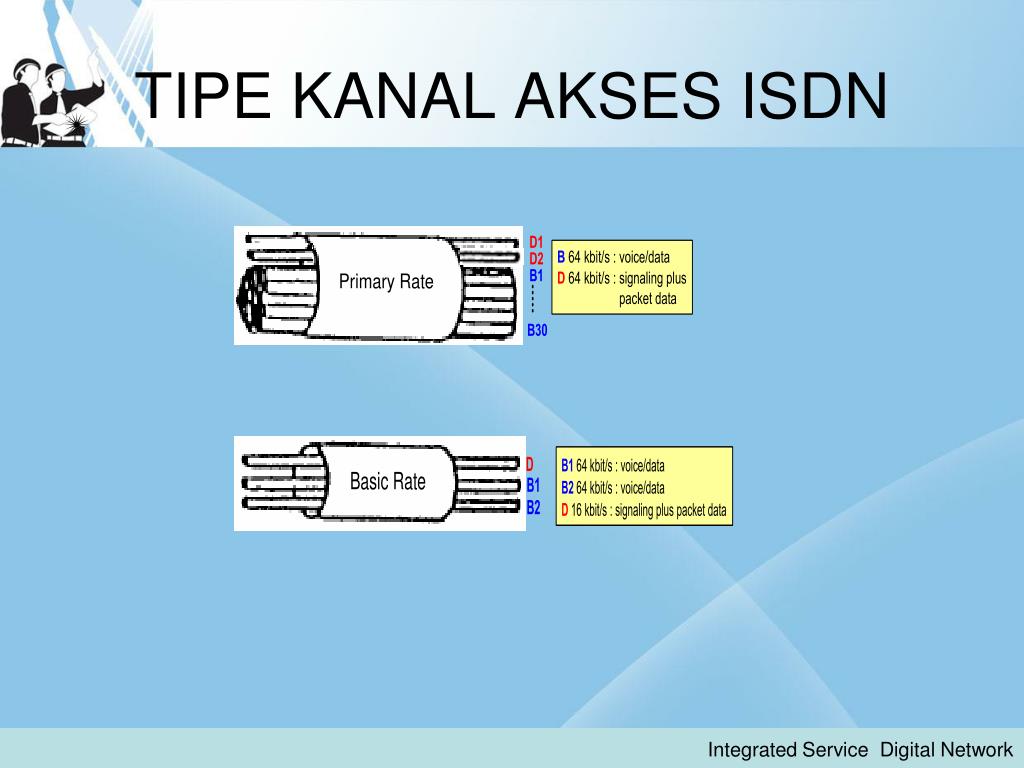

Tipe kanal akses isdn

TIPE KANAL AKSES ISDN

Integrated Service Digital Network


Tipe kanal basic rate access

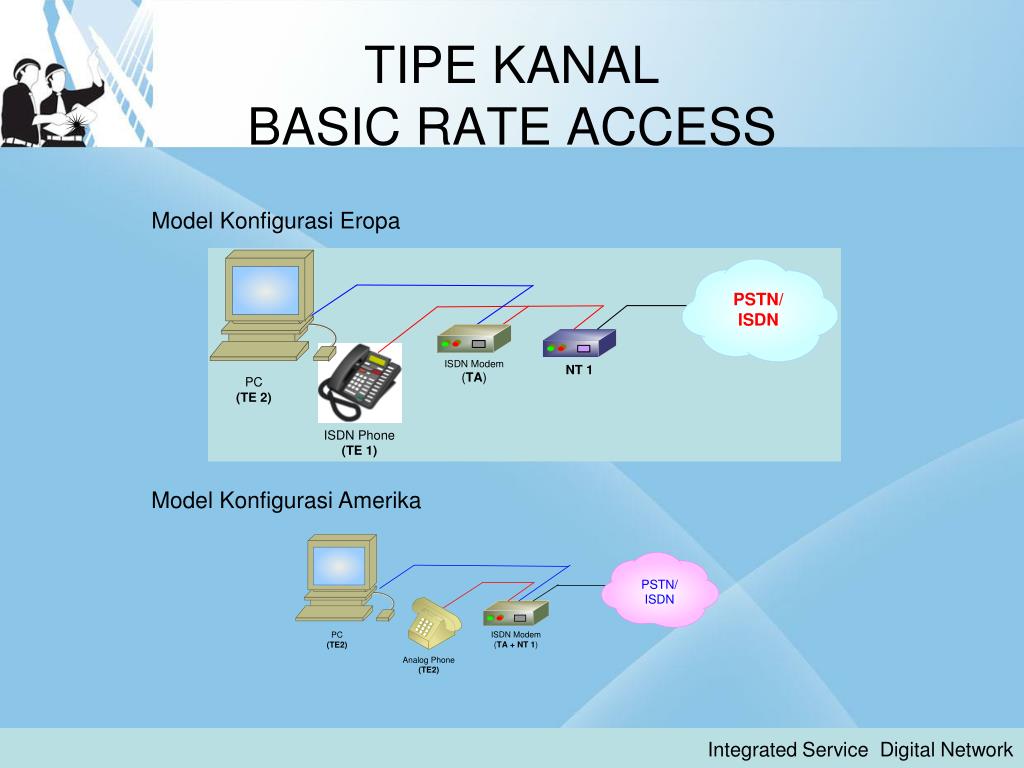

TIPE KANAL BASIC RATE ACCESS

  • Model KonfigurasiEropa

Model Konfigurasi Amerika

Integrated Service Digital Network


Tipe kanal primary rate access

TIPE KANAL PRIMARY RATE ACCESS

Integrated Service Digital Network

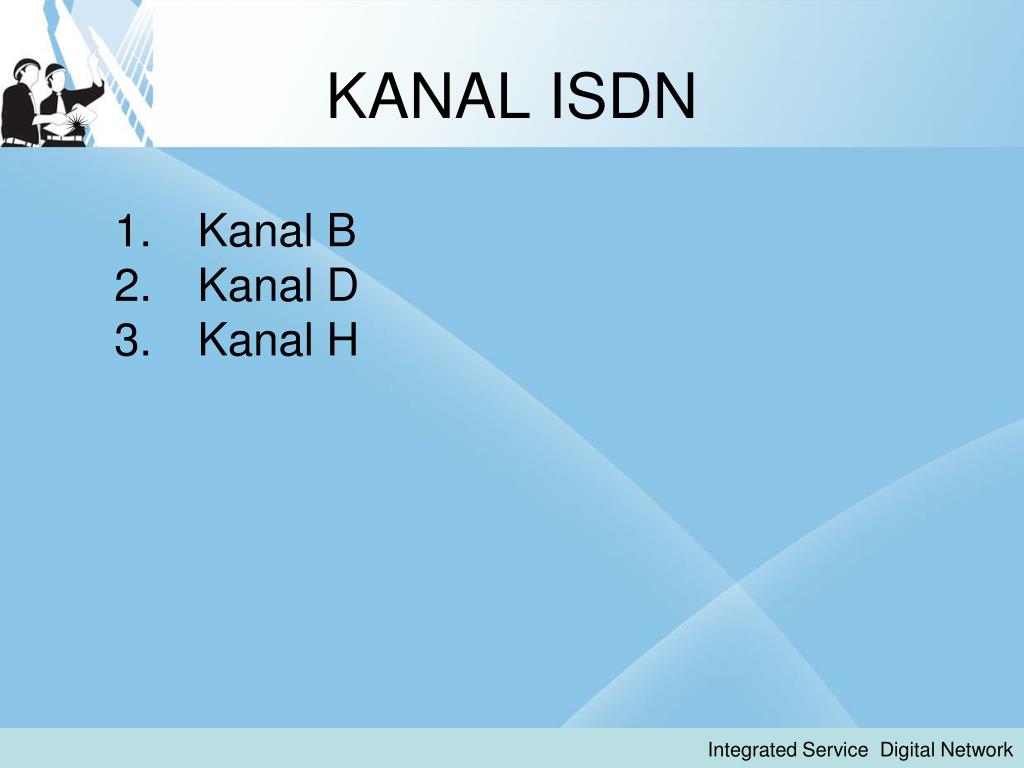

Kanal isdn

KANAL ISDN

  • Kanal B

  • Kanal D

  • Kanal H

Integrated Service Digital Network


Dua kanal komunikasi

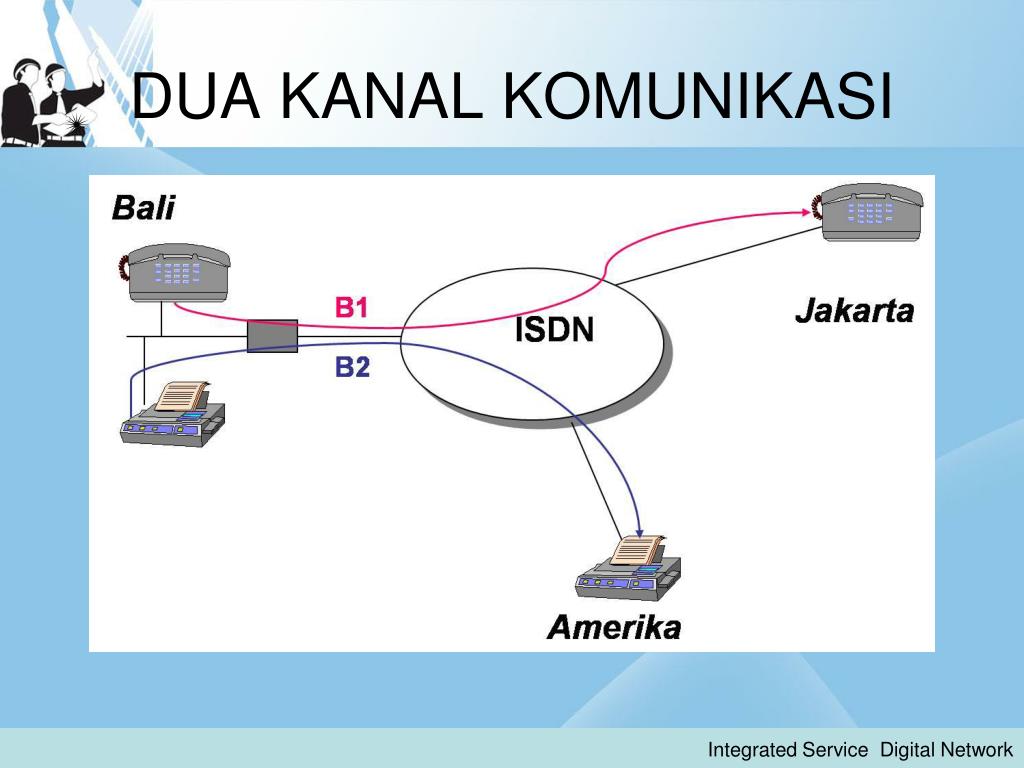

DUA KANAL KOMUNIKASI

Integrated Service Digital Network


Protokol isdn

PROTOKOL ISDN

Lapis 1

Lapis 2

Lapis 3

Integrated Service Digital Network


Konsep service isdn

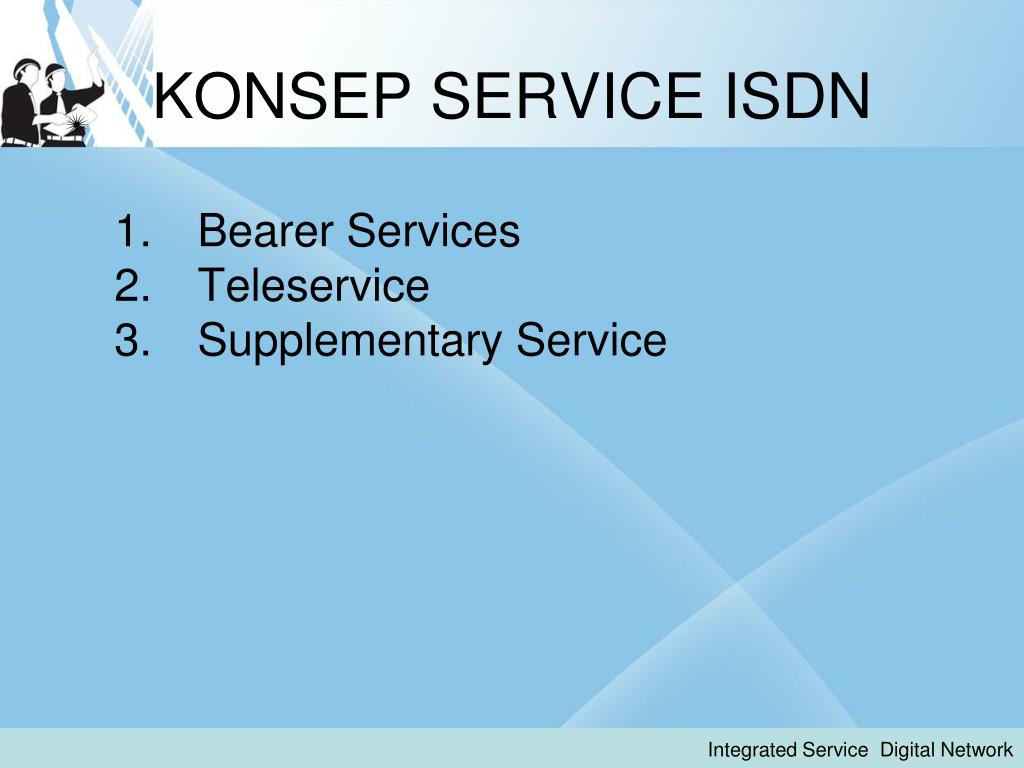

KONSEP SERVICE ISDN

  • Bearer Services

  • Teleservice

  • Supplementary Service

Integrated Service Digital Network

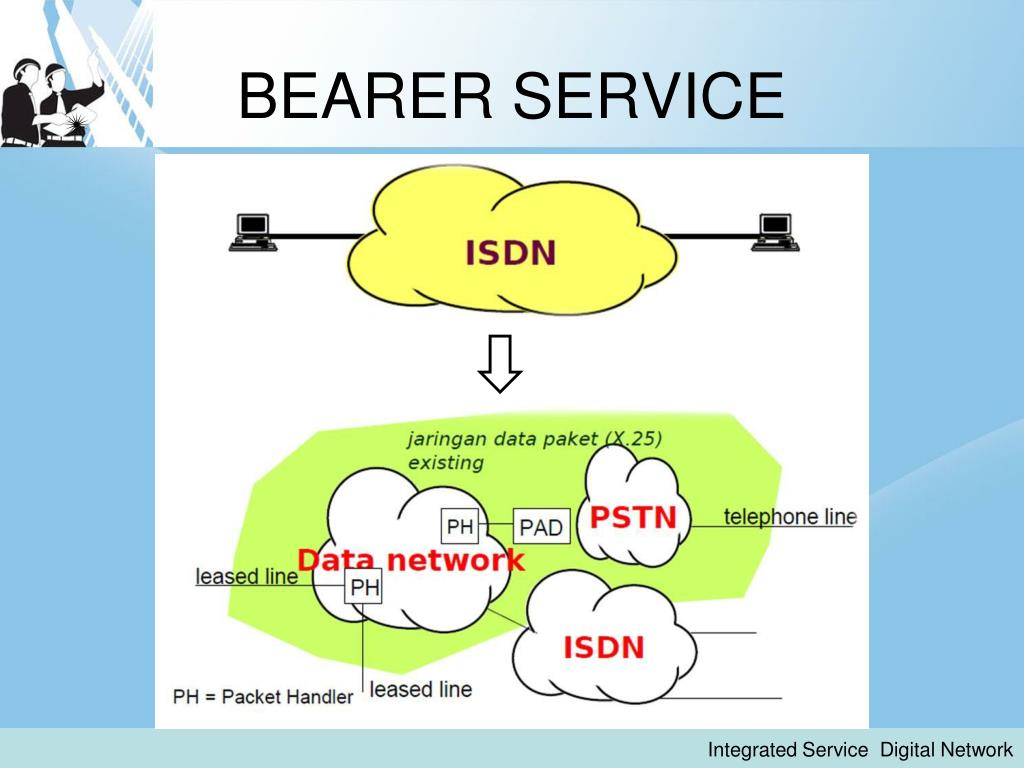

Bearer service

BEARER SERVICE

Integrated Service Digital Network


Bearer service1

BEARER SERVICE

Paket mode bearer service

Integrated Service Digital Network


Teleservice

TELESERVICE

Integrated Service Digital Network


Teleservice1

TELESERVICE

  • Aplikasi :

  • ISDN PC Card

  • ISDN Router

  • VCS (Video Conference System)

  • Home Shopping

  • Home Banking

  • Home Medical System (Teledoctor)

  • Remote Security Control

  • Internet Access

Integrated Service Digital Network


Supplementary service

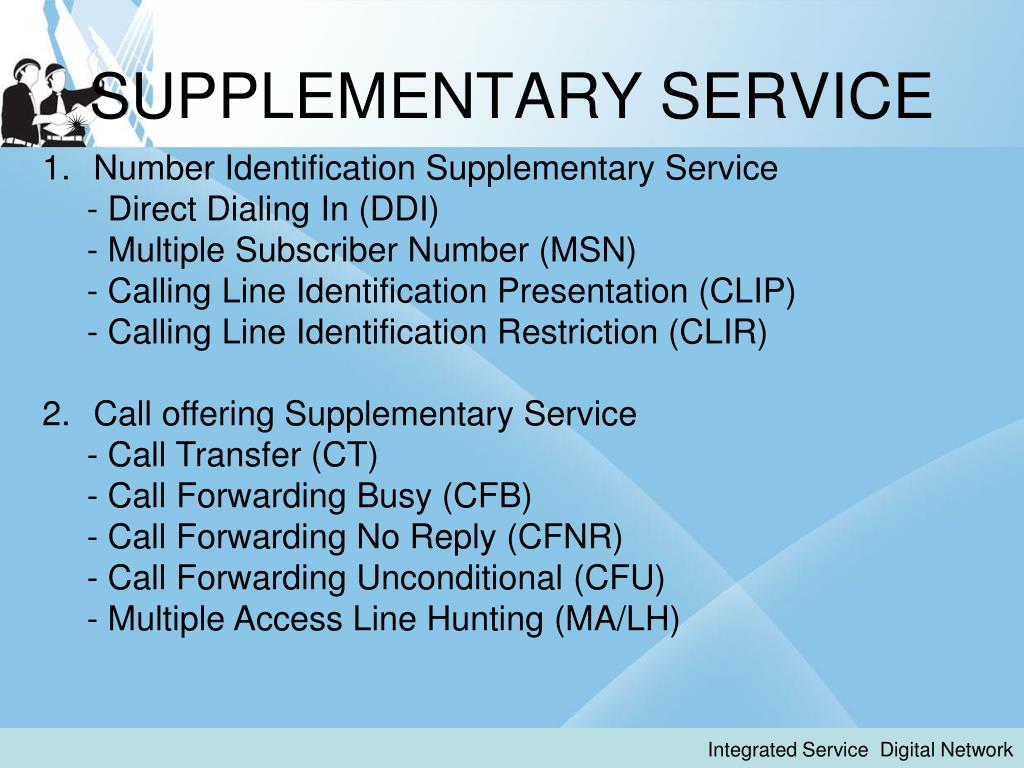

SUPPLEMENTARY SERVICE

  • Number Identification Supplementary Service

  • - Direct Dialing In (DDI)

  • - Multiple Subscriber Number (MSN)

  • - Calling Line Identification Presentation (CLIP)

  • - Calling Line Identification Restriction (CLIR)

  • Call offering Supplementary Service

  • - Call Transfer (CT)

  • - Call Forwarding Busy (CFB)

  • - Call Forwarding No Reply (CFNR)

  • - Call Forwarding Unconditional (CFU)

  • - Multiple Access Line Hunting (MA/LH)

Integrated Service Digital Network


Supplementary service1

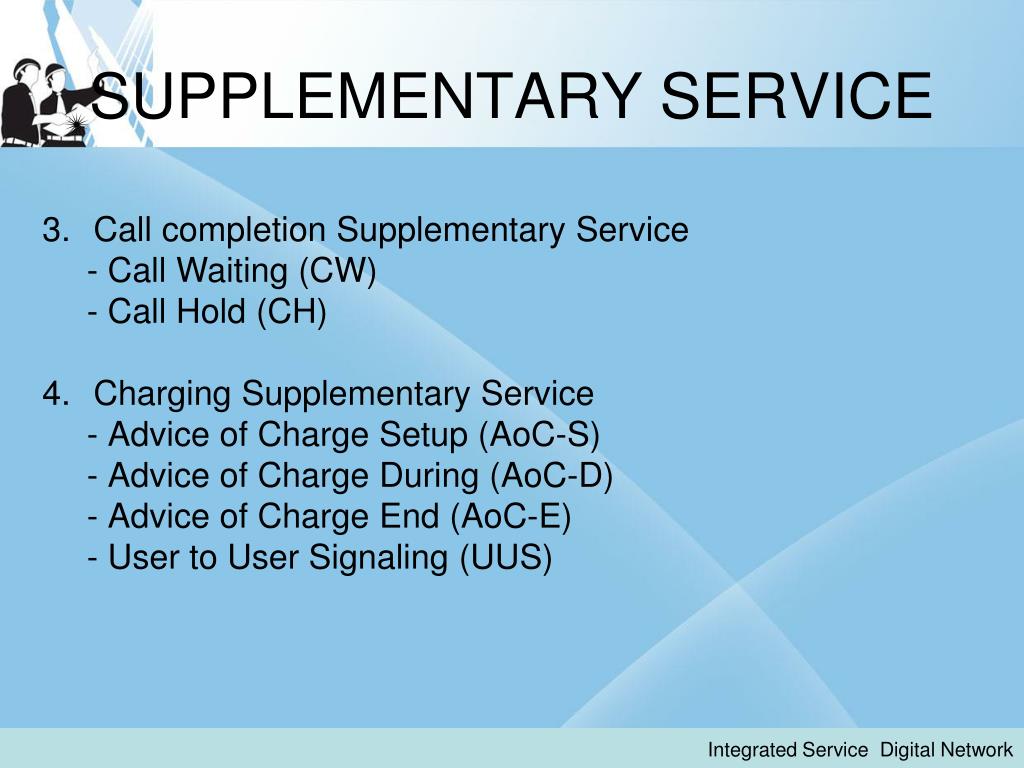

SUPPLEMENTARY SERVICE

  • Call completion Supplementary Service

  • - Call Waiting (CW)

  • - Call Hold (CH)

  • Charging Supplementary Service

  • - Advice of Charge Setup (AoC-S)

  • - Advice of Charge During (AoC-D)

  • - Advice of Charge End (AoC-E)

  • - User to User Signaling (UUS)

Integrated Service Digital Network

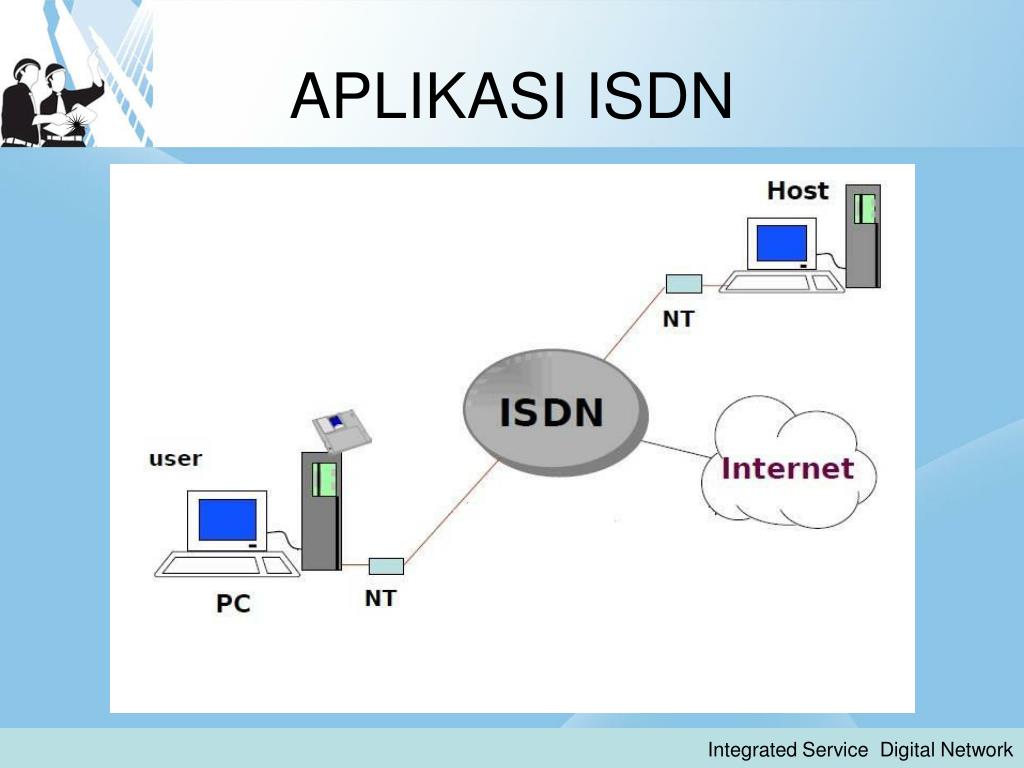

Aplikasi isdn

APLIKASI ISDN

Integrated Service Digital Network


Aplikasi isdn1

APLIKASI ISDN

Camera

TV

Monitor

Codec

Video Conference System

ISDN

Switch

Video Conference System

Integrated Service Digital Network
