Training emergency responders to use a colorimetric dosimeter

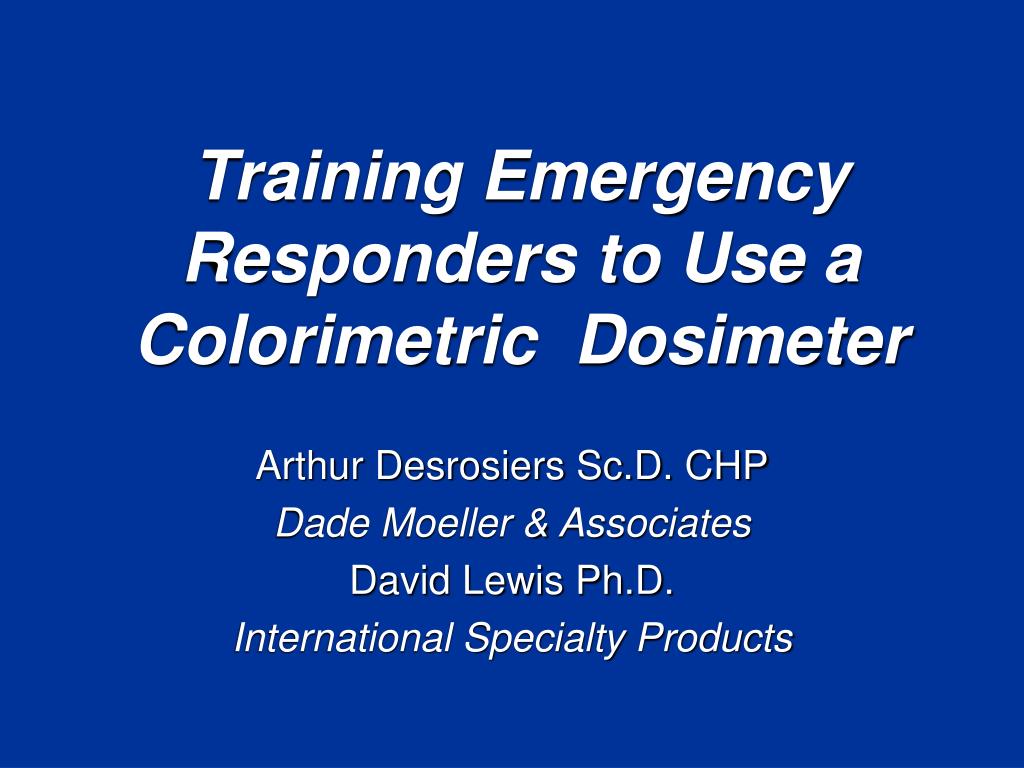

Training Emergency Responders to Use a Colorimetric Dosimeter

Arthur Desrosiers Sc.D. CHP

Dade Moeller & Associates

David Lewis Ph.D.

International Specialty Products

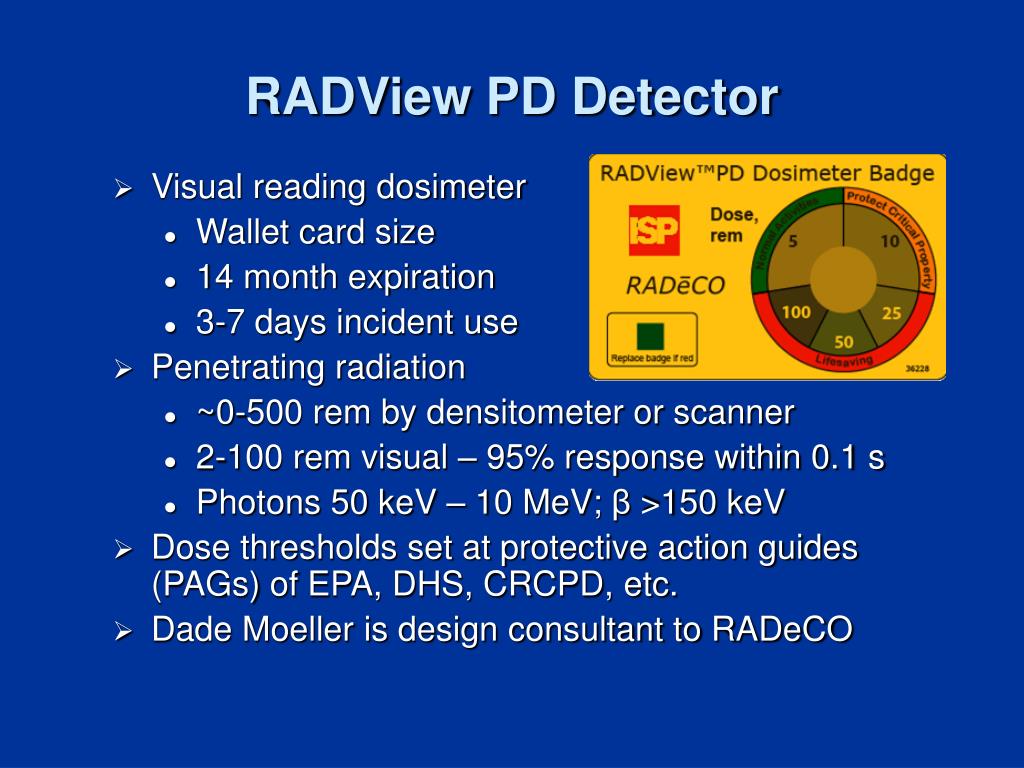

Radview pd detector

RADView PD Detector

  • Visual reading dosimeter

    • Wallet card size

    • 14 month expiration

    • 3-7 days incident use

  • Penetrating radiation

    • ~0-500 rem by densitometer or scanner

    • 2-100 rem visual – 95% response within 0.1 s

    • Photons 50 keV – 10 MeV; β >150 keV

  • Dose thresholds set at protective action guides (PAGs) of EPA, DHS, CRCPD, etc.

  • Dade Moeller is design consultant to RADeCO


Radiochromic film 20 yrs experience

Radiochromic Film: 20 yrs Experience

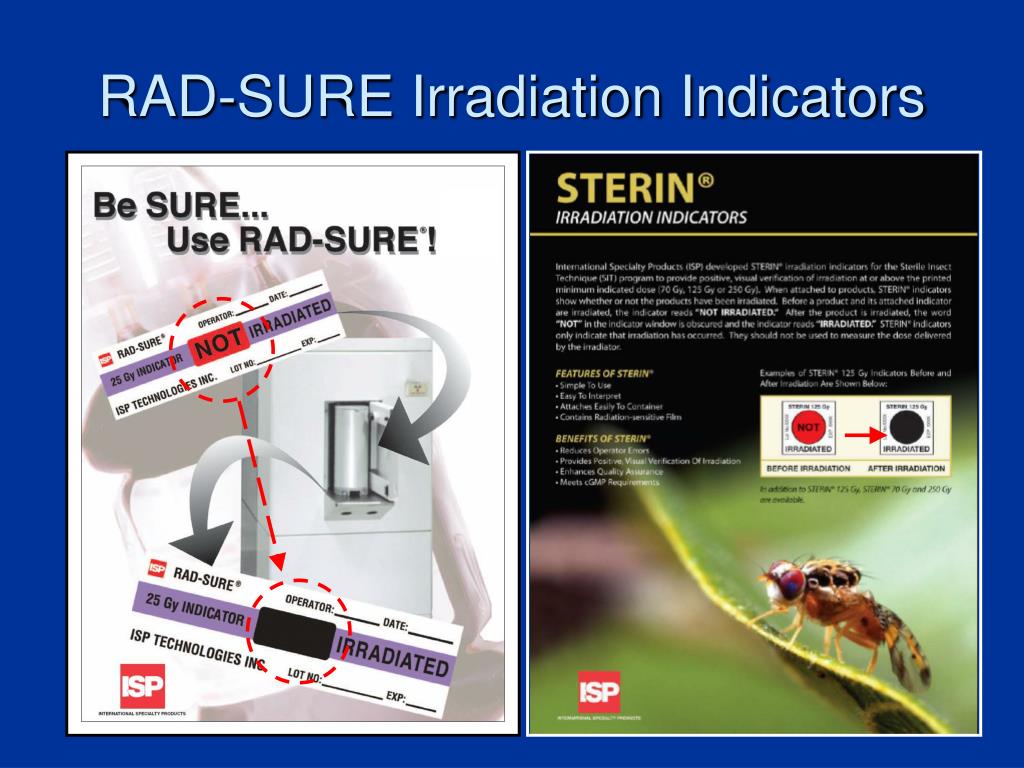

Rad sure irradiation indicators

RAD-SURE Irradiation Indicators


Gafchromic medical dosimetry films for therapy

GAFCHROMIC Medical Dosimetry Films for Therapy

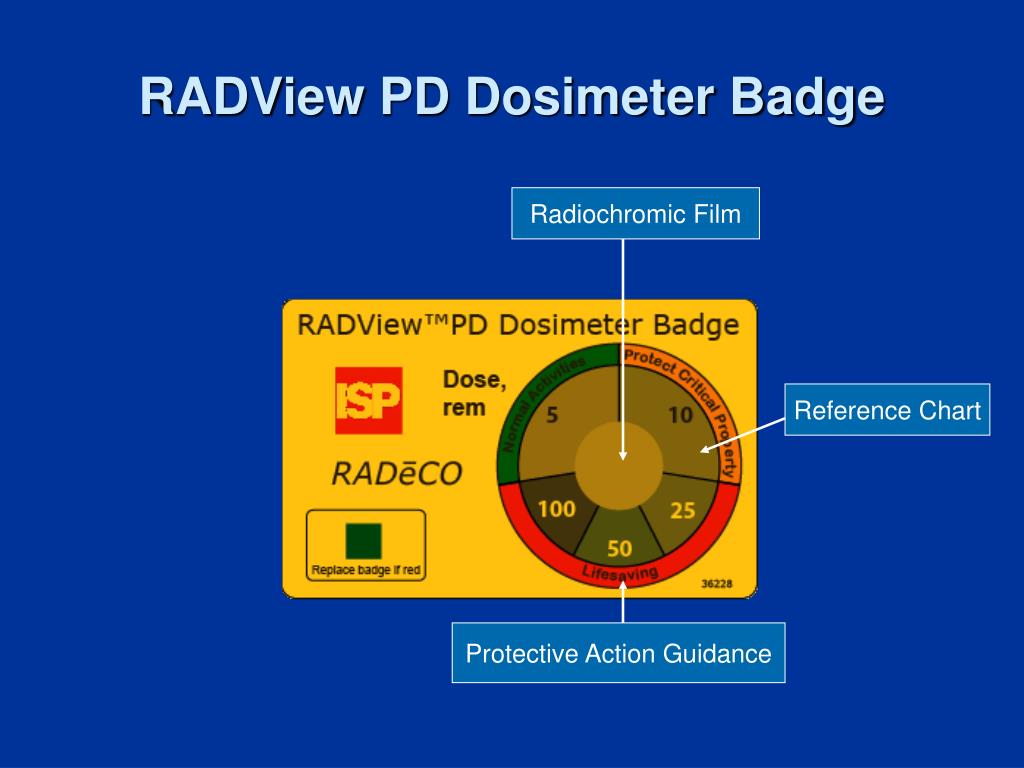

Radview pd dosimeter badge

RADView PD Dosimeter Badge

Radiochromic Film

Reference Chart

Protective Action Guidance


Temperature history indicator

Temperature History Indicator

“False Positive” film

hidden under logo

protected from UV

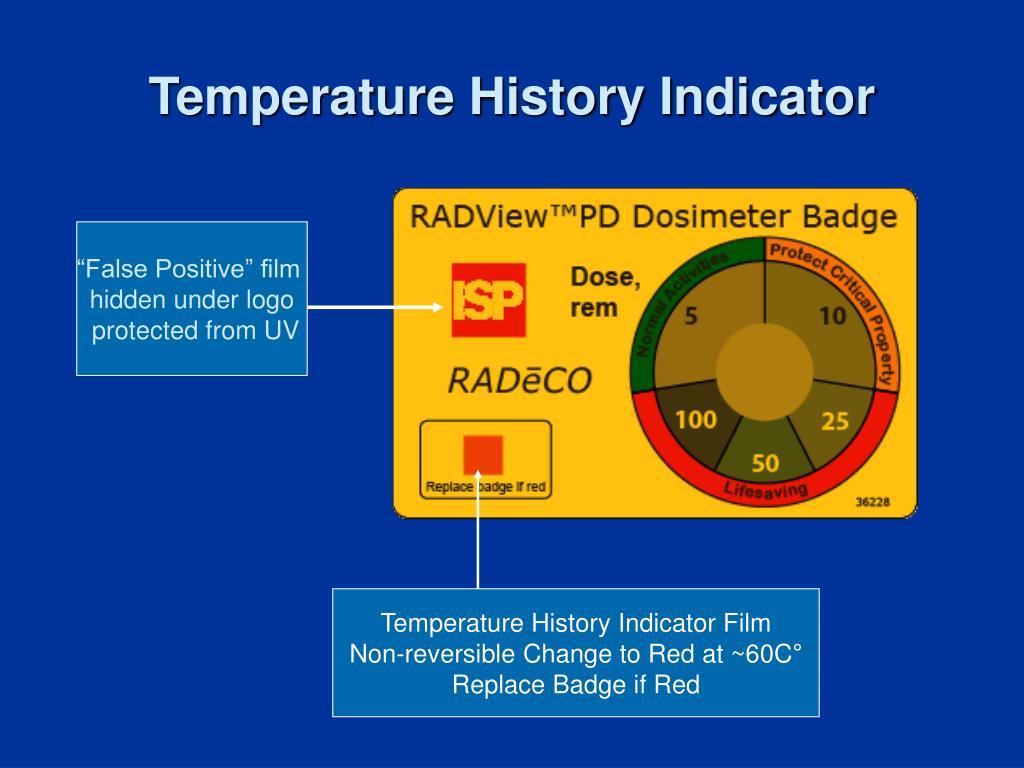

Temperature History Indicator Film

Non-reversible Change to Red at ~60C°

Replace Badge if Red


Training emergency responders to use a colorimetric dosimeter

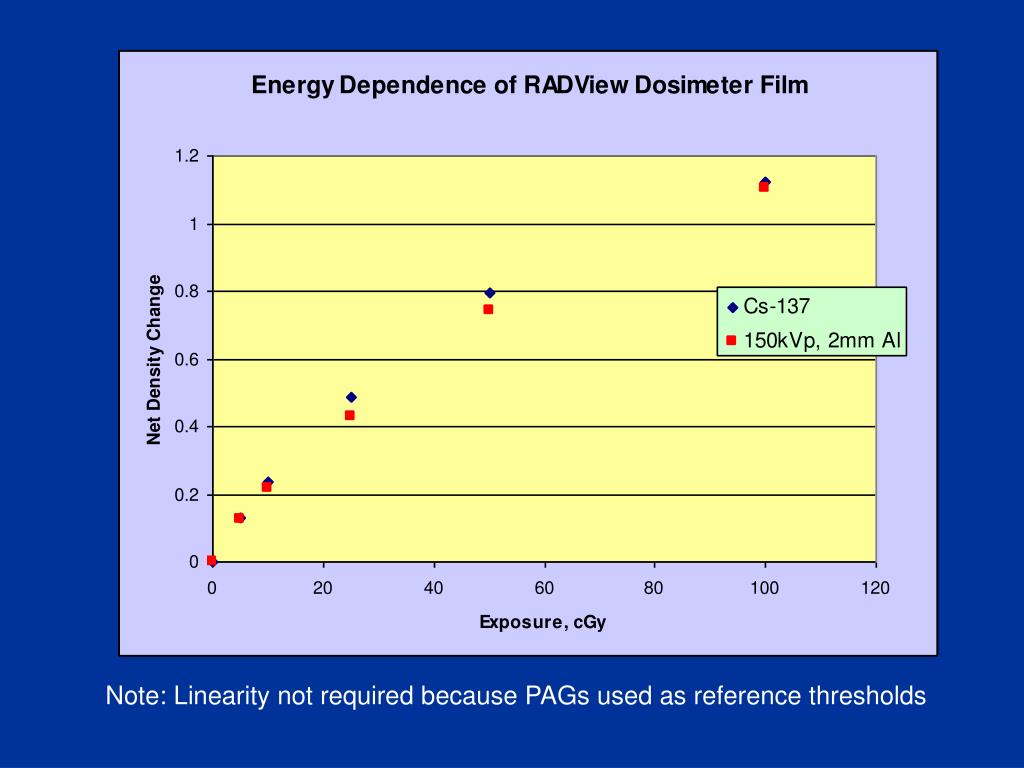

Note: Linearity not required because PAGs used as reference thresholds


Training emergency responders to use a colorimetric dosimeter

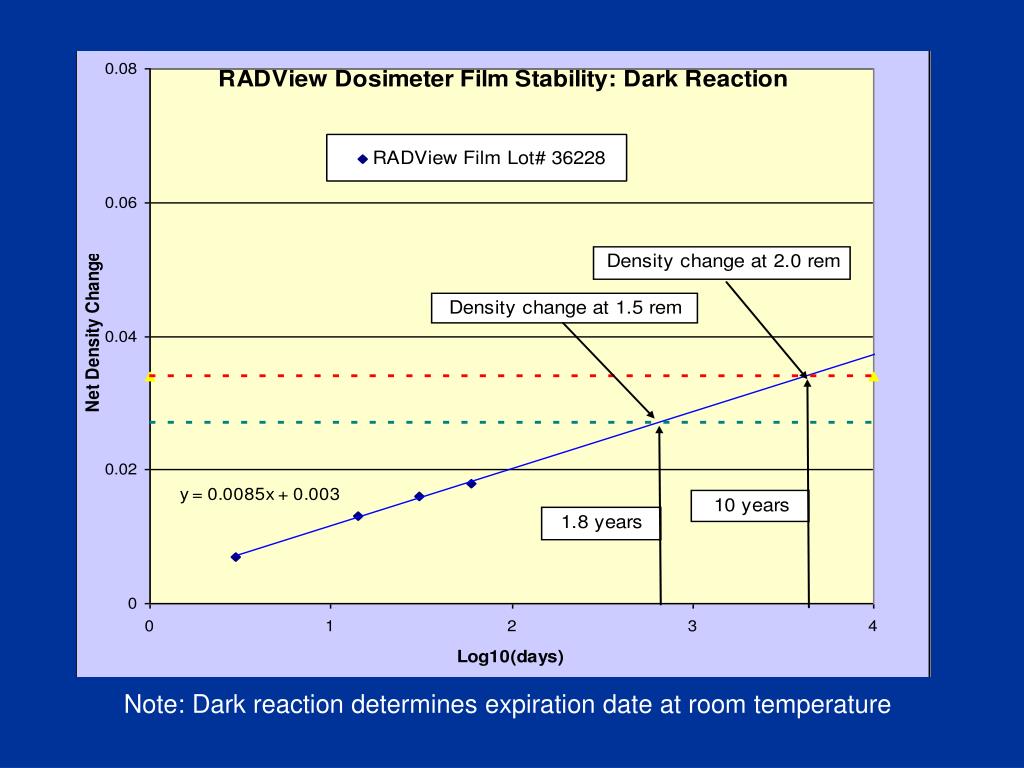

Note: Dark reaction determines expiration date at room temperature

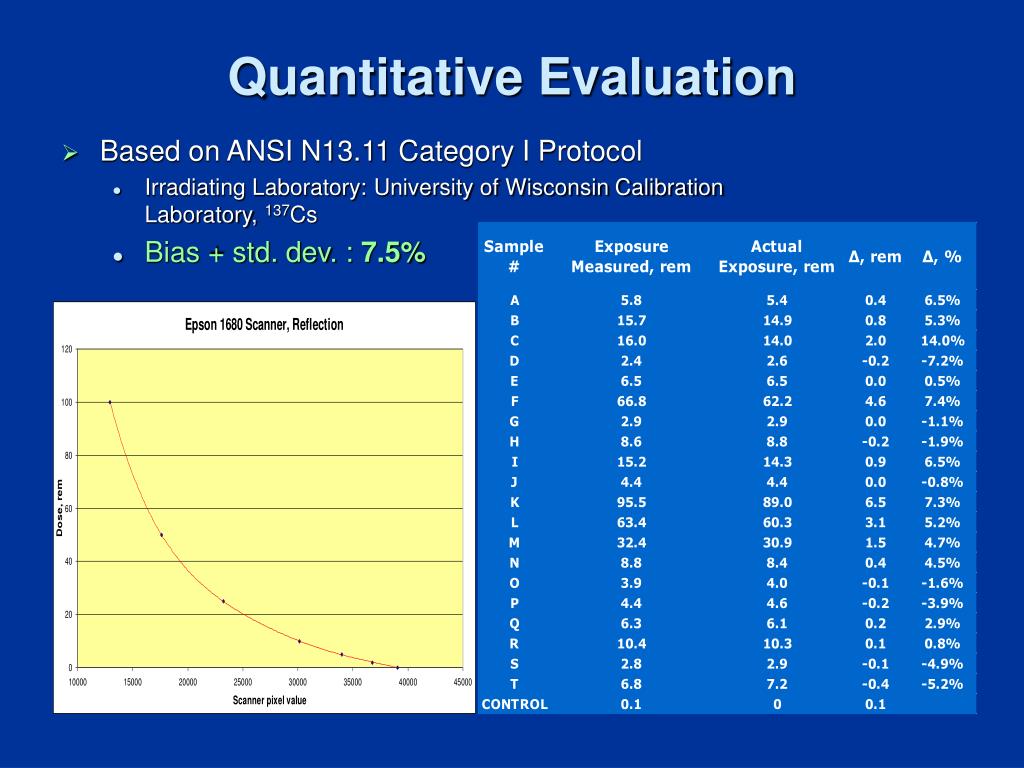

Quantitative evaluation

Quantitative Evaluation

  • Based on ANSI N13.11 Category I Protocol

    • Irradiating Laboratory: University of Wisconsin Calibration Laboratory, 137Cs

    • Bias + std. dev. : 7.5%

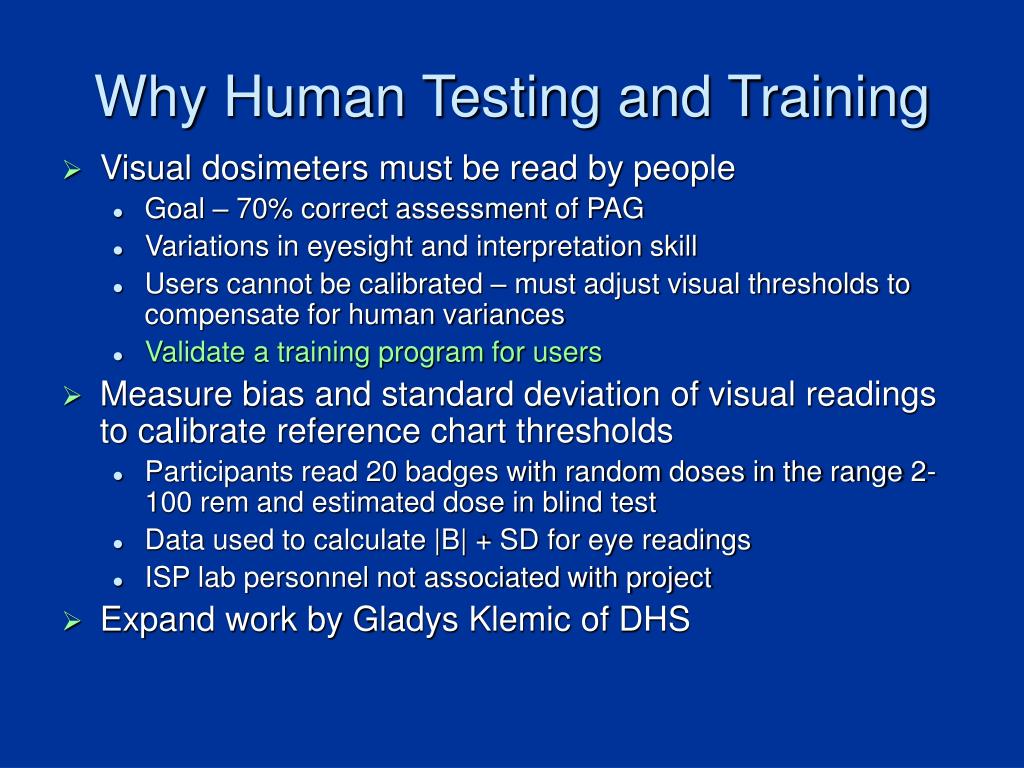

Why human testing and training

Why Human Testing and Training

  • Visual dosimeters must be read by people

    • Goal – 70% correct assessment of PAG

    • Variations in eyesight and interpretation skill

    • Users cannot be calibrated – must adjust visual thresholds to compensate for human variances

    • Validate a training program for users

  • Measure bias and standard deviation of visual readings to calibrate reference chart thresholds

    • Participants read 20 badges with random doses in the range 2-100 rem and estimated dose in blind test

    • Data used to calculate |B| + SD for eye readings

    • ISP lab personnel not associated with project

  • Expand work by Gladys Klemic of DHS


True dose vs eye estimates

True Dose vs. Eye Estimates

A B C D E F G H I J K L M N O P Q R S T

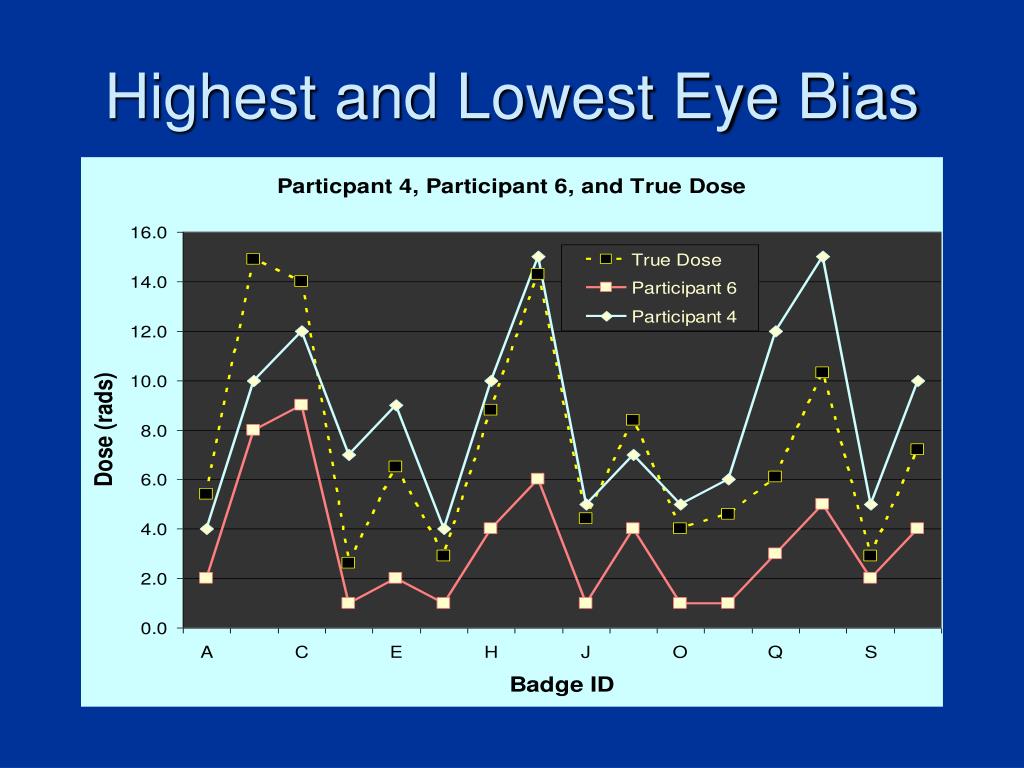

Highest and lowest eye bias

Highest and Lowest Eye Bias

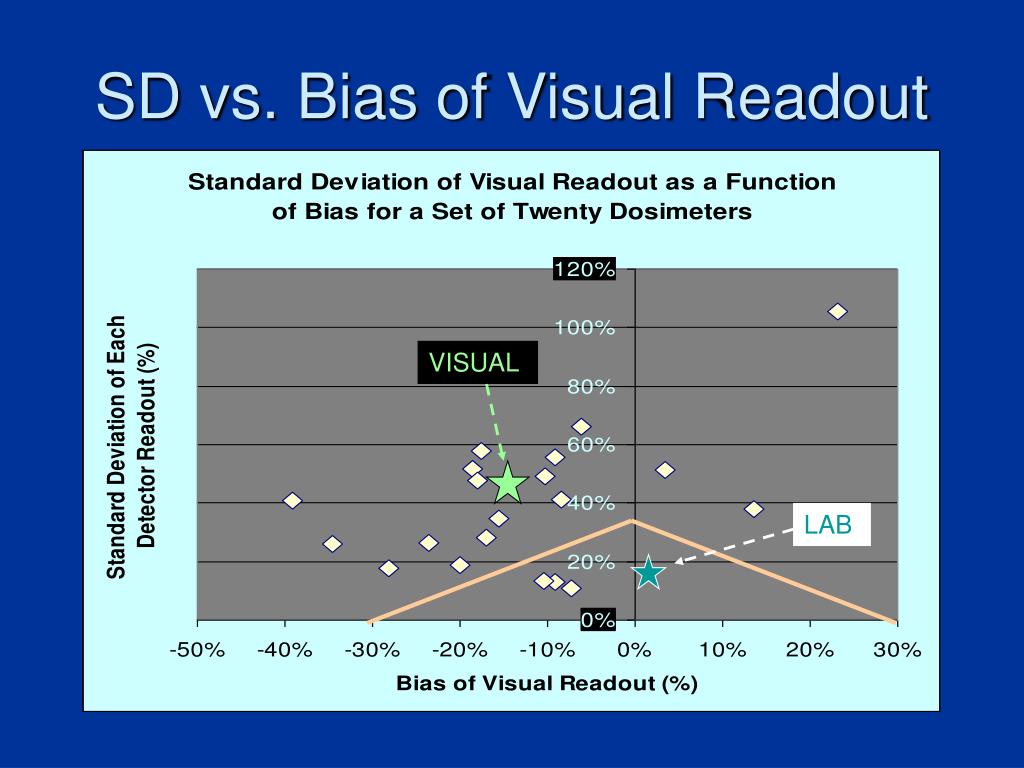

Sd vs bias of visual readout

SD vs. Bias of Visual Readout

VISUAL

LAB

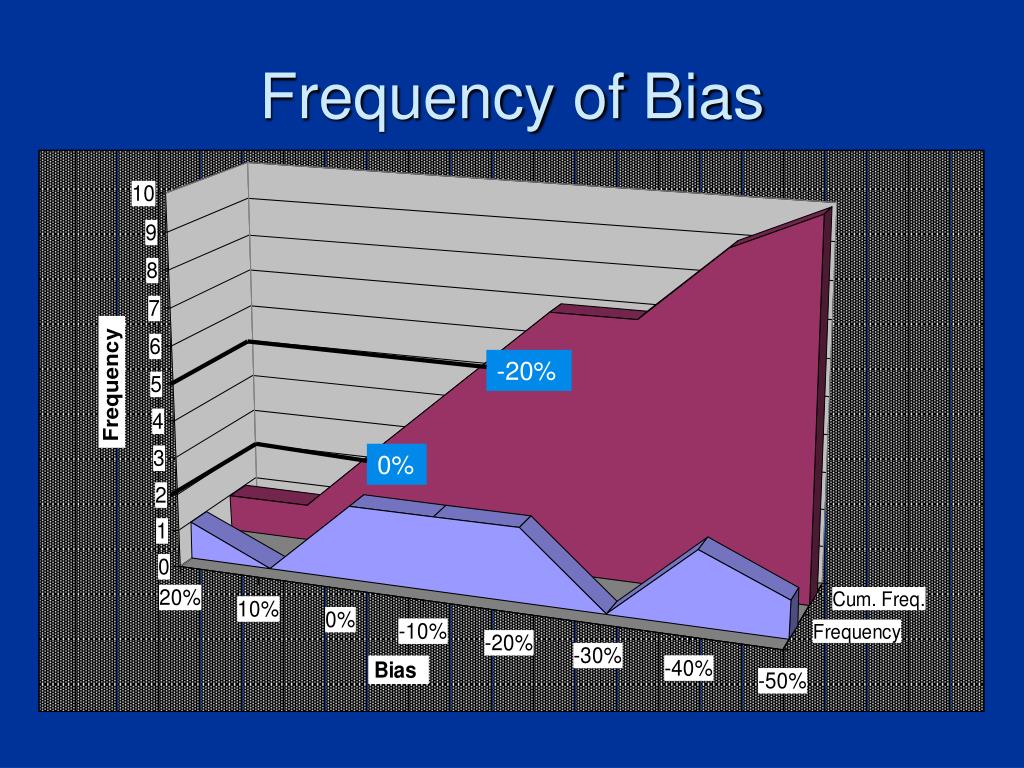

Frequency of bias

Frequency of Bias

-20%

0%


Training and testing firefighters

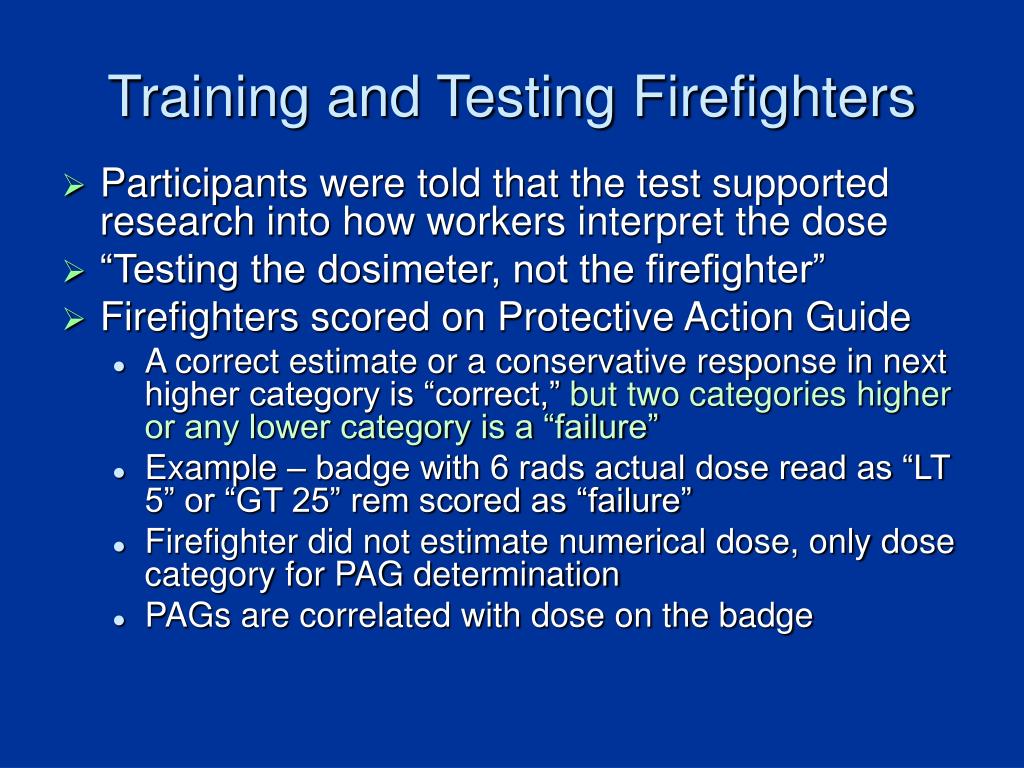

Training and Testing Firefighters

  • Participants were told that the test supported research into how workers interpret the dose

  • “Testing the dosimeter, not the firefighter”

  • Firefighters scored on Protective Action Guide

    • A correct estimate or a conservative response in next higher category is “correct,” but two categories higher or any lower category is a “failure”

    • Example – badge with 6 rads actual dose read as “LT 5” or “GT 25” rem scored as “failure”

    • Firefighter did not estimate numerical dose, only dose category for PAG determination

    • PAGs are correlated with dose on the badge


Success rates correct pag

Success Rates: Correct PAG

  • ~80% ISP participants

  • ~70% first fire company

  • ~80% for second fire company

* Color shift & texture complicate reading

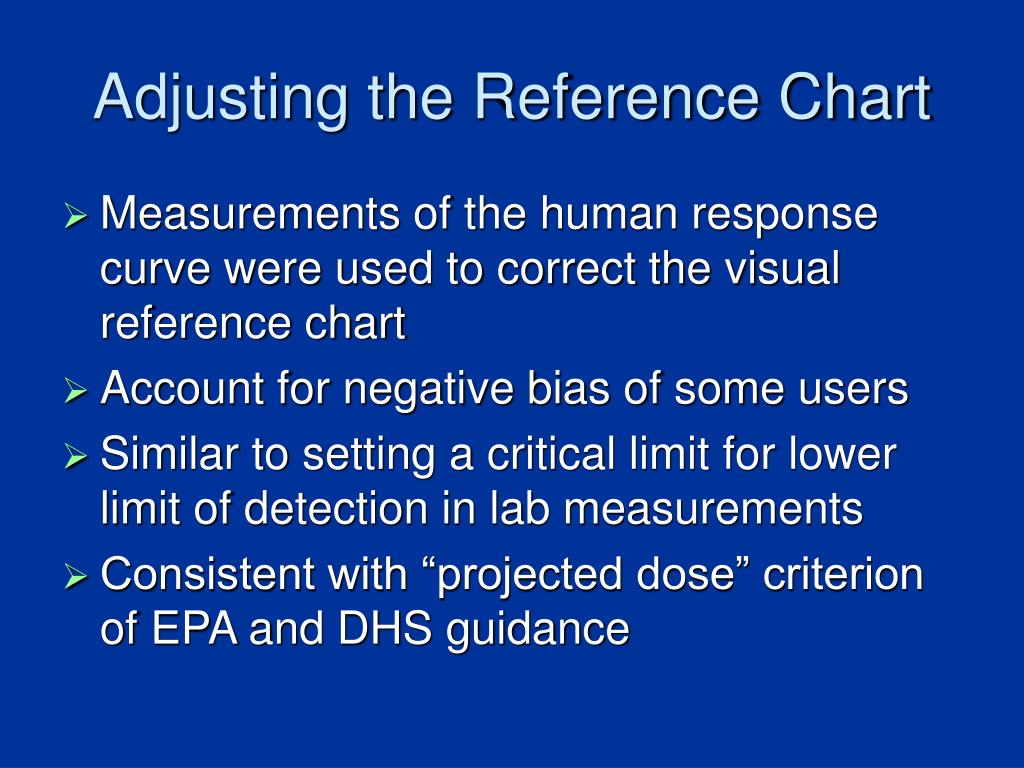

Adjusting the reference chart

Adjusting the Reference Chart

  • Measurements of the human response curve were used to correct the visual reference chart

  • Account for negative bias of some users

  • Similar to setting a critical limit for lower limit of detection in lab measurements

  • Consistent with “projected dose” criterion of EPA and DHS guidance


Improved training program

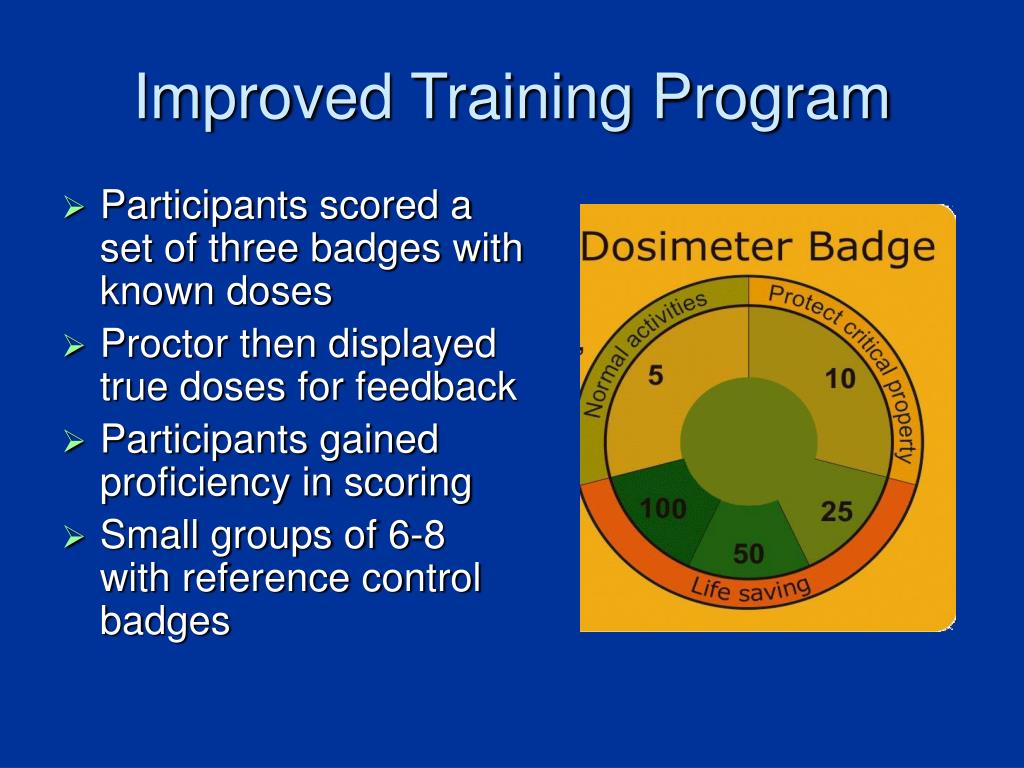

Improved Training Program

  • Participants scored a set of three badges with known doses

  • Proctor then displayed true doses for feedback

  • Participants gained proficiency in scoring

  • Small groups of 6-8 with reference control badges

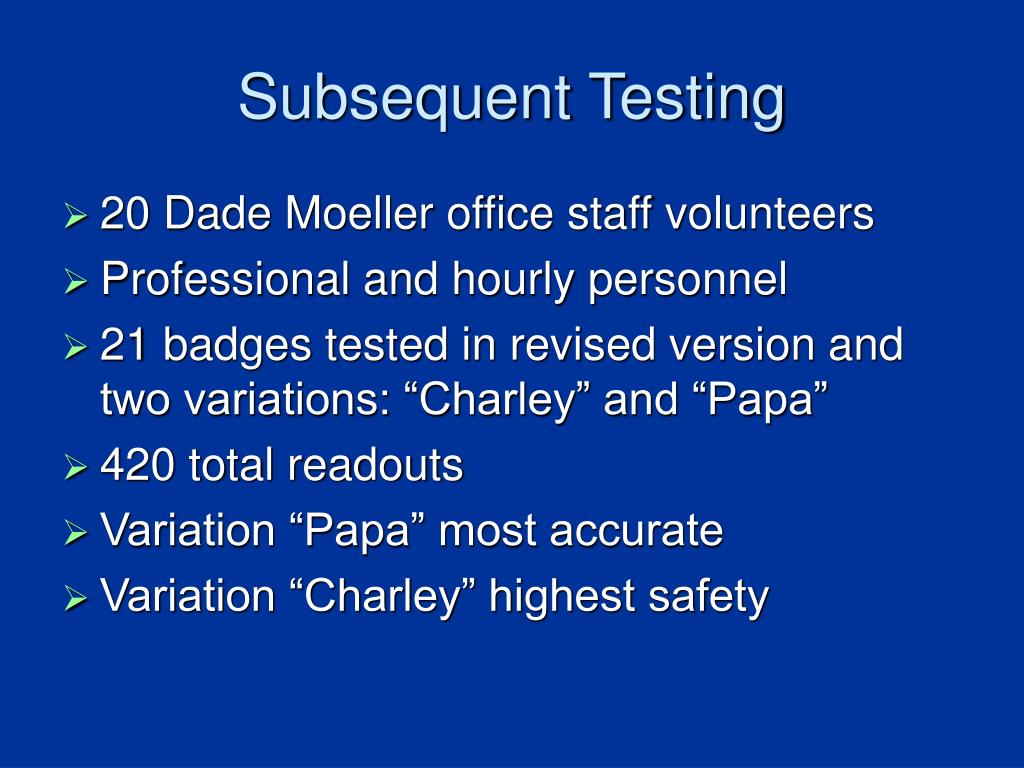

Subsequent testing

Subsequent Testing

  • 20 Dade Moeller office staff volunteers

  • Professional and hourly personnel

  • 21 badges tested in revised version and two variations: “Charley” and “Papa”

  • 420 total readouts

  • Variation “Papa” most accurate

  • Variation “Charley” highest safety


Result after adjustments

Result After Adjustments

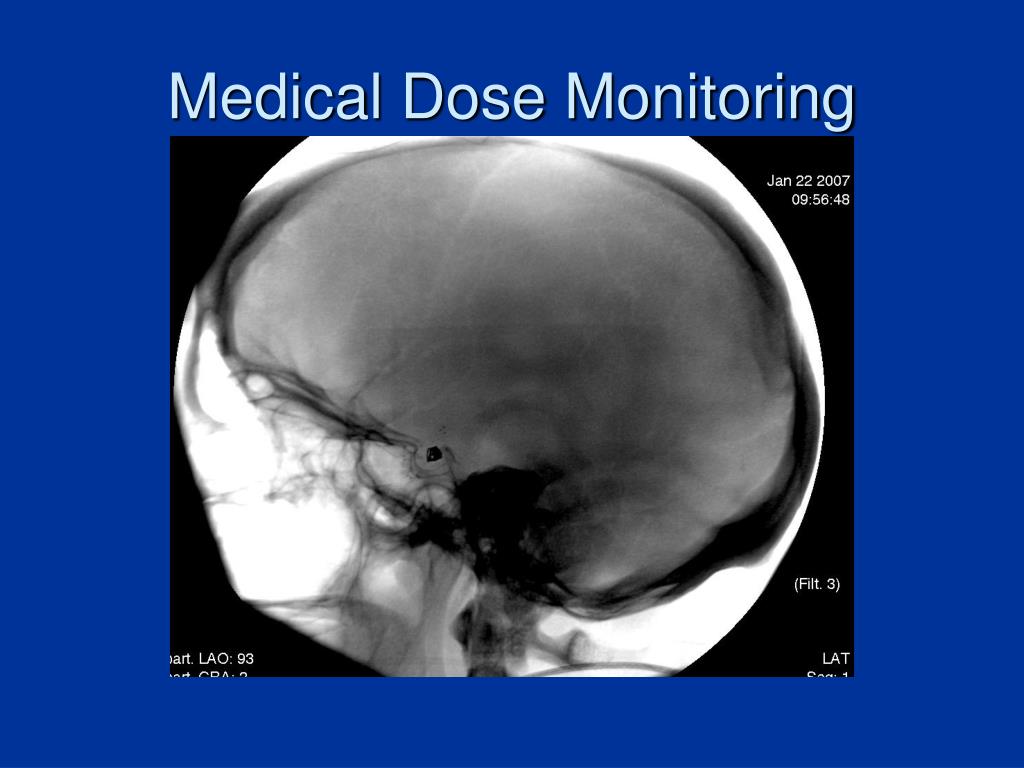

Medical dose monitoring
