Basic wireless lan security technologies

Basic Wireless LAN Security Technologies

  • Most wireless security incidents occur because system administrators do not implement available counter measures.

  • It is important to verify that the countermeasure is in place and working properly

  • Thus, WLAN security wheel which is a continuous security process is very effective


Wlan security wheel

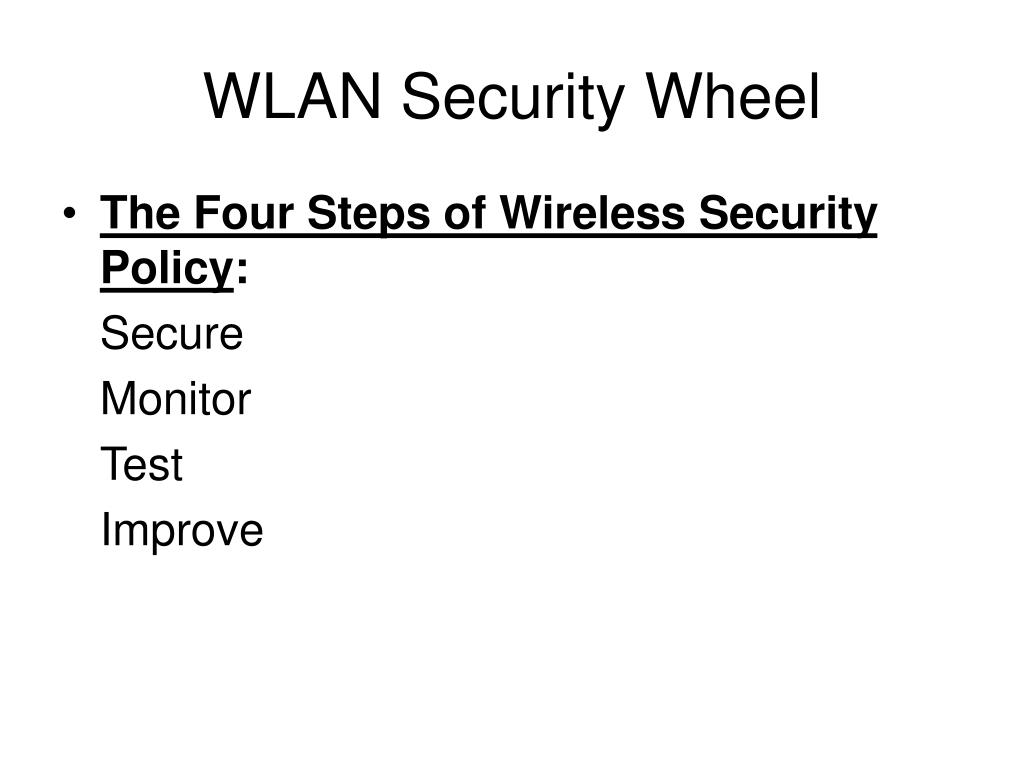

WLAN Security Wheel

  • The Four Steps of Wireless Security Policy:

    Secure

    Monitor

    Test

    Improve


Secure

Secure

  • This step implements WLAN security solutions to stop or prevent unauthorized access or activities and to protect information using the following:

    Authentication (802.1x)

    Encryption (WEP or AES)

    Traffic Filters

    Controlled wireless coverage area


Monitor

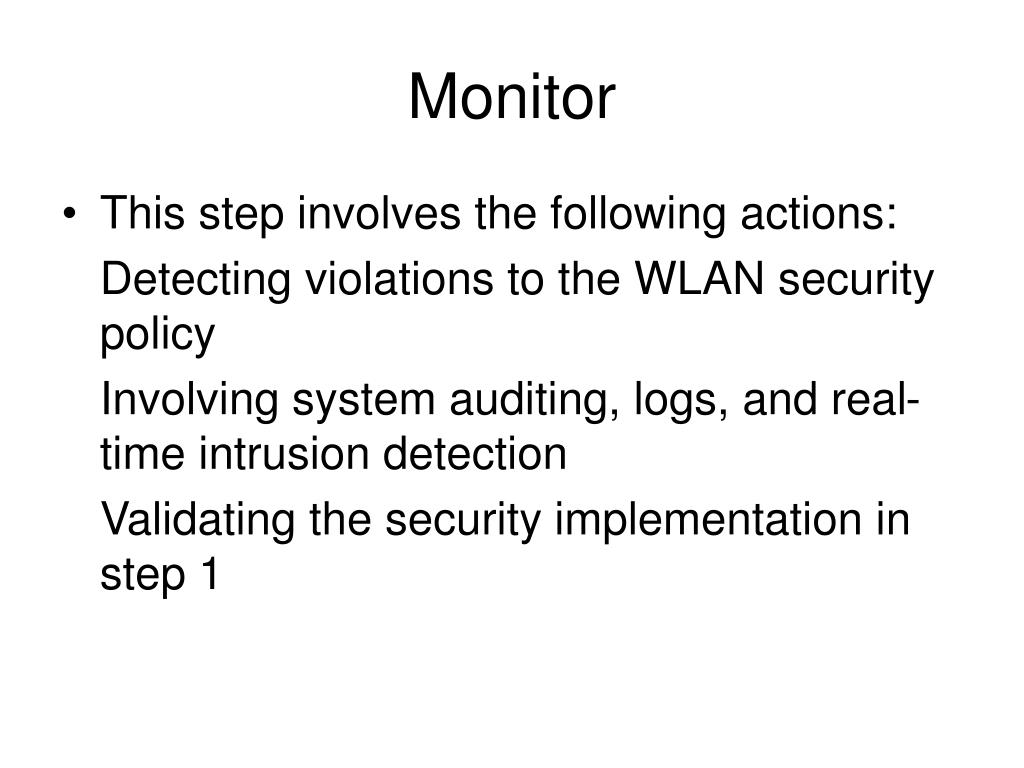

Monitor

  • This step involves the following actions:

    Detecting violations to the WLAN security policy

    Involving system auditing, logs, and real-time intrusion detection

    Validating the security implementation in step 1


Test improve

Test & Improve

  • Test: This step validates the effectiveness of the WLAN security policy through system auditing and wireless and wired vulnerability scanning

  • Improve: This step involves the following:

    Using info from step 3 to improve WLAN implementation

    Adjusting the security policy


First generation wireless security

First Generation Wireless Security

  • Security was not a big concern

  • Many WLANs used Service Set IDentifier (SSID) as the basic form of security.

  • Some WLANs controlled access by entering the MAC address of each client into their wireless AP.

  • Neither option was secure, because wireless sniffing could reveal both valid MAC addresses and the SSID


Basic wireless lan security technologies

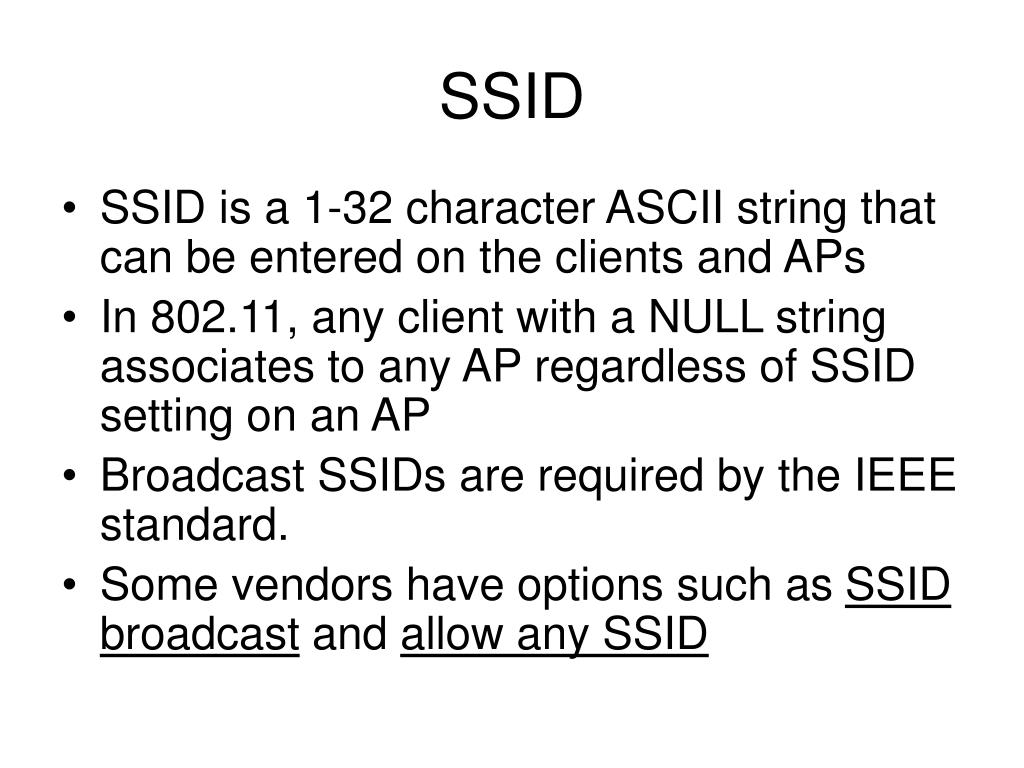

SSID

  • SSID is a 1-32 character ASCII string that can be entered on the clients and APs

  • In 802.11, any client with a NULL string associates to any AP regardless of SSID setting on an AP

  • Broadcast SSIDs are required by the IEEE standard.

  • Some vendors have options such as SSID broadcast and allow any SSID


Basic wireless lan security technologies

SSID

  • These features are enabled by default and make it easy to set up a wireless network

  • Using the allow any SSID option lets the AP allow access to a client with blank SSID

  • The SSID broadcast option sends beacon frames which advertise the SSID

  • MAC based authentication is not defined in 802.11 specification


Wired equivalent privacy wep

Wired Equivalent Privacy (WEP)

  • IEEE 802.11 standard includes WEP to protect authorized users of a WLAN from a casual eavesdropping

  • IEEE 802.11 WEP standard specifies a static 40-bit key

  • Most vendors have extended WEP to 128 bits or more.

  • When using WEP, both AP and wireless client must have a matching WEP key

  • WEP is based on Rivest Cipher 4 (RC4)


Basic wireless lan security technologies

WEP

  • Encryption based on key lengths greater than 64 bits are considered high encryption standard


Rivest shamir adelman rsa encryption scheme

Rivest-Shamir-Adelman (RSA) Encryption Scheme

  • In RSA scheme messages are first represented as integers in the range (0,n-1)

  • Each user chooses his/her own value of n and another pair of positive integers e and d.

  • The user places the encryption key, (n,e) in the public directory

  • The decryption key consists of the number pair (n,d)


Rsa scheme

RSA Scheme

  • d is kept secret.

  • Encryption:

  • Decryption


Rsa scheme1

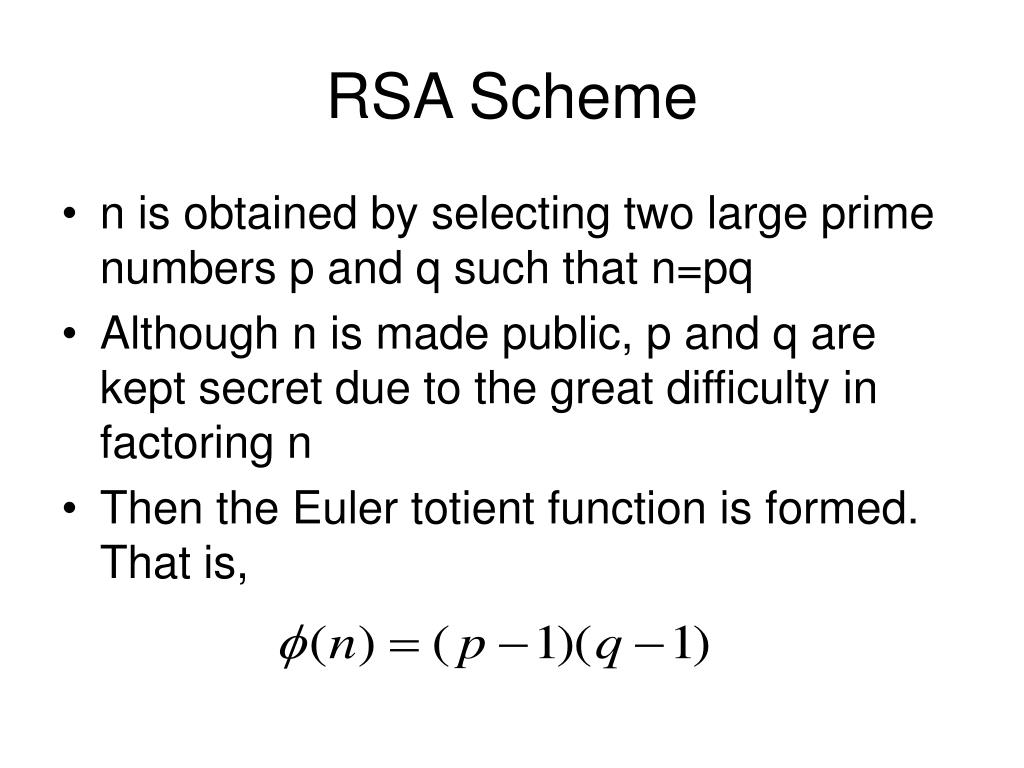

RSA Scheme

  • n is obtained by selecting two large prime numbers p and q such that n=pq

  • Although n is made public, p and q are kept secret due to the great difficulty in factoring n

  • Then the Euler totient function is formed. That is,


Rsa scheme2

RSA Scheme

  • The parameter has an interesting property that for any integer X in the range (0, n-1) and for any integer k

  • A large integer d is randomly chosen so that it is relatively prime to , which means that and d must have no common divisors other than 1


Rsa scheme3

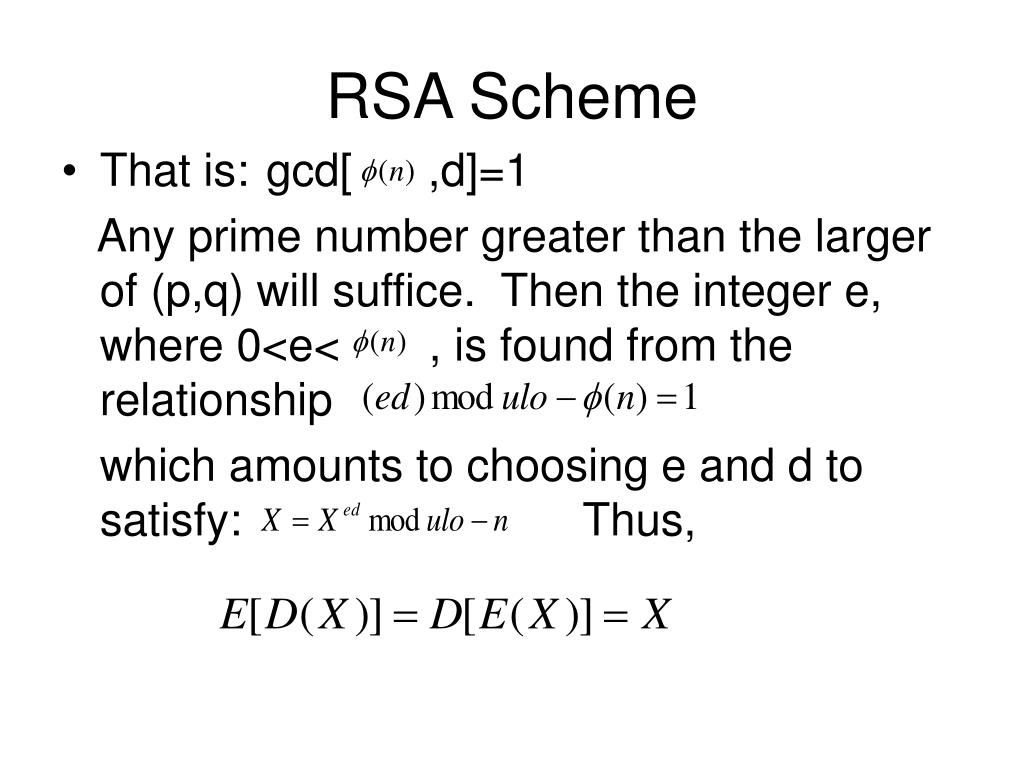

RSA Scheme

  • That is:gcd[ ,d]=1

    Any prime number greater than the larger of (p,q) will suffice. Then the integer e, where 0<e< , is found from the relationship

    which amounts to choosing e and d to satisfy: Thus,


Example of rsa scheme

Example of RSA Scheme

  • Let p=47, q=59. Therefore, n=pq=2773

  • =(p-1)(q-1)=2668. d is chosen to be relatively prime to . For example, choose d=157. Next the value of e is computed as follows:

  • Thus e=17


Rsa scheme4

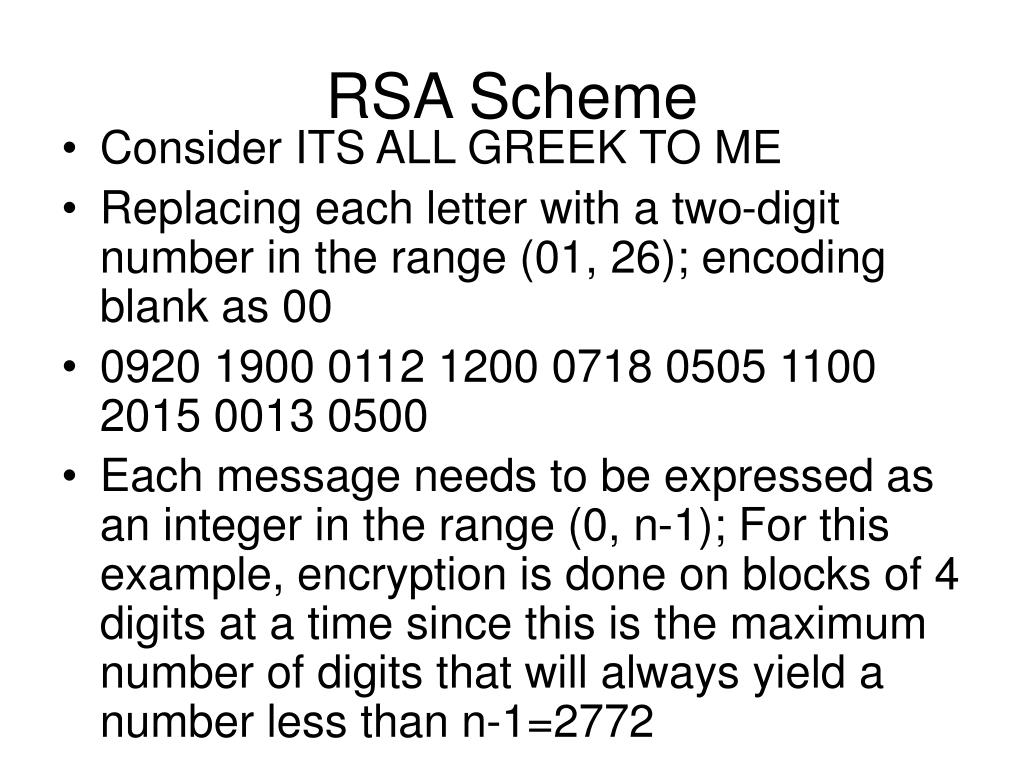

RSA Scheme

  • Consider ITS ALL GREEK TO ME

  • Replacing each letter with a two-digit number in the range (01, 26); encoding blank as 00

  • 0920 1900 0112 1200 0718 0505 1100 2015 0013 0500

  • Each message needs to be expressed as an integer in the range (0, n-1); For this example, encryption is done on blocks of 4 digits at a time since this is the maximum number of digits that will always yield a number less than n-1=2772


Rsa scheme5

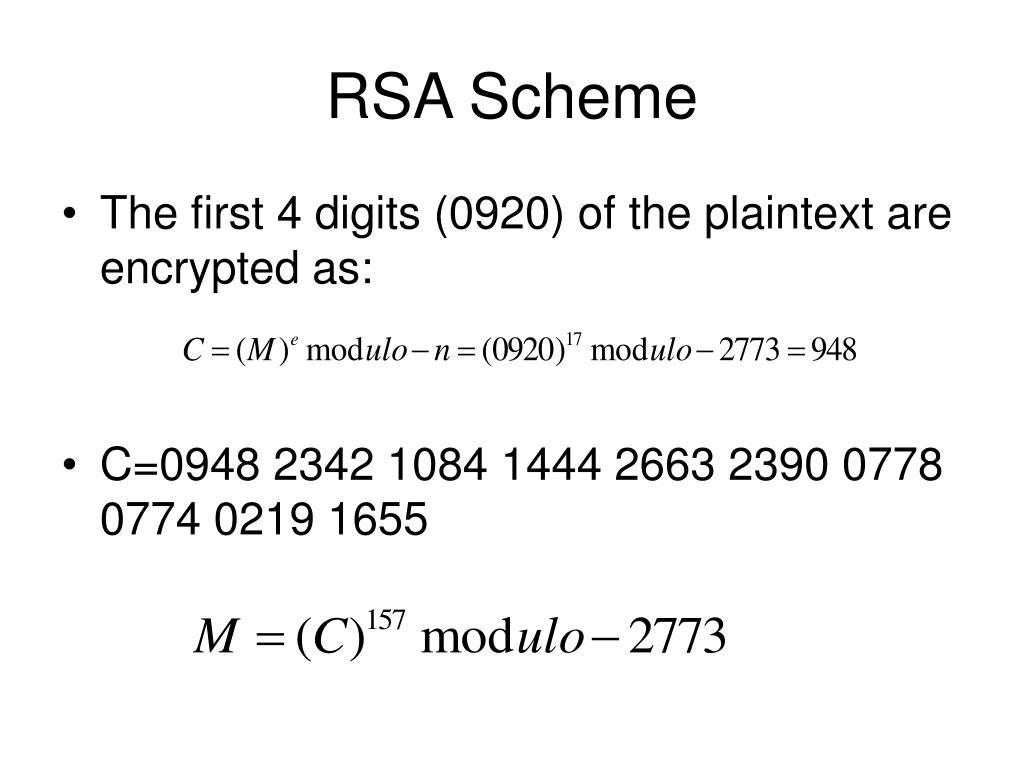

RSA Scheme

  • The first 4 digits (0920) of the plaintext are encrypted as:

  • C=0948 2342 1084 1444 2663 2390 0778 0774 0219 1655
