  1. Nigel Griffiths • Advanced Technical Support • IBM Europe Topas and nmon

  2. nmon for Linux now Open Source • nmon for Linux on Power then added x86, Z, x86_64 • Released by IBM - July 2009 • http://nmon.sourceforge.net • Compile for your Linux flavour • Cell blades, disk engines, • Diskless, embedded ++ • On a Linux Distro's !!

  3. nmon for AIX4 … add AIX5 & AIX6 … nmon 12e for AIX … nmon function within topas • AIX 5.3 TL09 - TL11, + • AIX 6.1 TL02 - TL04, + October 2008

  4. topas problem 1 30+ pages, no product, no marketing, Redbook nope

  5. topas problem 2 KB-W AQW MWT PSz Vcsw %bdon MPuse hpit physb pmem RTFM

  6. topas problem 3 10 different online modes 7 file formats (with friends)

  7. Modes Topas nmon Classic for AIX&Linux Local AIX mode Cross-partition Mode [CEC/whole machine] nmon mode nmon View Default View nmon View Detailed View LPAR View 3 2 1 5 CEC Save nmon Save WPAR AMS 6 WPAR 9 7 10 nmon Save VIOS View 8 CSV file nmon Analyser nmon Consolidator nmon2rrd/nmon2web Other tools or databases Text Reports Other Local Save Tools topasout

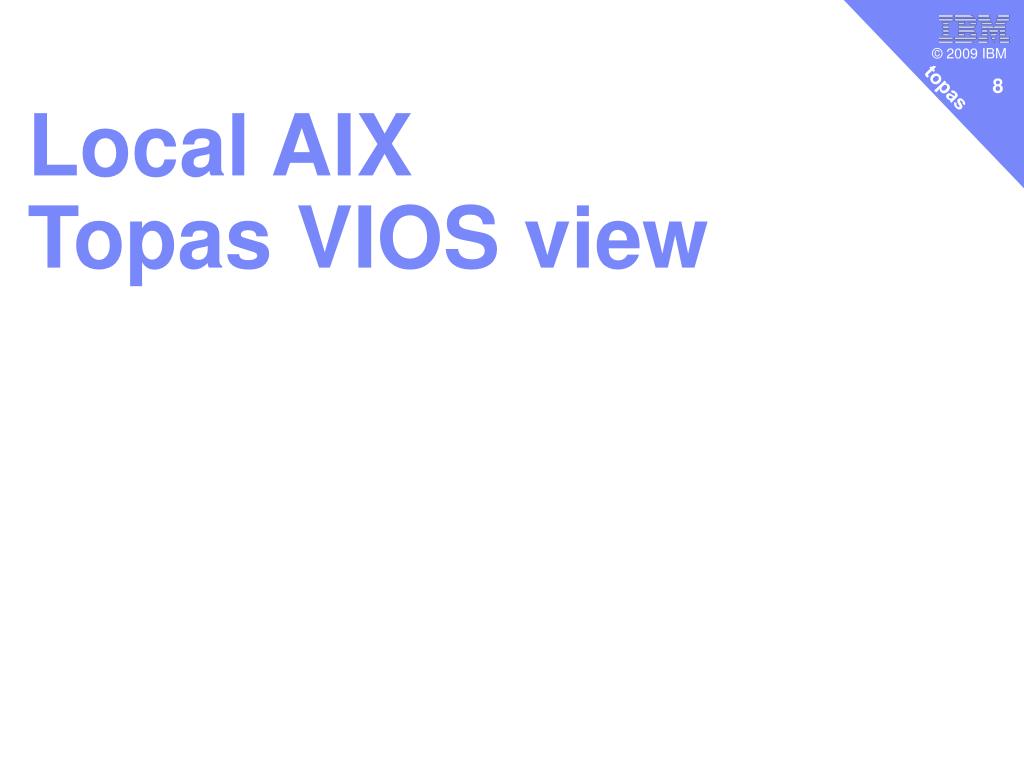

  8. Local AIXTopas VIOS view

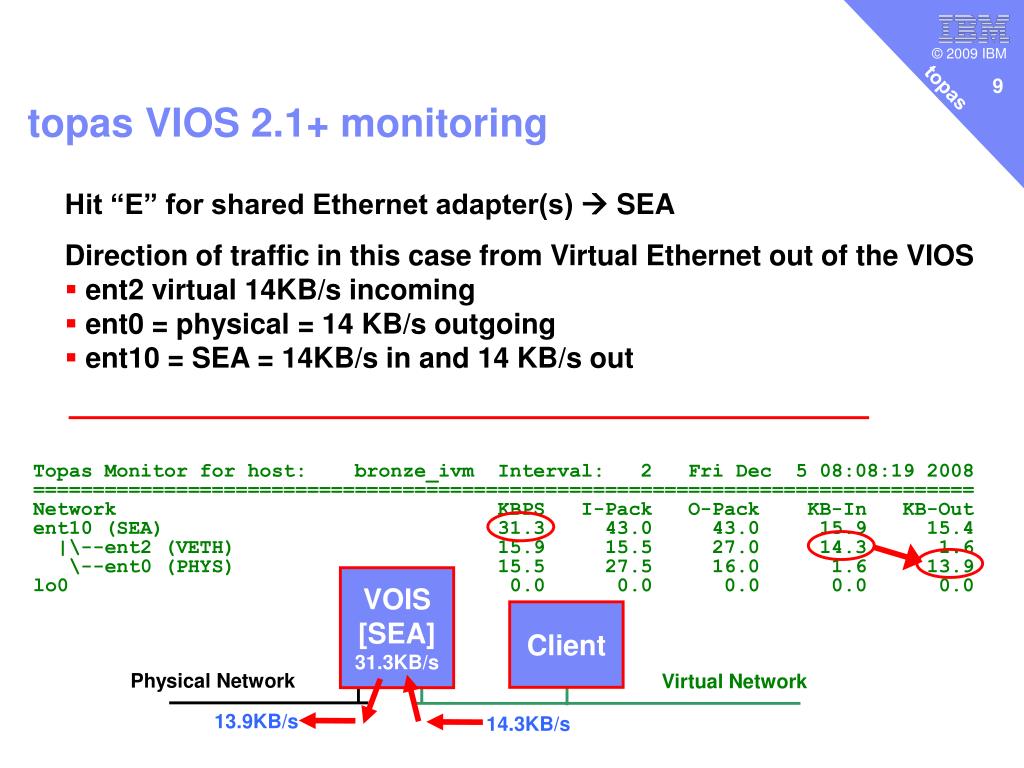

  9. topas VIOS 2.1+ monitoring Topas Monitor for host: bronze_ivm Interval: 2 Fri Dec 5 08:08:19 2008 =============================================================================== Network KBPS I-Pack O-Pack KB-In KB-Out ent10 (SEA) 31.3 43.0 43.0 15.9 15.4 |\--ent2 (VETH) 15.9 15.5 27.0 14.3 1.6 \--ent0 (PHYS) 15.5 27.5 16.0 1.6 13.9 lo0 0.0 0.0 0.0 0.0 0.0 • Hit “E” for shared Ethernet adapter(s)  SEA • Direction of traffic in this case from Virtual Ethernet out of the VIOS • ent2 virtual 14KB/s incoming • ent0 = physical = 14 KB/s outgoing • ent10 = SEA = 14KB/s in and 14 KB/s out VOIS [SEA] 31.3KB/s Client Physical Network Virtual Network 13.9KB/s 14.3KB/s

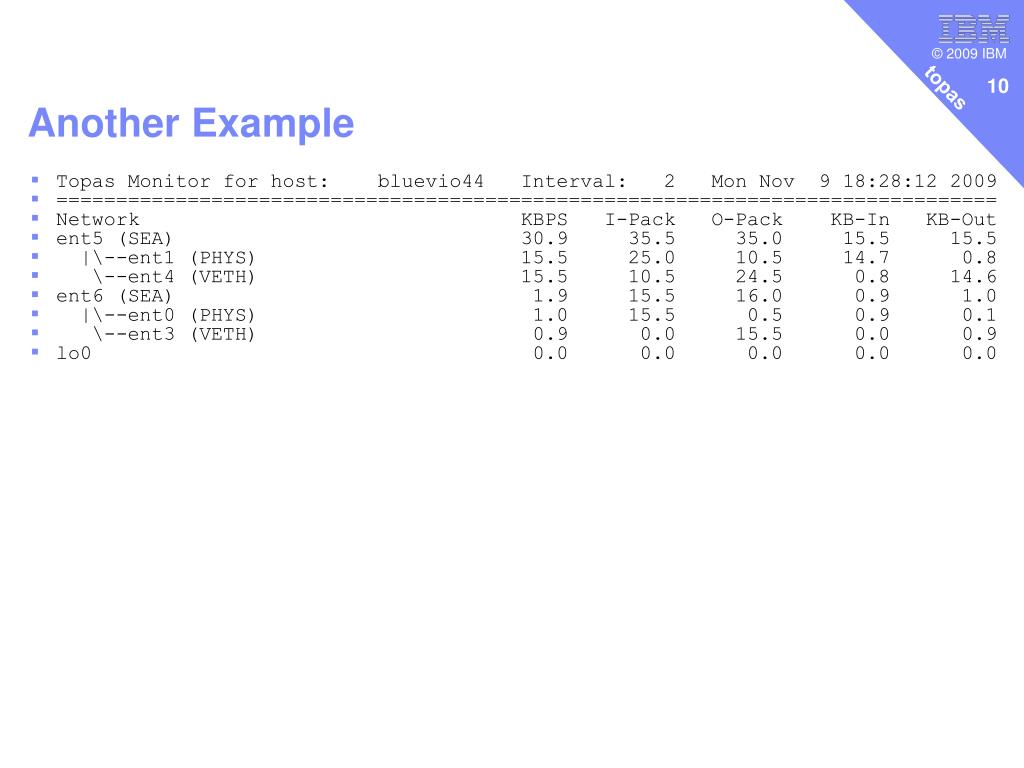

  10. Another Example • Topas Monitor for host: bluevio44 Interval: 2 Mon Nov 9 18:28:12 2009 • =============================================================================== • Network KBPS I-Pack O-Pack KB-In KB-Out • ent5 (SEA) 30.9 35.5 35.0 15.5 15.5 • |\--ent1 (PHYS) 15.5 25.0 10.5 14.7 0.8 • \--ent4 (VETH) 15.5 10.5 24.5 0.8 14.6 • ent6 (SEA) 1.9 15.5 16.0 0.9 1.0 • |\--ent0 (PHYS) 1.0 15.5 0.5 0.9 0.1 • \--ent3 (VETH) 0.9 0.0 15.5 0.0 0.9 • lo0 0.0 0.0 0.0 0.0 0.0

  11. Virtual Disks Client Server Logical Volume vhost vhost1 sissas0 hdisk0 to 5 topas VIOS 2.1+ monitoring Topas Adapter View : bronze_ivm Interval: 2 Fri Dec 5 08:29:17 2008 =============================================================================== Adapter KBPS TPS KB-R KB-W sissas0 9.9K 92.0 0.0 9.9K vhost0 0.0 0.0 0.0 0.0 vhost1 9.9K 184.0 92.0 92.0 =============================================================================== Vtargets/Disks Busy% KBPS TPS KB-R ART MRT KB-W AWT MWT AQW AQD hdisk0 0.0 0.0 0.0 0.0 0.0 3.6 0.0 0.0 62.6 0.0 0.0 hdisk1 25.0 9.9K 92.0 0.0 0.0 3.5 9.9K 4.2 28.9 0.0 0.0 hdisk2 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 hdisk3 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 hdisk4 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 Hit “D” and then “d”  You can see VIOS virtual/physical Disks And which hosts adapters is generating the I/O

  12. Local AIXWorkload Partition (WPAR) views

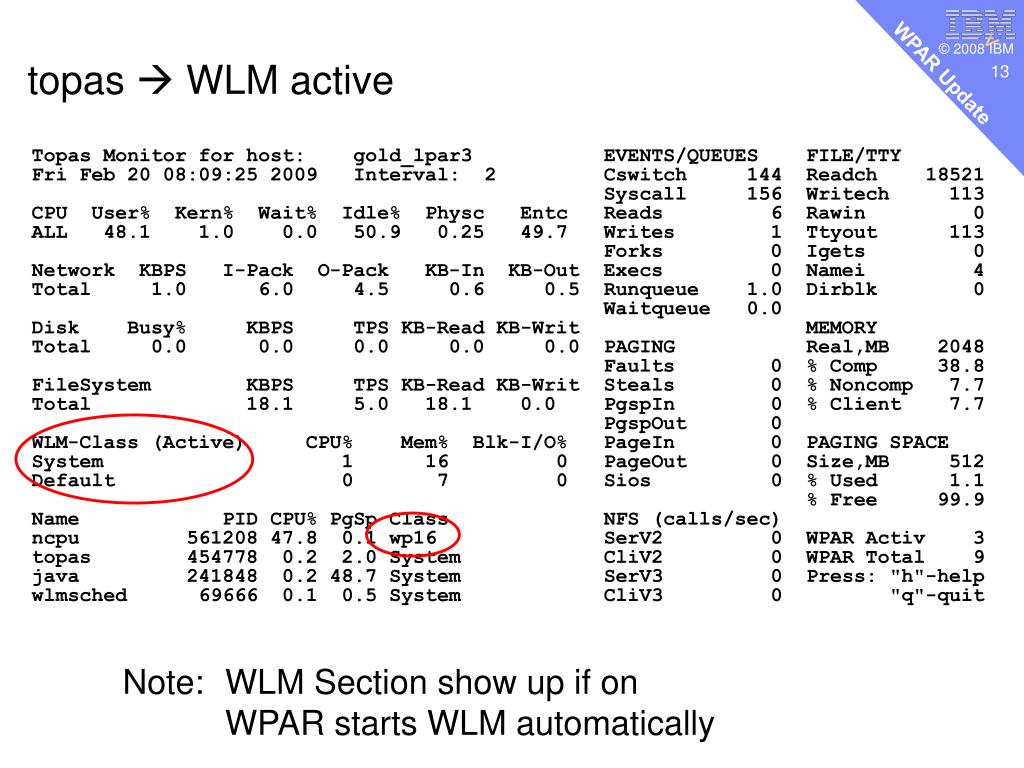

  13. topas  WLM active Topas Monitor for host: gold_lpar3 EVENTS/QUEUES FILE/TTY Fri Feb 20 08:09:25 2009 Interval: 2 Cswitch 144 Readch 18521 Syscall 156 Writech 113 CPU User% Kern% Wait% Idle% Physc Entc Reads 6 Rawin 0 ALL 48.1 1.0 0.0 50.9 0.25 49.7 Writes 1 Ttyout 113 Forks 0 Igets 0 Network KBPS I-Pack O-Pack KB-In KB-Out Execs 0 Namei 4 Total 1.0 6.0 4.5 0.6 0.5 Runqueue 1.0 Dirblk 0 Waitqueue 0.0 Disk Busy% KBPS TPS KB-Read KB-Writ MEMORY Total 0.0 0.0 0.0 0.0 0.0 PAGING Real,MB 2048 Faults 0 % Comp 38.8 FileSystem KBPS TPS KB-Read KB-Writ Steals 0 % Noncomp 7.7 Total 18.1 5.0 18.1 0.0 PgspIn 0 % Client 7.7 PgspOut 0 WLM-Class (Active) CPU% Mem% Blk-I/O% PageIn 0 PAGING SPACE System 1 16 0 PageOut 0 Size,MB 512 Default 0 7 0 Sios 0 % Used 1.1 % Free 99.9 Name PID CPU% PgSp Class NFS (calls/sec) ncpu 561208 47.8 0.1 wp16 SerV2 0 WPAR Activ 3 topas 454778 0.2 2.0 System CliV2 0 WPAR Total 9 java 241848 0.2 48.7 System SerV3 0 Press: "h"-help wlmsched 69666 0.1 0.5 System CliV3 0 "q"-quit Note: WLM Section show up if on WPAR starts WLM automatically

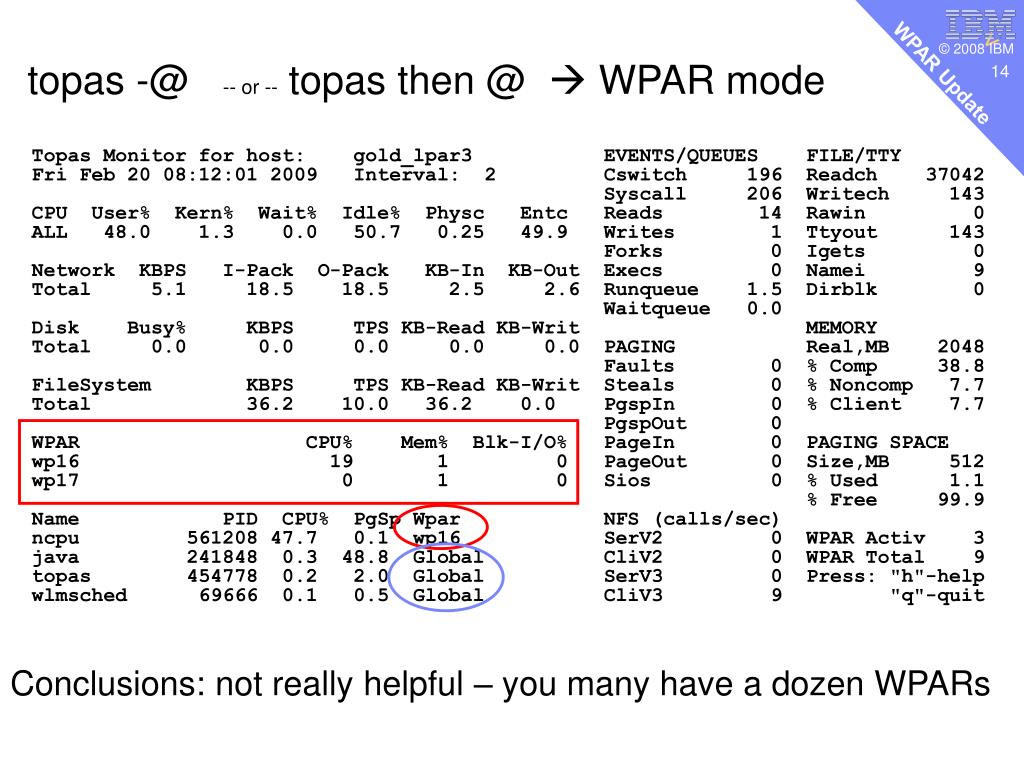

  14. topas -@ -- or -- topas then @  WPAR mode Topas Monitor for host: gold_lpar3 EVENTS/QUEUES FILE/TTY Fri Feb 20 08:12:01 2009 Interval: 2 Cswitch 196 Readch 37042 Syscall 206 Writech 143 CPU User% Kern% Wait% Idle% Physc Entc Reads 14 Rawin 0 ALL 48.0 1.3 0.0 50.7 0.25 49.9 Writes 1 Ttyout 143 Forks 0 Igets 0 Network KBPS I-Pack O-Pack KB-In KB-Out Execs 0 Namei 9 Total 5.1 18.5 18.5 2.5 2.6 Runqueue 1.5 Dirblk 0 Waitqueue 0.0 Disk Busy% KBPS TPS KB-Read KB-Writ MEMORY Total 0.0 0.0 0.0 0.0 0.0 PAGING Real,MB 2048 Faults 0 % Comp 38.8 FileSystem KBPS TPS KB-Read KB-Writ Steals 0 % Noncomp 7.7 Total 36.2 10.0 36.2 0.0 PgspIn 0 % Client 7.7 PgspOut 0 WPAR CPU% Mem% Blk-I/O% PageIn 0 PAGING SPACE wp16 19 1 0 PageOut 0 Size,MB 512 wp17 0 1 0 Sios 0 % Used 1.1 % Free 99.9 Name PID CPU% PgSp Wpar NFS (calls/sec) ncpu 561208 47.7 0.1 wp16 SerV2 0 WPAR Activ 3 java 241848 0.3 48.8 Global CliV2 0 WPAR Total 9 topas 454778 0.2 2.0 Global SerV3 0 Press: "h"-help wlmsched 69666 0.1 0.5 Global CliV3 9 "q"-quit Conclusions: not really helpful – you many have a dozen WPARs

  15. topas inside WPAR (W@ not possible) Topas Monitor for host: wp16 EVENTS/QUEUES FILE/TTY Fri Feb 20 08:34:25 2009 Interval: 2 Cswitch 18 Readch 0 Syscall 37 Writech 89 Kernel 0.6 |# | Reads 0 Rawin 0 User 99.4 |############################| Writes 0 Ttyout 337 Wait 0.0 | | Forks 0 Igets 0 Idle 0.0 | | Execs 0 Namei 0 Physc = 0.30 %Resc= 59.6 Runqueue 0.0 Dirblk 0 Waitqueue 0.0 Network KBPS I-Pack O-Pack KB-In KB-Out MEMORY Total 0.1 0.5 0.5 0.0 0.1 PAGING Real,MB 2048 Faults 1741 % Comp 37.7 FileSystem KBPS TPS KB-Read KB-Writ Steals 0 % Noncomp 7.7 Total 0.0 0.0 0.0 0.0 PgspIn 0 % Client 7.7 PgspOut 0 Name PID CPU% PgSp PageIn 0 PAGING SPACE ncpu 31981576 99.4 0.1 PageOut 0 Size,MB 512 topas 34603052 0.6 1.0 Sios 0 % Used 1.1 sendmail 44564492 0.0 1.1 % Free 99.9 cron 5242886 0.0 0.5 NFS (calls/sec) rpc.lock 66060306 0.0 0.3 SerV2 0 Press: "h"-help init 1 0.0 0.6 CliV2 0 "q"-quit srcmstr 27262980 0.0 0.8 SerV3 0 syslogd 43515918 0.0 0.3 CliV3 0 Undocumented! Conclusions: WPAR can’t see other processes 99% of the CPU used by the WPAR ????

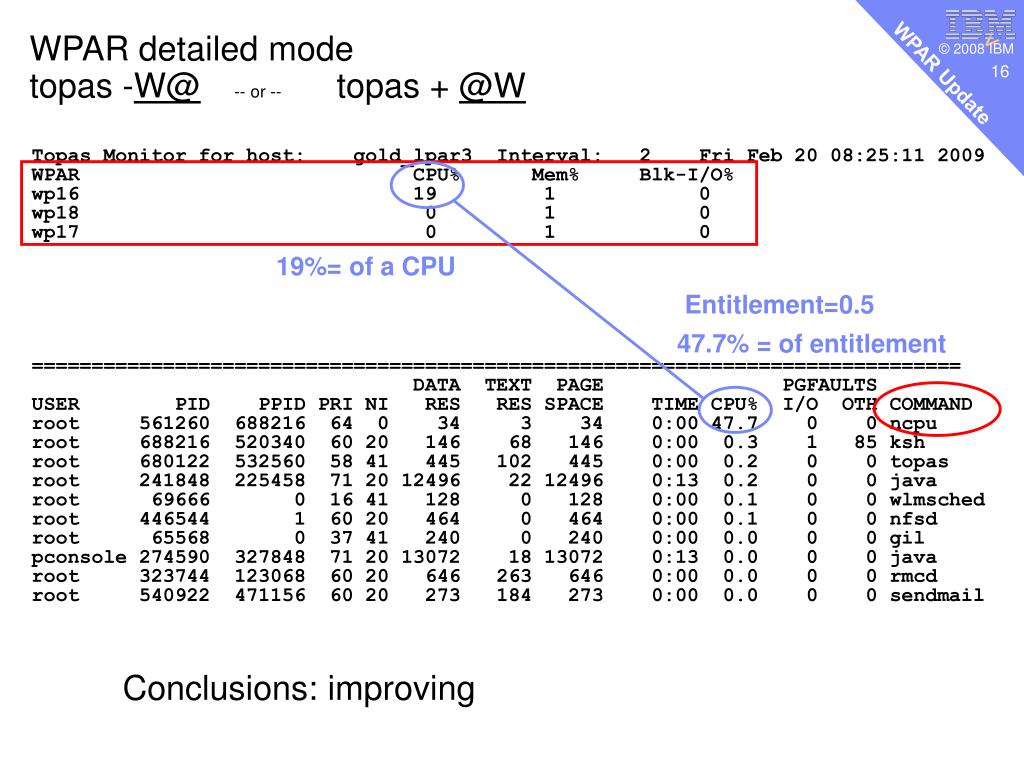

  16. WPAR detailed modetopas -W@-- or -- topas + @W Topas Monitor for host: gold_lpar3 Interval: 2 Fri Feb 20 08:25:11 2009 WPAR CPU% Mem% Blk-I/O% wp16 19 1 0 wp18 0 1 0 wp17 0 1 0 ============================================================================== DATA TEXT PAGE PGFAULTS USER PID PPID PRI NI RES RES SPACE TIME CPU% I/O OTH COMMAND root 561260 688216 64 0 34 3 34 0:00 47.7 0 0 ncpu root 688216 520340 60 20 146 68 146 0:00 0.3 1 85 ksh root 680122 532560 58 41 445 102 445 0:00 0.2 0 0 topas root 241848 225458 71 20 12496 22 12496 0:13 0.2 0 0 java root 69666 0 16 41 128 0 128 0:00 0.1 0 0 wlmsched root 446544 1 60 20 464 0 464 0:00 0.1 0 0 nfsd root 65568 0 37 41 240 0 240 0:00 0.0 0 0 gil pconsole 274590 327848 71 20 13072 18 13072 0:13 0.0 0 0 java root 323744 123068 60 20 646 263 646 0:00 0.0 0 0 rmcd root 540922 471156 60 20 273 184 273 0:00 0.0 0 0 sendmail 19%= of a CPU Entitlement=0.5 47.7% = of entitlement Conclusions: improving

  17. nmon classic for AIX 612 Global ┌─nmon12f─────#=PURR Stats───────Host=gold_lpar3─────Refresh=2 secs───09:16.43─┐ │ CPU-Utilisation-Small-View ───────────EntitledCPU= 0.50 UsedCPU= 0.347─────│ │Logical CPUs 0----------25-----------50----------75----------100│ │CPU User% Sys% Wait% Idle%| | | | |│ │ 0 29.7 4.3 0.5 65.6|UUUUUUUUUUUUUUss >│ │ 1 0.0 0.0 0.0 100.0| > |│ │ 2 0.0 0.0 0.0 100.0|> |│ │ 3 0.0 0.0 0.0 100.0|> |│ │EntitleCapacity/VirtualCPU +-----------|------------|-----------|------------+│ │ EC 60.9 7.9 0.0 0.6|UUUUUUUUUUUUUUUUUUUUUUUUUUUUUUsss----------------|│ │ VP 15.2 2.0 0.0 0.2|UUUUUUU------------------------------------------|│ │EC= 69.4% VP= 17.4% +--No Cap---|--Folded=1--|-----------100% VP=2 CPU+│ │ Workload Partition (WPAR) ───────────────────────────────────────────────────│ │Number of WPARs= 9 | Physical-CPU|Memory-in-MB | │ │WPAR-Name Type State | User System|InUse numperm| RunQ pSwitch Fork │ │wp17 Sys Active | 0.00 0.00| 17.8 3.9| 0.0 0 0.0 │ │wp18 Sys Active | 0.00 0.00| 17.3 3.9| 0.0 0 0.0 │ │wp15 Sys Defined | | | │ │wp16 Sys Active | 0.29 0.00| 21.4 6.2| 1.0 13 0.0 │ │wp21 Sys Defined | | | │ │wp22 Sys Defined | | | │ │wp23 Sys Defined | | | │ │wp20 Sys Defined | | | │ │wp07 Sys Defined | | | │ │ Work-Load-Manager (WLM) ─────────────────────────────────────────────────────│ │Classes=3 Mode=Active Rsets ProcTotal ClassTotal │ │ CPU MEM BIO CPU MEM IO CPU MEM BIO │ │Class Name |---Used-Percent--||--Desired-||----Shares-----|Proc's T I L │ │wp16 22.5 1.2 0.0 100 98 100 -1 -1 -1 19 0 0 0 │ │wp17 0.0 1.0 0.0 100 98 100 -1 -1 -1 16 0 0 0 │ │wp18 0.0 1.0 0.0 100 98 100 -1 -1 -1 16 0 0 0 │ │Total percentage 22.5 3.3 0.0 Tier, Inheritance & LocalShm=T I L │ │──────────────────────────────────────────────────────────────────────────────│ Conclusions: Understandable

  18. CECWhole machineCross PartitionAll LPAR view

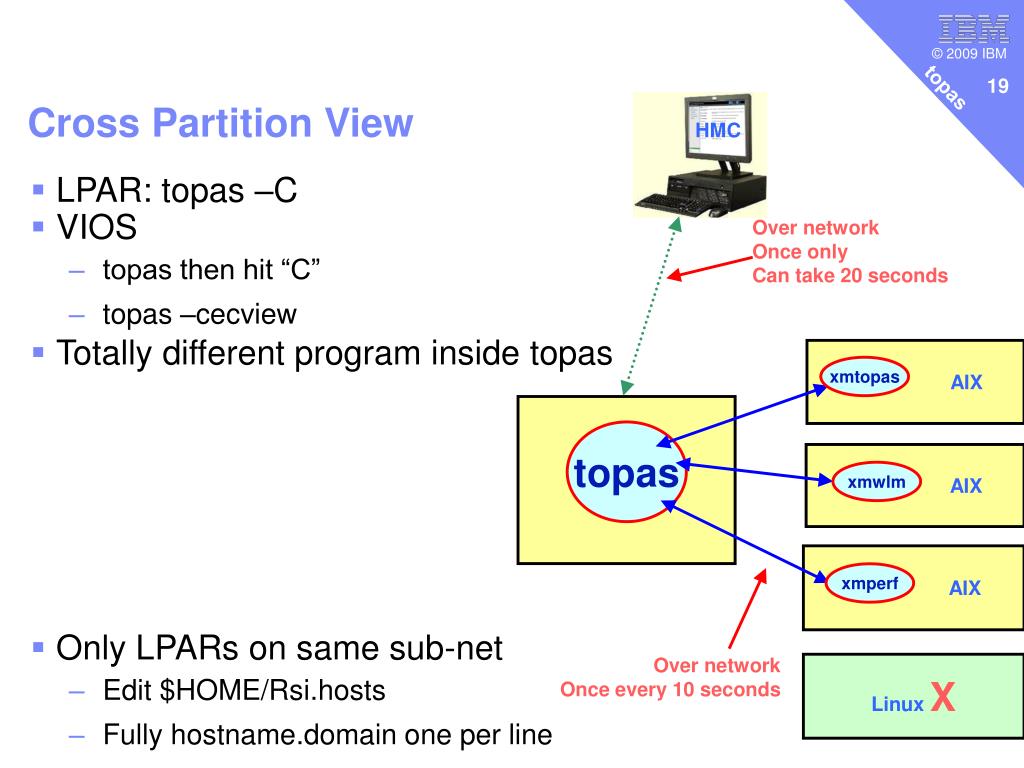

  19. Cross Partition View HMC • LPAR: topas –C • VIOS • topas then hit “C” • topas –cecview • Totally different program inside topas • Only LPARs on same sub-net • Edit $HOME/Rsi.hosts • Fully hostname.domain one per line Over network Once only Can take 20 seconds AIX xmtopas topas AIX xmwlm AIX xmperf Over network Once every 10 seconds Linux X

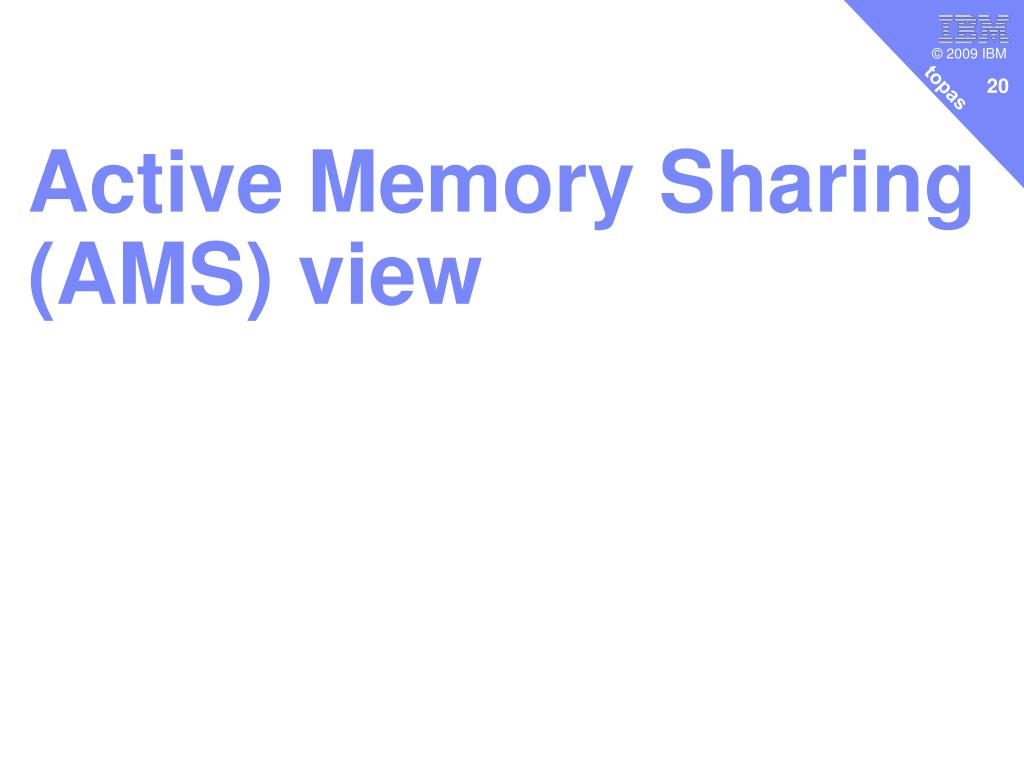

  20. Active Memory Sharing (AMS) view

  21. Monitoring 1 LPAR for AMS is insane

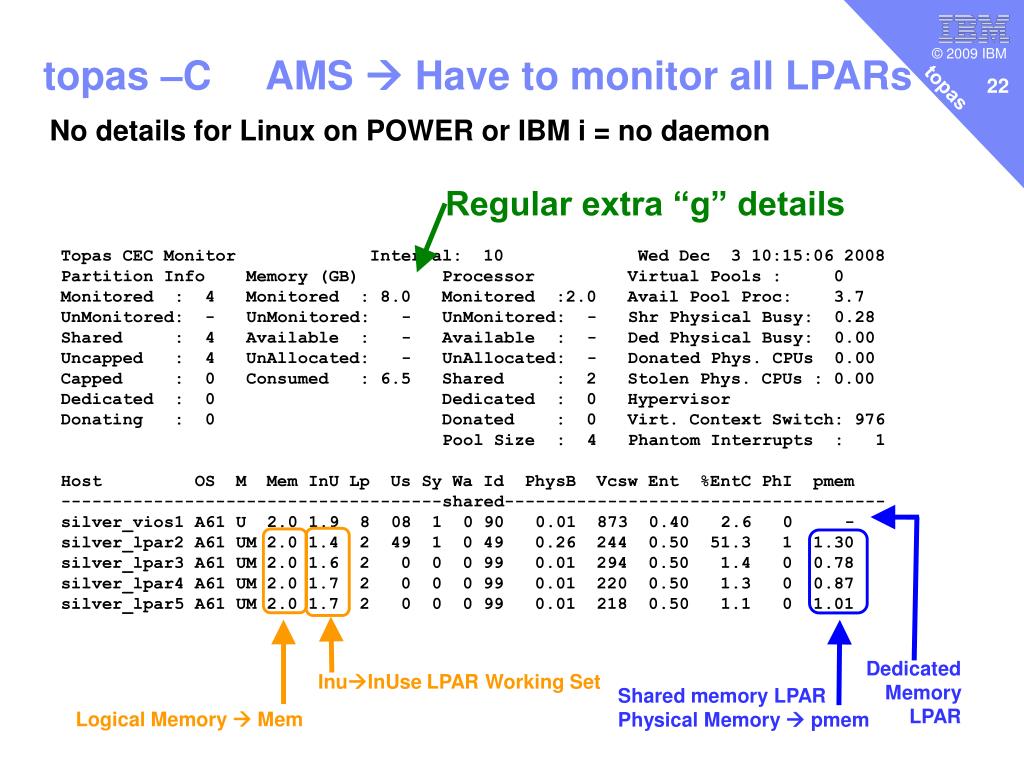

  22. topas –C AMS  Have to monitor all LPARs No details for Linux on POWER or IBM i = no daemon Topas CEC Monitor Interval: 10 Wed Dec 3 10:15:06 2008 Partition Info Memory (GB) Processor Virtual Pools : 0 Monitored : 4 Monitored : 8.0 Monitored :2.0 Avail Pool Proc: 3.7 UnMonitored: - UnMonitored: - UnMonitored: - Shr Physical Busy: 0.28 Shared : 4 Available : - Available : - Ded Physical Busy: 0.00 Uncapped : 4 UnAllocated: - UnAllocated: - Donated Phys. CPUs 0.00 Capped : 0 Consumed : 6.5 Shared : 2 Stolen Phys. CPUs : 0.00 Dedicated : 0 Dedicated : 0 Hypervisor Donating : 0 Donated : 0 Virt. Context Switch: 976 Pool Size : 4 Phantom Interrupts : 1 Host OS M Mem InU Lp Us Sy Wa Id PhysB Vcsw Ent %EntC PhI pmem -------------------------------------shared------------------------------------- silver_vios1 A61 U 2.0 1.9 8 08 1 0 90 0.01 873 0.40 2.6 0 - silver_lpar2 A61 UM 2.0 1.4 2 49 1 0 49 0.26 244 0.50 51.3 1 1.30 silver_lpar3 A61 UM 2.0 1.6 2 0 0 0 99 0.01 294 0.50 1.4 0 0.78 silver_lpar4 A61 UM 2.0 1.7 2 0 0 0 99 0.01 220 0.50 1.3 0 0.87 silver_lpar5 A61 UM 2.0 1.7 2 0 0 0 99 0.01 218 0.50 1.1 0 1.01 Regular extra “g” details Dedicated Memory LPAR InuInUse LPAR Working Set Shared memory LPAR Physical Memory  pmem Logical Memory  Mem

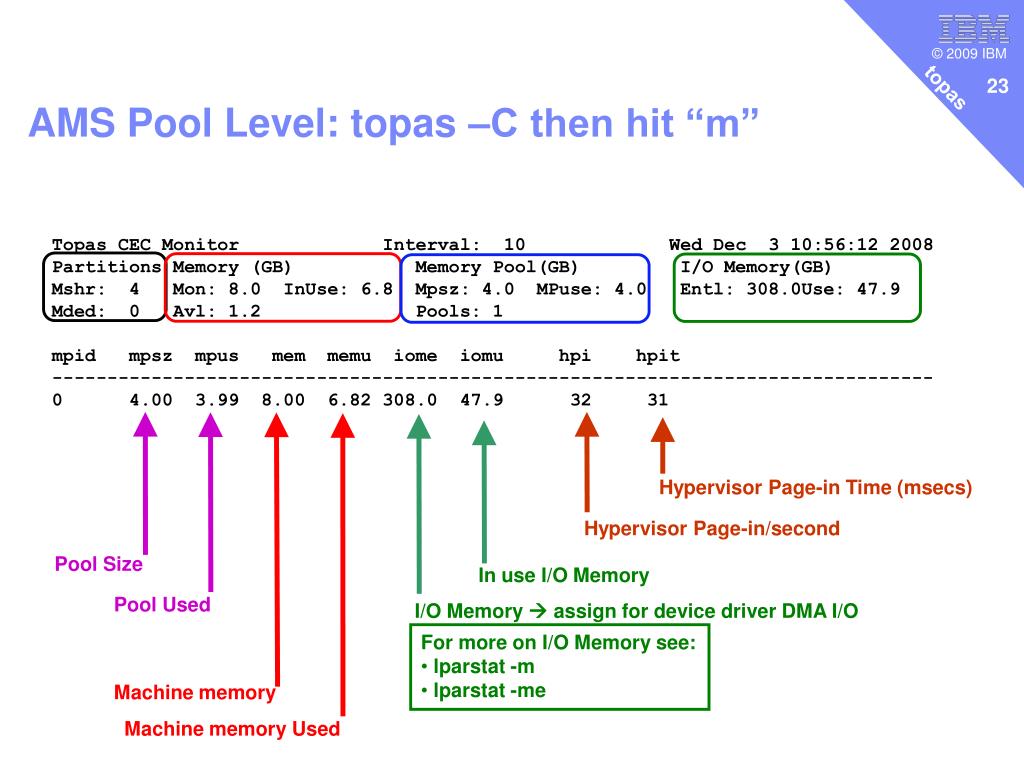

  23. AMS Pool Level: topas –C then hit “m” Topas CEC Monitor Interval: 10 Wed Dec 3 10:56:12 2008 Partitions Memory (GB) Memory Pool(GB) I/O Memory(GB) Mshr: 4 Mon: 8.0 InUse: 6.8 Mpsz: 4.0 MPuse: 4.0 Entl: 308.0Use: 47.9 Mded: 0 Avl: 1.2 Pools: 1 mpid mpsz mpus mem memu iome iomu hpi hpit -------------------------------------------------------------------------------- 0 4.00 3.99 8.00 6.82 308.0 47.9 32 31 Hypervisor Page-in Time (msecs) Hypervisor Page-in/second Pool Size In use I/O Memory Pool Used I/O Memory  assign for device driver DMA I/O For more on I/O Memory see: • lparstat -m • lparstat -me Machine memory Machine memory Used

  24. Mode Changing Nigel’s Monitor mode nmontopas_nmon ~   topas ~   default  C  topas DETAIL CEC a  topas -C

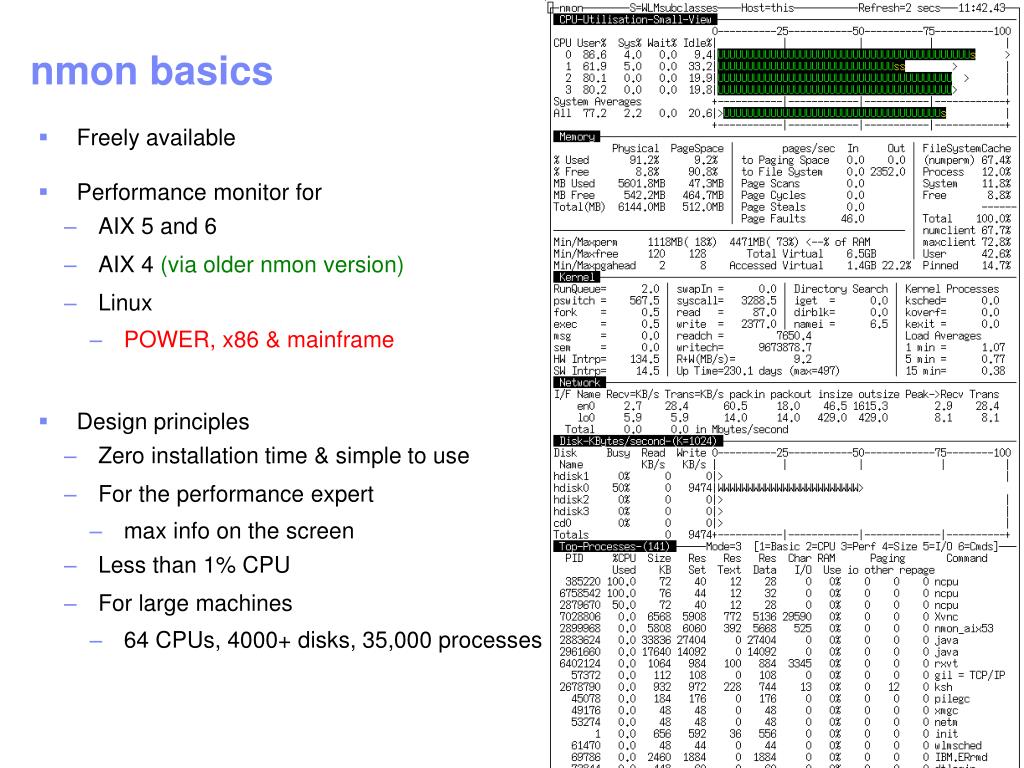

  25. nmon basics • Freely available • Performance monitor for • AIX 5 and 6 • AIX 4 (via older nmon version) • Linux • POWER, x86 & mainframe • Design principles • Zero installation time & simple to use • For the performance expert • max info on the screen • Less than 1% CPU • For large machines • 64 CPUs, 4000+ disks, 35,000 processes

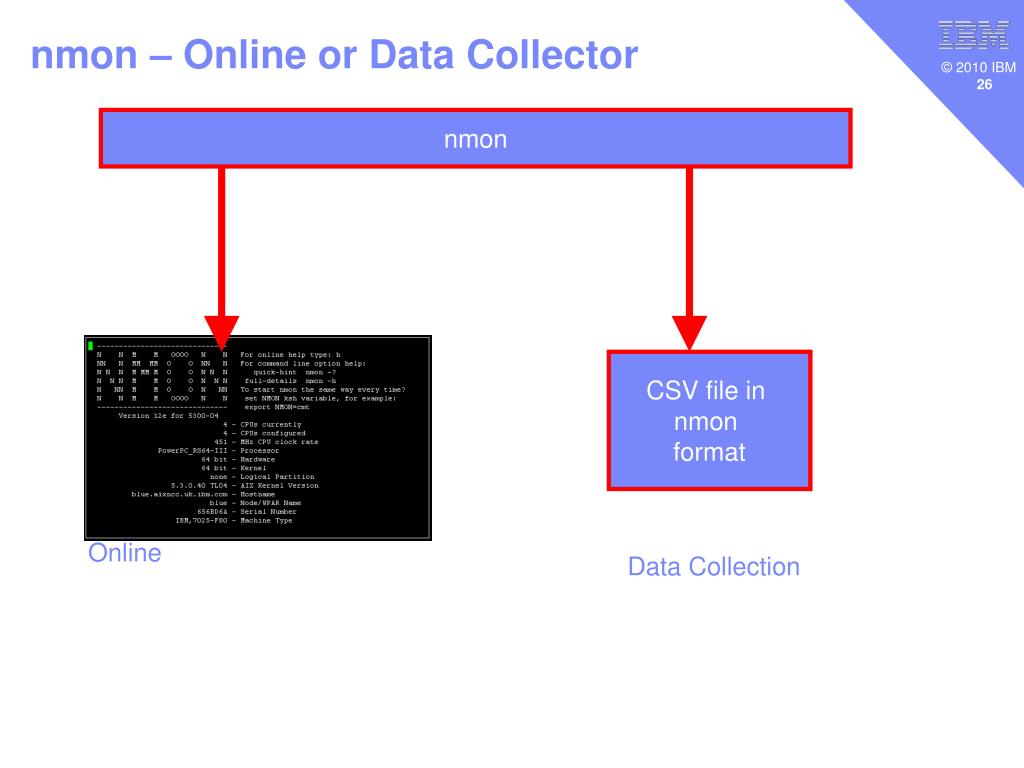

  26. nmon – Online or Data Collector nmon CSV file in nmon format Online Data Collection

  27. Stephen’s nmon Consolidator nmon file -f or –F option Screen nmon nmon flow Stephen’s nmon Analyser Others Federico’s pGraph Bruce’s nmon2web Perl nmon2rrd C filter Java Dynamic Graphs Excel graphs Scripts rrdtool scripts + CPU & RAM aggregation Scripts - Create rrd - Load rrd - Graph rrd index.html Website +.jpg graphs rrdtool open source rrdtool open source

  28. nmon is half the story The other half is due to the nmon Analyser & nmon Consolidator Excel spreadsheets from Stephen Atkins, UK another personal time project

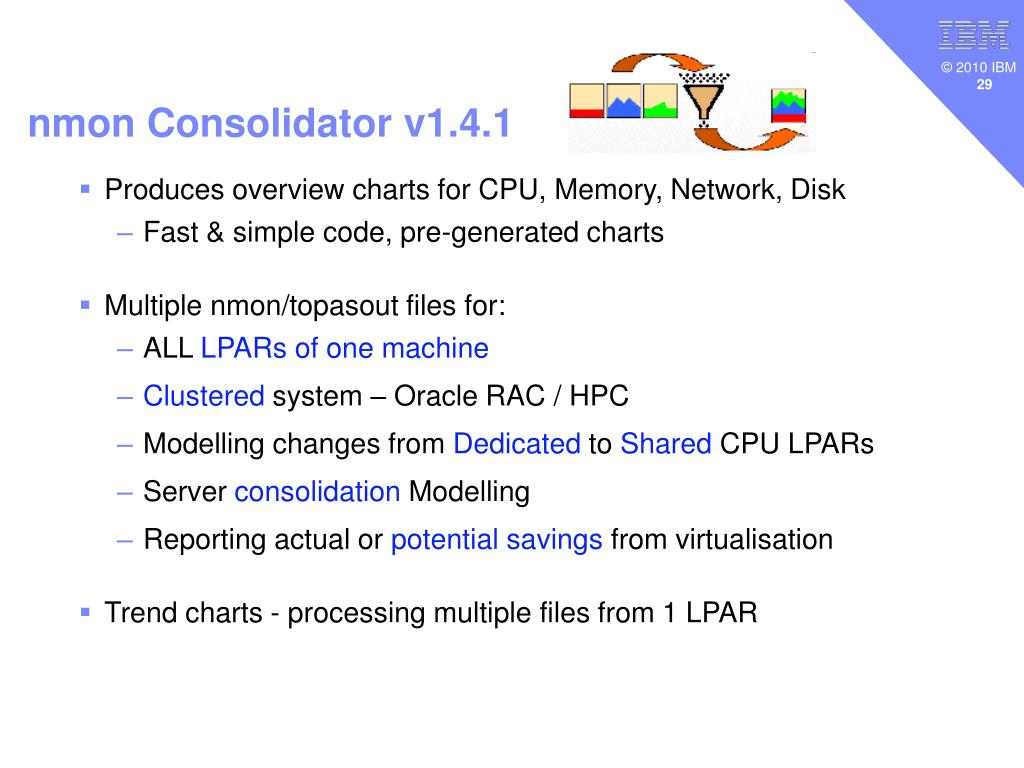

  29. nmon Consolidator v1.4.1 • Produces overview charts for CPU, Memory, Network, Disk • Fast & simple code, pre-generated charts • Multiple nmon/topasout files for: • ALL LPARs of one machine • Clustered system – Oracle RAC / HPC • Modelling changes from Dedicated to Shared CPU LPARs • Server consolidation Modelling • Reporting actual or potential savings from virtualisation • Trend charts - processing multiple files from 1 LPAR

  30. AIX Labs in 2008: “nmon will be assimilated!”

  31. Code stuffing Lines of code from 6500  9000

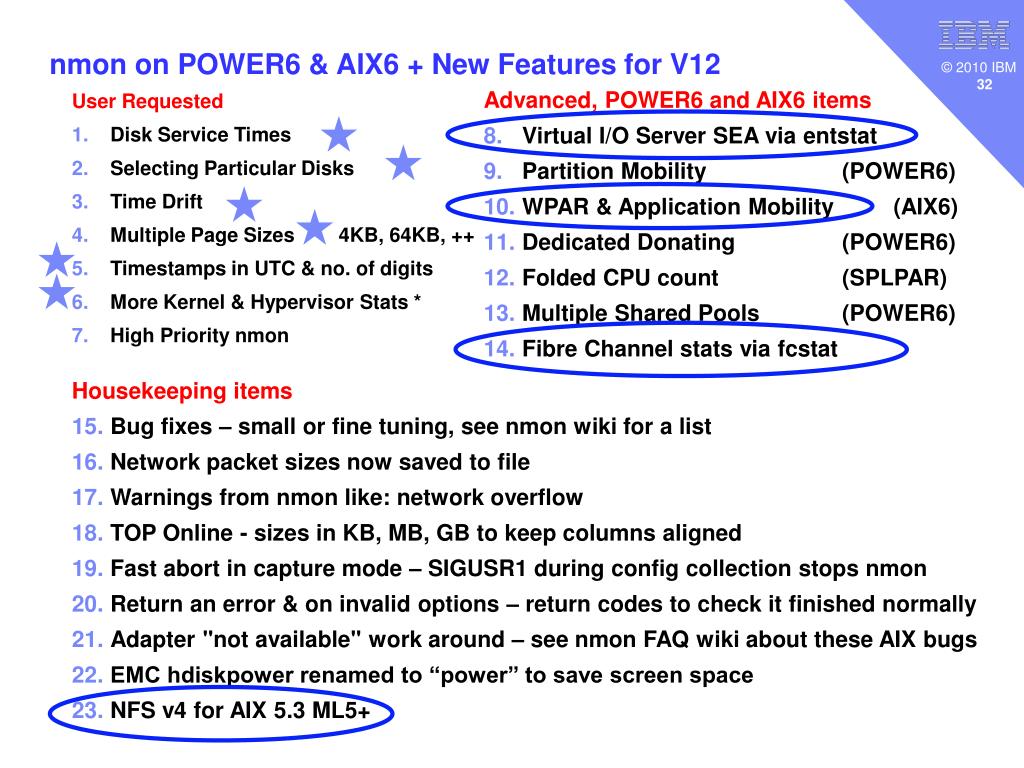

  32. Advanced, POWER6 and AIX6 items • Virtual I/O Server SEA via entstat • Partition Mobility (POWER6) • WPAR & Application Mobility (AIX6) • Dedicated Donating (POWER6) • Folded CPU count (SPLPAR) • Multiple Shared Pools (POWER6) • Fibre Channel stats via fcstat nmon on POWER6 & AIX6 + New Features for V12 User Requested • Disk Service Times • Selecting Particular Disks • Time Drift • Multiple Page Sizes 4KB, 64KB, ++ • Timestamps in UTC & no. of digits • More Kernel & Hypervisor Stats * • High Priority nmon Housekeeping items • Bug fixes – small or fine tuning, see nmon wiki for a list • Network packet sizes now saved to file • Warnings from nmon like: network overflow • TOP Online - sizes in KB, MB, GB to keep columns aligned • Fast abort in capture mode – SIGUSR1 during config collection stops nmon • Return an error & on invalid options – return codes to check it finished normally • Adapter "not available" work around – see nmon FAQ wiki about these AIX bugs • EMC hdiskpower renamed to “power” to save screen space • NFS v4 for AIX 5.3 ML5+

  33. Direct Fibre-Channel and VIOS SEA Shared Ethernet with ‘O’ Fibre Channel with ‘^’ also regular LPAR & FC tape drives • Actually using more expensive entstat and fcstat commands ┌─nmon12──────h=Help─────────────Host=silver_vios1───Refresh=2 secs───10:03.36─┐ │ │ │ │ │ Shared-Ethernet-Adapter ─────────────────────────────────────────────────────│ │ Adapter Receive Transmit -Requests- --Size KB-- │ │Number Name KB/s KB/s In Out In Out │ │ 1 ent3 141.4 1.4 211.6 22.5 67.0 1024.0 │ │ Totals 0.0 0.0 MB/s 21.6 22.5 │ │ Fibre-Channel-Adapter ───────────────────────────────────────────────────────│ │ Adapter Receive Transmit -Requests- --Size KB-- │ │Number Name KB/s KB/s In Out In Out │ │ 1 fcs0 9945.8 0.0 420.2 0.0 17.9 │ │ Totals 0.0 0.0 MB/s 0.0 0.0 │ │──────────────────────────────────────────────────────────────────────────────│ │ │ │ │

  34. nmon  topas_nmon

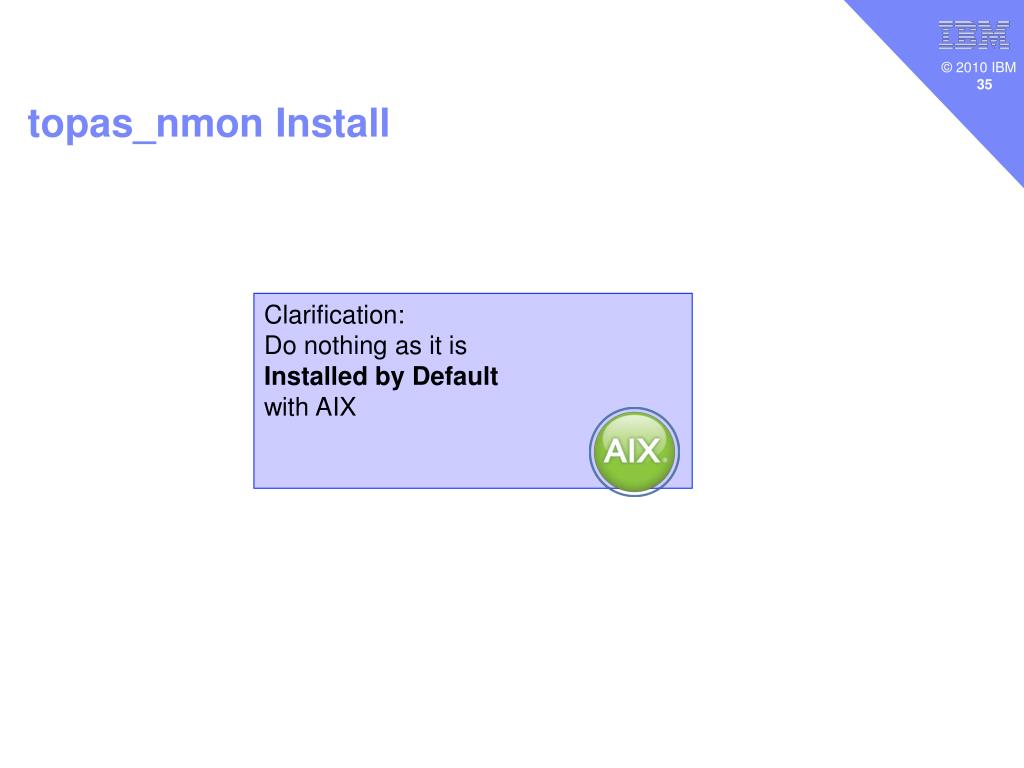

  35. topas_nmon Install Clarification: Do nothing as it is Installed by Default with AIX

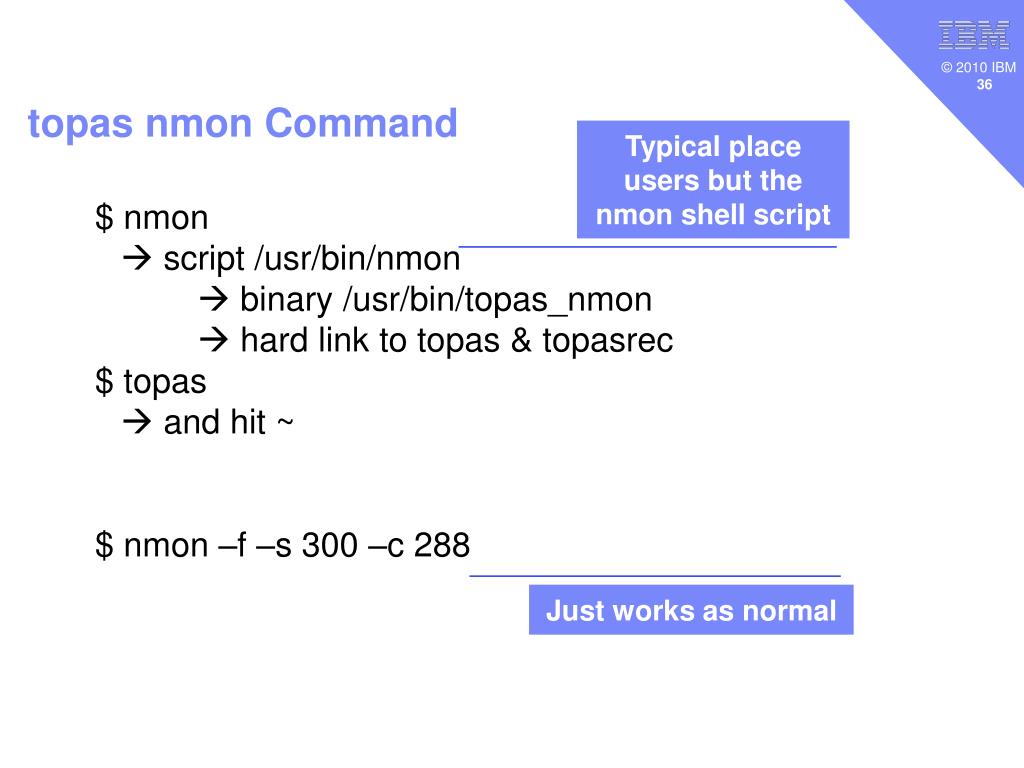

  36. topas nmon Command Typical place users but the nmon shell script $ nmon  script /usr/bin/nmon  binary /usr/bin/topas_nmon  hard link to topas & topasrec $ topas  and hit ~ $ nmon –f –s 300 –c 288 Just works as normal

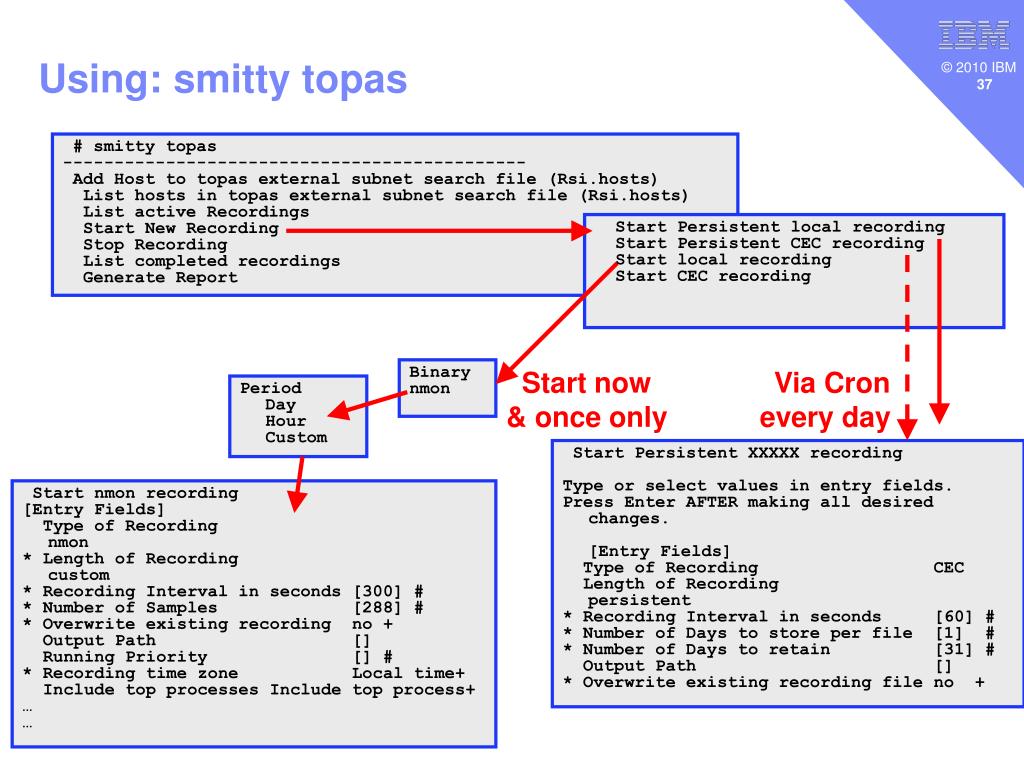

  37. Using: smitty topas # smitty topas --------------------------------------------- Add Host to topas external subnet search file (Rsi.hosts) List hosts in topas external subnet search file (Rsi.hosts) List active Recordings Start New Recording Stop Recording List completed recordings Generate Report Start Persistent XXXXX recording Type or select values in entry fields. Press Enter AFTER making all desired changes. [Entry Fields] Type of Recording CEC Length of Recording persistent * Recording Interval in seconds [60] # * Number of Days to store per file [1] # * Number of Days to retain [31] # Output Path [] * Overwrite existing recording file no + Start Persistent local recording Start Persistent CEC recording Start local recording Start CEC recording Binary nmon Start now & once only Via Cron every day Period Day Hour Custom Start nmon recording [Entry Fields] Type of Recording nmon * Length of Recording custom * Recording Interval in seconds [300] # * Number of Samples [288] # * Overwrite existing recording no + Output Path [] Running Priority [] # * Recording time zone Local time+ Include top processes Include top process+ … …

  38. topas nmon Classic nmon

  39. topas nmon Classic nmon nmon Support Use new Official nmon • AIX 5.3 TL09+ & AIX 6.1 TL02+ • You have full AIX Support with SWMA • Raise a PMR Older AIX releases use nmon Classic • Please ONLY version 12e+ • Google: AIX nmon wiki • Google: AIX “Performance Tool Forum”

  40. Classic Classic topas nmon topas nmon topas nmon topas nmon topas nmon topas nmon topas nmon topas nmon topas nmon topas nmon topas nmon topas nmon topas nmon nmon nmon nmon Development 12e 12f nmon classic – development stopped ALL new development in topas_nmon

  41. nmon is nowGREENfully recycled source codeNo animals harmed in the testing of nmon

  42. And Finally the End Topas with nmon mode worth learning Google: nmon wiki Running nmon Classic use the latest version Uncapped Shared CPU LPARs Monitor Physical CPU use Note Utilisation as 100% = Entitlement

  43. Blatant Advert for Hands-On Movies AIX6 & Power6 - the movie! 10 on WPAR 8 on AIX 7 on POWER6 - SPLPAR/SMT10 on IVM 5 on Cool stuff  nmon15 on PowerVM 3 on AMS12 on System Director Each movie 5 to 40 minutes Downloadable files in .wmv formatWatch actual use of these new featuresIn total ~15 hours  AIX movie

  44. Ganglia = “nmon” Cross Partitions Last Hour Whole machine: Physical CPU used Last Day Last Week Last Month Last Quarter Open Source collections: CPU, Disks, Memory, Network, Run Queue + POWER stats: Entitlement, VP, weights Physical CPU use Enhanced Code: http://www.perzl.org/ganglia/ Docs: http://www.ibm.com/developerworks/wikis/display/WikiPtype/ganglia

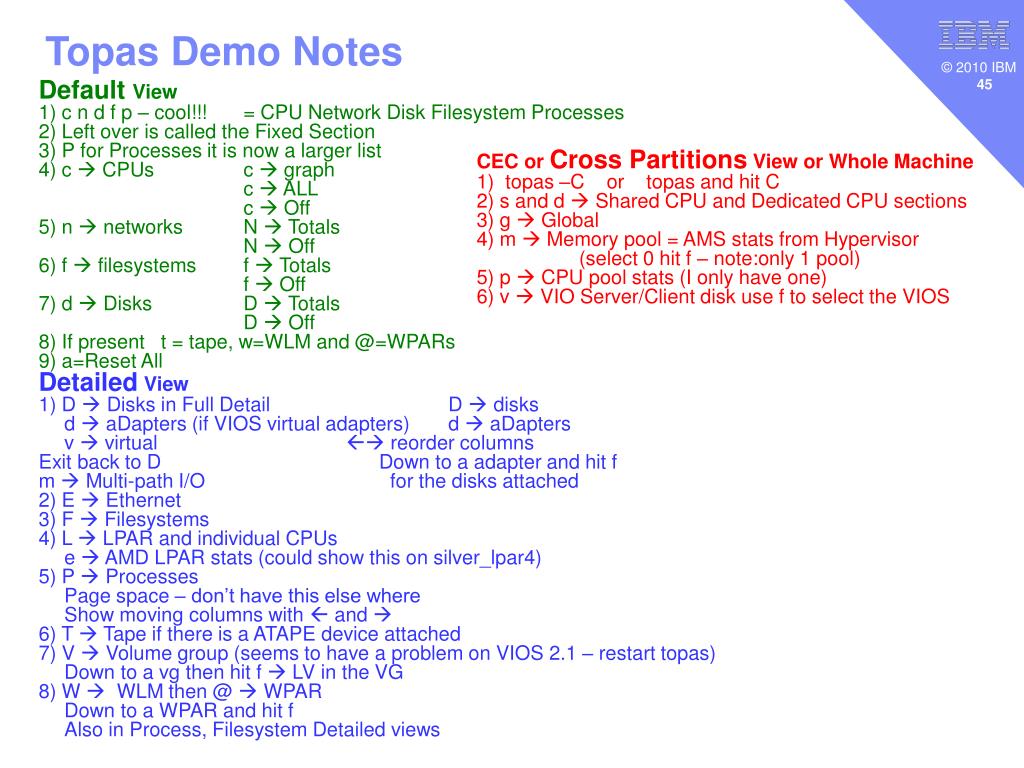

  45. Topas Demo Notes CEC or Cross Partitions View or Whole Machine 1) topas –C or topas and hit C 2) s and d  Shared CPU and Dedicated CPU sections 3) g  Global 4) m  Memory pool = AMS stats from Hypervisor (select 0 hit f – note:only 1 pool) 5) p  CPU pool stats (I only have one) 6) v  VIO Server/Client disk use f to select the VIOS Default View 1) c n d f p – cool!!! = CPU Network Disk Filesystem Processes 2) Left over is called the Fixed Section 3) P for Processes it is now a larger list 4) c  CPUs c  graph c  ALL c  Off 5) n  networks N  Totals N  Off 6) f  filesystems f  Totals f  Off 7) d  Disks D  Totals D  Off 8) If present t = tape, w=WLM and @=WPARs 9) a=Reset All Detailed View 1) D  Disks in Full Detail D  disks d  aDapters (if VIOS virtual adapters) d  aDapters v  virtual  reorder columns Exit back to D Down to a adapter and hit f m  Multi-path I/O for the disks attached 2) E  Ethernet 3) F  Filesystems 4) L  LPAR and individual CPUs e  AMD LPAR stats (could show this on silver_lpar4) 5) P  Processes Page space – don’t have this else where Show moving columns with  and  6) T  Tape if there is a ATAPE device attached 7) V  Volume group (seems to have a problem on VIOS 2.1 – restart topas) Down to a vg then hit f  LV in the VG 8) W  WLM then @  WPAR Down to a WPAR and hit f Also in Process, Filesystem Detailed views
