The experimental study of neodymium speciation in water vapour

THE EXPERIMENTAL STUDY OF NEODYMIUM SPECIATION IN WATER VAPOUR

Nail R. Zagrtdenov, Andrew Y. Bychkov, Irina Y. Nikolaeva

Lomonosov Moscow State University


Influence of ligands

Influence of ligands

  • Influence of fluid components such as water, chlorine or fluorine can increase the amount of matter which can be transported by gas. This effect has been noticed for such low-volatile elements as gallium, silver, gold, copper etc. (Pokrovski et al., 2013)

  • Migdisov and Williams-Jones, 2013


Natural evidences of the transportation of the ree

Natural evidences of the transportation of the REE

Gilbert C.D., Williams-Jones A.E.(2008) sampled and analyzed REE-enriched fumarolic encrustations derived from the active degassing fumaroles of OldoinyoLengai volcano, Tanzania, which, according to the authors, precipitated from volcanic gases.


Natural evidences of the transportation of the ree1

Natural evidences of the transportation of the REE

Möller P.et al.(2003)measured concentrations of REE and Y in condensates of Larderello-Travale geothermal field, the abundance of REE ranges from 0.1 to about 10 pmol/kg.


Scheme of experiments in autoclaves

Scheme of experiments in autoclaves

1 – before the experiment, 2 – during the experiment


Identification of the nd speciation in the gaseous phase by static method in autoclaves

Identification of the Nd speciation in the gaseous phase by static method in autoclaves

Nd(OH)3(solid) = Nd(OH)3(gas)

Blue marks– at 200 °C, red marks – at 250 °C


The experimental study of neodymium speciation in water vapour

The results of experiments in autoclaves have demonstrated that the solubility of Nd(OH)3 in water vapour doesn’t depend on water fugacity and the proposed reaction is as follows:

Nd(OH)3 (solid) = Nd(OH)3 (gas)

pK =9.15±0.42 at 200 °C,

9.30±0.31 at 250 °C.

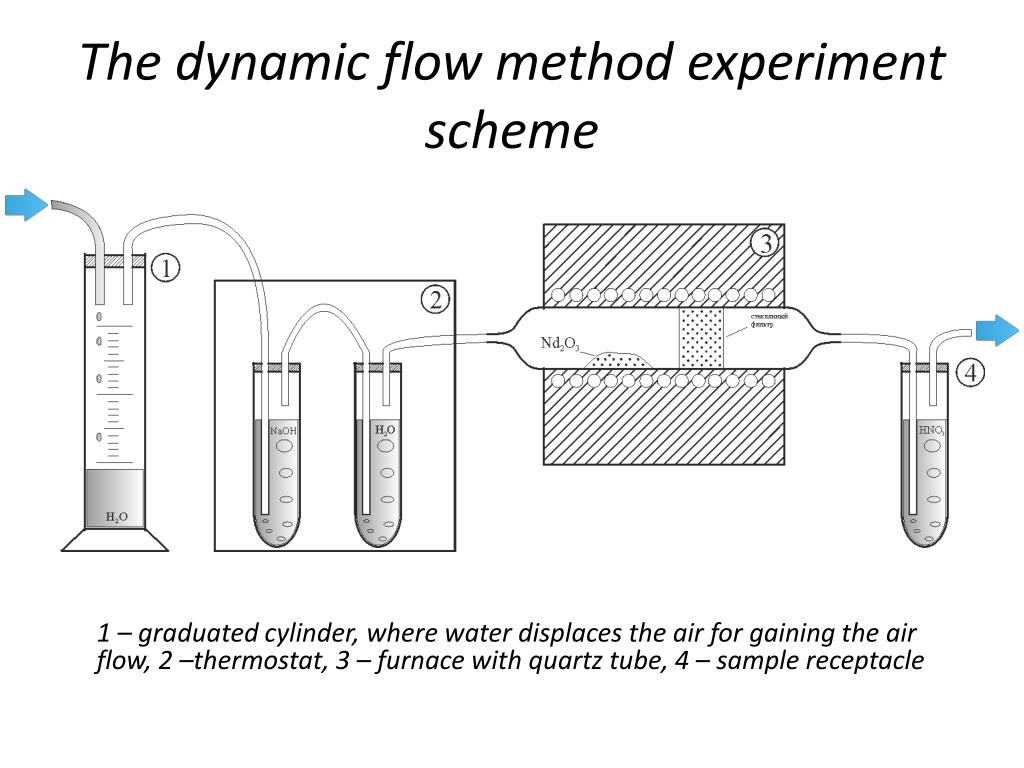

The dynamic flow method experiment scheme

The dynamic flow method experiment scheme

1 – graduated cylinder, where water displaces the air for gaining the air flow, 2 –thermostat, 3 – furnace with quartz tube, 4 – sample receptacle


Identification of the nd speciation in the gaseous phase by flow method

Identification of the Nd speciation in the gaseous phase by flow method


The experimental study of neodymium speciation in water vapour

The results of the flow method experiments have showed that the solubility increases with water fugacity rising with increasing temperature. The reaction is the following (according to the slope of 1.5):

0,5 Nd2O3 (solid) + 1,5 H2O (gas) = Nd(OH)3 (gas)

pK = 8.31±0.42 at 300 °C,

7.74±0.31 at 350 °C,

7.03±0.61 at 450 °C.


Comparison of flow system black marks and autoclaves red marks data

Comparison of flow system (black marks) and autoclaves (red marks) data


The experimental study of neodymium speciation in water vapour

Surface springs sampling


Nd in vapor and liquid in thermal springs

Nd in vapor and liquid in thermal springs

Nd(OH)3(aq)=Nd(OH)3(gas)

350oC

300oC


Conclusions

Conclusions

  • The results of experiments in autoclaves have demonstrated that the solubility of Nd(OH)3 in water vapour doesn’t depend on water fugacity and the proposed reaction is as follows:Nd(OH)3 (solid) = Nd(OH)3 (gas).

  • The results of the flow method experiments have showed that the solubility of Nd2O3 increases with water fugacity. The proposed reaction is the following:

    0,5 Nd2O3 (solid) + 1,5 H2O (gas) = Nd(OH)3 (gas).


Conclusions1

Conclusions

  • Our experimental data can explain the natural observation. The fact that concentrations in thermal vapor are higher then thermodynamic calculation can be explained by presence of other species or absence of equilibrium between liquid and vapor.


Thank you for your attention

Thank you for your attention!
