Bayesian statistics and belief networks

Bayesian Statistics and Belief Networks


Overview

Overview

  • Book: Ch 8.3

  • Refresher on Bayesian statistics

  • Bayesian classifiers

  • Belief Networks / Bayesian Networks


Why should we care

Why Should We Care?

  • Theoretical framework for machine learning, classification, knowledge representation, analysis

  • Bayesian methods are capable of handling noisy, incomplete data sets

  • Bayesian methods are commonly in use today


Bayesian approach to probability and statistics

Bayesian Approach To Probability and Statistics

  • Classical Probability : Physical property of the world (e.g., 50% flip of a fair coin). True probability.

  • Bayesian Probability : A person’s degree of belief in event X. Personal probability.

  • Unlike classical probability, Bayesian probabilities benefit from but do not require repeated trials - only focus on next event; e.g. probability Seawolves win next game?

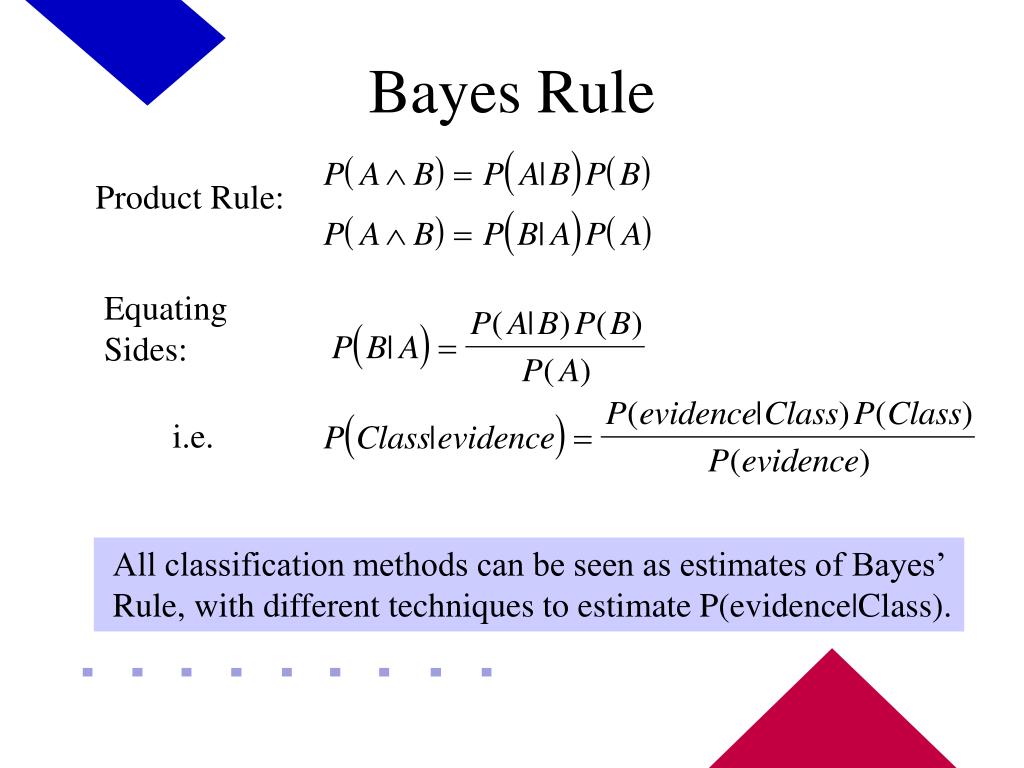

Bayes rule

Bayes Rule

Product Rule:

Equating Sides:

i.e.

All classification methods can be seen as estimates of Bayes’ Rule, with different techniques to estimate P(evidence|Class).


Simple bayes rule example

Simple Bayes Rule Example

Probability your computer has a virus, V, = 1/1000.

If virused, the probability of a crash that day, C, = 4/5.

Probability your computer crashes in one day, C, = 1/10.

P(C|V)=0.8

P(V)=1/1000

P(C)=1/10

Even though a crash is a strong indicator of a virus, we expect only

8/1000 crashes to be caused by viruses.

Why not compute P(V|C) from direct evidence? Causal vs.

Diagnostic knowledge; (consider if P(C) suddenly drops).


Bayesian classifiers

Bayesian Classifiers

If we’re selecting the single most likely class, we only

need to find the class that maximizes P(e|Class)P(Class).

Hard part is estimating P(e|Class).

Evidence e typically consists of a set of observations:

Usual simplifying assumption is conditional independence:


Bayesian classifier example

Bayesian Classifier Example

ProbabilityC=VirusC=Bad Disk

P(C)0.40.6

P(crashes|C)0.10.2

P(diskfull|C)0.60.1

Given a case where the disk is full and computer crashes,

the classifier chooses Virus as most likely since

(0.4)(0.1)(0.6) > (0.6)(0.2)(0.1).


Beyond conditional independence

Beyond Conditional Independence

  • Include second-order dependencies; i.e. pairwise combination of variables via joint probabilities:

Linear Classifier:

C1

C2

Correction factor -

Difficult to compute -

joint probabilities to consider


Belief networks

Belief Networks

  • DAG that represents the dependencies between variables and specifies the joint probability distribution

  • Random variables make up the nodes

  • Directed links represent causal direct influences

  • Each node has a conditional probability table quantifying the effects from the parents

  • No directed cycles


Burglary alarm example

Burglary Alarm Example

P(B)

P(E)

Burglary

Earthquake

0.001

0.002

B EP(A)

T T0.95

Alarm

T F0.94

F T0.29

F F0.001

AP(J)

AP(M)

John Calls

Mary Calls

T0.70

T0.90

F0.01

F0.05

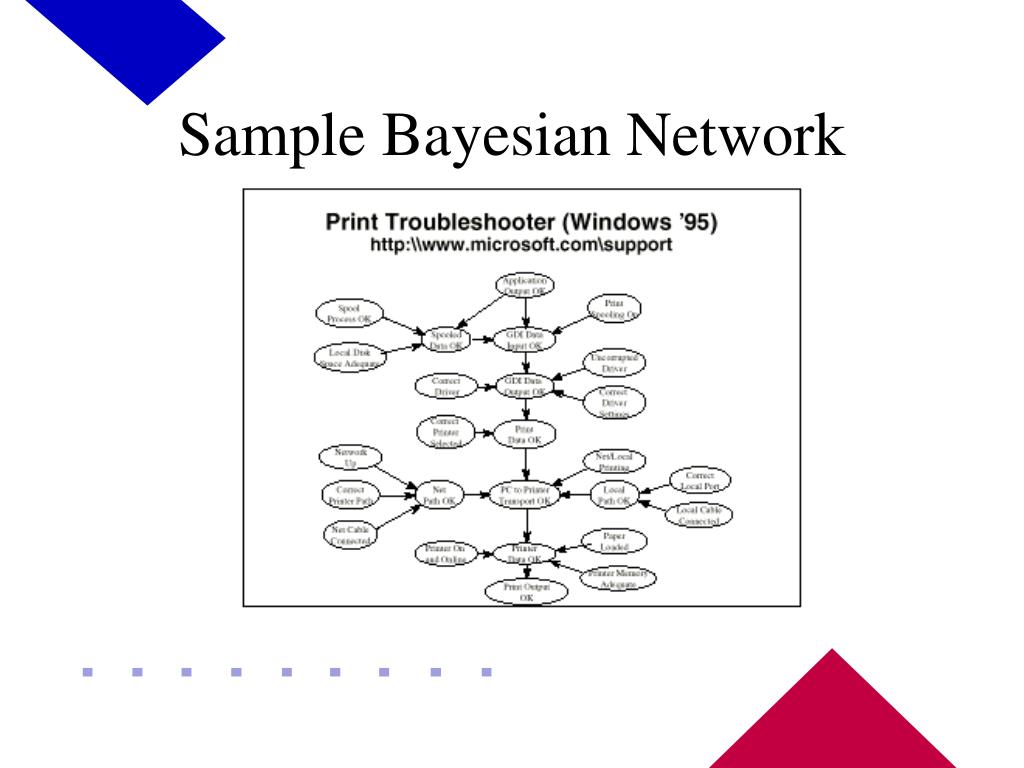

Sample bayesian network

Sample Bayesian Network


Using the belief network

Using The Belief Network

P(B)

P(E)

Burglary

Earthquake

0.002

0.001

B EP(A)

T T0.95

Alarm

T F0.94

F T0.29

F F0.001

AP(M)

JohnCalls

Mary Calls

T0.70

AP(J)

F0.01

T0.90

F0.05

Probability of alarm, no burglary or earthquake, both John and Mary call:


Belief computations

Belief Computations

  • Two types; both are NP-Hard

  • Belief Revision

    • Model explanatory/diagnostic tasks

    • Given evidence, what is the most likely hypothesis to explain the evidence?

    • Also called abductive reasoning

  • Belief Updating

    • Queries

    • Given evidence, what is the probability of some other random variable occurring?


Belief revision

Belief Revision

  • Given some evidence variables, find the state of all other variables that maximize the probability.

  • E.g.: We know John Calls, but not Mary. What is the most likely state? Only consider assignments where J=T and M=F, and maximize. Best:


Belief updating

Belief Updating

  • Causal Inferences

  • Diagnostic Inferences

  • Intercausal Inferences

  • Mixed Inferences

E

Q

Q

E

Q

E

E

Q

E


Causal inferences

Causal Inferences

P(B)

P(E)

Burglary

Earthquake

Inference from cause to effect.

E.g. Given a burglary, what is P(J|B)?

0.002

0.001

B EP(A)

T T0.95

Alarm

T F0.94

F T0.29

F F0.001

AP(M)

JohnCalls

Mary Calls

T0.70

AP(J)

F0.01

T0.90

F0.05

P(M|B)=0.67 via similar calculations


Diagnostic inferences

Diagnostic Inferences

From effect to cause. E.g. Given that John calls, what is the P(burglary)?

What is P(J)? Need P(A) first:

Many false positives.


Intercausal inferences

Intercausal Inferences

Explaining Away Inferences.

Given an alarm, P(B|A)=0.37. But if we add the evidence that

earthquake is true, then P(B|A^E)=0.003.

Even though B and E are independent, the presence of

one may make the other more/less likely.


Mixed inferences

Mixed Inferences

Simultaneous intercausal and diagnostic inference.

E.g., if John calls and Earthquake is false:

Computing these values exactly is somewhat complicated.


Exact computation polytree algorithm

Exact Computation - Polytree Algorithm

  • Judea Pearl, 1982

  • Only works on singly-connected networks - at most one undirected path between any two nodes.

  • Backward-chaining Message-passing algorithm for computing posterior probabilities for query node X

    • Compute causal support for X, evidence variables “above” X

    • Compute evidential support for X, evidence variables “below” X


Polytree computation

Polytree Computation

...

U(1)

U(m)

X

Z(1,j)

Z(n,j)

...

Y(1)

Y(n)

Algorithm recursive, message

passing chain

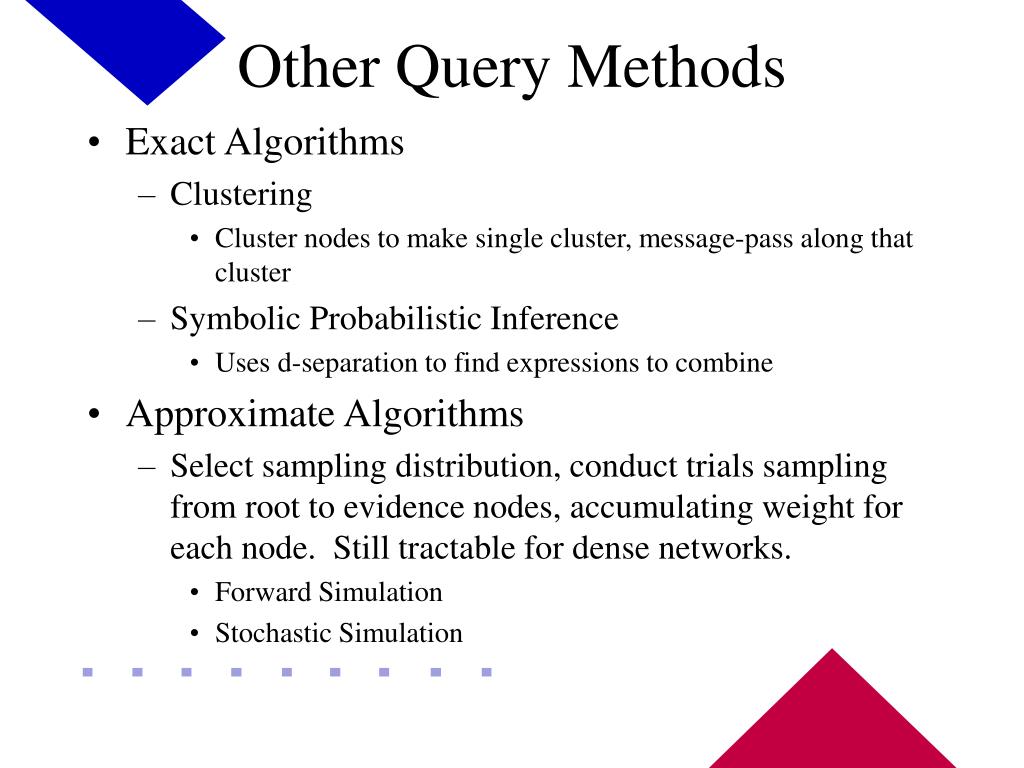

Other query methods

Other Query Methods

  • Exact Algorithms

    • Clustering

      • Cluster nodes to make single cluster, message-pass along that cluster

    • Symbolic Probabilistic Inference

      • Uses d-separation to find expressions to combine

  • Approximate Algorithms

    • Select sampling distribution, conduct trials sampling from root to evidence nodes, accumulating weight for each node. Still tractable for dense networks.

      • Forward Simulation

      • Stochastic Simulation


Summary

Summary

  • Bayesian methods provide sound theory and framework for implementation of classifiers

  • Bayesian networks a natural way to represent conditional independence information. Qualitative info in links, quantitative in tables.

  • NP-complete or NP-hard to compute exact values; typical to make simplifying assumptions or approximate methods.

  • Many Bayesian tools and systems exist


References

References

  • Russel, S. and Norvig, P. (1995). Artificial Intelligence, A Modern Approach. Prentice Hall.

  • Weiss, S. and Kulikowski, C. (1991). Computer Systems That Learn. Morgan Kaufman.

  • Heckerman, D. (1996). A Tutorial on Learning with Bayesian Networks. Microsoft Technical Report MSR-TR-95-06.
