Good practices for managing risks of scarcity in water supply

URBAN WATER SECURITY – A full day on planning and response to ensure urban water resilience

GOOD PRACTICES FOR MANAGING RISKS OF SCARCITY IN WATER SUPPLY

Francisco Cubillo

Deputy Director of Research, Development and Investigation

IWA WORLD WATER CONGRESS AND EXHIBITION

BEIJING, 2006 SEPTEMBER


Good practices for managing risks of scarcity in water supply

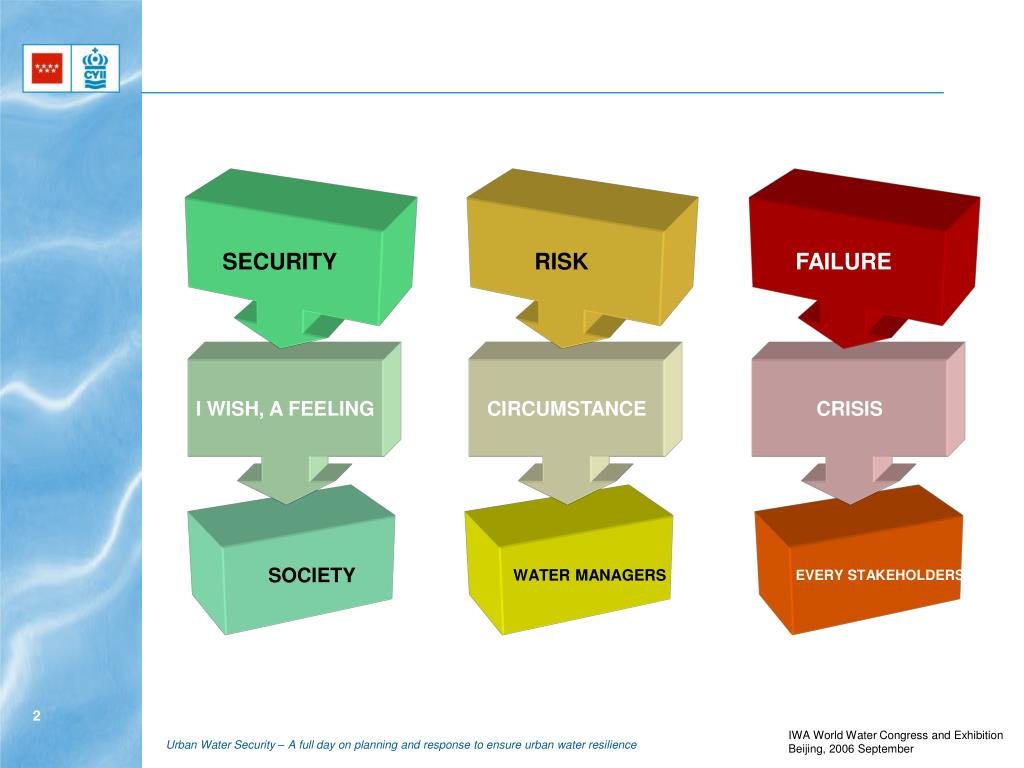

SECURITY

RISK

FAILURE

I WISH, A FEELING

CIRCUMSTANCE

CRISIS

SOCIETY

WATER MANAGERS

EVERY STAKEHOLDERS


Good practices for managing risks of scarcity in water supply

PROBABILITY

100%

NORMALITY

INCIDENCES

&

CONTINGENCIES

QUALITY OF SERVICE

&

RISK STANDARDS

CRISIS

DISASTER

AFFECTIONS

0

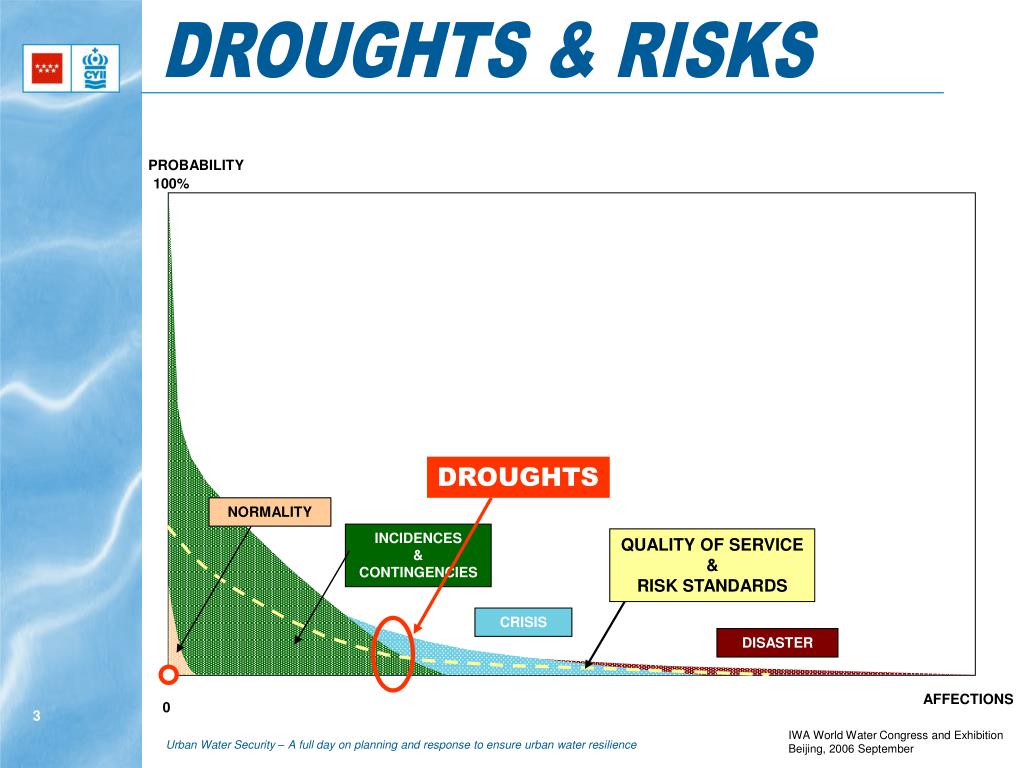

DROUGHTS & RISKS

DROUGHTS


Good practices for managing risks of scarcity in water supply

SCARCITY & DROUGHT

  • An smooth event

  • In water supply is always operational


Good practices for managing risks of scarcity in water supply

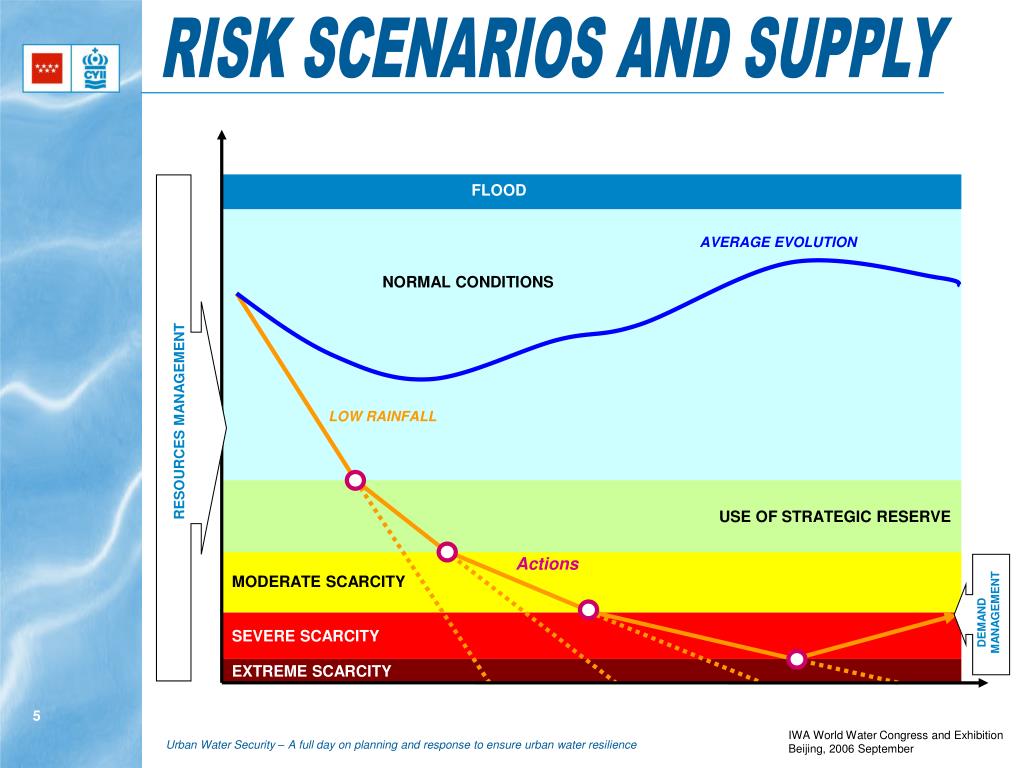

RISK SCENARIOS AND SUPPLY

FLOOD

AVERAGE EVOLUTION

NORMAL CONDITIONS

LOW RAINFALL

RESOURCES MANAGEMENT

USE OF STRATEGIC RESERVE

Actions

MODERATE SCARCITY

DEMAND MANAGEMENT

SEVERE SCARCITY

EXTREME SCARCITY


Good practices for managing risks of scarcity in water supply

  • Public Company

  • Supplies drinking and sewerage water to 6 million people in the region of Madrid (Spain)

  • 177 municipalities

  • 14.000 km Distribution Network

Madrid


Good practices for managing risks of scarcity in water supply

STRATEGIC INFRASTRUCTURES

2533 km transport pipes

59 Wells Fields

13 Water Treatment Works

14 Dams

44 Pumping Stations

242 Service Reservoirs


Good practices for managing risks of scarcity in water supply

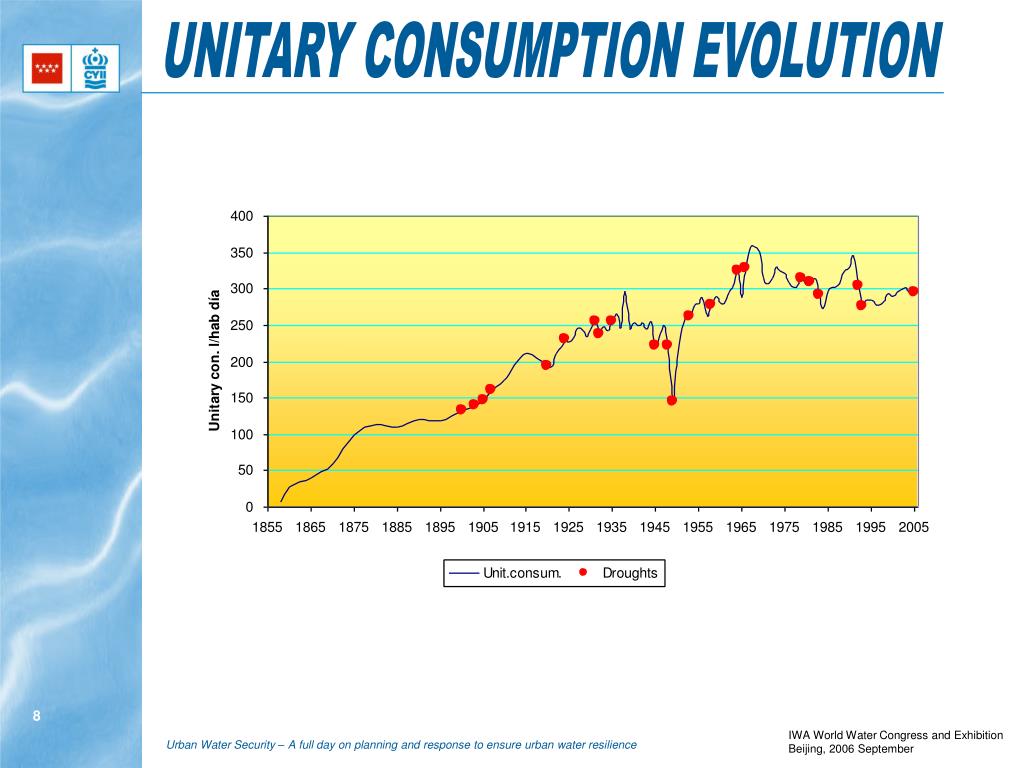

UNITARY CONSUMPTION EVOLUTION


Good practices for managing risks of scarcity in water supply

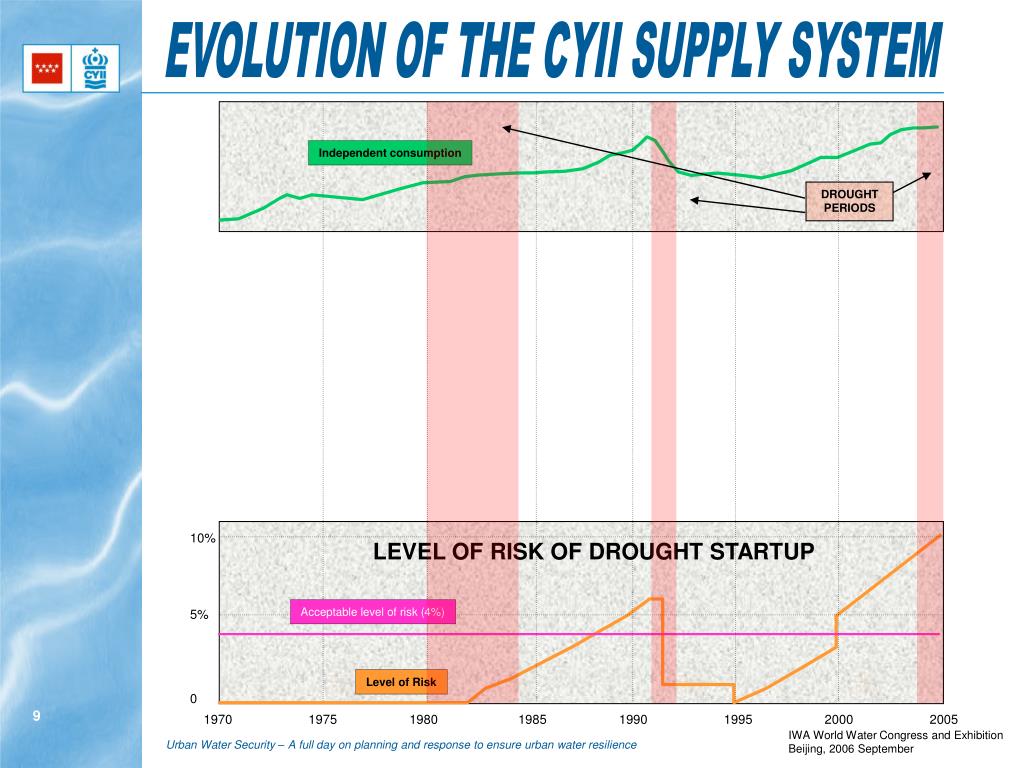

EVOLUTION OF THE CYII SUPPLY SYSTEM

Independent consumption

DROUGHT PERIODS

10%

LEVEL OF RISK OF DROUGHT STARTUP

Acceptable level of risk (4%)

5%

Level of Risk

0

1970

1975

1980

1985

1990

1995

2000

2005


Good practices for managing risks of scarcity in water supply

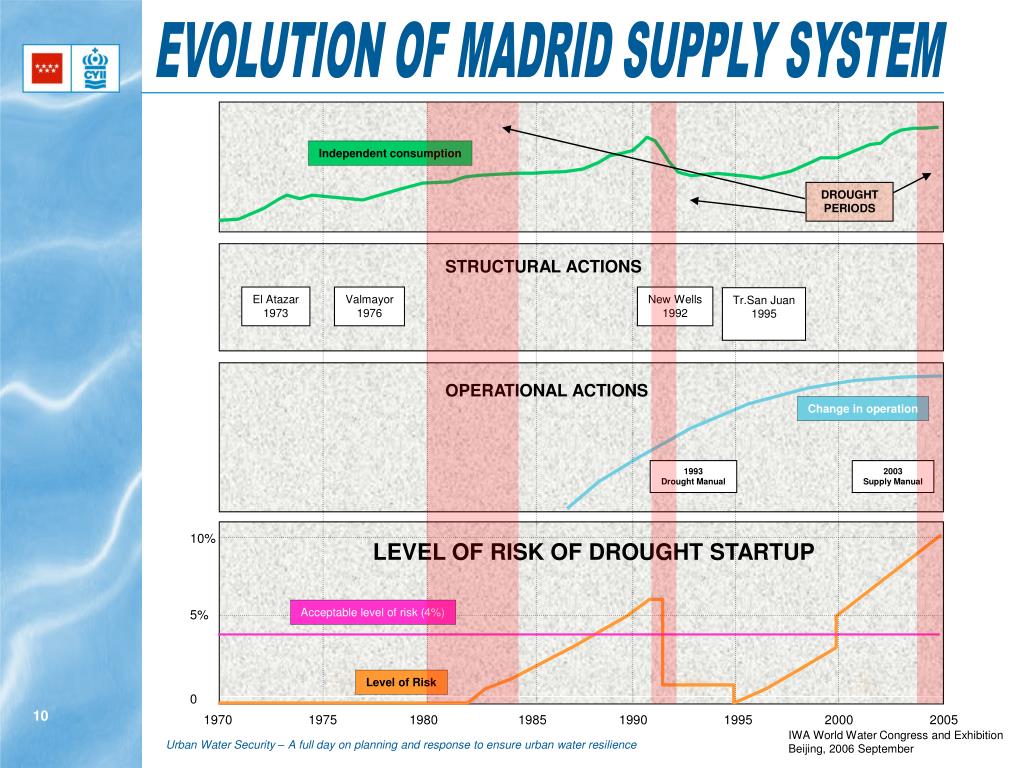

EVOLUTION OF MADRID SUPPLY SYSTEM

Independent consumption

DROUGHT PERIODS

STRUCTURAL ACTIONS

El Atazar

1973

Valmayor

1976

New Wells

1992

Tr.San Juan

1995

OPERATIONAL ACTIONS

Change in operation

1993

Drought Manual

2003

Supply Manual

10%

LEVEL OF RISK OF DROUGHT STARTUP

Acceptable level of risk (4%)

5%

Level of Risk

0

1970

1975

1980

1985

1990

1995

2000

2005


Good practices for managing risks of scarcity in water supply

SUPPLY MANUAL

2003

DROUGHT MANUAL 1992


Good practices for managing risks of scarcity in water supply

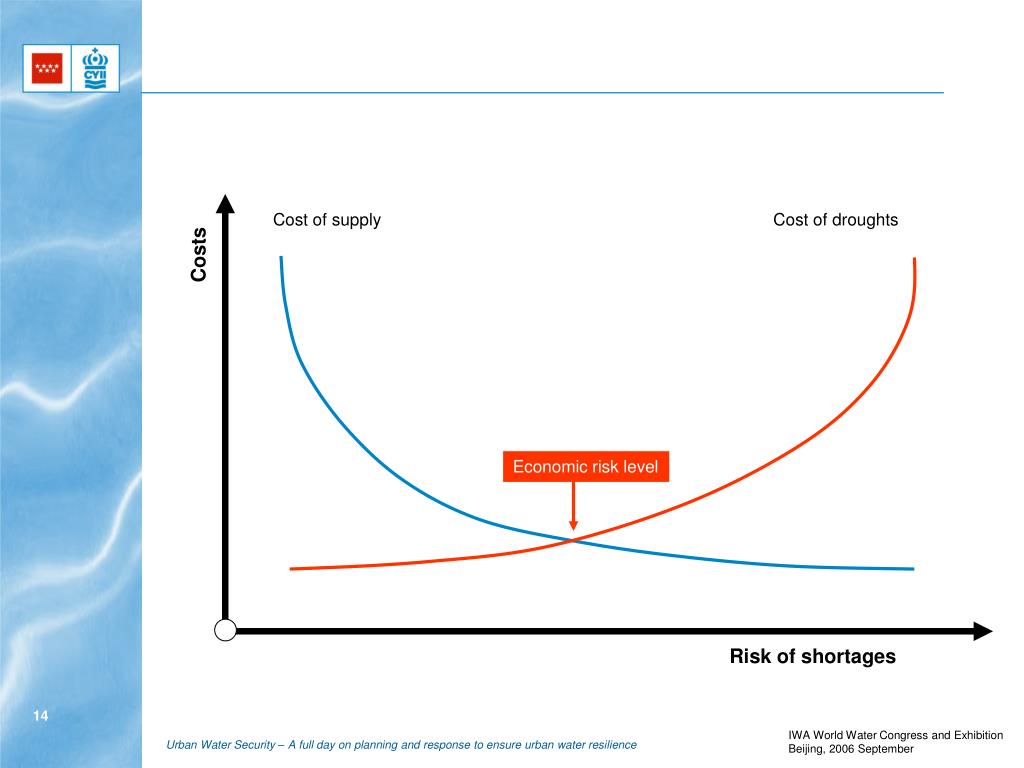

Cost of supply

Cost of droughts

Costs

Economic risk level

Risk of shortages


Good practices for managing risks of scarcity in water supply

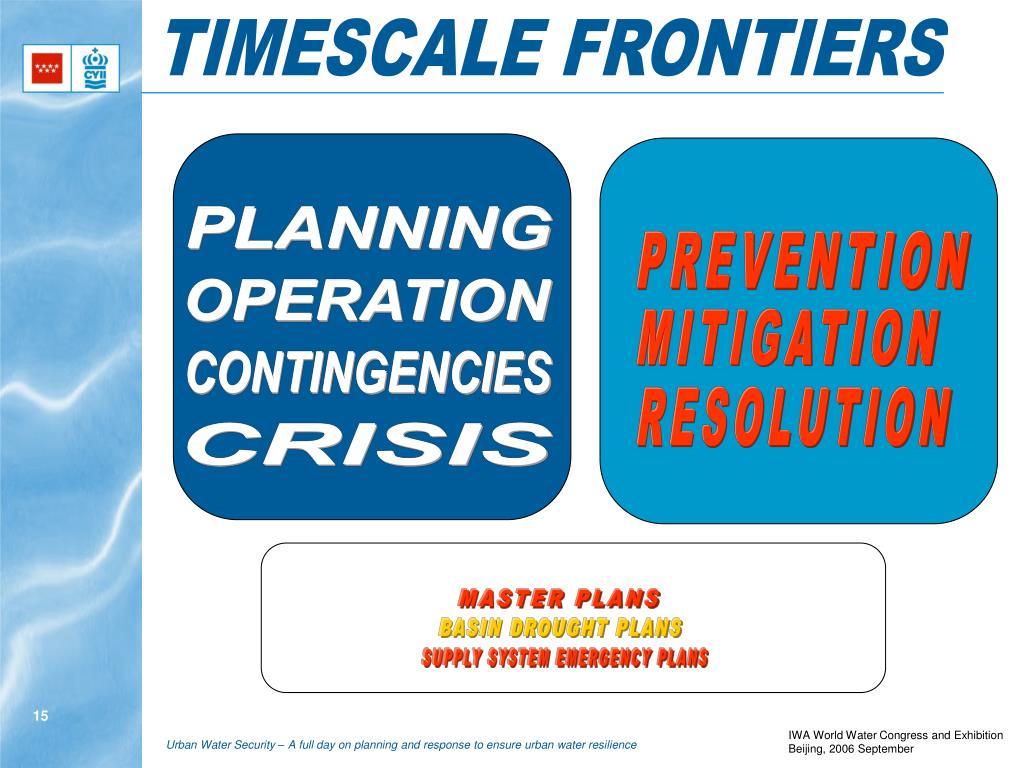

TIMESCALE FRONTIERS

PLANNING

PREVENTION

OPERATION

MITIGATION

CONTINGENCIES

RESOLUTION

CRISIS

MASTER PLANS

BASIN DROUGHT PLANS

SUPPLY SYSTEM EMERGENCY PLANS


Good practices for managing risks of scarcity in water supply

REAL INTEGRATION

PLANNING <> OPERATION

EMERGENCIES <> ROUTINES

INSTITUTIONS <> OPERATORS <> USERS

RESOURCES <> INFRASTRUCTURES

TECNICIANS <> POLITICIANS <> MEDIA

TEORY <> PRACTICE

CULTURE <> ECONOMIC DEVELOPMENT <>RISK ACCEPTANCE

THE KEY
