  1. Application Note : A4002 FW-2140 Application Guide 28 June, 2005 Seyeon Tech Co, Ltd.

  2. FW-2140 Application Guide • Key Features of Network Media Decoder, FW-2140 ? • Stand-Alone Embedded System with Linux OS • Display Video Stream from FlexWATCH Server • 4 Channel MJPEG Stream Decoding and Display • 15 fps @ CIF for each Channel, 30 fps @QCIF for each Channel • Analog Composite Video Output ( NTSC/PAL ) • 10/100-Base-T LAN Interface • Audio Interface ( Aux Port ) • for Voice Kit Connection ( 4th Q, 2005 ) • RS-485 Interface • for conventional CCTV device ( Keyboard, Joystick etc ) ( 4th Q, 2005 ) • Alarm Notification • Live, Motion and Alarm OSD Information in Monitor • Built-In Beep for Alarm • Various Display Mode Selection • By Web Configuration or by Push Button • Single Channel Mode, Quad Channel Mode, Sequential Mode

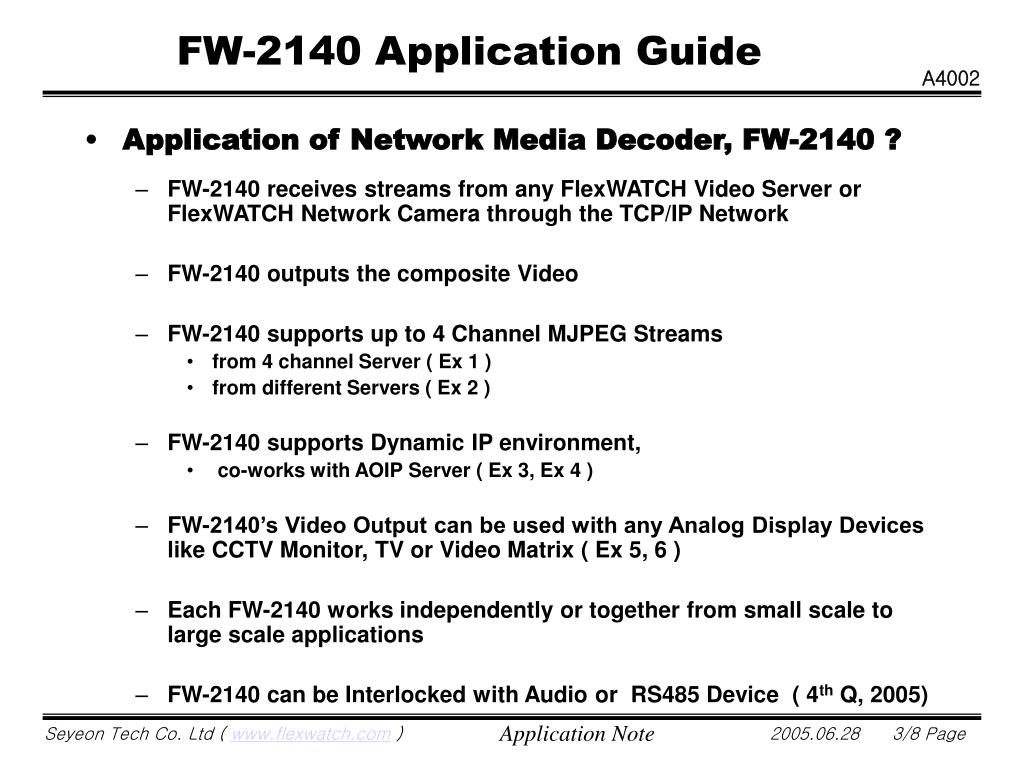

  3. FW-2140 Application Guide • Application of Network Media Decoder, FW-2140 ? • FW-2140 receives streams from any FlexWATCH Video Server or FlexWATCH Network Camera through the TCP/IP Network • FW-2140 outputs the composite Video • FW-2140 supports up to 4 Channel MJPEG Streams • from 4 channel Server ( Ex 1 ) • from different Servers ( Ex 2 ) • FW-2140 supports Dynamic IP environment, • co-works with AOIP Server ( Ex 3, Ex 4 ) • FW-2140’s Video Output can be used with any Analog Display Devices like CCTV Monitor, TV or Video Matrix ( Ex 5, 6 ) • Each FW-2140 works independently or together from small scale to large scale applications • FW-2140 can be Interlocked with Audio or RS485 Device ( 4th Q, 2005)

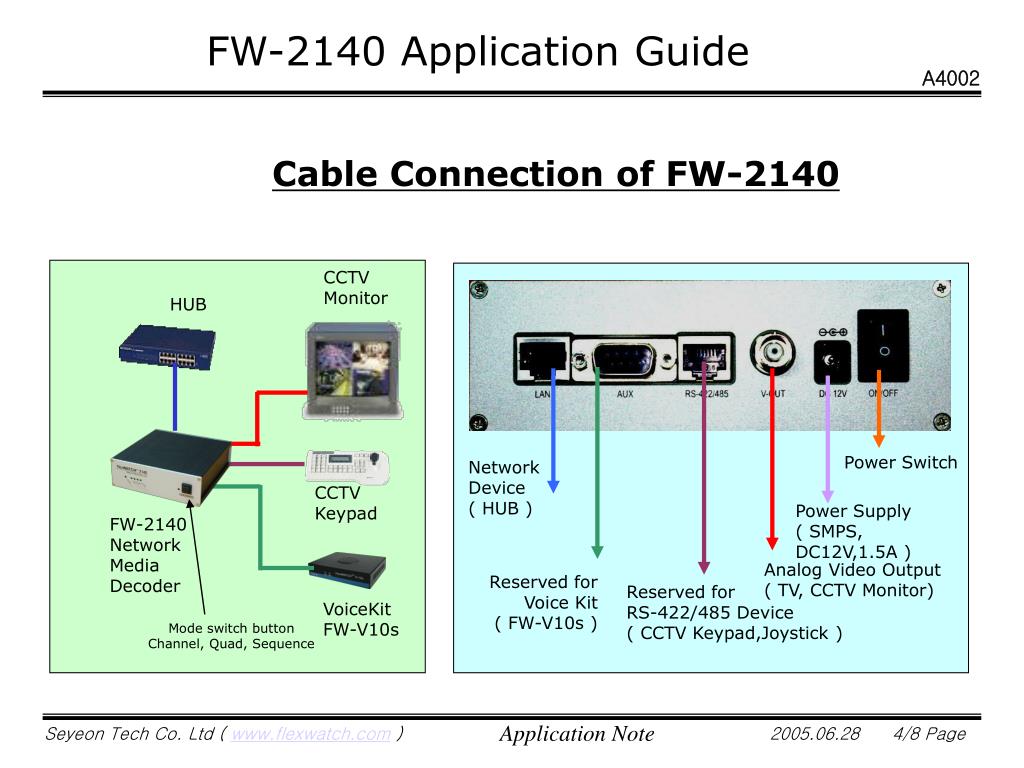

  4. FW-2140 Application Guide Cable Connection of FW-2140 CCTV Monitor HUB Power Switch Network Device ( HUB ) CCTV Keypad Power Supply ( SMPS, DC12V,1.5A ) FW-2140 Network Media Decoder Analog Video Output ( TV, CCTV Monitor) Reserved for Voice Kit ( FW-V10s ) Reserved for RS-422/485 Device ( CCTV Keypad,Joystick ) VoiceKit FW-V10s Mode switch button Channel, Quad, Sequence

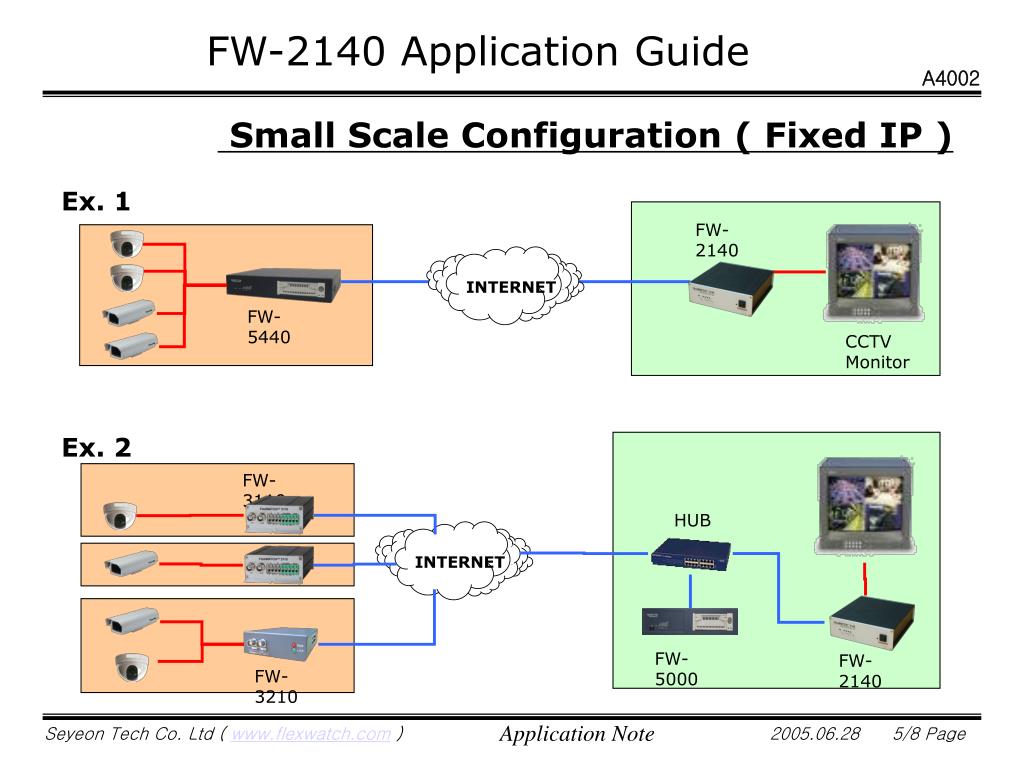

  5. INTERNET INTERNET FW-2140 Application Guide Small Scale Configuration ( Fixed IP ) Ex. 1 FW-2140 FW-5440 CCTV Monitor Ex. 2 FW-3110 HUB FW-5000 FW-2140 FW-3210

  6. INTERNET INTERNET FW-2140 Application Guide Small Scale Configuration ( Dynamic IP ) Ex. 3 FW-5440 FW-2140 CCTV Monitor AOIP Server Ex. 4 HUB FW-3110 AOIP Server FW-5000 FW-2140 FW-3210

  7. INTERNET FW-2140 Application Guide Medium Scale Configuration Ex.5 AOIP Server FW-3440 HUB HUB FW-2140 FW-1160 CCTV Monitor FW-1110 HUB FW-3110 FW-Manager FW-3110

  8. INTERNET FW-2140 Application Guide Large Scale Configuration Ex.6 AOIP Server CCTV Monitors FW-3440 HUB FW-1160 . . . FW-1110 FW-2140 FW-3110 Video Matrix . . . . . . FW-Manager FW-5440
