2 point perspective

2 Point Perspective


2 point perspective

One point perspective review

Everything vanishes to one

point on the horizon…


2 point perspective

2 point perspective…everything vanishes to 2 points on either end of the horizon line


Horizon line

Horizon Line:


Vanishing point

Vanishing Point:


2 point perspective

One Point Perspective....

One vanishing point, all lines and shapes recede to that one common point. Makes things seem as if they are vanishing into the distance.


2 point perspective

Two Point Perspective

2 Pt. Perspective has two vanishing points.

Left sides of shapes recede to the left vanishing point, right sides of shapes recede to the right vanishing point.


Vanishing point s

Vanishing Points


Practice 1

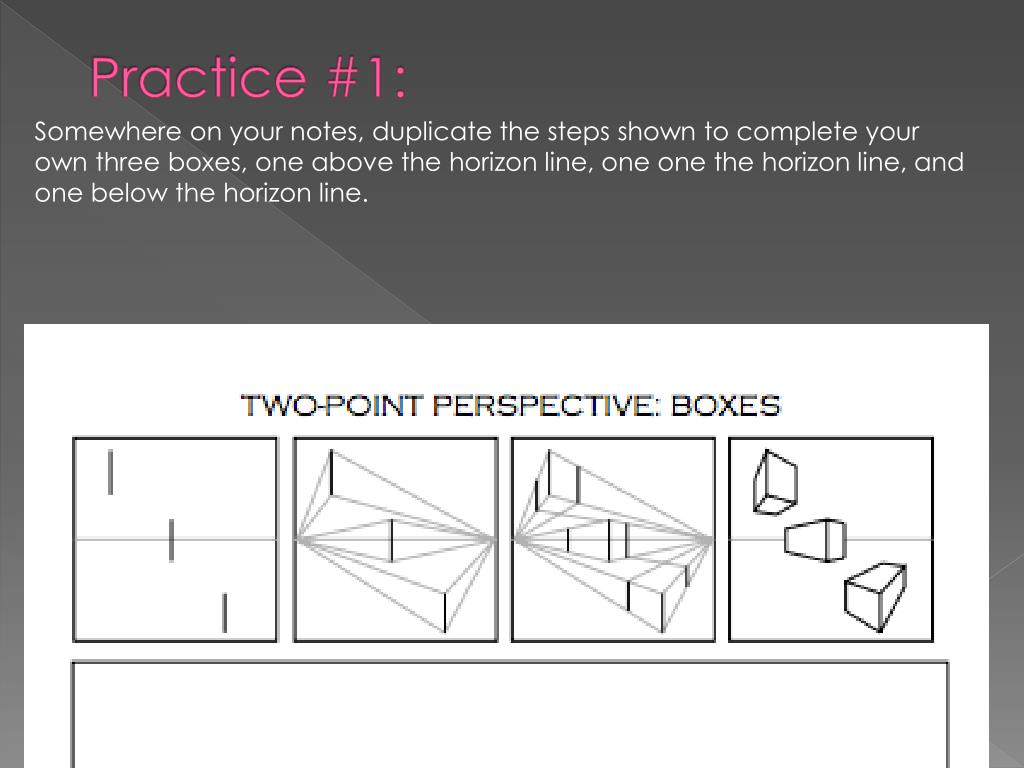

Practice #1:

Somewhere on your notes, duplicate the steps shown to complete your own three boxes, one above the horizon line, one one the horizon line, and one below the horizon line.


2 point perspective

Practice #1 Continued:

Decide where the back edge of your shape is and, using a ruler, draw 2 more vertical lines, connecting the 2 connecting lines you already drew (see the 3rd box along the top of the worksheet).

Using a ruler, draw a line that connects the bottom of the rear right vertical line to the left vanishing point.

Using a ruler, draw a line that connects the bottom of the rear left vertical line to the right vanishing point.

Using a ruler, redefine your actual shape, you should see the right and left sides as well as the bottom side. Now erase your extra connecting lines that extend past the shape to the vanishing point.

Repeat steps 1-9 for the other 2 shapes. When finished, your space should look like the last box on the top of this worksheet.


Practice 2

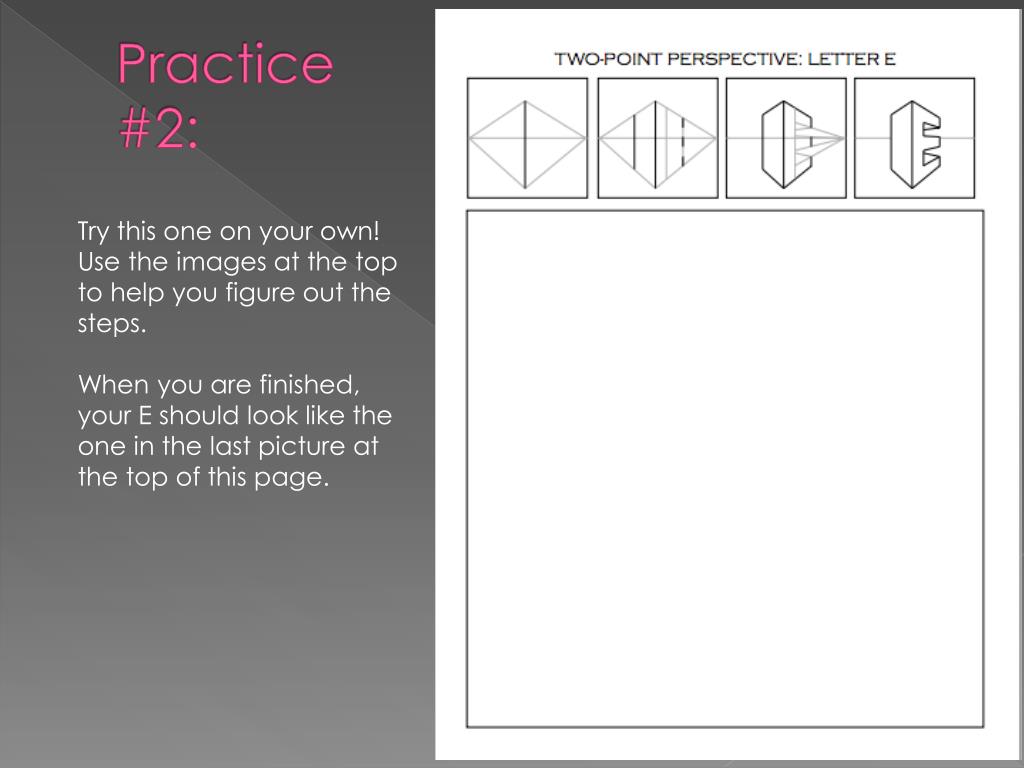

Practice #2:

Try this one on your own! Use the images at the top to help you figure out the steps.

When you are finished, your E should look like the one in the last picture at the top of this page.


Day 2 turning shapes into buildings

Day 2:Turning Shapes into Buildings

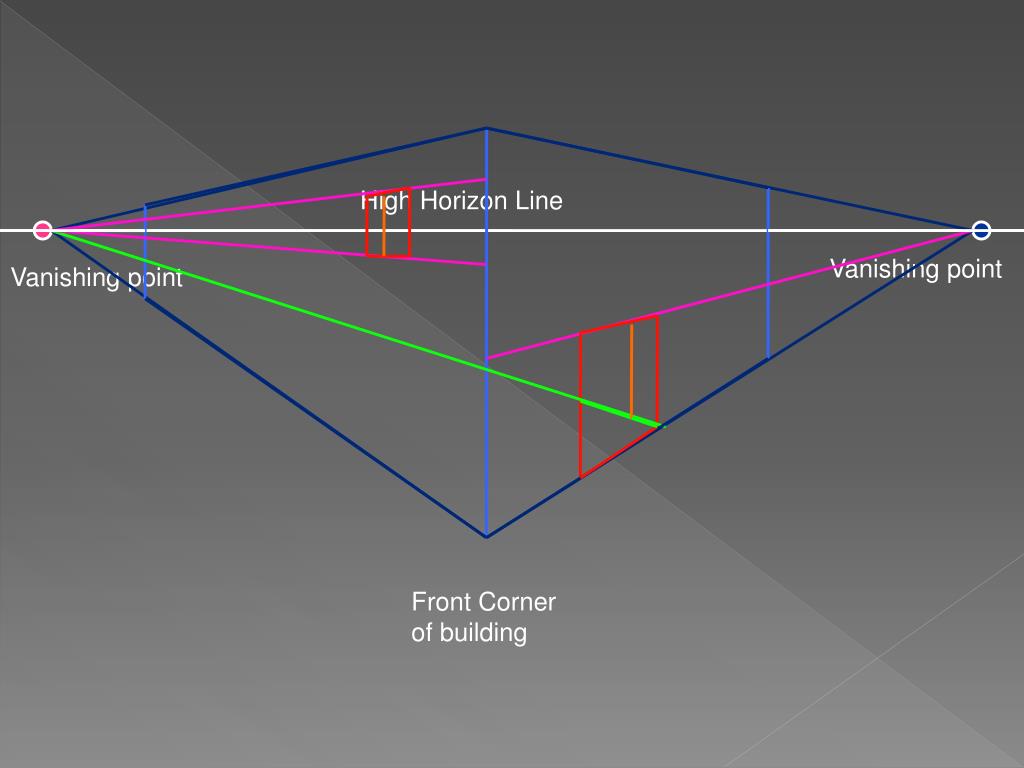

2 point perspective

High Horizon Line

Vanishing point

Vanishing point

Front Corner of building


Worksheet 3

Worksheet #3:

Try this one on your own! Use the images at the top to help you figure out the steps.

Pay special attention to the windows and door – make sure that their lines also connect to the vanishing points as shown.

When you are finished, your image should look like the one in the last picture at the top of this page.


Worksheet 4

Worksheet #4:

Try this one on your own! Use the images at the top to help you figure out the steps.

Pay special attention to the windows and door – make sure that their lines also connect to the vanishing points as shown.

When you are finished, your image should look like the one in the last picture at the top of this page.


Video instruction

Video Instruction

http://www.youtube.com/watch?v=Rtt_ppan_vM

Watch this video to learn how to do a 2 point perspective city block


2 point perspective cityscape requirements

2 Point Perspective Cityscape Requirements:

  • Must by on 12”x18” paper, completed in pencil

  • 2 Point Perspective Cityscape from imagination

  • Must include background, middle ground, and foreground

  • At least 10 buildings, all done in correct 2 point perspective

  • Variety in building sizes

  • Overlapping buildings

  • If you are going to use shading and create values, then at least 5 buildings must have architectural details (windows, doors…). If you want to leave it as an outline drawing, then all 10 buildings must have architectural details, such as window, doors, signs, etc.

  • Add something that shows imagination and creativity in background, foreground or in the buildings.

  • Full craftsmanship rules in effect

  • No smudges, rips, or wrinkles (-10)


Thumbnail sketch for cityscape

Thumbnail Sketch for Cityscape

Name______________________________________________________Period____________________Date________________

In the space below, work out your ideas for your cityscape. Show all 10 buildings, in 2 point perspective, with ideas for the space in front of the buildings, and behind the buildings – give your city some sort of setting, imaginative or everyday.


2 point perspective
