  1. Changes in DNA

  2. Analogy • We will be using a sentence as an analogy representing a strand of DNA. • Our sentence is: The fat cat ate the wee rat. • If this sentence represents a strand of DNA, what does each word represent? • What does each letter represent?

  3. Mutations?!? • Now, we’re going to look at mutations in the DNA. • When you hear about mutations, you may think about some teenage turtles or growing an extra arm, but the word mutate just means change. Let’s look at what happens when we change the sentence/DNA.

  4. Substitution The fat cat ate the wee rat. The fat cat ate the wet rat. • What changed? • What does this represent? • How would this type of change affect the protein?

  5. Deletion The fat cat ate the wee rat. The fat cat att hew eer at. • What changed? • What does this represent? • How would this type of change affect the protein?

  6. Insertion The fat cat ate the wee rat. The fabtca tat eth ewe era t. • What changed? • How would this type of change affect the protein?

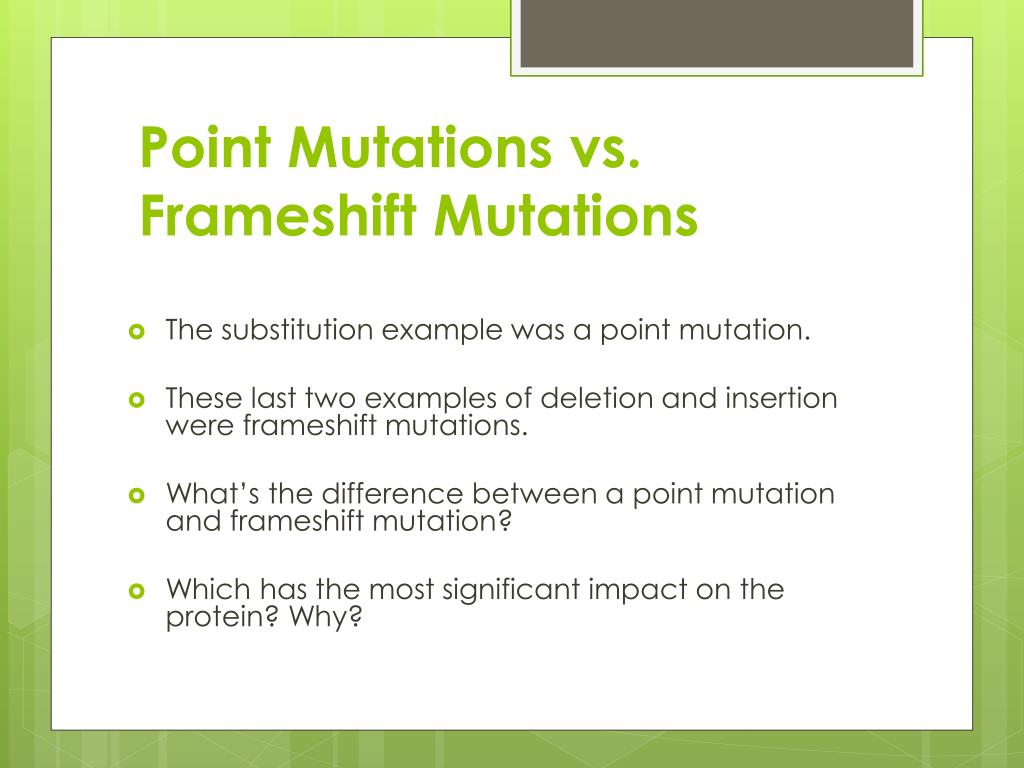

  7. Point Mutations vs. Frameshift Mutations • The substitution example was a point mutation. • These last two examples of deletion and insertion were frameshift mutations. • What’s the difference between a point mutation and frameshiftmutation? • Which has the most significant impact on the protein? Why?

  8. Synonymous (“Silent”) Point Mutations • What do you think a synonymous (“silent”) point mutation is? • Do not cause a change in the amino acid sequence • Generally, do not cause a change in the protein—however, can reduce the amount of a specific protein the cell makes or cause the structure of the protein to be changed in a manner that disrupts its functioning in the body • Example: • TAT changed to TAC—both still code from Tyrosine • CTC changed to CTA—both still code for Leucine

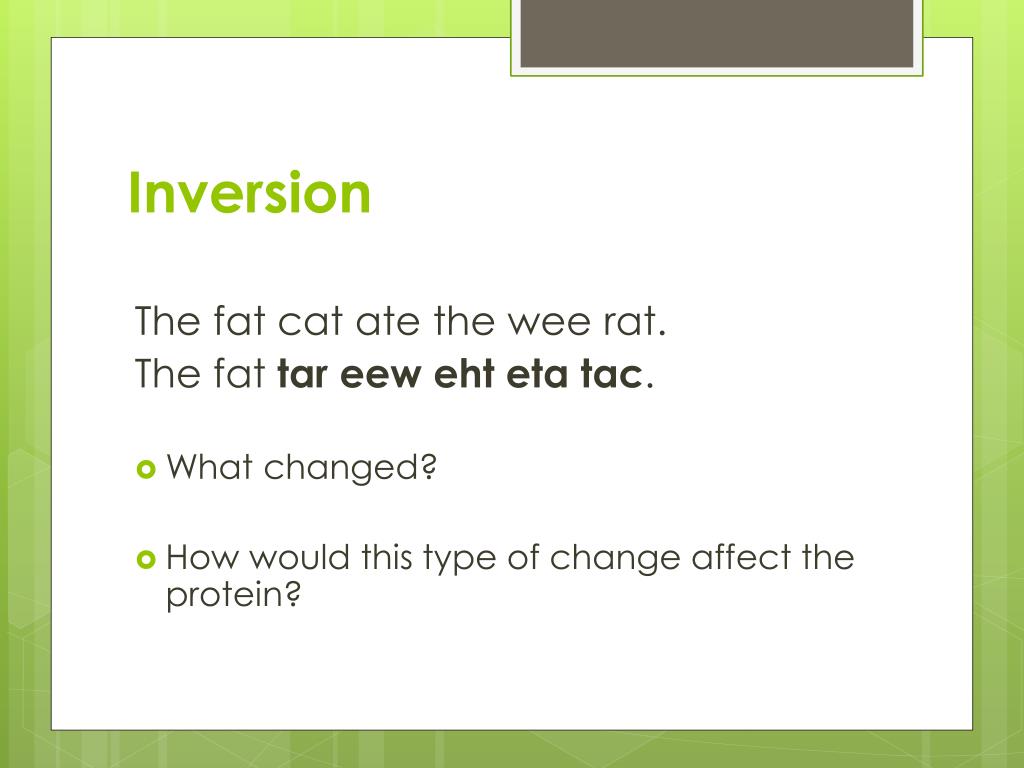

  9. Inversion The fat cat ate the wee rat. The fat tar eeweht eta tac. • What changed? • How would this type of change affect the protein?

  10. Chromosomal Mutations • What changed? • How would this type of change affect the protein?

  11. Chromosomal Mutations • What changed? • How would this type of change affect the protein?

  12. Chromosomal Mutations • What changed? • How would this type of change affect the protein?

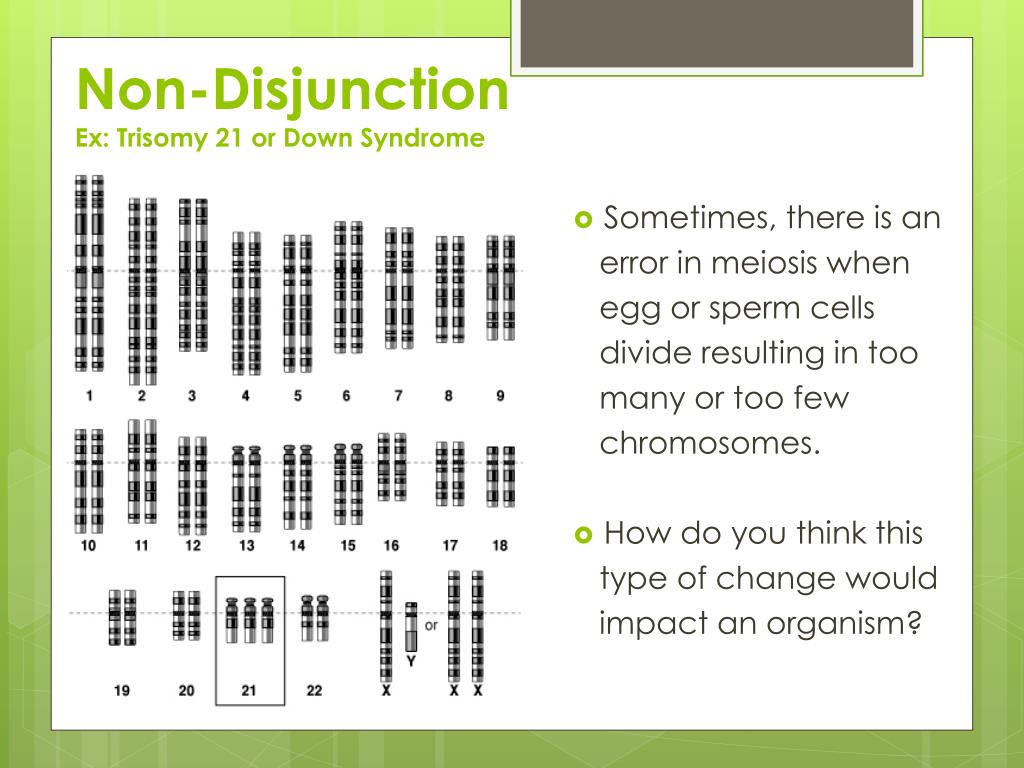

  13. Non-DisjunctionEx: Trisomy 21 or Down Syndrome • Sometimes, there is an error in meiosis when egg or sperm cells divide resulting in too many or too few chromosomes. • How do you think this type of change would impact an organism?

  14. Mutation Impact • The impact of a mutation on an individual also depends on where and when it occurs. • If there was a mutation in the DNA of a zygote, how would that impact the individual? • How might a mutation in a skin cell affect an individual?

  15. Pedigree Charts • Pedigree charts are like a genetic family tree. • They can use family information to trace genetic conditions that have been passed along in the family (genetic conditions caused by mutations). • Genetic counselors use them to help people analyze their family history and determine the probability of them having or passing on a particular condition (mutation).

  16. Pedigree Chart Symbols • Empty Square = male • Empty Circle = female • Filled/Darkened Square = affected male • Filled/Darkened Circle = affected female • Square/Circle with Slash through = deceased individual

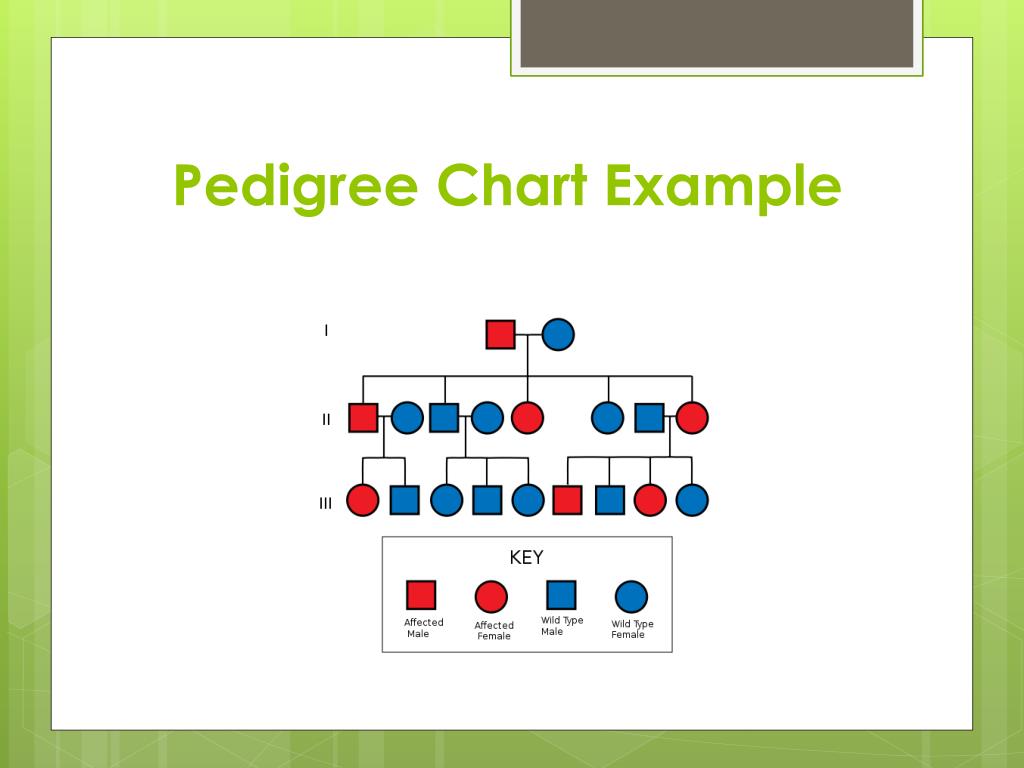

  17. Pedigree Chart Example
