Empc final intern presentation

EMPC Final Intern Presentation

Caitlynn Roy

EMPC Projects Execution Intern

7 August 2014


Agenda

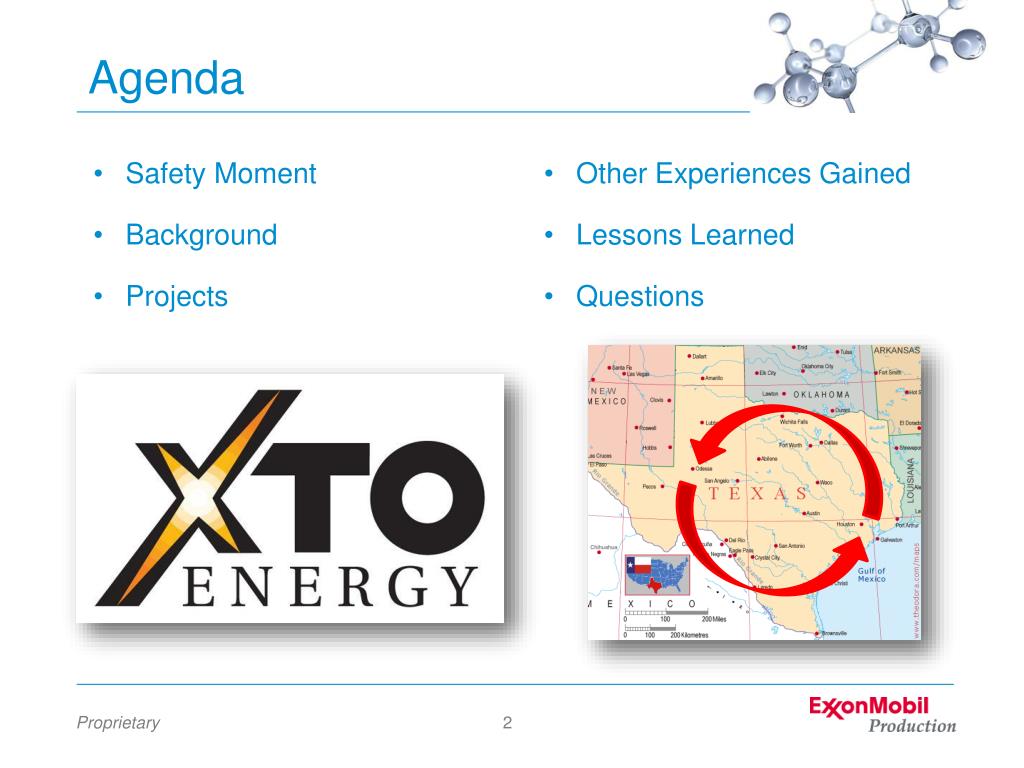

Agenda

  • Safety Moment

  • Background

  • Projects

  • Other Experiences Gained

  • Lessons Learned

  • Questions


Safety moment h 2 s detection

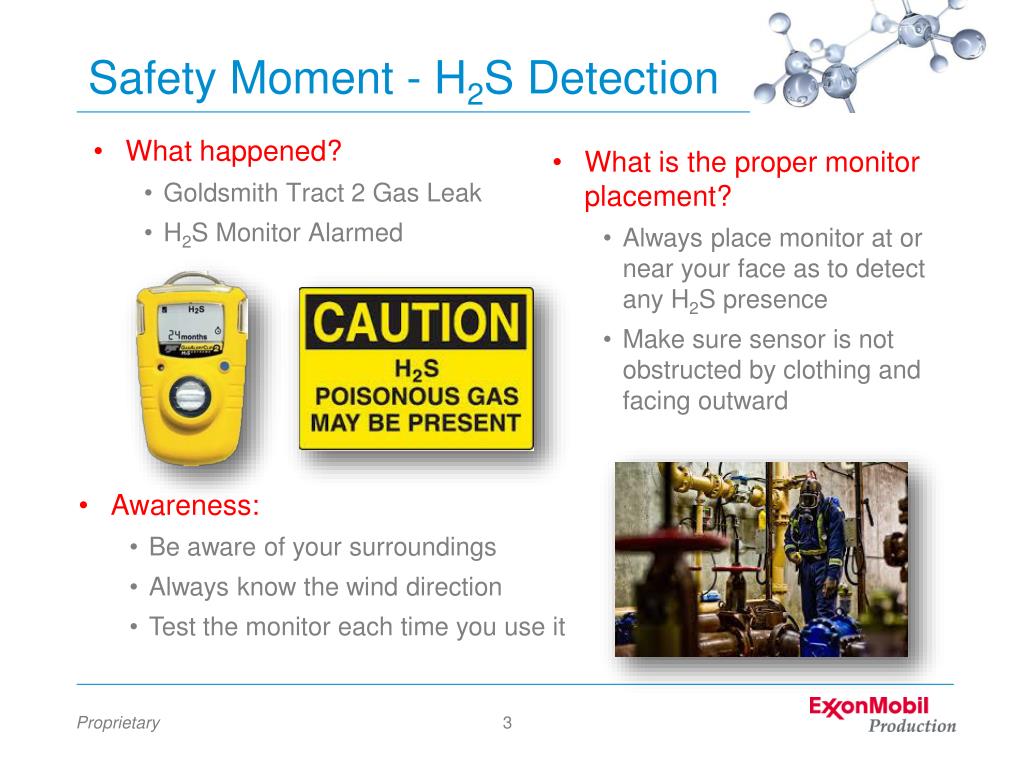

Safety Moment - H2S Detection

  • What is the proper monitor placement?

    • Always place monitor at or near your face as to detect any H2S presence

    • Make sure sensor is not obstructed by clothing and facing outward

  • What happened?

    • Goldsmith Tract 2 Gas Leak

    • H2S Monitor Alarmed

  • Awareness:

    • Be aware of your surroundings

    • Always know the wind direction

    • Test the monitor each time you use it


Background

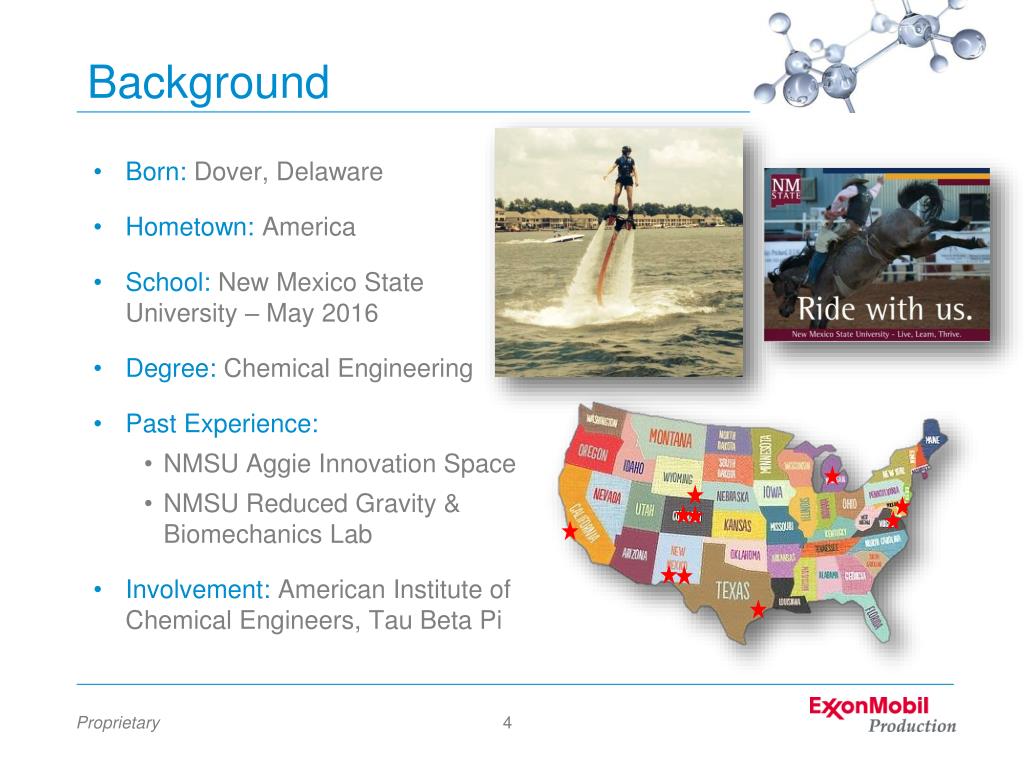

Background

  • Born: Dover, Delaware

  • Hometown: America

  • School: New Mexico State University – May 2016

  • Degree: Chemical Engineering

  • Past Experience:

    • NMSU Aggie Innovation Space

    • NMSU Reduced Gravity & Biomechanics Lab

  • Involvement: American Institute of Chemical Engineers, Tau Beta Pi


Project assignments xto

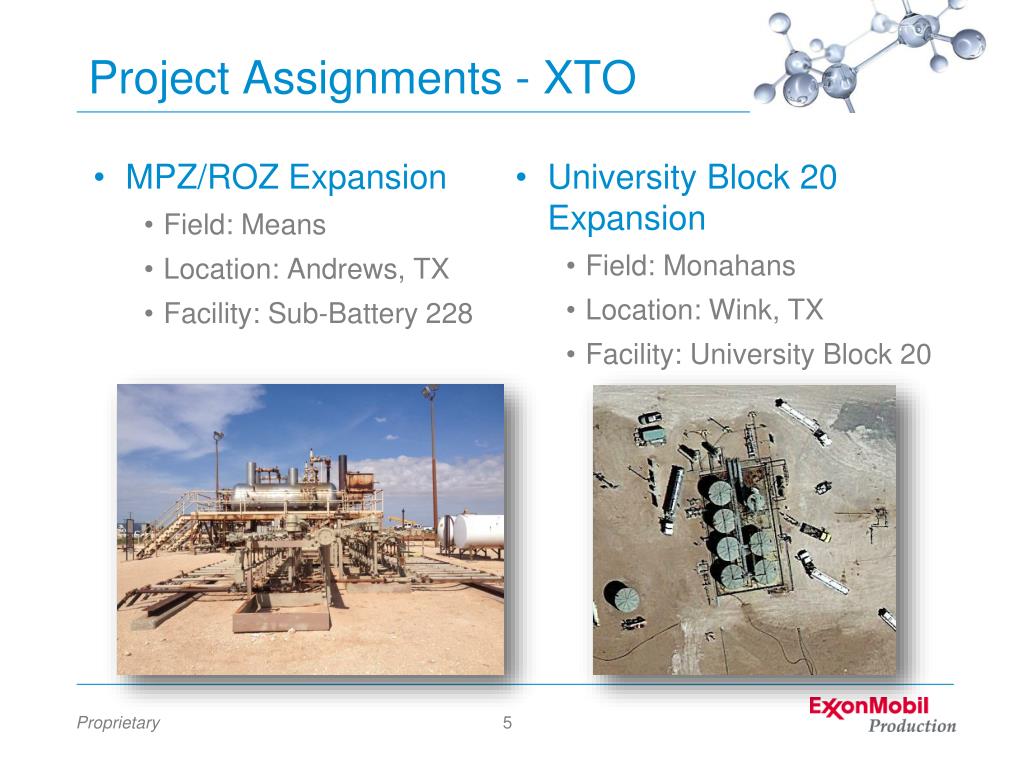

Project Assignments - XTO

  • MPZ/ROZ Expansion

    • Field: Means

    • Location: Andrews, TX

    • Facility: Sub-Battery 228

  • University Block 20 Expansion

    • Field: Monahans

    • Location: Wink, TX

    • Facility: University Block 20


Means field

Means Field

Well Work Plan

  • History

    • 1934 – Discovered

    • 1963 – Start Water Flood

    • 1983 – Start CO2 Flood

  • Main Pay Zone / Residual Oil Zone

    • Re-developing the MPZ

    • Expanding CO2 into ROZ

    • Expansion will increase oil production from 6,000bpd to 13,000 bpd

  • Cost

    • Total Investment: $635 Million ($440 already funded)

SB 228

North Dome Expansion

Phase 1

Other Expansion Areas


Xto mpz roz expansion

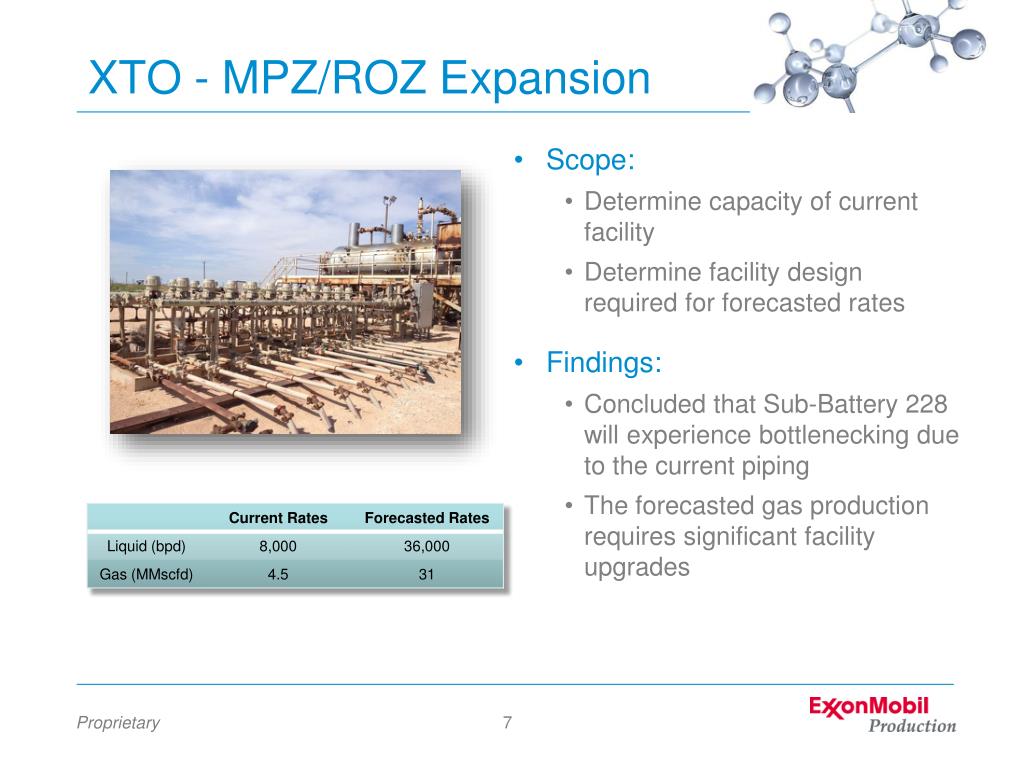

XTO - MPZ/ROZ Expansion

  • Scope:

    • Determine capacity of current facility

    • Determine facility design required for forecasted rates

  • Findings:

    • Concluded that Sub-Battery 228 will experience bottlenecking due to the current piping

    • The forecasted gas production requires significant facility upgrades


Sb 228 present plot plan

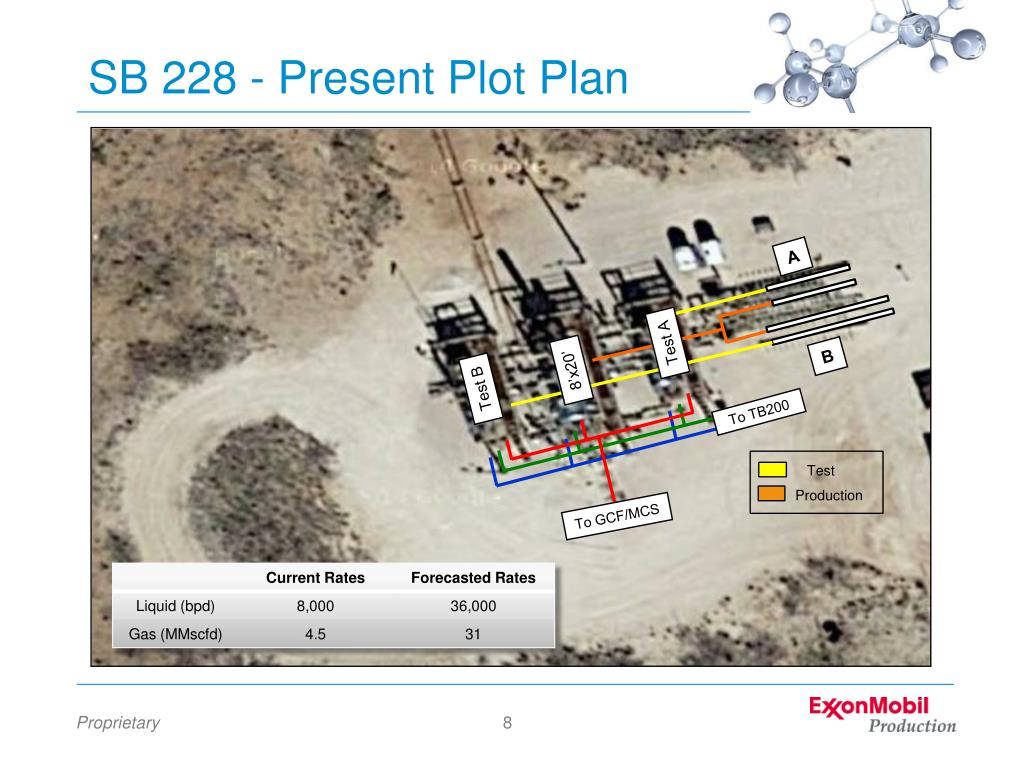

SB 228 - Present Plot Plan

A

Test A

B

8’x20’

Test B

To TB200

Test

Production

To GCF/MCS


Sb 228 proposed plot plan

SB 228 - Proposed Plot Plan

New 6” Test Header

New 10” Vent Line

New 10” Header

C

A

Test A

B

New 10’x30’ Sep

8’x20’

Test B

To TB200

To TB200

Test

Production

To GCF/MCS


Deliverables p ids plot plans

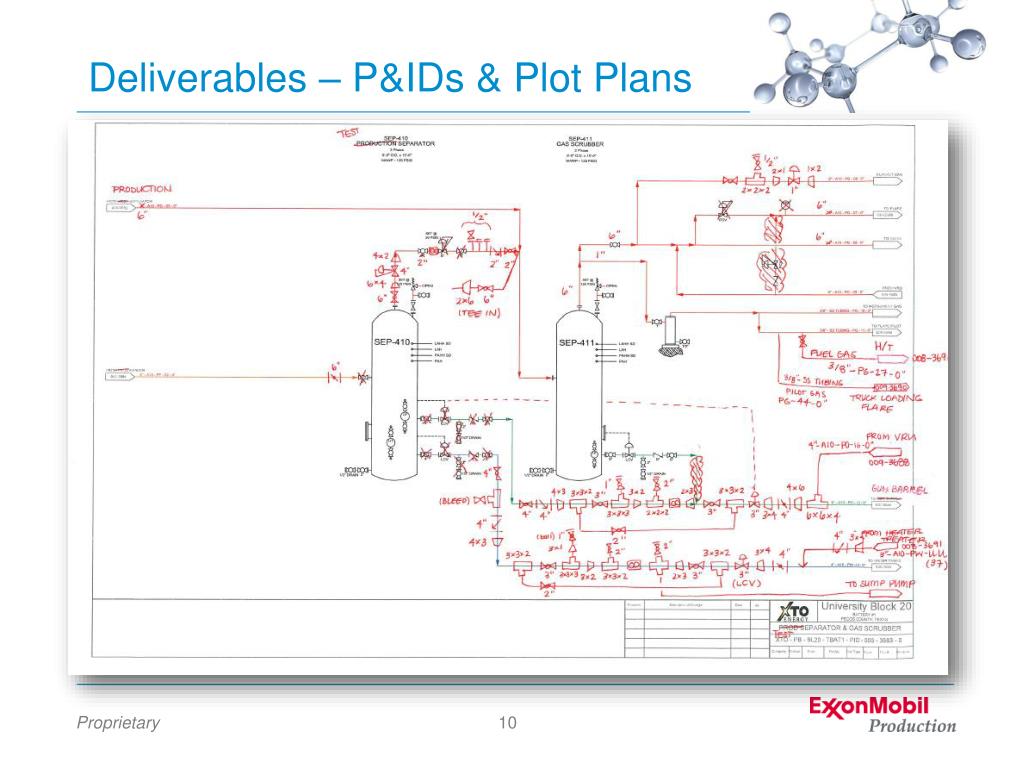

Deliverables – P&IDs & Plot Plans


Deliverables sizing

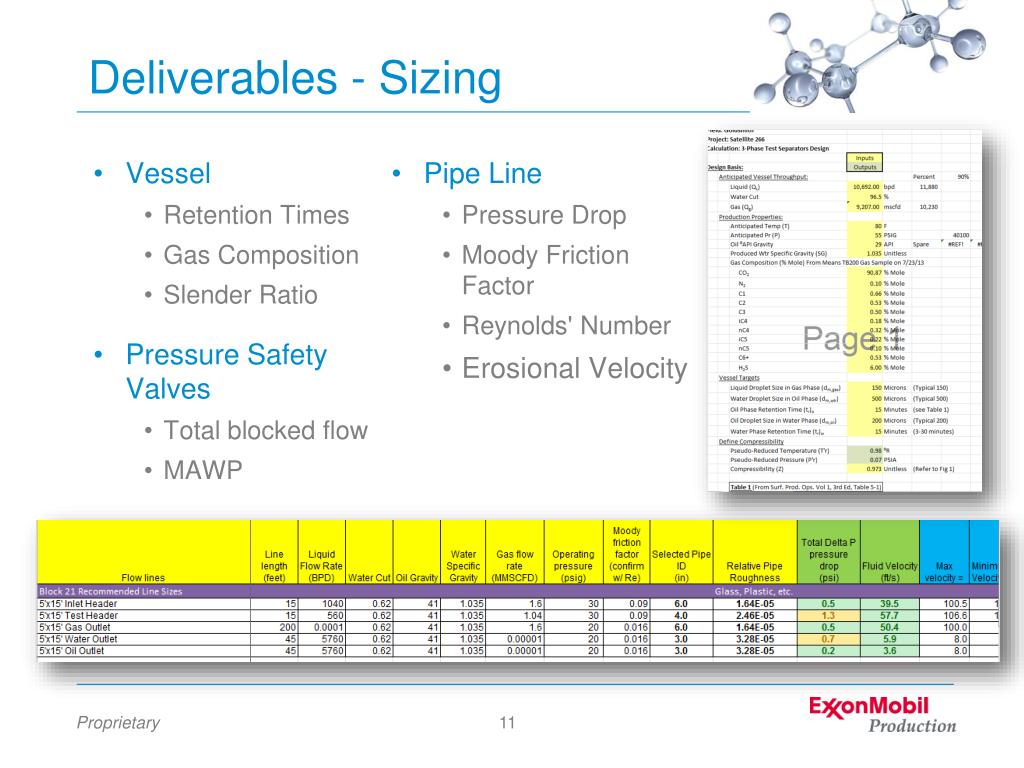

Deliverables - Sizing

  • Vessel

    • Retention Times

    • Gas Composition

    • Slender Ratio

  • Pressure Safety Valves

    • Total blocked flow

    • MAWP

  • Pipe Line

    • Pressure Drop

    • Moody Friction Factor

    • Reynolds' Number

    • Erosional Velocity


Deliverables

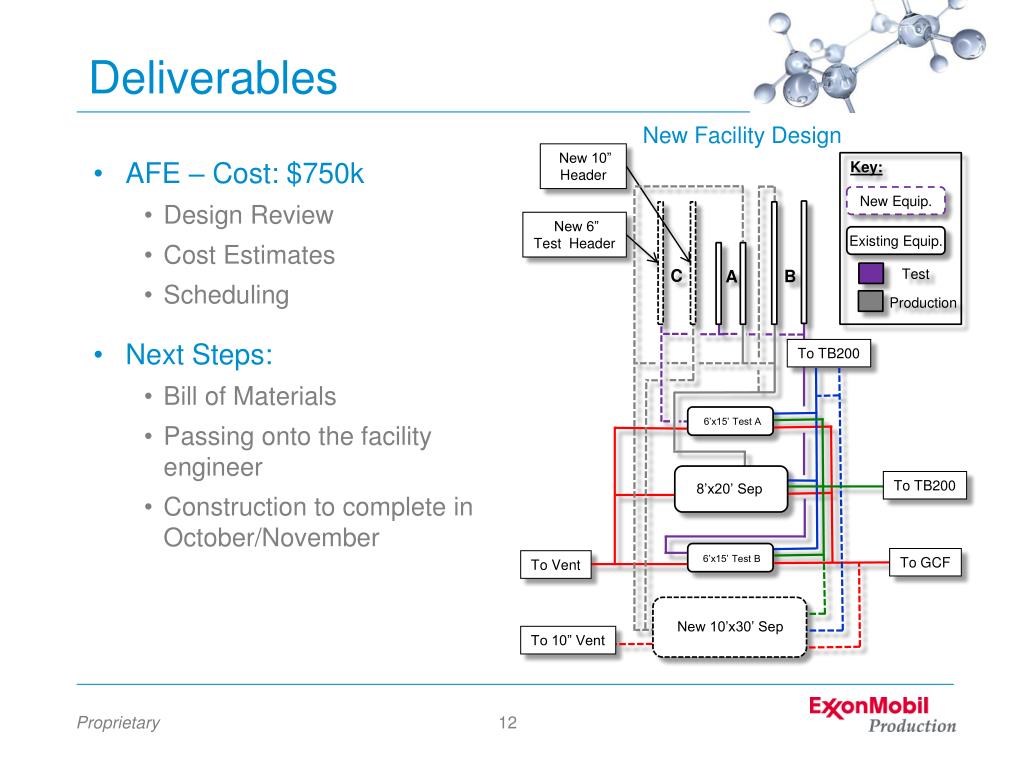

Deliverables

New Facility Design

  • AFE – Cost: $750k

    • Design Review

    • Cost Estimates

    • Scheduling

  • Next Steps:

    • Bill of Materials

    • Passing onto the facility engineer

    • Construction to complete in October/November

New 10”

Header

Key:

New Equip.

New 6”

Test Header

Existing Equip.

C

Test

B

A

Production

To TB200

6’x15’ Test A

To TB200

8’x20’ Sep

6’x15’ Test B

To GCF

To Vent

New 10’x30’ Sep

To 10” Vent


Xto university block 20 expansion

XTO University Block 20 Expansion

  • History:

    • University Land

    • Drilling started 2 ½ years ago

    • Better production than expected

  • Plan:

    • 4 wells are planned

    • Additional separation and treating required to meet forecasted production

  • Scope:

    • Locate potential tie-ins

    • Determine appropriate sized vessels

    • Determine line sizing


University block 20 plot plan

University Block 20 – Plot Plan

Existing Block 20 Test Sep

New Block 20 Test Sep

Existing Block 20 Prod Sep

New H/T

Existing H/T

New Block 21 Prod Sep

Existing Block 21 Test Seps


Xto university block 20 expansion1

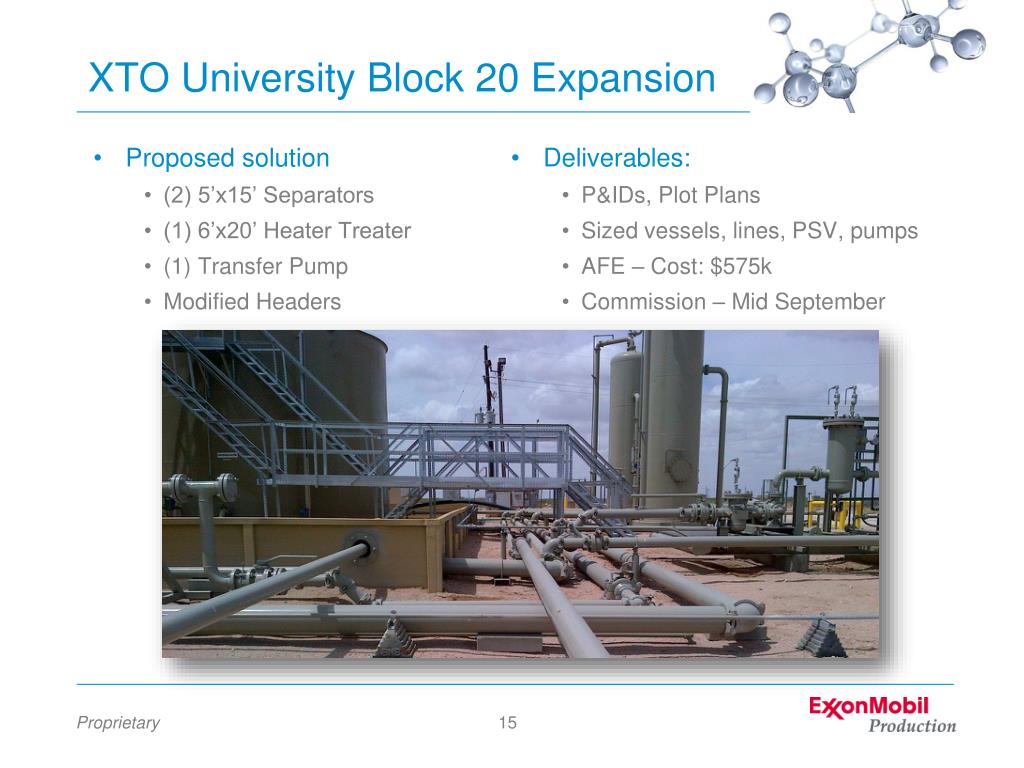

XTO University Block 20 Expansion

  • Proposed solution

    • (2) 5’x15’ Separators

    • (1) 6’x20’ Heater Treater

    • (1) Transfer Pump

    • Modified Headers

  • Deliverables:

    • P&IDs, Plot Plans

    • Sized vessels, lines, PSV, pumps

    • AFE – Cost: $575k

    • Commission – Mid September


Deliverables sizing1

Deliverables - Sizing

  • Heater Treater

    • Nomograph

    • Sivall’s Manual on Crude Oil Treating

  • Transfer Pumps

    • 1 Stage

    • Size: 1x2 - 10

    • Impeller Size: 8.875 in


Other experiences gained

Other Experiences Gained

  • Opportunity to work with XTO and travel to Midland, TX

    • Fracking & Acid Job

    • Perforation Job

    • Fabrication Yard

  • Enerflex Compression Skids

  • TB 200 Construction


Lessons learned

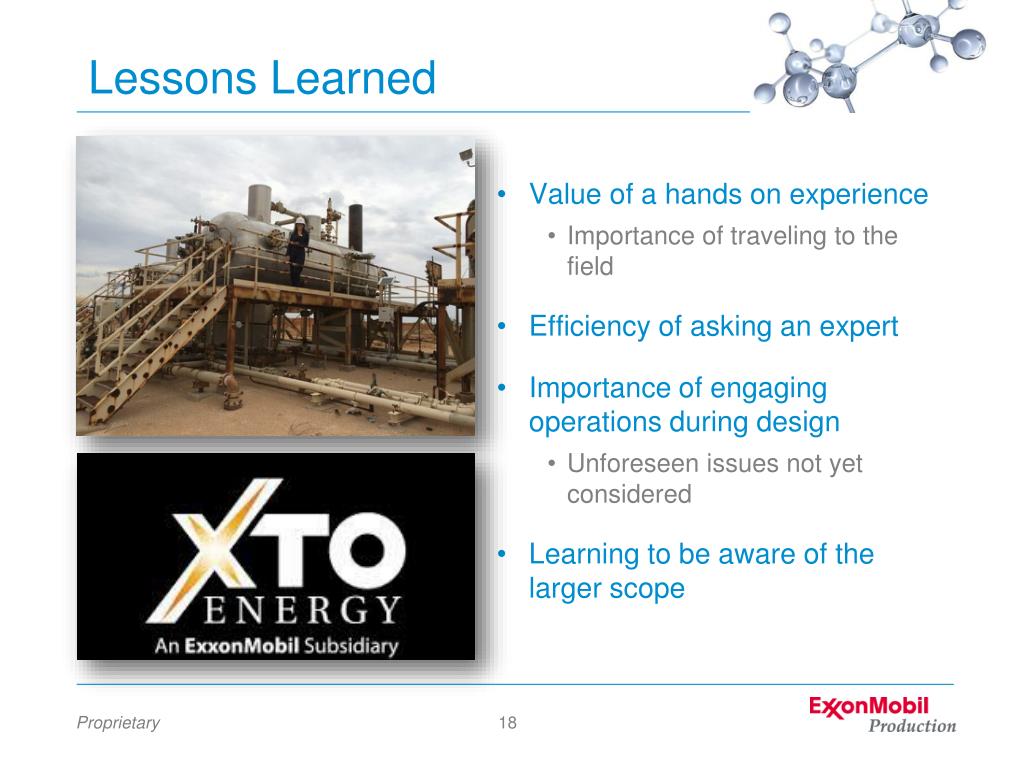

Lessons Learned

  • Value of a hands on experience

    • Importance of traveling to the field

  • Efficiency of asking an expert

  • Importance of engaging operations during design

    • Unforeseen issues not yet considered

  • Learning to be aware of the larger scope


Thank you any questions

Thank You, Any Questions?

Take the attitude of a student, never be too big to ask questions, never know too much tolearnsomething new.

-OgMandino
