Basic workshop processes

Faculty of Engineering

Mechanical Engineering Department

Basic Workshop Processes

Abdou Abdel-Samad

Lecture No. (9)

Turning


Outlines

Outlines

  • Various Processes

    • Cutting and Non-Cutting Processes

  • Machining Operation with Machine Tools

  • Care and Maintenance of Machine Tools

  • Economical Production

  • Turning Operations

  • Turning Processes

    • Longitudinal, Transversal, Angular (taper), Profile and Thread turning

  • Turning Machines (Lathes)

  • Main Parts of the Turning Lathe

    • Headstock, Main Spindle, Carriage, Tail Stock and Lathe Bed

  • Turning Tools

    • Angles of the cutting tool

    • Checking of Tool Angles

    • Plan, nose and inclination angles of the turning tool

  • Type of Cutting Tools

    • Roughing, Finishing, Side, Parting-off, Profile, Threading and Boring Tools

  • Maintenance of Turning Tools

  • Clamping of Cutting Tools

  • Setting of Cutting Tools

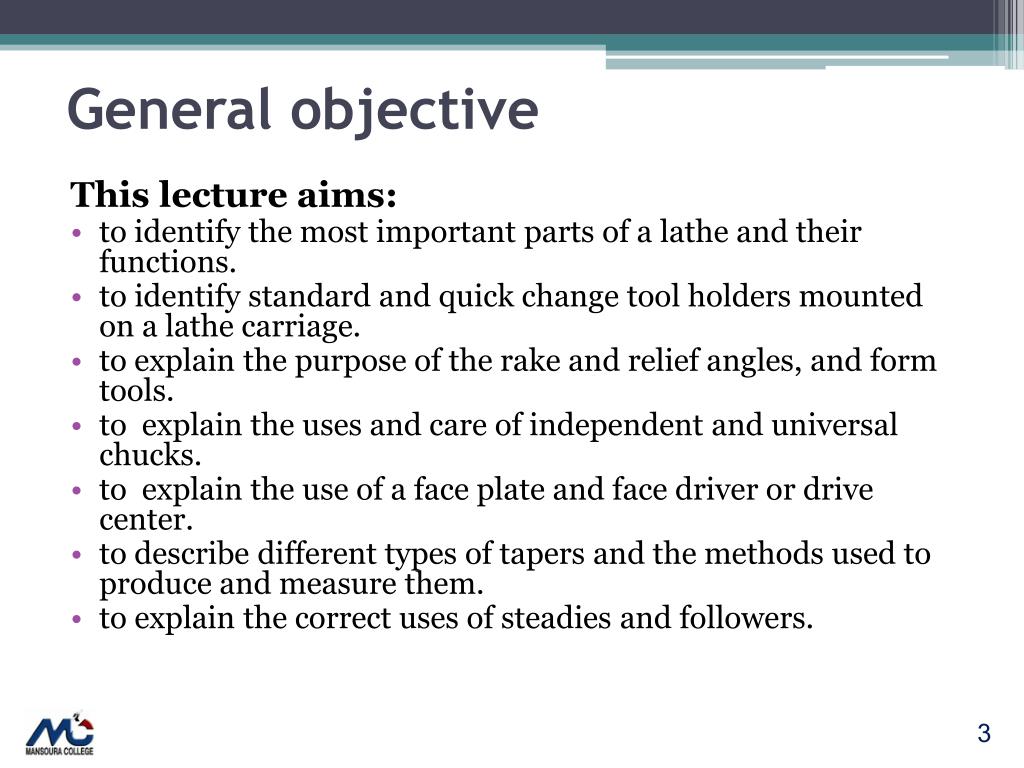

General objective

General objective

This lecture aims:

to identify the most important parts of a lathe and their functions.

to identify standard and quick change tool holders mounted on a lathe carriage.

to explain the purpose of the rake and relief angles, and form tools.

to explain the uses and care of independent and universal chucks.

to explain the use of a face plate and face driver or drive center.

to describe different types of tapers and the methods used to produce and measure them.

to explain the correct uses of steadies and followers.


Basic workshop processes

عمليات تشكيل

السباكة

السحب

القص

الحدادة

الدرفلة


Basic workshop processes

عمليات تشغيل

النشر

الخراطة

الثقب

الكشط

التفريز


Machining operation with machine tools

Machining operation with machine tools


Lathe

المخرطة(Lathe)


Basic workshop processes

المثقاب

Radial Drilling Machine

Pillar Drilling Machine

Bench Drilling Machine


Basic workshop processes

المكشطة النطاحة


Basic workshop processes

الفريزة


Care and maintenance of machine tools

Care and maintenance of machine tools


Care and maintenance of machine tools1

Safety 2

Safety 3

Safety 1

Care and maintenance of machine tools

  • Do not start a machine of which the operation is not known.

  • Oil all hand lubricating points daily.

  • Before starting, check whether all levers are in the proper position.

  • Protect the guideways from foreign materials.

  • Bearing must not be allowed to run more than normal working temperature.

  • The electric motor must be protected from dust and moisture.

  • Clean the machine frequently. Do not use compressed air.

  • Pay attention to the posters displayed for accident prevention.


Economical production

Economical production

Economic manufacture means:

  • The workpieces must correspond to the demands regarding material, shape, accuracy to size and surface quality.

  • The manufacturing time must be as short as possible.

  • The cost of manufacture should be as low as possible, e.g. wear of tools and machines, consumption of raw materials and auxiliaries also power consumption should be very low.


Turning o perations

Turning operations


Motions while turning

Motions while turning

سرعة القطع

التغذية

عمق القطع


Turning processes

Turning processes


Basic workshop processes

الخراطة الطولية

خارجية

داخلية


Basic workshop processes

الخراطة الوجهية (المستعرضة)

خارجية

داخلية

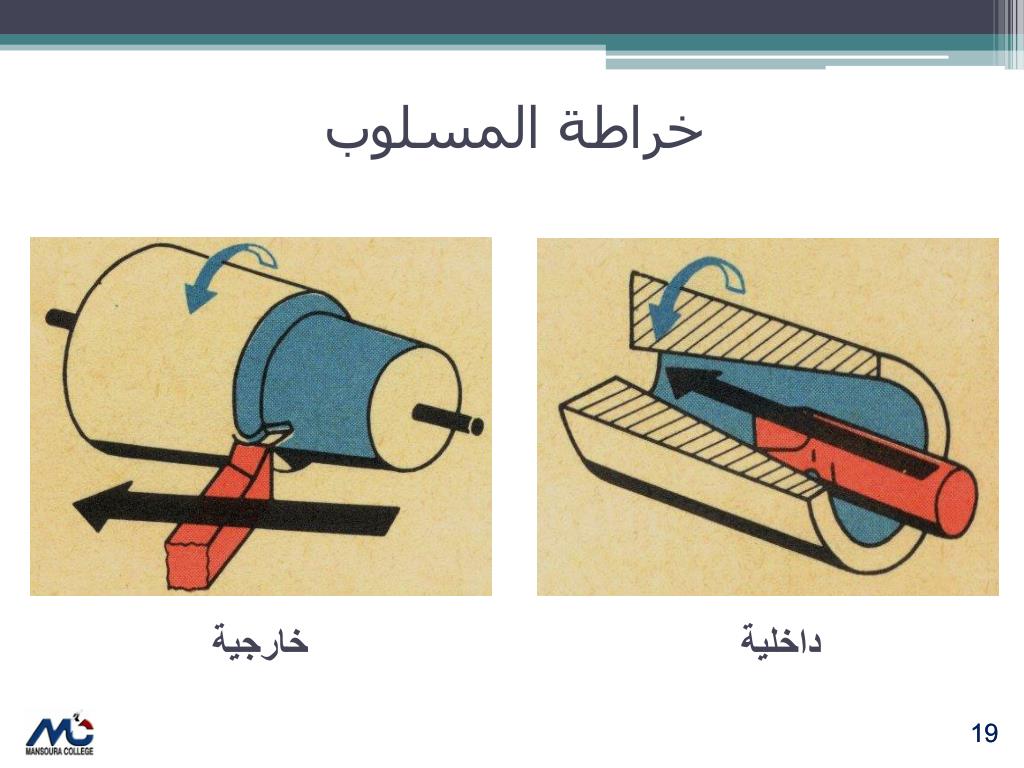

Basic workshop processes

خراطة المسلوب

خارجية

داخلية


Basic workshop processes

خراطة التشكيل

خارجية

داخلية


Basic workshop processes

خراطة اللولب

خارجية

داخلية


Turning machines lathes

Turning machines (Lathes)


Basic workshop processes

مخرطة الذنبة


Main parts of the turning lathe

Main parts of the turning lathe


Main parts of the turning lathe1

Main parts of the turning lathe

  • فرش المخرطة

  • الغراب الثابت

  • الرسمة الطولية للعربة

  • الغراب المتحرك

  • صندوق تروس التغذية

  • عمود اللولب

  • عمود الجر

  • ذراع التشغيل


Headstock

Speed levers

Headstock

(a) Main spindle (b) Engagement lever


Main spindle

Main spindle

  • With plain bearings

  • Main spindle

  • Head of the main spindle

  • Bearing bush

  • Ring nut

  • Thrust bearing

  • With roller & ball bearings

Taper roller bearing

Ball bearing

Roller bearing


Carriage

Carriage

Saddle

Cross-slide

Compound-slide

Tool holder

Apron box


Tail stock

Tail Stock

Spindle

Sleeve

Hand wheel

Set-screw

Base

Clamping piece

Clamping lever


Lathe bed

Lathe Bed


Basic workshop processes

Turning tools

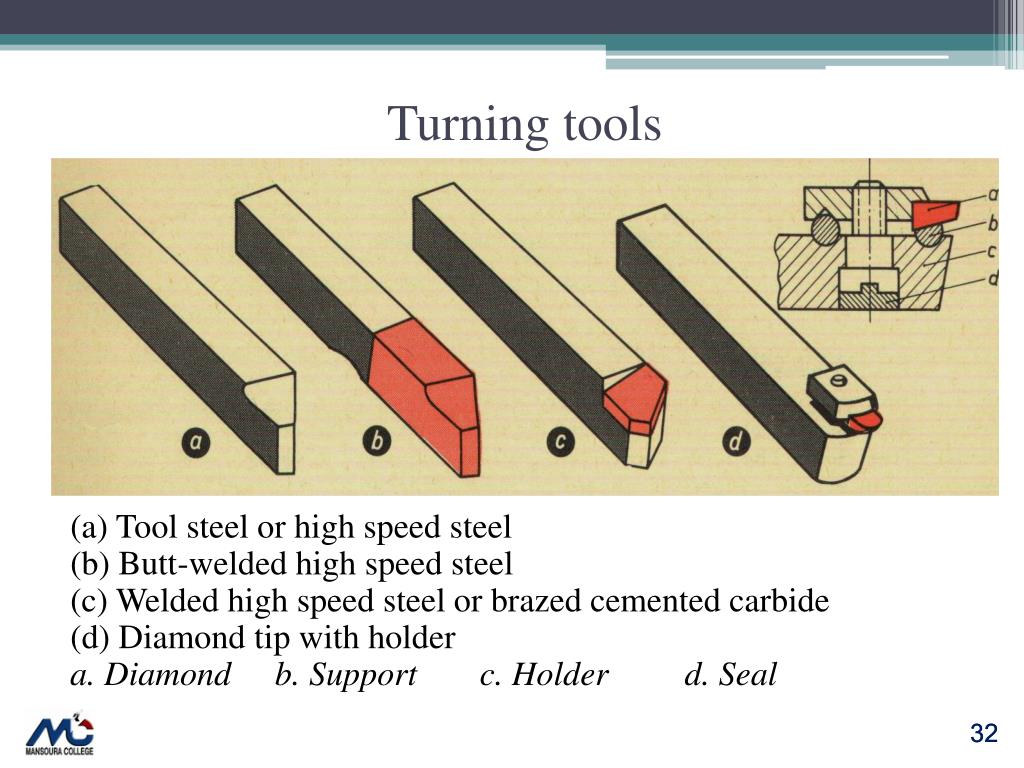

Turning tools

Turning tools

(a) Tool steel or high speed steel

(b) Butt-welded high speed steel

(c) Welded high speed steel or brazed cemented carbide

(d) Diamond tip with holder

a. Diamond b. Supportc. Holderd. Seal


Cutting tool and workpiece

Cutting tool and workpiece

  • Shank(b) Tool point(c) Cut face(d) Machined surface

  • (e) Clearance face(f) Top face(g) Wedge(h) Cutting edge

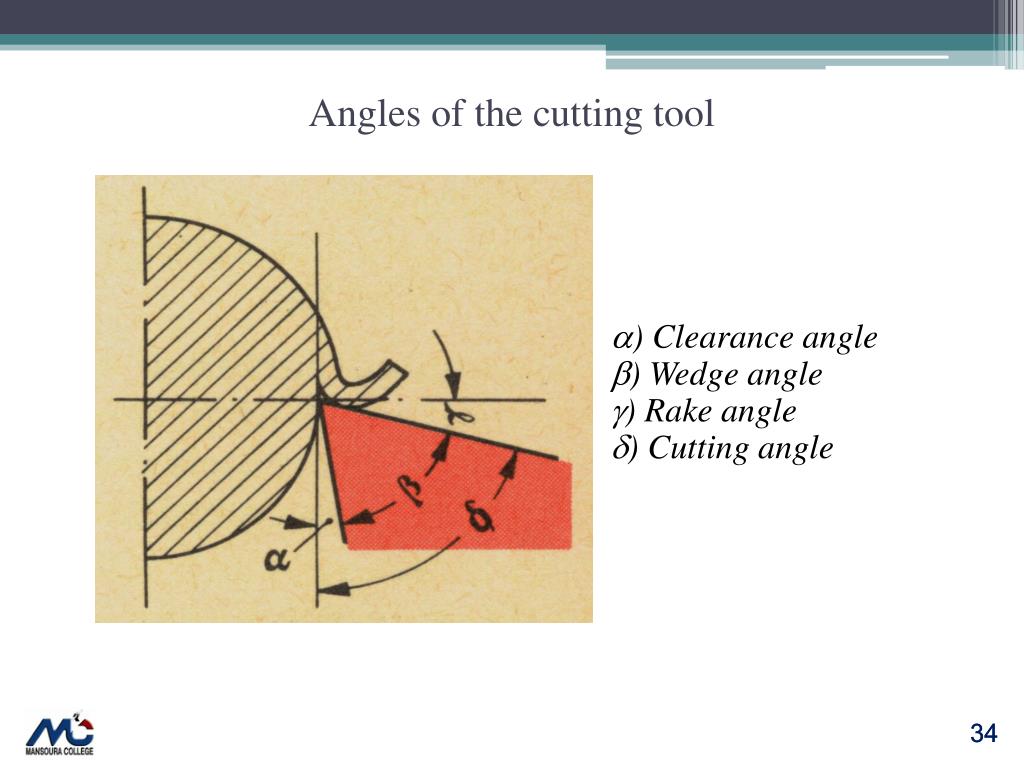

Angles of the cutting tool

Angles of the cutting tool

) Clearance angle

) Wedge angle

) Rake angle

) Cutting angle


Checking of tool angles

Checking of tool angles

Checking of the clearance angle

Checking of the wedge angle

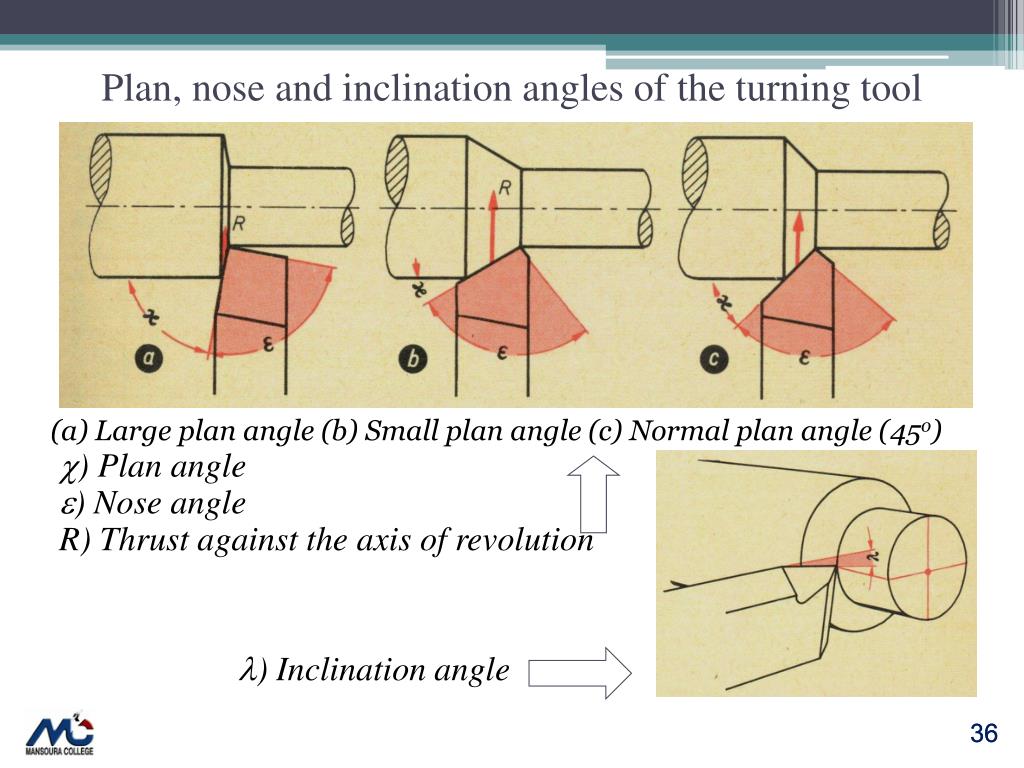

Plan nose and inclination angles of the turning tool

Plan, nose and inclination angles of the turning tool

(a) Large plan angle (b) Small plan angle (c) Normal plan angle (45o)

) Plan angle

) Nose angle

R) Thrust against the axis of revolution

) Inclination angle


Type of cutting tools

Type of cutting tools


Roughing tools

Roughing Tools

a) Left-hand

b) Right-hand

c) Left-bent

d) Right-bent


Finishing tools

Finishing Tools

a) Straight finishing tool

b) Wide face square nose finishing tool


Side tools

Side Tools

a) Left-hand

b) Right-hand

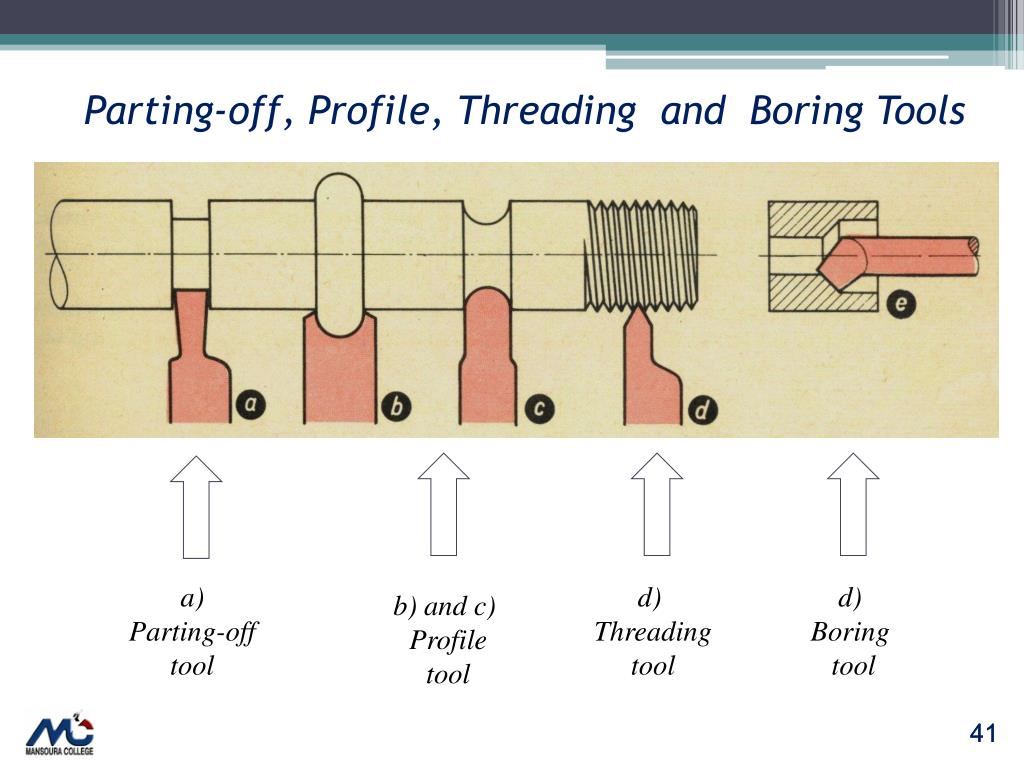

Parting off profile threading and boring tools

Parting-off, Profile, Threading and Boring Tools

a)

Parting-off

tool

d)

Threading

tool

d)

Boring

tool

b) and c)

Profile

tool


Maintenance of turning tools

Maintenance of turning tools

Wrong

Wright


Maintenance of turning tools1

Maintenance of turning tools

The following instructions have to be observed while grinding:

  • The grinding wheel should run against the cutting edge.

  • The feed pressure should not be too much.

  • In case of wet grinding plenty of coolant should be used.

  • Concave grinding of the clearance face should be avoided.

  • Cutting angles should be tested with the grinding gauge.

  • Grinding wheels, which are untrue running or greasy, should be dressed with a wheel dresser.

  • Safety precautions should be observed.


Clamping of cutting tools

Clamping of cutting tools


Clamping of cutting tools1

Clamping of cutting tools

Stress on the cutting tool by the cutting force F

Tool post


Clamping of cutting tools2

Tool Holder Video

Tool Post Video

Clamping of cutting tools

Clamping Plate

Four-way tool post


Setting of cutting tools

Tool Setting 1

Tool Setting 2

Setting of cutting tools

(a) Tool above center line

(b) Tool on center line

(c) Tool below center line

Influence of setting the tool above or below the center line on the clearance and rake angles.

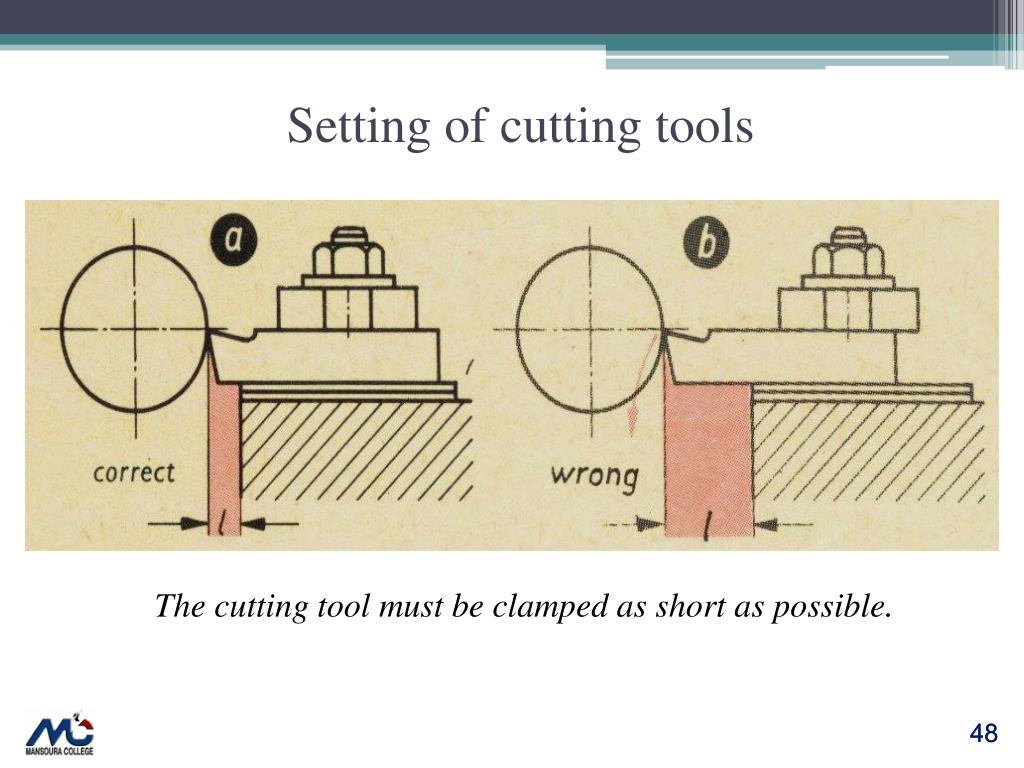

Setting of cutting tools1

Setting of cutting tools

The cutting tool must be clamped as short as possible.


Turning operations video

Turning operations(Video)
