Using the Data of the EarthScope in Education Susan Eriksson, UNAVCO Director of Education and Outreach. August 11, 2009. Approach for today. Purpose What types of data for EarthScope components What will you use it for? Resources for data Resources for educational framework

elliot
Download Presentation

August 11, 2009

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Using the Data of the EarthScope in Education Susan Eriksson, UNAVCO Director of Education and Outreach August 11, 2009

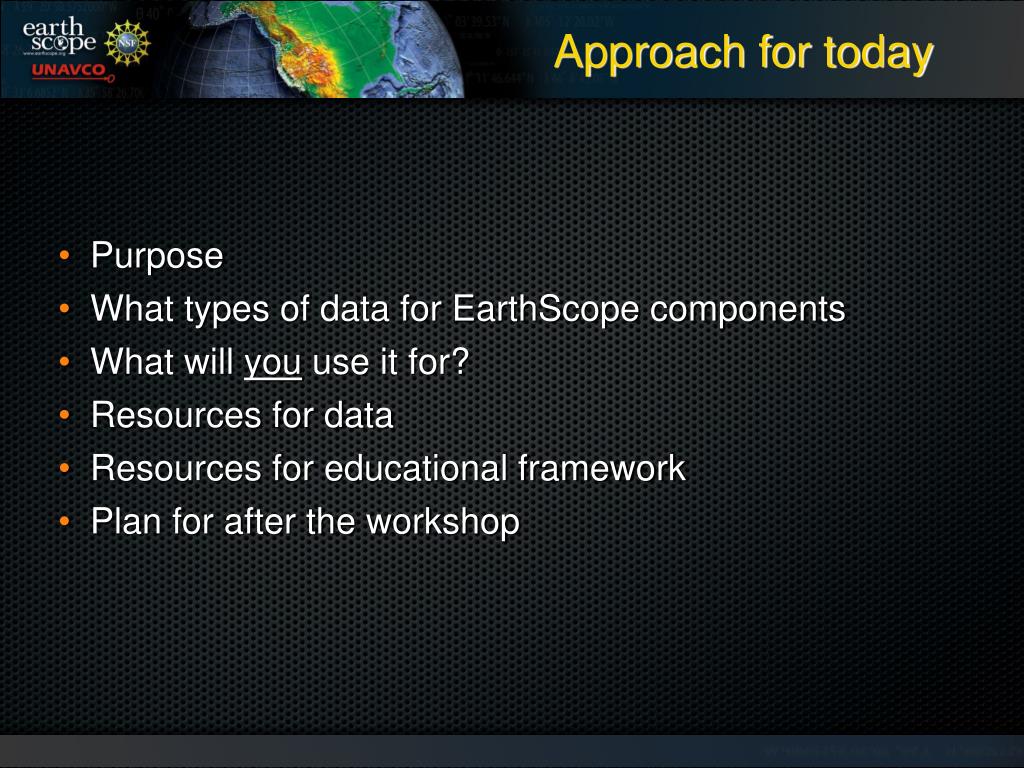

  2. Approach for today • Purpose • What types of data for EarthScope components • What will you use it for? • Resources for data • Resources for educational framework • Plan for after the workshop

  3. Why EarthScope? • Scientific discoveries - the ‘content’ • things we know • things we don’t know • How we go about ‘finding out’ • Skills of science -? • Exploration - inquiry

  4. Drillhole across San Andreas Fault 875 GPS Instruments 175 Borehole Strainmeters 5 Long-Baseline Laser Strainmeters 400 Seismometers at 2,000 sites 100 Permanent Seismometers

  5. SAFOD A borehole laboratory on the San Andreas fault studying the physics of earthquake nucleation at the depths where earthquakes begin

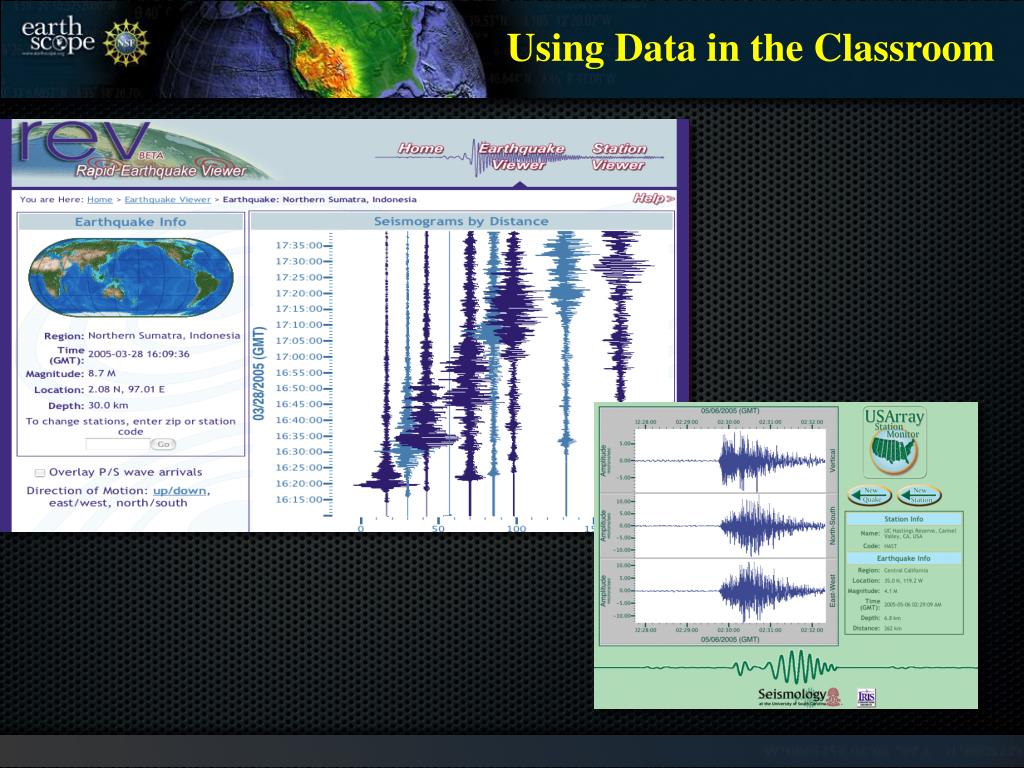

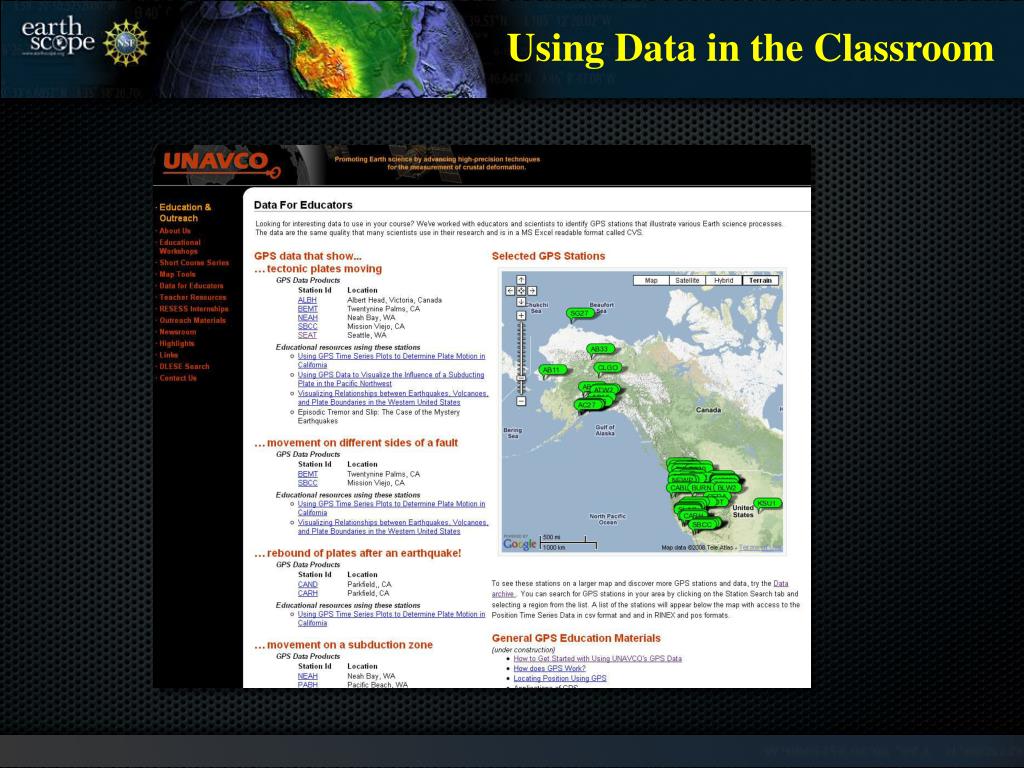

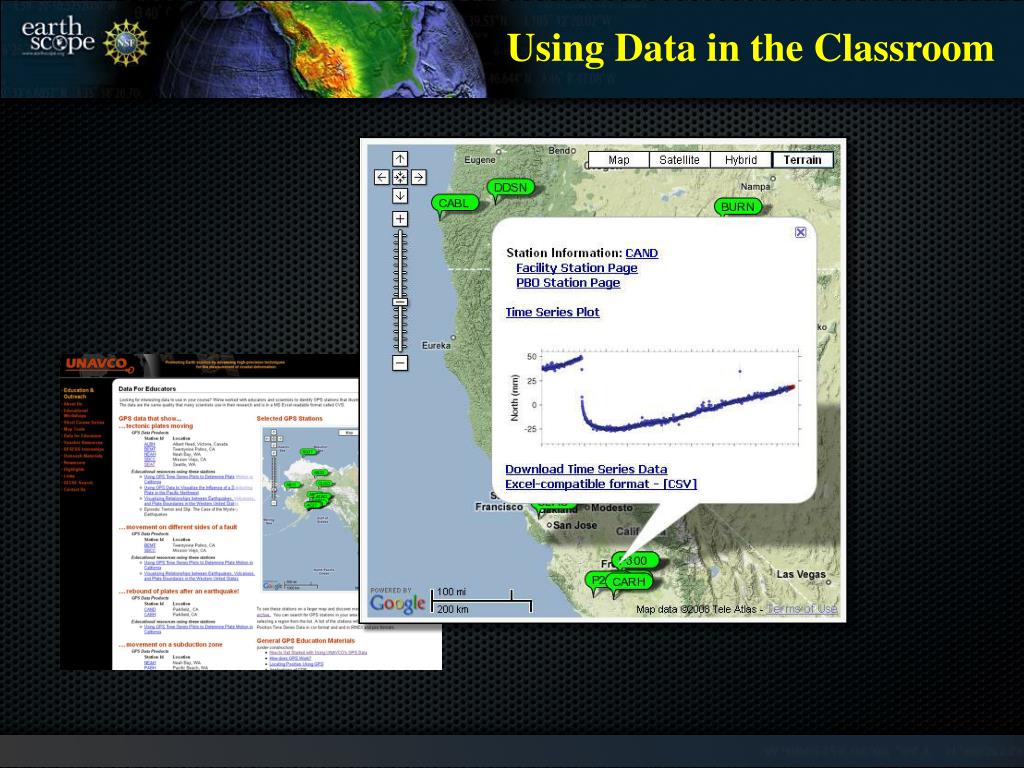

  6. Using Data in the Classroom

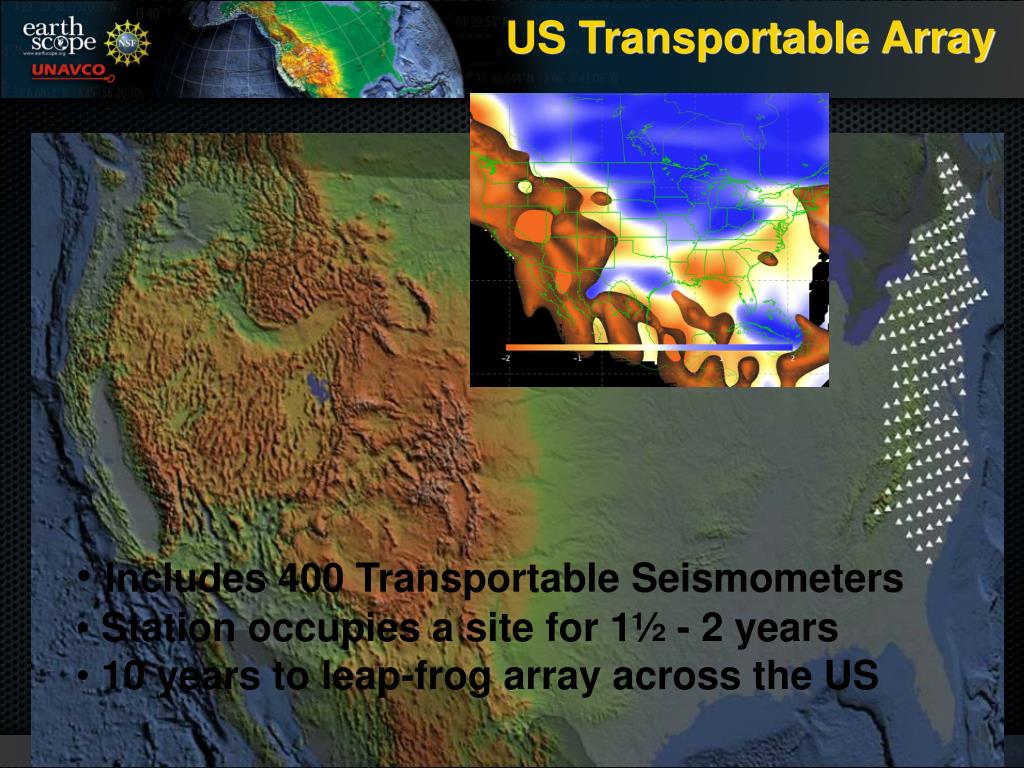

  7. US Transportable Array • Includes 400 Transportable Seismometers • Station occupies a site for 1½ - 2 years • 10 years to leap-frog array across the US

  8. Special Events 1.1.7 Special Events 2008 Wells, Nevada Earthquake Web fact sheet Teachable moment Powerpoint for faculty use Ground motion visualization: Blue down Red up  Charles Ammon, Penn State

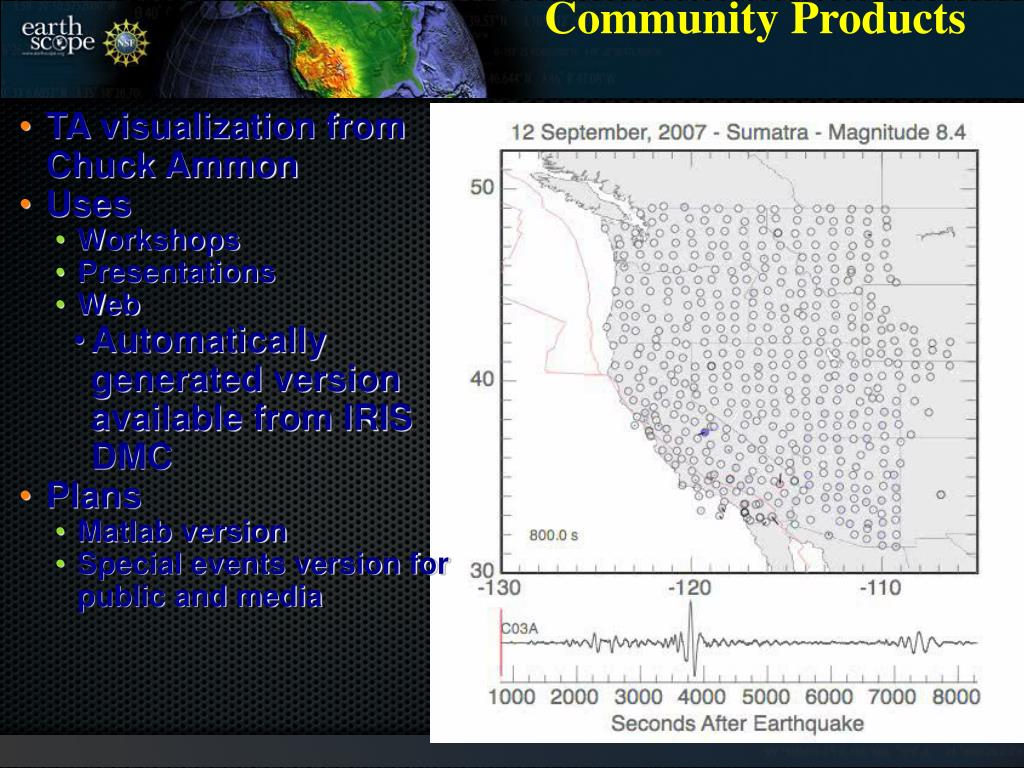

  9. Community Products TA visualization from Chuck Ammon Uses Workshops Presentations Web Automatically generated version available from IRIS DMC Plans Matlab version Special events version for public and media Community Products

  10. PBO 11

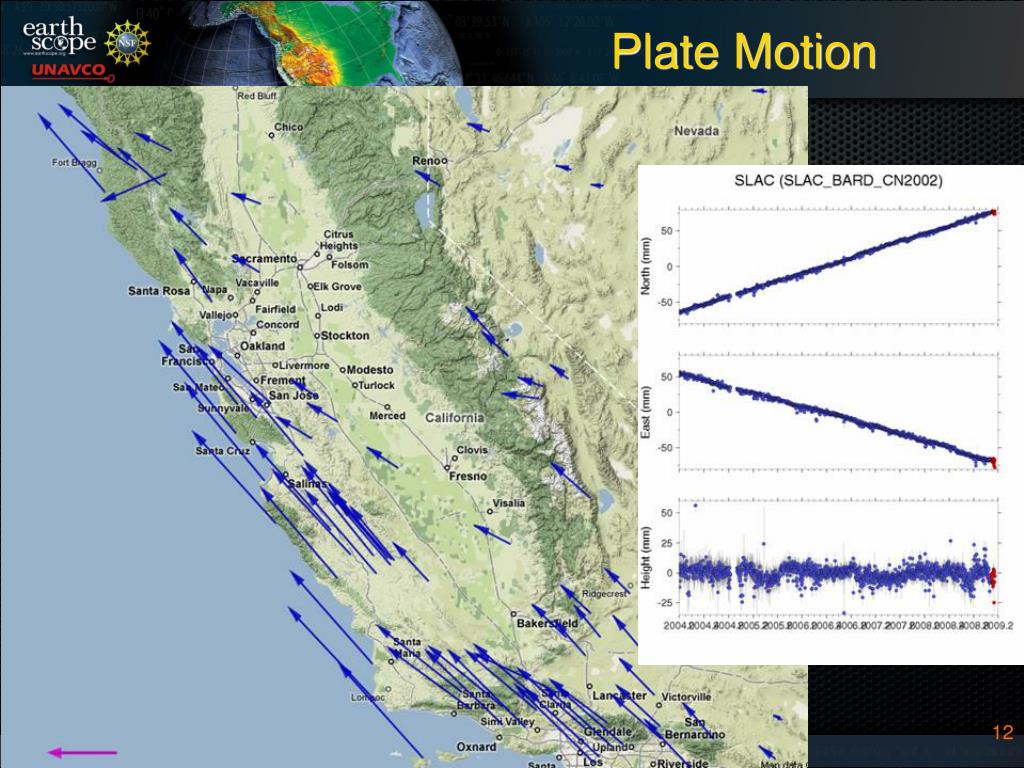

  11. Plate Motion 12

  12. Using Data in the Classroom

  13. Cascadia

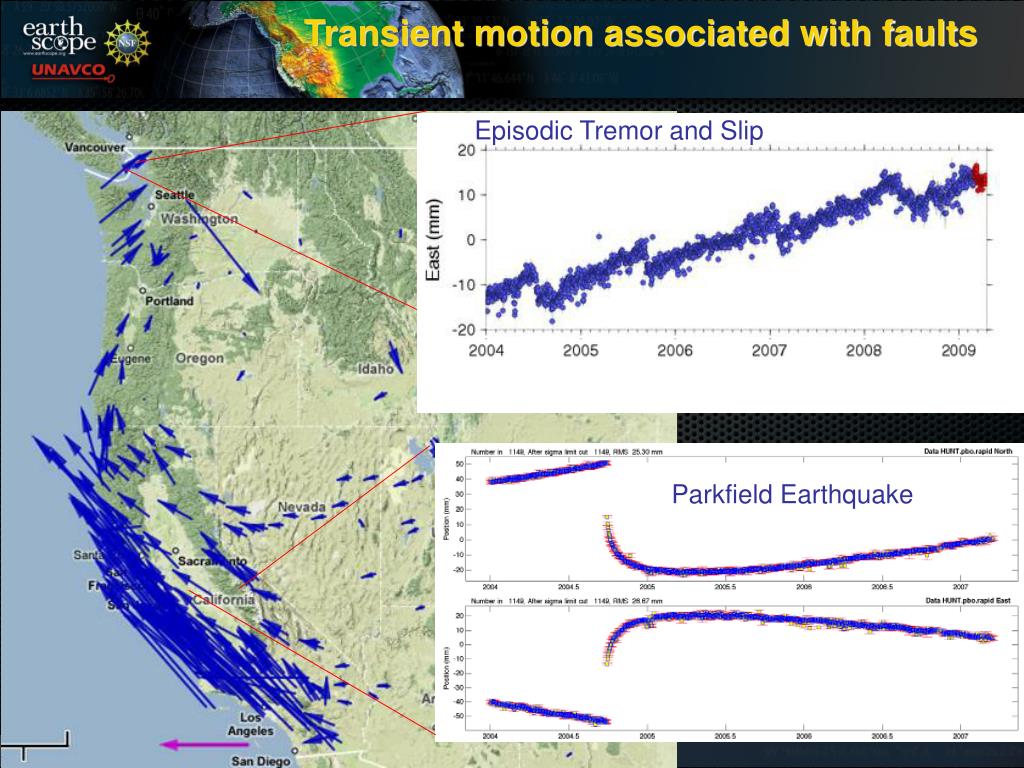

  14. Transient motion associated with faults Episodic Tremor and Slip Parkfield Earthquake 15

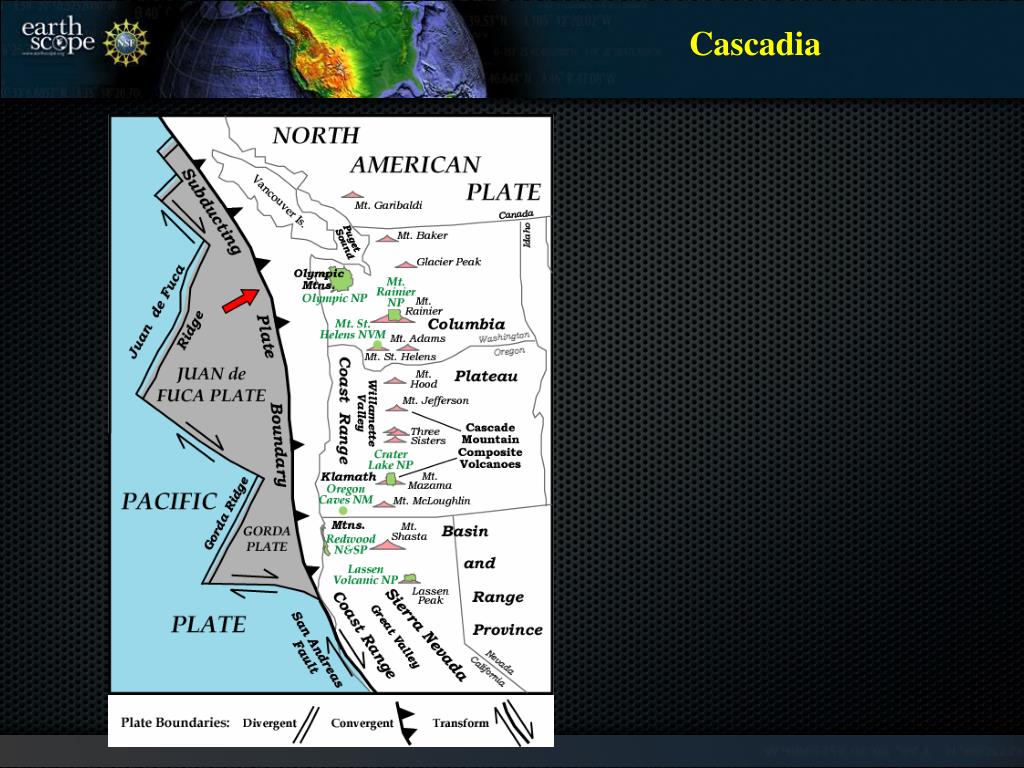

  15. Cascadia Interpretive Workshop Cascadia Subduction Zone We can see what’s on the surface. How does the surface change as a response to subduction? How does EarthScope help us appreciate earthquakes, tsunamis, and volcanic eruptions?

  16. Using Data in the Classroom

  17. Animations Developing series to explain EarthScope-related concepts Episodic tremor and slip Animations

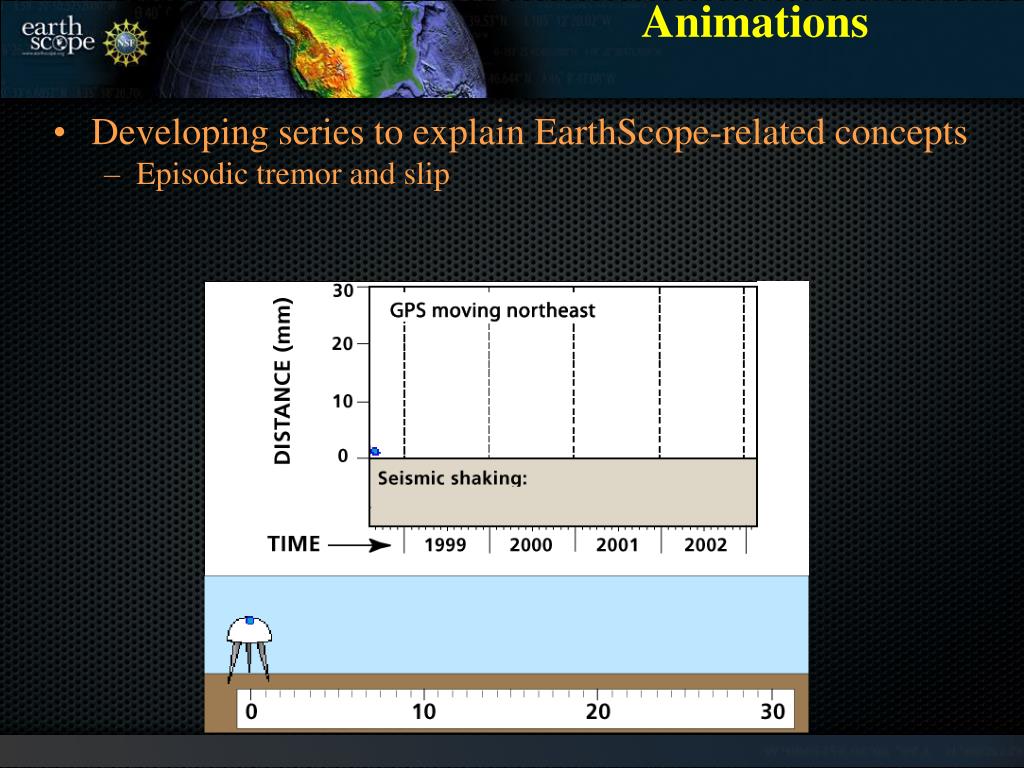

  18. Animations Animations • Developing series to explain EarthScope-related concepts • Episodic tremor and slip

  19. ETS Progression over days http://www.pnsn.org/WEBICORDER/DEEPTREM/fall2006.html 20 Trem_movie_2008eq_time.mov

  20. Using Data in the Classroom

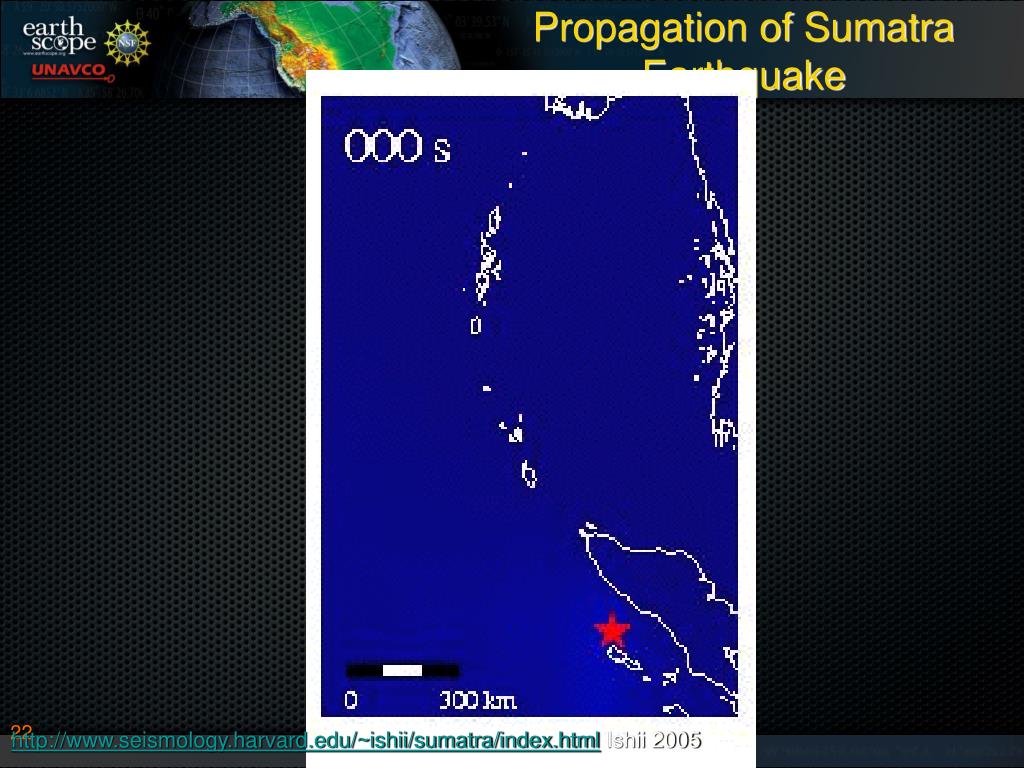

  21. Propagation of Sumatra Earthquake http://www.seismology.harvard.edu/~ishii/sumatra/index.html Ishii 2005 22

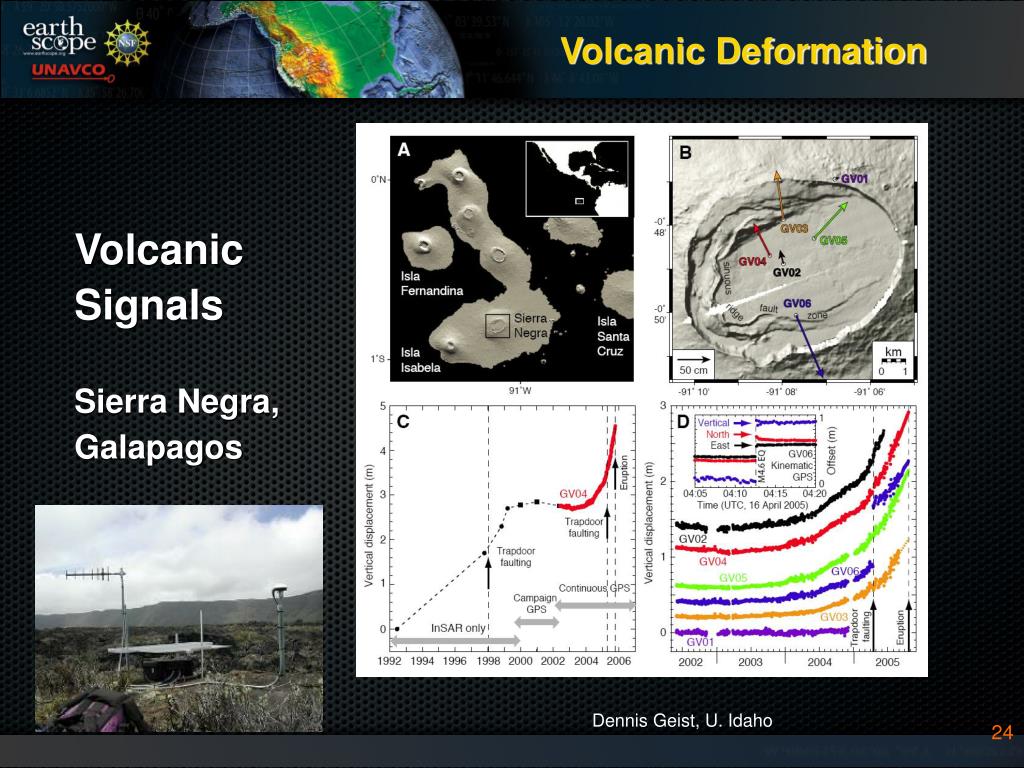

  22. Volcanic Deformation Volcanic Signals Sierra Negra, Galapagos Time Dennis Geist, U. Idaho 24
