The Global Heat Budget

  • Air-sea exchanges of heat (& freshwater) create deep water masses & drive the conveyor belt

  • Heat source into the ocean is solar radiation

  • There are several heat loss terms

    latent, conduction, longwave radiation, reflected solar

  • Ocean circulation moves heat (advection)


Solar radiation l.jpg

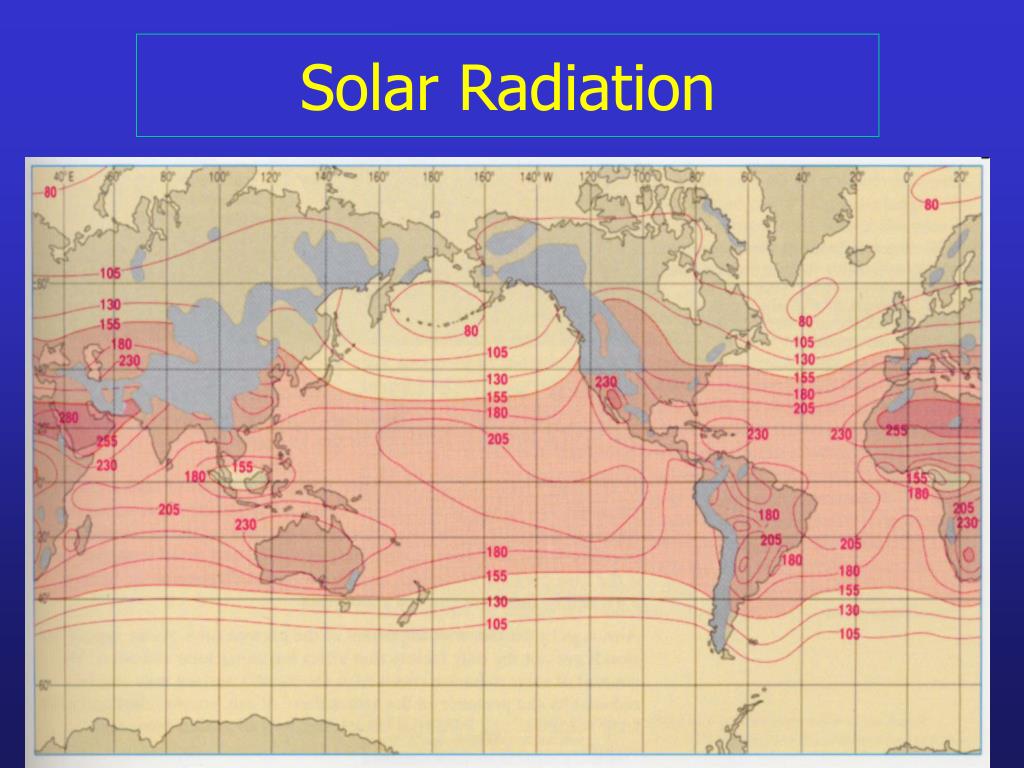

Solar Radiation


Solar radiation3 l.jpg

Solar Radiation


The heat budget l.jpg

The Heat Budget

Total heat flux (Qt) = Solar radiation (Qs)

- Latent heat loss (Qe)

- Conductive heat loss (Qh)

- Longwave radiation (Qb)

Qt = Qs - Qe - Qh - Qb


Heat loss terms l.jpg

Heat Loss Terms

  • Latent heat flux (Qe)

    • Energy required to evaporate water

    • Most important in tropics & midlatitudes

  • Conductive (or sensible) heat flux (Qh)

    • Loss to turbulent exchange with atmosphere

    • Typically small

  • Longwave radiation (Qb)

    • Net thermal IR emission from ocean


Global heat budget l.jpg

Global Heat Budget


Net solar radiation l.jpg

Net Solar Radiation

Typical Jan

Tropics

200 W/m2

Mid-latitudes

100 W/m2

High-latitude

~10 W/m2


Latent heat loss l.jpg

Latent Heat Loss

Typical Jan

Tropics

120 W/m2

Mid-latitudes

100 W/m2

High-latitude

~20 W/m2


Conductive heat loss l.jpg

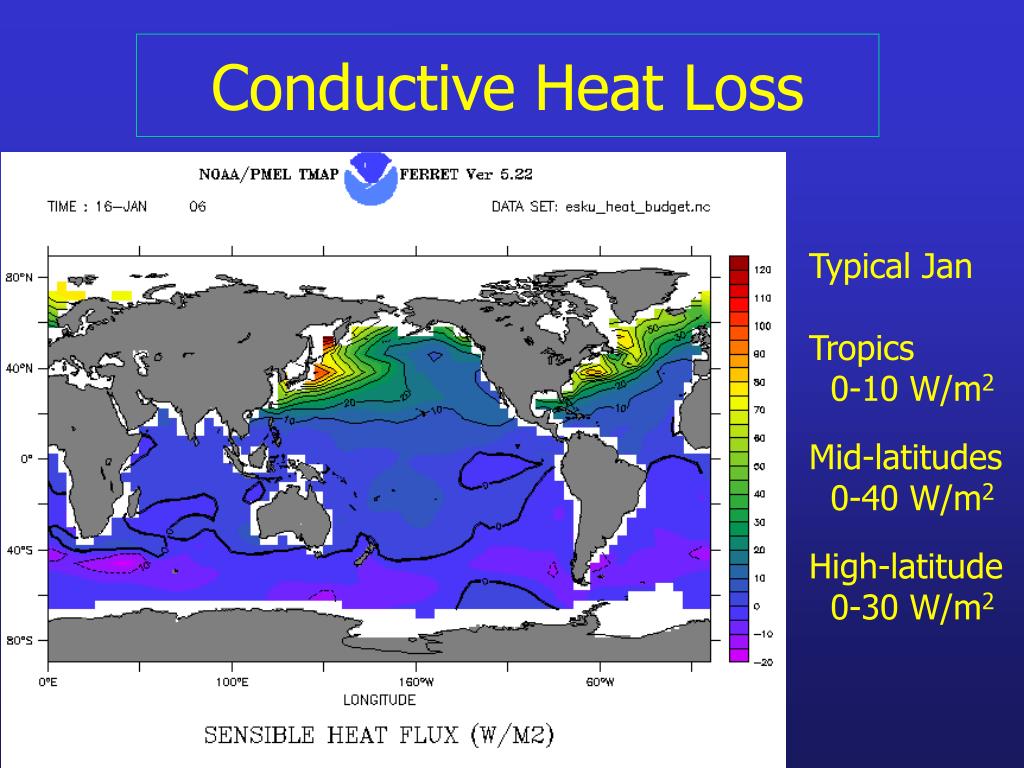

Conductive Heat Loss

Typical Jan

Tropics

0-10 W/m2

Mid-latitudes

0-40 W/m2

High-latitude

0-30 W/m2


Net longwave radiation l.jpg

Net Longwave Radiation

Typical Jan

Tropics

40-50 W/m2

Mid-latitudes

60-70 W/m2

High-latitude

30-50 W/m2


Total heat flux l.jpg

Total Heat Flux

Typical Jan

Cool NH

Heat - SH

WBC’s

-200 W/m2

SH Subtropics

70 W/m2

NH Subtropics

> -80 W/m2


Total heat flux12 l.jpg

Total Heat Flux

Typical July

Heat NH

Cool SH

NH Subtropics

100 W/m2

SH Subtropics

-40 W/m2


Global heat budget13 l.jpg

Global Heat Budget


Global heat transport l.jpg

Global Heat Transport


Global heat transport15 l.jpg

Global Heat Transport

1015 W = 1 Petawatt


Hydrographic inverse models l.jpg

Hydrographic Inverse Models

  • WOCE hydrographic sections are used to estimate global circulation & material transport

  • Mass, heat, salt & other properties are conserved

  • Air-sea exchanges & removal processes are considered

  • Provides estimates of basin scale circulation, heat & freshwater transports


Global heat transport17 l.jpg

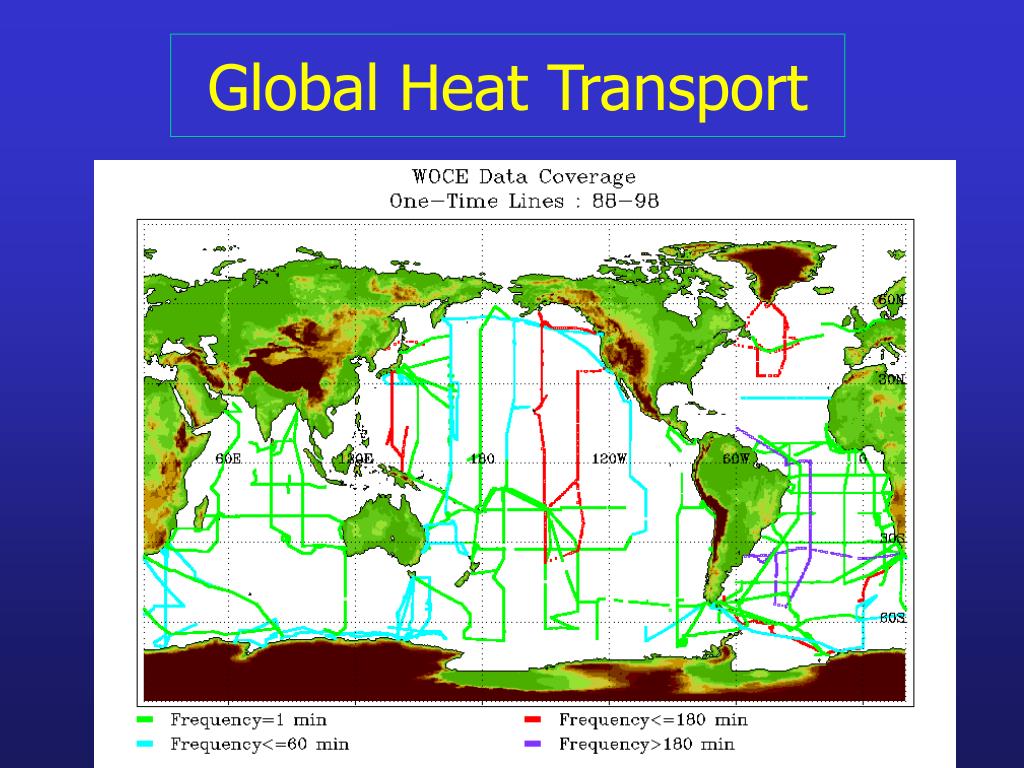

Global Heat Transport


Global heat transport18 l.jpg

Global Heat Transport


Global heat transport19 l.jpg

Global Heat Transport


The global heat budget20 l.jpg

The Global Heat Budget

  • Heat source into the ocean is solar radiation

  • There are several heat loss terms

    latent, conduction, longwave radiation, reflected solar

  • Ocean circulation moves heat (advection)

  • Large scale heat budget can be closed by analyzing hydrographic sections
