Omniaccess wan oa700

OmniAccess WANOA700

Hauke Heinecke


Omniaccess wan oa700

Was ist falsch?


Omniaccess 700 unified services gateway value propositions

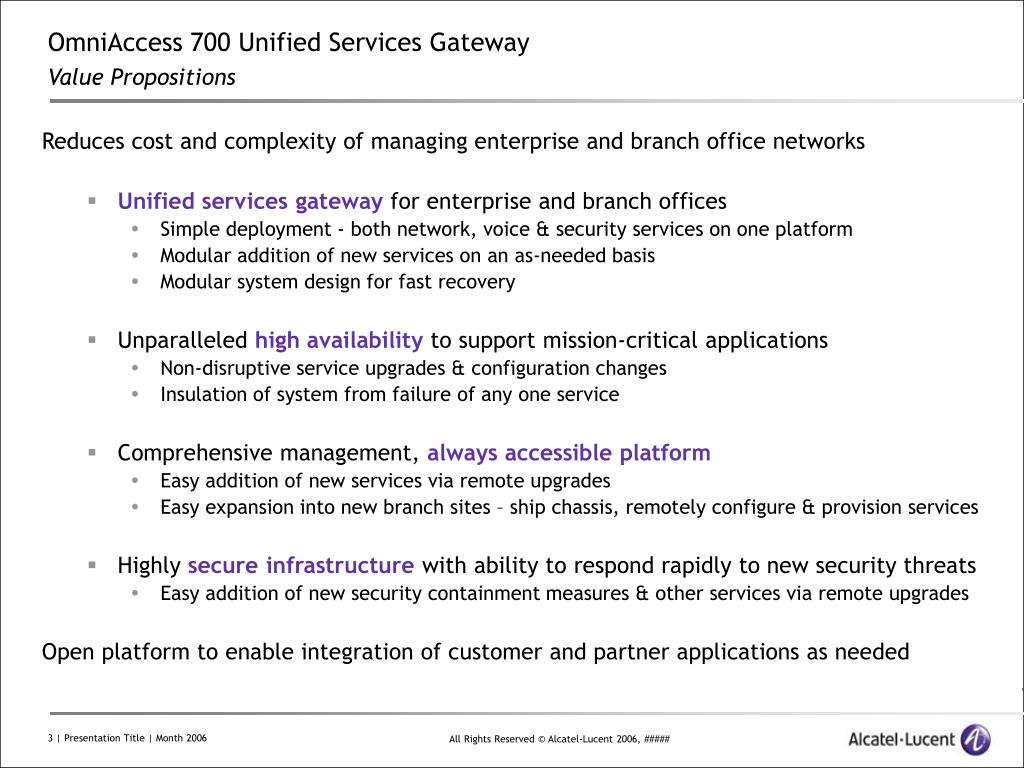

OmniAccess 700 Unified Services Gateway Value Propositions

  • Reduces cost and complexity of managing enterprise and branch office networks

    • Unified services gateway for enterprise and branch offices

      • Simple deployment - both network, voice & security services on one platform

      • Modular addition of new services on an as-needed basis

      • Modular system design for fast recovery

    • Unparalleled high availability to support mission-critical applications

      • Non-disruptive service upgrades & configuration changes

      • Insulation of system from failure of any one service

    • Comprehensive management, always accessible platform

      • Easy addition of new services via remote upgrades

      • Easy expansion into new branch sites – ship chassis, remotely configure & provision services

    • Highly secure infrastructure with ability to respond rapidly to new security threats

      • Easy addition of new security containment measures & other services via remote upgrades

  • Open platform to enable integration of customer and partner applications as needed

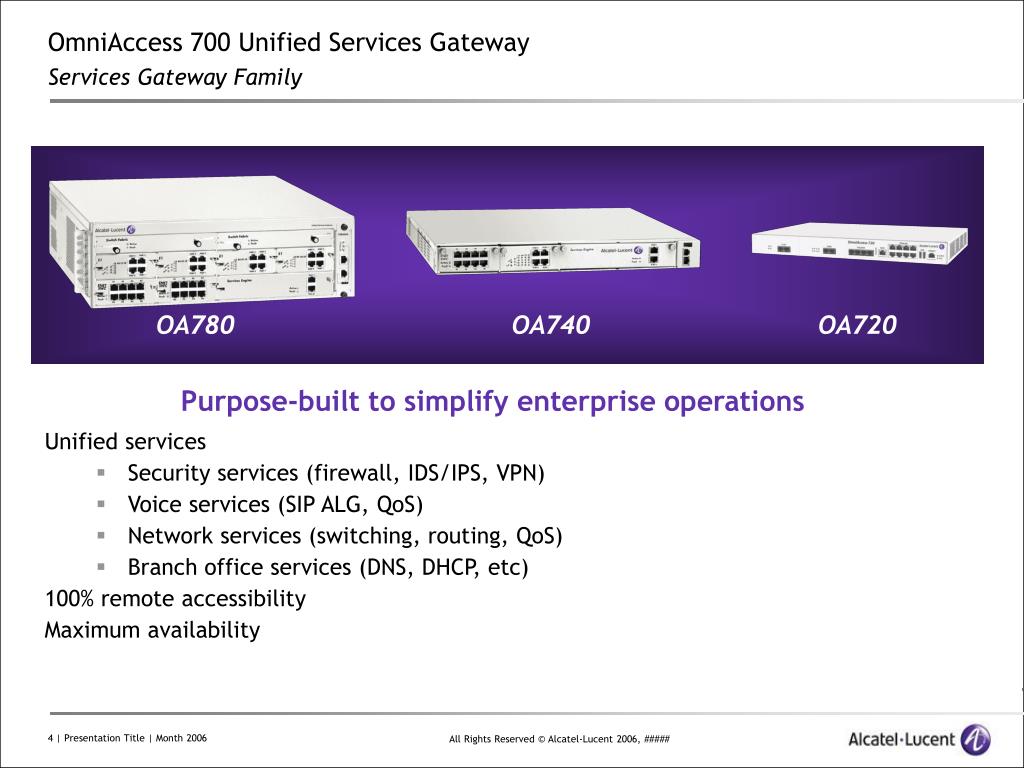

Omniaccess 700 unified services gateway services gateway family

OmniAccess 700 Unified Services Gateway Services Gateway Family

  • Unified services

    • Security services (firewall, IDS/IPS, VPN)

    • Voice services (SIP ALG, QoS)

    • Network services (switching, routing, QoS)

    • Branch office services (DNS, DHCP, etc)

  • 100% remote accessibility

  • Maximum availability

  • OA780

  • OA740

  • OA720

Purpose-built to simplify enterprise operations

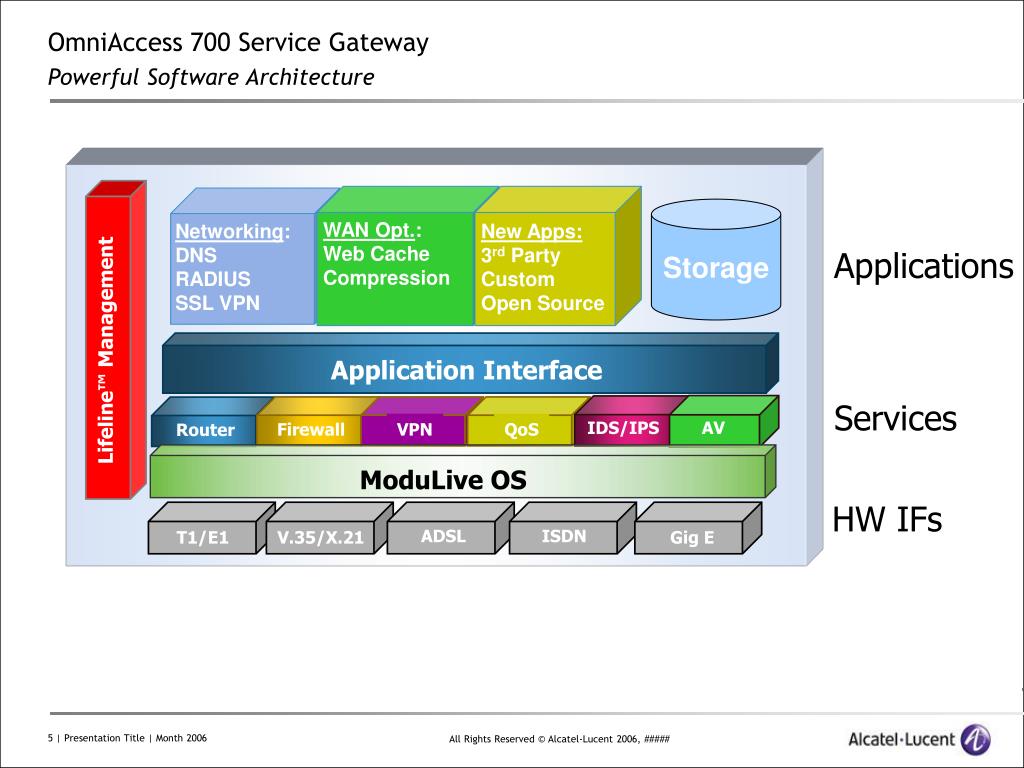

Omniaccess 700 service gateway powerful software architecture

Router

AV

IDS/IPS

Firewall

VPN

QoS

OmniAccess 700 Service Gateway Powerful Software Architecture

Storage

WAN Opt.:

Web Cache

Compression

Networking:

DNS

RADIUS

SSL VPN

New Apps:

3rd Party

Custom

Open Source

Applications

Lifeline™ Management

Application Interface

Services

ModuLive OS

HW IFs

ADSL

ISDN

T1/E1

V.35/X.21

Gig E


Omniaccess wan oa700

VoIP

IDS / IPS

Switching

Router

Firewall

VPN

IDS / IPS

ModuLive™ OS

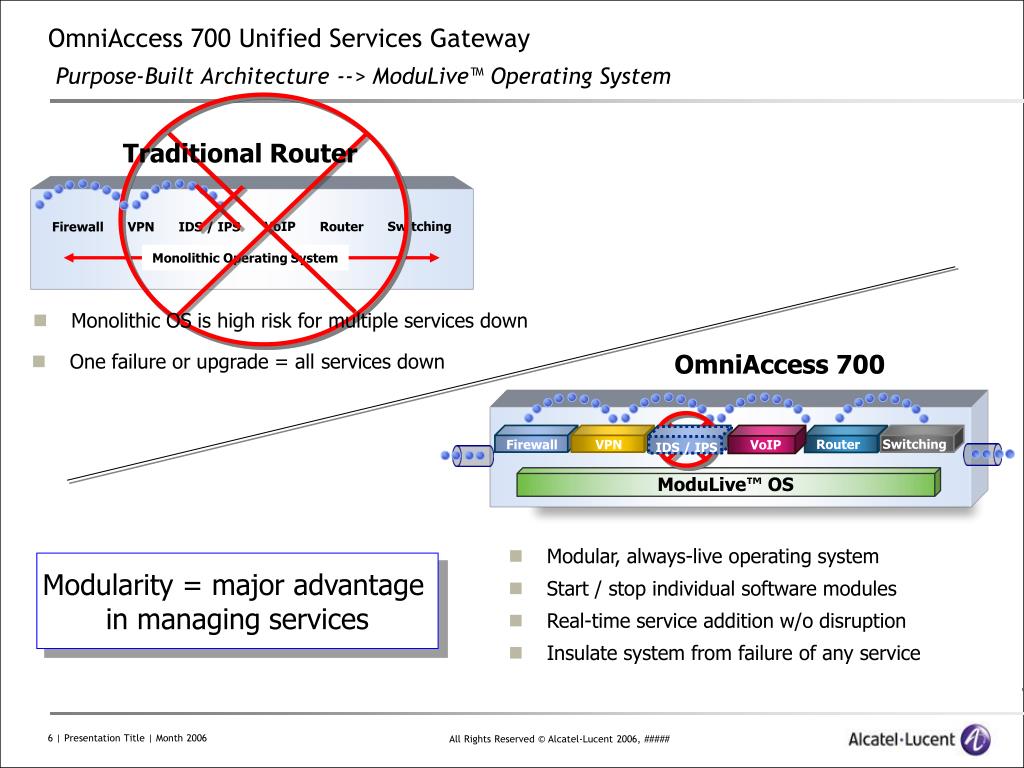

OmniAccess 700 Unified Services Gateway Purpose-Built Architecture --> ModuLive™ Operating System

Traditional Router

VoIP

Switching

Router

Firewall

VPN

IDS / IPS

Monolithic Operating System

  • Monolithic OS is high risk for multiple services down

OmniAccess 700

  • One failure or upgrade = all services down

  • Modular, always-live operating system

  • Start / stop individual software modules

  • Real-time service addition w/o disruption

  • Insulate system from failure of any service

Modularity = major advantage

in managing services


Omniaccess wan oa700

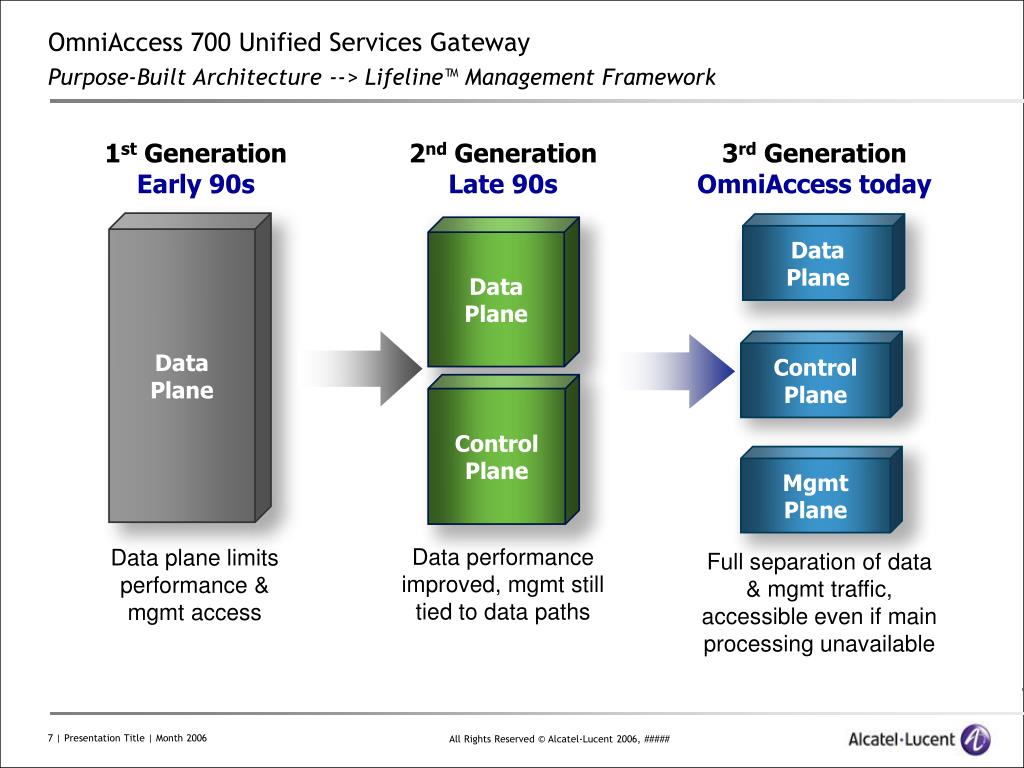

2nd Generation

Late 90s

3rd Generation

OmniAccess today

Data

Plane

Data

Plane

Control

Plane

Control

Plane

Mgmt

Plane

Data performance improved, mgmt still tied to data paths

Full separation of data & mgmt traffic, accessible even if main processing unavailable

OmniAccess 700 Unified Services Gateway Purpose-Built Architecture --> Lifeline™ Management Framework

1st Generation

Early 90s

Data

Plane

Data plane limits performance & mgmt access


Omniaccess wan oa700

Packet Ingress

Packet Ingress

1

1

Firewall

5

Routing

Single

Packet

Inspection

Packet Egress

2

4

Security

2

Firewall

Routing

(again)

Multiple

Packet

Inspections

3

Routing

3

Security

4

Packet Egress

Traditional Branch Office Routers

OmniAccess 700 USG

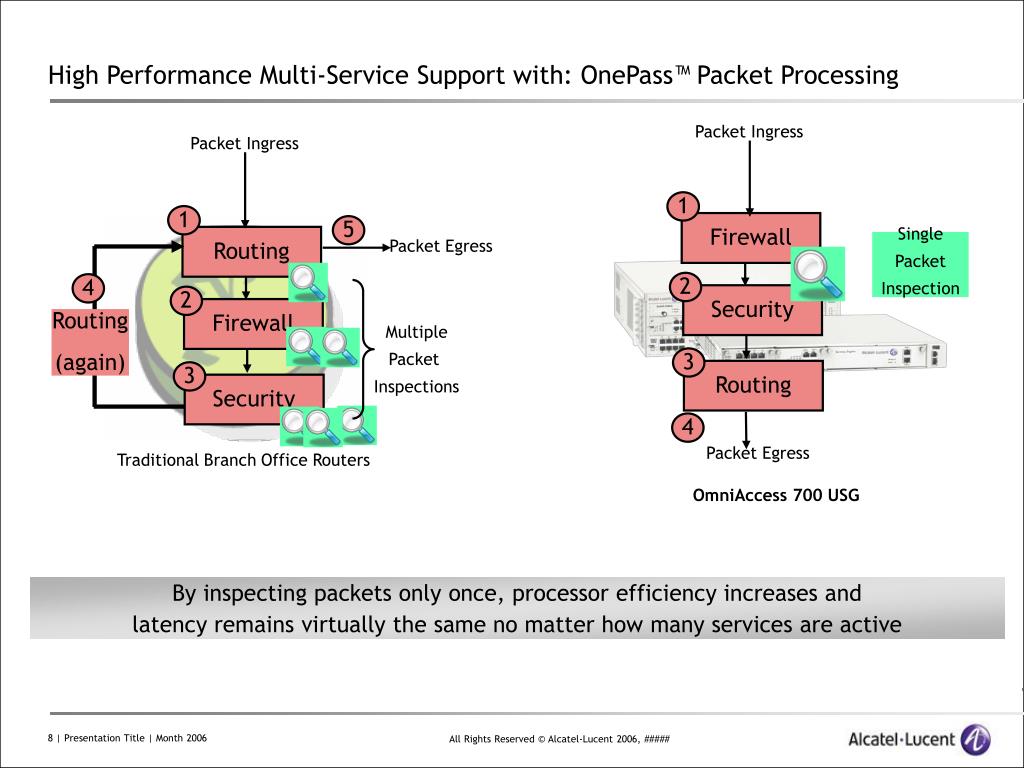

High Performance Multi-Service Support with: OnePass™ Packet Processing

By inspecting packets only once, processor efficiency increases and

latency remains virtually the same no matter how many services are active

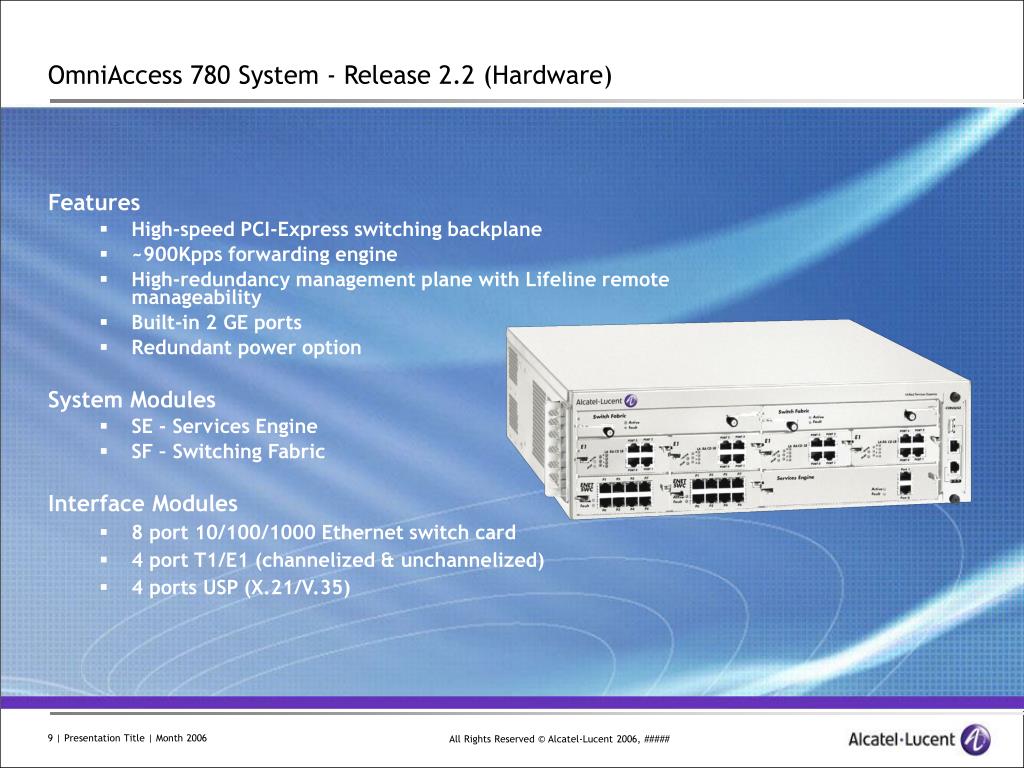

Omniaccess 780 system release 2 2 hardware

OmniAccess 780 System - Release 2.2 (Hardware)

  • Features

    • High-speed PCI-Express switching backplane

    • ~900Kpps forwarding engine

    • High-redundancy management plane with Lifeline remote manageability

    • Built-in 2 GE ports

    • Redundant power option

  • System Modules

    • SE - Services Engine

    • SF – Switching Fabric

  • Interface Modules

    • 8 port 10/100/1000 Ethernet switch card

    • 4 port T1/E1 (channelized & unchannelized)

    • 4 ports USP (X.21/V.35)


Oa780 cb a chassis bundle system overview release 2 2 hardware

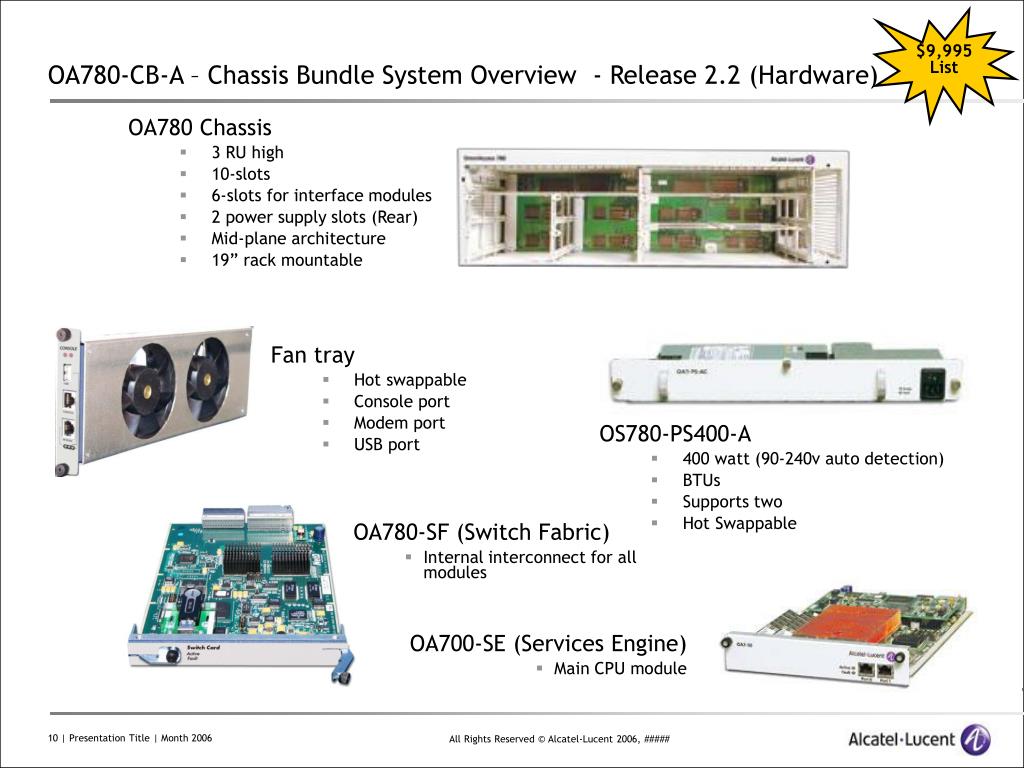

OA780-CB-A – Chassis Bundle System Overview - Release 2.2 (Hardware)

$9,995

List

  • OA780 Chassis

    • 3 RU high

    • 10-slots

    • 6-slots for interface modules

    • 2 power supply slots (Rear)

    • Mid-plane architecture

    • 19” rack mountable

  • Fan tray

    • Hot swappable

    • Console port

    • Modem port

    • USB port

  • OS780-PS400-A

    • 400 watt (90-240v auto detection)

    • BTUs

    • Supports two

    • Hot Swappable

  • OA780-SF (Switch Fabric)

    • Internal interconnect for all modules

  • OA700-SE (Services Engine)

    • Main CPU module


Omniaccess 740 system release 2 2 hardware

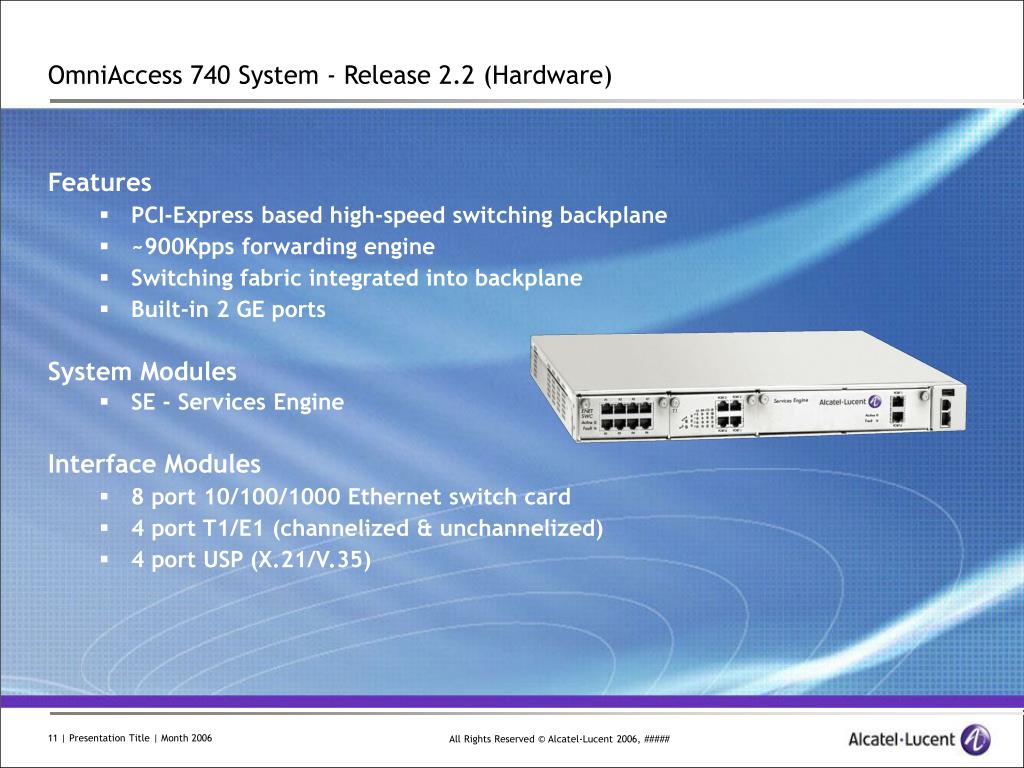

OmniAccess 740 System - Release 2.2 (Hardware)

  • Features

    • PCI-Express based high-speed switching backplane

    • ~900Kpps forwarding engine

    • Switching fabric integrated into backplane

    • Built-in 2 GE ports

  • System Modules

    • SE - Services Engine

  • Interface Modules

    • 8 port 10/100/1000 Ethernet switch card

    • 4 port T1/E1 (channelized & unchannelized)

    • 4 port USP (X.21/V.35)


Oa740 cb a chassis bundle system overview release 2 2 hardware

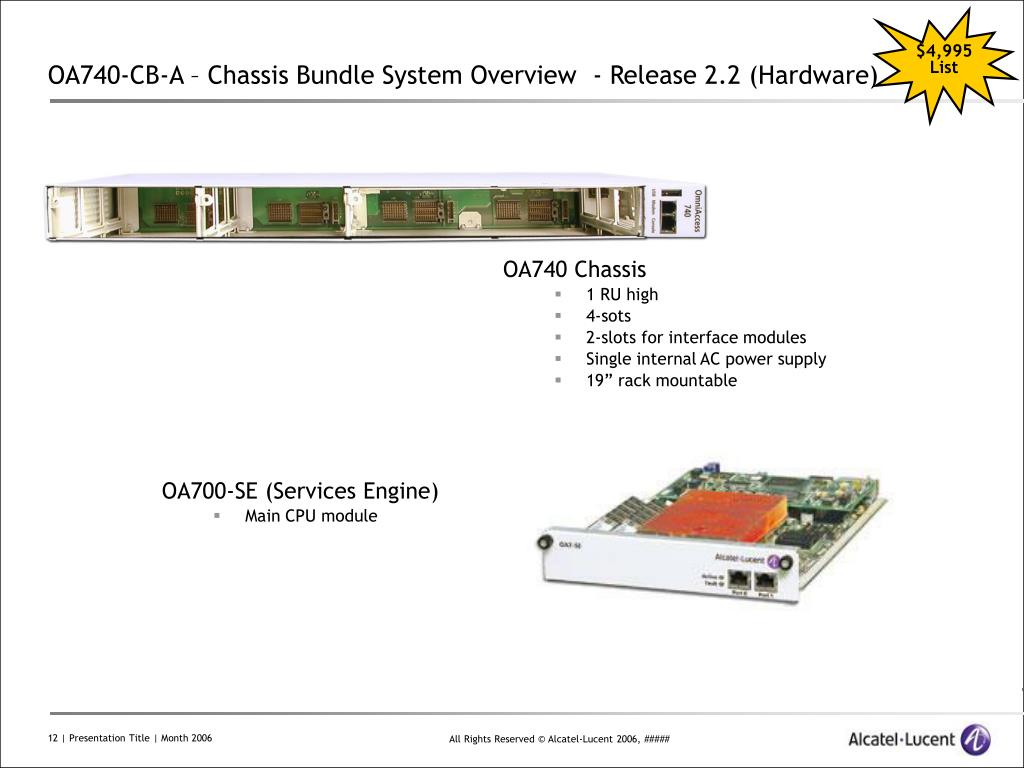

OA740-CB-A – Chassis Bundle System Overview - Release 2.2 (Hardware)

$4,995

List

  • OA740 Chassis

    • 1 RU high

    • 4-sots

    • 2-slots for interface modules

    • Single internal AC power supply

    • 19” rack mountable

  • OA700-SE (Services Engine)

    • Main CPU module


Common system and interface modules release 2 2 hardware

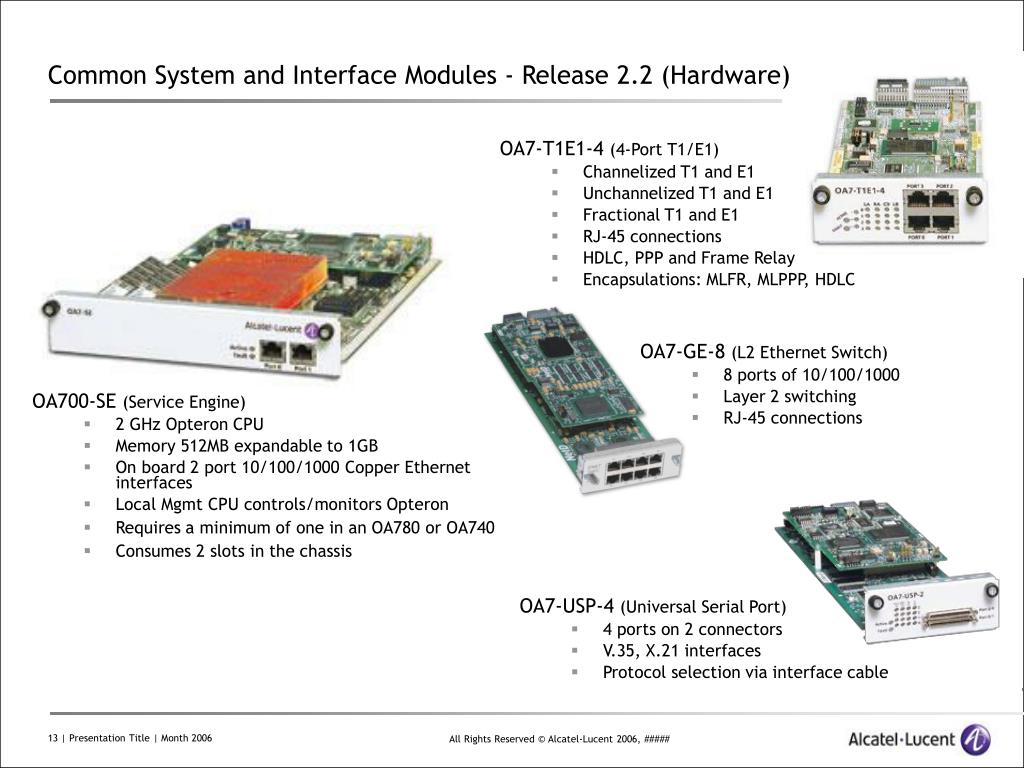

Common System and Interface Modules - Release 2.2 (Hardware)

  • OA7-T1E1-4 (4-Port T1/E1)

    • Channelized T1 and E1

    • Unchannelized T1 and E1

    • Fractional T1 and E1

    • RJ-45 connections

    • HDLC, PPP and Frame Relay

    • Encapsulations: MLFR, MLPPP, HDLC

  • OA7-GE-8 (L2 Ethernet Switch)

    • 8 ports of 10/100/1000

    • Layer 2 switching

    • RJ-45 connections

  • OA700-SE (Service Engine)

    • 2 GHz Opteron CPU

    • Memory 512MB expandable to 1GB

    • On board 2 port 10/100/1000 Copper Ethernet interfaces

    • Local Mgmt CPU controls/monitors Opteron

    • Requires a minimum of one in an OA780 or OA740

    • Consumes 2 slots in the chassis

  • OA7-USP-4 (Universal Serial Port)

    • 4 ports on 2 connectors

    • V.35, X.21 interfaces

    • Protocol selection via interface cable


Omniaccess 700 usg release 2 2 software

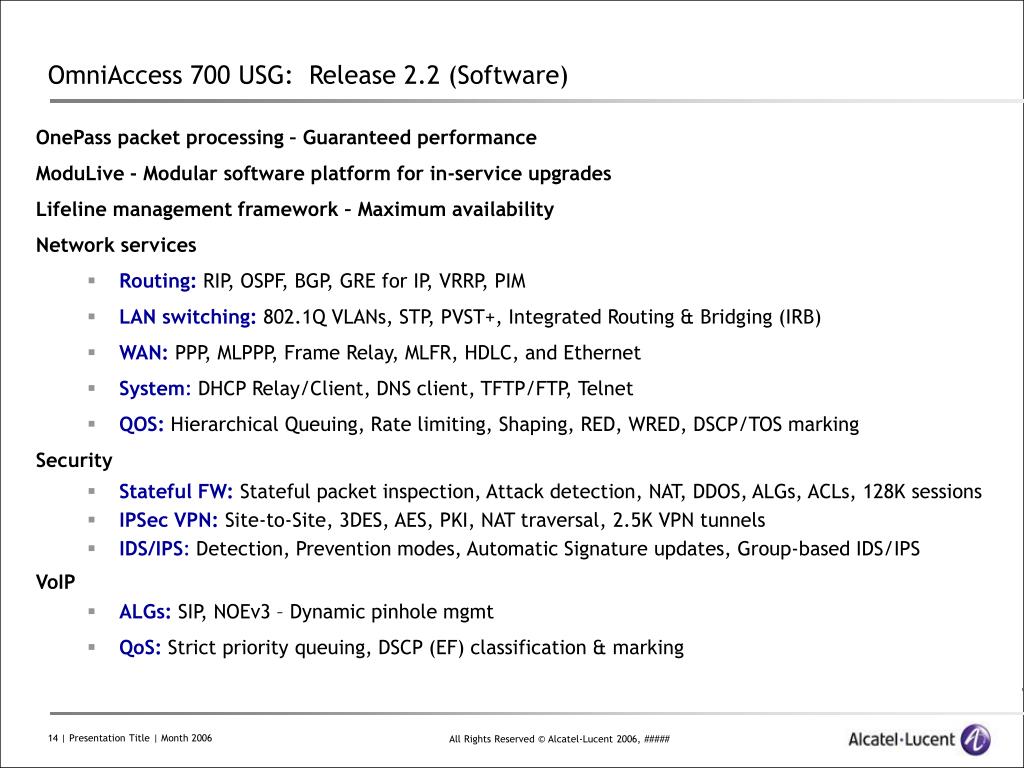

OmniAccess 700 USG: Release 2.2 (Software)

  • OnePass packet processing – Guaranteed performance

  • ModuLive - Modular software platform for in-service upgrades

  • Lifeline management framework – Maximum availability

  • Network services

    • Routing:RIP, OSPF, BGP, GRE for IP, VRRP, PIM

    • LAN switching:802.1Q VLANs, STP, PVST+, Integrated Routing & Bridging (IRB)

    • WAN:PPP, MLPPP, Frame Relay, MLFR, HDLC, and Ethernet

    • System: DHCP Relay/Client, DNS client, TFTP/FTP, Telnet

    • QOS:Hierarchical Queuing, Rate limiting, Shaping, RED, WRED, DSCP/TOS marking

  • Security

    • Stateful FW:Stateful packet inspection, Attack detection, NAT, DDOS, ALGs, ACLs, 128K sessions

    • IPSec VPN: Site-to-Site, 3DES, AES, PKI, NAT traversal, 2.5K VPN tunnels

    • IDS/IPS: Detection, Prevention modes, Automatic Signature updates, Group-based IDS/IPS

  • VoIP

    • ALGs:SIP, NOEv3 – Dynamic pinhole mgmt

    • QoS: Strict priority queuing, DSCP (EF) classification & marking


Die gesamtl sung

Die Gesamtlösung

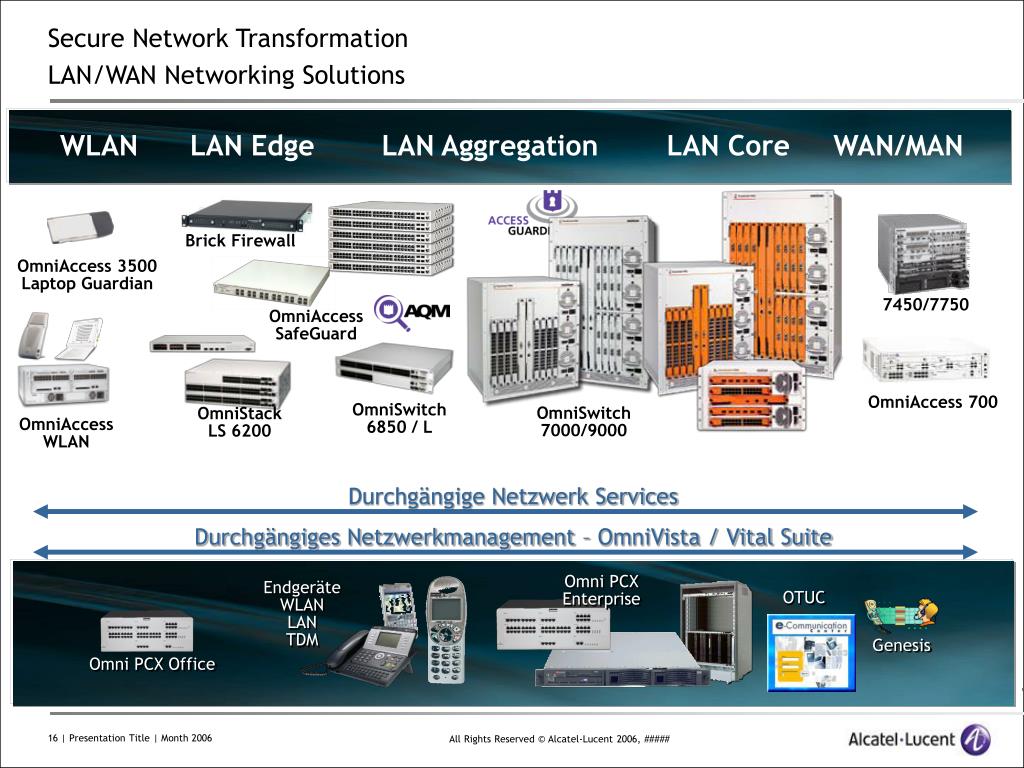

Secure network transformation lan wan networking solutions

Durchgängiges Netzwerkmanagement – OmniVista / Vital Suite

Durchgängige Netzwerk Services

Genesis

Secure Network TransformationLAN/WAN Networking Solutions

WLAN

LAN Edge

LAN Aggregation

LAN Core

WAN/MAN

Brick Firewall

OmniAccess 3500

Laptop Guardian

7450/7750

OmniAccess SafeGuard

OmniAccess 700

OmniSwitch

6850 / L

OmniSwitch

7000/9000

OmniStack

LS 6200

OmniAccess

WLAN

Omni PCX Enterprise

Endgeräte

WLAN

LAN

TDM

OTUC

Omni PCX Office


Omniaccess wan oa700

Konvergente Wired & Wireless LösungKosteneinsparung

Niedriger CAPEX und OPEX

Hohe Skalierbarkeit

  • OmniSwitches verfügen über sehr hohe Portdichten + 10 Gigabit Ethernet Uplinks. Damit reduzieren sie die Komplexität im Netzwerk

  • OmniPCX Enterprise: 15K Benutzer, 100K Benutzer bei Vernetzung

  • Blade Center Unterstützung für Sprache und alle relevante Anwendungen

    Weniger Stromverbrauch und Klimatisierungsaufwand

  • POE: Automatische Erkennung von IP-Telefonen, WLAN Access Points

  • OmniSwitch 9000 entsprechen US “Green” Standarts durch bis zu 60% weniger Energieverbauch

  • Einfachste Administration

Geringer Platzverbrauch

Geringer Stromverbauch

Geringe Installationsdauer

Key Points

  • Am besten skalierbare IPT-Lösung am Markt

  • Sehr hohe Portdichte

  • Einzigartiges POE Management


Omniaccess wan oa700

Wired & Wireless Convergence SolutionsAlways On

Erweiterte Sicherheit und Verfügbarkeit

Verfügbarkeit

  • 5x9 Verfügbarkeit für Realtime Dienste wie IPT, Video

  • Kompromisslose Redundanz

  • LAN/WAN: Ausgefeiltes Backup Konzept: Media Gateway Backup, PCS, Hotswap, MPLS Protection

  • Selbstheilende Komponenten, z.B. WLAN

    Sicherheit

  • 802.1X Authentifzierung: Telefon mit Multi-Session Unterstützung im OmniSwitch

  • “Dynamic Pinholing” Unterstützung der FW, Voice/data VLAN Unterstützung, Partition Management, Softphone mit VLAN Support

  • ITU X.805 framework, Common Criteria certification

  • MPLS

Services “Always On”

100% Sicher

Key Points

  • Bell Labs Expertise in Sicherheitsthemen

  • Sicherste IP Telephony Lösung (Miercom 06)

  • Einziges Softphone mit VLAN partitioning


Omniaccess wan oa700

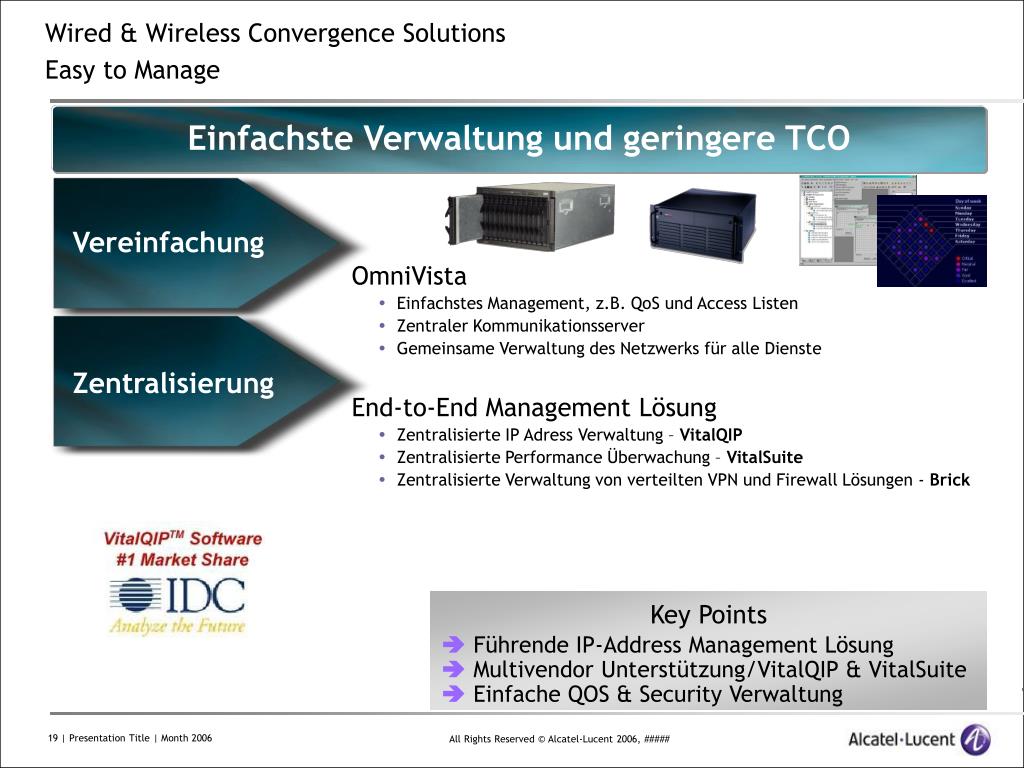

Wired & Wireless Convergence SolutionsEasy to Manage

Einfachste Verwaltung und geringere TCO

OmniVista

  • Einfachstes Management, z.B. QoS und Access Listen

  • Zentraler Kommunikationsserver

  • Gemeinsame Verwaltung des Netzwerks für alle Dienste

    End-to-End Management Lösung

  • Zentralisierte IP Adress Verwaltung – VitalQIP

  • Zentralisierte Performance Überwachung – VitalSuite

  • Zentralisierte Verwaltung von verteilten VPN und Firewall Lösungen - Brick

Vereinfachung

Zentralisierung

Key Points

  • Führende IP-Address Management Lösung

  • Multivendor Unterstützung/VitalQIP & VitalSuite

  • Einfache QOS & Security Verwaltung


Omniaccess wan oa700

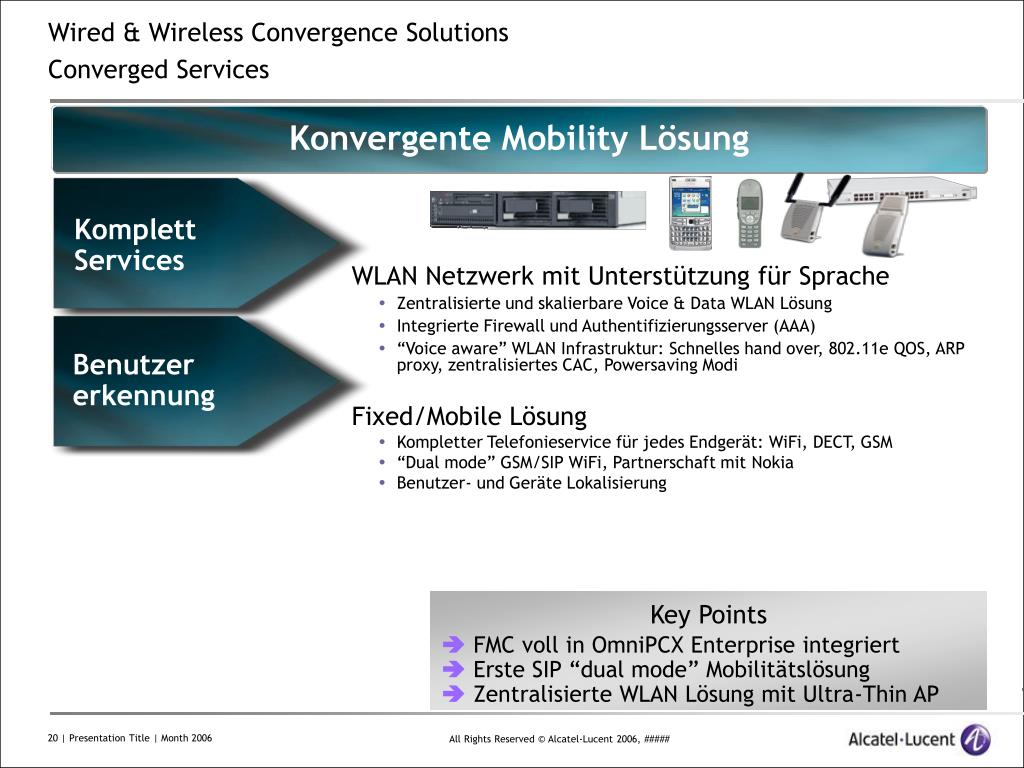

Wired & Wireless Convergence SolutionsConverged Services

Konvergente Mobility Lösung

WLAN Netzwerk mit Unterstützung für Sprache

  • Zentralisierte und skalierbare Voice & Data WLAN Lösung

  • Integrierte Firewall und Authentifizierungsserver (AAA)

  • “Voice aware” WLAN Infrastruktur: Schnelles hand over, 802.11e QOS, ARP proxy, zentralisiertes CAC, Powersaving Modi

    Fixed/Mobile Lösung

  • Kompletter Telefonieservice für jedes Endgerät: WiFi, DECT, GSM

  • “Dual mode” GSM/SIP WiFi, Partnerschaft mit Nokia

  • Benutzer- und Geräte Lokalisierung

Komplett Services

Benutzer erkennung

Key Points

  • FMC voll in OmniPCX Enterprise integriert

  • Erste SIP “dual mode” Mobilitätslösung

  • Zentralisierte WLAN Lösung mit Ultra-Thin AP


Alcatel lucent wired und wireless konvergente l sungen als one stop shopping

Alcatel-Lucent Wired und Wireless konvergente Lösungen alsONE STOP SHOPPING

Kosten Optimierung

  • Alles aus einer Hand

  • Höchste Skalierbarkeit

  • Höchste Verfügbarkeit

  • Geringer Energieverbrauch

  • Durchgehende Möbilitätslösung

  • Sicherste Lösung

  • End-to-End Management

  • Internet Standards

Einfach zu managen

Always On

Konvergente Dienste


Omniaccess wan oa700

www.alcatel-lucent.com


  • Login
