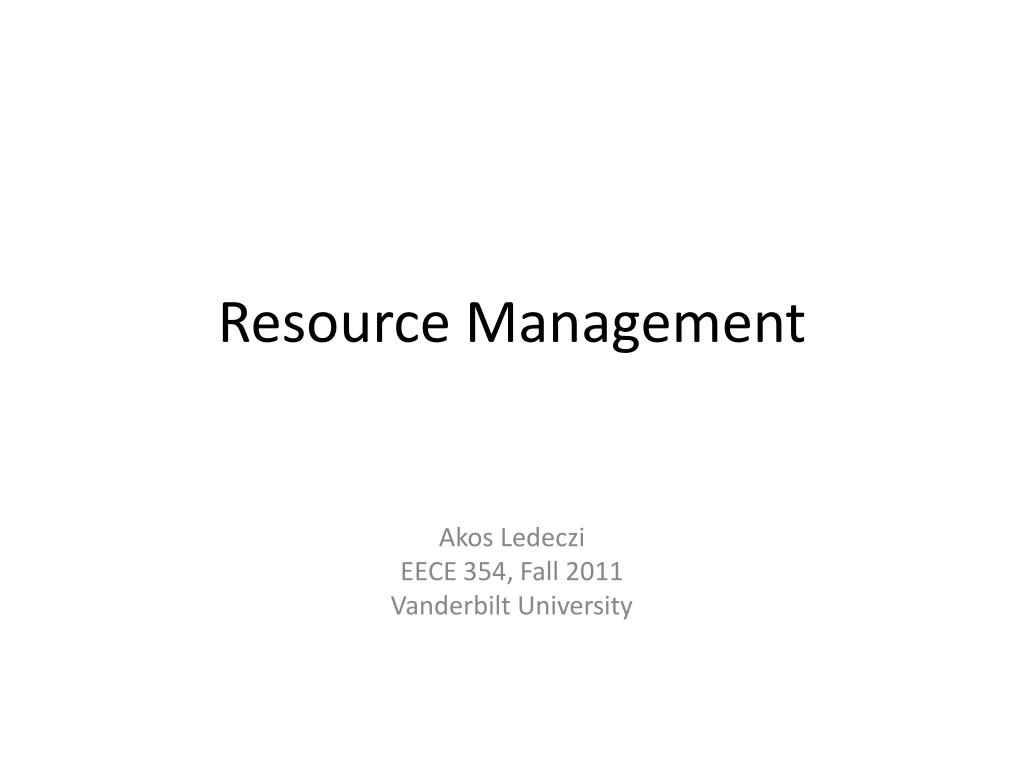

Resource Management

Akos Ledeczi

EECE 354, Fall 2011

Vanderbilt University

resource sharing

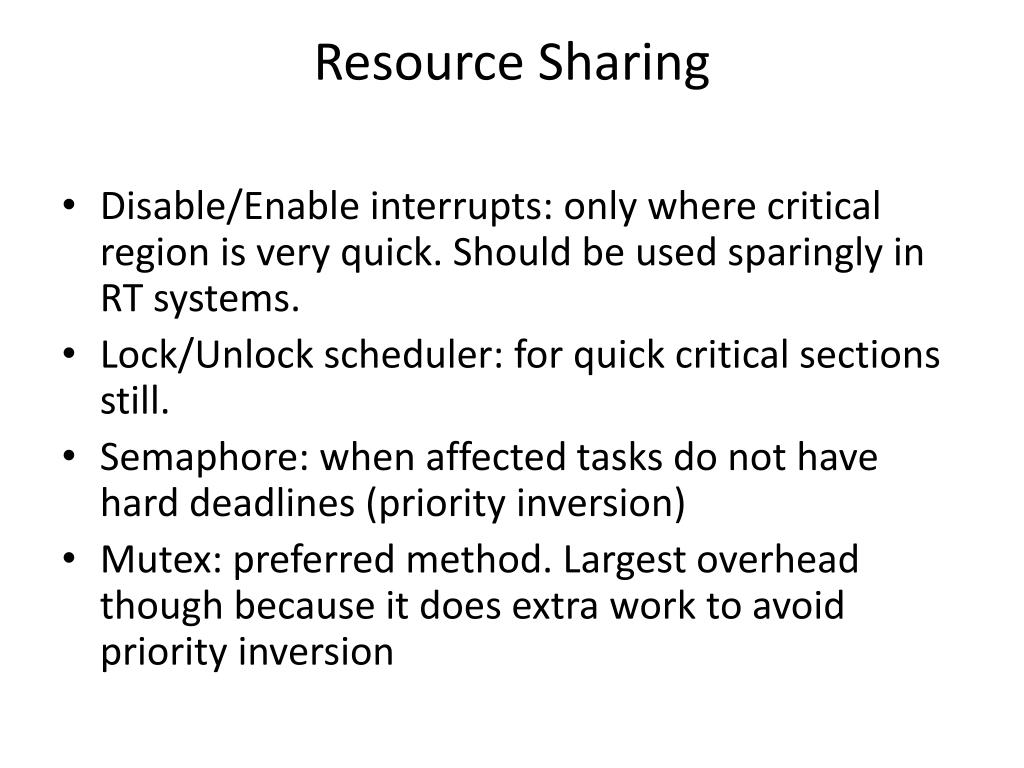

Resource Sharing
  • Disable/Enable interrupts: only where critical region is very quick. Should be used sparingly in RT systems.
  • Lock/Unlock scheduler: for quick critical sections still.
  • Semaphore: when affected tasks do not have hard deadlines (priority inversion)
  • Mutex: preferred method. Largest overhead though because it does extra work to avoid priority inversion
disable enable interrupts

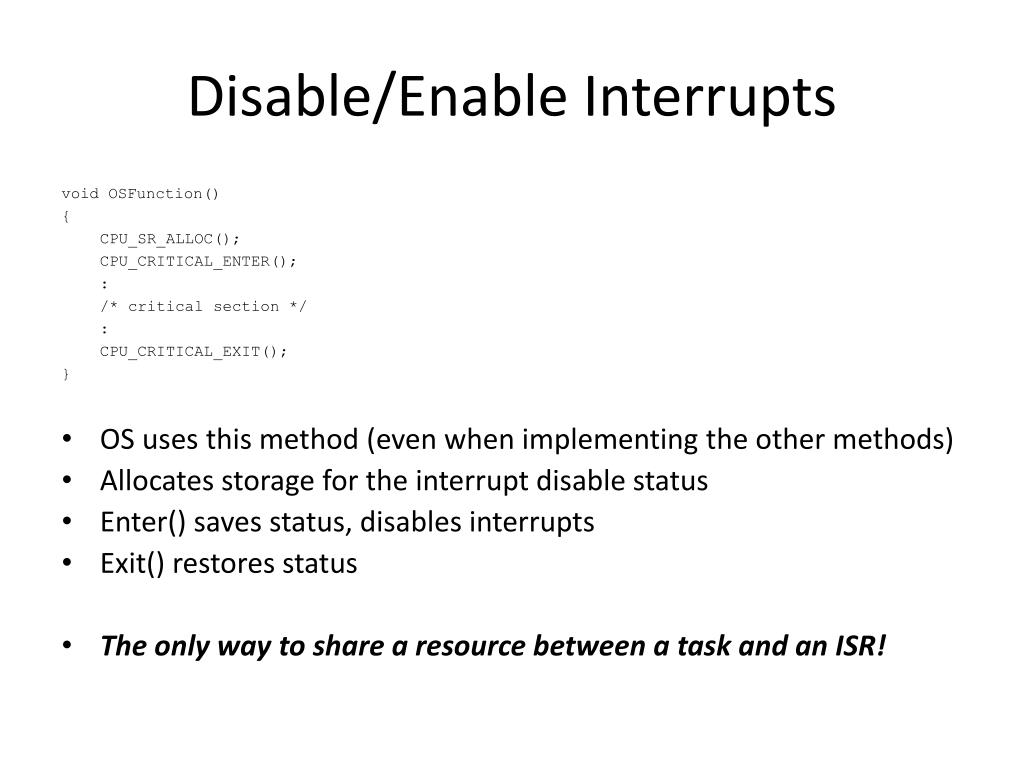

Disable/Enable Interrupts

void OSFunction()

{

CPU_SR_ALLOC();

CPU_CRITICAL_ENTER();

:

/* critical section */

:

CPU_CRITICAL_EXIT();

}

  • OS uses this method (even when implementing the other methods)
  • Allocates storage for the interrupt disable status
  • Enter() saves status, disables interrupts
  • Exit() restores status
  • The only way to share a resource between a task and an ISR!
lock unlock scheduler
Lock/Unlock Scheduler

void Function()

{

OS_ERR err;

OSSchedLock(&err);

if (err = OS_ERR_NONE) {

:

/* critical section */

:

OSSchedUnlock(&err);

/* check err */

}

else {

/* check err */

}

}

  • Interrupts are not disabled, but ISR returns to this task even if higher priority tasks are ready: behaves as a non-preemptive kernel
  • Lock/Unlock can be nested
  • Unlock runs scheduler (only when nesting is unwound)
  • Must not make blocking calls while the scheduler is locked
  • Behaves as if current task had the highest priority
semaphores

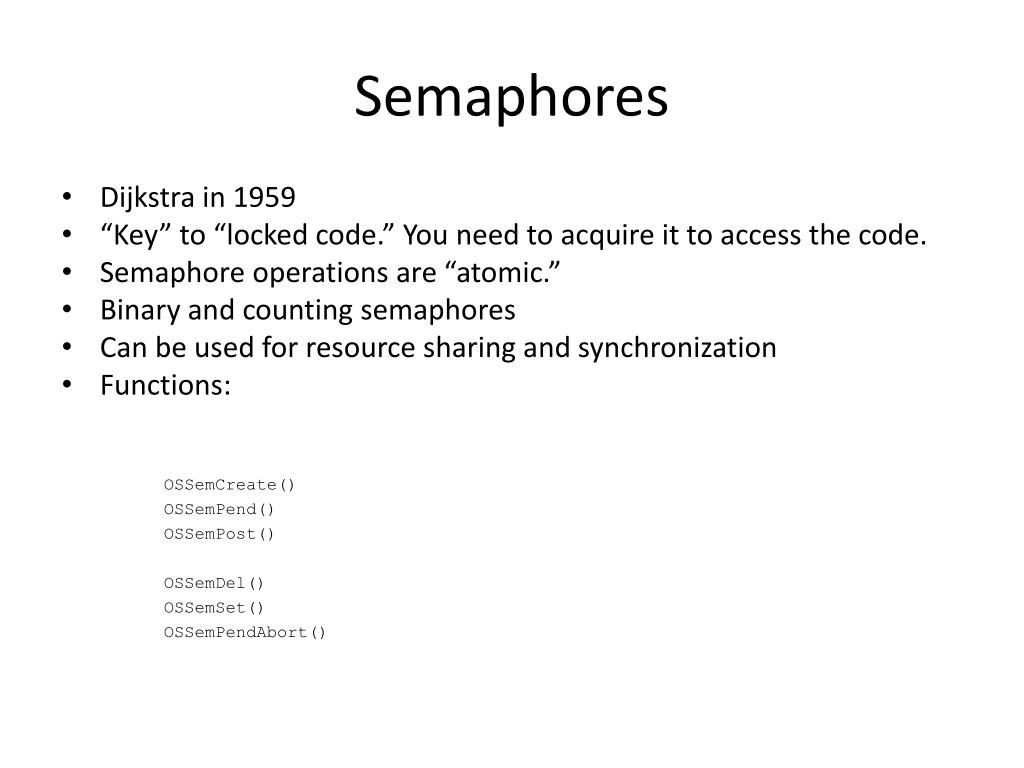

Semaphores
  • Dijkstra in 1959
  • “Key” to “locked code.” You need to acquire it to access the code.
  • Semaphore operations are “atomic.”
  • Binary and counting semaphores
  • Can be used for resource sharing and synchronization
  • Functions:

OSSemCreate()

OSSemPend()

OSSemPost()

OSSemDel()

OSSemSet()

OSSemPendAbort()

binary semaphores

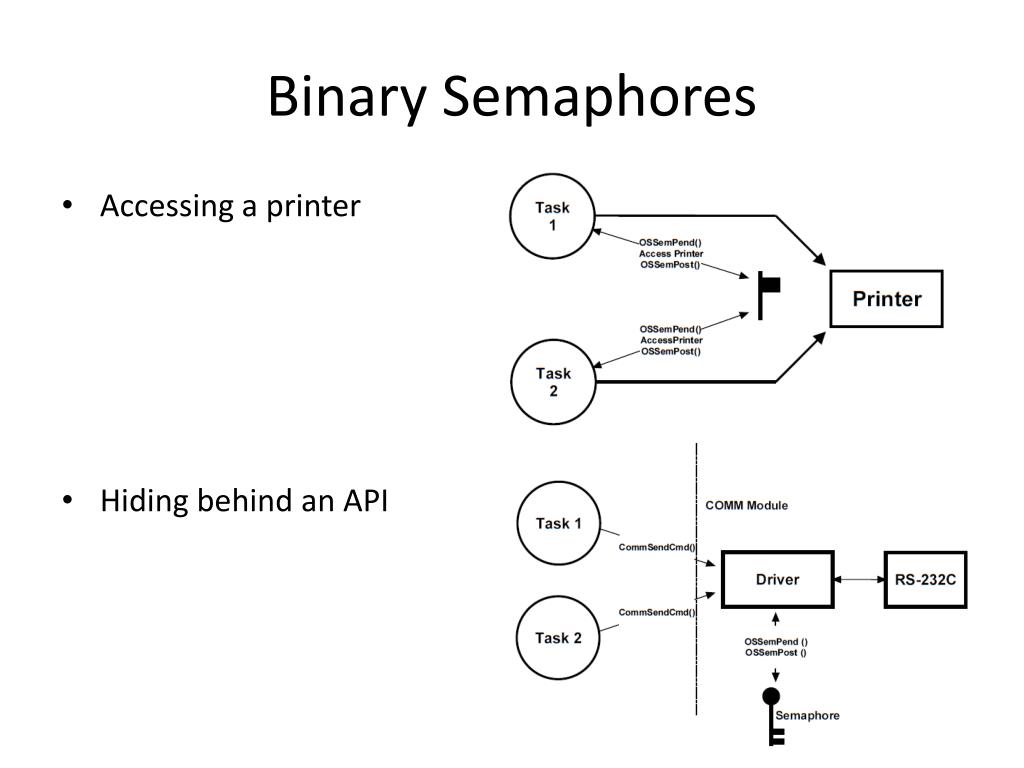

Binary Semaphores
  • Accessing a printer
  • Hiding behind an API
binary semaphores cont d

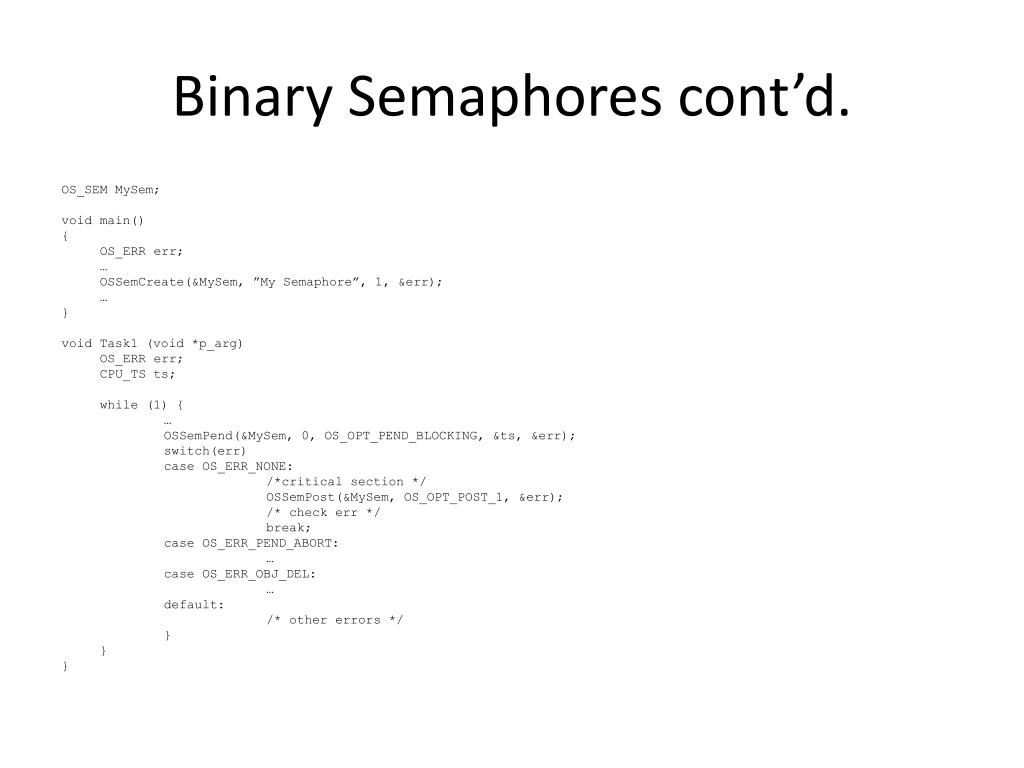

Binary Semaphores cont’d.

OS_SEM MySem;

void main()

{

OS_ERR err;

OSSemCreate(&MySem, ”My Semaphore”, 1, &err);

}

void Task1 (void *p_arg)

OS_ERR err;

CPU_TS ts;

while (1) {

OSSemPend(&MySem, 0, OS_OPT_PEND_BLOCKING, &ts, &err);

switch(err)

case OS_ERR_NONE:

/*critical section */

OSSemPost(&MySem, OS_OPT_POST_1, &err);

/* check err */

break;

case OS_ERR_PEND_ABORT:

case OS_ERR_OBJ_DEL:

default:

/* other errors */

}

}

}

counting semaphores
Counting Semaphores
  • When multiple resources/resource elements are available
  • E.g., memory pool or circular buffer
  • Initialize semaphore to the number of items available
  • Need to manage consumed/available items
  • Pend() waits on 0, otherwise, decrements counter and returns
  • Post() increments counter
notes

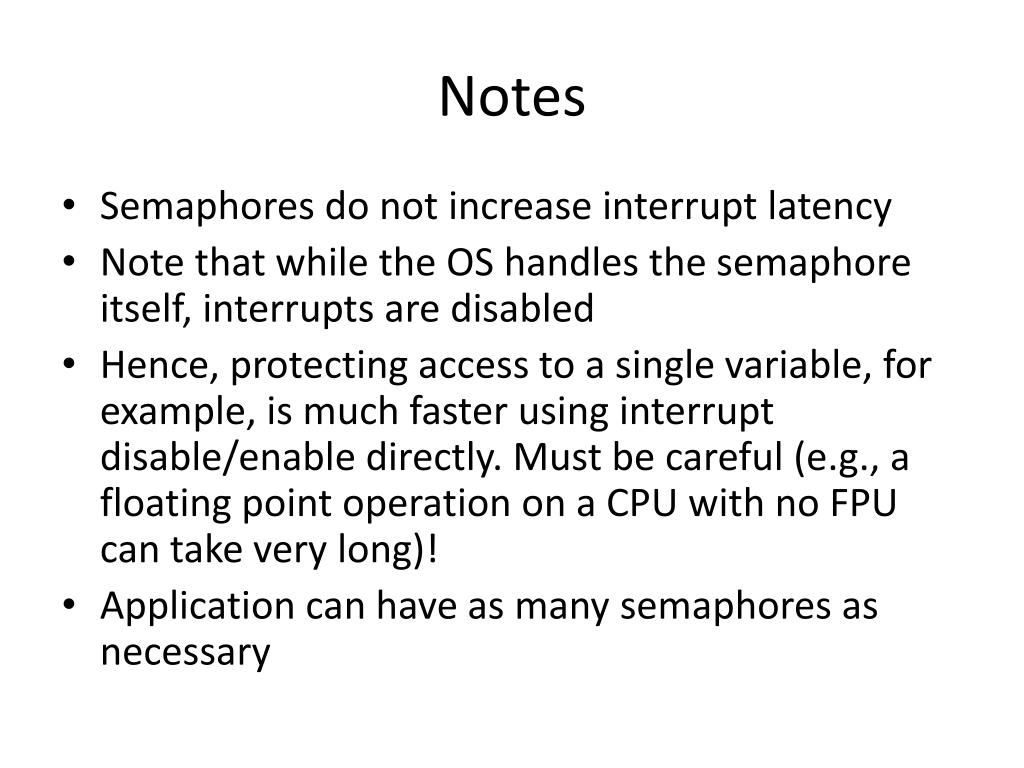

Notes
  • Semaphores do not increase interrupt latency
  • Note that while the OS handles the semaphore itself, interrupts are disabled
  • Hence, protecting access to a single variable, for example, is much faster using interrupt disable/enable directly. Must be careful (e.g., a floating point operation on a CPU with no FPU can take very long)!
  • Application can have as many semaphores as necessary
notes too
Notes too
  • OSSemPend():
    • If ctr > 0, ctr is decremented, fn returns immediately
    • If ctr == 0
      • OS_OPT_PEND_NON_BLOCKING: returns immediately with appropriate error code. Task can do something else and check back later.
      • OS_OPT_PEND_BLOCKING: blocks, gets inserted in pend list, highest priority ready task gets the CPU
    • Non-zero timeout:
      • prevents waiting forever
      • inserted in tick list
      • when expired, error code specifies that timeout expired
      • not the best way to break deadlock
  • OSSemPost():
    • If waiting task(s), gets highest priority task and switches to it
    • If not, increments counter
    • Option allows not to run scheduler (in case task wants multiple posts)
semaphore internals

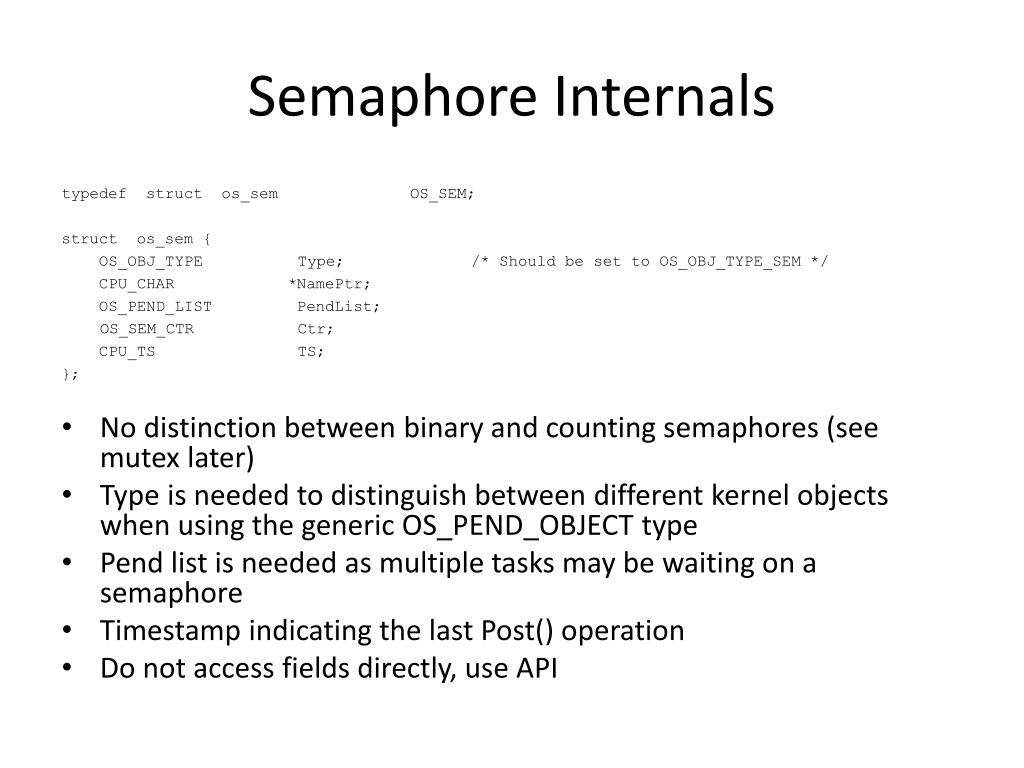

Semaphore Internals
  • No distinction between binary and counting semaphores (see mutex later)
  • Type is needed to distinguish between different kernel objects when using the generic OS_PEND_OBJECT type
  • Pend list is needed as multiple tasks may be waiting on a semaphore
  • Timestamp indicating the last Post() operation
  • Do not access fields directly, use API
  • typedefstructos_semOS_SEM;
  • structos_sem {
  • OS_OBJ_TYPE Type; /* Should be set to OS_OBJ_TYPE_SEM */
  • CPU_CHAR *NamePtr;
  • OS_PEND_LIST PendList;
  • OS_SEM_CTR Ctr;
  • CPU_TS TS;
  • };
priority inversion with semaphores
Priority Inversion with Semaphores
  • A medium priority task can have the CPU when a lower priority holds a semaphore that a high priority task is waiting for
mutual exclusion semaphore mutex

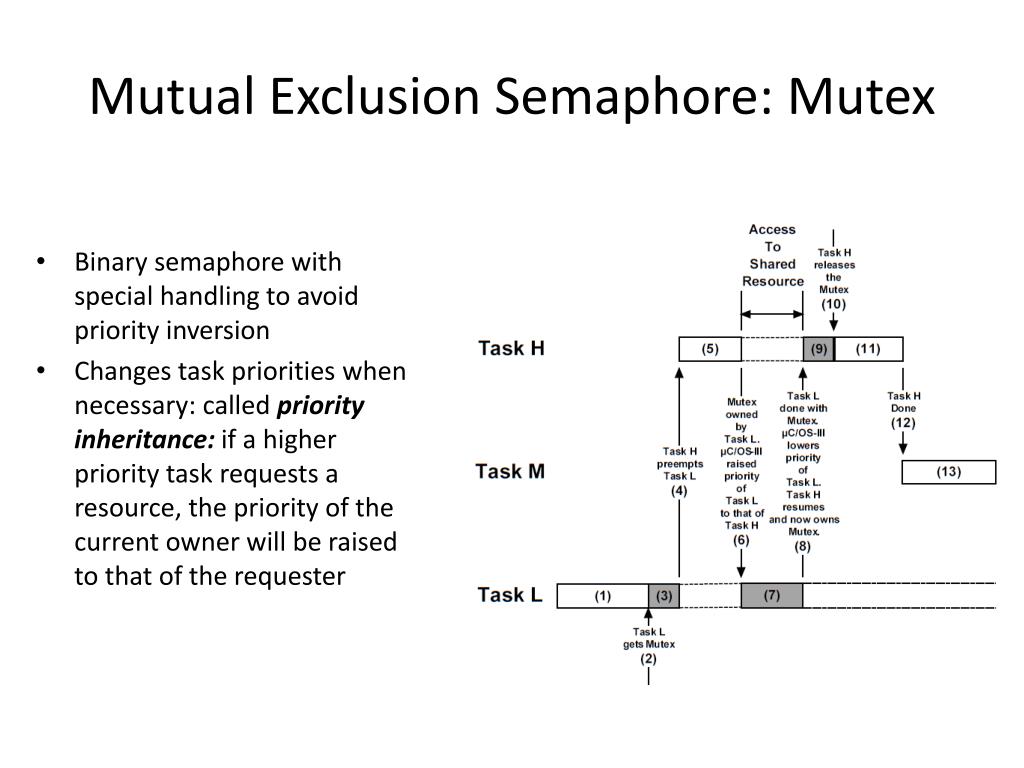

Mutual Exclusion Semaphore: Mutex
  • Binary semaphore with special handling to avoid priority inversion
  • Changes task priorities when necessary: called priority inheritance: if a higher priority task requests a resource, the priority of the current owner will be raised to that of the requester
mutex
Mutex
  • Can be nested: it is only available when Post() was called as many times as Pend()
  • Can be blocking or non-blocking
  • Check return value/error code of Pend() to see why it returned (timeout, abort, delete, etc.)
  • Do not make function calls in critical sections

OSMutexCreate()

OSMutexPend()

OSMutexPost()

OSMutexDel()

OSMutexPendAbort()

mutex internals

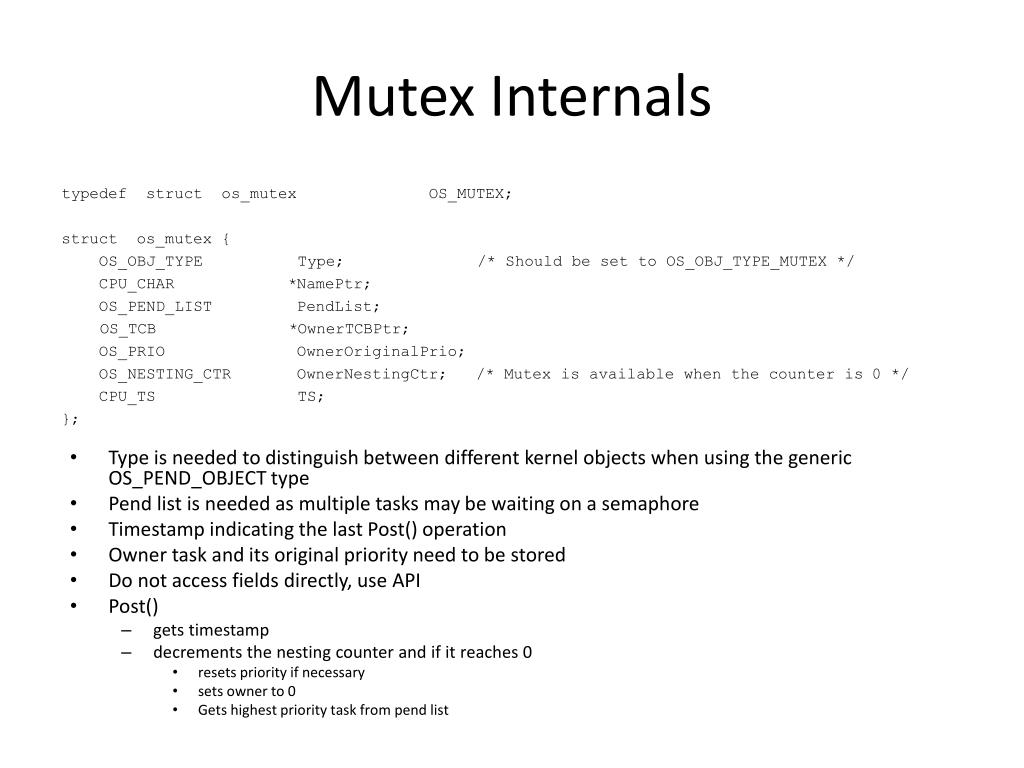

Mutex Internals
  • Type is needed to distinguish between different kernel objects when using the generic OS_PEND_OBJECT type
  • Pend list is needed as multiple tasks may be waiting on a semaphore
  • Timestamp indicating the last Post() operation
  • Owner task and its original priority need to be stored
  • Do not access fields directly, use API
  • Post()
    • gets timestamp
    • decrements the nesting counter and if it reaches 0
      • resets priority if necessary
      • sets owner to 0
      • Gets highest priority task from pend list
  • typedefstructos_mutexOS_MUTEX;
  • structos_mutex {
  • OS_OBJ_TYPE Type; /* Should be set to OS_OBJ_TYPE_MUTEX */
  • CPU_CHAR *NamePtr;
  • OS_PEND_LIST PendList;
  • OS_TCB *OwnerTCBPtr;
  • OS_PRIO OwnerOriginalPrio;
  • OS_NESTING_CTR OwnerNestingCtr; /* Mutex is available when the counter is 0 */
  • CPU_TS TS;
  • };
mutex notes

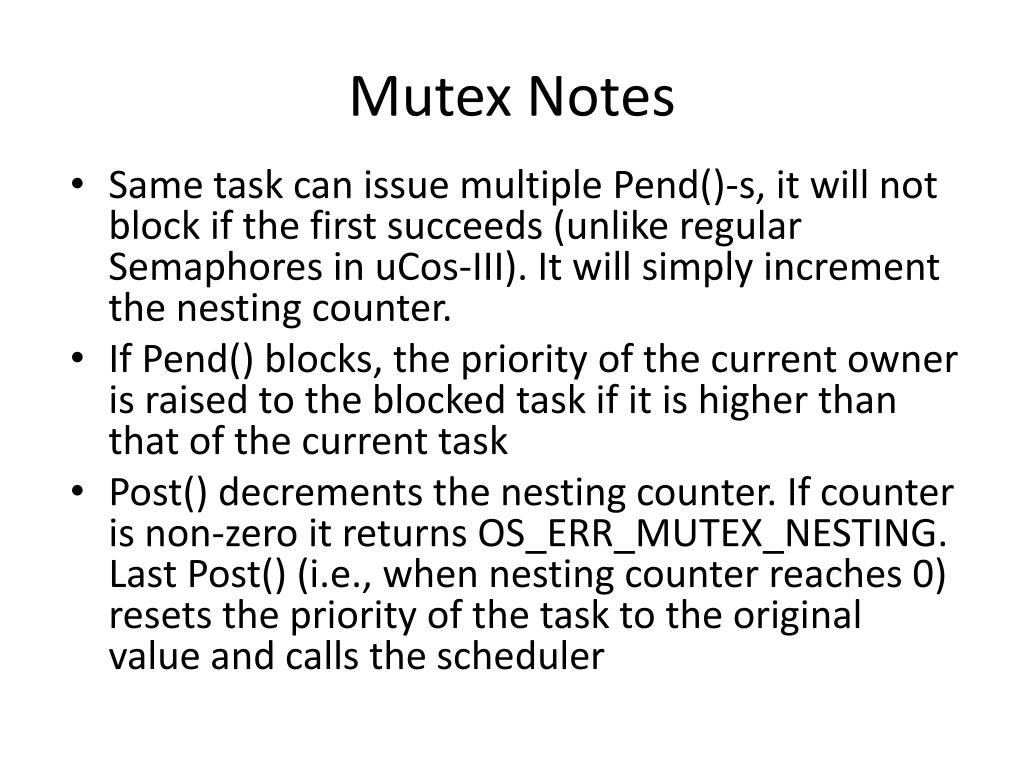

MutexNotes
  • Same task can issue multiple Pend()-s, it will not block if the first succeeds (unlike regular Semaphores in uCos-III). It will simply increment the nesting counter.
  • If Pend() blocks, the priority of the current owner is raised to the blocked task if it is higher than that of the current task
  • Post() decrements the nesting counter. If counter is non-zero it returns OS_ERR_MUTEX_NESTING. Last Post() (i.e., when nesting counter reaches 0) resets the priority of the task to the original value and calls the scheduler
deadlock
Deadlock
  • Void Task1(void *p_arg)
  • {
  • while (1) {
  • Acquire M1
  • Access R1
  • /* INTERRUPT */
  • Acquire M2
  • Access R2
  • Release M2
  • Release M1
  • }
  • }
  • Void Task2(void *p_arg)
  • {
  • while (1) {
  • Acquire M2
  • Access R2
  • Acquire M1
  • Access R1
  • Release M1
  • Release M2
  • }
  • }
deadlock avoidance
Deadlock Avoidance

Tips to avoid:

  • Never acquire more than one mutex at a time
  • Never acquire a mutex directly (hide them in functions)
  • Acquire all resources before proceeding
  • Always acquire resources in the same order
  • Void Task1(void *p_arg)
  • {
  • while (1) {
  • Acquire M1
  • Acquire M2
  • Access R1
  • Access R2
  • Release M1
  • Release M2
  • }
  • }
  • Void Task2(void *p_arg)
  • {
  • while (1) {
  • Acquire M1
  • Acquire M2
  • Access R1
  • Access R2
  • Release M1
  • Release M2
  • }
  • }
