Presentation Transcript


Article source code review systems author jason remillard

Article: Source Code Review SystemsAuthor: Jason Remillard

Presenter: Joe Borosky

Class: Principles and Applications of Software Design

Date: 11/2/2005


Inspections a well established cost effective way to find defects

Inspections: A Well Established Cost Effective Way to Find Defects

  • Yet they are not universally used, WHY?

    • Lack of Training on how to do Inspections well

    • The need for Project Managers to move resources Away From Testing into Inspections

    • Large amount of paperwork required by Formal Inspections


Soluris and inspections

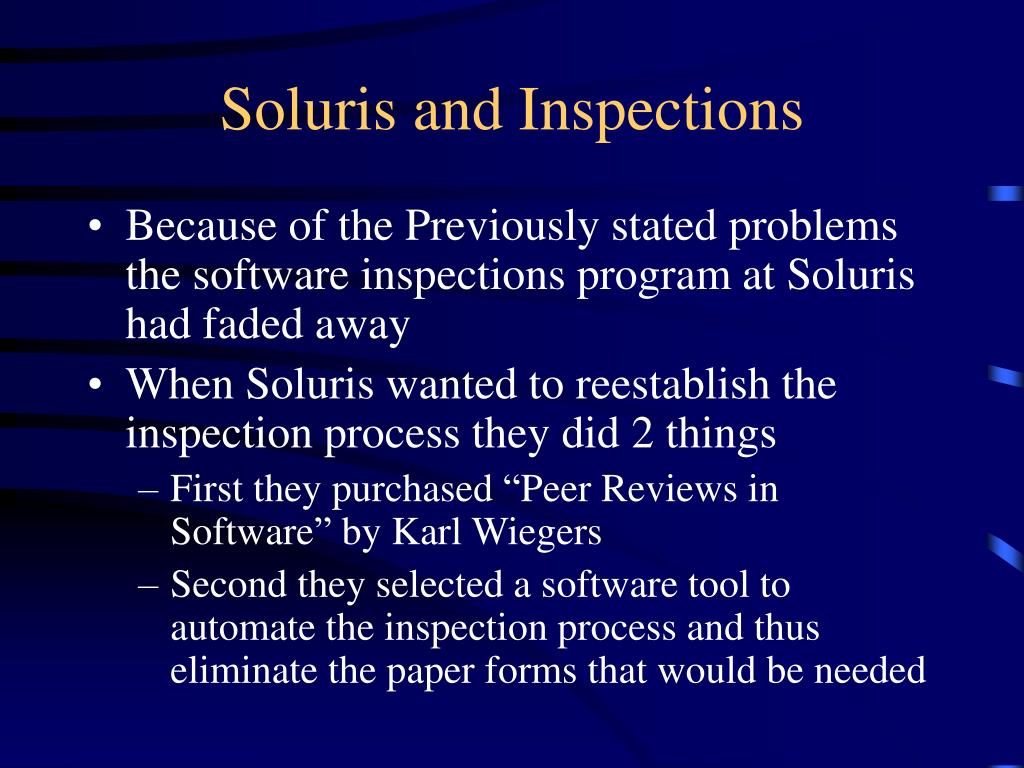

Soluris and Inspections

  • Because of the Previously stated problems the software inspections program at Soluris had faded away

  • When Soluris wanted to reestablish the inspection process they did 2 things

    • First they purchased “Peer Reviews in Software” by Karl Wiegers

    • Second they selected a software tool to automate the inspection process and thus eliminate the paper forms that would be needed


Tools compared

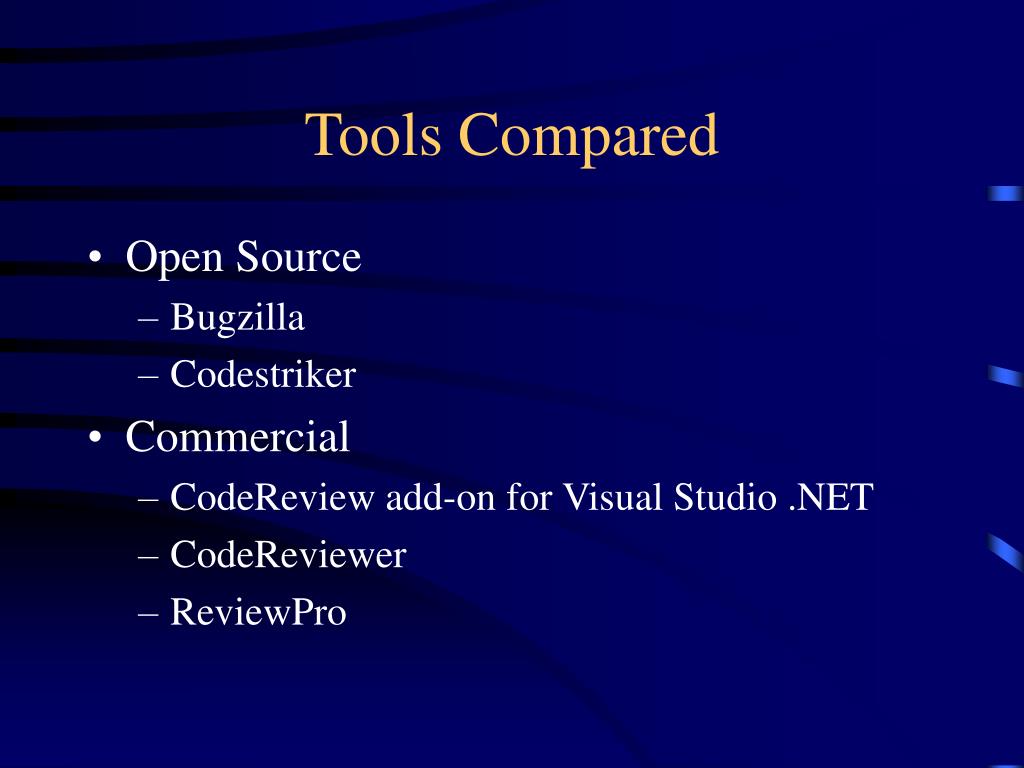

Tools Compared

  • Open Source

    • Bugzilla

    • Codestriker

  • Commercial

    • CodeReview add-on for Visual Studio .NET

    • CodeReviewer

    • ReviewPro


Bugzilla 1 www bugzilla org

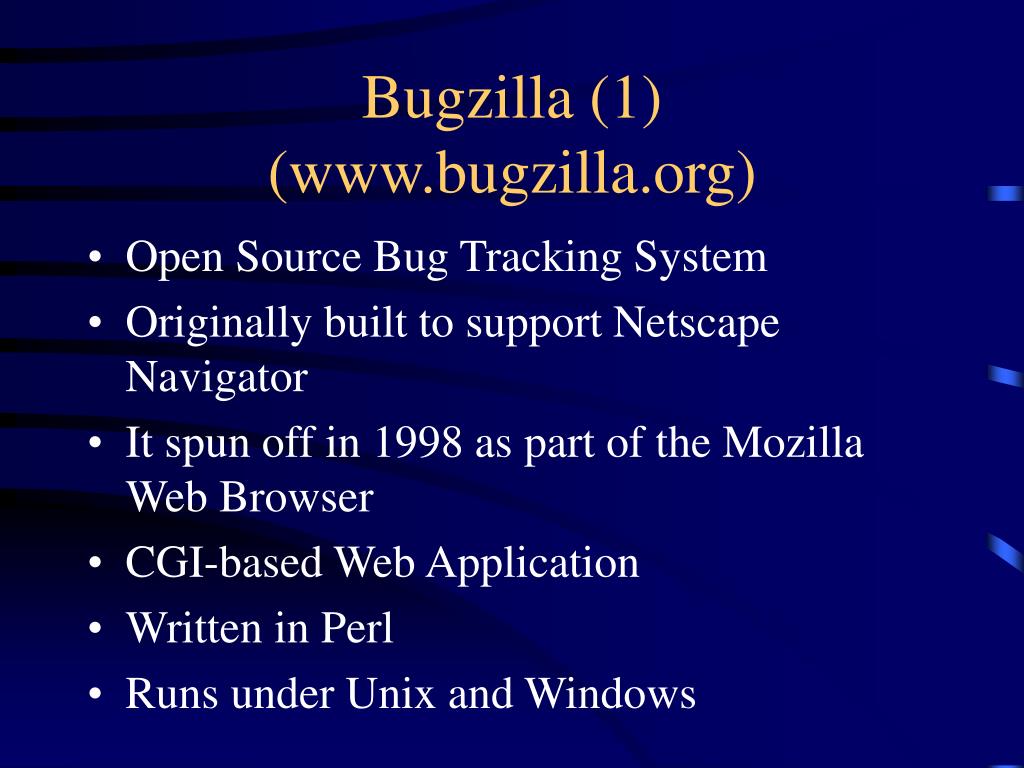

Bugzilla (1) (www.bugzilla.org)

  • Open Source Bug Tracking System

  • Originally built to support Netscape Navigator

  • It spun off in 1998 as part of the Mozilla Web Browser

  • CGI-based Web Application

  • Written in Perl

  • Runs under Unix and Windows


Bugzilla 2 www bugzilla org

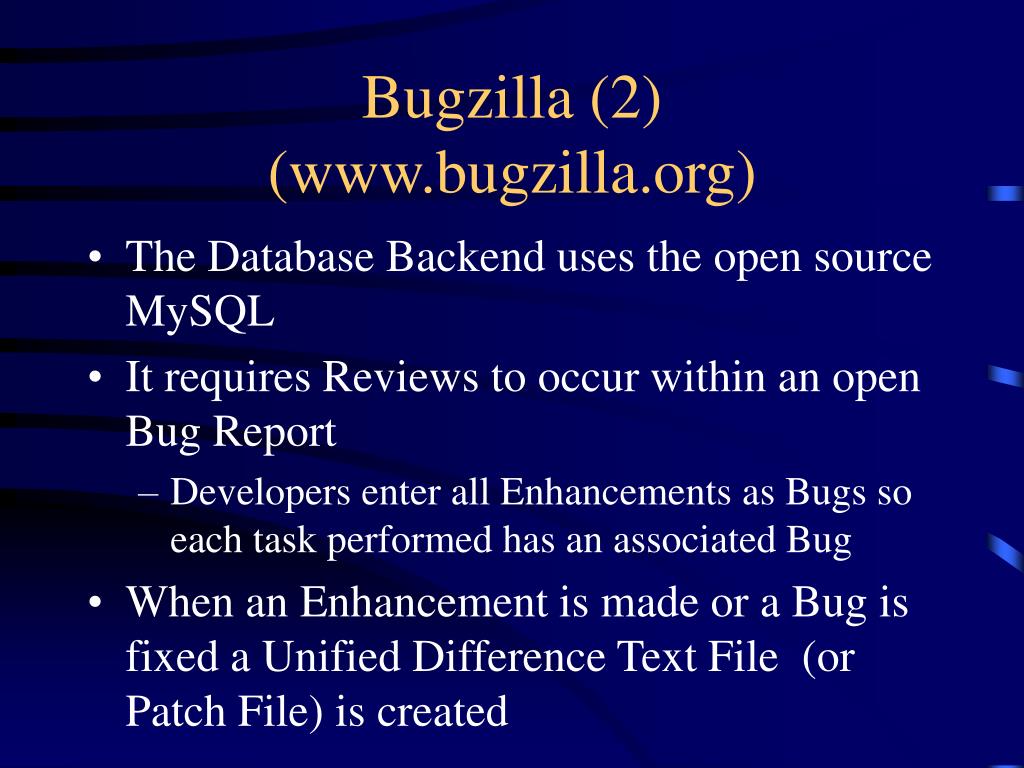

Bugzilla (2) (www.bugzilla.org)

  • The Database Backend uses the open source MySQL

  • It requires Reviews to occur within an open Bug Report

    • Developers enter all Enhancements as Bugs so each task performed has an associated Bug

  • When an Enhancement is made or a Bug is fixed a Unified Difference Text File (or Patch File) is created


Bugzilla 3 www bugzilla org

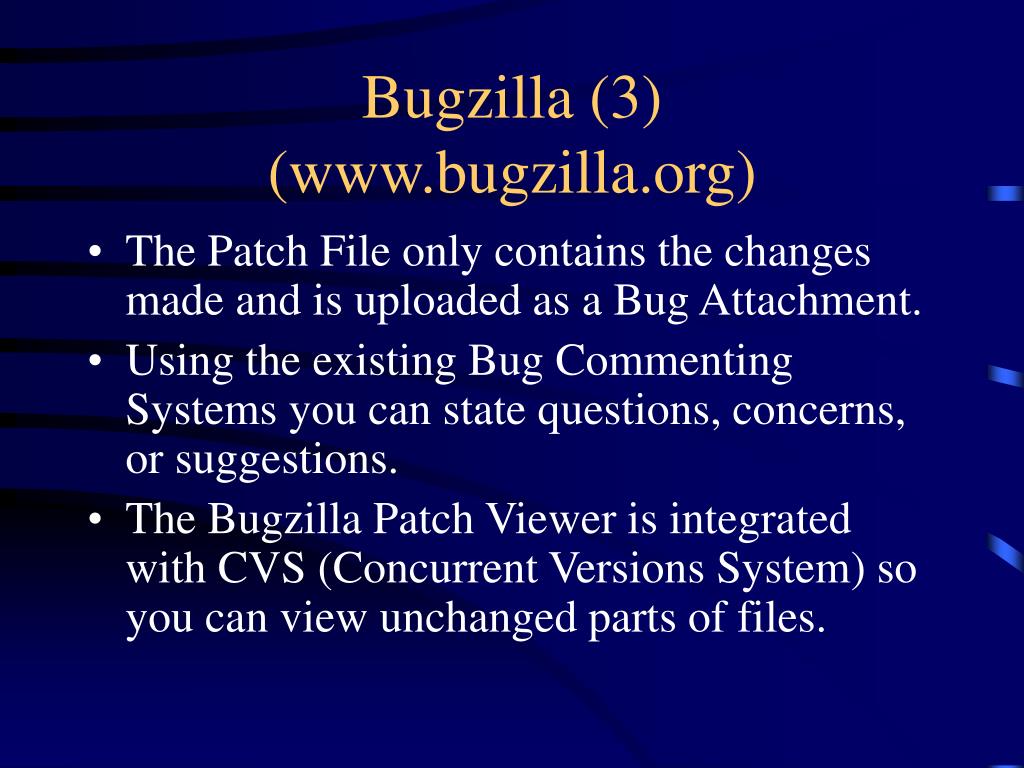

Bugzilla (3) (www.bugzilla.org)

  • The Patch File only contains the changes made and is uploaded as a Bug Attachment.

  • Using the existing Bug Commenting Systems you can state questions, concerns, or suggestions.

  • The Bugzilla Patch Viewer is integrated with CVS (Concurrent Versions System) so you can view unchanged parts of files.


Bugzilla 4 www bugzilla org

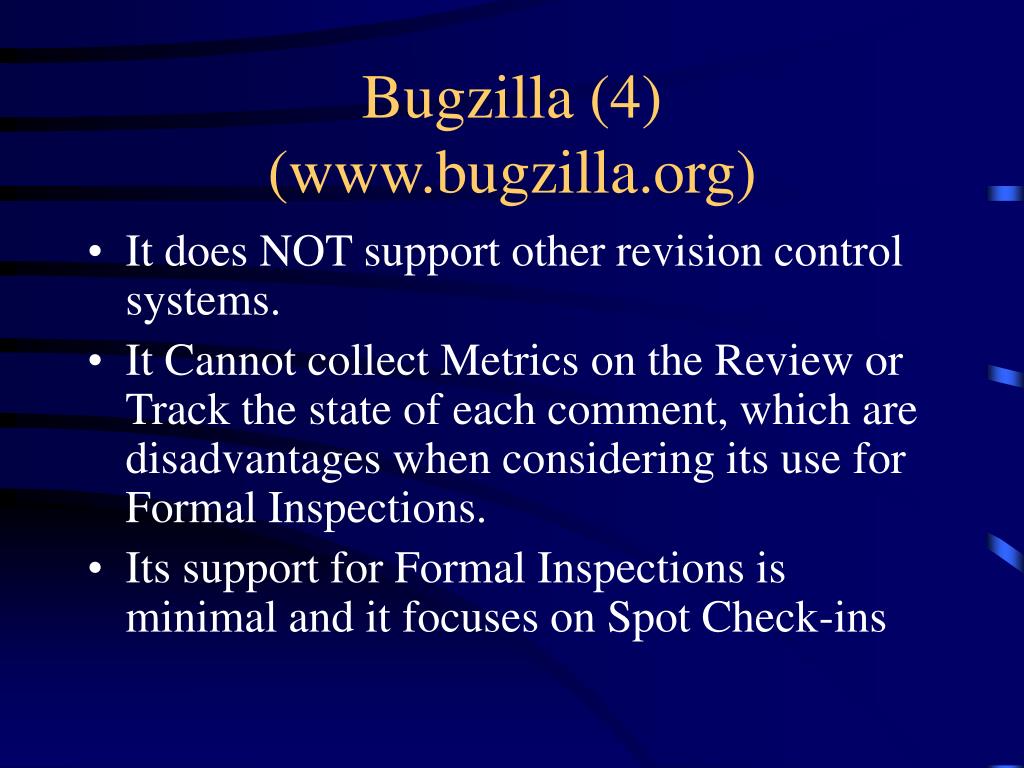

Bugzilla (4) (www.bugzilla.org)

  • It does NOT support other revision control systems.

  • It Cannot collect Metrics on the Review or Track the state of each comment, which are disadvantages when considering its use for Formal Inspections.

  • Its support for Formal Inspections is minimal and it focuses on Spot Check-ins


Codestriker 1 http codestriker sourceforge net

Codestriker (1)(http://codestriker.sourceforge.net)

  • Written by David Sitsky in 2001

  • It started out as a simple Web-based Review System for patches.

  • It has evolved into a tool with good support for Formal Inspections with Metrics and for Inspection Meetings.

  • CGI-Application written in Perl

  • The Web server runs on Windows and Unix


Codestriker 2 http codestriker sourceforge net

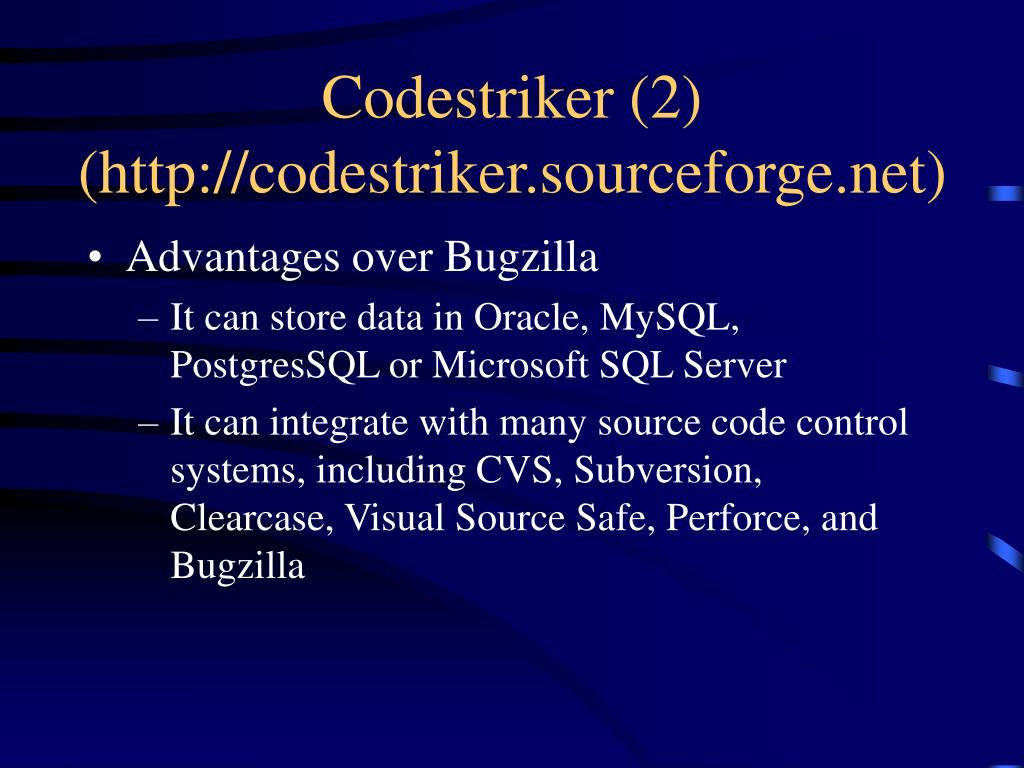

Codestriker (2)(http://codestriker.sourceforge.net)

  • Advantages over Bugzilla

    • It can store data in Oracle, MySQL, PostgresSQL or Microsoft SQL Server

    • It can integrate with many source code control systems, including CVS, Subversion, Clearcase, Visual Source Safe, Perforce, and Bugzilla


Codestriker 3 http codestriker sourceforge net

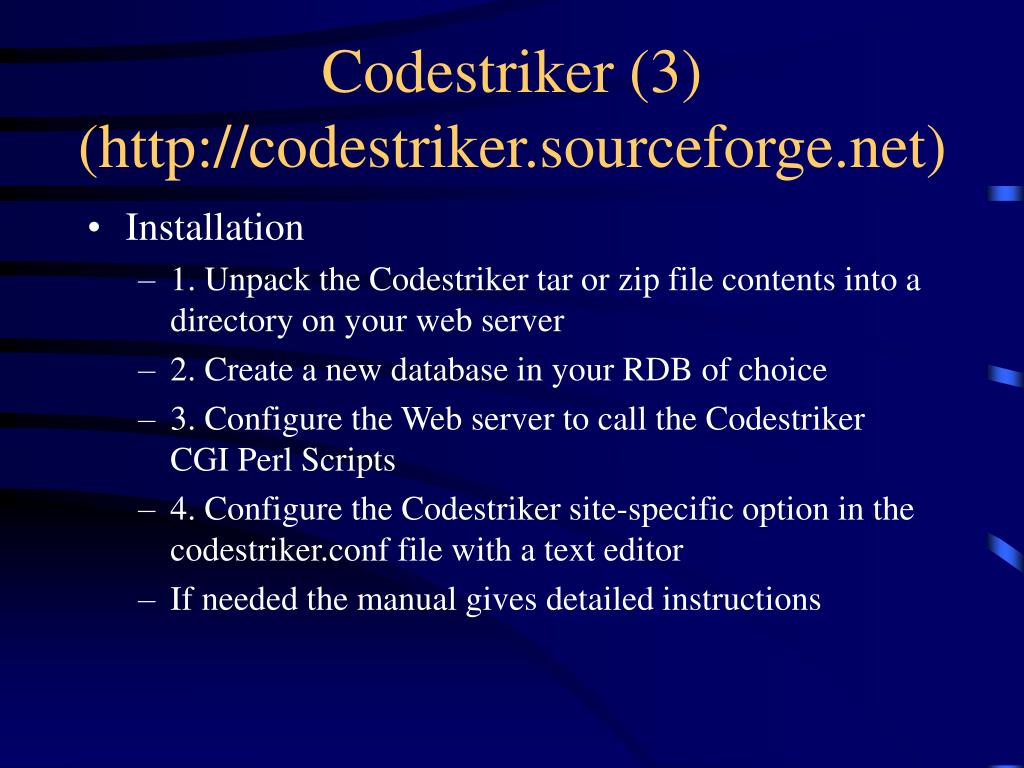

Codestriker (3)(http://codestriker.sourceforge.net)

  • Installation

    • 1. Unpack the Codestriker tar or zip file contents into a directory on your web server

    • 2. Create a new database in your RDB of choice

    • 3. Configure the Web server to call the Codestriker CGI Perl Scripts

    • 4. Configure the Codestriker site-specific option in the codestriker.conf file with a text editor

    • If needed the manual gives detailed instructions


Codestriker 4 http codestriker sourceforge net

Codestriker (4)(http://codestriker.sourceforge.net)

  • To use Codestriker for a Review you must set up a Topic which includes a description, a reviewer list, and the document to review.

  • 2 ways to Create a Topic

    • 1. Generate it from the Revision Control System

    • 2. Upload a File


Codestriker 5 http codestriker sourceforge net

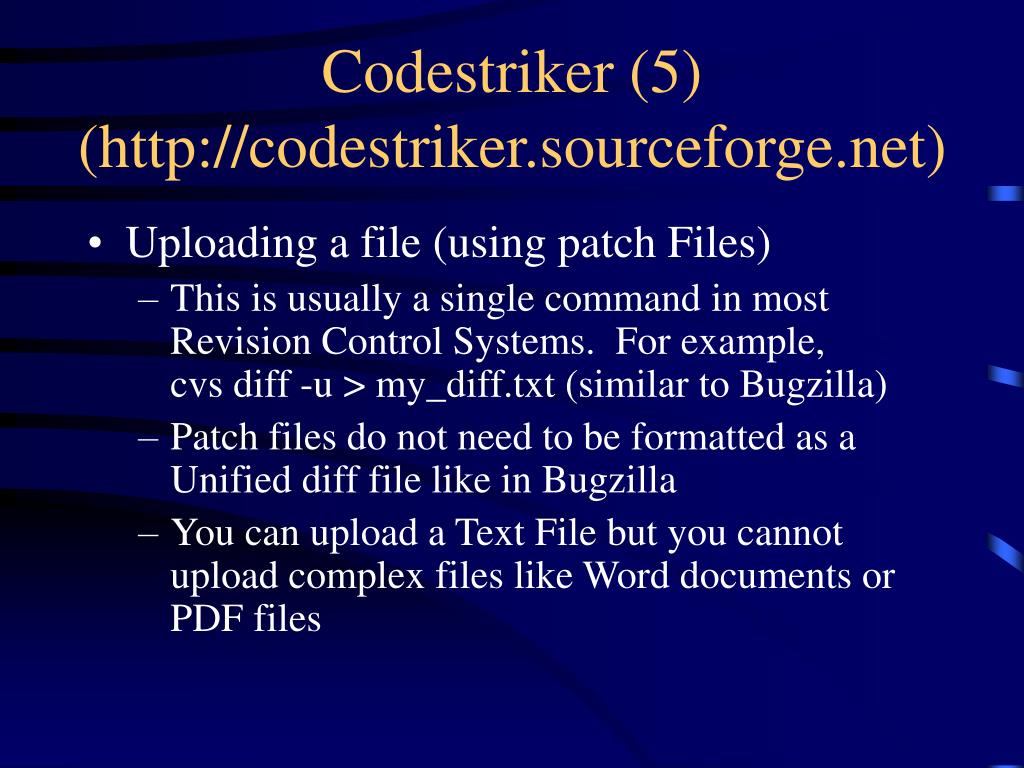

Codestriker (5)(http://codestriker.sourceforge.net)

  • Uploading a file (using patch Files)

    • This is usually a single command in most Revision Control Systems. For example, cvs diff -u > my_diff.txt (similar to Bugzilla)

    • Patch files do not need to be formatted as a Unified diff file like in Bugzilla

    • You can upload a Text File but you cannot upload complex files like Word documents or PDF files


Codestriker 6 http codestriker sourceforge net

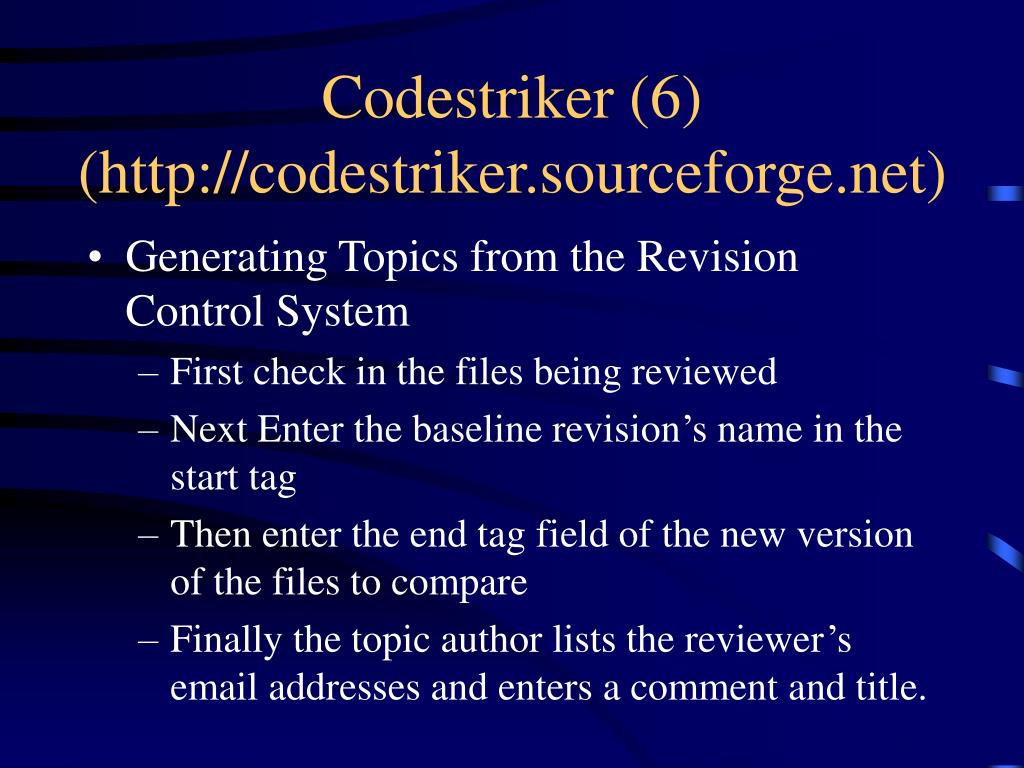

Codestriker (6)(http://codestriker.sourceforge.net)

  • Generating Topics from the Revision Control System

    • First check in the files being reviewed

    • Next Enter the baseline revision’s name in the start tag

    • Then enter the end tag field of the new version of the files to compare

    • Finally the topic author lists the reviewer’s email addresses and enters a comment and title.


Codestriker 7 http codestriker sourceforge net

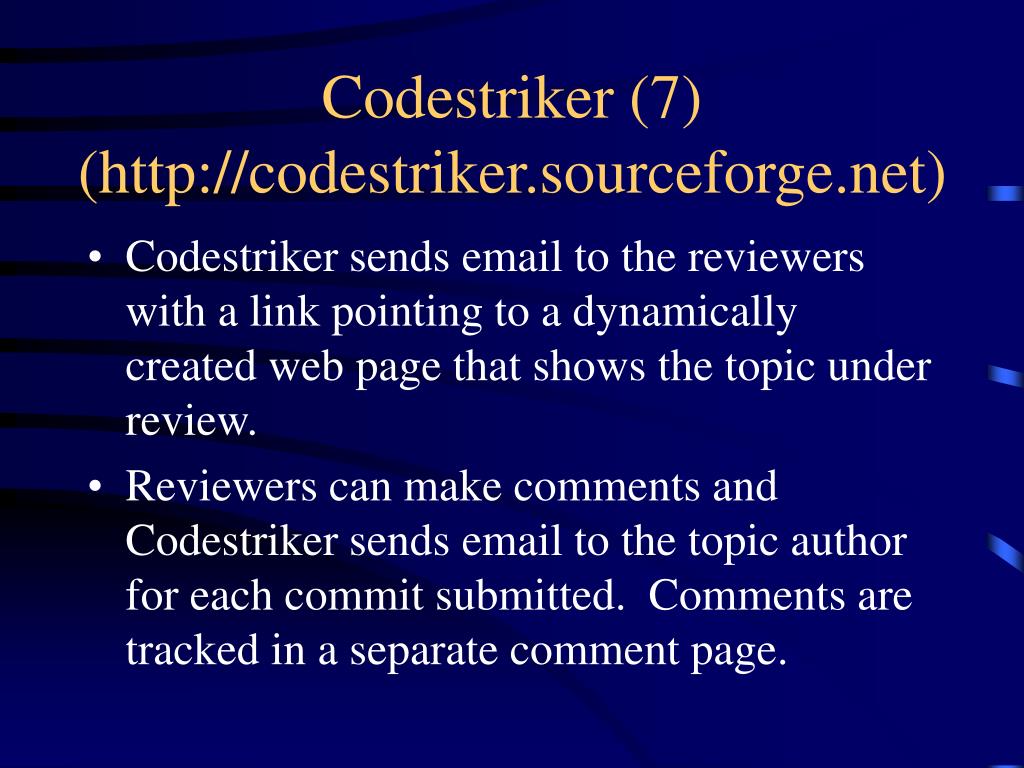

Codestriker (7)(http://codestriker.sourceforge.net)

  • Codestriker sends email to the reviewers with a link pointing to a dynamically created web page that shows the topic under review.

  • Reviewers can make comments and Codestriker sends email to the topic author for each commit submitted. Comments are tracked in a separate comment page.


Codestriker 8 http codestriker sourceforge net

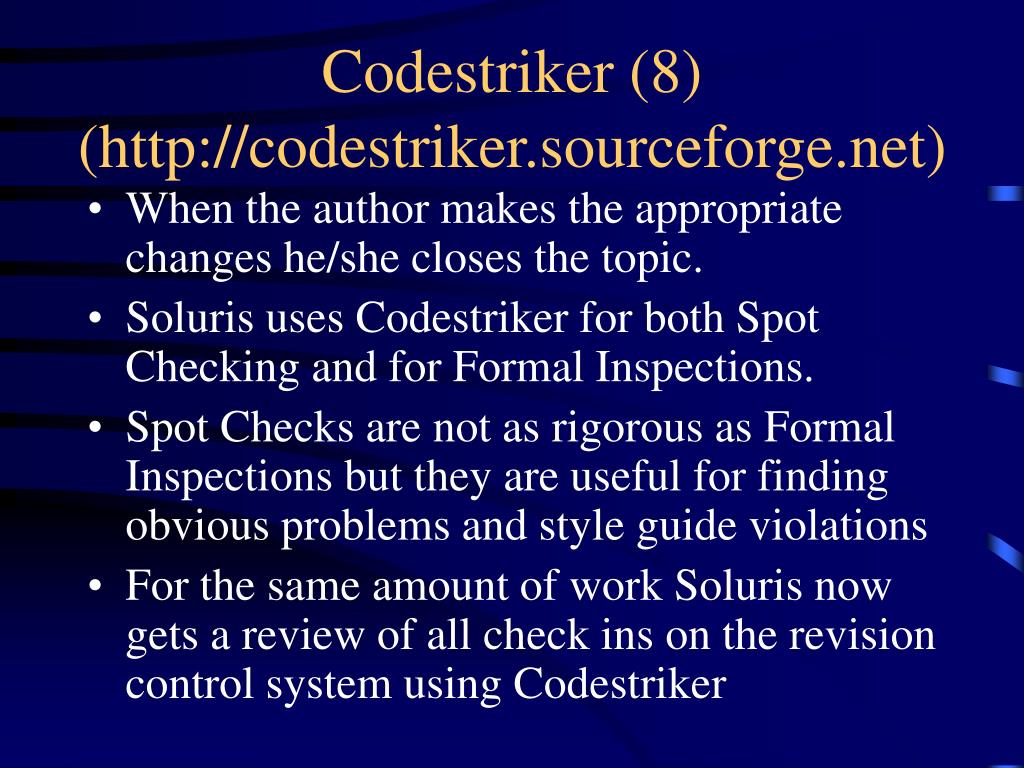

Codestriker (8)(http://codestriker.sourceforge.net)

  • When the author makes the appropriate changes he/she closes the topic.

  • Soluris uses Codestriker for both Spot Checking and for Formal Inspections.

  • Spot Checks are not as rigorous as Formal Inspections but they are useful for finding obvious problems and style guide violations

  • For the same amount of work Soluris now gets a review of all check ins on the revision control system using Codestriker


Codestriker 9 http codestriker sourceforge net

Codestriker (9)(http://codestriker.sourceforge.net)

  • Metrics

    • It automatically collects metrics on each review

    • It knows how large each topic is, who participated, how long they spent, and how many defects they found, all without any extra data entry

    • It can manage External Metrics (overview meeting time and preparation time) & Inspection Metrics (monitor effective ness of inspections)

    • It showed finding defects during inspections is more cost effective than finding them during integration testing or after software release.


Codestriker 10 http codestriker sourceforge net

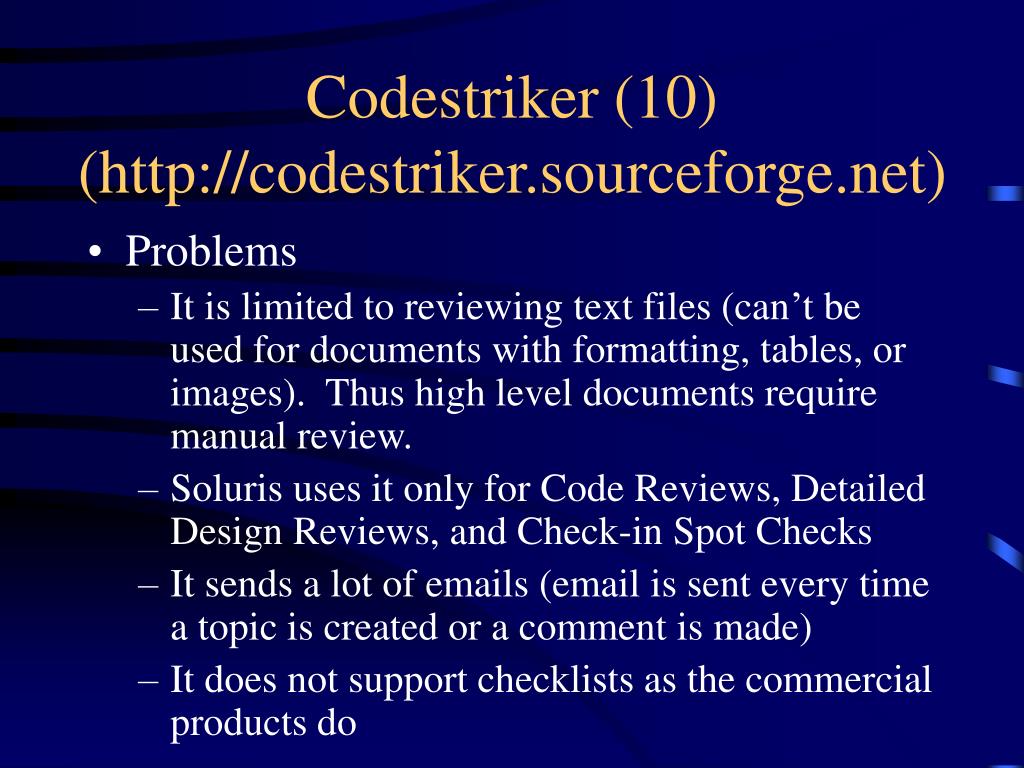

Codestriker (10)(http://codestriker.sourceforge.net)

  • Problems

    • It is limited to reviewing text files (can’t be used for documents with formatting, tables, or images). Thus high level documents require manual review.

    • Soluris uses it only for Code Reviews, Detailed Design Reviews, and Check-in Spot Checks

    • It sends a lot of emails (email is sent every time a topic is created or a comment is made)

    • It does not support checklists as the commercial products do


Code review add on for visual studio net www macadamian com products codereview

Code Review Add-on for Visual Studio .NET (www.macadamian.com/products/codereview)

  • By Macadamian Technologies

  • Focuses on Pre-check in Spot Inspections

  • Commercial product

  • It has similar capabilities as Bugzilla (open source)


Code reviewer www codehistorian com codereviewer overview php

Code Reviewer(www.codehistorian.com/codereviewer-overview.php)

  • By SmartBear Software

  • Focuses on Pre-check in Spot Inspections

  • Commercial product

  • It has similar capabilities as Bugzilla (open source)


Reviewpro www sdtcorp com reviewpro html

ReviewPro(www.sdtcorp.com/reviewpro.html

  • By Software Development Technologies

  • It offers Excellent support for Formal Inspections (including: inspection metrics, fine grained user security, and customizable process flow).

  • It assumes that the item being inspected is printed or viewable in another application.

  • It cannot be used for check-in spot checks

  • Commercial Product


Conclusion

Conclusion

  • Codestriker is the best product in terms of support for BOTH Check-In Spot Checks and for Formal Inspections.

  • For your own needs evaluate available tools and see what works best for the types of inspections you need to do.

  • No Current product is a complete solution for all kinds of inspections


Table 1 the 5 review products

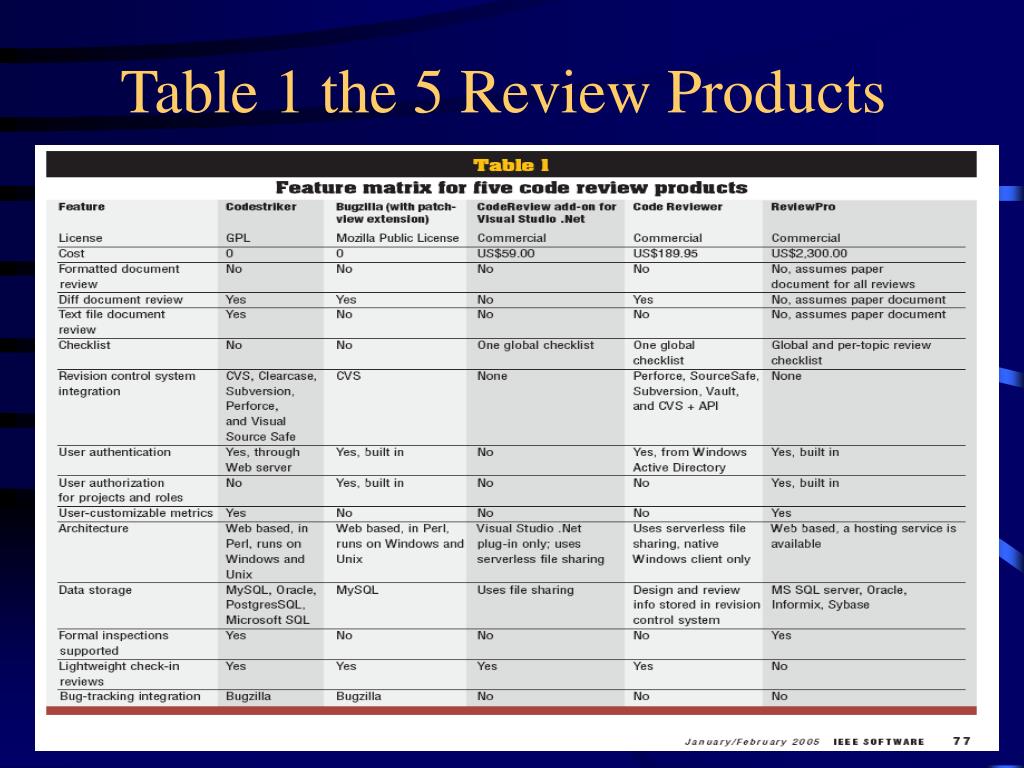

Table 1 the 5 Review Products


Questions comments

Questions/Comments
