  1. Innovation within Continuity Classic and New VD4

  2. Classic and New VD4 Contents • Introduction / General • Low/mid duty – high duty • Ratings / Standard • Design / Dimensions • Operating mechanism • Maintenance • Accessories / Standard and on request • Other / Special • Marketing tools

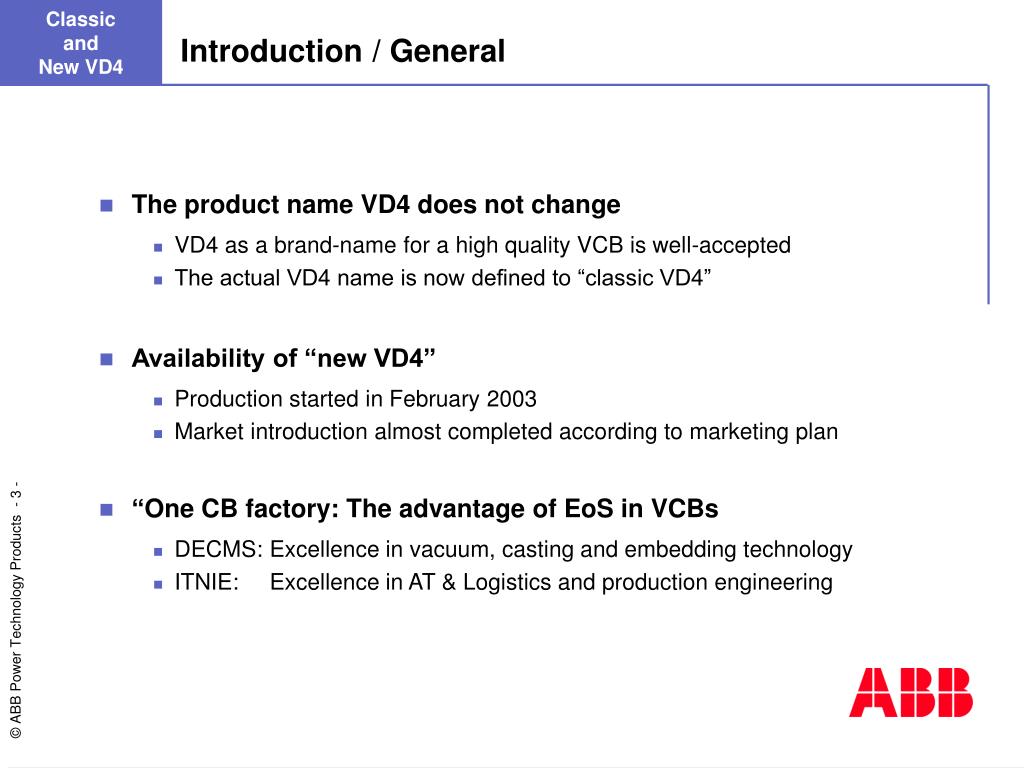

  3. Classic and New VD4 Introduction / General • The product name VD4 does not change • VD4 as a brand-name for a high quality VCB is well-accepted • The actual VD4 name is now defined to “classic VD4” • Availability of “new VD4” • Production started in February 2003 • Market introduction almost completed according to marketing plan • “One CB factory: The advantage of EoS in VCBs • DECMS: Excellence in vacuum, casting and embedding technology • ITNIE: Excellence in AT & Logistics and production engineering

  4. Classic and New VD4 Introduction / General • An innovative concept for the maintenance • new VD4 has an actuator with a plug-in snapping-unit • just replacing the snapping-unit the c.breaker is basically a new c.breaker • new VD4 is the first MV circuit-breaker offering this feature • removal and mounting of the snapping-unit requires only 20 min. • the replacement operation is more reliable then any maintenance • operating life of the snapping unit up to 31.5 kA 17.5 kV (25 kA 24 kV) : • today: 10,000 operations already certified • today: 20,000 operations satisfactory carried-out • within 4Q 2003: 30,000 operations

  5. Medium Voltage Products Low/mid duty – high duty 12kV ...2500A ...31.5kA 17.5kV ...2500A ...31.5kA 24kV ...2500A ...25kA classic VD4 new VD4 12kV > 2500A ...31.5kA 12kV 1250...4000A 40...63kA 17.5kV > 2500A ...31.5kA 17.5kV 1250...4000A 40kA 36kV ...3150A ...40kA 40.5kV ...3150A ...31.5kA VD4 high duty low/mid duty and ANSI ratings for ADVAC

  6. Classic and New VD4 Ratings / Standard • new VD4 vacuum circuit breaker : • only embedded poles • fixed and withdrawable versions • compliance to IEC 62271-100 (2001-05) STDs • low/mid duty: • 12 kV, ... 2500 A, ... 31.5 kA • 17,5 kV, ... 2500 A, ... 31.5 kA • 24 kV, ... 2500 A, ... 25 kA ( up to 40/50 kA within 4Q 2003 )

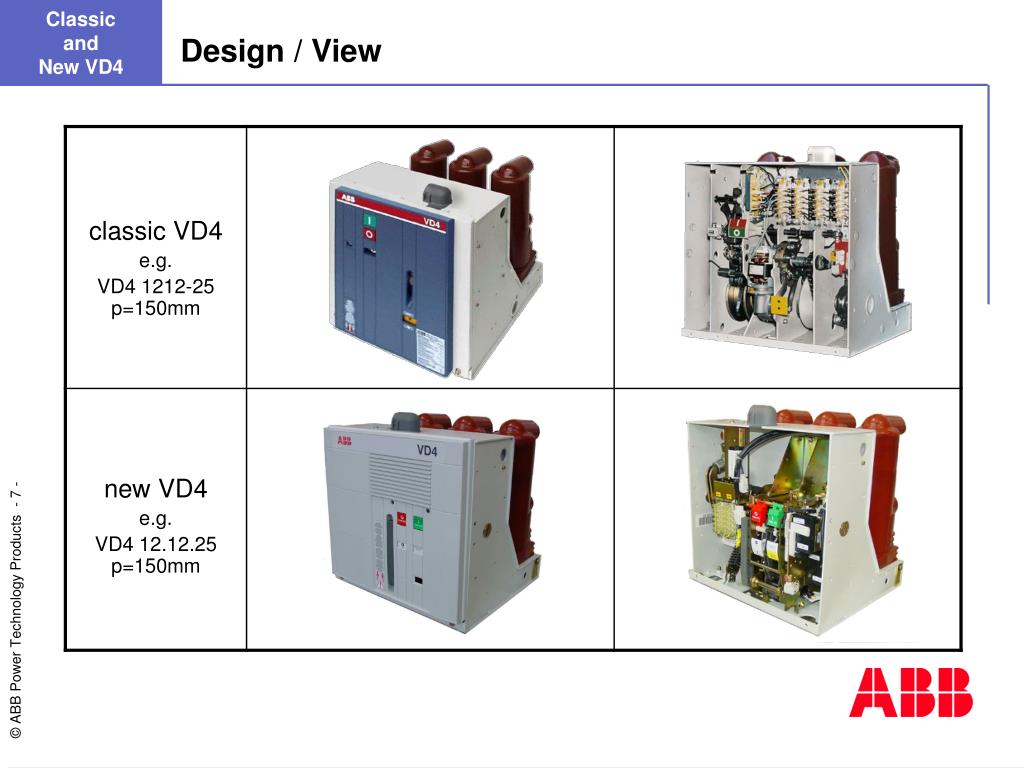

  7. Classic and New VD4 Design / View

  8. Classic and New VD4 Design / Dimensions (*) 610 mm standardized with 570 mm (no changes in the pole distance) (**) 750 mm standardized with 700 mm (no changes in the pole distance)

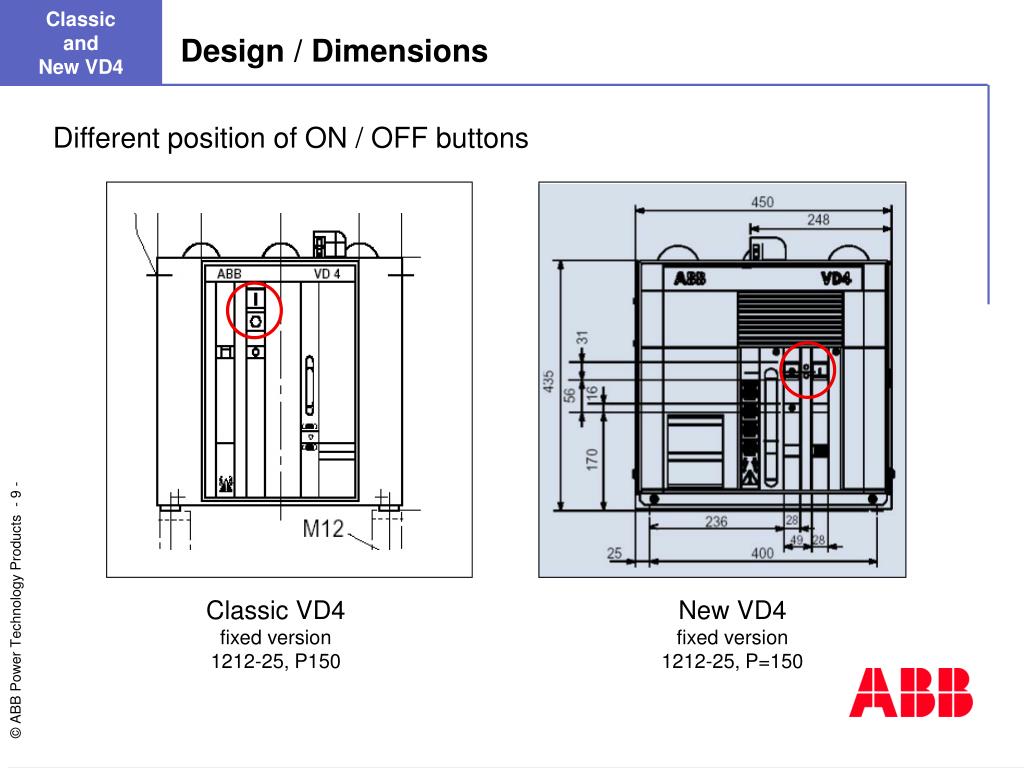

  9. Classic and New VD4 Design / Dimensions Different position of ON / OFF buttons Classic VD4 fixed version 1212-25, P150 New VD4 fixed version 1212-25, P=150

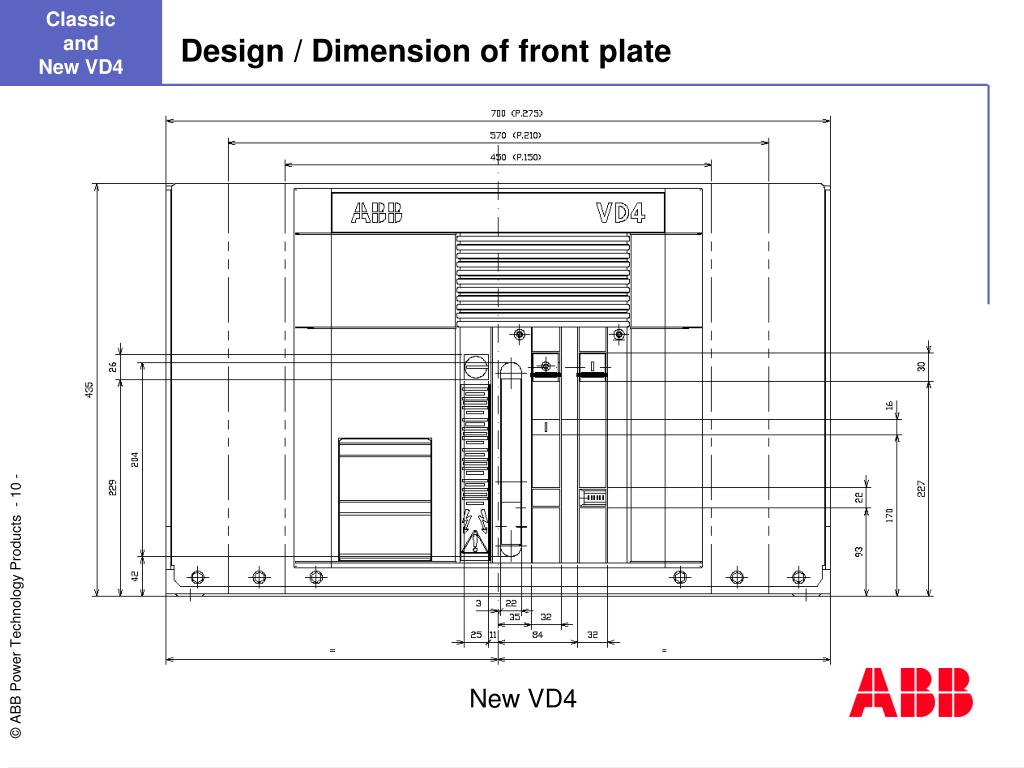

  10. Classic and New VD4 Design / Dimension of front plate New VD4

  11. Classic and New VD4 Design / External dimensions Classic VD4 fixed version P1 P4 P2 P5 12kV, ... 1250 A, ... 31.5 kA 17.5 kV, ... 1250 A, ... 31.5 kA p H a b c d e mm mm mm mm mm mm mm 150 205 450 424 433 217.5 475 210 205 570 424 433 217.5 475 24 kV, ... 1250 A, ... 25,kA p H a b c d e mm mm mm mm mm mm mm 210 310 570 424 433 282.5 6311) 275 310 700 424 433 282.5 6311) • 12kV, 1600-2500 A, ... 40 kA • 17.5 kV, 1600-2500 A, ... 31.5 kA • p H a b c d e • mm mm mm mm mm mm mm • 210 310 610 424 433 237.5 599 2) • 310 750 424 433 237.5 599 2) • 24,kV, 1600-2500 A, ... 25,kA • p H a b c d e • mm mm mm mm mm mm mm • 275 310 750 424 433 282.5 642 2) 1) measuring point pole part 2) pole with heat-sink 616 mm 3) pole with heat-sink 661 mm - 6394 E 03-07-2001-

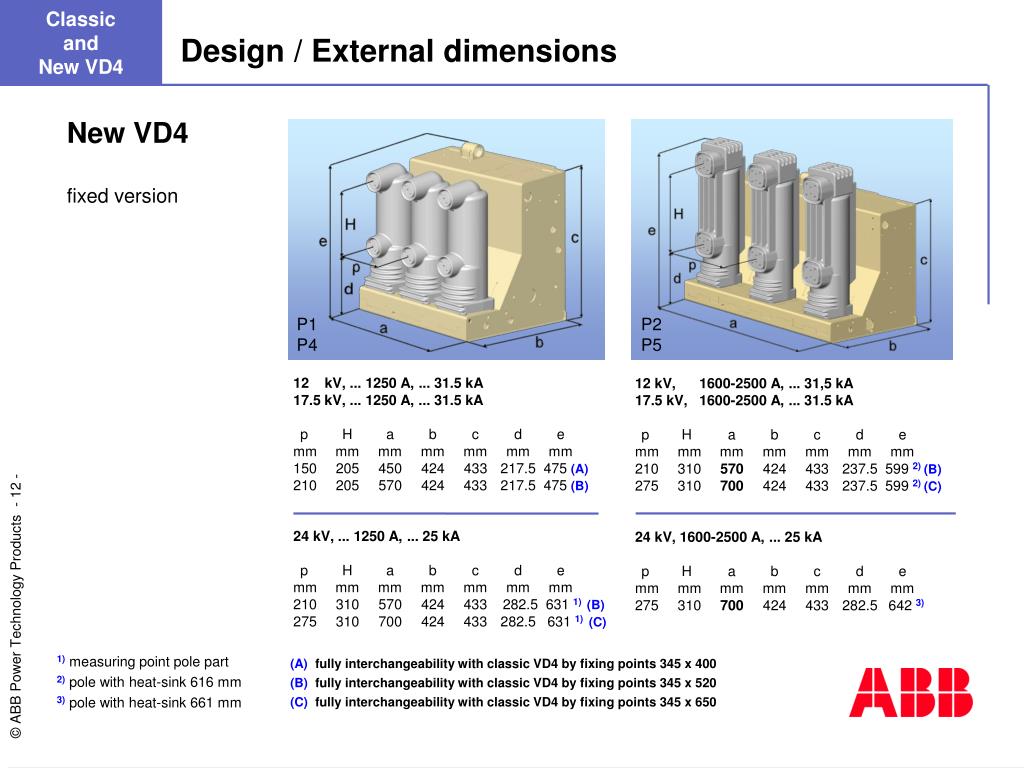

  12. Classic and New VD4 Design / External dimensions New VD4 fixed version P1 P4 P2 P5 12kV, ... 1250 A, ... 31.5 kA 17.5 kV, ... 1250 A, ... 31.5 kA p H a b c d e mm mm mm mm mm mm mm 150 205 450 424 433 217.5 475 (A) 210 205 570 424 433 217.5 475 (B) 24 kV, ... 1250 A, ... 25,kA p H a b c d e mm mm mm mm mm mm mm 210 310 570 424 433 282.5 631 1)(B) 275 310 700 424 433 282.5 631 1) (C) • 12kV, 1600-2500 A, ... 31,5 kA • 17.5 kV, 1600-2500 A, ... 31.5 kA • p H a b c d e • mm mm mm mm mm mm mm • 210 310 570 424 433 237.5 599 2) (B) • 310 700 424 433 237.5 599 2) (C) • 24,kV, 1600-2500 A, ... 25,kA • p H a b c d e • mm mm mm mm mm mm mm • 275 310 700 424 433 282.5 642 3) 1)measuring point pole part 2) pole with heat-sink 616 mm 3) pole with heat-sink 661 mm (A) fully interchangeability with classic VD4 by fixing points 345 x 400 (B) fully interchangeability with classic VD4 by fixing points 345 x 520 (C) fully interchangeability with classic VD4 by fixing points 345 x 650

  13. Classic and New VD4 Dimension / Design Withdrawable circuit breaker (available for the time being) • OK at 12 -17.5 kV; Under development at 24 kV with distance between terminals 380 mm • Under development • Yes with assembled pole; NO with embedded poles

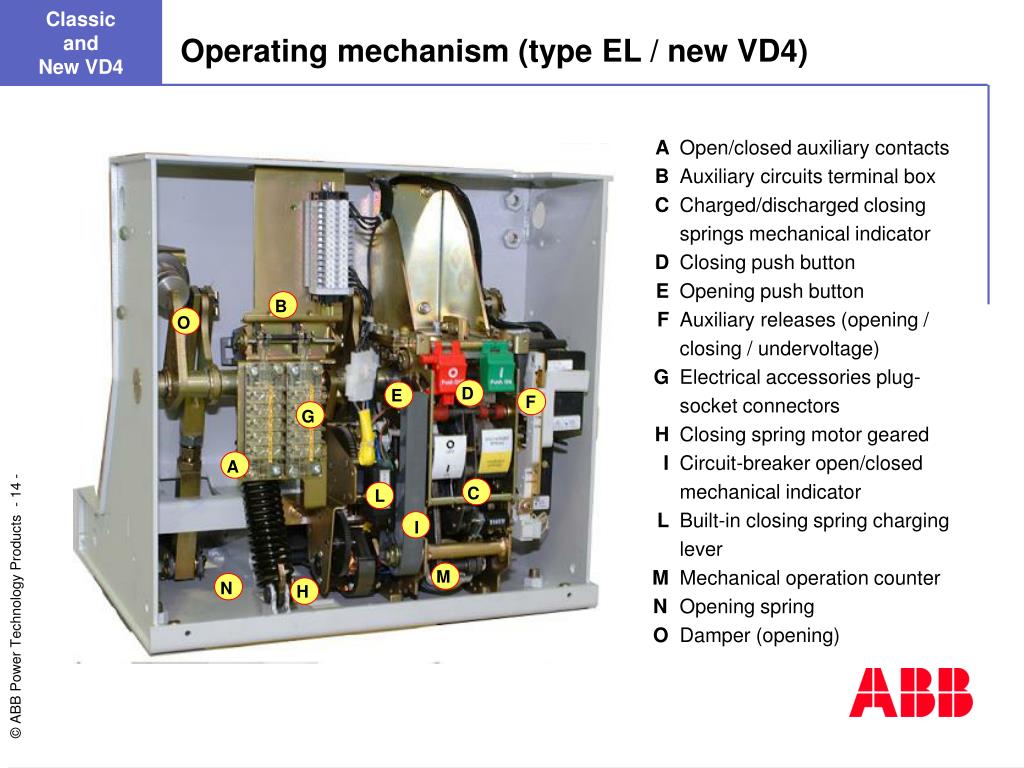

  14. Classic and New VD4 B O D E F G A C L I M N H Operating mechanism (type EL / new VD4) A Open/closed auxiliary contacts B Auxiliary circuits terminal box C Charged/discharged closing springs mechanical indicator D Closing push button E Opening push button F Auxiliary releases (opening / closing / undervoltage) G Electrical accessories plug-socket connectors H Closing spring motor geared I Circuit-breaker open/closed mechanical indicator L Built-in closing spring charging lever M Mechanical operation counter N Opening spring O Damper (opening)

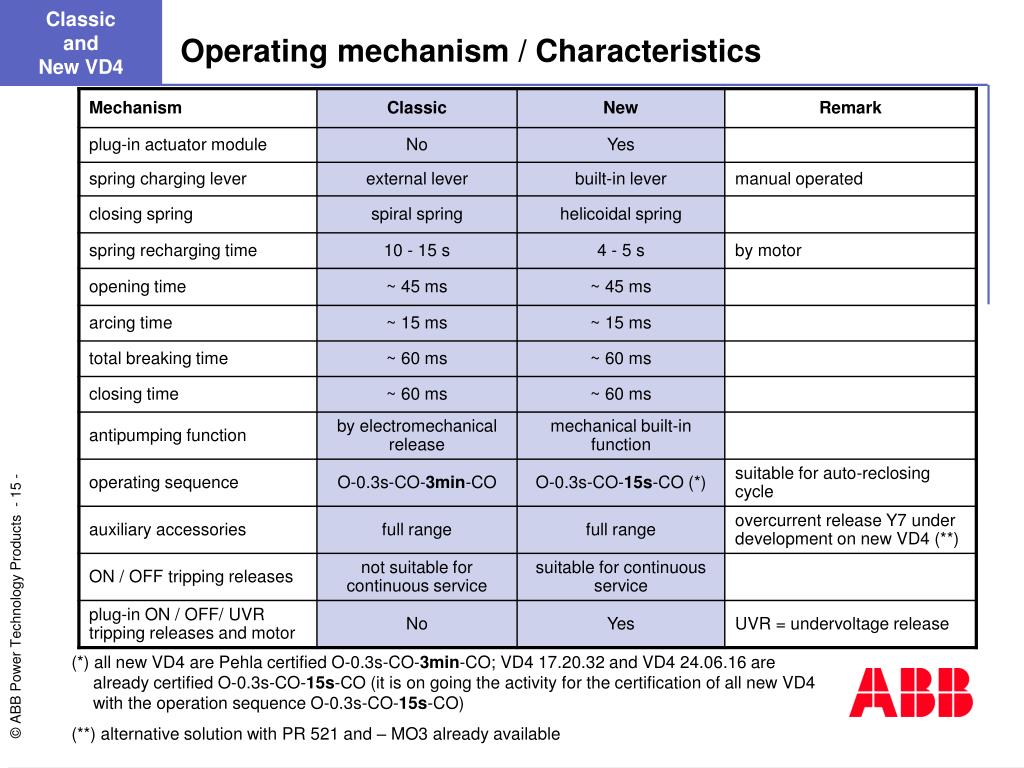

  15. Classic and New VD4 Operating mechanism / Characteristics (*) all new VD4 are Pehla certified O-0.3s-CO-3min-CO; VD4 17.20.32 and VD4 24.06.16 are already certified O-0.3s-CO-15s-CO (it is on going the activity for the certification of all new VD4 with the operation sequence O-0.3s-CO-15s-CO) (**) alternative solution with PR 521 and – MO3 already available

  16. Classic and New VD4 Maintenance • 1) cycles under normal operating conditions, depending on breaker type, given regularly and conscientiously performed maintenance • replacementmay be carried out only by ABB personnel or trained and qualified customer personnel • M2 class means 10,000 operations without maintenance; the activity is on going for 30,000 operations without maintenance; 30,000 operations without maintenance will be available within 4Q 2003 • replacement after 10,000 operations (depending on circuit breaker type) : blocking lever, half shaft, crank; replacement after 20,000 operations (depending on circuit breaker type) : latch, complete supporting crank, spring, shaft, cam disk, return rotation blocking • replacement after 10,000 operations: actuator unit (snapping unit only; see next slide; snapping unit for 30,000 operations without maintenance will be available within 4Q 2003) replacement after 15,000 operations: shock absorber (the damper “shock absorber” for 30,000 operations will be available within 4Q 2003)

  17. Classic and New VD4 Maintenance / Mechanical actuator New VD4 – actuator unit replacement: removal sequence 1) 1 Fixing screws 2 Fixing screws 3 Fixing screws 4 Fixing 5 Bearings 6 Kinematic linkage 7Same operations in reverse order for mounting • removal and mounting require approx. 20 min; the replacement is easier and faster respect to the replacement of single components in the classic c.breaker

  18. Classic and New VD4 Accessories / Standard • shunt releases are fundamentally wired with rectifiers (function as free-wheeling diodes if DC-supply) in order to obtain anti-pumping function; shunt releases are not mandatory with „new VD4“ in order to have anti-pumping function • mandatory for UniGear type ZS1, UniSafe, PowerBox; inclusive mechanical interlock (striker pin)if rated current is different from the panel • prevents the CB being racked into the panel with plug not inserted in the socket or no aux. Voltage; not available for motorized truck version

  19. Classic and New VD4 Accessories / On request 1) available free contacts depend on maximum of the requested applications

  20. Classic and New VD4 Accessories / Technical data 1) depending on supply voltage 2) the permanently supplied release ON carries out the electrical anti-pumping function 3) development on going

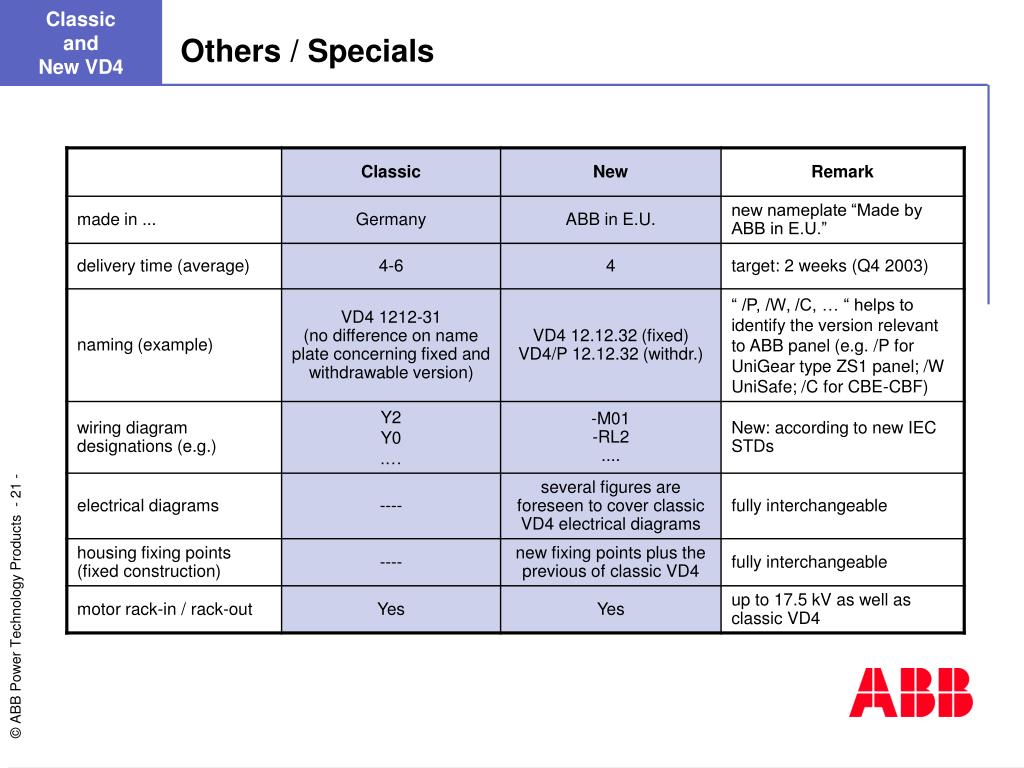

  21. Classic and New VD4 Others / Specials

  22. Classic and New VD4 Marketing tools English / German / Italian / other language (• under construction,• available,• available in “Inside ABB” )
