WHEEL LOADER. Technician and production mounting. 技术及生产装备. Advanced quality control system 先进的质量保证体系. HELI have plenty of test experience and a strict quality control system on part manufacturing, inspection, part test, trial run, so as to achieve a truly high-quality finish.
E N D
Advanced quality control system先进的质量保证体系 HELI have plenty of test experience and a strict quality control system on part manufacturing, inspection, part test, trial run, so as to achieve a truly high-quality finish. 合力装载机有丰富的检测经验和严密的质量保证体系，从零部件加工、检查、部件测试、整机试车等各方位，全面保证整机质量。
1) Quality Control System质量保证体系 Imported high-precision CNC Machining Center 进口高精度数控加工中心 Imported three coordinates measurement device 进口三座标测量仪
2) Compositive test bed for Transmission变速箱综合试验台
2) Compositive test bed for Transmission变速箱综合试验台 Unique compositive test bed for wheel loader transmission in China, it can test performance of transmission in detail, including: 国内独有的综合变速箱试验台，全面检测变速箱性能，检测内容涵盖： • Test the performance of torque converter, clutches and drive pressure. 变矩器、各离合器及系统压力实时检测； • Test the oil temperature of torque converter.变矩器油温实时检测； • Test input and output torques with different gears. 各档输入扭矩、输出扭矩实时检测； • Test input and output rotate speeds with different gears. 各档输入转速、输出转速实时检测； • Control of exceptional noise from transmission. 异常传动噪音控制； • System airproof control. 系统密封性控制。

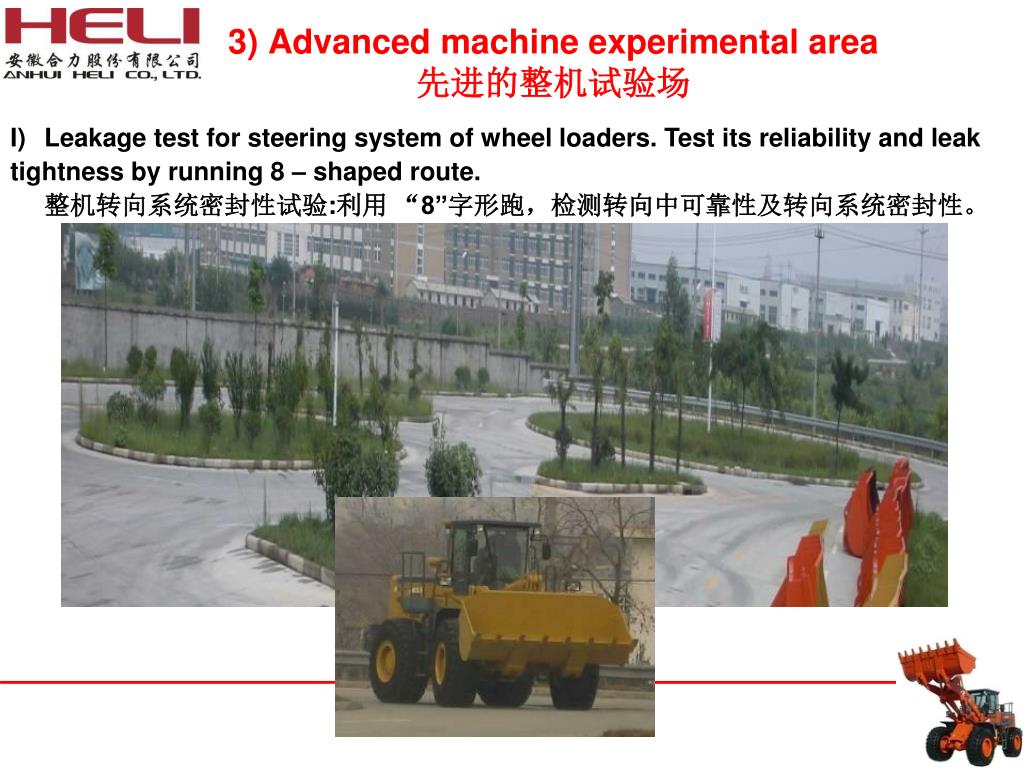

3) Advanced machine experimental area先进的整机试验场 • Leakage test for steering system of wheel loaders. Test its reliability and leak tightness by running 8 – shaped route. 整机转向系统密封性试验:利用 “8”字形跑，检测转向中可靠性及转向系统密封性。
3) Advanced machine experimental area先进的整机试验场 II) Leakage test for whole system. Test the hydraulic system, drive system and brake system under actual working condition. 整机系统密封性试验，模拟实际工况，检测整机液压系统、驱动系统、制动系统密封性

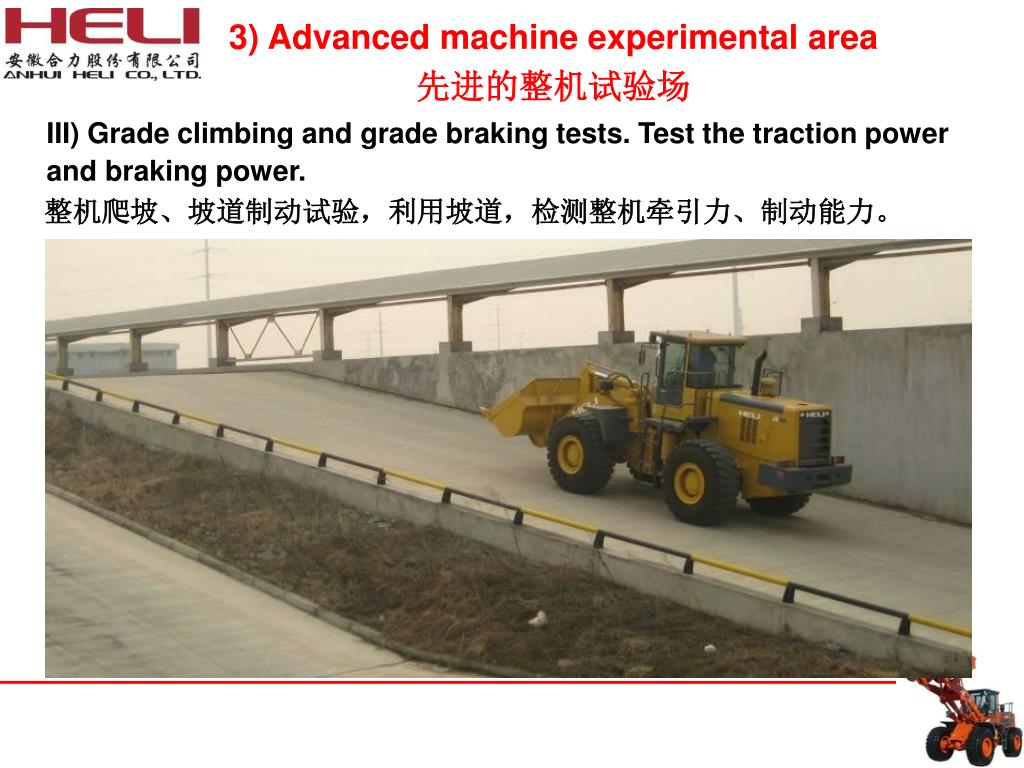

3) Advanced machine experimental area先进的整机试验场 III) Grade climbing and grade braking tests. Test the traction power and braking power. 整机爬坡、坡道制动试验，利用坡道，检测整机牵引力、制动能力。
掘起力试验 Breakout test 牵引力试验 Traction test 3) Advanced machine experimental area先进的整机试验场 IV) Traction power and breakout power tests. Test the traction power, lifting power and breakout power with full capacity. 整机牵引力、掘起力试验：利用试验台，检测整机满载牵引力及工作装置提升 力、掘起力。

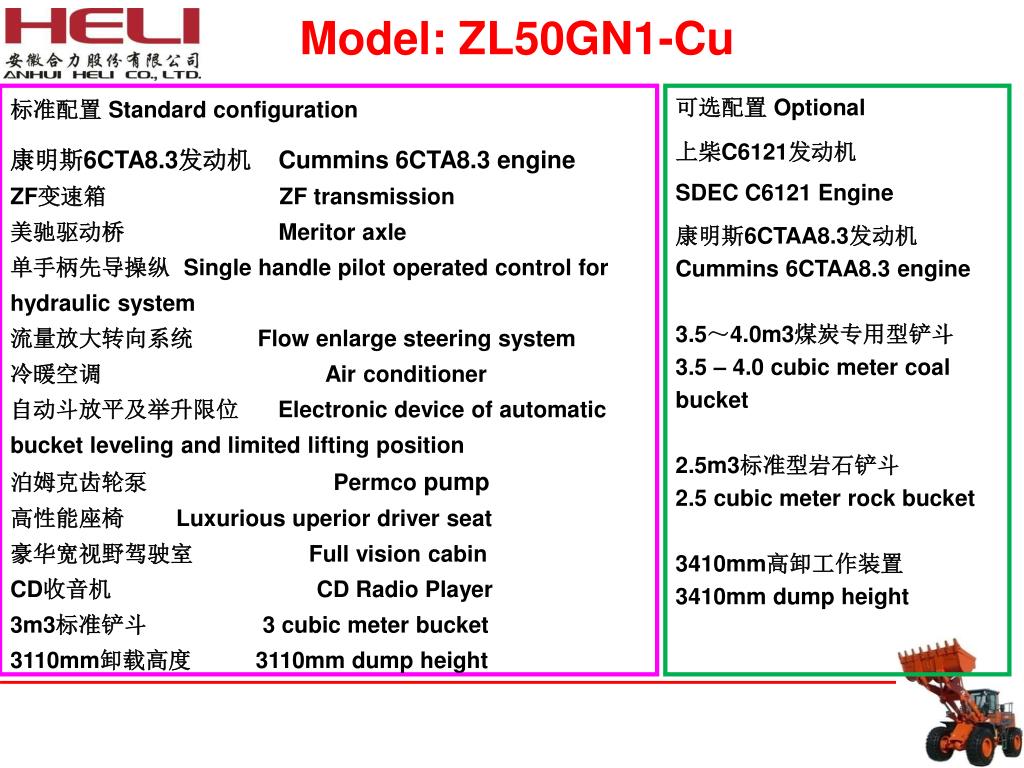

Model: ZL50GN1-Cu 标准配置 Standard configuration 康明斯6CTA8.3发动机 Cummins 6CTA8.3 engine ZF变速箱 ZF transmission 美驰驱动桥 Meritor axle 单手柄先导操纵Single handle pilotoperatedcontrol for hydraulic system 流量放大转向系统Flow enlarge steeringsystem 冷暖空调 Air conditioner 自动斗放平及举升限位 Electronic device of automatic bucket leveling and limited lifting position 泊姆克齿轮泵 Permco pump 高性能座椅 Luxurious uperior driver seat 豪华宽视野驾驶室 Full vision cabin CD收音机 CD Radio Player 3m3标准铲斗 3 cubic meter bucket 3110mm卸载高度 3110mm dump height 可选配置 Optional 上柴C6121发动机 SDEC C6121 Engine 康明斯6CTAA8.3发动机 Cummins 6CTAA8.3 engine 3.5～4.0m3煤炭专用型铲斗 3.5 – 4.0 cubic meter coal bucket 2.5m3标准型岩石铲斗 2.5 cubic meter rock bucket 3410mm高卸工作装置 3410mm dump height
CUMMINS 6CTA8.3 Engine 1、体积小、重量低; Small size, light weight; 2、扭矩大; Large torque 3、耗油低、使用寿命长、噪音小; Low fuel consumption, long service life, the noise is small; 4、排放：欧Ⅰ、国Ⅰ。 Emissions ：EU Stage Ⅰ、China Stage Ⅰ

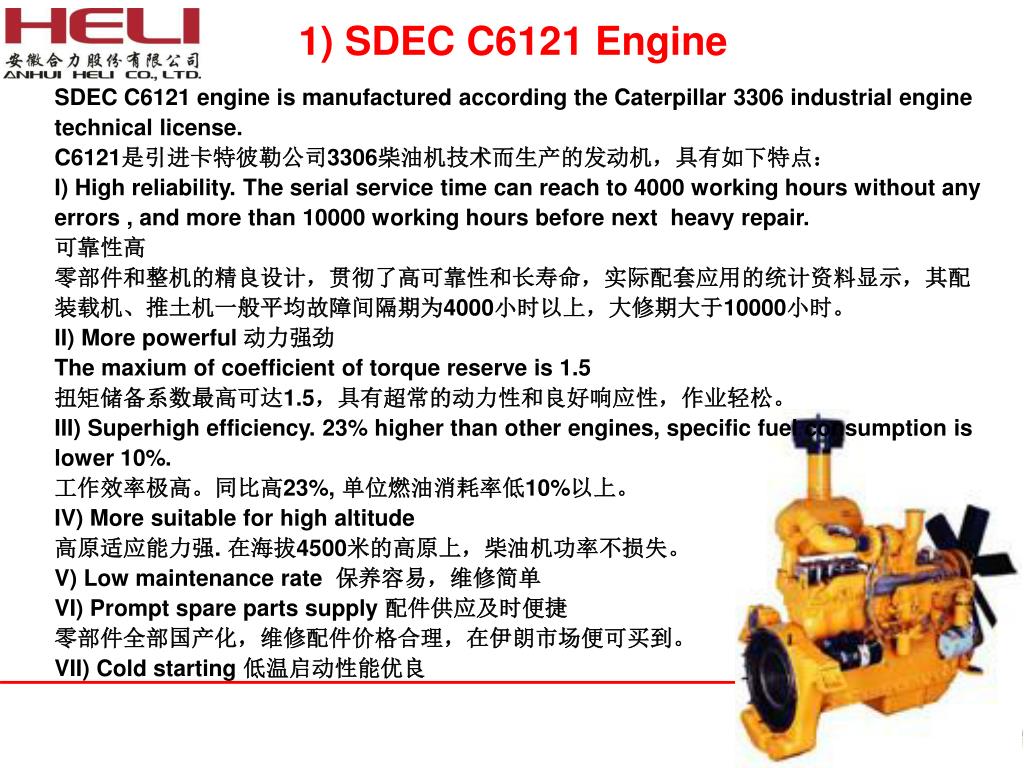

1) SDEC C6121 Engine SDEC C6121 engine is manufactured according the Caterpillar 3306 industrial engine technical license. C6121是引进卡特彼勒公司3306柴油机技术而生产的发动机，具有如下特点： I) High reliability. The serial service time can reach to 4000 working hours without any errors , and more than 10000 working hours before next heavy repair. 可靠性高 零部件和整机的精良设计，贯彻了高可靠性和长寿命，实际配套应用的统计资料显示，其配装载机、推土机一般平均故障间隔期为4000小时以上，大修期大于10000小时。 II) More powerful 动力强劲 The maxium of coefficient of torque reserve is 1.5 扭矩储备系数最高可达1.5，具有超常的动力性和良好响应性，作业轻松。 III) Superhigh efficiency. 23% higher than other engines, specific fuel consumption is lower 10%. 工作效率极高。同比高23%, 单位燃油消耗率低10%以上。 IV) More suitable for high altitude 高原适应能力强. 在海拔4500米的高原上，柴油机功率不损失。 V) Low maintenance rate 保养容易，维修简单 VI) Prompt spare parts supply 配件供应及时便捷 零部件全部国产化，维修配件价格合理，在伊朗市场便可买到。 VII) Cold starting 低温启动性能优良
2) High radiating performance散热效果好 • Radiator structure: Hydraulic oil, cooling water and transmission oil will be cooled orderly. 散热结构：采用先水散，后传动油及液压油散热结构； • Radiating effect: Larger cooling area and lower thermal equilibriumtemperature. 散热效果：散热面积大，发动机水、传动油及液压油热平衡温度低；
5) Hydraulic system 工作液压系统
Pressure: Working pressure is 21 Mpa. 压力：21MPa压力，显著降低工作泵排量，节能显著； High pressure hose: Italy MANULI hoses. 高压胶管：主高压胶管全部采用进口玛努利胶管； Cylinder: the technologyof mid-frequency induction hardeningwas used on all rods of cylinders. 油缸：全套油缸活塞杆全部采用中频淬火，硬度高，使用寿命好； Operation: Single handle pilot operated control for hydraulic system, responding easily. 操纵：先导操纵，轻松可靠； Chinese Famous Pump and Valves, 泵阀：选用济南泵、临海阀，品质一流； Hydraulic nipple seal: the method of 24 degree cone-shaped seal and O ring, which is most popular in the world. 管路密封：国际通用的24°锥+O型圈密封，密封更可靠； Hydraulic pipelines arrangement: reasonable arrangement and high maintainability. 管路排布：系统管路平顺，美观，维护更简单。 5) Hydraulic system 工作液压系统
Pressure: 16Mpa. The steering cylinder is more powerful, and make the driver steers easily. 压力：转向压力16MPa，油缸推力大，转向轻松； Hydraulic limit: with full hydraulic limit for steering system to lower rigid shocks. 液压转向限位：采用全液压转向限位，减小刚性冲击，提高使用寿命； Mechanical limit: ensure the steering reliability when the machine turns to ultimate points. 刚性转向限位：保证极限转向定位,提高转向可靠性； Operation: Flow enlarge steering system. 操纵：流量放大转向，转向力小，转向定位可靠。 6) Steering system 转向系统

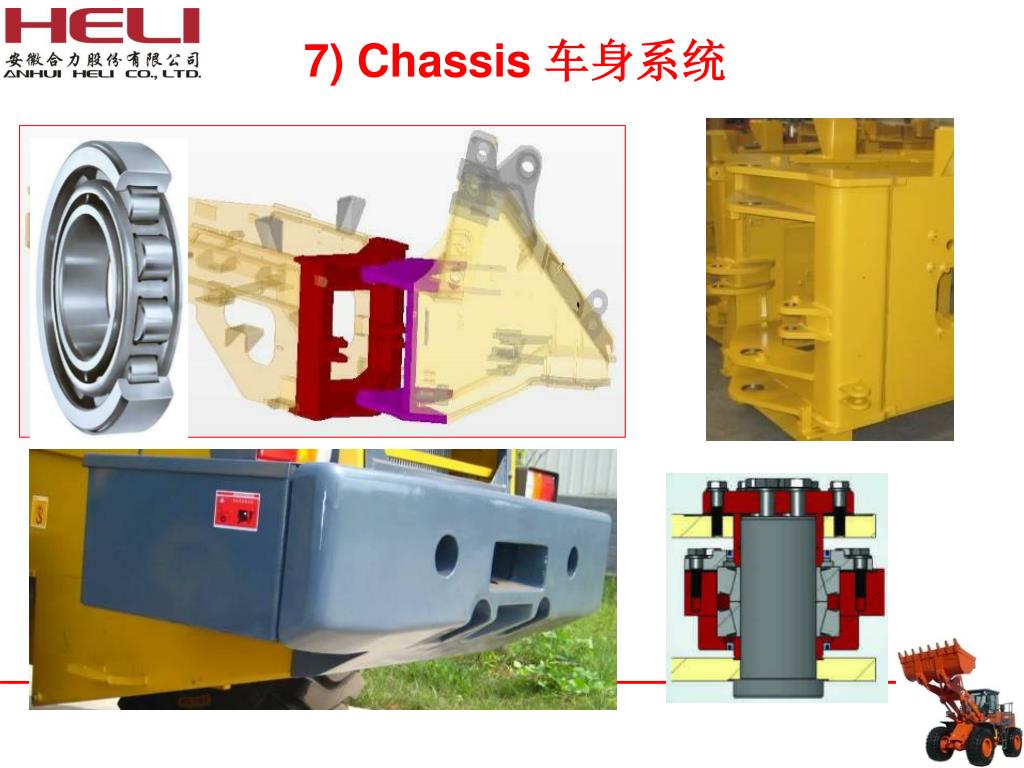

Structure: welded by high strength alloy steelplates. 结构：高强度合金钢焊接而成，刚度好，耐冲击； Hinge joint: hinged by conical roller bearings, maintenance free. 铰接：圆锥滚子轴承铰接，可靠性高，使用期内免维修； Front and back chassis: Box shape structure was welded at the cross section, to prevent any distortion. 前后车架：断面呈箱形，大大增强抗扭能力，使用寿命长； Cast iron balance weight: with large bevel design. 平衡重：全铸铁配重，大斜角结构，离去角大，堆场不易碰地面，后转弯半径小，场地适应能力强，且维修空间大。 7) Chassis 车身系统
Structure: 4 wheels caliper disc brake system with the method of 24 degree cone-shaped seal and O ring 结构：气顶油四轮钳盘制动，管路采用24°锥+“O”型密封圈结构，密封更可靠； Brake Caliper: Soma brake caliper. 制动钳：索马制动钳； 主要制动元器件全部采用芜湖盛力，可靠性高。 8) Brake system 制动系统

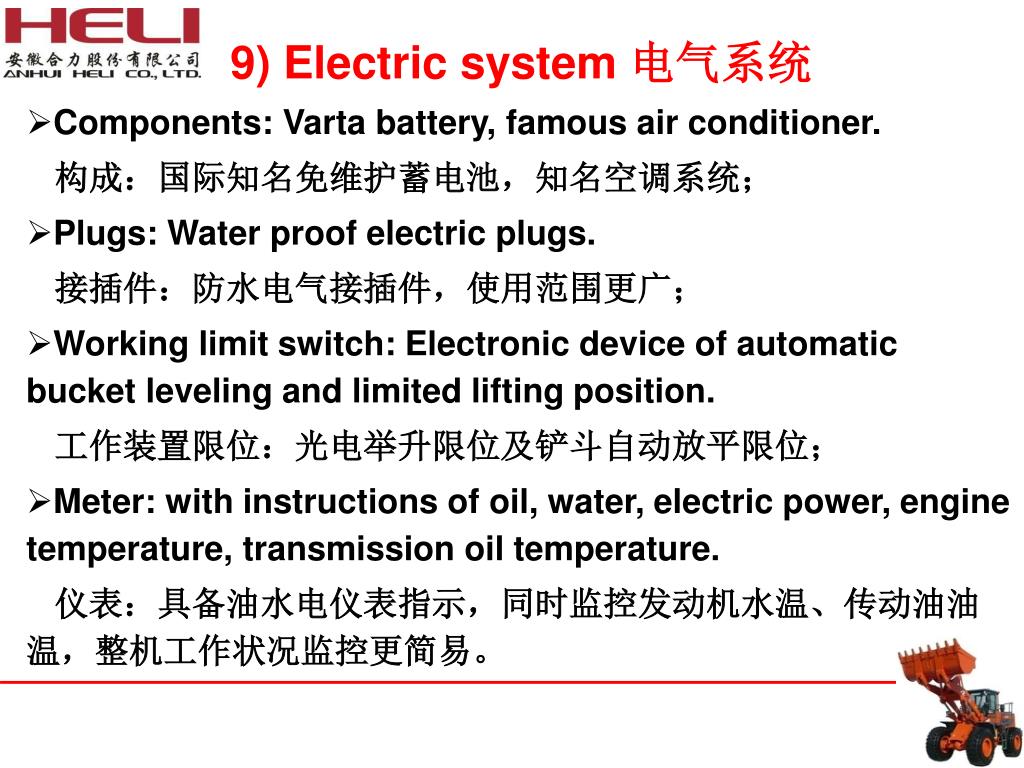

9) Electric system 电气系统 • Components: Varta battery, famous air conditioner. 构成：国际知名免维护蓄电池，知名空调系统； • Plugs: Water proof electric plugs. 接插件：防水电气接插件，使用范围更广； • Working limit switch: Electronic device of automatic bucket leveling and limited lifting position. 工作装置限位：光电举升限位及铲斗自动放平限位； • Meter: with instructions of oil, water, electric power, engine temperature, transmission oil temperature. 仪表：具备油水电仪表指示，同时监控发动机水温、传动油油温，整机工作状况监控更简易。
Structure: with single rocker and reversal structure, the thickness of both lifting and unloading arms are 50mm, welded by high strength alloy steelplates, all their hoses are bored by CNC machining center. 结构：单摇臂、反转机构，动臂板厚50mm，全部采用高强度合金钢焊接，数控加工所有轴孔； Seal: All linkage joints are sealed with double-layer seals for dustproof and inside lubrication. 密封：铰点全部采用双端密封，防尘效果好，内部润滑好。 10) Working device 工作装置
All shafts and sleeves are made by high strength alloy steel, their rigidity level are much higher because a special quencher technology is used on these parts. 高强度合金钢制造的销轴、轴套，采用特殊淬火工艺，淬火后硬度等级高. The rigidity level of our shafts is more than HRC60. 合力销轴硬度达到HRC60以上，而国内普遍为HRC47-52； The rigidity level of our sleeves is more than HRC55. 合力轴套硬度达到HRC55， 而国内普遍为HRC40-47。 Advantage of shafts and sleeve 销轴、轴套特点

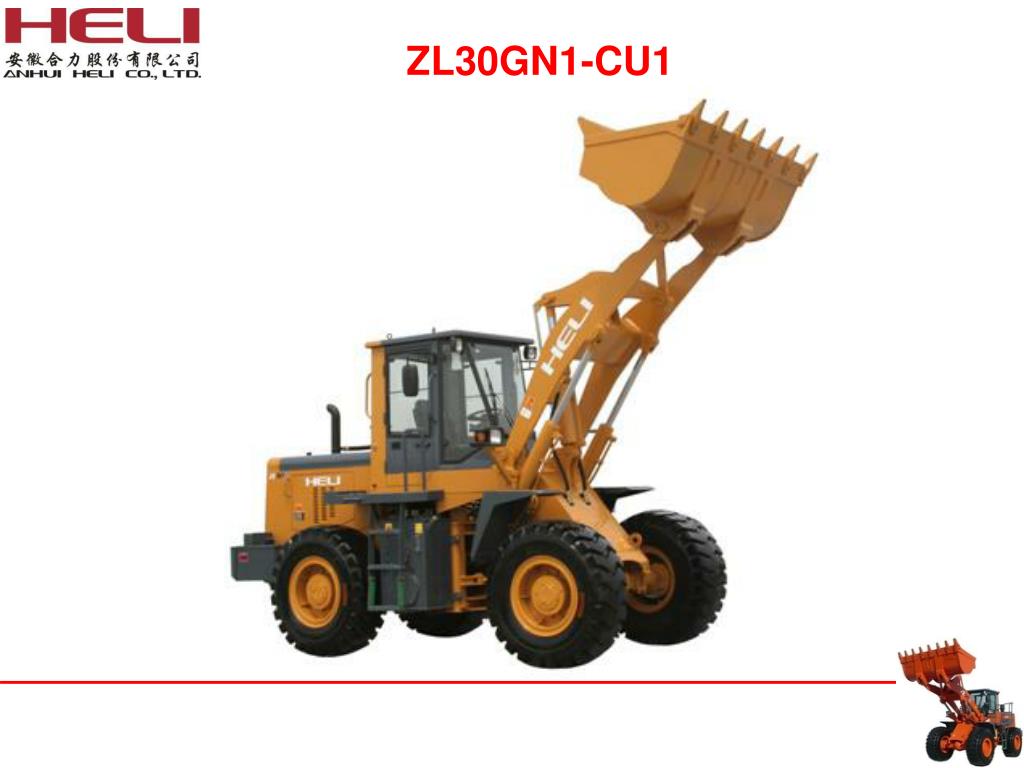

Model: ZL30GN1-Cu1 标准配置 Standard configuration 康明斯6BTA5.9发动机 Cummins 6BTA5.9 engine 合力变速箱 HELI transmission 肥城动桥 Feicheng axle 单手柄先导操纵Single handle pilotoperatedcontrol for hydraulic system 冷暖空调 Air conditioner 自动斗放平及举升限位 Electronic device of automatic bucket leveling and limited lifting position 泊姆克齿轮泵 Permco pump 高性能座椅 Luxurious uperior driver seat CD收音机 CD Radio Player 2m3标准铲斗 2 cubic meter bucket 3210mm卸载高度 3210mm dump height 可选配置 Optional 潍柴道依茨TD226B发动机 Weichai Deutz TD226B 3.5～4.0m3煤炭专用型铲斗 3.5 – 4.0 cubic meter coal bucket 1.5m3标准型岩石铲斗 1.5 cubic meter rock bucket 2940mm工作装置 2940mm dump height
3) HELI Power Shift Transmission 合力电控变速箱 • Operation: Single handle pilot operated control for hydraulic system, responding easily. 使用：电控单手柄，操纵轻便、灵活； • Increasing service life: Ordinary gear train, constant mesh gear, imported friction plateand septa. 寿命：定轴、常啮合齿轮，进口摩擦片、隔片，寿命长； • Torque converter: Single stage three components torque converter with high efficiency. 变矩器：单级三元件变矩器，效率高； • Working efficiency: 4 forward gears and 4 reverse gears, Kick-down Function(only available at 1st and 2nd) offers an easy and comfortable operation. 效率：前四后四档位，且具有强制换档及KD换档功能，工作效率高。 BZ030 Transmission BZ050 Transmission

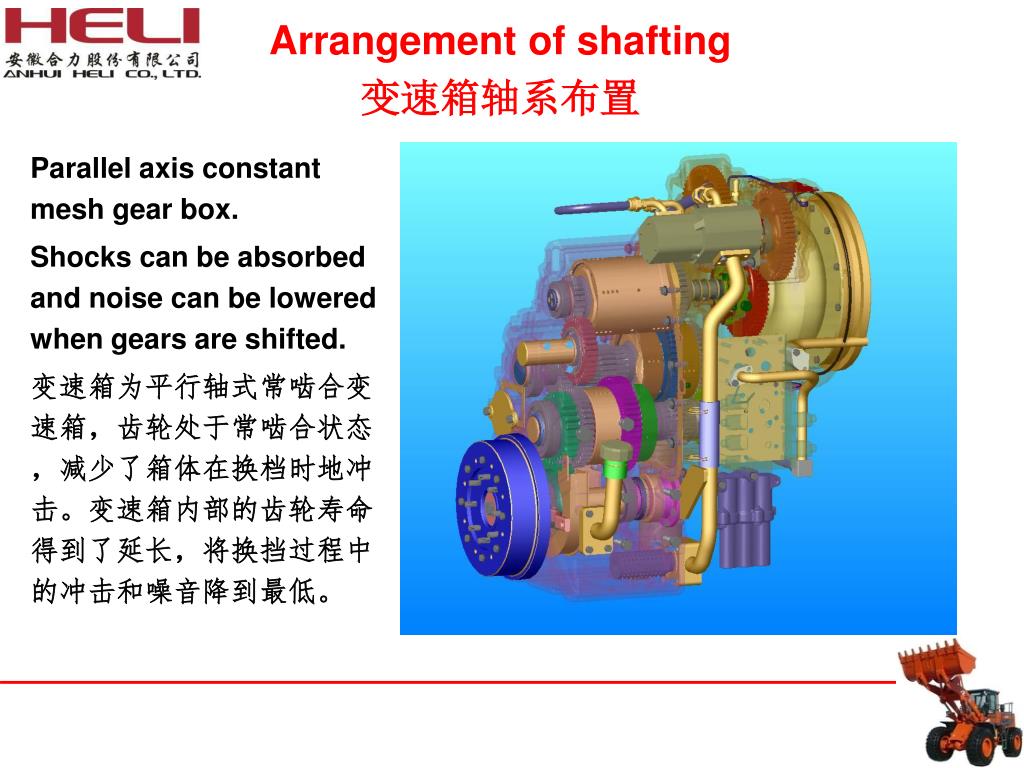

Arrangement of shafting变速箱轴系布置 Parallel axis constant mesh gear box. Shocks can be absorbed and noise can be lowered when gears are shifted. 变速箱为平行轴式常啮合变速箱，齿轮处于常啮合状态，减少了箱体在换档时地冲击。变速箱内部的齿轮寿命得到了延长，将换挡过程中的冲击和噪音降到最低。

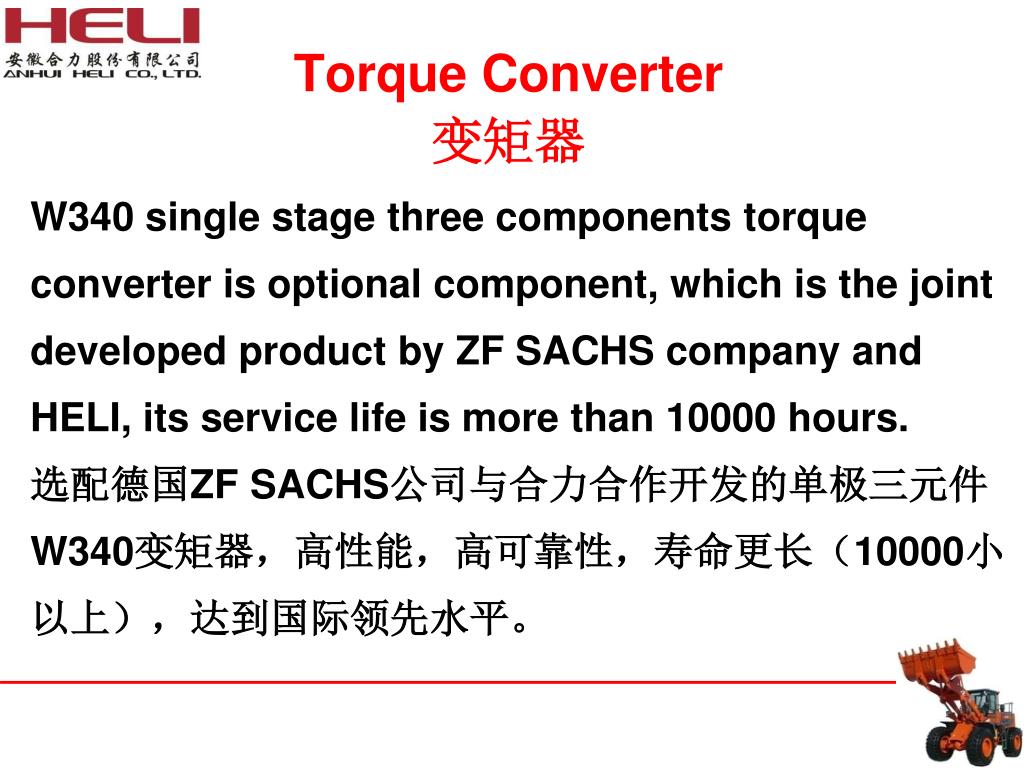

Torque Converter变矩器 W340 single stage three components torque converter is optional component, which is the joint developed product by ZF SACHS company and HELI, its service life is more than 10000 hours. 选配德国ZF SACHS公司与合力合作开发的单极三元件 W340变矩器，高性能，高可靠性，寿命更长（10000小 以上），达到国际领先水平。
Kick-Down FunctionK-D功能介绍 Kick-down function had been assembled in all HELI transmissions which is the same as ZF transmission. This function is most popular in high and middle levels of wheel loaders. 目前，国内在中高端装载机中，如ZF传动系统，其具有操纵时的K-D强制换档功能，利于提高工作效率。合力BZ050/030型变速箱也集成了上述功能，可靠性高。 其功能主要作用如下： Kick-down Function(only available at 1st and 2nd gears)on HELI range selector offer an easy and comfortable operation system for wheel loader drivers,during the operation.由上述换档过程，可以发现此功能降低了司机劳动强度，降低了燃油消耗，提高了发动机使用寿命，综合提高了装载机作业效率。

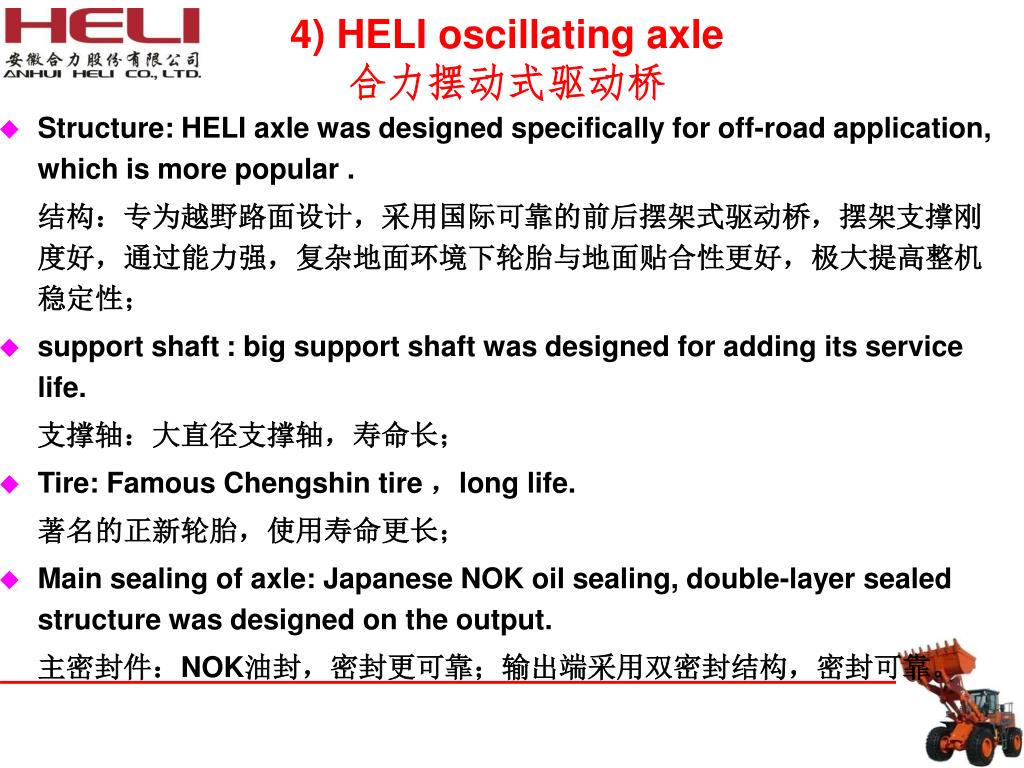

4) HELI oscillating axle 合力摆动式驱动桥 • Structure: HELI axle was designed specifically for off-road application, which is more popular . 结构：专为越野路面设计，采用国际可靠的前后摆架式驱动桥，摆架支撑刚度好，通过能力强，复杂地面环境下轮胎与地面贴合性更好，极大提高整机稳定性； • support shaft: big support shaft was designed for adding its service life. 支撑轴：大直径支撑轴，寿命长； • Tire: Famous Chengshin tire ，long life. 著名的正新轮胎，使用寿命更长； • Main sealing of axle: Japanese NOK oil sealing, double-layer sealed structure was designed on the output. 主密封件：NOK油封，密封更可靠；输出端采用双密封结构，密封可靠。
Wood clamp夹木钳 The branch clamp is for grappling branches, a shield had been welded to protect its hydraulic hoses. 此夹木钳中间焊接有防护板防止管路被撞坏，适用于夹持树枝等造纸用户； Branch Clamp 夹木钳（棒料型） The log clamp is for grappling logs without the shield, so the driver will has a wide view. 此夹木钳取消中间焊接防护板，适用于夹持大型圆木，适用于港口用户； Log Clamp 夹木钳（圆木型）
3410mm dump clearance 高卸工作装置 Parameter 主要参数： Rated load 额定载重量:4.5ton Bucket capacity斗容: 2.7 m3 Max. breakout force最大掘起力≥160 kN Max. dump clearance最大卸载高度:3410mm

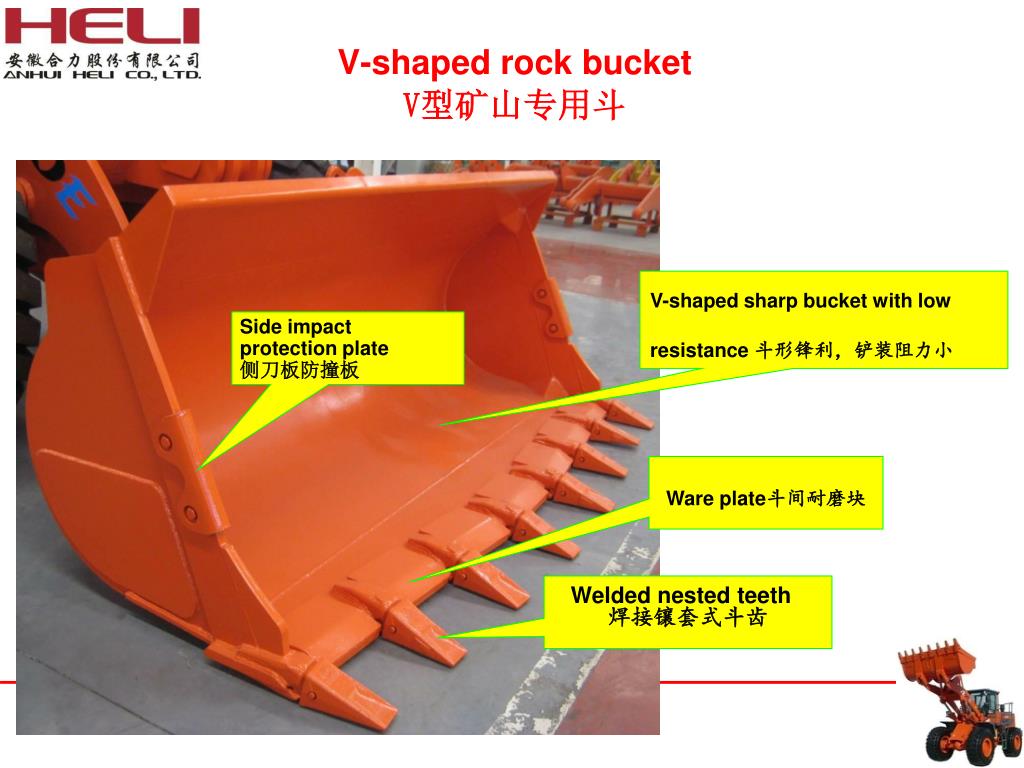

V-shaped rock bucketV型矿山专用斗 V-shaped sharp bucket with low resistance 斗形锋利，铲装阻力小 Side impact protection plate 侧刀板防撞板 Ware plate斗间耐磨块 焊接镶套式斗齿 Welded nested teeth
Certificate for EC Type-Testing CE认证 HELI ZL50G wheel loader was tested by the Ministry of Machinery Industry of China and got the certificate for EC type-testing in October of 2008, including FORS/ROPS certificate, EMC certificate, noise emission certificate, vibration certificate. 公司ZL50G装载机于08年10月顺利完成国家工程机械质检中心CE认证，获得CE证书认证内容包括：整机安全性认证、驾驶室FOPS/ROPS认证、整机电磁兼容性认证、整机噪音认证、整机振动认证。
