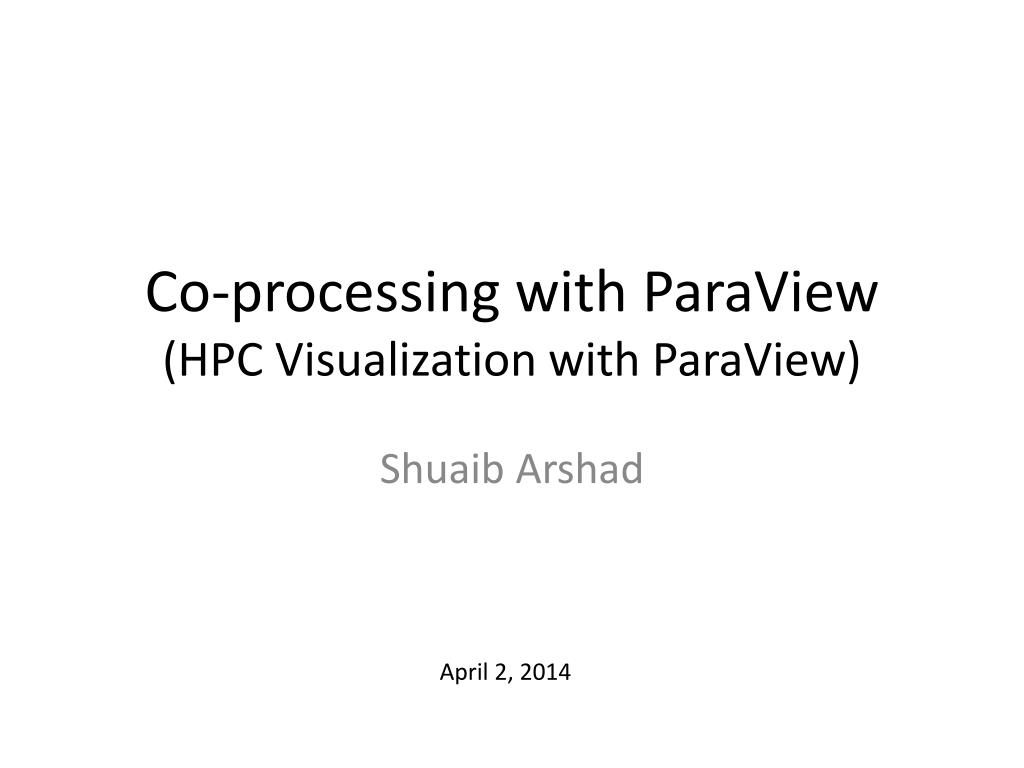

  1. Co-processing with ParaView(HPC Visualization with ParaView) Shuaib Arshad April 2, 2014

  2. Agenda • IntroductiontoParaViewCatalyst • Catalyst forUsers • Catalyst forDevelopers

  3. OnlineHelp • Emaillist:paraview@paraview.org • Doxygen: • – http://www.vtk.org/doc/nightly/html/classes.html • – http://www.paraview.org/ParaView3/Doc/Nightly/html/classes.html • Sphinx: • http://www.paraview.org/ParaView3/Doc/Nightly/www/py-doc/index.html • Websites: • http://www.paraview.org • http://catalyst.paraview.org • Examples: • https://github.com/acbauer/CatalystExampleCode

  4. WhatisCatalyst

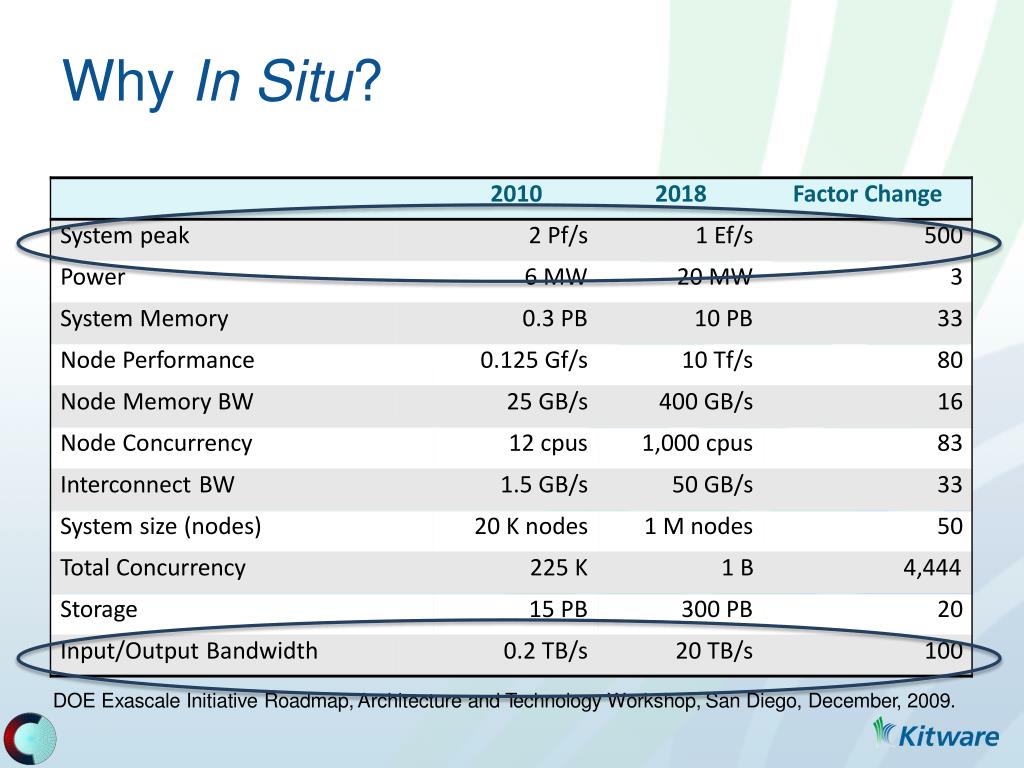

  5. WhyInSitu? DOEExascaleInitiativeRoadmap,Architectureand TechnologyWorkshop,SanDiego,December,2009.

  6. Catalyst Approach

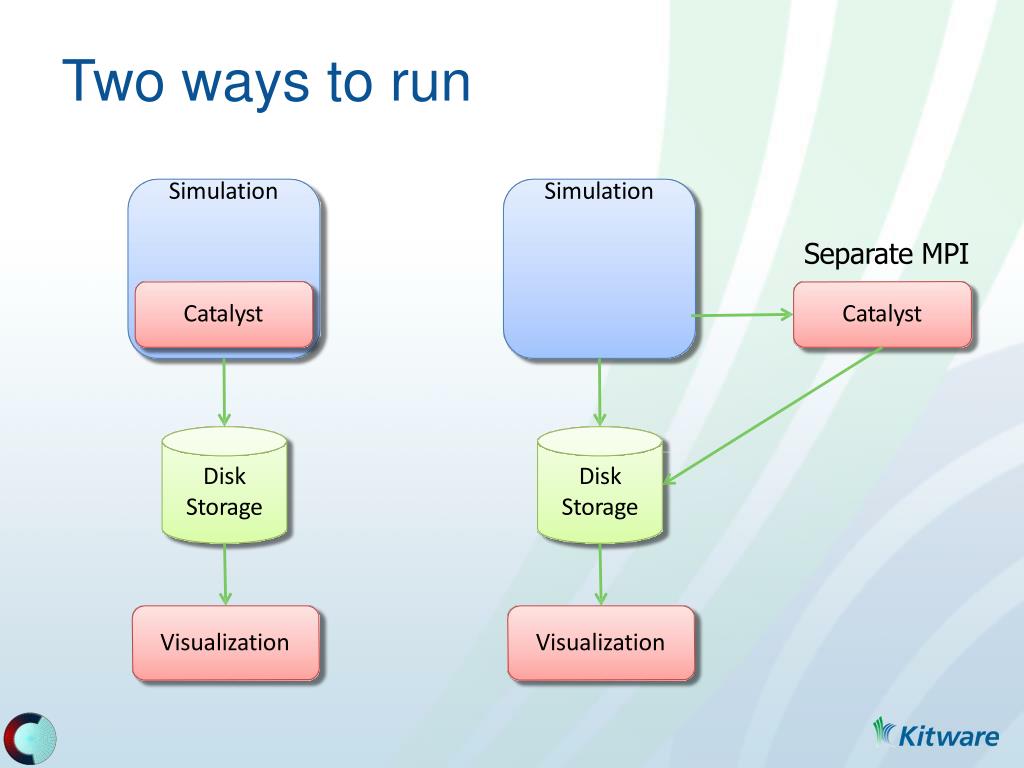

  7. Two ways to run Simulation Simulation Separate MPI Catalyst Catalyst Disk Storage Disk Storage Visualization Visualization

  8. CatalystArchitecture

  9. HighLevelView • SimulationDevelopers • Passnecessarysimulation • datato ParaView • Need sufficientknowledge • ofbothcodes • VTKforgridsandfielddata • ParaViewCatalystlibraries • Transparentto simulation • users • Extensible • SimulationUsers • Knowledge of ParaViewas apost-processing/analysis tool • BasicinteractionwithGUI co- processingscriptgenerator plugin • Incrementalknowledge increasetousetheco- processingtoolsfrombasic ParaViewuse • Programmingknowledge canbeusefultoextend the tools

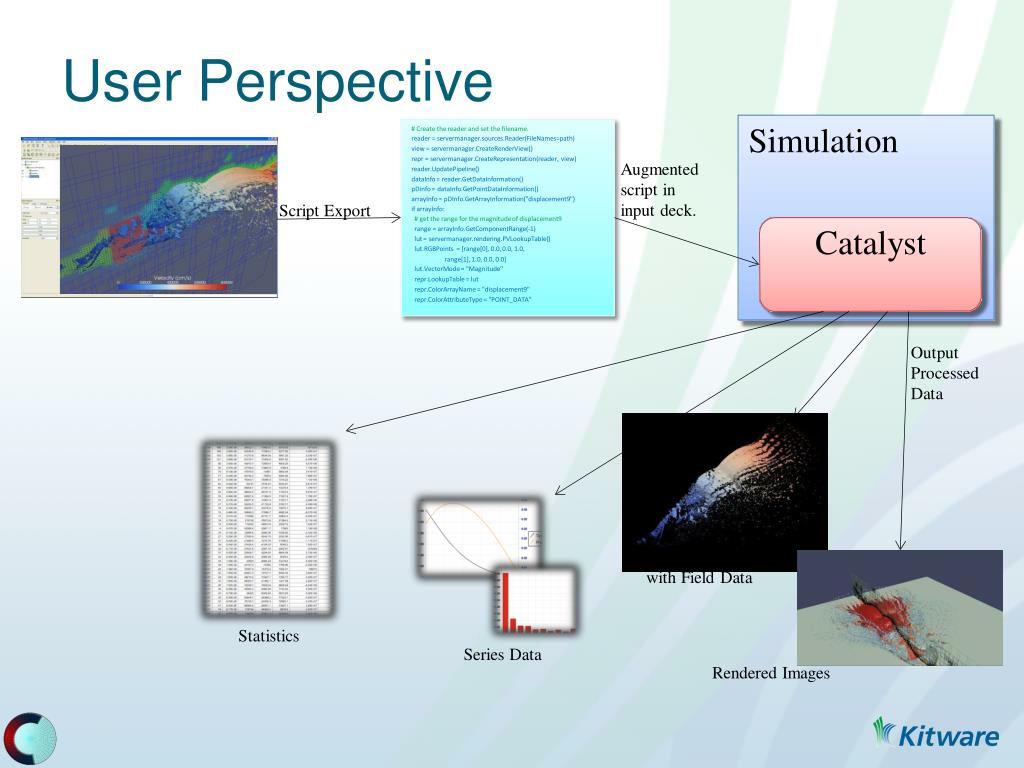

  10. UserPerspective Simulation # Createthereaderandsetthe filename. reader= servermanager.sources.Reader(FileNames=path) view= servermanager.CreateRenderView() repr= servermanager.CreateRepresentation(reader, view) reader.UpdatePipeline() dataInfo =reader.GetDataInformation() pDinfo=dataInfo.GetPointDataInformation() arrayInfo = pDInfo.GetArrayInformation("displacement9") ifarrayInfo: #getthe rangeforthemagnitudeof displacement9 range=arrayInfo.GetComponentRange(-1) lut=servermanager.rendering.PVLookupTable() lut.RGBPoints =[range[0],0.0,0.0,1.0, range[1], 1.0,0.0,0.0] lut.VectorMode="Magnitude" repr.LookupTable=lut repr.ColorArrayName="displacement9" repr.ColorAttributeType="POINT_DATA" Augmented scriptin inputdeck. ScriptExport Catalyst Output Processed Data PolygonalOutput withFieldData Statistics SeriesData RenderedImages

  11. DeveloperPerspective Catalyst Solver function calls function Co-processing calls Adaptor API INITIALIZE() ADDPIPELINE(inpipeline) REQUESTDATADESCRIPTION(intime,out fields) COPROCESS(invtkDataSet) FINALIZE()

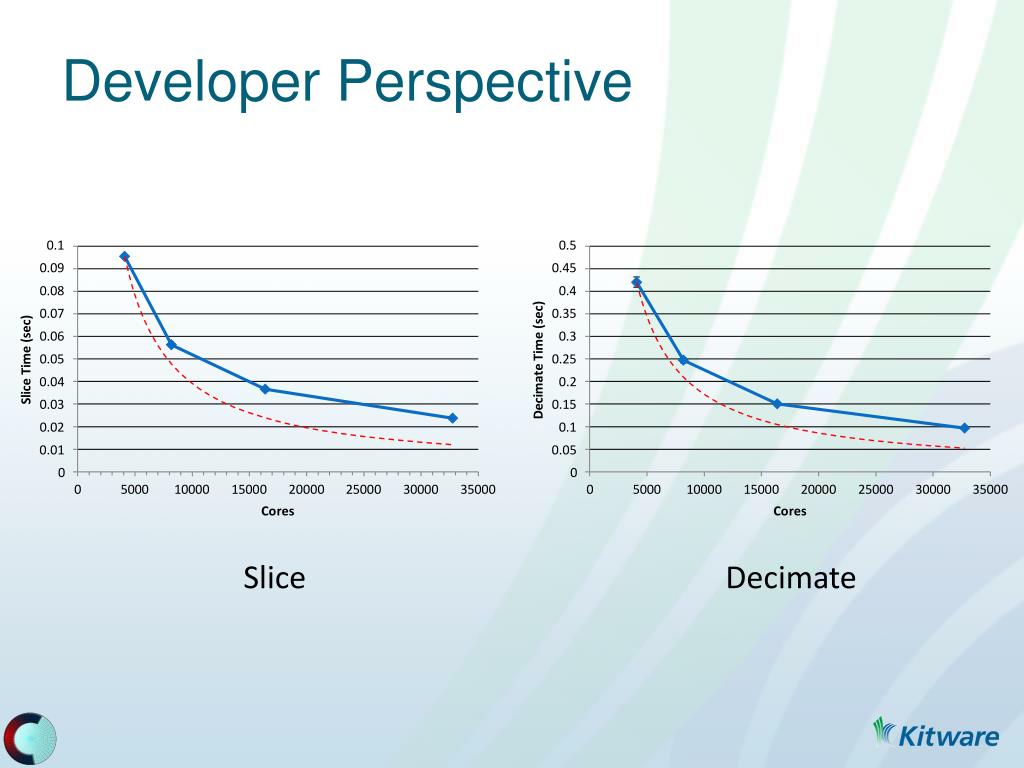

  12. DeveloperPerspective 0.1 0.09 0.08 0.07 0.06 0.05 0.04 0.03 0.02 0.01 0 0.5 0.45 0.4 0.35 0.3 0.25 0.2 0.15 0.1 0.05 0 DecimateTime(sec) SliceTime(sec) 0 5000 10000 15000 20000 25000 30000 35000 0 5000 10000 15000 20000 25000 30000 35000 Cores Cores Slice Decimate

  13. ParaViewCatalystfor SimulationUsers

  14. CreatingCatalystOutput • Twomainways: • Createand/ormodifyPythonscripts • ParaViewGUI plugintocreatePythonscripts • Modification withknowledgeofParaView PythonAPI • Developergenerated“canned”scripts • User provides parametersforalready created • Catalyst pipelines • User maynotevenneedtoknowParaView • SeeParaViewCatalystUser’sGuide

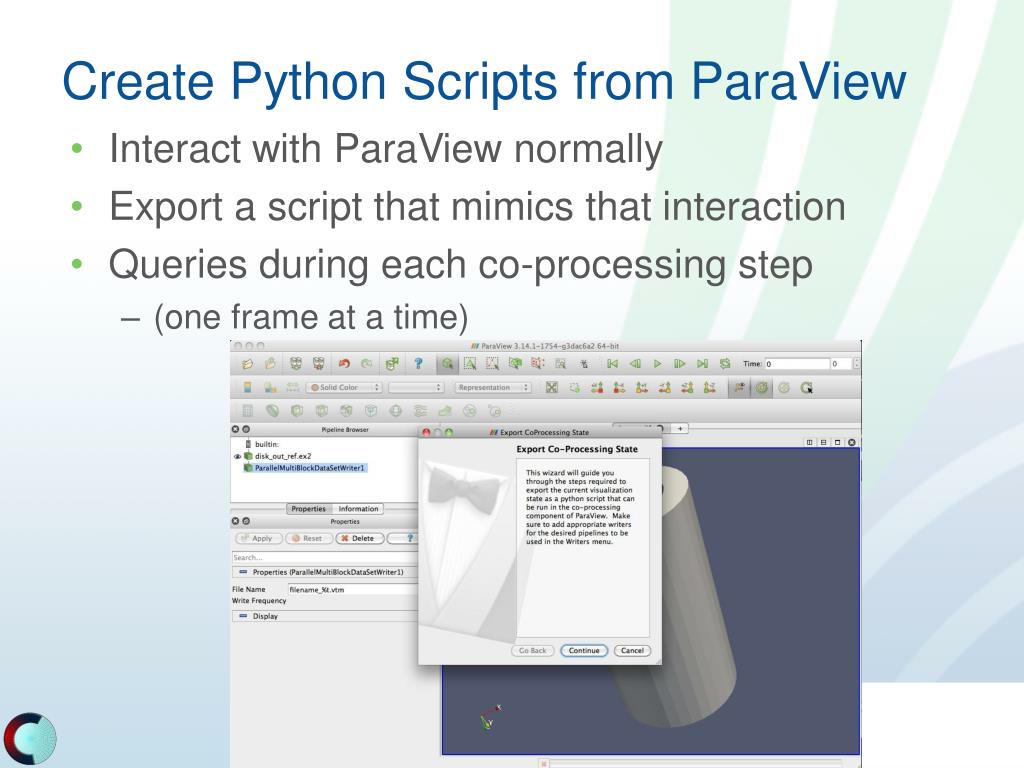

  15. CreatePythonScriptsfrom ParaView • InteractwithParaViewnormally • Exportascriptthatmimics thatinteraction • Queries duringeachco-processingstep • –(oneframeata time)

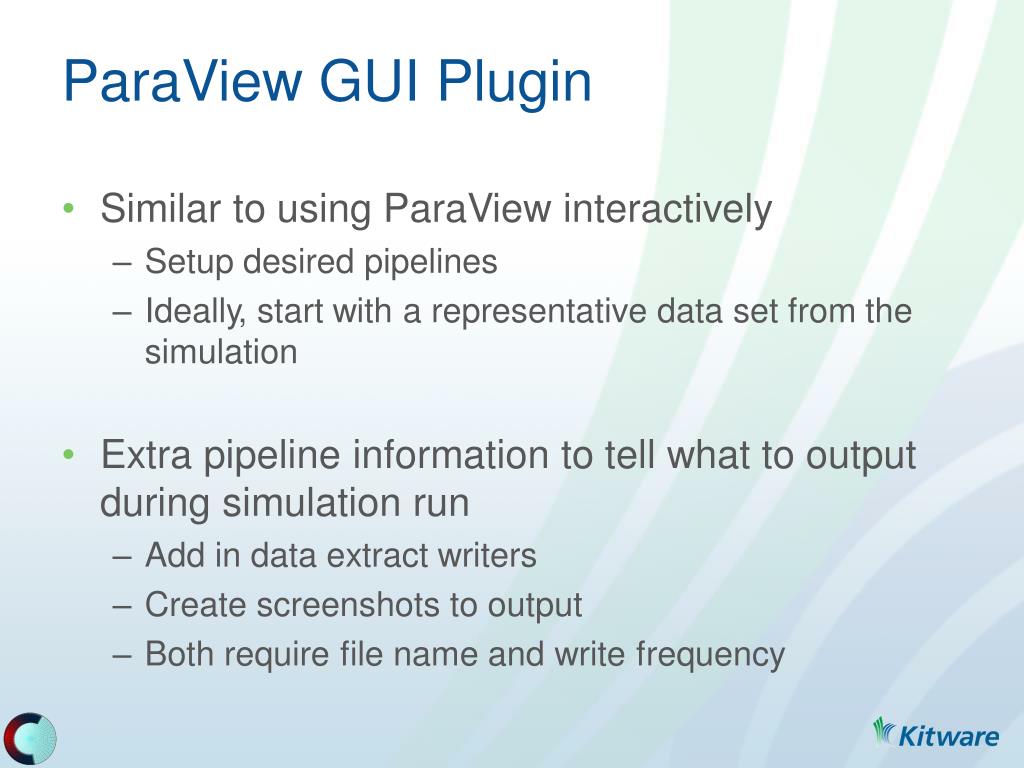

  16. ParaViewGUIPlugin • SimilartousingParaViewinteractively • Setupdesiredpipelines • Ideally,startwitharepresentativedatasetfromthe simulation • Extrapipelineinformationtotellwhattooutput duringsimulationrun • Addindataextractwriters • Createscreenshotstooutput • Bothrequirefilenameandwritefrequency

  17. InSituDemo • CreateaParaViewCatalyst Pythonpipeline • script • Specifydesiredoutputsfromrun • Export thescript • Runthescriptwithafictitiousinput • Timedependentgridandfielddatacomefromafile • insteadoffromanactualsimulation • Examineresults

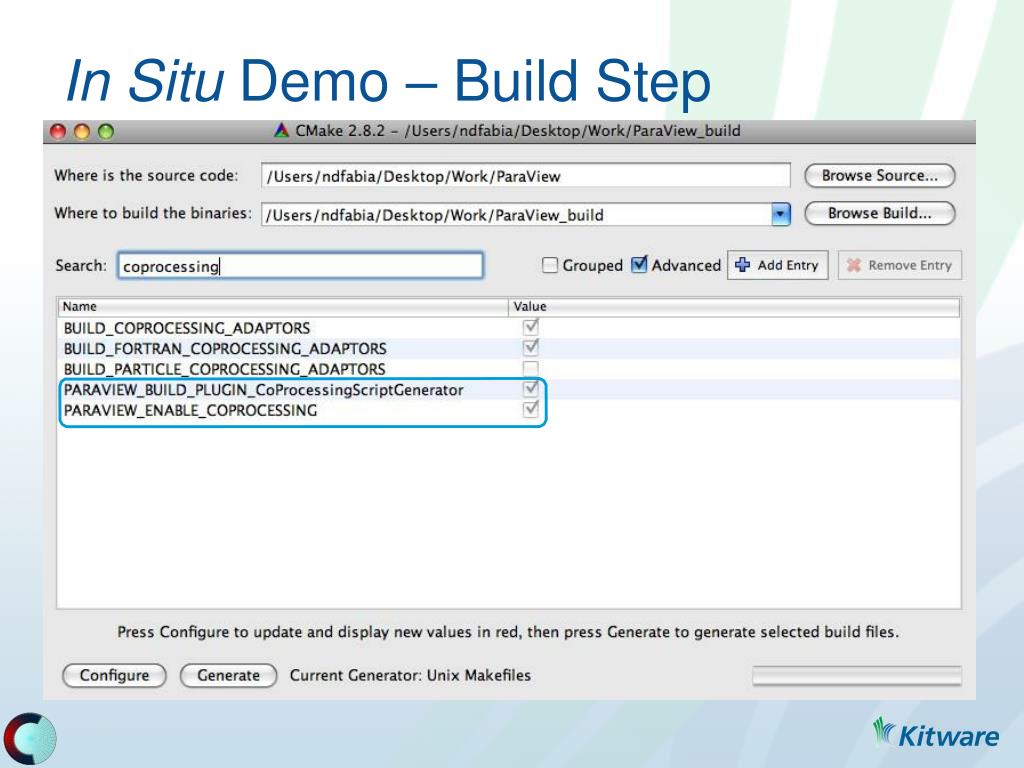

  18. InSituDemo–BuildStep

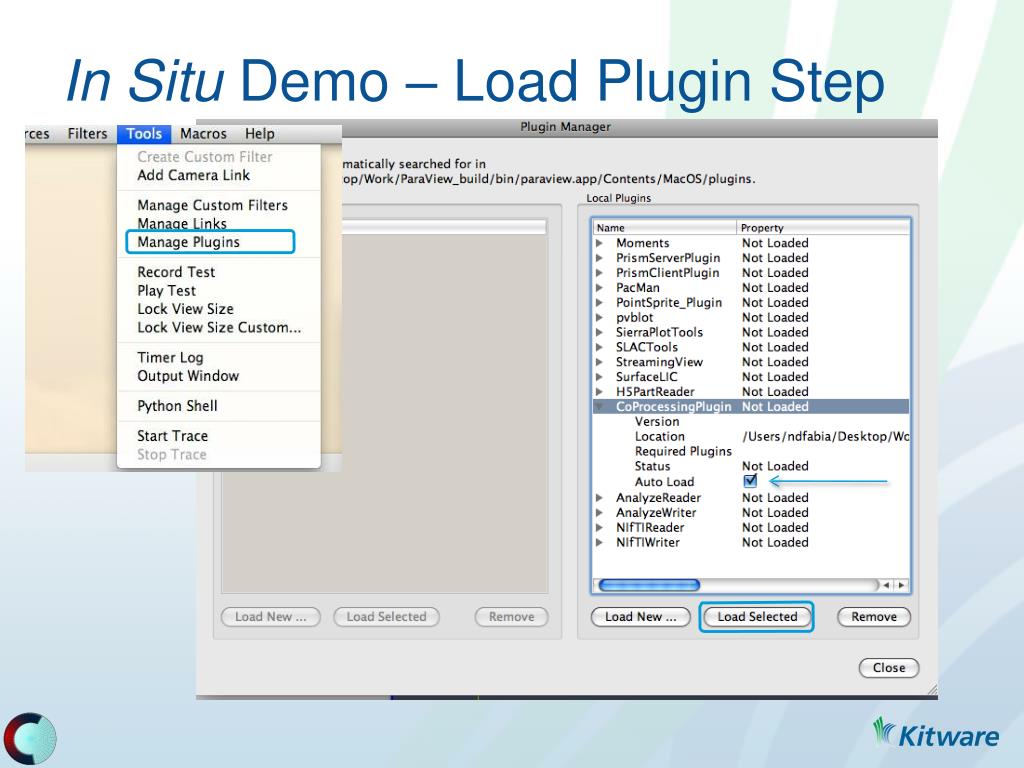

  19. InSituDemo–LoadPluginStep

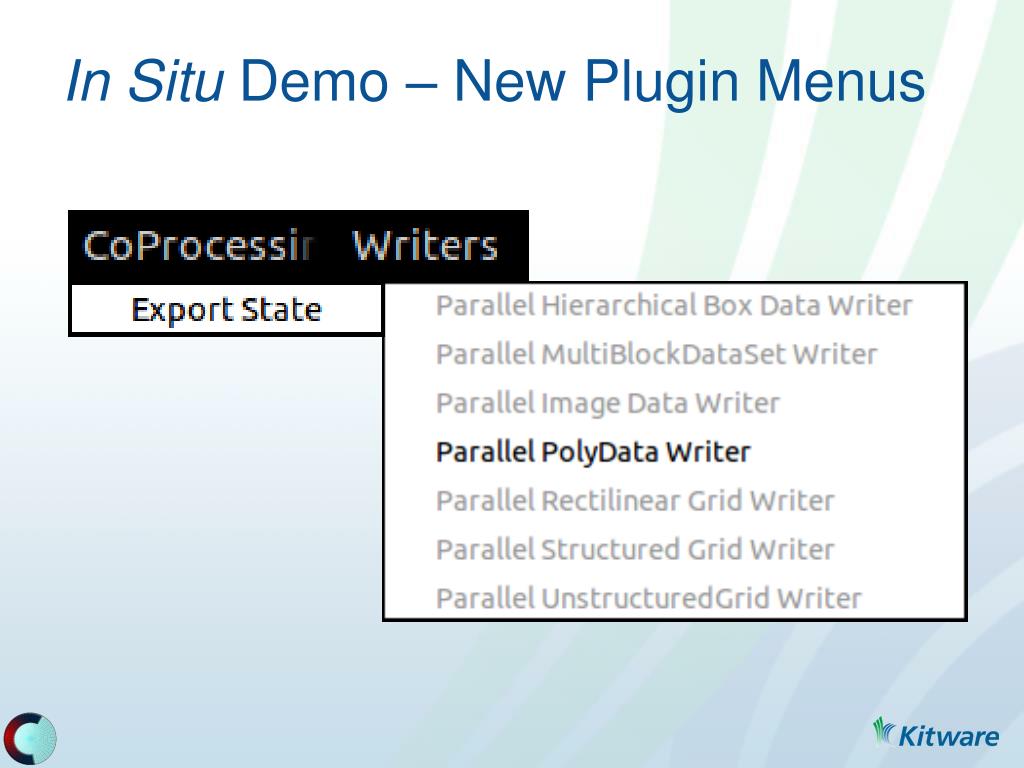

  20. InSituDemo–NewPluginMenus

  21. In Situ Demo–CreatingaCatalyst PythonScript • Loadcan.ex2 • – Notethatthereare44timesteps • Createdesiredpipeline

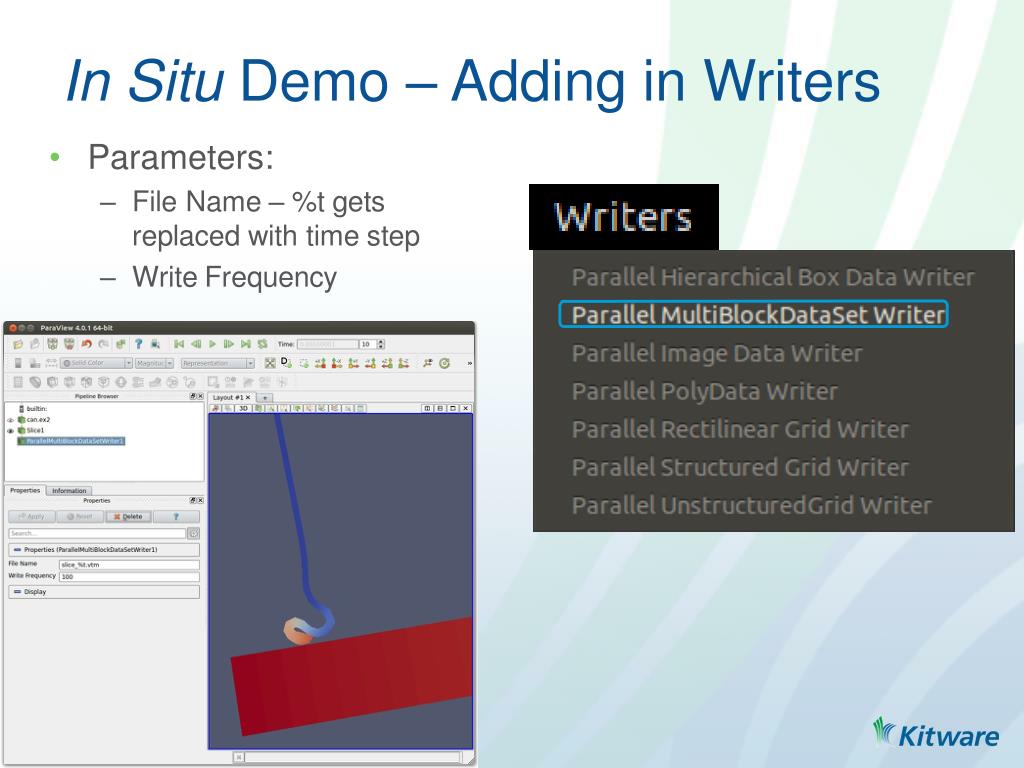

  22. InSituDemo–AddinginWriters • Parameters: • FileName–%tgets • replacedwithtimestep • WriteFrequency

  23. InSituDemo–Exportingthe Script

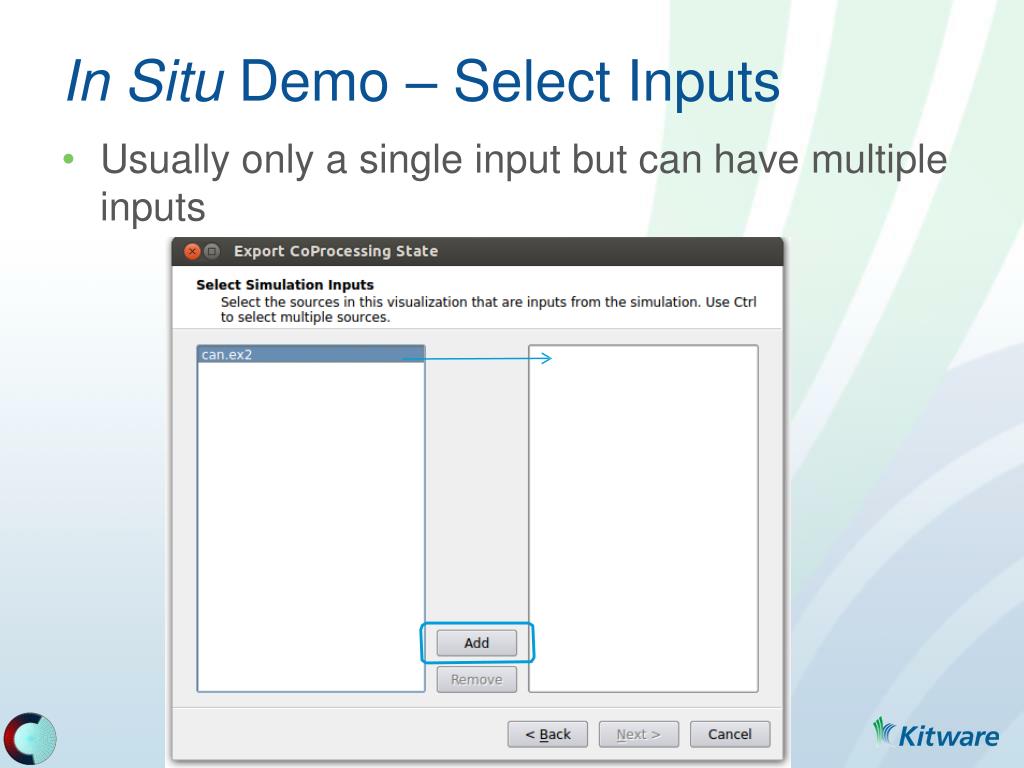

  24. InSituDemo–SelectInputs • Usually only asingleinputbutcanhavemultiple • inputs

  25. InSituDemo–SelectInputs • Eachpipelinesourceisapotentialinput

  26. InSituDemo–MatchUpInputs • Sourcename(e.g.“can.ex2”)needstobe • matchedwithstringkeyinadaptor(e.g.“input”)

  27. In Situ Demo– GeneratinganImage • Parameters/Options: • Livevisualization • RescaletoData • Range(allimages) • Individualimages • ImageType • FileName • WriteFrequency • Magnification • FittoScreen • %tgetsreplaced with timestep

  28. In Situ Demo– GeneratingTwoImages • Parameters/Options: • Livevisualization • RescaletoData • Range(allimages) • Individualimages • ImageType • FileName • WriteFrequency • Magnification • FittoScreen

  29. In Situ Demo–Write OuttheScript • Generatedscriptwilllook • somethinglikethis defDoCoProcessing(datadescription) input=CreateProducer(datadescription "input" ParallelMultiBlockDataSetWriter1=CreateWriter( XMLMultiBlockDataWriter "filename_%t.vtm"1

  30. InSituDemo–RuntheScript • Putcandriver.py andthegeneratedPythonscript • inthesamedirectory • LinuxandMacfromaterminal • <path>/pvpythoncandriver.py<generatedscript> • <path>/can.ex2 • Windowsfromacommandprompt • start“simpleexample” <path>/pvpython.exe • candriver.py <generatedscript> <path>/can.ex2

  31. LiveInSitu AnalysisandVisualization • Everythingbeforethis was“batch” • Presetinformationwithpossible logic • “Beta”functionalityforinteractingwithsimulation • dataduring simulationrun • WhenexportingaPythonscript,select“Live Visualization” • Duringsimulationrunchoosethe“Tools->Connectto • Catalyst” GUI menuitem

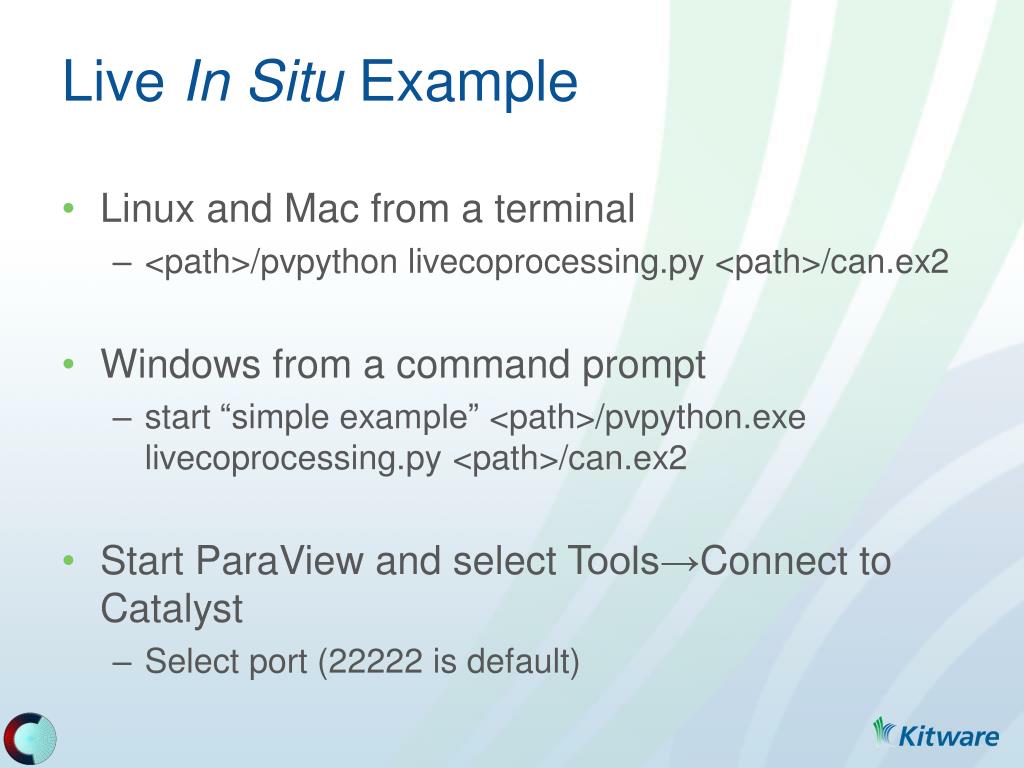

  32. LiveInSitu Example • LinuxandMacfromaterminal • <path>/pvpythonlivecoprocessing.py<path>/can.ex2 • Windowsfromacommandprompt • start“simpleexample” <path>/pvpython.exe • livecoprocessing.py<path>/can.ex2 • StartParaViewandselectTools→Connectto • Catalyst • Selectport(22222is default)

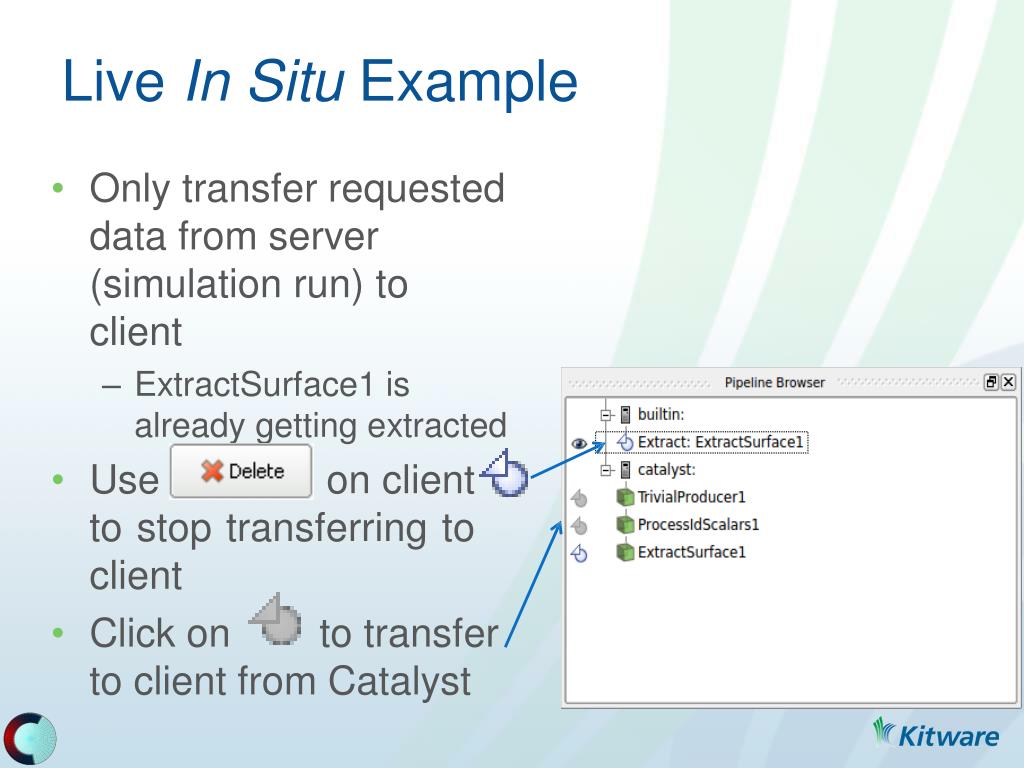

  33. LiveInSitu Example • Onlytransferrequested datafromserver (simulationrun)to client • –ExtractSurface1is • alreadygettingextracted • Use onclient tostoptransferringto client • Clickon totransfer toclientfromCatalyst

  34. Gratuitous Catalyst Images

  35. ParaViewCatalystfor Developers

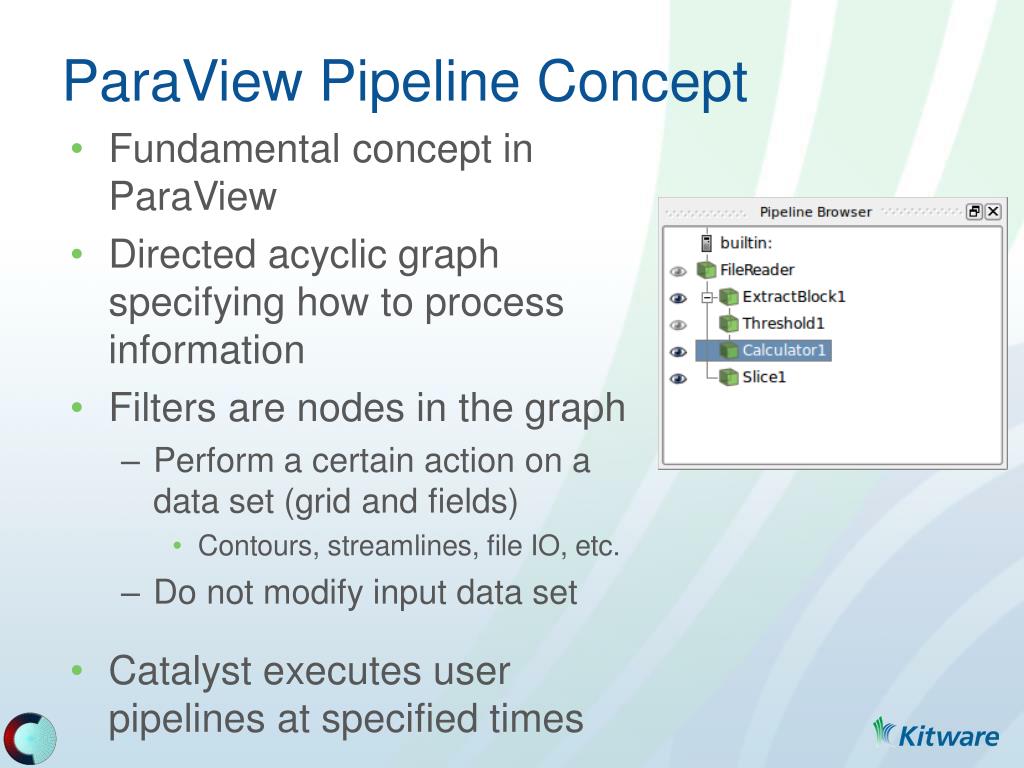

  36. ParaViewPipelineConcept • Fundamentalconceptin • ParaView • Directedacyclic graph specifyinghow toprocess information • Filtersarenodes inthegraph • Performacertainactionona dataset(gridandfields) • Contours,streamlines,fileIO,etc. • Do notmodifyinputdataset • Catalyst executes user • pipelinesatspecifiedtimes

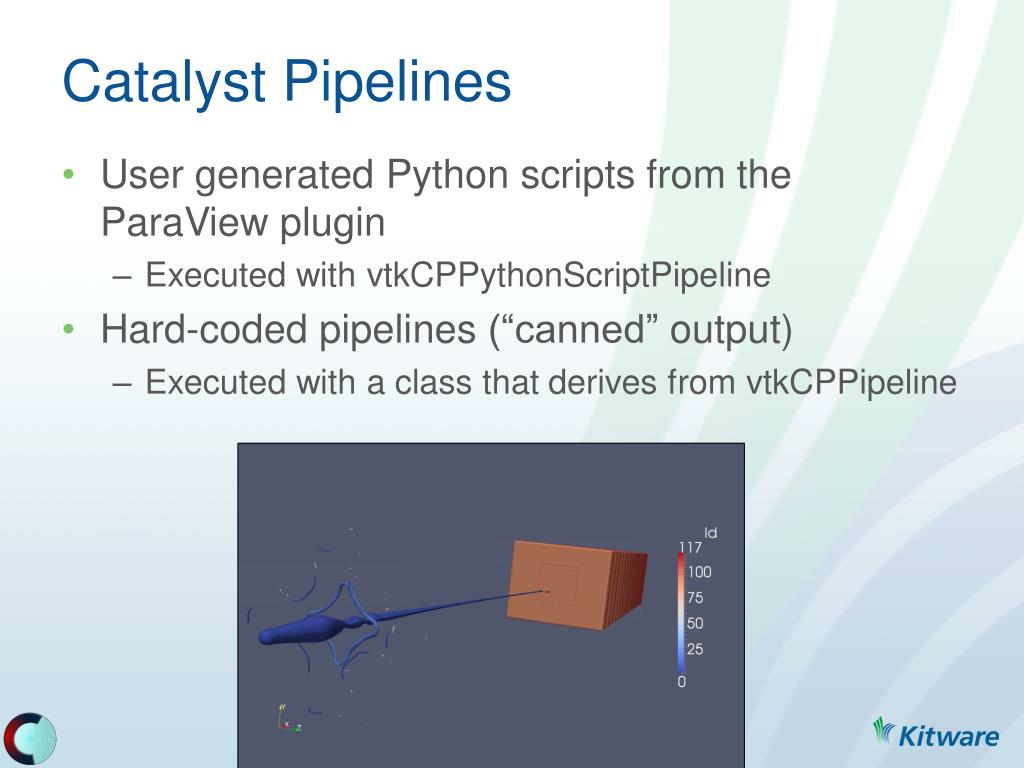

  37. CatalystPipelines • UsergeneratedPythonscriptsfromthe • ParaViewplugin • ExecutedwithvtkCPPythonScriptPipeline • Hard-coded pipelines(“canned”output) • Executedwithaclassthatderives fromvtkCPPipeline

  38. vtkCPPythonScriptPipeline • TypicallyfromParaViewscriptgeneratorplugin • InitializefromapathtoaParaViewCatalyst Pythonscript • –vtkCPPythonScriptPipeline::Initialize(constchar* • fileName) http://www.paraview.org/ParaView3/Doc/Nightly/html/classvtkCPPythonScriptPipeline.html

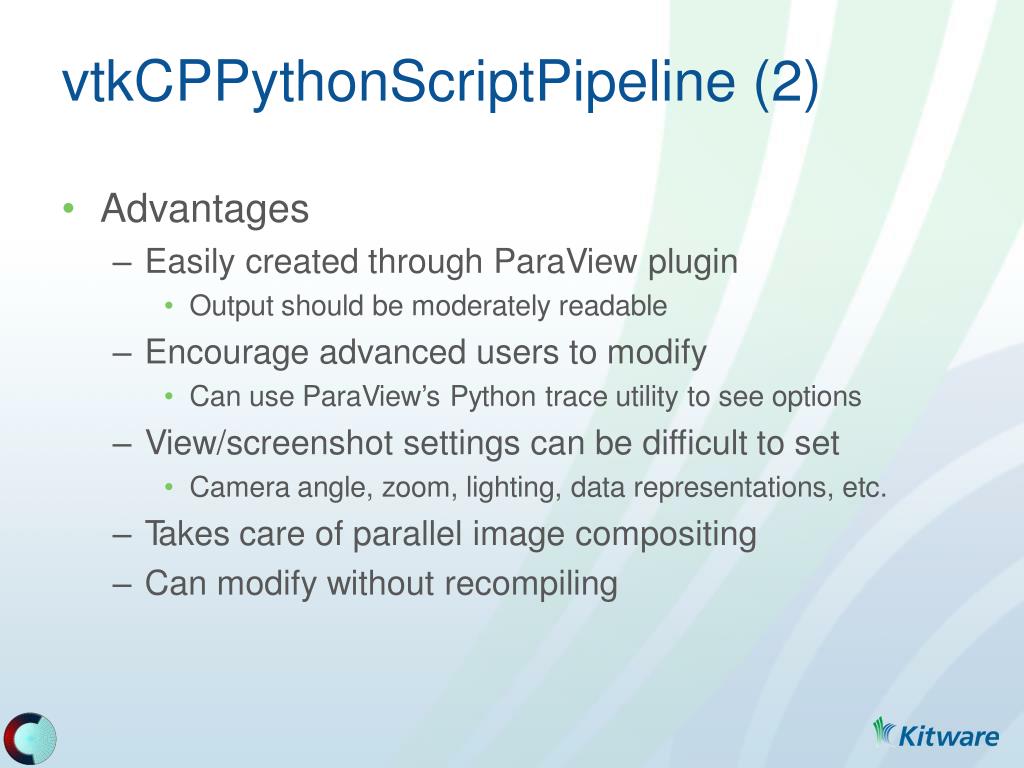

  39. vtkCPPythonScriptPipeline(2) • Advantages • EasilycreatedthroughParaViewplugin • Output shouldbemoderatelyreadable • Encourageadvanceduserstomodify • CanuseParaView’sPythontraceutilityto seeoptions • View/screenshotsettings canbedifficulttoset • Cameraangle,zoom,lighting,datarepresentations,etc. • Takescareofparallel imagecompositing • Canmodifywithoutrecompiling

  40. vtkCPPythonScriptPipeline(3) • Disadvantages • Slightoverheadcomparedto C++hard-coded pipeline • Roughly 10-5 secondsper timestep • Simulationcode mustbelinkedwithPython • Staticbuildissues • More complextominimizeexecutablesize

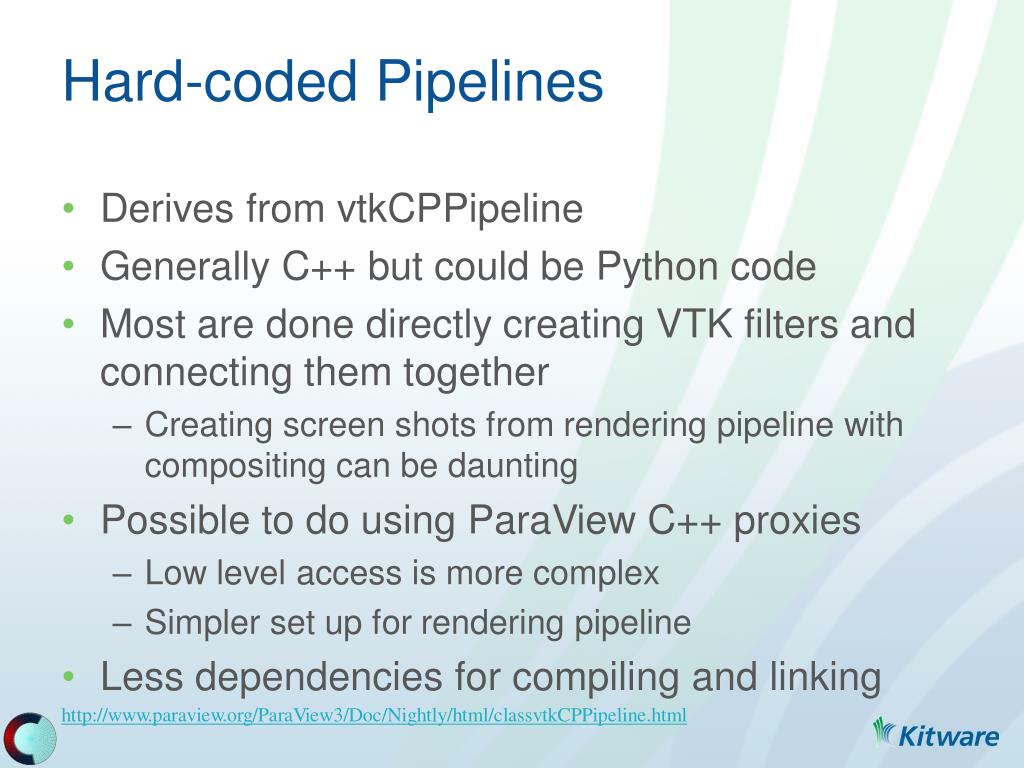

  41. Hard-codedPipelines • DerivesfromvtkCPPipeline • GenerallyC++butcouldbePythoncode • MostaredonedirectlycreatingVTKfiltersand connectingthemtogether • Creatingscreenshotsfromrenderingpipelinewith compositingcanbedaunting • PossibletodousingParaViewC++proxies • Lowlevelaccessis morecomplex • Simplersetupforrenderingpipeline • Lessdependencies forcompilingandlinking http://www.paraview.org/ParaView3/Doc/Nightly/html/classvtkCPPipeline.html

  42. Catalyst • Catalyst’sjobis tocreateandexecutepipelines

  43. DataStructures • Simulationhasseparatedatastructuresfrom • VTKdatastructures • Useranadaptortobridgethegap • Trytoreuseexistingmemory • Alsoresponsibleforotherinteractionsbetween • simulationcodeandCatalyst Solver Adaptor

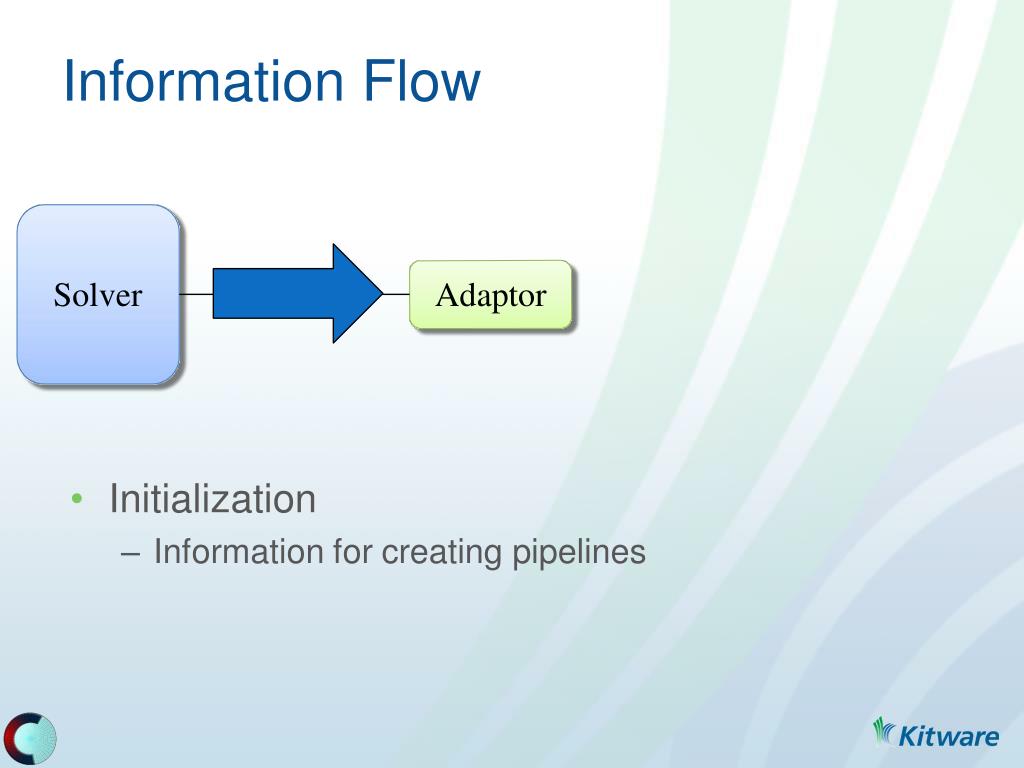

  44. InformationFlow Solver Adaptor • Initialization • –Informationforcreatingpipelines

  45. InformationFlow Pipeline Pipeline Solver Adaptor Pipeline • Aftersimulationcompletestimestepupdate • Time,timestep,forceoutputflag • Informationforcreatinggridandfieldinformation

  46. InformationFlow Pipeline Pipeline Solver Adaptor Pipeline • Aftersimulationcompletestimestepupdate • –Time,timestep,forceoutputflagpassedtoeach • pipeline

  47. InformationFlow Pipeline Pipeline Solver Adaptor Pipeline • Aftersimulationcompletestimestepupdate • –Flagindicatingwhichpipelines needtobe • executed/updated

  48. InformationFlow Pipeline Pipeline Solver Adaptor Pipeline • Aftersimulationcompletestimestepupdate • Ifanypipelineneedstobeexecuted • Adaptorcreates VTKobjectsto representgridsandfields

  49. InformationFlow Pipeline Pipeline Solver Adaptor Pipeline • Aftersimulationcompletestimestepupdate • –PassVTKdataobject representinggridsandfields • topipelinesthatneedtoexecute/update

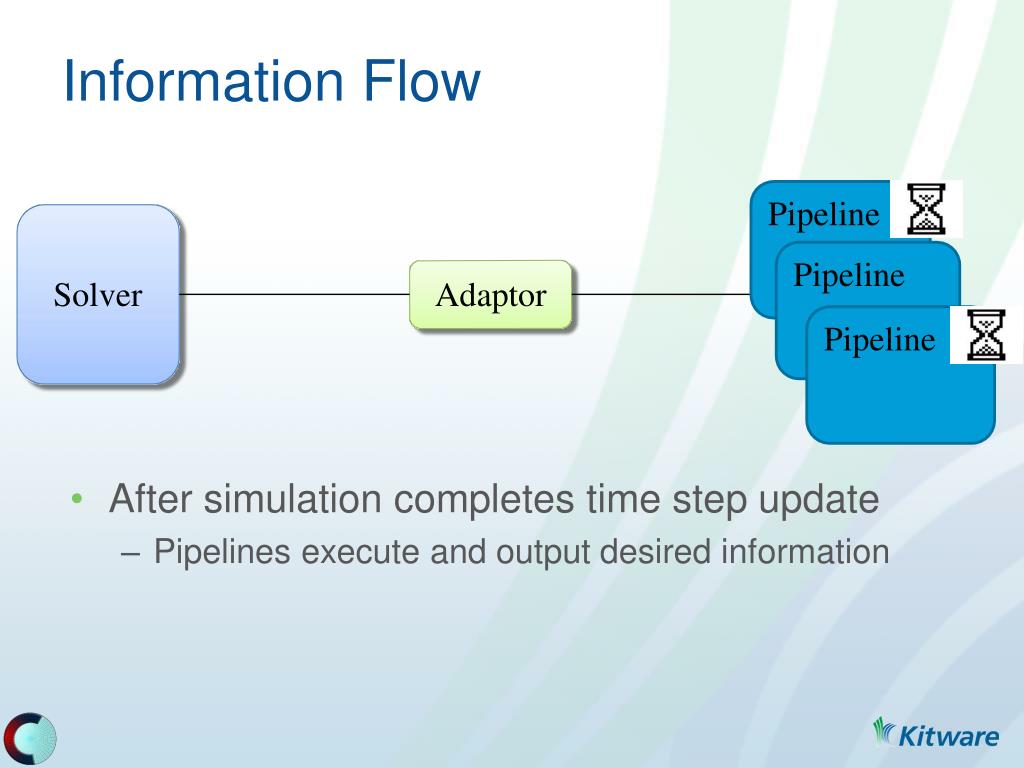

  50. InformationFlow Pipeline Pipeline Solver Adaptor Pipeline • Aftersimulationcompletestimestepupdate • –Pipelinesexecute andoutputdesiredinformation
