  1. Ideas For The Robot By : Nikhil Mahajan

  2. Chassis • The Base of the robot can be around 1.37 inches high. The thickness of the base should be around 0.7 inches.

  3. Size • Width should be around 10 -12 inches. Length should be around 12 – 14 inches. • Height should be around 13 or 16 (Depending on wether we have a claw on top or near the front.)

  4. The shape could be like a bulldozer or a JCB and possibly a gather mechanism at the front and a storage place at the top Shape

  5. Bumpers • There should be bumpers surrounding the vital parts of the robot so the opposing team could not interfere with the robot. The bumpers should be strong but not very thick as our robot can only be 18” x 18” x 18”.

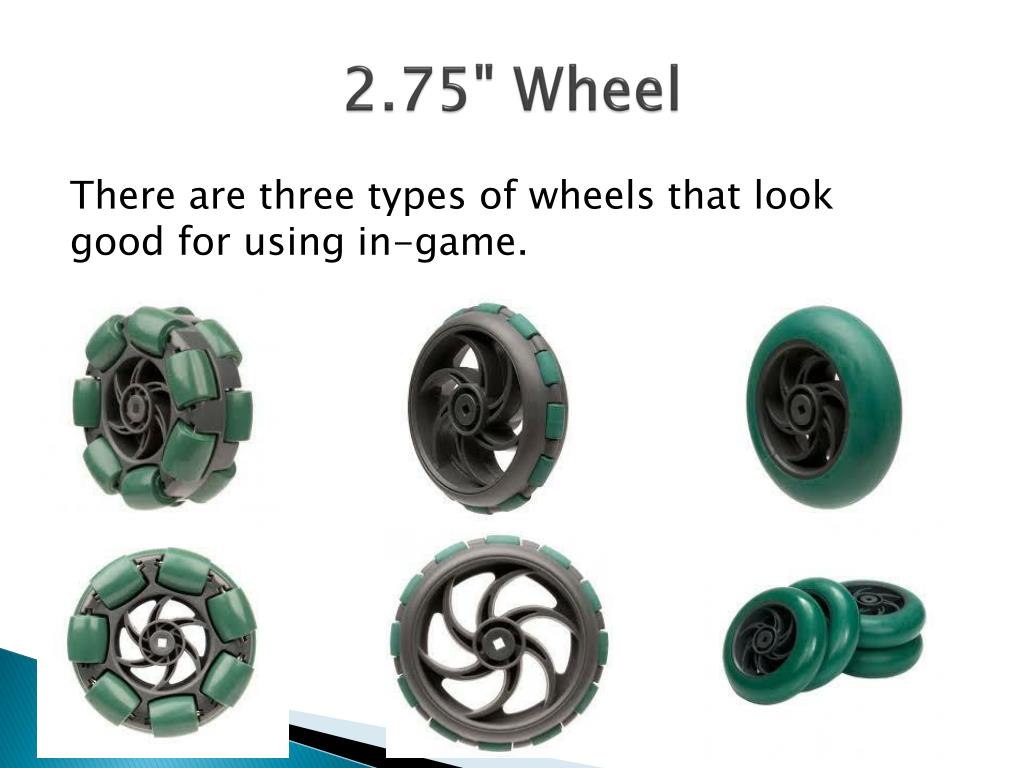

  6. 2.75" Wheel There are three types of wheels that look good for using in-game.

  7. USB A-A Tether Cable • A USB A-A Tether Cable is a Cable for connecting VEXnet components to sync and run in tether mode
