  1. Detection of the 2175Å Dust Extinction Feature at high z Junfeng Wang (Penn State/UFL) Collaborators: Jian Ge (U. of Florida), Pat Hall (Princeton U./York U.), Jason Prochaska (UCSC/Lick Observatory), Aigen Li (U. of Arizona/U. of Missouri), Don Schneider (PSU), Don York (U. of Chicago), Scott Anderson (U. of Washington) IAUC199@SHAO, Mar. 17, 2005

  2. The Broad Absorption “Bump” ”A dramatic piece of spectroscopic evidence which should have much to tell us about at least a part of the interstellar grain population.”—Draine (1989) • The 2175Å dust extinction feature was first discovered by Aerobee rocket observations (Stecher 1965) • It is seen in extinction curves along lines of sight in the Milky Way (MW), the Large Magellanic Cloud (LMC), and even some regions of the Small Magellanic Cloud (SMC). • Extinction curves in the SMC bar region lack the 2175Å feature.

  3. Empirical Extinction Curves Pei (1992) and references within

  4. Analytical Extinction Curves • CCM Galactic extinction law from Cardelli, Clayton, & Mathis (1989) Rv=A(V)/E(B-V); x=λ-1 Fitzpatrick (1999)

  5. The Broad Absorption “Bump” ”A dramatic piece of spectroscopic evidence which should have much to tell us about at least a part of the interstellar grain population.”—Draine (1989) • The 2175Å dust extinction feature was first discovered by Aerobee rocket observations (Stecher 1965) • It is seen in extinction curves along lines of sight in the Milky Way (MW), the Large Magellanic Cloud (LMC), and even some regions of the Small Magellanic Cloud (SMC). • Extinction curves in the SMC bar region lack the 2175Å feature. • The central wavelength of the feature varies by only ±0.46%~(2) around 2175Å, while its FWHM varies by ±12%~(2) around 469Å. (Fitzpatrick & Massa 1986) • Although the exact carrier is unknown, “some form of graphitic carbon is responsible”, most likely polycyclic aromatic hydrocarbons (PAHs; Joblin, Leger, & Martin 1992; Duley & Seahra 1998; Weingartner & Draine 2001; Li & Draine 2001; Draine 2003).

  6. Malhotra (1997) Previous Detections… • Malhotra (1997) reports a statistical detection in a sample of 92 QSOs at redshift 0.2<z<2.2 • Cohen et al. (1999) detected the 2175Å feature in a DLA at redshift z=0.524 toward the BL Lac object AO 0235+164 at z=0.94 -- the only previous detection from an individual intervening absorption system • Falco et al. (1999) determined extinction laws in galaxies z  1.01, with Rv estimates from 1.5 to 7.2, using gravitational lensing of background quasars.

  7. Previous Detections • Munoz et al. (2004) reported that the dust in the z=0.68 lens galaxy of B 0218+357 shows very flat UV extinction curve (Rv=12±2) • Motta et al. (2002) detected a strong 2175Å bump in a lensing galaxy at z=0.83

  8. Munoz et al. (2004) ~

  9. Motta et al. (2002) Previous Detections

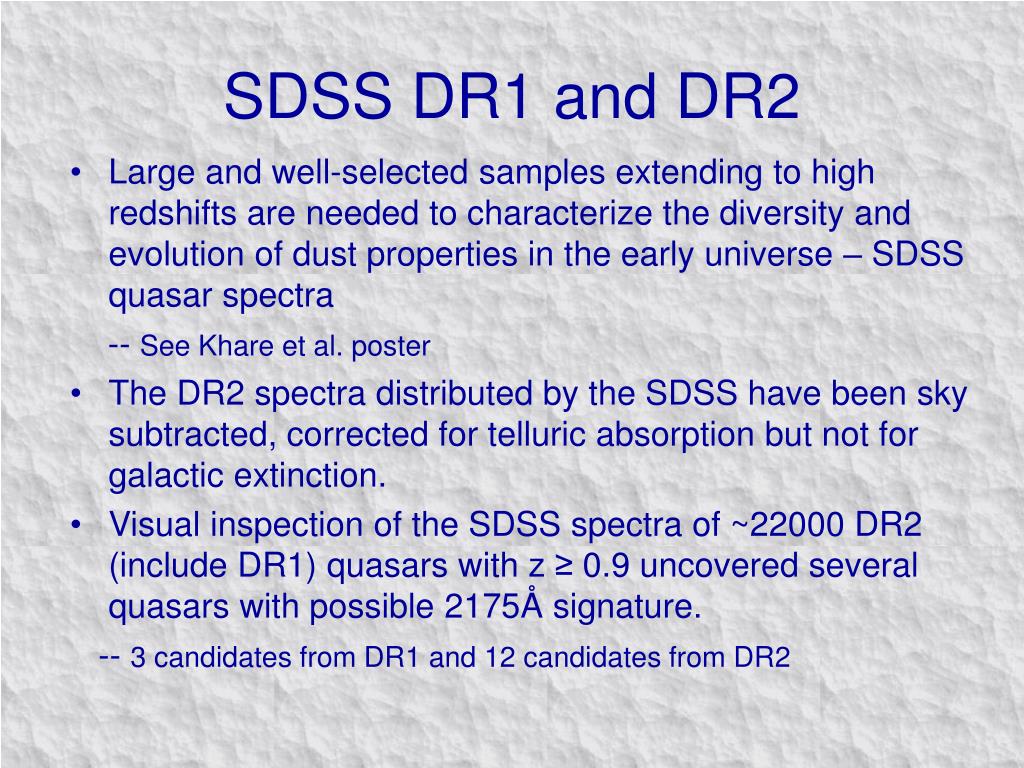

  10. SDSS DR1 and DR2 • Large and well-selected samples extending to high redshifts are needed to characterize the diversity and evolution of dust properties in the early universe – SDSS quasar spectra -- See Khare et al. poster • The DR2 spectra distributed by the SDSS have been sky subtracted, corrected for telluric absorption but not for galactic extinction. • Visual inspection of the SDSS spectra of ~22000 DR2 (include DR1) quasars with z ≥ 0.9 uncovered several quasars with possible 2175Å signature. -- 3 candidates from DR1 and 12 candidates from DR2

  11. A Cartoon Illustration Quasar absorption line technique is also a powerful tool for studying dust properties at high z

  12. Vanden Berk et al. (2001) Fitting and Results • Templates: -Composite spectrum from Vanden Berk et al. (2001)

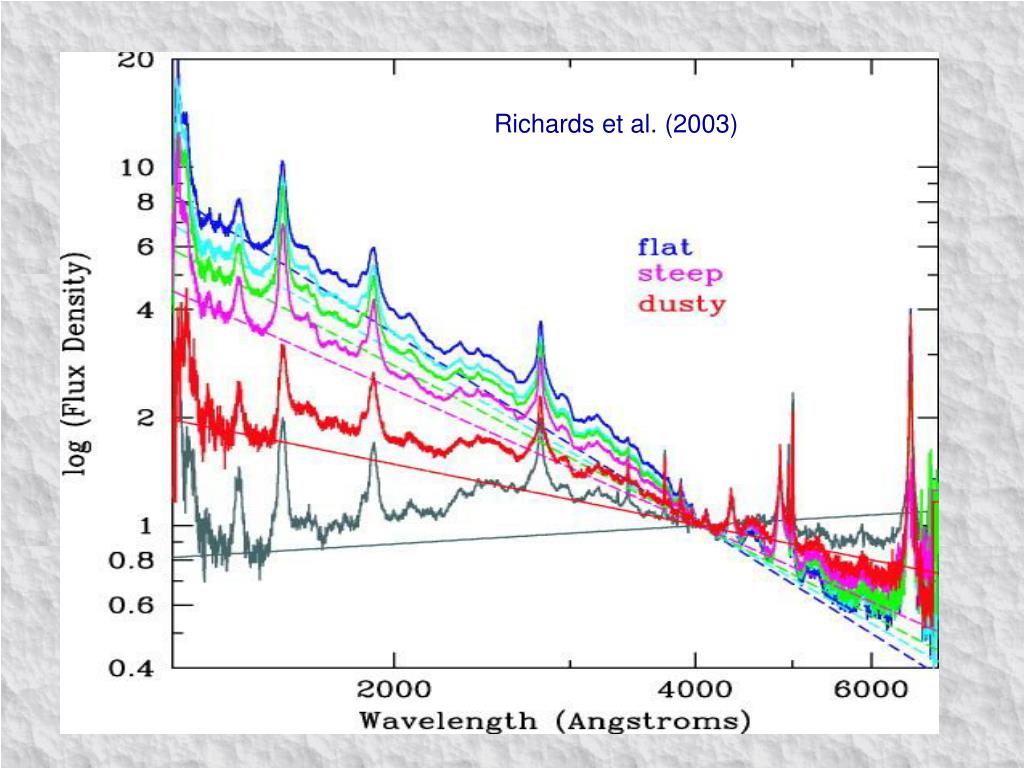

  13. Richards et al. (2003) Fitting and Results • Templates: -Composite spectrum from Vanden Berk et al. (2001) -Reddest-quartile and bluest-quartile composites from Richards et al. (2003)

  14. Comparison of Spectral Indices fλ λ-(α+2) Wang et al. (2004), ApJ, 609, 589

  15. DR2 sample showing possible bump features Mode g-i from Hopkins et al.(2004)

  16. Fitting and Results • Templates: -Composite spectrum from Vanden Berk et al. (2001) -Reddest-quartile and bluest-quartile composites from Richards et al. (2003) • Extinction curves: -Empirical extinction curves for the MW, LMC and SMC from Pei (1992)free par.: E(B-V) -CCM Galactic extinction law from Cardelli, Clayton, & Mathis (1989)free par.: E(B-V), Rv

  17. SDSS J1459+0024

  18. Reddened spectra with LMC or SMC curves can not produce sufficiently deep bump to match the observed spectrum. • The best fit is obtained with the reddest composite using CCM extinction law. • Rv=1.9(+0.3, -0.2) • E(B-V)=0.13±0.01 • Detected by 2MASS, and its J-K color of 1.22 places it in the reddest quartile of z=3 quasars (Barkhouse & Hall 2001).

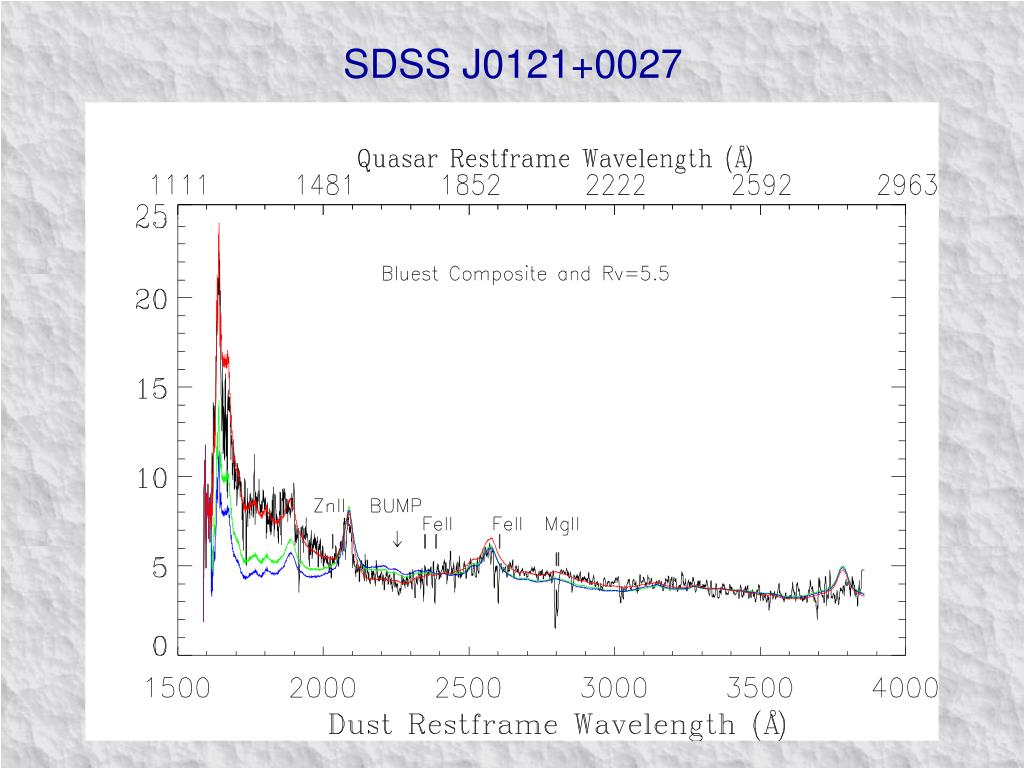

  19. SDSS J0121+0027

  20. Diversity of Grain Sizes? • Surprisingly small Rv values for SDSS J1459+0024 (Rv=1.9) and SDSS J1446+0351 (Rv=0.7) • Most extreme extinction curve with Rv=2.1 in MW: line of sight towards HD 210121 high latitude translucent cloud • Previously reported minimum Rv=1.5 is associated with a lensing galaxy at z=0.96 (Falco et al. 1999) • Preferential removal of small dust grains will result in a gray extinction law with large Rv, while in star forming galaxies finer grains dominate the dust size distribution.

  21. [Fe/Zn] is very large for SDSS J0121+0027, similar to heavily depleted diffuse clouds in MW, e.g.  Oph (Savage & Sembach 1996) • Very likely DLAs indicated by the strong MgII and FeII lines (Rao & Turnshek 2000) • Among the largest in all the high-redshift DLAs searched for dust and molecular hydrogen to date (e.g., Ge et al. 2001; Ledoux et al. 2003)

  22. The 2175 Å selected dusty intervening systems are all strong MgII absorbers Wang et al. (2005), submitted to ApJ

  23. DR1 sample DR2 sample Random MgII systems

  24. Keck ESI spectra (∆v ~ 33km/s) J0121+0027 J1459+0024

  25. Voigt Profile fitting (MgII λλ2796,2803) Relative Intensity Wavelength (Å) VPFIT 6.0, R. Carswell et al.

  26. Dust Depletion Pattern Savage and Sembach (1996) Wang, Prochaska, & Ge et al. (2005), in preparation

  27. J1459 J0121 Ledoux, Petitjean and Srianand (2003), also see their poster in the next room

  28. Summary • Several spectroscopic detections of the 2175Å dust extinction feature in quasar absorption systems at redshifts z ~ 1.4 • The first detection of this feature in individual MgII absorption system. • Dust depletion for SDSS J1459, J0121 is very large, similar to heavily depleted diffuse clouds in MW • Various Rv values indicates a wide range of dominant grain sizes among intervening absorption systems. • The sample showing the 2175Å feature are all strong MgII systems with strong FeII lines (likely DLAs) and heavily reddened. • It implies that DLAs with heavy dust content should be rare (but, any evolution with z?) • It may be evidence of complex organic molecules in the young universe, if the presently favored PAH model is correct.
