  1. Seismic Analysis of Structures

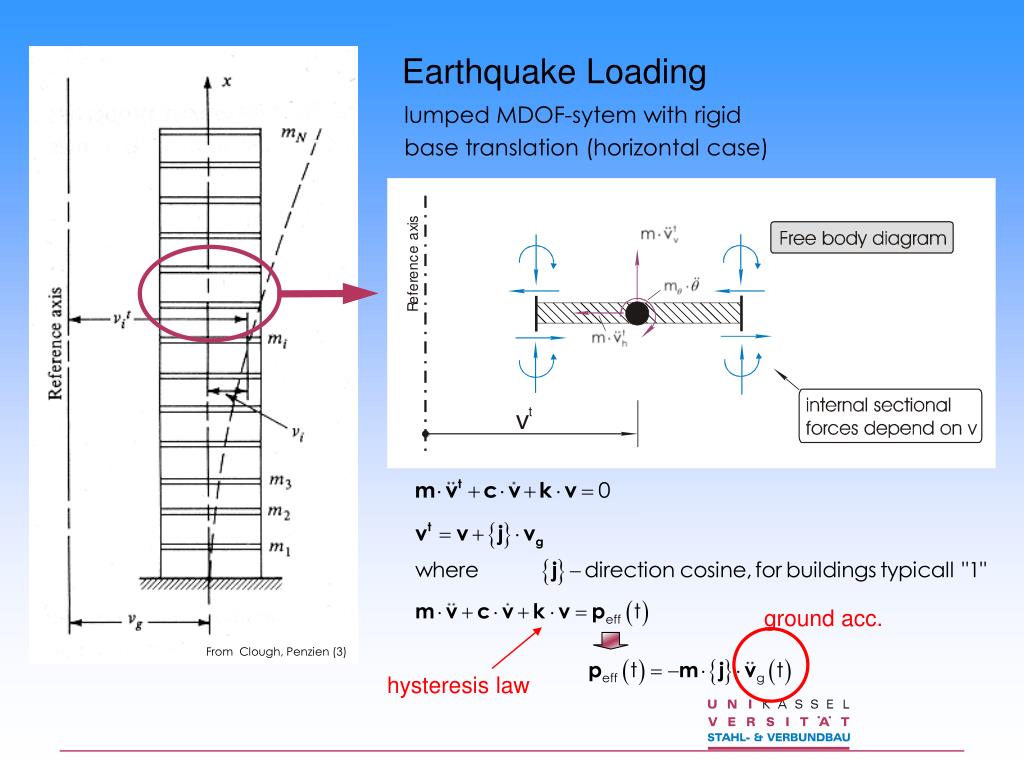

  2. Earthquake Loading lumped MDOF-sytem with rigid base translation (horizontal case) ground acc. From Clough, Penzien (3) hysteresis law

  3. Reference peak-ground acceleration at Udine: 2.75 m/s2 Stahlbau Grundlagen – Einführung Prof. Dr.-Ing. Uwe E. Dorka Earthquake Engineering Prof. Dr.-Ing. Uwe E. Dorka Stand: 11.07.2006 3

  4. where: Eigenfrequency: Damping ratio: Response Spectra viscously damped SDOF oscillator simplified response spectrum From Meskouris (5) From Petersen (2) solving this equation for various w and z, butonly for one specific earthquake, the maximum absolute acceleration of this solution gives us the diagram above

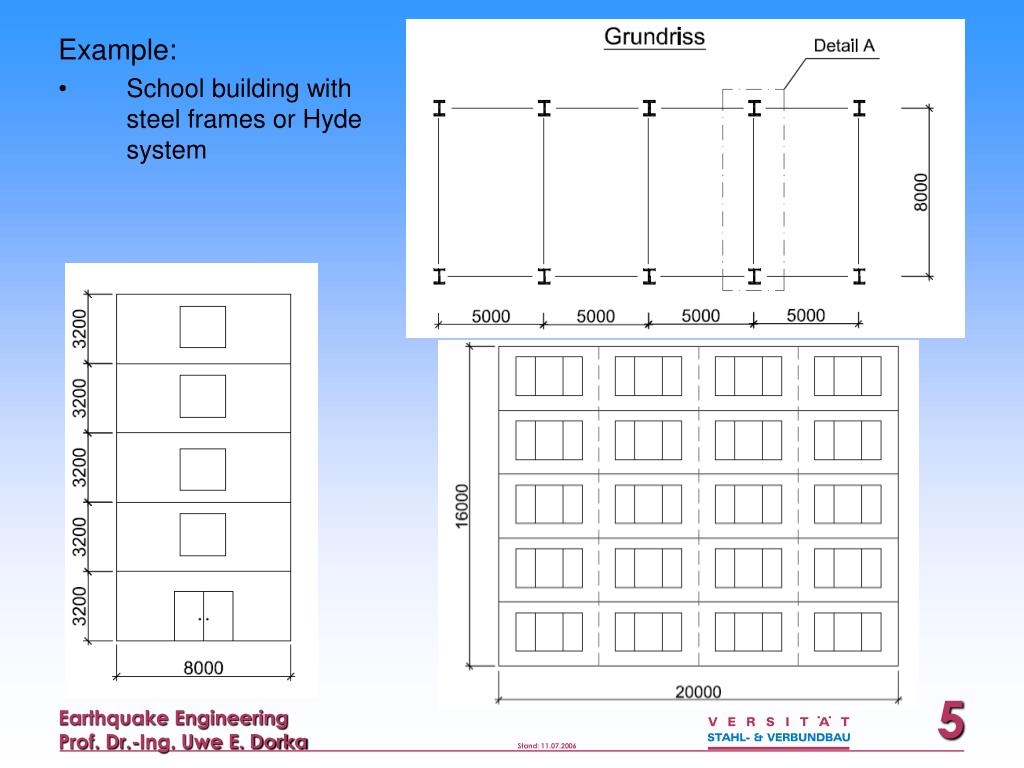

  5. Example: • School building with steel frames or Hyde system Earthquake Engineering Prof. Dr.-Ing. Uwe E. Dorka Stand: 11.07.2006

  6. M2=12450Kg IPE 500 IPE 500 m m HEB 400 HEB 200 HEB 200 M1=16185Kg HEB 400 3.20 3.20 IPE 500 IPE 500 m m HEB 400 HEB 200 HEB 400 HEB 200 M1=16185Kg 3.20 3.20 IPE 500 IPE 500 m m HEB 400 HEB 200 HEB 400 HEB 200 3.20 3.20 M1=16185Kg IPE 500 IPE 500 m m HEB 200 HEB 400 HEB 200 HEB 400 3.20 3.20 M1=16185Kg IPE 500 IPE 500 m m HEB 200 HEB 200 HEB 400 HEB 400 3.20 3.20 8.00m 8.00m Static Systems Frame Hyde System

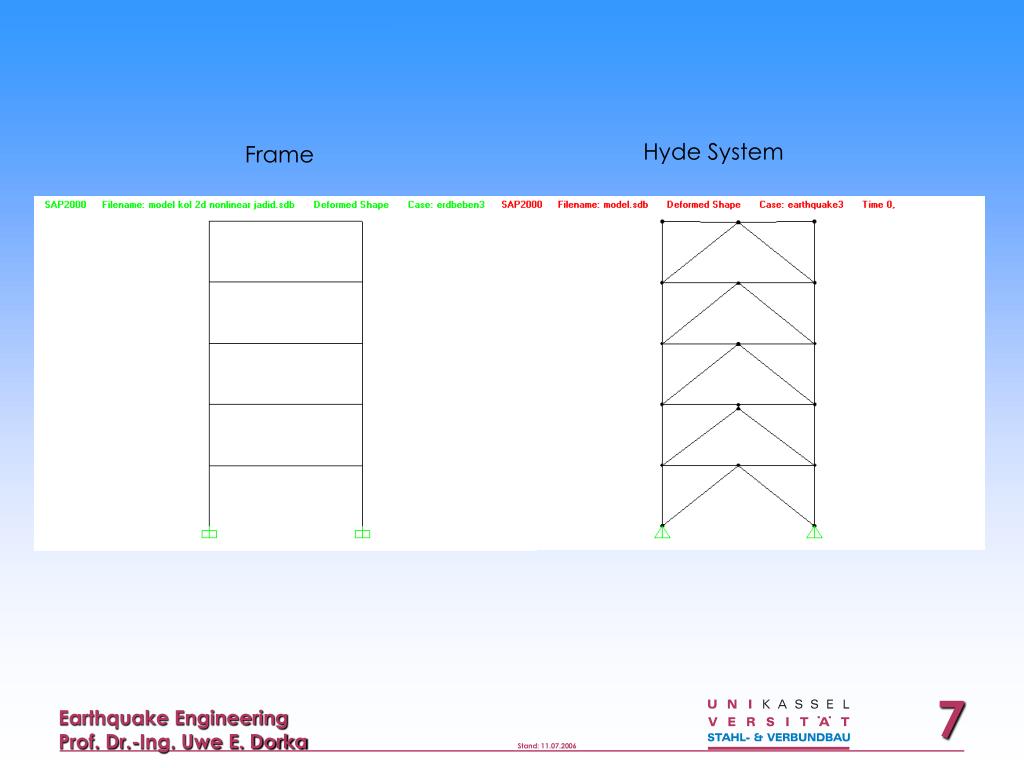

  7. Hyde System Frame Earthquake Engineering Prof. Dr.-Ing. Uwe E. Dorka Stand: 11.07.2006

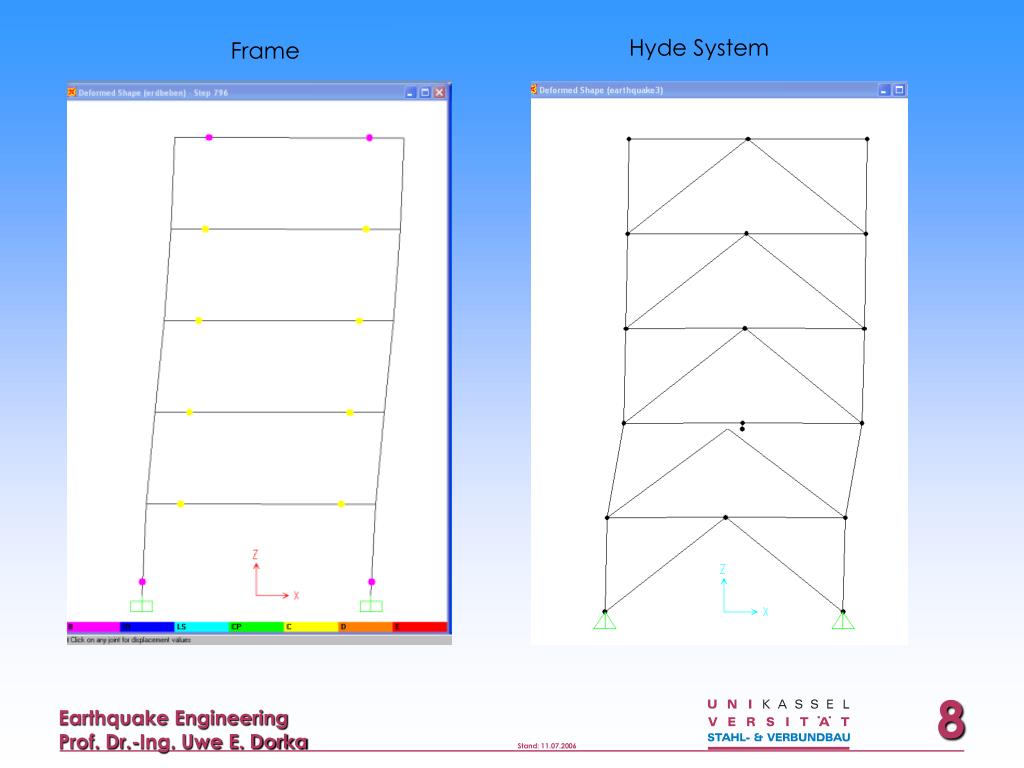

  8. Hyde System Frame Earthquake Engineering Prof. Dr.-Ing. Uwe E. Dorka Stand: 11.07.2006

  9. Frame Earthquake Engineering Prof. Dr.-Ing. Uwe E. Dorka Stand: 11.07.2006

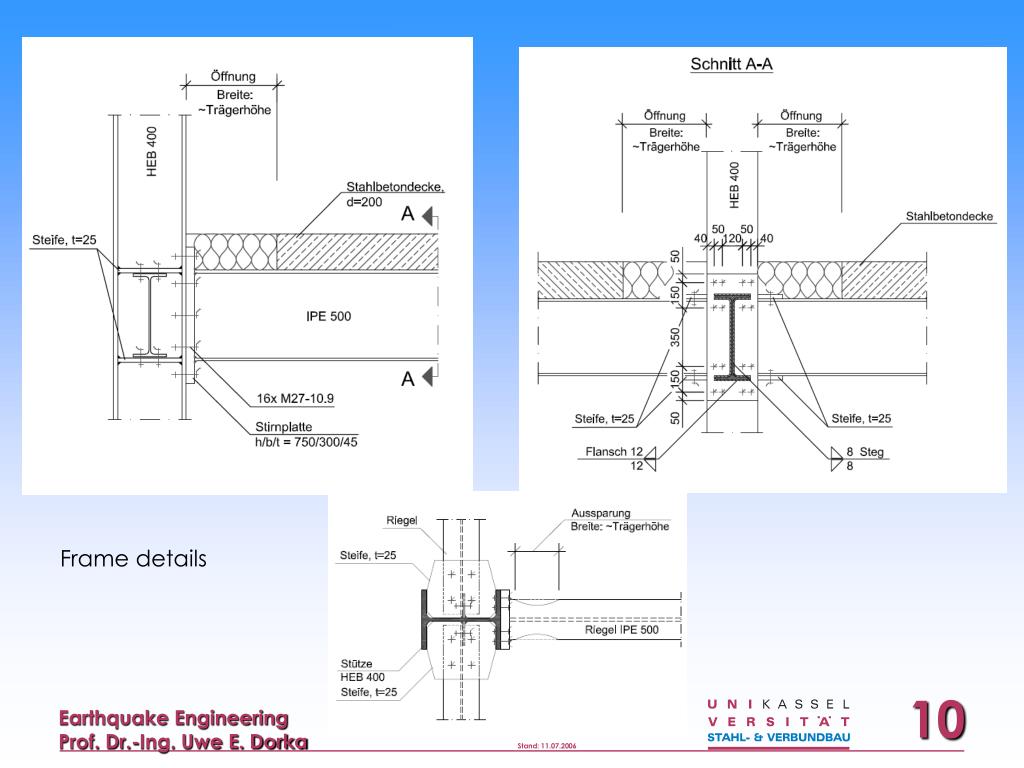

  10. Frame details Earthquake Engineering Prof. Dr.-Ing. Uwe E. Dorka Stand: 11.07.2006

  11. Hyde System Earthquake Engineering Prof. Dr.-Ing. Uwe E. Dorka Stand: 11.07.2006

  12. Hyde System details Earthquake Engineering Prof. Dr.-Ing. Uwe E. Dorka Stand: 11.07.2006
