  1. Practical figures

  2. Dentate nucleus

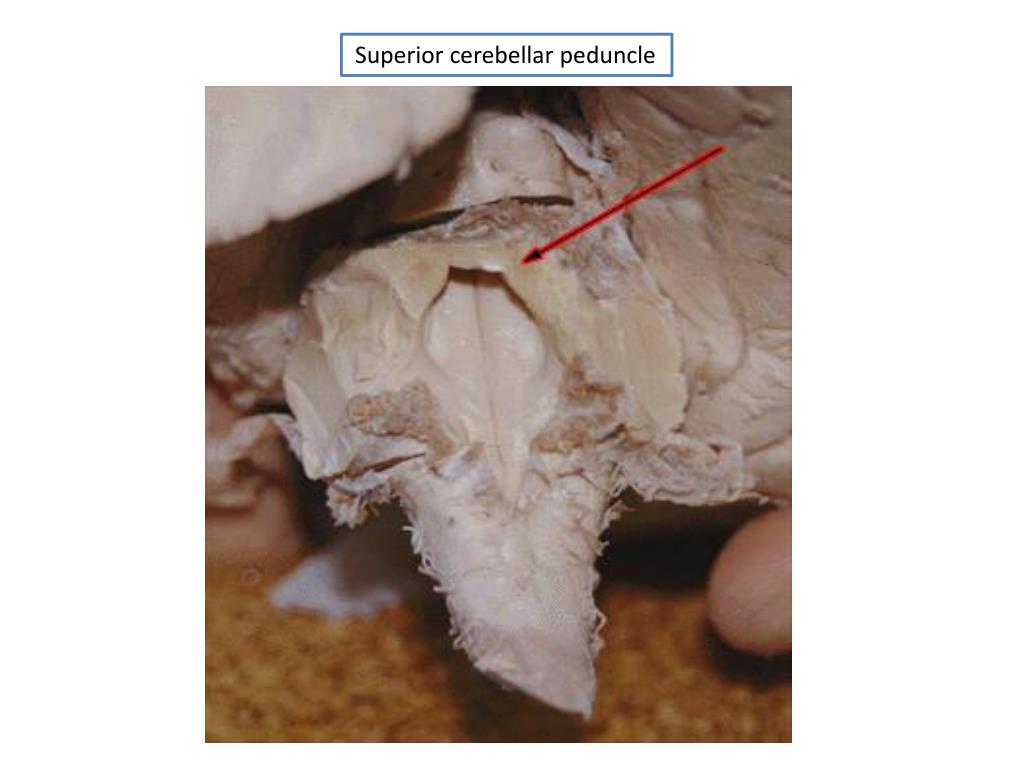

  3. Superior cerebellar peduncle

  4. Blood supply of the brain Lab 6

  5. Middle cerebral artery ICA PCA Vertebral artery Post cerebral artery Sup Cerebellar A Basilar A Ant infcerebellarA Post infcerebellarA Ant spinal A

  6. Spinal cordsections Lab 2

  7. Cervical segment Fasciculus gracilis Fasciculus cuneatus Posterior white column Substantiagelatinosa Nucleus proprius Lateral white column Lateral group (UL) Accessory nucleus Medial group (neck) Anterior white column Anterior median fissure

  8. Lumbosacral segment Fasciculus gracilis Substantiagelatinosa Nucleus proprius Lateral horn (PREGANGLIONIC PARASYMPATHETIC (S2-S3-S4) Motor neurons (LL muscles) Motor neurons (trunk muscles)

  9. Thoracic segment Fasciculus gracilis Fasciculus cuneatus Substantiagelatinosa Nucleus proprius Nucleus dorsalis Lateral horn (PREGANGLIONIC SYMPATHETIC) Motor neurons (trunk muscles)

  10. 1:Anterior Median Fissure; 2:Pia Mater; 3:Denticulate Ligaments;4:Arachnoid and Dura Mater (reflected); 5:anterior Spinal Blood Vessel; 6:Dorsal Root of spinal Nerve; 7:Ventral Root of spinal Nerve.

  11. A: CAUDA EQUINA B: SPINAL GANGLION

  12. Brain stem sections Medulla oblongata Lab 4

  13. Medulla at level of pyramidal decussation Fasiculusgracilis Fasiculuscuneatus Spinal nucleus of trigimenal nerve Central canal pyramidal decussation pyramid

  14. Medulla at level of sensory decussation Nucleus gracilis Nucleus cuneatus Central canal Spinal nucleus of trigimenal nerve Internal arcuate fibers Medial leminiscus pyramid

  15. Medulla at level of olives Dorsal vagal nucleus Hypoglossal nucleus Solitary nucleus 4TH VENTRICLE ICP RF MLF Medial leminiscus Inferior olivary nucleus pyramid

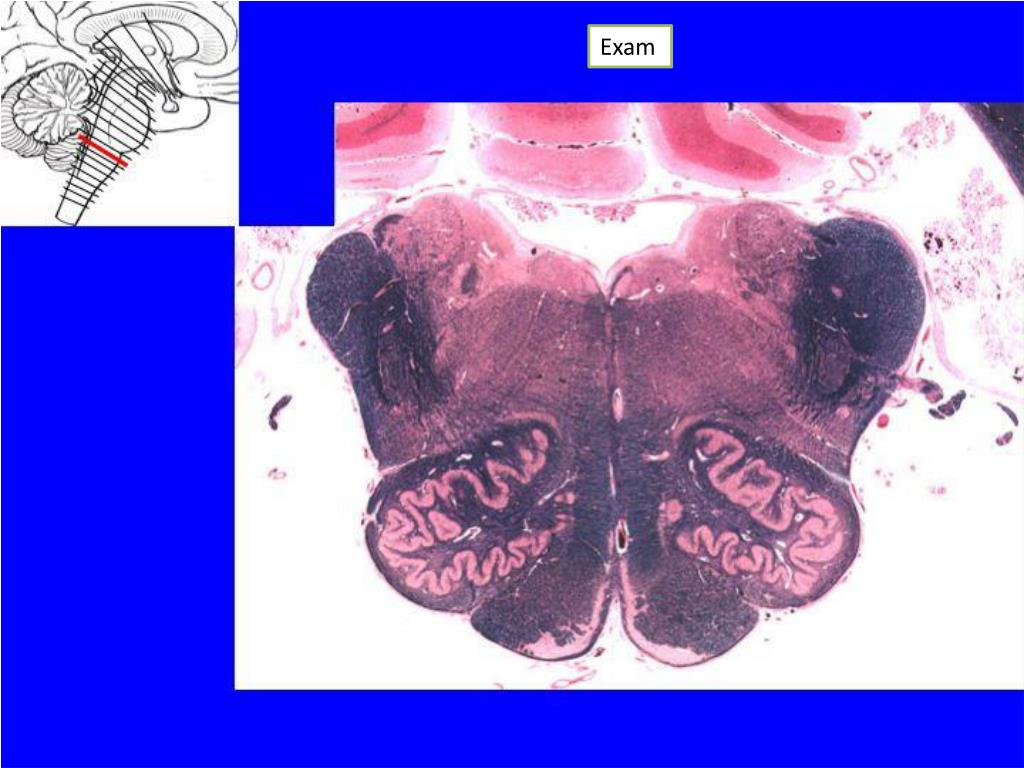

  16. Exam

  17. Brainstem sections Pons and Midbrain Lab 5

  18. Pons at level of facial colliculus Facial colliculus Abducens nucleus MLF facial nerve MESENCEPHALIC trigiminal tract MCP Spinal trigiminal nucleus and tract Anterior spinocerebellar tract Lateral leminiscus Central tegmental tract Spinal leminiscus Tectospinal tract Pontocerebellar fibers (transverse fibers) Medial leminiscus Trapezoid body Corticospinal tract Pontine nuclei

  19. Pons at level of trigiminal SCP MLF Motor trigeminal nucleus MESENCEPHALIC trigeminal tract Principle trigeminal sensory nucleus Anterior spinocerebellar tract Central tegmental tract Lateral leminiscus Spinal leminiscus MCP Medial leminiscus Corticospinal tract

  20. Midbrain at level of inferior colliculus Inferior colliculus Periaqueductal gray Trochlear nucleus Lateral leminiscus MLF Spinothalamic tract Central tegmental tract Medial leminiscus Substantianigra Decussation of SCP Cruscerebri

  21. Midbrain at level of superior colliculus superior colliculus Cerebral aqueduct Brachium of inferior colliculus Periaqueductal gray Occulomotor nucleus Spinothalamic tract Medial leminiscus Occulomotor nerve Red nucleus Substantianigra Corticospinal tract

More Related
