Presentation Transcript


Lesson 14 component system object correlation ontologies use in the oomi april 16 2013

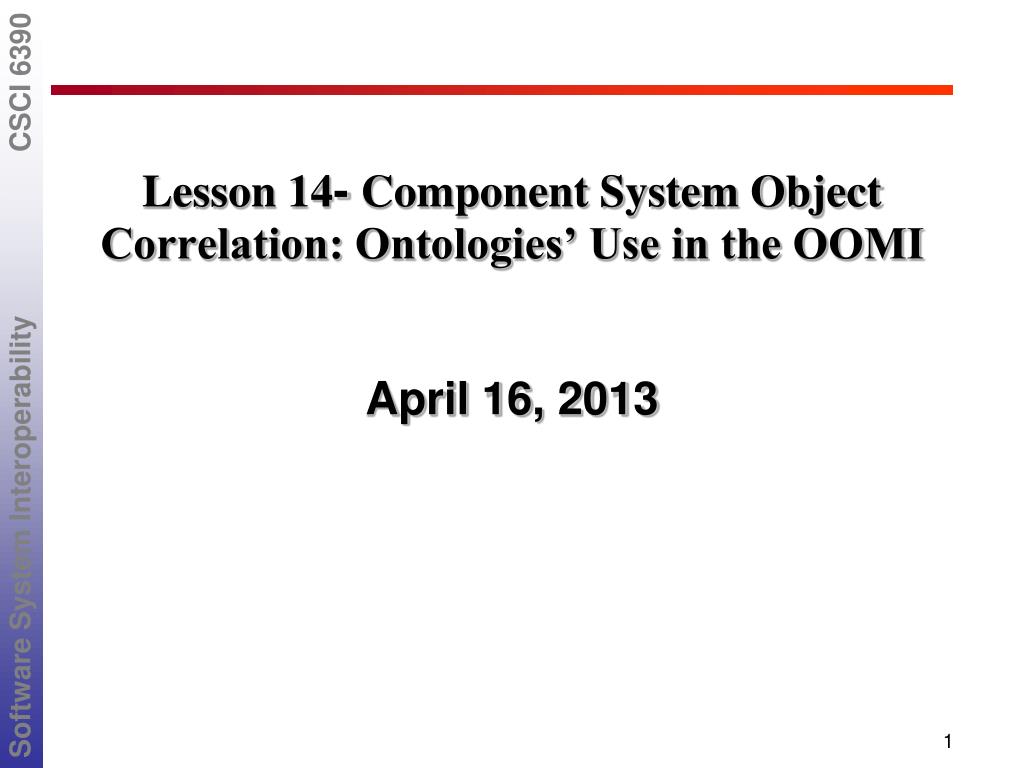

Lesson 14- Component System Object Correlation: Ontologies’ Use in the OOMIApril 16, 2013


Ontologies use in the oomi

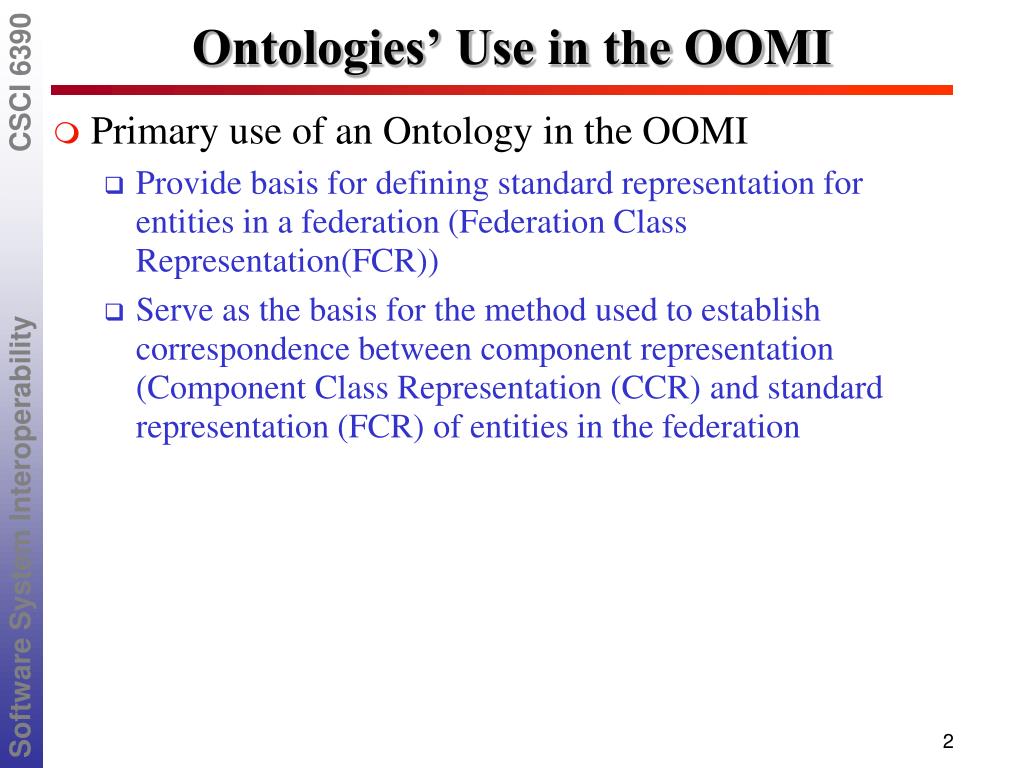

Ontologies’ Use in the OOMI

  • Primary use of an Ontology in the OOMI

    • Provide basis for defining standard representation for entities in a federation (Federation Class Representation(FCR))

    • Serve as the basis for the method used to establish correspondence between component representation (Component Class Representation (CCR) and standard representation (FCR) of entities in the federation


Providing basis for defining standard representation of entities in the federation

Providing Basis for Defining Standard Representation of Entities in the Federation

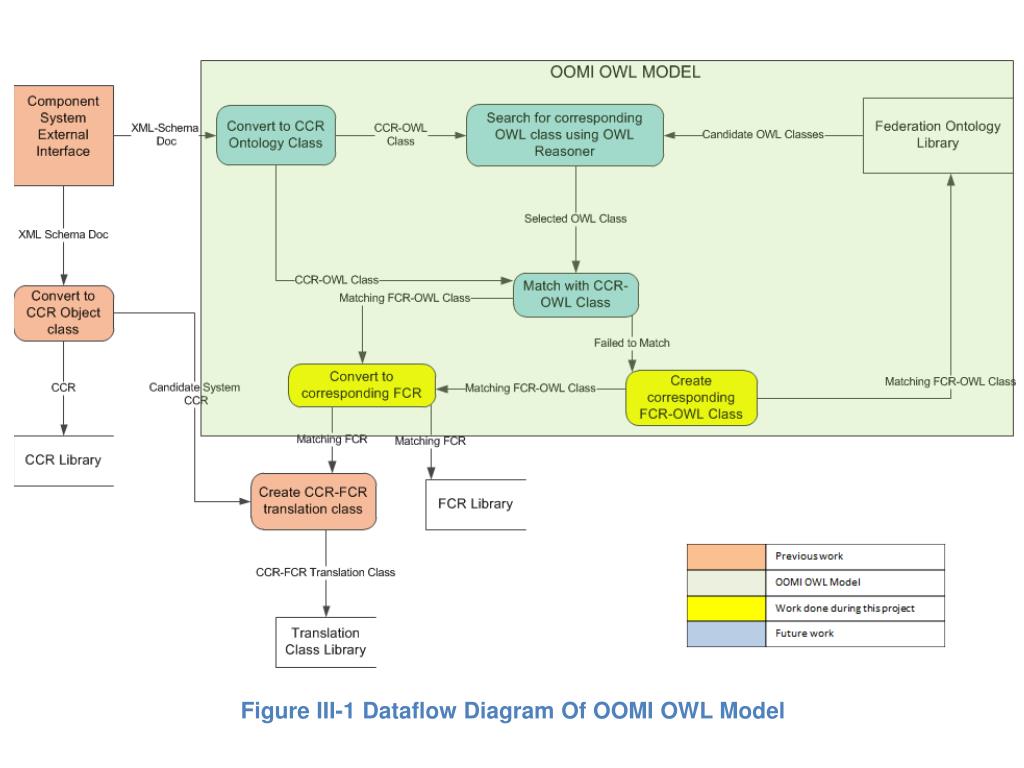

  • From Figure III-1 Dataflow Diagram of OOMI OWL model, terms contained in Federation Ontology Library which match component entity are used to provide standard representation (FCR) of entity in FIOM

  • The figure also provides an overview of the process required to match a component entity with a term in the Federation Ontology

    • Component entity, as represented by an XML Schema, is first converted into a corresponding CCR-OWL class

    • Reasoning engines then used to locate a term matching the CCR-OWL class in the Federation Ontology

    • The Matched CCR-OWL class is then used to create a corresponding FCR for use in resolving representational differences between CCR and FCR


Lesson 14 component system object correlation ontologies use in the oomi april 16 2013

Figure III-1 Dataflow DiagramOf OOMIOWL Model


Additional capability provided by ontology

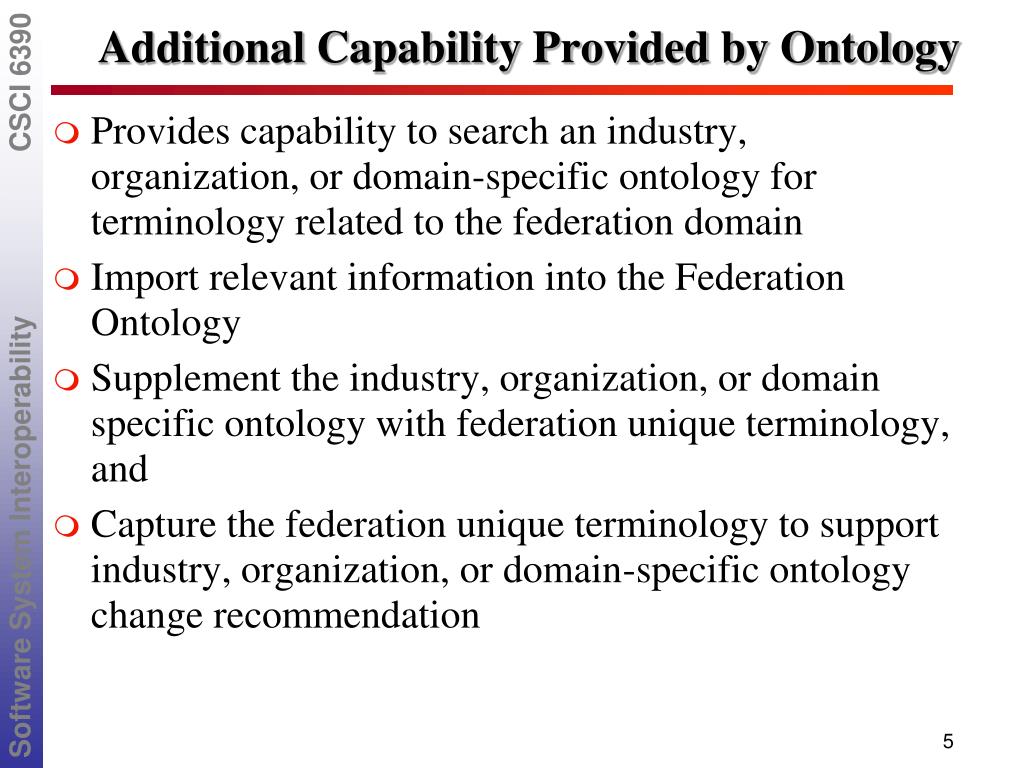

Additional Capability Provided by Ontology

  • Provides capability to search an industry, organization, or domain-specific ontology for terminology related to the federation domain

  • Import relevant information into the Federation Ontology

  • Supplement the industry, organization, or domain specific ontology with federation unique terminology, and

  • Capture the federation unique terminology to support industry, organization, or domain-specific ontology change recommendation
