Presentation Transcript
Thin brick faced precast l.jpg

ASV

Ladysmith, Virginia

Thin Brick Faced Precast

American Stone Virginia, LLC


What is thin brick faced architectural precast l.jpg
What is Thin Brick Faced Architectural Precast

  • Thin brick faced precast is conventional Architectural Precast Concrete (APC), section 3450 with portions, or sometimes all, of the exposed to view face covered by a thin section, kiln fired clay masonry unit.

  • The result is a panel with natural masonry appearance usually accented by areas of smooth or textured architectural precast but with the benefits of APC.

  • Section 3450 (PCI MNL 117) APC producers are accustomed to the requirements of high end architectural finishes and uniquely qualified to produce this product

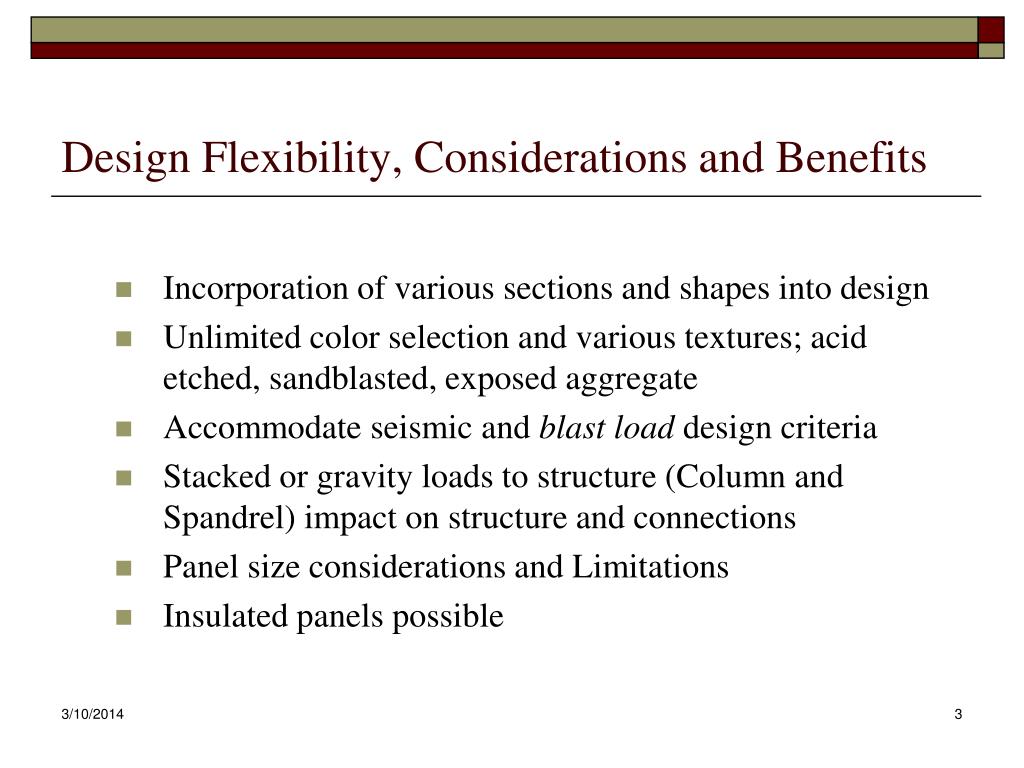

Design flexibility considerations and benefits l.jpg
Design Flexibility, Considerations and Benefits

  • Incorporation of various sections and shapes into design

  • Unlimited color selection and various textures; acid etched, sandblasted, exposed aggregate

  • Accommodate seismic and blast load design criteria

  • Stacked or gravity loads to structure (Column and Spandrel) impact on structure and connections

  • Panel size considerations and Limitations

  • Insulated panels possible


Project and onsite considerations l.jpg
Project and Onsite Considerations

  • Use of APC shortens the onsite project schedule

  • Better jobsite efficiency through elimination of conventional masonry scaffolding and a reduction of onsite activity and trades

  • Less weather sensitive

  • Get under roof sooner, allowing follow up trades

  • What is the access for erection equipment and crane reaches


Green building considerations l.jpg
Green Building Considerations

  • Use of APC eliminates the jobsite waste generated by conventional masonry

  • Most APC producers will be located and obtain their raw materials (except the thin brick itself) within 500 miles of the jobsite

  • Energy cost of manufacturing thin brick is only 18% of the cost of full size brick


Applications l.jpg
Applications

  • Thin brick/APC can be utilized on any structure where a masonry appearance is desired.

  • Panel sizes can be maximized to improve erection efficiency or elements can be reduced in size to accommodate a different architectural appearance.

  • The use of APC finish as an integral trim feature adds detail and variety with out added cost.


Project examples l.jpg
Project Examples

  • Office and Headquarters facilities for civilian and military users

  • Administration and warehouse facilities

  • Parking Structures


Slide8 l.jpg
Fort Lee SCOE office and headquarters building in thin brick with acid washed precast in a spandrel and column design


Scoe 1 l.jpg
SCOE-1 with acid washed precast in a spandrel and column design

  • APC base panel, TFB columns and spandrels


Scoe 2 l.jpg
SCOE-2 with acid washed precast in a spandrel and column design

  • APC spandrels in medium acid wash finish


Scoe 3 l.jpg
SCOE-3 with acid washed precast in a spandrel and column design

  • Interface of APC and TFB panels


St agnes parking garage baltimore md l.jpg
St Agnes Parking Garage-Baltimore Md with acid washed precast in a spandrel and column design

  • Interesting use of TBP/APC to create the effect of row houses in an urban neighborhood


St agnes parking garage l.jpg
St Agnes Parking Garage with acid washed precast in a spandrel and column design

  • Two brick colorswith acid washed APC


Upper rock parking garage l.jpg
Upper Rock Parking Garage with acid washed precast in a spandrel and column design

  • Conventional garage with APC spandrels and TBP stair towers


Upper rock parking garage 2 l.jpg
Upper Rock Parking Garage-2 with acid washed precast in a spandrel and column design

  • Projecting APC window surrounds adds depth


Ft lee central campus l.jpg
Ft Lee Central Campus with acid washed precast in a spandrel and column design

  • Office, Administrative and warehouse functions

  • Masonry and two APC finishes


Ft lee central campus17 l.jpg
Ft Lee Central Campus with acid washed precast in a spandrel and column design

  • Stacked wall panels with minimal blast loading

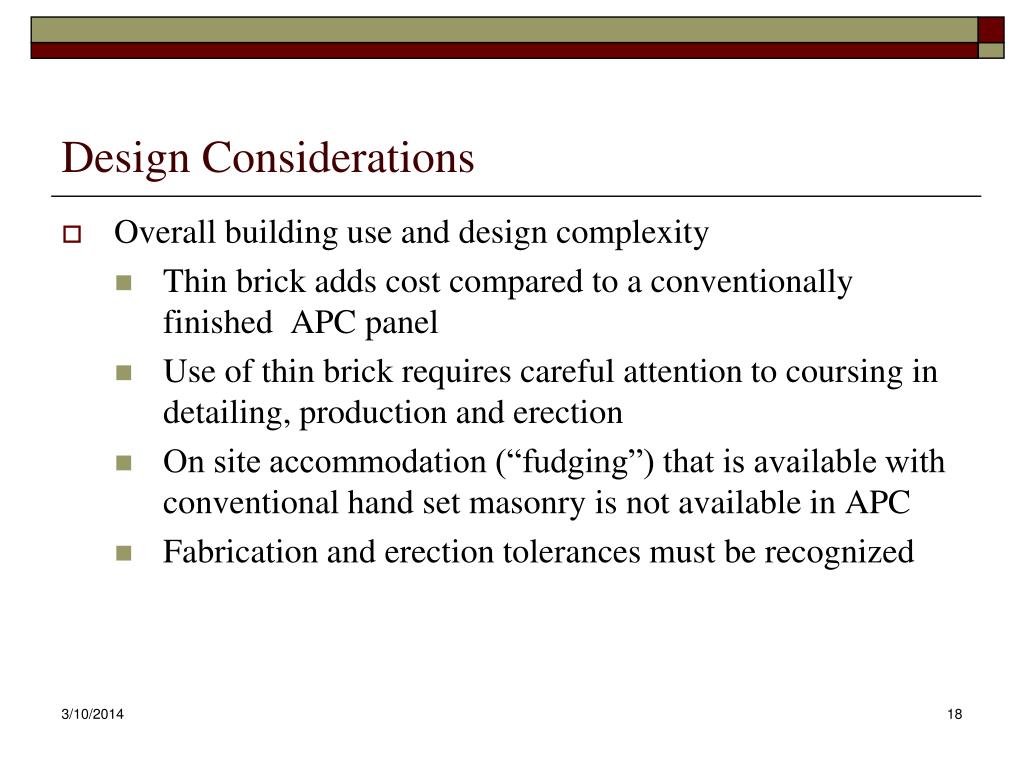

Design considerations l.jpg
Design Considerations with acid washed precast in a spandrel and column design

  • Overall building use and design complexity

    • Thin brick adds cost compared to a conventionally finished APC panel

    • Use of thin brick requires careful attention to coursing in detailing, production and erection

    • On site accommodation (“fudging”) that is available with conventional hand set masonry is not available in APC

    • Fabrication and erection tolerances must be recognized

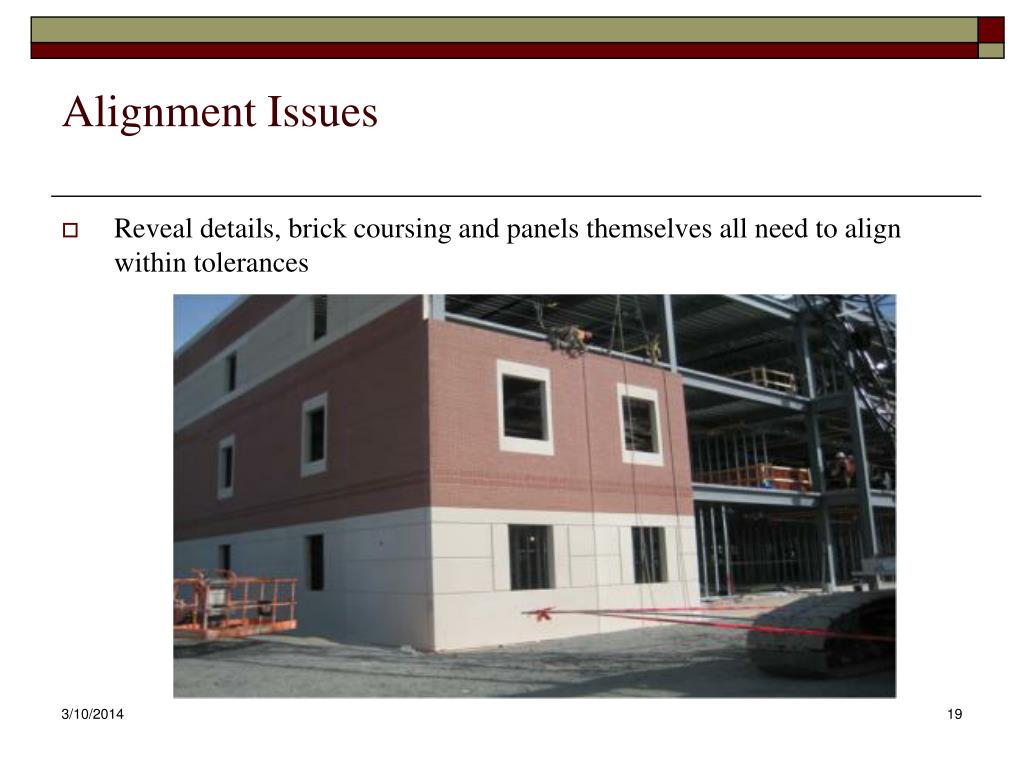

Alignment issues l.jpg
Alignment Issues with acid washed precast in a spandrel and column design

  • Reveal details, brick coursing and panels themselves all need to align within tolerances


Which basic apc design will be used stacked or spandrel column system l.jpg
Which basic APC design will be used: with acid washed precast in a spandrel and column designStacked or spandrel-column system

  • Building Appearance and function

    • Higher end office or more one that is more functional in nature

    • Stacked system

      • What is the building story height and blast load requirements

      • Requires lighter structure since no gravity loads

      • Less design flexibility

      • Produces the more typical appearance and shape. (Big box/warehouse)

      • Generally less expensive to erect and produce since more repetitive and jobsite erection access is better.


Basic structure l.jpg
Basic Structure with acid washed precast in a spandrel and column design


Three story building l.jpg
Three story Building with acid washed precast in a spandrel and column design


Spandrel and column design non stacked l.jpg
Spandrel and column design (non –stacked) with acid washed precast in a spandrel and column design

  • More flexible, allows for more shape and complexity

  • Greater story heights since panels aren't stacking

    • Especially if blast load requirement

  • Usually includes smaller, lighter panels

    • More panels to erect

    • More panels per trailer= fewer loads and fewer trailers required onsite at a given time

    • Can use smaller crane (cost partially offsets more panels)

    • Site access requirements usually less demanding than with larger panel stacked system

  • Gravity loads transferred to columns or slabs, not to footings

    • Precast connection design more demanding and expensive

    • Better able to accommodate high performance blast (no progressive failure)

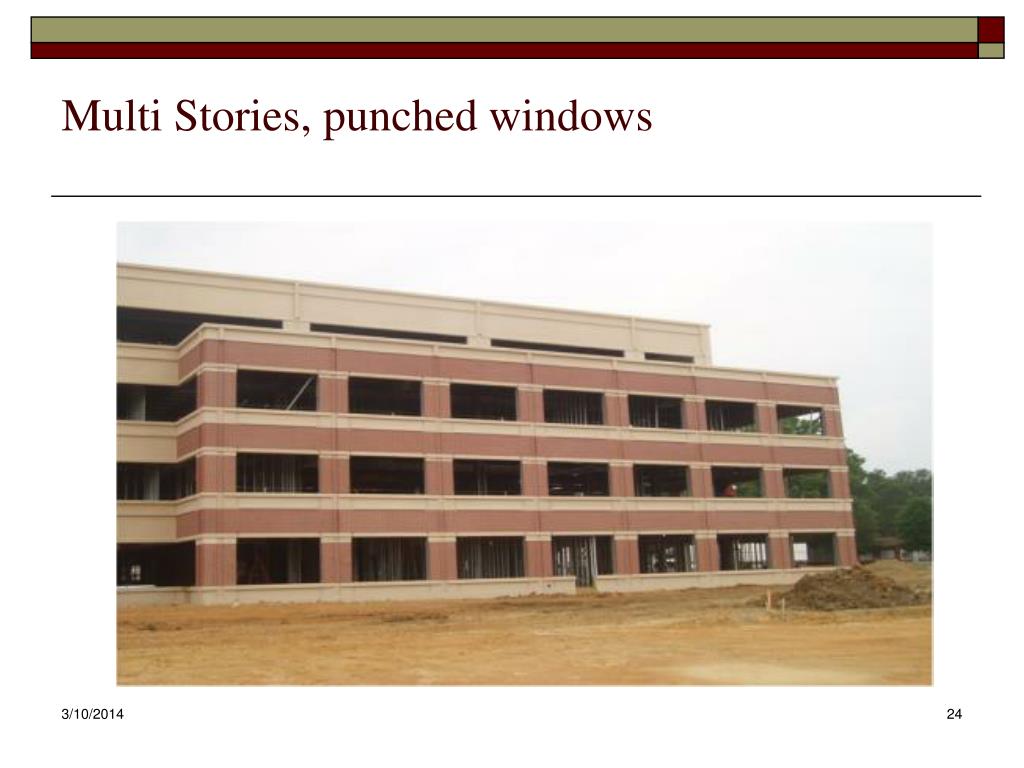

Multi stories punched windows l.jpg
Multi Stories, punched windows with acid washed precast in a spandrel and column design


Connections for gravity and blast l.jpg
Connections for Gravity and Blast with acid washed precast in a spandrel and column design

  • Load bearing haunch connection and blast load tie back in Spandrel and Column format


Panel sizing l.jpg
Panel Sizing with acid washed precast in a spandrel and column design

  • Generally fewer panels= lower cost

  • What is the jobsite access and crane availability

  • Transportation concerns; size weight, costs

  • Plant capacity to produce panel size and weights

  • Typical panels not to exceed 12’ wide and 35’ tall x 8” thick (42,000#)

  • Wider panels possible but production and shipping costs increase


Large panels demand better jobsite access and coordination l.jpg
Large Panels demand better jobsite access and coordination with acid washed precast in a spandrel and column design


The manufacturing process l.jpg
The Manufacturing Process with acid washed precast in a spandrel and column design

  • Color and Finish Selection

    • Match existing or new sample

    • Color and finish

    • Mock up or sample panel requirement options

      • Smaller 1’x1’ initial sample

      • Followed by larger sample panel 3’x 3’ to site

      • Onsite mock up with other trades

      • Full size production review onsite or at plant


Shop drawings l.jpg
Shop Drawings with acid washed precast in a spandrel and column design

  • Status of Contract Drawings

  • Plans and Specs

  • Design-Build

    • APC producer in lead

    • Basic building frame and design from designers

    • Coordination with design team

    • Critical building dimensions must be agreed upon

    • Coordination with other trades critical (structure, windows)


Molds l.jpg
Molds with acid washed precast in a spandrel and column design

  • Casting Area allows custom molds to accommodate any project


Brick formliner l.jpg
Brick Formliner with acid washed precast in a spandrel and column design

  • In house production of rubber formliners means control of quality, more customization and less chance of delays


Brick preparation l.jpg
Brick Preparation with acid washed precast in a spandrel and column design

  • Brick being coated with bond breaking wax to allow for later washing


Mold construction l.jpg
Mold Construction with acid washed precast in a spandrel and column design

  • Molds constructed on polyester coated wood forms with multiple reveals and blockouts


Brick placement in molds l.jpg
Brick Placement in Molds with acid washed precast in a spandrel and column design


Pre pour preparation l.jpg
Pre pour preparation with acid washed precast in a spandrel and column design

  • All mold joint prepped and caulked to prevent leakage from form


Quality control l.jpg
Quality Control with acid washed precast in a spandrel and column design

  • Panel being Pre pour inspected for conformance to shop drawings


Ready for production l.jpg
Ready for Production with acid washed precast in a spandrel and column design

  • Brick installed, joints caulked, form oiled , sizes checked


Concrete batching l.jpg
Concrete Batching with acid washed precast in a spandrel and column design

  • In plant batching with architectural grade equipment


Casting l.jpg
Casting with acid washed precast in a spandrel and column design

  • First layer of concrete facing placed and consolidated, reinforcing steel placed and hardware located


Embed placement l.jpg
Embed Placement with acid washed precast in a spandrel and column design


Finishing l.jpg
Finishing with acid washed precast in a spandrel and column design

  • Panels transported to acid washing or sandblasted station


Yard finishing patching l.jpg
Yard Finishing-Patching with acid washed precast in a spandrel and column design

  • Skilled finishers make all the difference in an architectural product


Finished panels in storage l.jpg
Finished Panels in Storage with acid washed precast in a spandrel and column design


Sandblasted and acid washed panel l.jpg
Sandblasted and acid washed panel with acid washed precast in a spandrel and column design


Special feature panels l.jpg
Special Feature Panels with acid washed precast in a spandrel and column design


Specialized trailers for transport of large panels l.jpg
Specialized trailers for transport of large panels with acid washed precast in a spandrel and column design

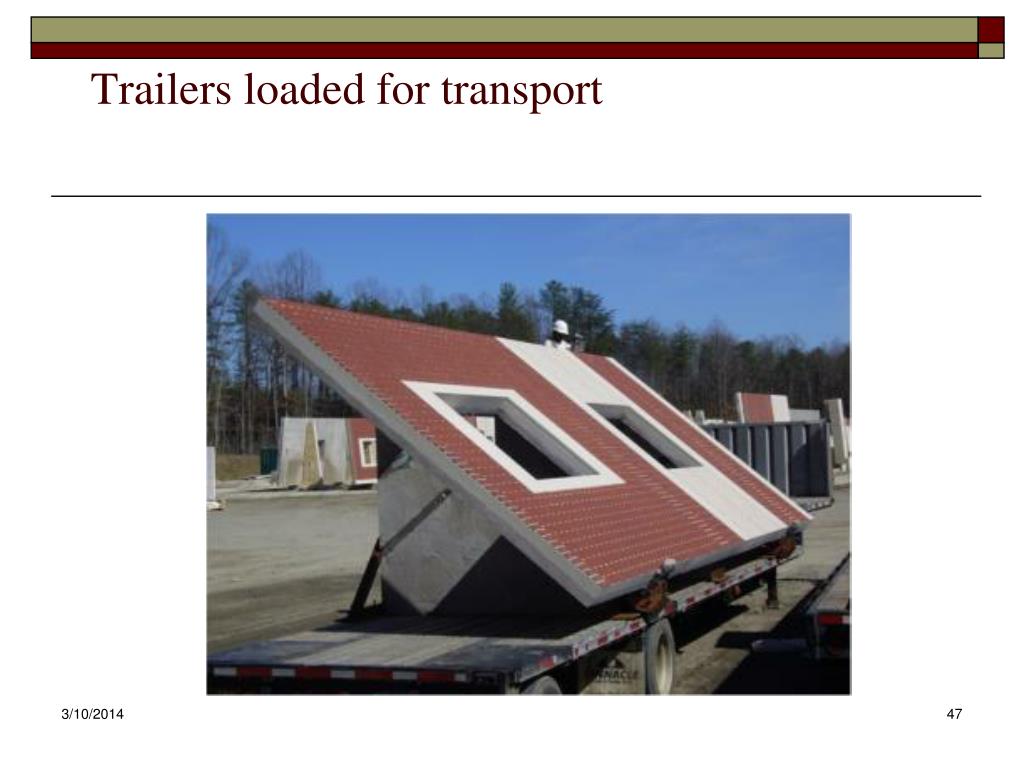

Trailers loaded for transport l.jpg
Trailers loaded for transport with acid washed precast in a spandrel and column design


Adequate number of trailers staged for delivery l.jpg
Adequate number of trailers staged for delivery with acid washed precast in a spandrel and column design


Ready for installation l.jpg
Ready for Installation with acid washed precast in a spandrel and column design


Erection in progress l.jpg
Erection in Progress with acid washed precast in a spandrel and column design


Erected l.jpg
Erected with acid washed precast in a spandrel and column design
