Presentation Transcript
Slide1 l.jpg

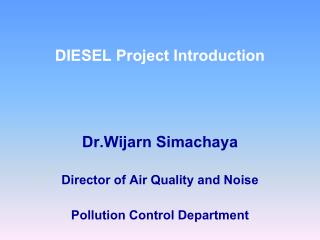

DIESEL Project Introduction

Dr.Wijarn Simachaya

Director of Air Quality and Noise

Pollution Control Department


Slide2 l.jpg

Background

PM : main emission problem in Asia

  • CAI-Asia conducted DIESEL pilot project in Bangkok

  • The ultimate goals of the project are:

  • To gain a better understanding of factors affecting in-use diesel vehicle emissions.

  • To assess alternative mitigation options to assist decision making in developing countries.


Slide3 l.jpg

Challenges

  • Local, national and international cooperation

  • In-depth data used

  • Resources to finance the DIESEL Pilot

  • From strategy to real-world implementation

  • Long-term sustainability and continuous updating of information


Slide4 l.jpg

Organization Structure

Advisory

Operational

  • Local Steering

  • Committee

  • Chair

  • Representative from:PCD, DLT, BMTA, BMA, DEB, DFE, PTT, OEPP, Operators, Universities

  • Project Management Team

  • Manager (PCD)

  • Coordinator

  • Technical Advisor

  • Assistant

Bangkok

  • Advisory Committee

  • AQM specialist

  • Transport policy sp.

  • Development sp.

  • Vehicle technology sp.

  • Fuel sp.

  • CAI-Asia: Sub-committee

  • Funding partners

  • Two Regional Reps.

International


Slide5 l.jpg

Outputs/Outcomes

  • Viable and affordable policies and technical options to reduce diesel vehicle emissions

  • Improved database/data collection systems

  • Disseminate research findings through the CAI-Asia networks to other cities


Progress l.jpg
Progress

Component 3

Component 1

Component 2

Diesel Pollution Reduction Strategies Development

Bangkok Emission Database Development

Diesel Pollution Reduction Options Development

Jan 06 – Dec 07

Jan 04 – Jun 07

Jun 05 – Dec 05


Bangkok database l.jpg
Bangkok Database

Vehicle Using Behaviors

Number of Diesel Vehicles

Air Quality

Vehicle Emission


Slide8 l.jpg

Number of Diesel Vehicles

Bangkok road route

Symbols

express way

main road

rail system

Chao Phraya

  • Number of buses in 2003

  • BMTA buses= 3,609

  • Private buses =3,136

  • Minibuses = 1,176

  • Minivans= 2,069

  • Vans =5,331

  • In-use diesel vehicles in Bangkok

  • Light duty diesel vehicles~ 1,000,000

  • Light duty diesel trucks~ 70,000

  • Heavy diesel vehicle~ 46,000

a/c bus

Hot bus

total

  • Diesel vehicle driving distanceper year

  • Light duty diesel vehicles10,000 – 12,755 miles

  • Light duty diesel trucks4,500 – 20,140 miles

  • Heavy duty diesel vehicles3,800 – 18,211 miles

Source: BMTA, 2003


Slide9 l.jpg

Stratified Survey

  • PILOT SURVEY: Focus mainly on light duty. Extensive review of lessons learned.

  • MAIN SURVEY: Surveys of drivers/owners of nine vehicle types

    • Light Duty: Surveys at DLT - 815 vehicles

    • Heavy Duty: Surveys at BMTA and companies – 84 organizations


Slide10 l.jpg

Air Quality Data

Analyze from Air quality measurement

and meteorological networkof

Pollution Control Department


Slide11 l.jpg

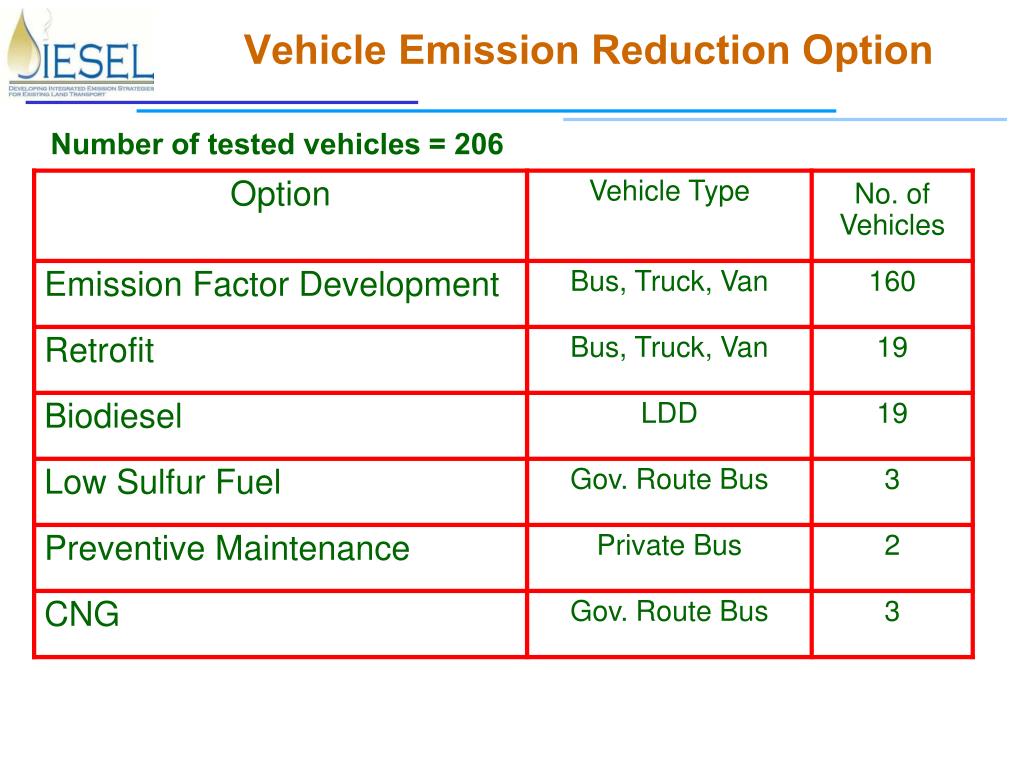

Vehicle Emission Reduction Option

Number of tested vehicles= 206


Slide12 l.jpg

Vehicle Emission Reduction Option

  • Retrofit and Re-engine

  • Clean & Alternative Fuel

  • I/M Programme

  • Transport Management


Slide13 l.jpg

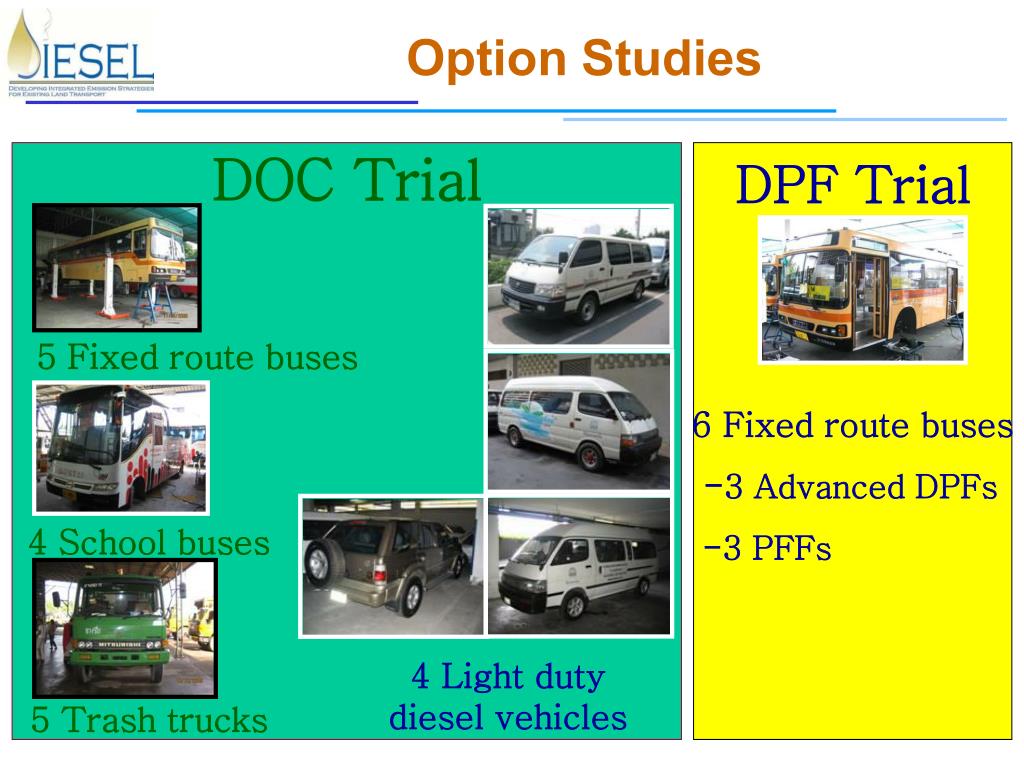

DOC Trial

DPF Trial

5 Fixed route buses

6 Fixed route buses

-3 Advanced DPFs

-3 PFFs

4 School buses

4 Light duty diesel vehicles

5 Trash trucks

Option Studies


Slide14 l.jpg

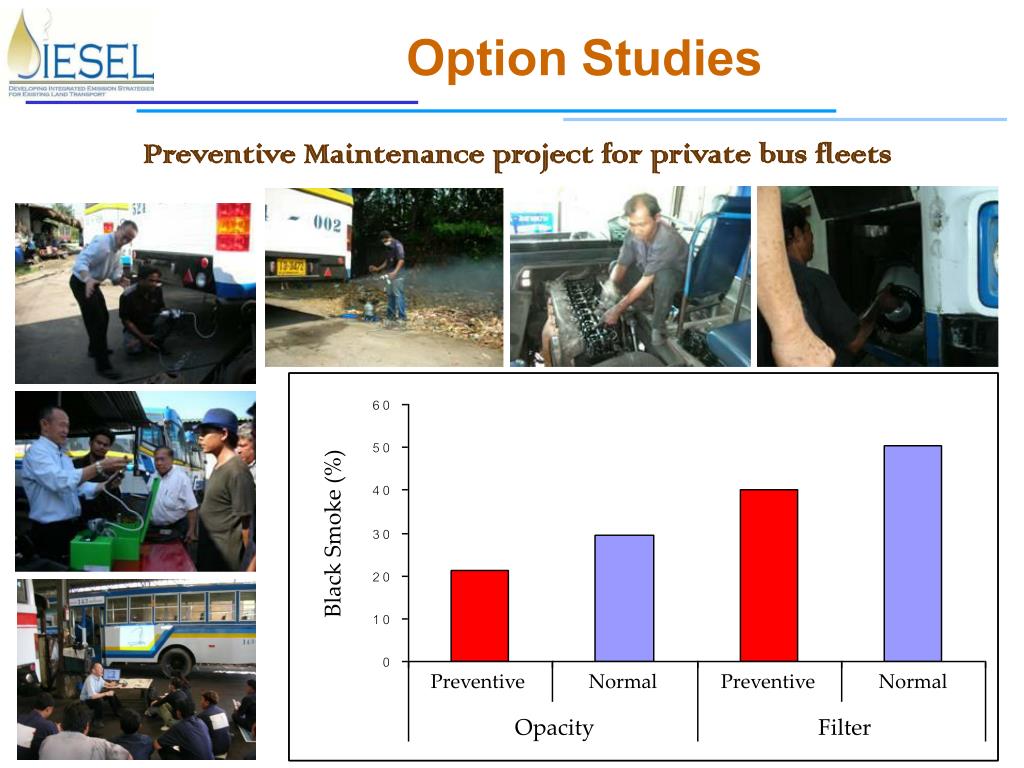

Option Studies

Preventive Maintenance project for private bus fleets

Black Smoke (%)

Preventive

Normal

Preventive

Normal

Opacity

Filter


Slide15 l.jpg

Goal: B10 in 2012

(8.5 ML/day)

Export

Palm Plantation10 M-Rai, R&D Palm and Others

05

11

12

06

07

08

09

10

Biodiesel

0.002

0.86

2.25

0.15

0.5

0.5

4.93

9 ML/d

Community Based: Agriculture

Phase II: NE, North, Central

Phase I: BMR,South

Phase III: over country

Option Studies

Policies of Ministry of Energy

1. Biodiesel2. CNG

Target year 2008

  • Gasoline replacement 78,700 vehicles

  • Diesel replacement

    24,300 vehicles

  • NGV refueling station 350 stations

Target year 2011

  • Gasoline replacement 160,000 vehicles

  • Diesel replacement 91,600 vehicles

  • NGV refueling station 520 stations


Slide16 l.jpg

Informed Decision-support for Evaluating Alternative Strategies

Developing Emission Reduction Strategy

  • grid based emissions database for selection of options

IDEAS database

  • General Information – geography, population Statistics, land use

  • Sources –industries, power plants, transport, domestic sectors, etc

    • Energy Consumption Levels - fuel type, fuel characteristics

    • House Hold Energy Consumption – heating and cooking

    • Traffic Volumes – road network, location, traffic volume, vehicle number by age, and type, emission factors by type

  • Emissions –criteria pollutants

  • Monitoring- historical and present

Data from Component 1
