Presentation Transcript


Stability at the limits l.jpg

Stability at the Limits

Yung-Hsiang Judy Hsu

J. Christian Gerdes

Stanford University

November 10, 2005


Did you know l.jpg

did you know…

  • Every day in the US, 10 teenagers are killed in teen-driven vehicles in crashes1

    • Loss of control accounts for 30% of these deaths

    • Inexperienced drivers make more driving errors, exceed speed limits & run off roads at higher rates

  • In 2002, motor vehicle traffic crashes were the leading cause of death for ages 3-33.2

    To understand how loss of control occurs, need to know what determines vehicle motion

1 National Highway Traffic Safety Administration. Traffic safety facts (2002)

2 USA Today. Study of deadly crashes involving 16-19 year old drivers (2003)

2


Motion of a vehicle l.jpg

motion of a vehicle

SIDE VIEW

  • Motion of a vehicle is governed by tire forces

  • Tire forces result from deformation in contact patch

  • Lateral tire force is a function of tire slip

Contact Patch

Ground

BOTTOM VIEW

a

Fy

3


Tire curve l.jpg

tire curve

maximum tire grip

Linear

Saturation

Loss of control

4


Vehicle response l.jpg

vehicle response

  • Normally, we operate in linear region

    • Predictable vehicle response

  • But during slick road conditions, emergency maneuvers, or aggressive/performance driving

    • Enter nonlinear tire region

    • Response unanticipated by driver

5


Loss of control l.jpg

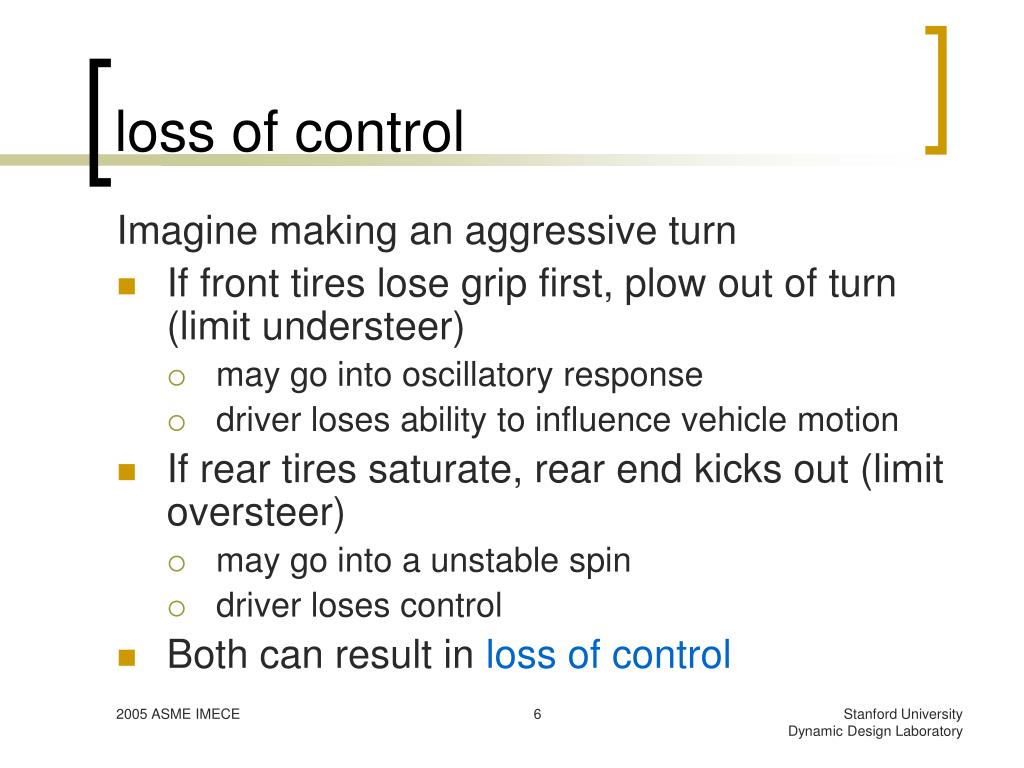

loss of control

Imagine making an aggressive turn

  • If front tires lose grip first, plow out of turn (limit understeer)

    • may go into oscillatory response

    • driver loses ability to influence vehicle motion

  • If rear tires saturate, rear end kicks out (limit oversteer)

    • may go into a unstable spin

    • driver loses control

  • Both can result in loss of control

6


Overall goals l.jpg

overall goals

We’d like to design a control system to

  • Stabilize vehicle in nonlinear handling region

  • Make vehicle response consistent and predictable for drivers

  • Communicate to driver when limits of handling are approaching

7


Outline l.jpg

Outline

  • Identify tire operating region

    • Vehicle/Tire models

    • Tire parameter estimation

  • Produce stable, predictable response

    • Feedback linearizing controller

    • Driver input saturation

    • Simulation results

8


Vehicle model l.jpg

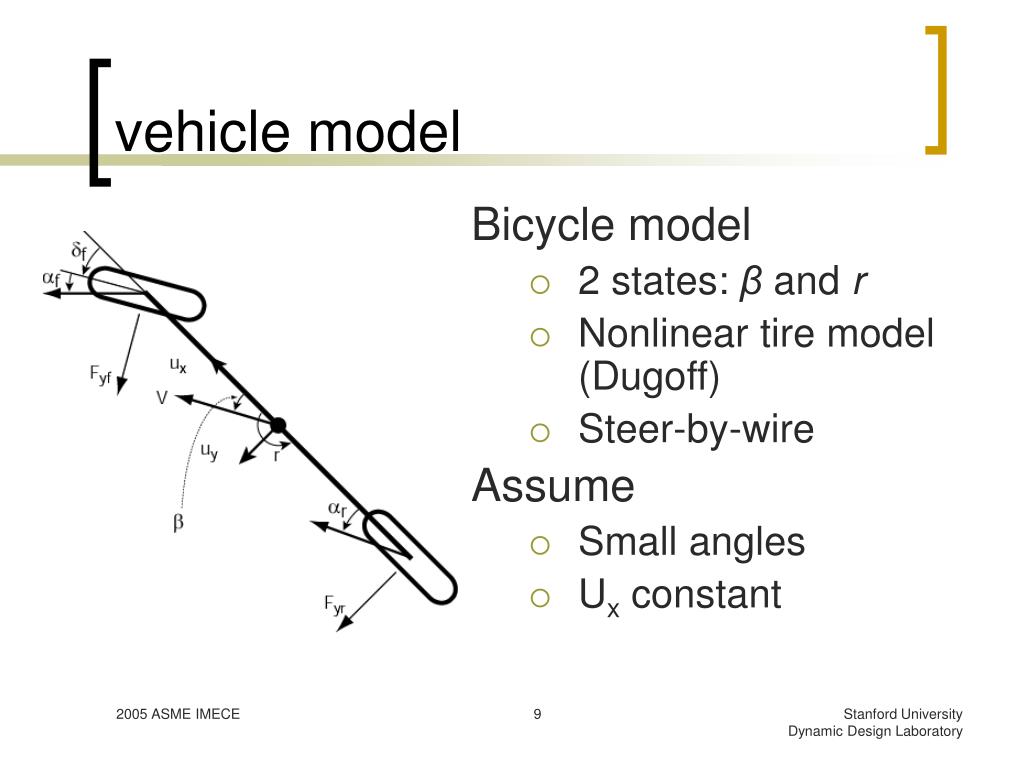

vehicle model

Bicycle model

  • 2 states: β and r

  • Nonlinear tire model (Dugoff)

  • Steer-by-wire

    Assume

  • Small angles

  • Ux constant

9


Equations of motion l.jpg

equations of motion

Sum forces and moments:

Dugoff tire model:

-C

10


Tire estimation algorithm l.jpg

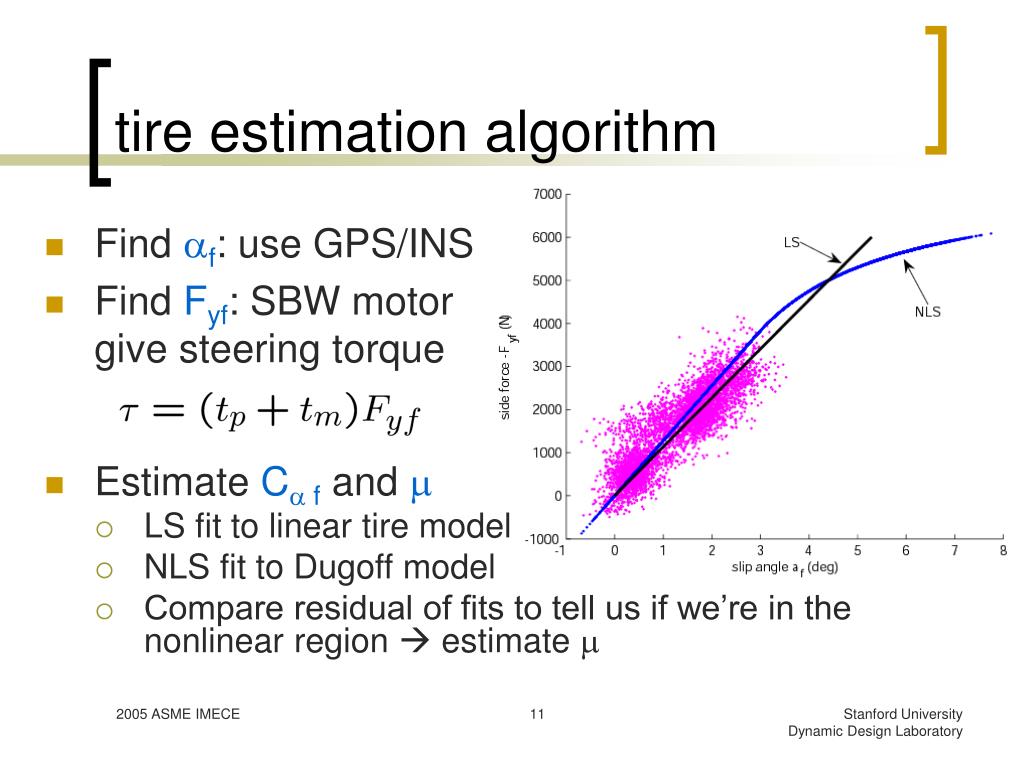

tire estimation algorithm

  • Find f: use GPS/INS

  • Find Fyf: SBW motor give steering torque

  • Estimate C f and 

    • LS fit to linear tire model

    • NLS fit to Dugoff model

    • Compare residual of fits to tell us if we’re in the nonlinear region  estimate 

11


Tire parameter estimation l.jpg

tire parameter estimation

12


Getting the data l.jpg

getting the data

13


Estimation technique l.jpg

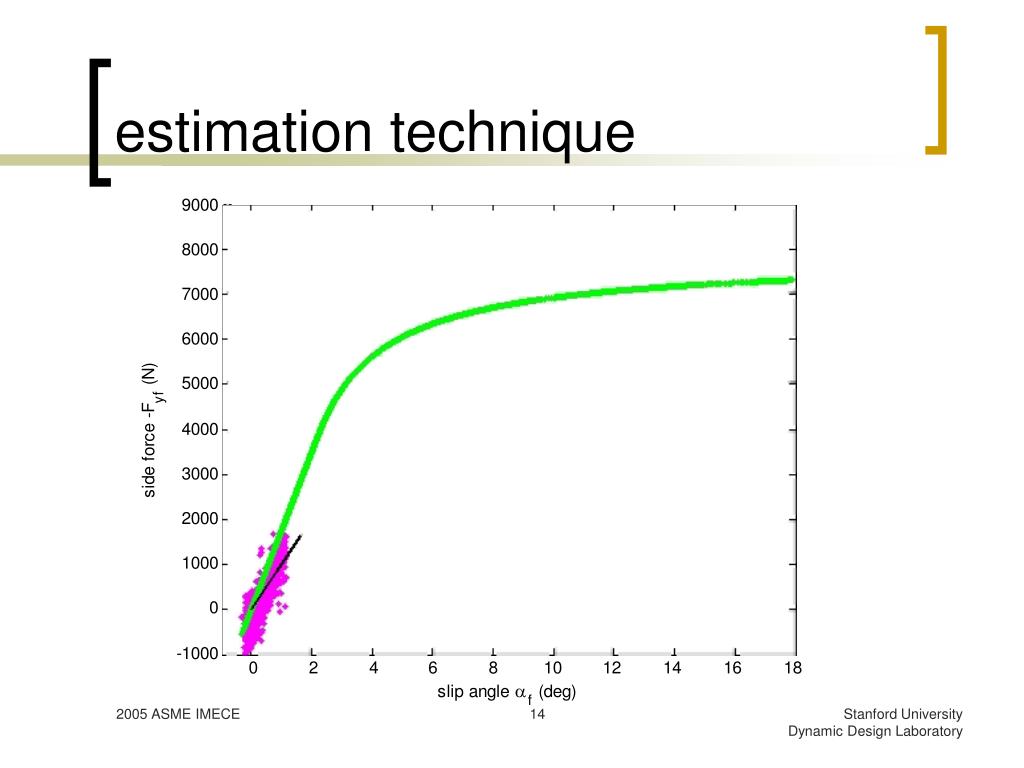

estimation technique

14


Parameter estimates l.jpg

parameter estimates

  • Begin estimating  after entering NL region

  • C f estimate is steady

15


Controller design l.jpg

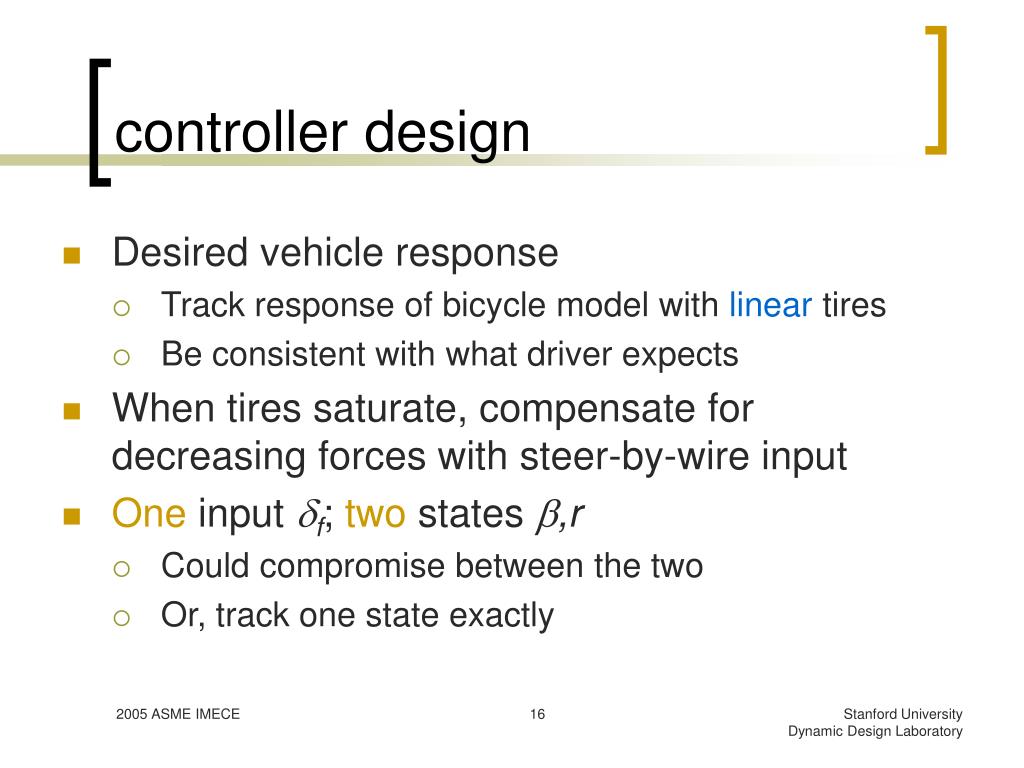

controller design

  • Desired vehicle response

    • Track response of bicycle model with linear tires

    • Be consistent with what driver expects

  • When tires saturate, compensate for decreasing forces with steer-by-wire input

  • One input f; two states ,r

    • Could compromise between the two

    • Or, track one state exactly

16


Feedback linearization fbl l.jpg

feedback linearization (FBL)

  • Nonlinear control technique

    Applicable to systems that look like:

  • Use input to cancel system nonlinearities.

    In our case,

  • Apply linear control theory to track desired trajectory:

17


Fbl in action l.jpg

FBL in action

  • Ramp steer from 0 to 4o at 20 m/s (45 mph) in 1 s

  • Controller results in exact tracking of linear tire model yaw rate trajectory

18


Fbl in action19 l.jpg

FBL in action

  • Ramp steer from 0 to 6o at 20 m/s (45 mph) in 1 s

  • FBL works well up to physical capabilities of tires

19


Driver input saturation l.jpg

driver input saturation

  • Road naturally saturates driver’s steering capability often unexpectedly

  • Here, we safely limit steering capability in a predictable, safe manner

  • Why do we need it?

    • Prevents vehicle from needing more side force than is available

    • Keeps vehicle in linearizable handling region

  • Saturation algorithm

    • If  < th, driver commands are OK

    • If ¸th, gradually saturate driver’s steering capability

20


Overall control system l.jpg

overall control system

  • Ramp steer from 0 to 6° at 20 m/s (45 mph) in 1 s

  • Tracks linear model yaw rate, then saturates input

  • Reduced sideslip

21


Design considerations l.jpg

design considerations

  • Relative importance of  vs. r

    • Which produces a more predictable response?

  • Could add additional input to track and r

    • differential drive

    • rear steering

22


Conclusions l.jpg

conclusions

  • Overall approach

    • Sense tire saturation and actively compensate for them with SBW inputs

      • Algorithm can characterize tires (C, ) using GPS-based f and estimates of Fyf,

    • Make vehicle response more predictable

      • Up to capabilities of tires, controller tracks linear yaw rate trajectory

      • Reduces sideslip

  • Current work

    • Estimate C,  on board in real-time

    • Implement overall controller on research vehicle

23


Slide24 l.jpg

24


Controller validation l.jpg

controller validation

  • Simulate control system on more complete vehicle model

25


Validation results ii l.jpg

validation results II

  • input: ramp steer from 0 to 5° at 45 mph in 0.5 s

26


4 cases l.jpg

4 cases

Case 1: Both tires are linear (f¸ 1 and r¸ 1)

Case 2: Both tires saturating (f < 1 and r < 1)

27


4 cases28 l.jpg

4 cases

Case 3: front is nonlinear, rear is linear (f¸ 1 and r < 1)

Case 4: front is linear, rear is nonlinear (f¸ 1 and r < 1)

28


New inputs l.jpg

new inputs

  • Define new inputs v1 and v2

    to represent system as

29


More general form of fbl l.jpg

More general form of FBL

SISO algorithm:

30


Driver saturation algorithm l.jpg

driver saturation algorithm

31


Front steering only approach l.jpg

Front steering only approach

  • Model Fyf as:

  • Substitute into system equations:

32


Tracking yaw rate l.jpg

Tracking yaw rate

  • Choose new input

cr = 200

c = 50

33


Estimating c f l.jpg

Estimating Cf

  • Find f:Use GPS/INS to measure r and f and estimate 

  • Find Fyf: Estimate tm from steering geometry, model tp as

    and use disturbance torque estimate from SBW system to find Fyf

  • Estimate :

    • Using least squares

34


Experimental tire curve l.jpg

Experimental Tire Curve

  • P1: Ramp steer from 0 to 9° in 24 s at V = 31 mph

shad_2004-12-11_l.mat

35


Questions l.jpg

questions?

36


Overview l.jpg

overview

  • Motivation

  • Background

  • Controller design

    • Feedback linearization

    • Driver input saturation

  • Validation on complex model

  • Conclusions

37


Steer by wire l.jpg

steer-by-wire

Removes mechanical linkage between steering wheel and road wheels

  • electronically actuate steering system separately from driver’s commands

  • decouple underlying dynamics from driver force feedback

Conventional steering

Steer-by-wire

38


Slide39 l.jpg

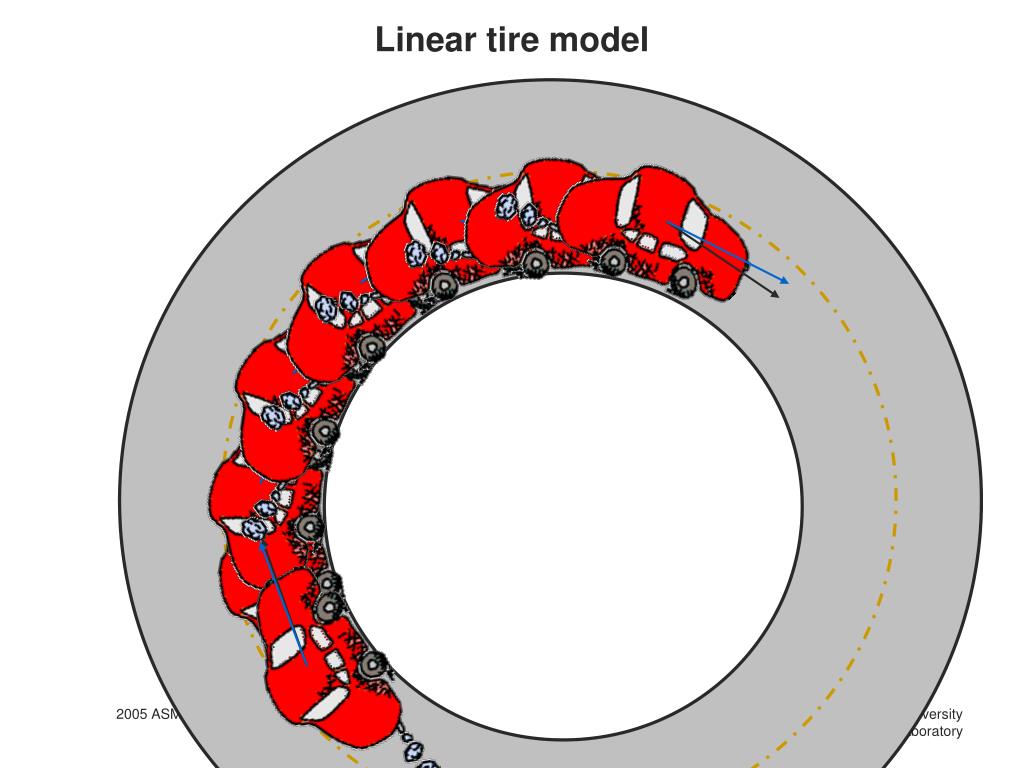

Lineartire model

39


Slide40 l.jpg

Nonlineartire model

40


Comparing vehicle responses l.jpg

comparing vehicle responses

  • Ramp steer to from 0 to 4o at 45 mph in 0.5 s

41


Tire estimation algorithm42 l.jpg

tire estimation algorithm

  • Find f: GPS/INS measures , r, V

  • Find Fyf: SBW motor give steering torque 

  • Estimate C f and  from (Fyf, f) data

    • LS fit to line

    • NLS fit to Dugoff

Compare fit errors to tell us if in nonlinear region

42
