Presentation Transcript
Evo devo evolutionary development l.jpg
Evo-Devo: Evolutionary Development

  • DNA

  • Regulatory genes: code for signal proteins and transcription factor proteins

    • SP: target particular groups of cells for gene expression

  • Regulatory sequences: binding sites of transcription factors (enhancers, promoters).

  • Structural genes: Activated by binding of TF & RS

  • Responsible for producing phenotypic characters.

Slide2 l.jpg

Dll expression

En/Inv expression

Eyespots on a butterfly wing

Homeotic genes and animal body plans l.jpg
Homeotic Genes and Animal Body Plans

  • Multicellular animals develop in four dimensions.

  • 3 spatial + time

  • Each cell has to have

  • 1. information: where it is relative to other cells

  • 2. where it is in the developmental sequence.

  • Information provided by Homeotic genes (Hox genes)

Slide4 l.jpg

Cells along these major body axes assume positional information during development

(After Strickberger.)

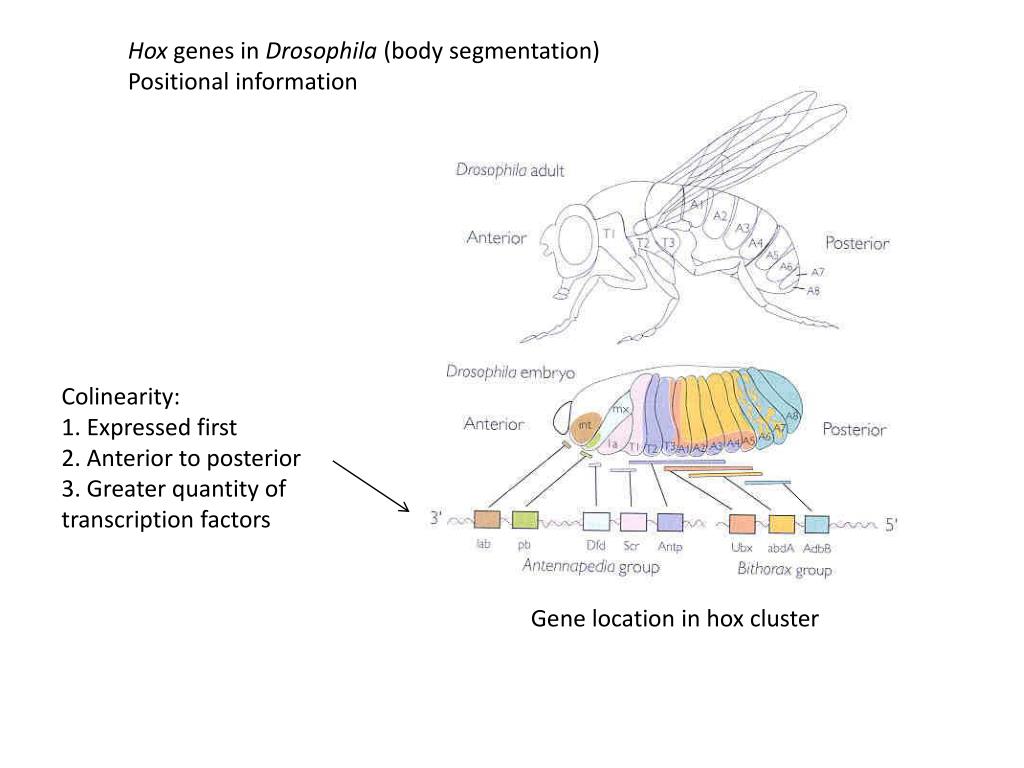

Slide5 l.jpg

Hox information during development genes in Drosophila (body segmentation)

Positional information


1. Expressed first

2. Anterior to posterior

3. Greater quantity of

transcription factors

Gene location in hox cluster

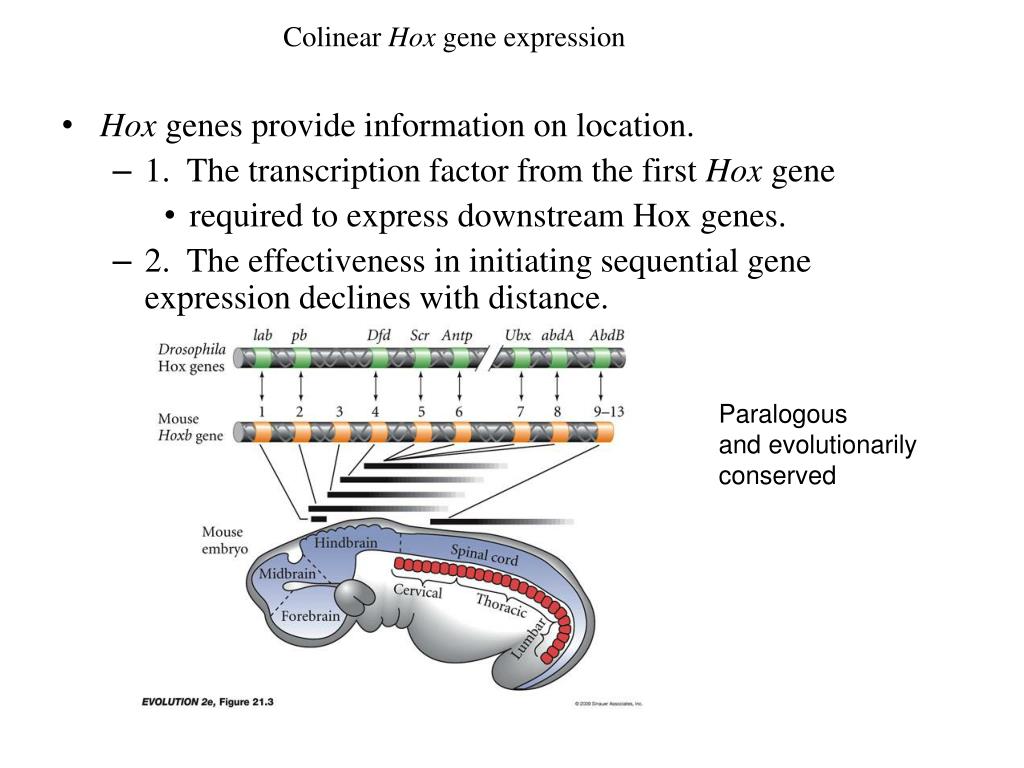

Slide7 l.jpg

Colinear information during developmentHox gene expression

  • Hox genes provide information on location.

  • 1. The transcription factor from the first Hox gene

    • required to express downstream Hox genes.

  • 2. The effectiveness in initiating sequential gene expression declines with distance.

  • Paralogous

    and evolutionarily


    Slide8 l.jpg

    • Each Hox gene contains a highly conserved 180 bp sequence – the homeobox.

      Codes for a DNA binding segment (aa sequence) in the transcription factor.

      The transcription factors activate structural genes.

      Structural genes produce structures appropriate for that location.

      Mutations in Hox genes result in inappropriate structures for that location.

    Slide9 l.jpg

    Hox – the gene products activate genes responsible for making a particular structure.

    Mutations in Hox genes

    bx, pbx, and abx

    Mutation of Hox gene antp

    Wings normally appear on T2

    Hox mutations change identity of

    T3 cells to T2 cells.

    An extra pair of wings is produced.

    Ancestors of dipteran flies

    had 4 wings.

    Identity of a head segment

    changed to that of a thoracic


    Hox gene diversification diversification of animals l.jpg
    Hox – the gene diversification  diversification of animals

    • Hox paraloges (homologs): in everything from SpongeBob Squarepants to humans to fungi and plants (MADS-box genes).

    • Therefore, Homeoboxgenes predate the origin of animals.

    Slide13 l.jpg




    An onychophoran (velvet worm)

    Closest living relative of arthropods

    1 pr. unjointed legs on each of the

    similar body segments


    Slide14 l.jpg

    Evolutionary diversification of arthropods partly based on sites of Hox gene expression

    Hox cluster of 9 loci

    for all arthropods

    abdA always expressed on

    ventral side of segment

    Ubx and abdA not expressed

    in posterior segments

    Evolutionary change in where

    a Hox gene is expressed


    legless abdominal segments

    Slide15 l.jpg

    Homeotic genes and Flower formation sites of Hox gene expression

    C. 300,000 sps. of Angiosperms

    Four concentric whorls of modified leaves

    Normal order: sepals, petals, stamens, carpels

    Slide16 l.jpg

    MADS-box mutants (Hox genes) sites of Hox gene expression
