Presentation Transcript

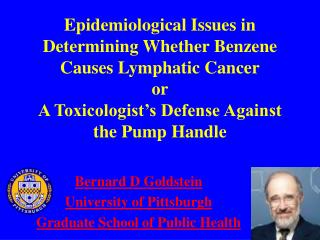

Slide1 l.jpg

Epidemiological Issues in Determining Whether Benzene Causes Lymphatic CancerorA Toxicologist’s Defense Against the Pump Handle

Bernard D Goldstein

University of Pittsburgh

Graduate School of Public Health


The three laws of toxicology l.jpg
The Three Laws of Toxicology Lymphatic Cancer

  • The dose makes the poison

  • Chemicals have specific effects

  • Humans are animals


Questions for discussion l.jpg
Questions for Discussion Lymphatic Cancer

  • What does the epidemiology literature tell us about whether benzene causes non-Hodgkin’s lymphoma (NHL) or multiple myeloma (MM)?

  • Can epidemiology tell us whether benzene exposure doubles the risk of NHL or MM - and why should anyone care about the doubling of risk?


Slide5 l.jpg

The National Safety Council Congress….. In 1921 held a session on benzene poisoning. Dr. Lothar E. Weber of the Boston India Rubber Laboratory stated that benzene “has been criticized as very dangerous (and) very injurious… and, personally, I feel an injustice has been done to this particular substance.”…

In response, C.F. Horan of the Hood Rubber Company replied that inhalation experiments with benzene, toluene, and xylene on guinea pigs and rabbits, showed acute toxicity of benzene compared to the other two compounds. Not persuaded, Weber rejoined that he was not going to change his opinion altogether on the basis of a few guinea pig experiments. Hounshell & Smith, 1988


Benzene and alkylbenzenes l.jpg
Benzene and Alkylbenzenes session on benzene poisoning. Dr. Lothar E. Weber of the Boston India Rubber Laboratory stated that benzene “has been criticized as very dangerous (and) very injurious… and, personally, I feel an injustice has been done to this particular substance.”…

CH

3

CH

3

CH

3

Benzene

Toluene

Xylene

CH

3

CH

CH

H

C C H

2

3

3

Ethylbenzene

Cumene


Occam s razor is dull l.jpg
Occam’s Razor is Dull session on benzene poisoning. Dr. Lothar E. Weber of the Boston India Rubber Laboratory stated that benzene “has been criticized as very dangerous (and) very injurious… and, personally, I feel an injustice has been done to this particular substance.”…

Simplest Proposition:

One metabolite acting through one mechanism attacking one target

Likely Truth:

Multiple metabolites acting through multiple mechanisms attacking multiple targets


Hematologic effects of benzene l.jpg
Hematologic Effects of Benzene session on benzene poisoning. Dr. Lothar E. Weber of the Boston India Rubber Laboratory stated that benzene “has been criticized as very dangerous (and) very injurious… and, personally, I feel an injustice has been done to this particular substance.”…

Causality Proven

  • Aplastic Anemia

  • Myelodysplasia

  • Acute Myelogenous leukemia

    (Including Acute Myelomonocytic Leukemia, Acute Promyelocytic Leukemia, Erythroleukemia)


Evidence supporting benzene leukemogenesis l.jpg
Evidence Supporting Benzene Leukemogenesis session on benzene poisoning. Dr. Lothar E. Weber of the Boston India Rubber Laboratory stated that benzene “has been criticized as very dangerous (and) very injurious… and, personally, I feel an injustice has been done to this particular substance.”…

  • Biomedical Plausibility

  • Case Studies

  • Epidemiology

    A. Numerator Specific

    B. Denominator Specific


Carcinogenic potency of benzene calculated on the basis of animal data l.jpg
Carcinogenic potency of benzene calculated on the basis of animal data

Lifetime risk

per ppm

Lifetime risk

per ug/m3

Data Base

Female rats (Maltoni, et. al, 1982)a

1.1 x 10 –5

3.4 x 10 –2

2.0 x 10 –2

6.0 x 10 –6

Male rats (NTP, 1984)a

3.3 x 10 –2

1.0 x 10 –5

Female rats (NTP, 1982)a

1.4 x 10 –2

4.3 x 10 –6

Male rats (Snyder, et. al, 1980)b

2.4 x 10 –2

7.3 x 10 –6

GEOMETRIC MEAN


Observed and expected deaths due to leukemia in british male oil refinery workers l.jpg
Observed and Expected Deaths due to Leukemia in British Male Oil Refinery Workers

Observed

Expected

O/E

All deaths

4,406

5,260

0.84

All neoplasms

1,147

1,286

0.89

Leukemia

30

32

0.94

Alderson & Rushton, 1982


Case control study of benzene exposure and leukemia in 36 british male oil refinery workers l.jpg
Case Control Study of Benzene Exposure and Leukemia in 36 British Male Oil Refinery Workers

Benzene Exposure

Controls

Cases

Low

18

72

Medium or High

18

36

RR (95% CI)

2.0 (0.93 – 4.30)

Rushton & Alderson, 1981


Slide15 l.jpg
Case Control Study of Benzene Exposure and Leukemia in 36 British Male Oil Refinery WorkersLogistic Models Matched on Year of Birth

Benzene Exposure

Relative Risk

Confidence Interval

Benzene exposure

2.01

0.94 – 4.28

Benzene exposure plus year of entry

1.01 – 1.43

2.26

Benzene exposure plus length of service

2.99

1.24 – 7.20

Rushton & Alderson, 1981


Hematologic effects of benzene16 l.jpg
Hematologic Effects of Benzene British Male Oil Refinery Workers

Causality Probable but Unproven

  • Acute Lymphatic Leukemia

  • Non-Hodgkin’s Lymphoma

  • Multiple Myeloma

  • Paroxysmal Nocturnal Hemoglobinuria

  • Chronic Myelogenous Leukemia


Hematologic effects of benzene17 l.jpg
Hematologic Effects of Benzene British Male Oil Refinery Workers

Causality Possible

  • Hodgkin’s Disease

  • Chronic Lymphocytic Leukemia

    (and other Myeloproliferative Disorders)


Multiple myeloma l.jpg
Multiple Myeloma British Male Oil Refinery Workers

  • Plasma cell tumor, usually of bone marrow

  • Plasma cells are related to B Lymphocytes and have the function of producing antibody

  • Diagnosis usually made based upon the presence of a monoclonal protein spike on serum protein electrophoresis, and on the presence a large numbers of plasma cells in the bone marrow.


Slide19 l.jpg

Normal British Male Oil Refinery Workers

Monoclonal Gammopathy


Non hodgkin s lymphoma l.jpg
Non-Hodgkin’s Lymphoma British Male Oil Refinery Workers

  • Lymphocytic tumors diagnosed by exclusion - not Hodgkin’s disease nor lymphocytic leukemias

  • Broad and overlapping range of disease entities and etiologies.

  • Immune suppression common to a number of causative factors, including HIV infection.


Biological plausibility of causal relationship of benzene to multiple myeloma l.jpg
Biological Plausibility of Causal Relationship of Benzene to Multiple Myeloma

  • Multiple myeloma is a tumor of plasma cells which are a form of B lymphocytes

  • Exposure to benzene destroys B lymphocytes and causes chromosomal abnormalities in B lymphocytes

  • Benzene is a known cause of leukemia, a bone marrow cancer, through a mechanism that leads to the presence of a carcinogenic metabolite within the bone marrow.

  • Multiple myeloma is a bone marrow tumor.


Role of biological plausibility in determining causal relations of benzene to multiple myeloma l.jpg
Role of Biological Plausibility in Determining Causal Relations of Benzene to Multiple Myeloma

  • Benzene causes the formation of a carcinogen that is specific to the organ at risk and that affects the basic cell type, including producing cytogenetic abnormalities.


Biological plausibility of causal relationship of benzene to non hodgkin s lymphoma l.jpg
Biological Plausibility of Causal Relationship of Benzene to Non-Hodgkin’s Lymphoma

  • Non-Hodgkin’s Lymphoma is a lymphocytic tumor

  • Exposure to benzene destroys lymphocytes and causes chromosomal abnormalities in lymphocytes

  • Benzene is a known cause of leukemia, a bone marrow cancer, through a mechanism that leads to the presence of a carcinogenic metabolite within the bone marrow.

  • The bone marrow is a lymphoid organ.

  • Rats exposed to benzene develop lymphomas


Pluripotential bone marrow stem cell s l.jpg
Pluripotential Bone Marrow Stem Cell(s) Non-Hodgkin’s Lymphoma

Matures to precursors of:

  • Red blood cells

  • Platelets

  • Granulocytic white blood cells

  • Lymphocytic white blood cells


Case control study l.jpg
Case control study Non-Hodgkin’s Lymphoma

  • 309 matched pairs of hematopoietic and lymphoid neoplasms in Kanawha County, WV.

  • “association between chemical industry work and death due to non-Hodgkin’s lymphoma, multiple myeloma, and lymphoid leukemia…”

  • For NHL, OR 3.11, p = .003 for those who died at age <65

  • For MM, OR 2.39, p = .039 for all age groups

  • For all hematopoietic and lymphoid neoplasms; OR 3.31, p = .001


Case control study26 l.jpg
Case control study Non-Hodgkin’s Lymphoma

  • 309 matched pairs of hematopoietic and lymphoid neoplasms in Kanawha County, WV.

  • “association between chemical industry work and death due to non-Hodgkin’s lymphoma, multiple myeloma, and lymphoid leukemia…”

  • For NHL, OR 3.11, p = .003 for those who died at age <65

  • For MM, OR 2.39, p = .039 for all age groups

  • For all hematopoietic and lymphoid neoplasms; OR 3.31, p = .001

  • Massoudi, Talbott, Day, Swerdlow, Marsh and Kuller. Amer J Indust Med, 1997
