Prototyping

Prototyping

Object-Oriented Software EngineeringCS350


Prototyping1
Prototyping

  • 1960s and 1970s

    • Monolithic development cycle

    • Building the entire program first

    • Then working out inconsistencies between design and implementation

    • Led to higher software costs and poor estimates of time and cost

    • Called the "Slaying the (software) Dragon" technique


Prototyping process
Prototyping Process

  • Identify basic requirements

    • Determine basic requirements including the input and output information desired

    • Details, such as security, can typically be ignored

  • Develop Initial Prototype

    • The initial prototype is developed that includes only user interfaces

  • Review

    • The customers, including end-users, examine the prototype and provide feedback on additions or changes

  • Revise and Enhance the Prototype

    • Using feedback both specifications and prototype can be improved

    • Negotiation about what is within the scope of the contract/product may be necessary

  • Repeat steps #3 and #4 as needed


Dimensions of prototypes

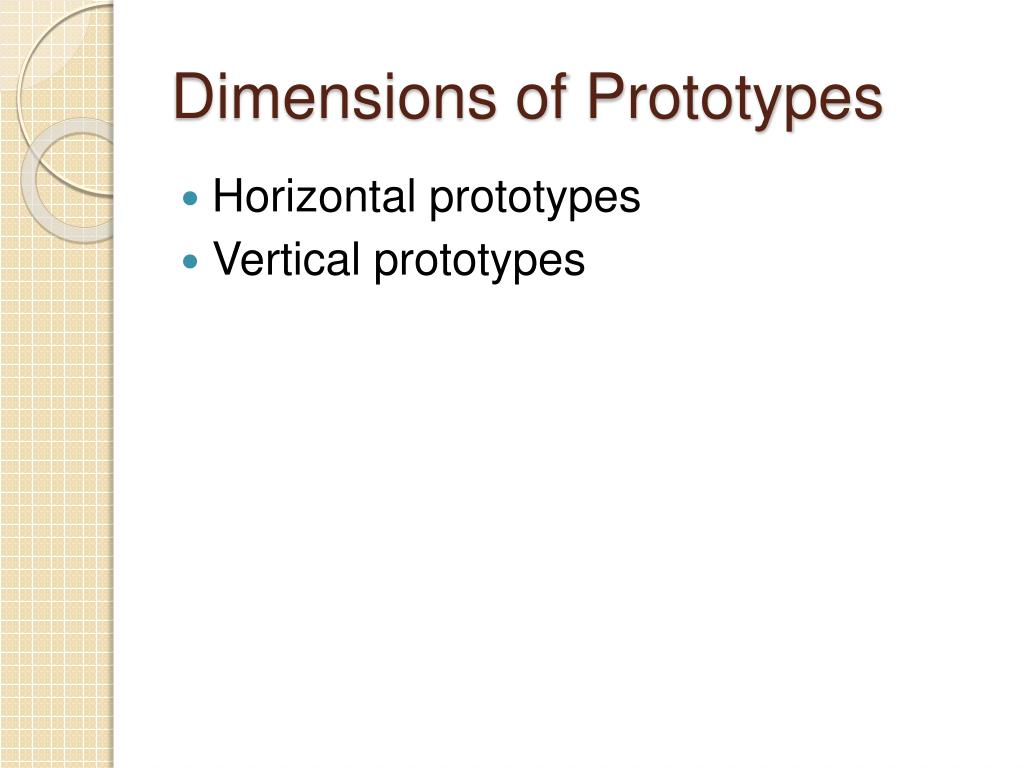

Dimensions of Prototypes

  • Horizontal prototypes

  • Vertical prototypes


Horizontal prototype
Horizontal Prototype

  • User interface prototype

  • Provides a broad view of an entire system or subsystem

  • Focuses on user interaction more than low-level system functionality

  • Useful for:

    • Confirmation of user interface requirements and system scope

    • Demonstration version of the system to obtain buy-in from the business

    • Develop preliminary estimates of development time, cost and effort


Vertical prototype
Vertical Prototype

  • More complete elaboration of a single subsystem or function

  • Useful for obtaining detailed requirements for a given function, with the following benefits:

    • Refinement database design

    • Obtain information on data volumes and system interface needs, for network sizing and performance engineering

    • Clarifies complex requirements by drilling down to actual system functionality


Types of prototyping

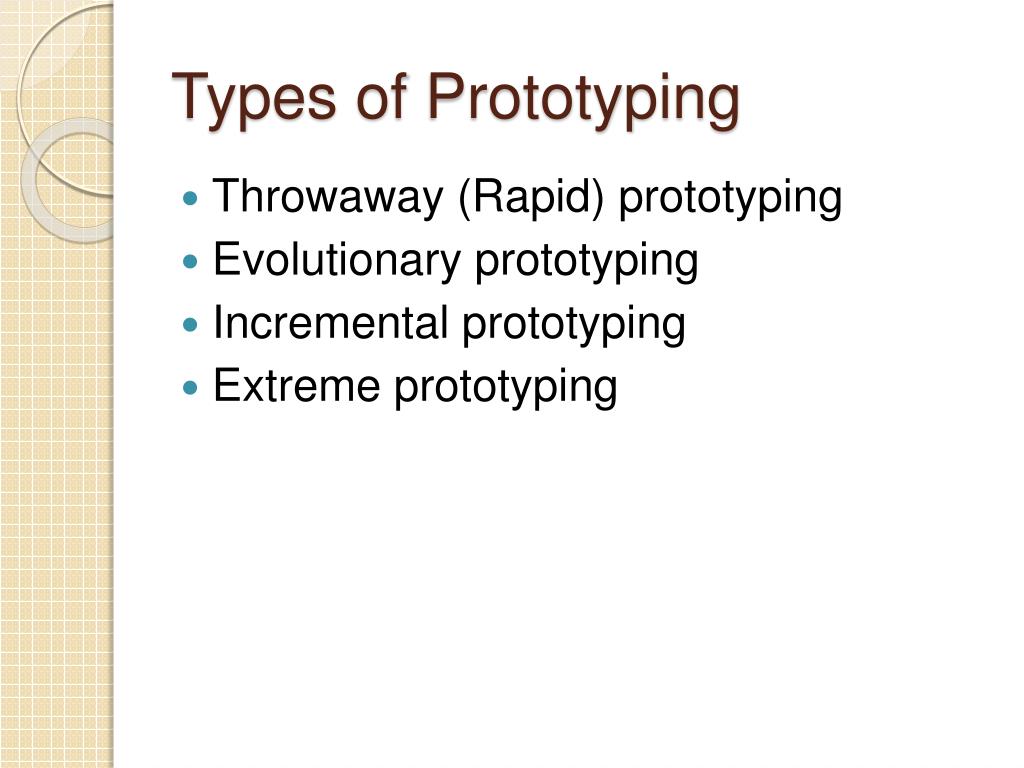

Types of Prototyping

  • Throwaway (Rapid) prototyping

  • Evolutionary prototyping

  • Incremental prototyping

  • Extreme prototyping


Throwaway prototyping
Throwaway Prototyping

  • Write preliminary requirements

  • Design the prototype

  • User experiences/uses the prototype, specifies new requirements

  • Repeat if necessary

  • Write the final requirements

  • Develop the real products


Throwaway prototyping1

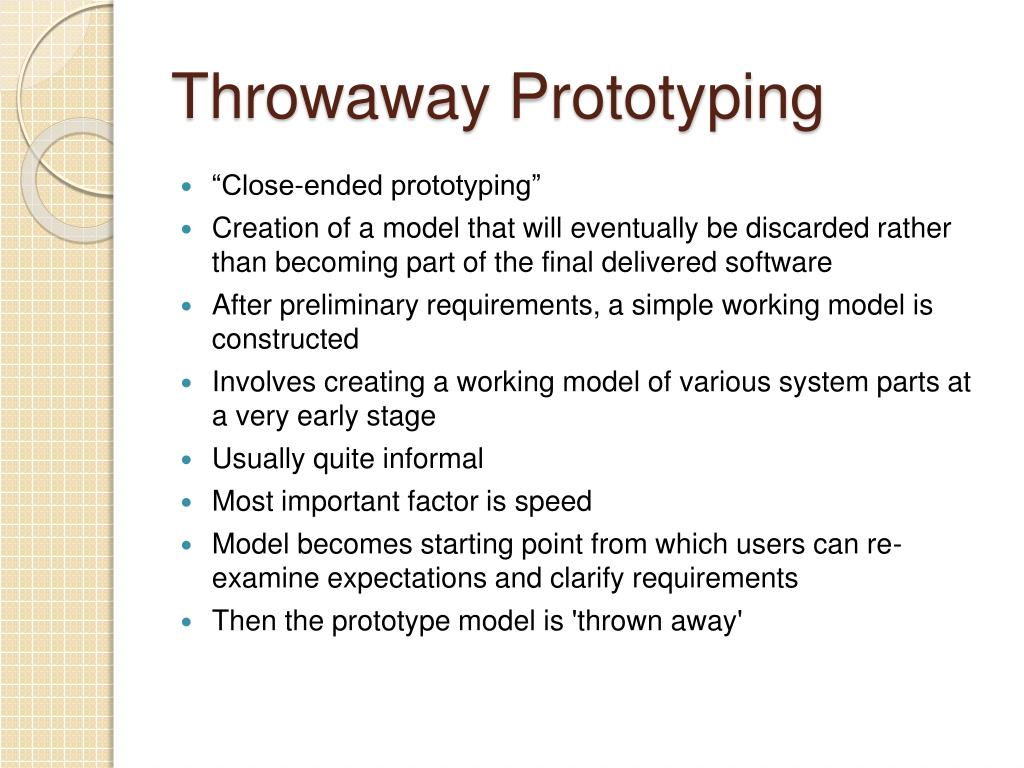

Throwaway Prototyping

  • “Close-ended prototyping”

  • Creation of a model that will eventually be discarded rather than becoming part of the final delivered software

  • After preliminary requirements, a simple working model is constructed

  • Involves creating a working model of various system parts at a very early stage

  • Usually quite informal

  • Most important factor is speed

  • Model becomes starting point from which users can re-examine expectations and clarify requirements

  • Then the prototype model is 'thrown away'

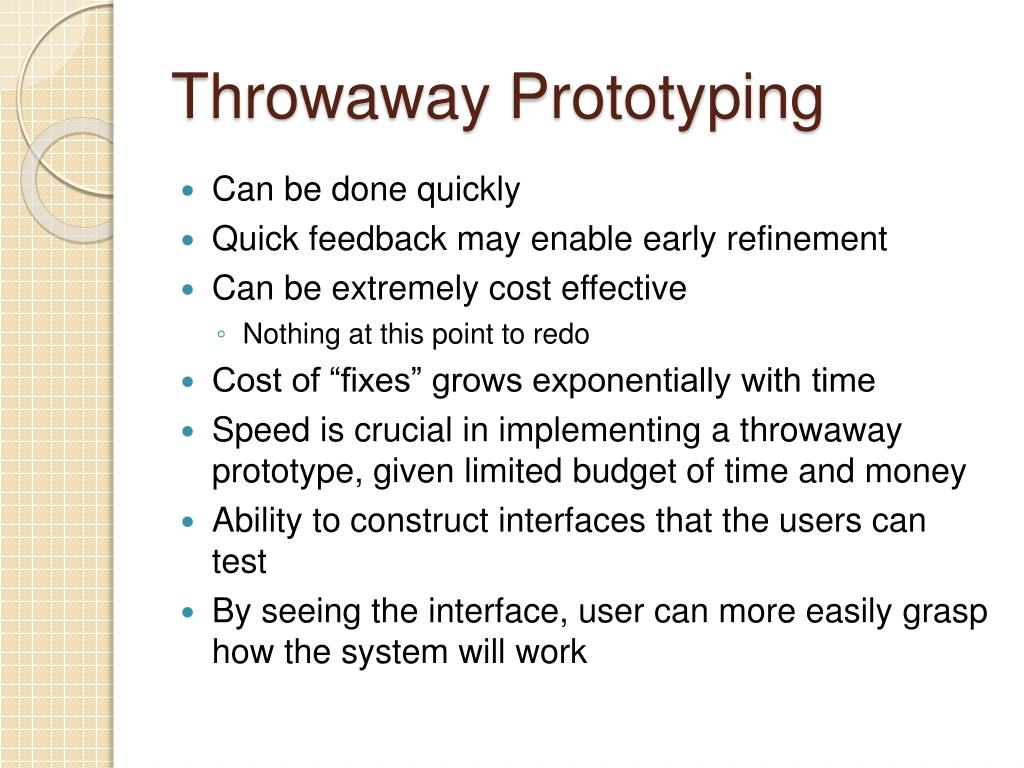

Throwaway prototyping2
Throwaway Prototyping

  • Can be done quickly

  • Quick feedback may enable early refinement

  • Can be extremely cost effective

    • Nothing at this point to redo

  • Cost of “fixes” grows exponentially with time

  • Speed is crucial in implementing a throwaway prototype, given limited budget of time and money

  • Ability to construct interfaces that the users can test

  • By seeing the interface, user can more easily grasp how the system will work


Throwaway prototyping3
Throwaway Prototyping

  • More effective manner to deal with user requirements-related issues

  • Greater enhancement to software productivity overall

  • Ignores issues of evolvability, maintainability, and software structure

  • Requirements can be identified, simulated, and tested far more quickly and cheaply

  • Prototypes can be classified according to the fidelity, interaction and timing


Evolutionary prototyping
Evolutionary Prototyping

  • “Breadboard prototyping”

  • Main goal is to build a very robust prototype in a structured manner and constantly refine it

  • System is continually refined and rebuilt

  • Acknowledges that we do not understand all the requirements

  • Builds only those that are well understood


Evolutionary prototyping1
Evolutionary Prototyping

  • This technique allows the development team to add features, or make changes that couldn't be conceived during the requirements and design phase.

  • To be useful, system must evolve through use

  • A product is never "done"

  • System defined using where we are now

  • Assumptions made about the way business will be conducted and the technology base used

  • Plan is enacted to develop the capability

  • Sooner or later, something resembling the envisioned system is delivered


Evolutionary prototyping2
Evolutionary Prototyping

  • As opposed to Throwaway Prototypes, they are functional systems

  • May be used on an interim basis until the final system is delivered

  • Not unusual to put an initial prototype to practical use while waiting for a more developed version

  • User may decide that a 'flawed' system is better than no system at all


Evolutionary prototyping3
Evolutionary Prototyping

  • Developers can focus on developing parts of the system they understand

  • To minimize risk, developer does not implement poorly understood features

  • Users detect opportunities for new features and give requests to developers

  • Developers use requests to change the software-requirements specification, update the design, recode and retest


Incremental prototyping
Incremental Prototyping

  • Final product is built as separate prototypes. At the end the separate prototypes are merged in an overall design.


Extreme prototyping
Extreme Prototyping

  • Used especially for developing web applications

  • Three phases:

    • Static prototype that consists mainly of HTML pages

    • Screens are programmed and fully functional using a simulated services layer

    • Services are implemented


Advantages of prototyping
Advantages of Prototyping

  • Reduced time and costs

    • Can improve the quality of requirements and specifications provided to developers

    • Early determination of what the user really wants can result in faster and less expensive software

  • Improved and increased user involvement

    • Requires user involvement

    • Provides better and more complete feedback and specifications

    • Prevents many misunderstandings and miss-communications

    • Can result in final product that has greater tangible and intangible quality


Disadvantages of prototyping
Disadvantages of Prototyping

  • Insufficient analysis

    • Can distract developers from properly analyzing the complete project

    • Can lead to overlooking better solutions

    • May not scale well

  • User confusion of prototype and finished system

    • Think that a prototype is a final system

    • Expect the prototype accurately models performance of final system

    • Become attached to included features removed for final system


Disadvantages of prototyping1
Disadvantages of Prototyping

  • Developer misunderstanding of user objectives:

    • May assume that users share their, without understanding wider commercial issues

    • May commit delivery before reviewing user requirements

  • Developer attachment to prototype:

    • Become attached to prototypes they have spent a great deal of effort producing


Disadvantages of prototyping2
Disadvantages of Prototyping

  • Excessive development time of the prototype

    • May try to develop a prototype that is too complex

    • Users can become stuck in debates over details of the prototype

  • Expense of implementing prototyping

    • Start up costs for building a development team focused on prototyping may be high

    • Many companies tend to jump into prototyping without appropriately retraining workers


Disadvantages of prototyping3
Disadvantages of Prototyping

  • High expectations for productivity with insufficient effort behind the learning curve

  • Overlooked need for developing corporate and project specific underlying structure to support the technology


Best projects to use prototyping

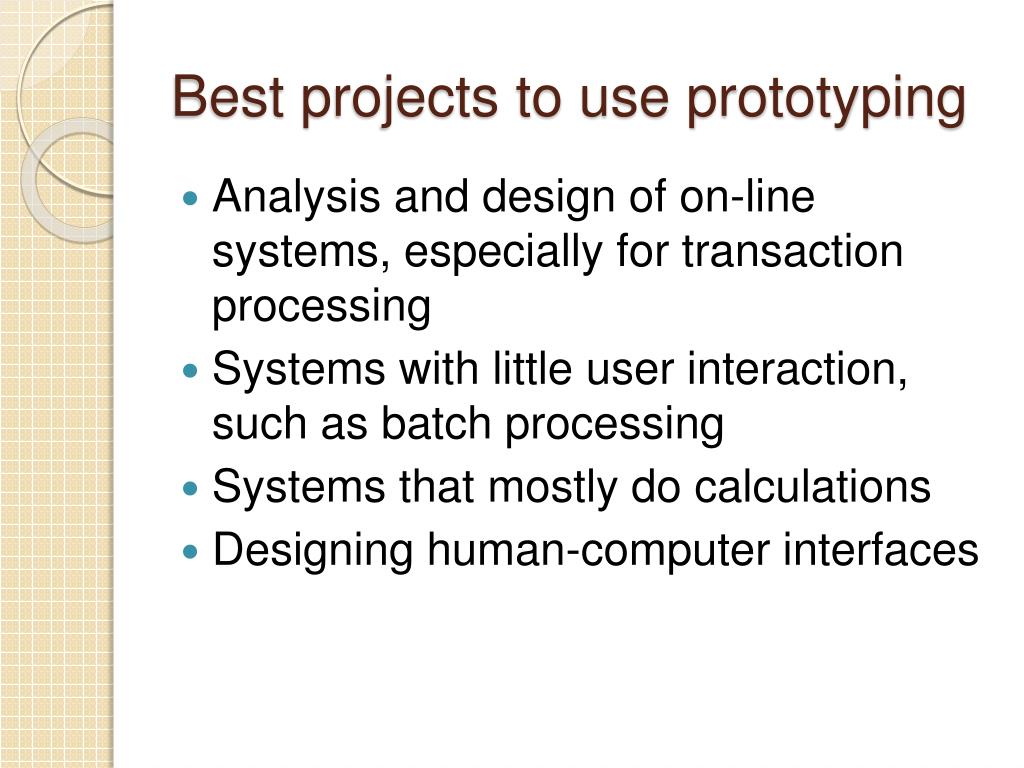

Best projects to use prototyping

  • Analysis and design of on-line systems, especially for transaction processing

  • Systems with little user interaction, such as batch processing

  • Systems that mostly do calculations

  • Designing human-computer interfaces


Methods
Methods

  • Dynamic systems development

  • Operational prototyping

  • Evolutionary rapid development

  • Scrum


Dynamic systems development dsdm

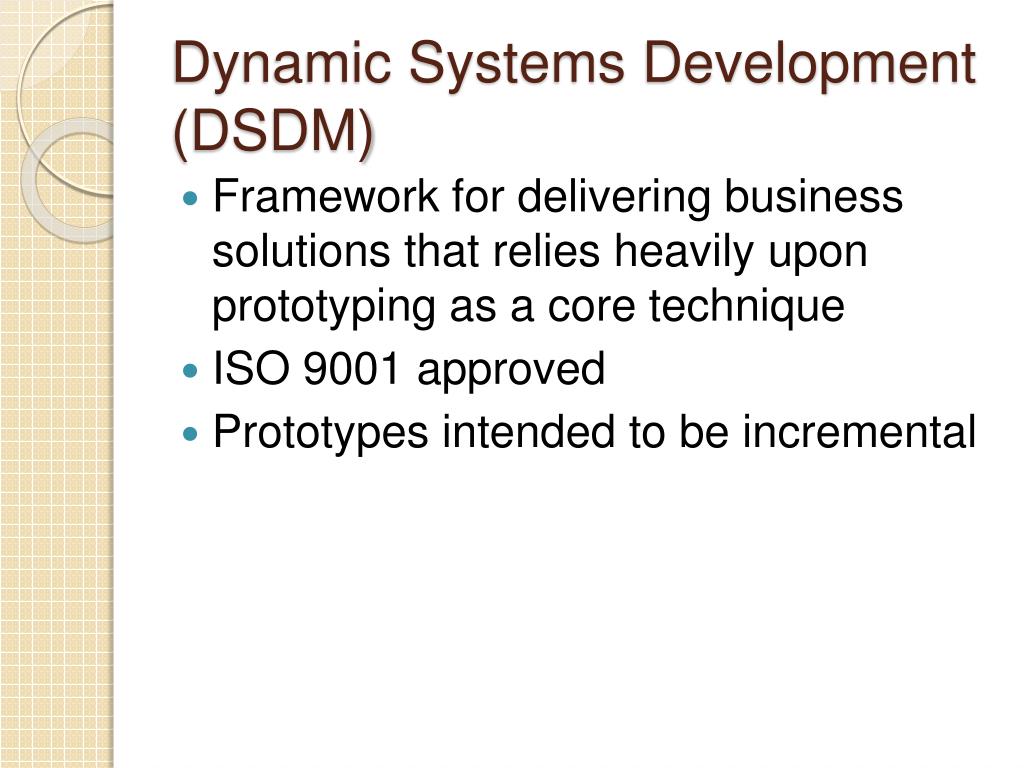

Dynamic Systems Development (DSDM)

  • Framework for delivering business solutions that relies heavily upon prototyping as a core technique

  • ISO 9001 approved

  • Prototypes intended to be incremental


Dynamic systems development dsdm1
Dynamic Systems Development (DSDM)

  • Prototypes may be throwaway or evolutionary

  • Evolutionary prototypes may be evolved horizontally or vertically

  • Evolutionary prototypes can evolve into final systems


Dynamic systems development dsdm2
Dynamic Systems Development (DSDM)

  • Four recommended prototypes categories:

    • Business prototypes

    • Usability prototypes

    • Performance and capacity prototypes

    • Capability/technique prototypes

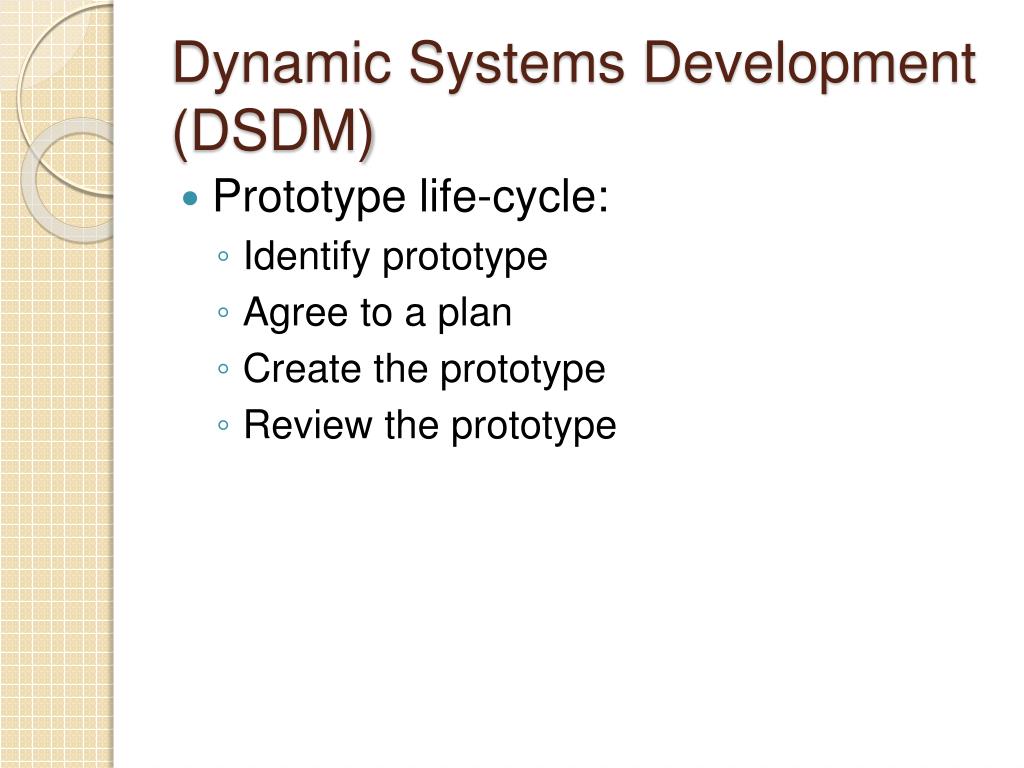

Dynamic systems development dsdm3
Dynamic Systems Development (DSDM)

  • Prototype life-cycle:

    • Identify prototype

    • Agree to a plan

    • Create the prototype

    • Review the prototype


Operational prototyping
Operational Prototyping

  • Proposed by Alan Davis as a way to integrate throwaway and evolutionary prototyping with conventional system development


Operational prototyping1
Operational Prototyping

  • Methodology:

    • Evolutionary prototype is constructed and made into a baseline using conventional development strategies

    • Baseline copies are sent to multiple customer sites along with a trained prototyper

    • Prototyper watches the user at the system

    • User problems, new feature ideas, or new requirements are logged by prototyper

    • After user session, prototyper constructs a throwaway prototype from baseline system

    • User evaluates new system; prototyper removes ineffective new changes

    • Prototyper writes feature-enhancement requests and forwards them to development team

    • Development team produces a new evolutionary prototype using conventional methods


Evolutionary systems development
Evolutionary Systems Development

  • Class of methodologies that attempt to formally implement Evolutionary Prototyping

    • Ex. Systemscraft


Evolutionary rapid development erd

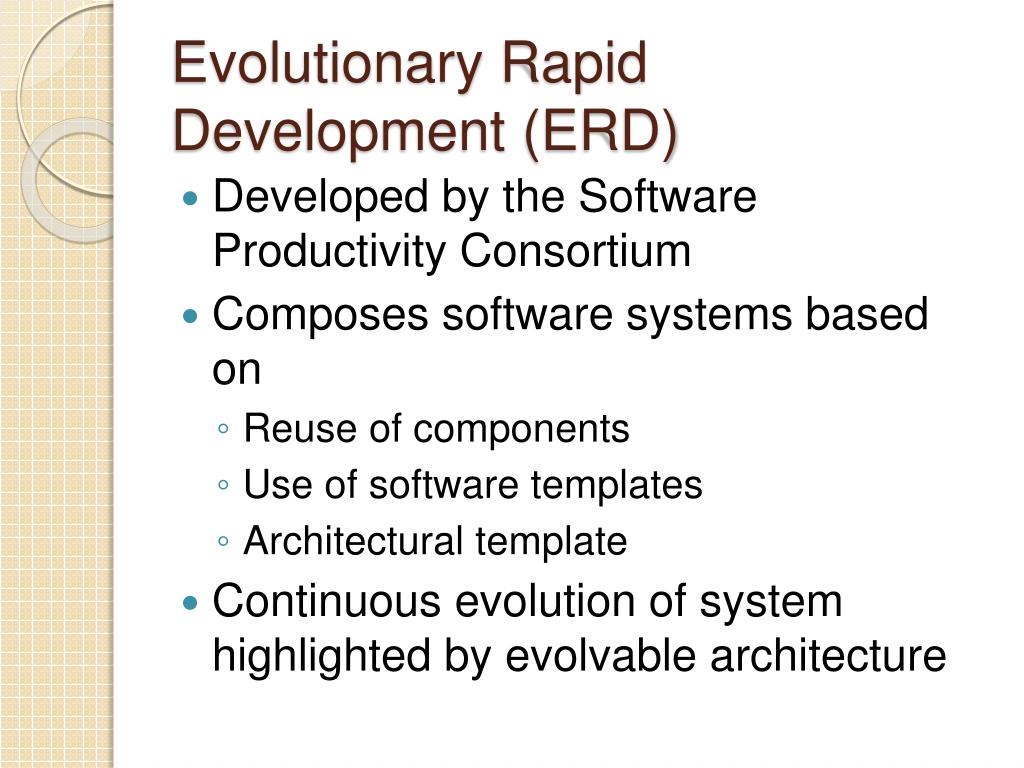

Evolutionary Rapid Development (ERD)

  • Developed by the Software Productivity Consortium

  • Composes software systems based on

    • Reuse of components

    • Use of software templates

    • Architectural template

  • Continuous evolution of system highlighted by evolvable architecture


Evolutionary rapid development erd1
Evolutionary Rapid Development (ERD)

  • Use of small artisan-based teams

    • Integrating software and systems engineering disciplines

    • Working multiple, often parallel short-duration timeboxes

    • Frequent customer interaction

  • Key to success

    • Parallel exploratory analysis and development of features, infrastructures and components

    • Adoption of leading edge technologies


Evolutionary rapid development erd2
Evolutionary Rapid Development (ERD)

  • Frequent scheduled and ad hoc meetings with the stakeholders

  • Demonstrations of system capabilities to solicit

  • Frequent releases (e.g., betas)

  • Design framework based on existing published or de facto standards

  • System organized for evolving a set of capabilities that includes considerations for performance, capacities, and functionality


Evolutionary rapid development erd3
Evolutionary Rapid Development (ERD)

  • Architecture

    • Defined in terms of abstract interfaces that encapsulate services and implementation (e.g., COTS applications)

    • Serves as a template for guiding development of more than a single instance of the system

    • Allows for multiple application components to implement services


Evolutionary rapid development erd4
Evolutionary Rapid Development (ERD)

  • Structured to use demonstrated functionality rather than paper products to communicate stakeholder needs and expectations

  • Timeboxes: fixed periods of time in which specific tasks (e.g., developing a set of functionality) must be performed

  • To prevent development from degenerating into a "random walk," long-range plans are defined to guide the iterations

  • Each iteration is conducted in the context of long-range plans

  • Once an architecture is established, software is integrated and tested on a daily basis


Scrum
Scrum

  • Agile method for project management

  • First described by Takeuchi and Nonaka


Tools
Tools

  • Efficient prototyping requires

    • Proper tools

    • Staff trained to use those tools

  • Can vary from individual tools to complex integrated CASE tools

  • CASE tools are often developed or selected by the military or large organizations

  • Object oriented tools are being developed (Ex. LYMB, GE Research and Development Center)

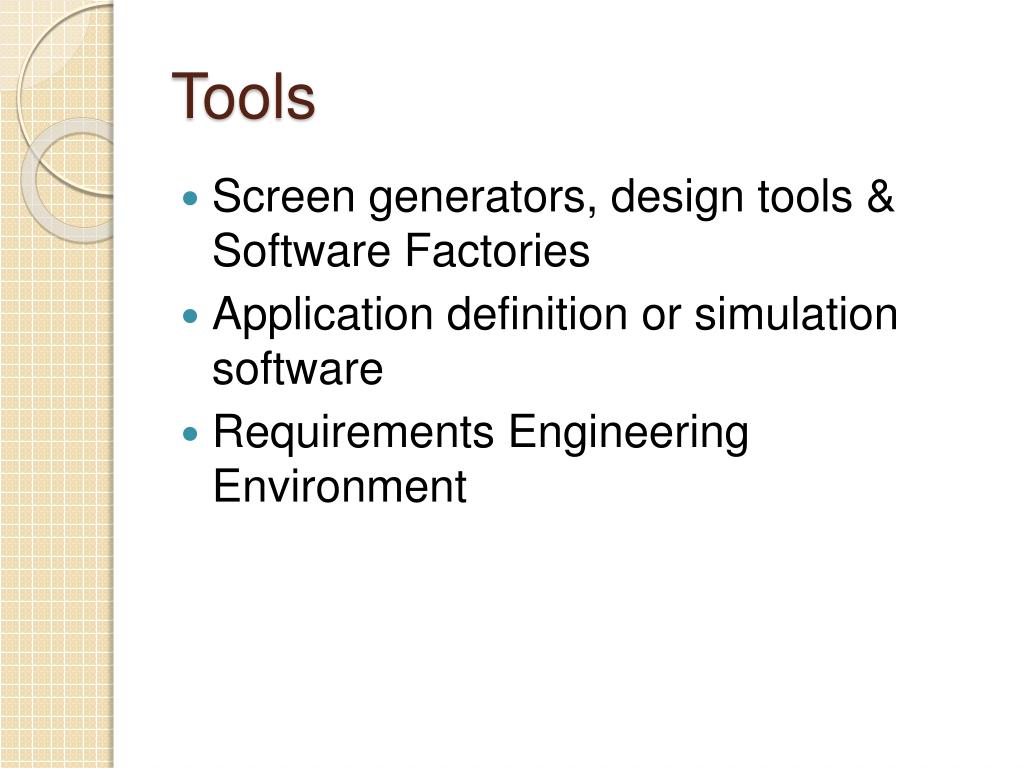

Tools1
Tools

  • Screen generators, design tools & Software Factories

  • Application definition or simulation software

  • Requirements Engineering Environment

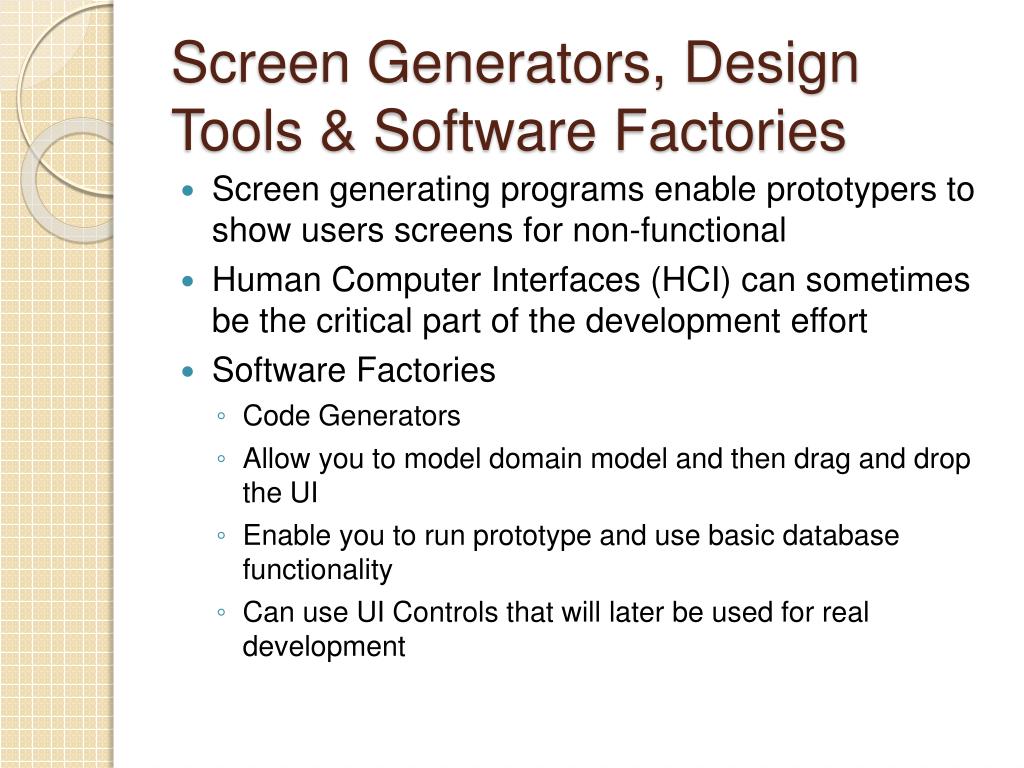

Screen generators design tools software factories
Screen Generators, Design Tools & Software Factories

  • Screen generating programs enable prototypers to show users screens for non-functional

  • Human Computer Interfaces (HCI) can sometimes be the critical part of the development effort

  • Software Factories

    • Code Generators

    • Allow you to model domain model and then drag and drop the UI

    • Enable you to run prototype and use basic database functionality

    • Can use UI Controls that will later be used for real development


Application definition or simulation software
Application Definition or Simulation Software

  • Enable users to rapidly build lightweight, animated simulations of another computer program, without writing code

  • Allows both technical and non-technical users to experience, test, collaborate and validate the simulated program

  • Provides reports such as annotations, screenshot and schematics

  • One can also use software to simulate real-world software programs for computer based training, demonstration, and customer support


Requirements engineering environment
Requirements Engineering Environment

  • Under development at Rome Laboratory since 1985

  • Provides an integrated toolset for rapidly representing, building, and executing models of critical aspects of complex systems

  • Currently used by the Air Force to develop systems


Requirements engineering environment1
Requirements Engineering Environment

  • An integrated set of tools that allows systems analysts to rapidly build functional, user interface, and performance prototype models of system components

  • Modeling activities performed to gain greater understanding of complex systems and

  • Lessen impact that inaccurate requirement specifications have on cost and scheduling


Requirements engineering environment2
Requirements Engineering Environment

  • Models can be

  • Constructed easily

  • At varying levels of abstraction or granularity

  • Composed of three parts

  • Proto, a CASE tool designed to support rapid prototyping

  • Rapid Interface Prototyping System (RIP), a collection of tools that facilitate the creation of user interfaces

  • A graphical user interface to RIP and proto intended to be easy to use


ad
