1. Keyword Driven TestingUsing WRSAFS By John Crunk

2. Agenda • Some information about testing in general • Install Winrunner • Install Engine • Learn how to write scripts • Break • Write some scripts • Solve Problems and discover solutions • Questions

3. Keyword Driven Testing • Action Word Testing • Data-Driven Testing • Keyword Driven Testing • It’s all the same thing, a specific set of actions happen for a given word.

4. Why use Keyword Testing • Reusability!!! • Common components handled by standard libraries • The details of the scripts are hidden from the user. • Users don’t have to learn the script language to write scripts.

5. Reusability • Standard components are handled the same • Common screens are handled with the same test tables. • Test tables can be used in many different applications instead of creating one for each application.

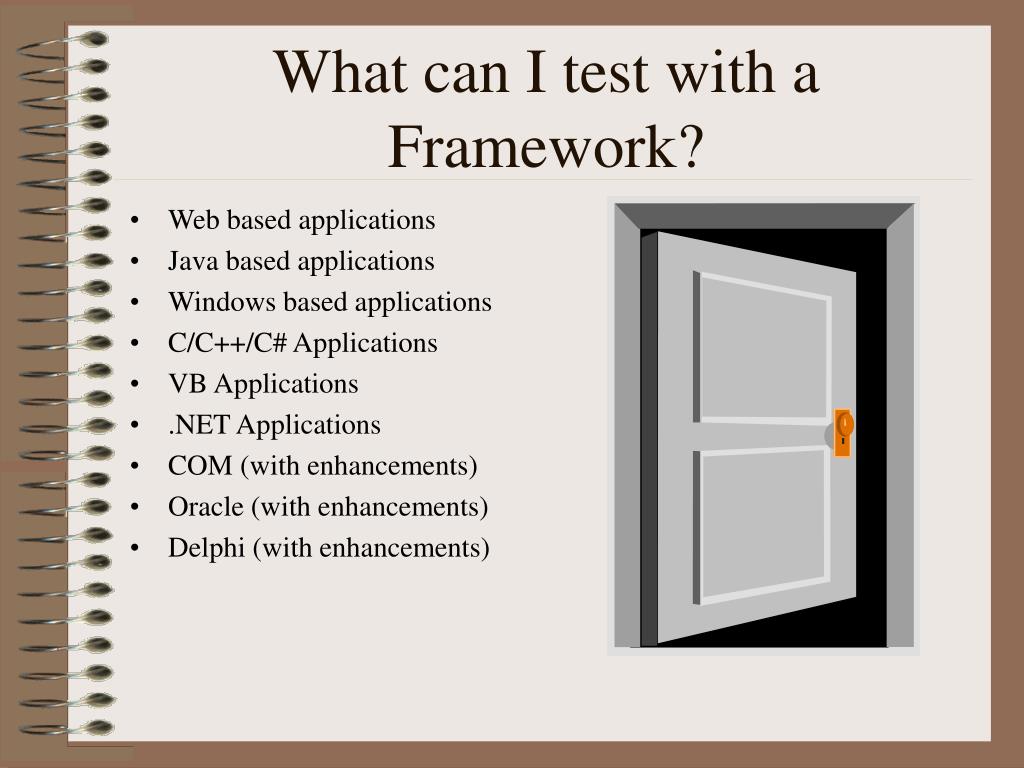

6. What can I test with a Framework? • Web based applications • Java based applications • Windows based applications • C/C++/C# Applications • VB Applications • .NET Applications • COM (with enhancements) • Oracle (with enhancements) • Delphi (with enhancements)

7. Looking… Beyond “The Project” • Is your automated test effort really unique? • Do you really think your problems are novel? • Do you really want to do this all over again? Generally, a finite set of common components make up our infinite set of unique applications. We are all trying to solve the same problems! Carl Nagle SAS

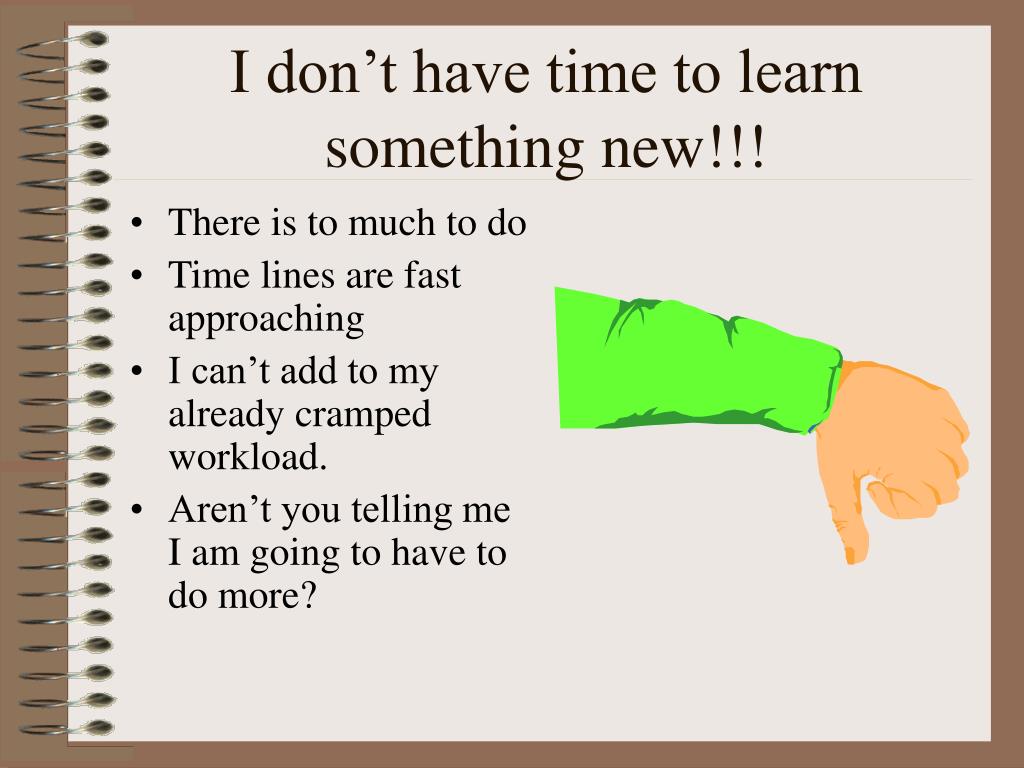

8. I don’t have time to learn something new!!! • There is to much to do • Time lines are fast approaching • I can’t add to my already cramped workload. • Aren’t you telling me I am going to have to do more?

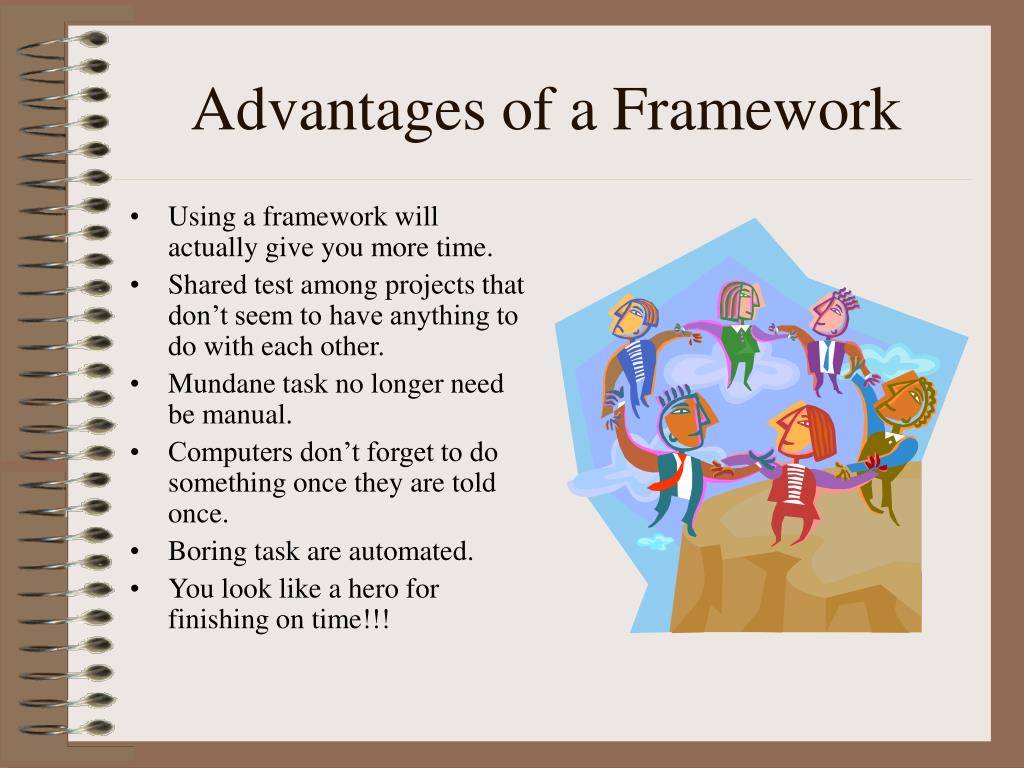

9. Advantages of a Framework • Using a framework will actually give you more time. • Shared test among projects that don’t seem to have anything to do with each other. • Mundane task no longer need be manual. • Computers don’t forget to do something once they are told once. • Boring task are automated. • You look like a hero for finishing on time!!!

10. How WRAFS Interfaces with your application

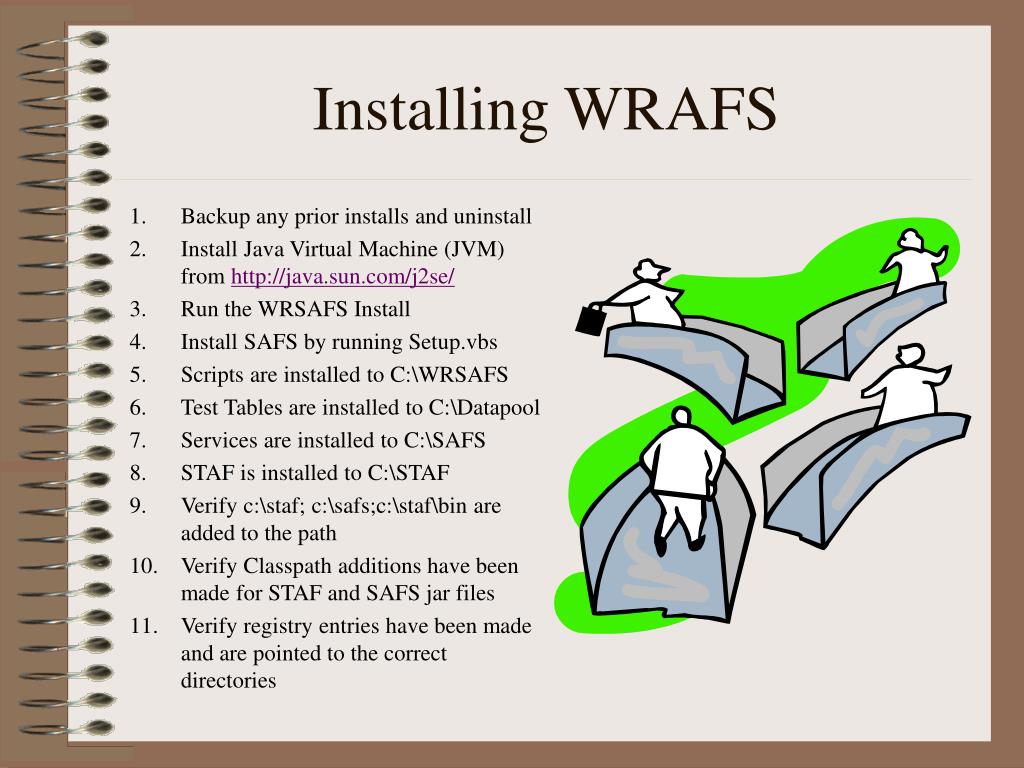

11. Installing WRAFS • Backup any prior installs and uninstall • Install Java Virtual Machine (JVM) from http://java.sun.com/j2se/ • Run the WRSAFS Install • Install SAFS by running Setup.vbs • Scripts are installed to C:\WRSAFS • Test Tables are installed to C:\Datapool • Services are installed to C:\SAFS • STAF is installed to C:\STAF • Verify c:\staf; c:\safs;c:\staf\bin are added to the path • Verify Classpath additions have been made for STAF and SAFS jar files • Verify registry entries have been made and are pointed to the correct directories

12. Getting down to business with WRAFS!!! • Cycle Driver • The main script calls Suite Drivers • .CDD extension • Suite Driver • Intermediate scripts, calls Step Drivers • .STD Extension • Step Driver • This is where all your work happens. • .SDD Extension

13. Some File Structure Information • Datapool • Bench • Cycle • Dif • Logs • Step • Suite • Taborder • Test

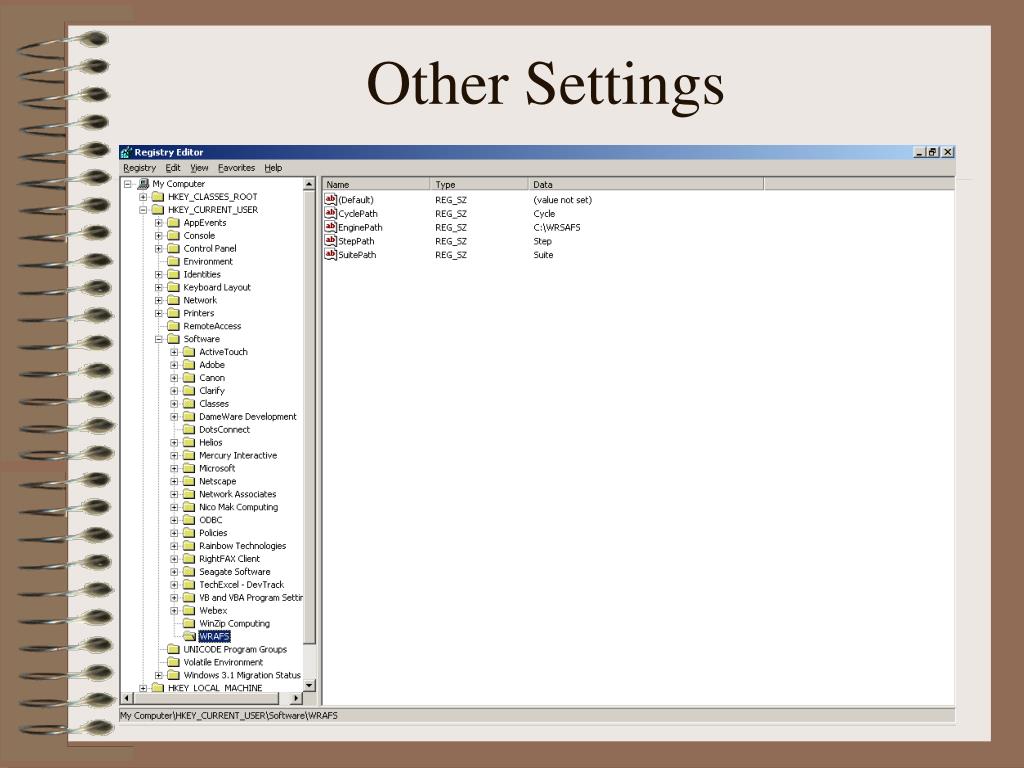

14. Other Settings

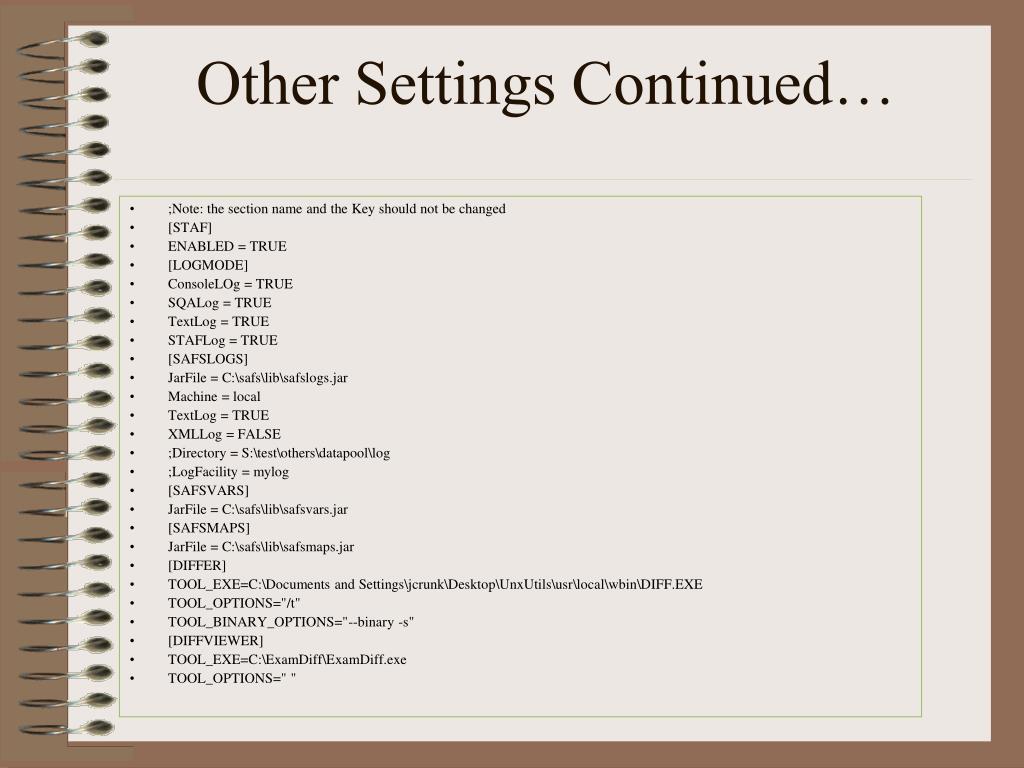

15. Other Settings Continued… • ;Note: the section name and the Key should not be changed • [STAF] • ENABLED = TRUE • [LOGMODE] • ConsoleLOg = TRUE • SQALog = TRUE • TextLog = TRUE • STAFLog = TRUE • [SAFSLOGS] • JarFile = C:\safs\lib\safslogs.jar • Machine = local • TextLog = TRUE • XMLLog = FALSE • ;Directory = S:\test\others\datapool\log • ;LogFacility = mylog • [SAFSVARS] • JarFile = C:\safs\lib\safsvars.jar • [SAFSMAPS] • JarFile = C:\safs\lib\safsmaps.jar • [DIFFER] • TOOL_EXE=C:\Documents and Settings\jcrunk\Desktop\UnxUtils\usr\local\wbin\DIFF.EXE • TOOL_OPTIONS="/t" • TOOL_BINARY_OPTIONS="--binary -s" • [DIFFVIEWER] • TOOL_EXE=C:\ExamDiff\ExamDiff.exe • TOOL_OPTIONS=" "

16. What does a command look like? • T; Login; Login; Click • T; Login; Username; SetTextValue; “jdoe” • T; Login; Password; SetUnverifiedTestValue, “password”

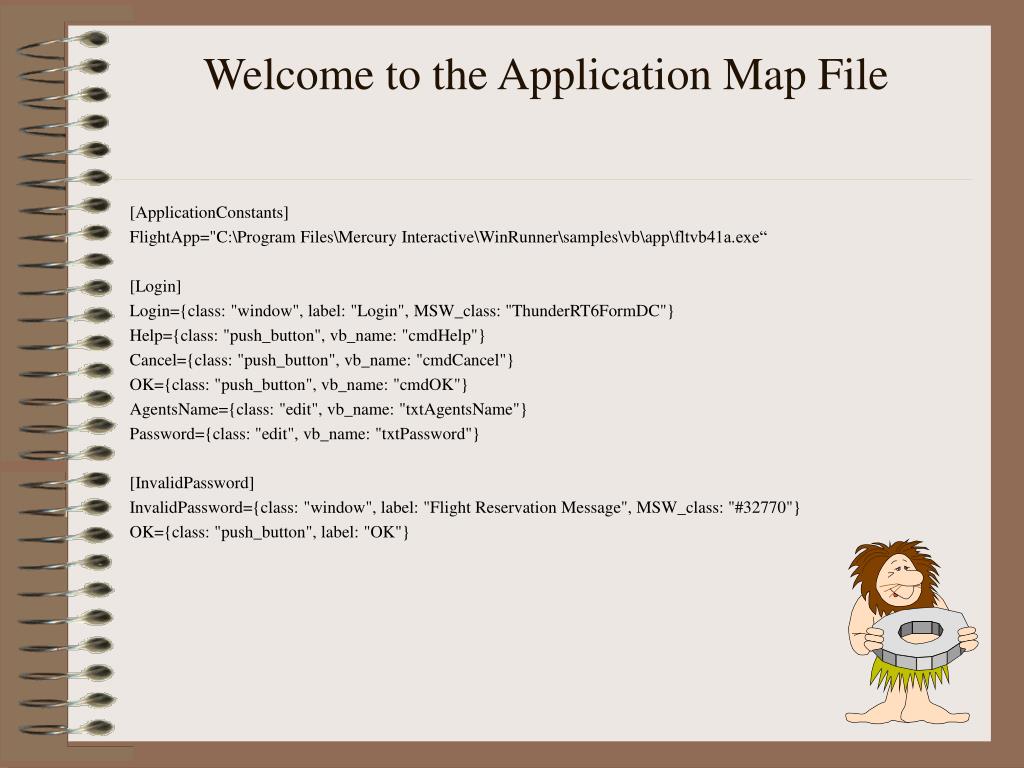

17. Welcome to the Application Map File [ApplicationConstants] FlightApp="C:\Program Files\Mercury Interactive\WinRunner\samples\vb\app\fltvb41a.exe“ [Login] Login={class: "window", label: "Login", MSW_class: "ThunderRT6FormDC"} Help={class: "push_button", vb_name: "cmdHelp"} Cancel={class: "push_button", vb_name: "cmdCancel"} OK={class: "push_button", vb_name: "cmdOK"} AgentsName={class: "edit", vb_name: "txtAgentsName"} Password={class: "edit", vb_name: "txtPassword"} [InvalidPassword] InvalidPassword={class: "window", label: "Flight Reservation Message", MSW_class: "#32770"} OK={class: "push_button", label: "OK"}

18. Creating an Application Map • Select Tools|GUI Map Editor in Winrunner • Open the Application to be tested • Click on Learn in the Map Editor • Select the Window of the Application • Answer Yes to the prompt • Navigate to the next screen to learn • Go to Step 3 until all application has been learned • Save the GUI Map File • Open and run ProcessMapFile Script • You Application Map file is saved at the same place as your GUI Map File with a similar name.

19. A little about Variables • Component Names • Window Names • Data Values • Others?

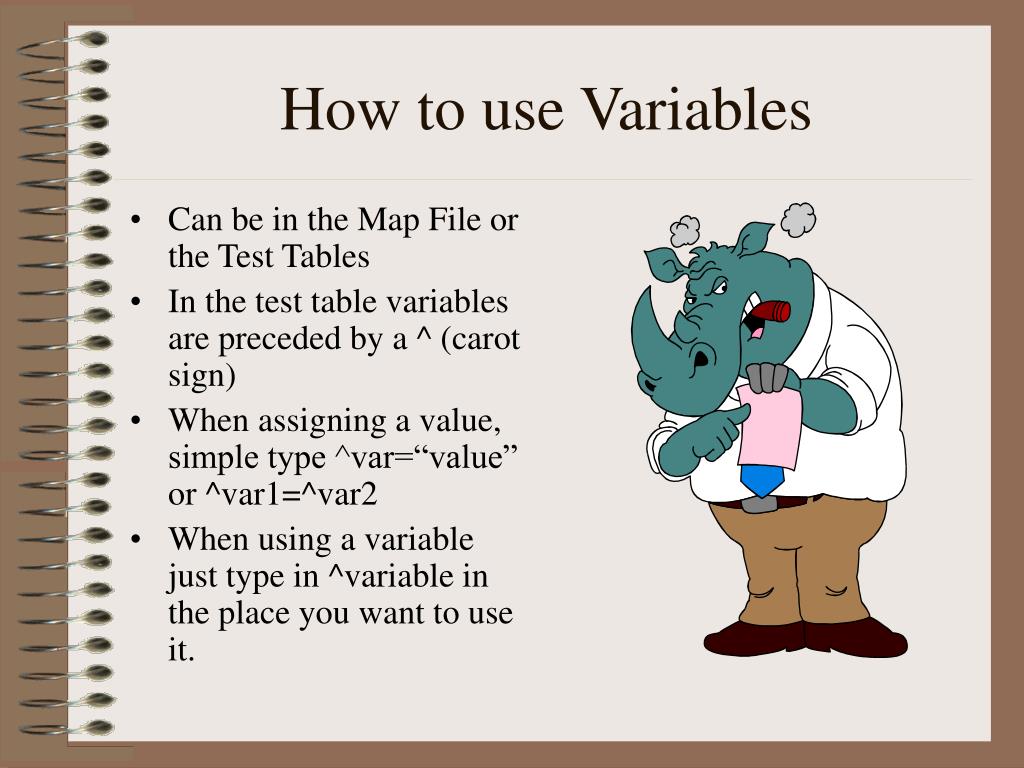

20. How to use Variables • Can be in the Map File or the Test Tables • In the test table variables are preceded by a ^ (carot sign) • When assigning a value, simple type ^var=“value” or ^var1=^var2 • When using a variable just type in ^variable in the place you want to use it.

21. Where do all these commands come from? • Coders that have something to add write generic code for the commands • Documentation is updated and the commands are tested for all to use. • Documentation is located at http://safsdev.sourceforge.net/sqabasic2000/RRAFSReference.htm

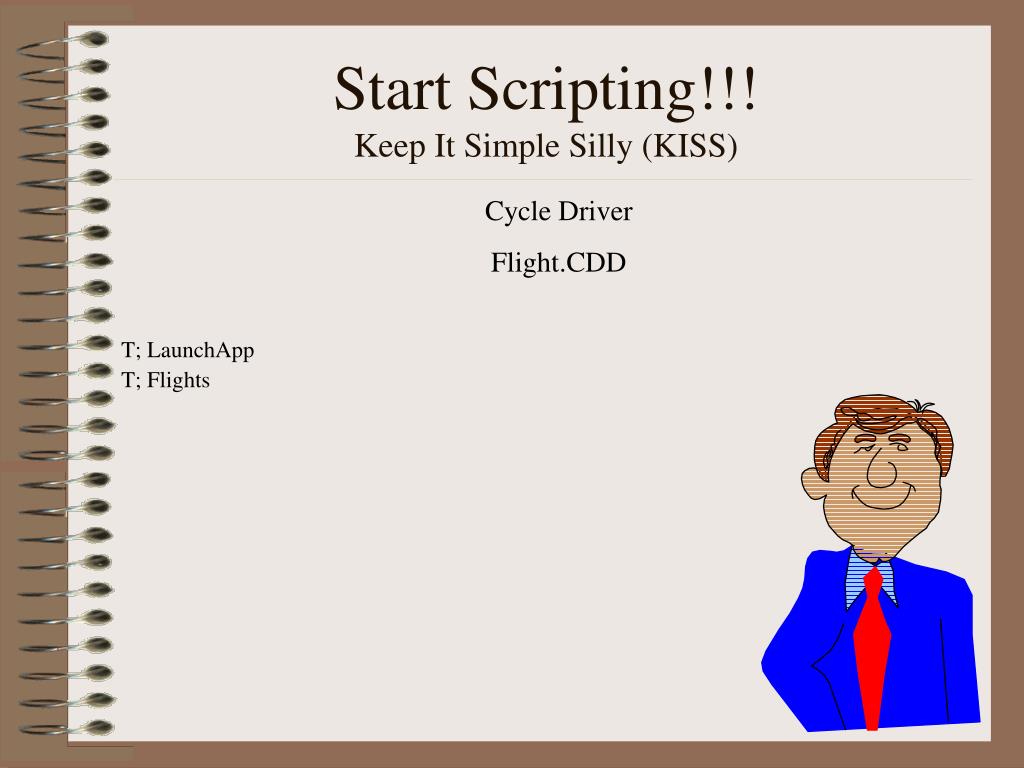

22. Start Scripting!!!Keep It Simple Silly (KISS) Cycle Driver Flight.CDD T; LaunchApp T; Flights

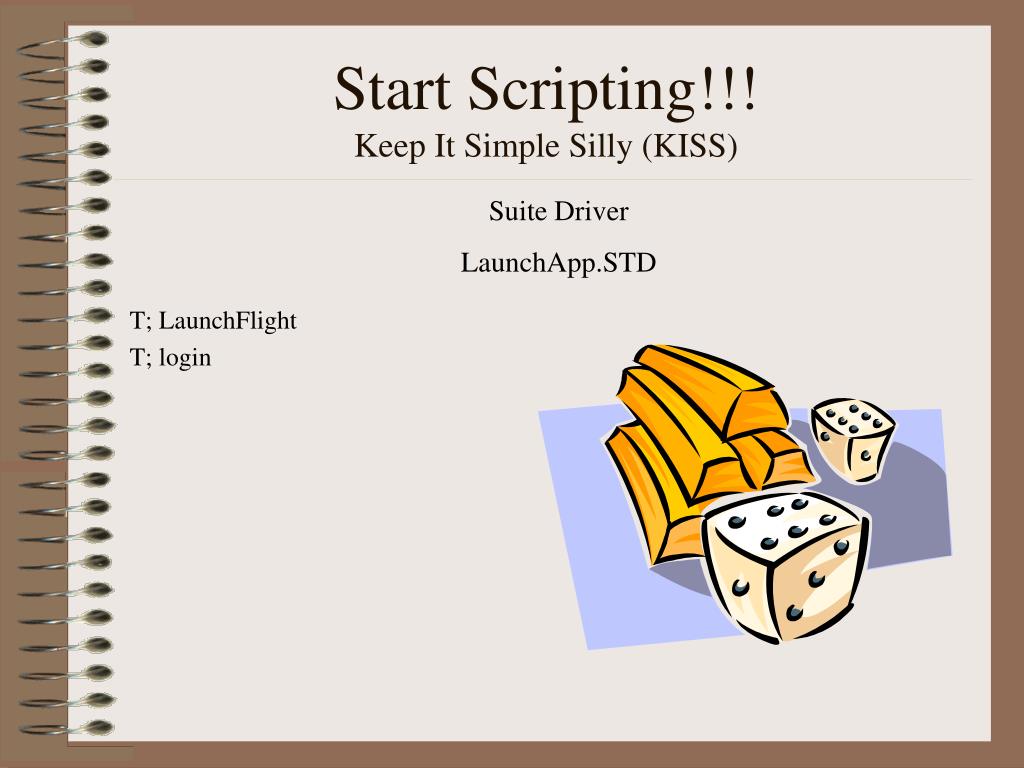

23. Start Scripting!!!Keep It Simple Silly (KISS) Suite Driver LaunchApp.STD T; LaunchFlight T; login

24. Start Scripting!!!Keep It Simple Silly (KISS) Suite Driver Flights.STD T AddFlight

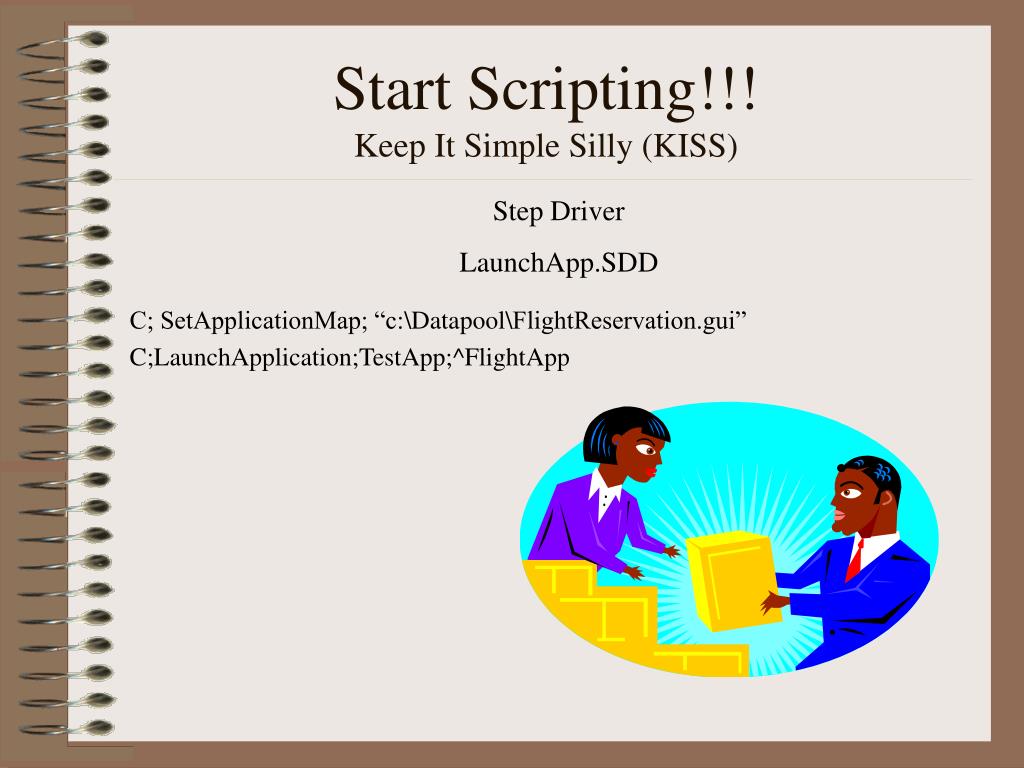

25. Start Scripting!!!Keep It Simple Silly (KISS) Step Driver LaunchApp.SDD C; SetApplicationMap; “c:\Datapool\FlightReservation.gui” C;LaunchApplication;TestApp;^FlightApp

26. Start Scripting!!!Keep It Simple Silly (KISS) Step Driver Login.SDD C; SetApplicationMap; “C:\Datapool\FlightReservation.gui” T;Login; AgentsName; SetTextValue; “jdoe” T; Login; Password; SetUnverifiedTextValue; “mercury” T; Login; OK; Click

27. Start Scripting!!!Keep It Simple Silly (KISS) Step Driver AddFlight.SDD T; FlightReservation; NewFlight; Click T; FlightReservation; Departures; SelectTextItem; "Los Angeles“ T; FlightReservation; Destinations; SelectTextItem; "Portland" T; FlightReservation; Flights; Click T; FlightsTable; OK; Click T; FlightReservation; CustomerName; SetTextValue; "Sue Smith" T; FlightReservation; FirstClass; Click T; FlightReservation; TicketsOrdered; SetTextValue; "2" T; FlightReservation; InsertOrder; Click

28. What did we just do??? • Started the Application. • Verified the application started. • Set the Text Value of Agent name. • Verified we set the Text Value of Agent Name. • Verified the value we set to Agent name is what we sent to it. • Set the Text Value of Password. • Verified that we set the text value of password. • Clicked the Ok button. • Verified we clicked the OK button.

29. What Next??? • Make it reusable so we can use the same script over and over • Make the information generic • Parameterize names or variables so they can change values

30. How do I do that? StartApplication.STD T; LaunchApp T; Login; ^UserName=“jdoe”; Password=“mercury” T; ExitApp T; Logoff T; Login; ^UserName=“ssmith”; Password=“InvalidPassword” T; VerifyInvalidPassword T; Login; ^UserName=“bjones”; Password = “Mercury” Login.SDD C; SetApplicationMap; “C:\Datapool\FlightReservation.gui” T;Login; AgentsName; SetTextValue; ^UserName T; Login; Password; SetUnverifiedTextValue; ^Password T; Login; OK; Click

31. ExitApp.SDD C; SetApplicationMap; “C:\Datapool\FlightReservation.gui” T, FlightReservation, FlightReservation, SELECTMENUITEM, “File;Exit”

32. VerifyInvalidPassword.SDD C; SetApplicationMap; “C:\Datapool\FlightReservation.gui” T; InvalidPassword; InvalidPassword; VerifyProperty; Visible; 1 T; InvalidPassword; OK; Click

33. What is different about this one? • We do all of the things the first script did, but this time we do a lot more! • Added test tables for Exit and invalid user • Verify you can login with a valid user • Verify you can exit the application • Verify an invalid user can gain access to the system • Make a login test table that works for most any application that has a login. Just make sure the name is the same, in the application map files.

34. Let’s Do some more… • Launch Application • "C:\Program Files\Mercury Interactive\WinRunner\samples\vb\app\fltvb41b.exe“ • "C:\Program Files\Mercury Interactive\WinRunner\samples\vb\app" • Create Reservation • Find Reservation • Update Reservation • Delete Reservation

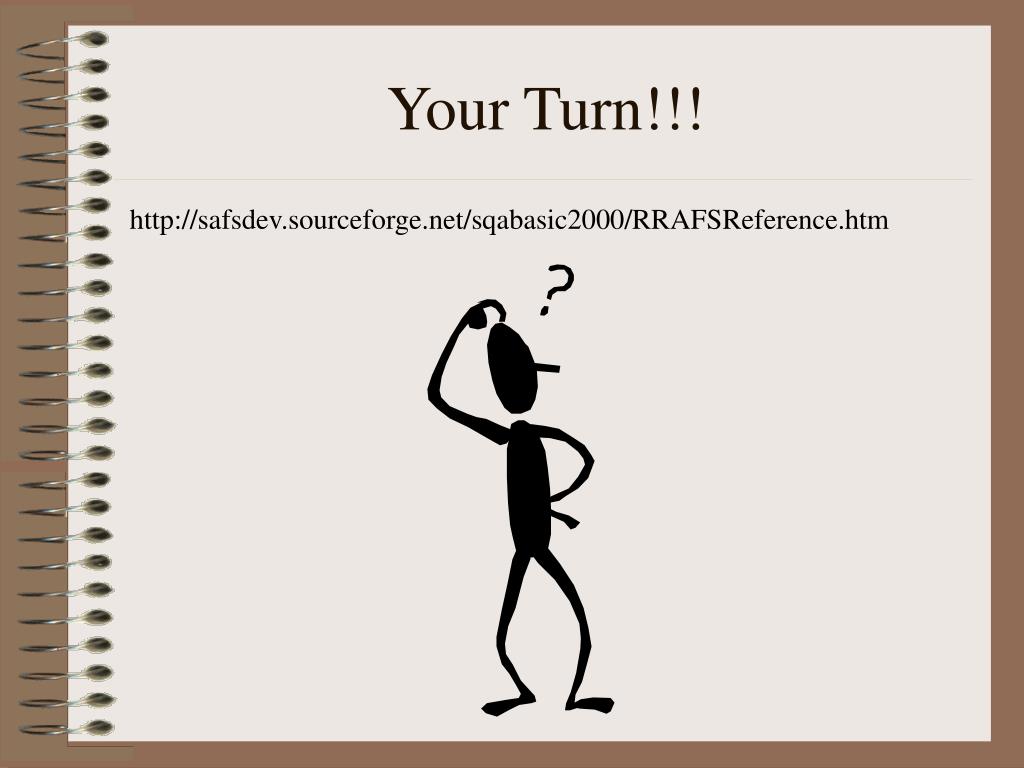

35. Your Turn!!! http://safsdev.sourceforge.net/sqabasic2000/RRAFSReference.htm

36. Flight.CDD Revisted T; LaunchApp T; Flights

37. LaunchApp.STD T; LaunchFlight T; login; ^user.name="jcrunk“; ^user.password="mercury"

38. Flights.STD C; SetVariableValues; ^Class="FirstClass“; ^NbrTickets="2" T; AddFlight; ^Departure="Los Angeles“; ^Destinations="Portland“; ^Customer="Sue Smith" C; SetVariableValues; ^Class="BusinessClass“; ^NbrTickets="3“ T; AddFlight; ^Departure="Denver“; ^Destinations="Los Angeles“; ^Customer="John Doe" C; SetVariableValues; ^Class="EconomyClass“; ^NbrTickets="1" T; AddFlight; ^Departure="Portland“; ^Destinations="Seattle“; ^Customer="Bob Jones" T; FindFlight; ^Customer="Sue Smith" T; UpdateFlight; ^NbrTickets="1“; ^Class="BusinessClass" T; FindFlight; ^Customer="John Doe" T; UpdateFlight; ^NbrTickets="2“; ^Class="EconomyClass" T; FindFlight; ^Customer="Bob Jones" T; UpdateFlight; ^NbrTickets="3“; ^Class="FirstClass" T; FindFlight; ^Customer="Sue Smith" T; DeleteFlight T; FindFlight; ^Customer="John Doe" T; DeleteFlight T; FindFlight; ^Customer="Bob Jones" T; DeleteFlight

39. AddFlight.SDD T; FlightReservation; FlightReservation; SelectMenuItem; “File; New Order” T; FlightReservation; Departures; SelectTextItem; “Denver” T; FlightReservation; Destinations; SelectTextItem; “Portland” T; FlightReservation; Flights; Click T; FlightsTable; AvailiableFlights; SetSelectedRow; 2 T; FlightsTable; OK; Click T; FlightReservation; CustomerName; SetTextValue; ^Customer T; FlightReservation; ^Class; Click T; FlightREservation; InsertOrder; Click

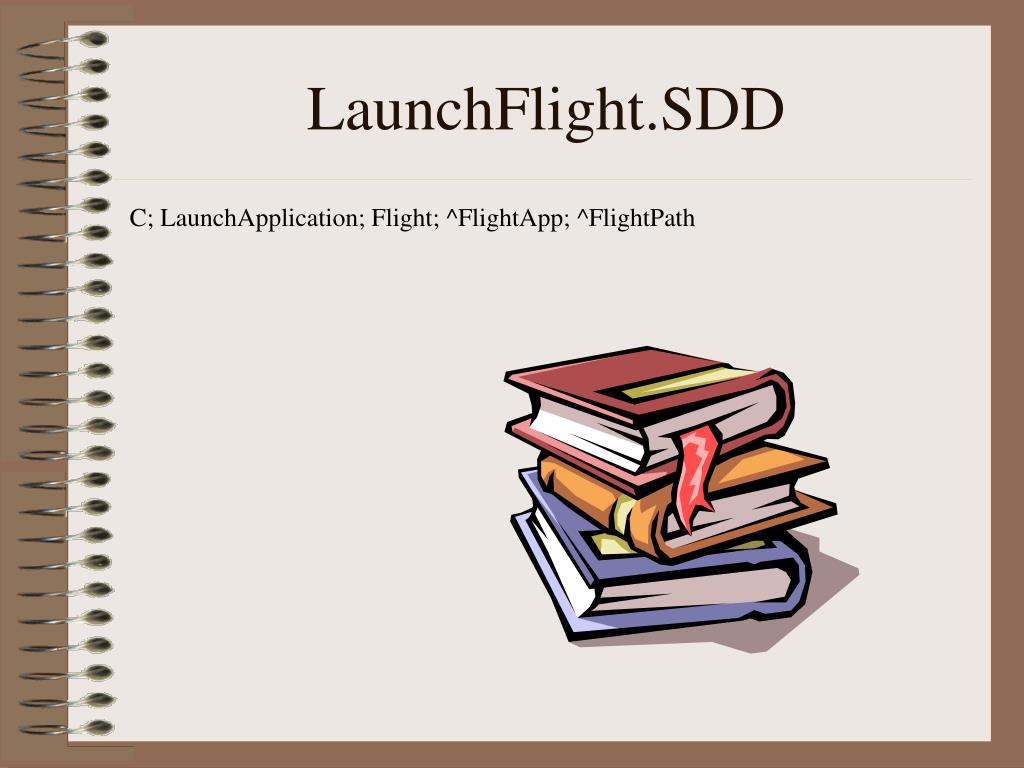

40. LaunchFlight.SDD C; LaunchApplication; Flight; ^FlightApp; ^FlightPath

41. Login.SDD T; Login; AgentsName; SetTextValue; ^user.name T; Login; Password; SetUnverifiedTextValue; ^user.password T; Login; OK; Click

42. AddFlight.SDD T; FlightReservation; NewFlight; Click T; FlightReservation; Departures; SelectTextItem; ^Departure T; FlightReservation; Destinations; SelectTextItem; ^Destinations T; FlightReservation; Flights; Click T; FlightsTable; OK; Click T; FlightReservation; CustomerName; SetTextValue; ^Customer T; FlightReservation; ^Class; Click T; FlightReservation; TicketsOrdered; SetTextValue; ^NbrTickets T; FlightReservation; InsertOrder; Click

43. FindFlight.SDD T; FlightReservation; FlightReservation; SelectMenuItem; "File;Open Order..." T; FindOrder; ByCustName; Click T; FindOrder; CustomerName; SetTextValue; ^Customer T; FindOrder; OK; Click

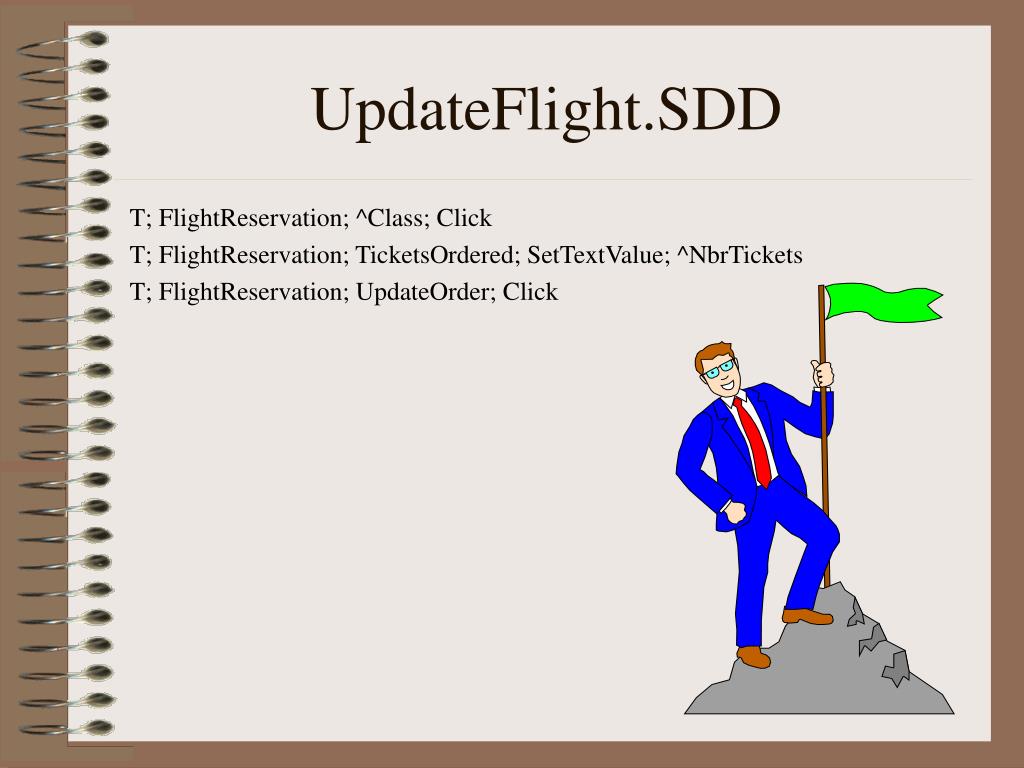

44. UpdateFlight.SDD T; FlightReservation; ^Class; Click T; FlightReservation; TicketsOrdered; SetTextValue; ^NbrTickets T; FlightReservation; UpdateOrder; Click

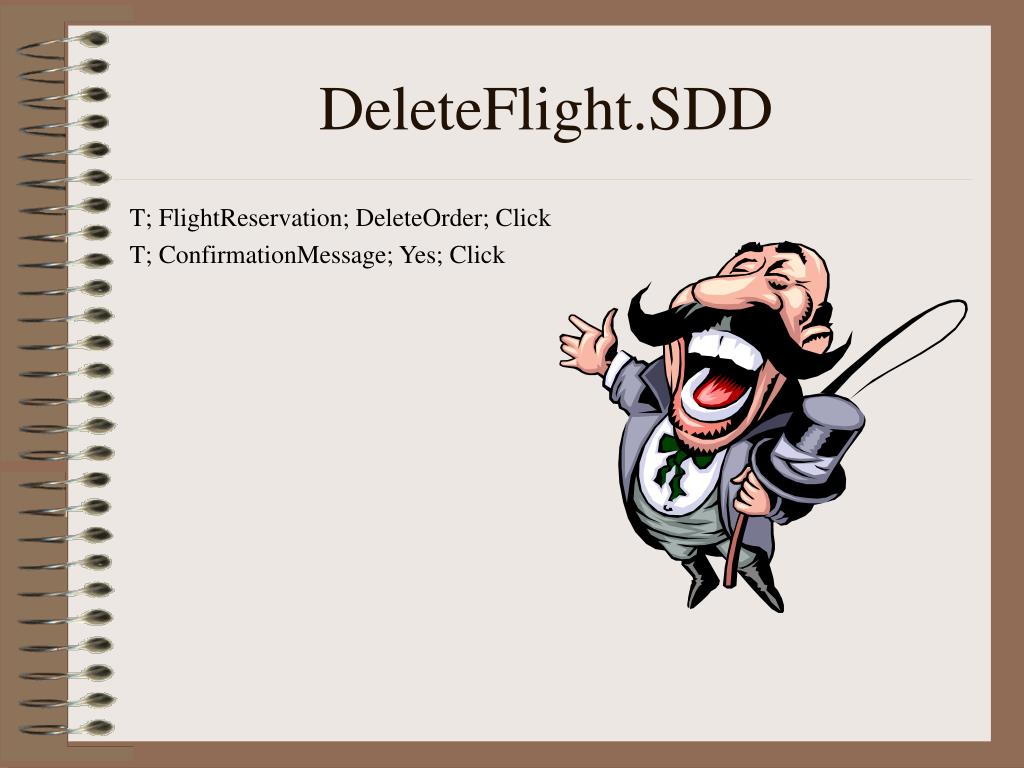

45. DeleteFlight.SDD T; FlightReservation; DeleteOrder; Click T; ConfirmationMessage; Yes; Click

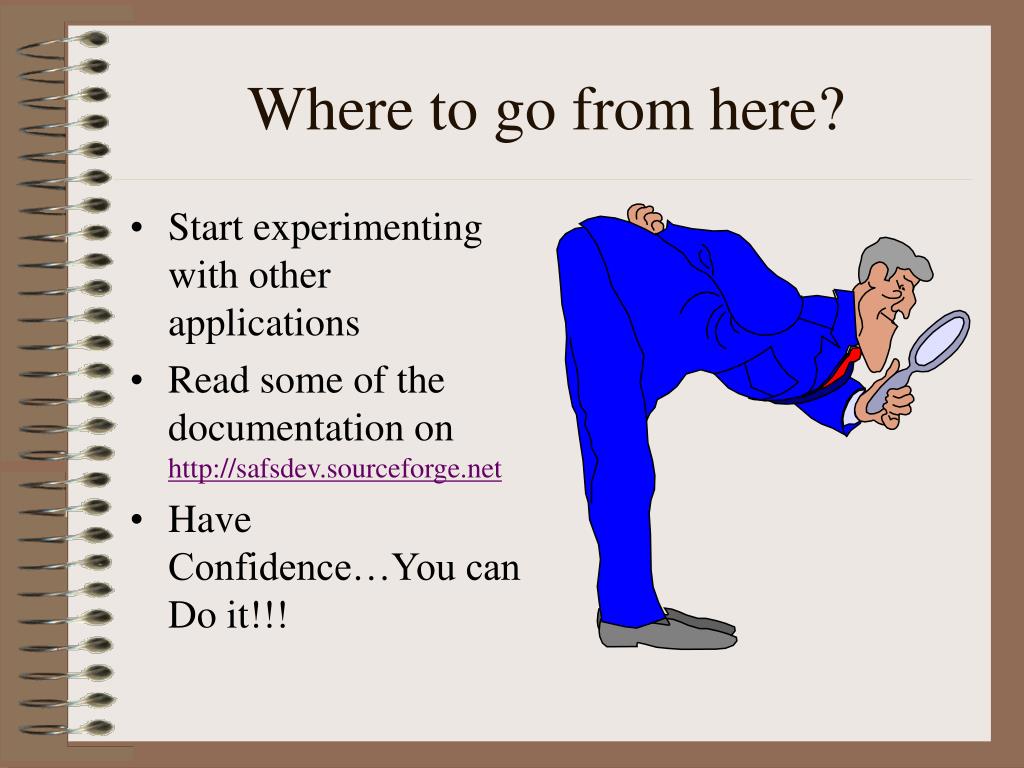

46. Where to go from here? • Start experimenting with other applications • Read some of the documentation on http://safsdev.sourceforge.net • Have Confidence…You can Do it!!!

47. References • Nagle, C. Test automation frameworks; 1999 • Kit, E. & Prince, S. "A Roadmap for Automating Software Testing" Tutorial presented at STAR’99East Conference, Orlando, Florida, May 10, 1999. • Hayes, L. "Establishing an Automated Testing Framework" Tutorial presented at STAR’99East Conference, Orlando, Florida, May 11, 1999. • Kit, E. "The Third Generation--Integrated Test Design and Automation" Guest presentation at STAR’99East Conference, Orlando, Florida, May 12, 1999. • Mosley, D. & Posey, B. Just Enough Software Test Automation New Jersey: Prentice Hall PTR, 2002. • Wust, G. "A Model for Successful Software Testing Automation" Paper presented at STAR’99East Conference, Orlando, Florida, May 12, 1999. • Dustin, E. Automated Software Testing: Introduction, Management, and Performance. New York: Addison Wesley, 1999. • Fewster & Graham Software Test Automation: Effective use of test execution tools New York: Addison Wesley, 1999. • Dustin, E. "Automated Testing Lifecycle Methodology (ATLM)" Paper presented at STAR EAST 2000 Conference, Orlando, Florida, May 3, 2000.

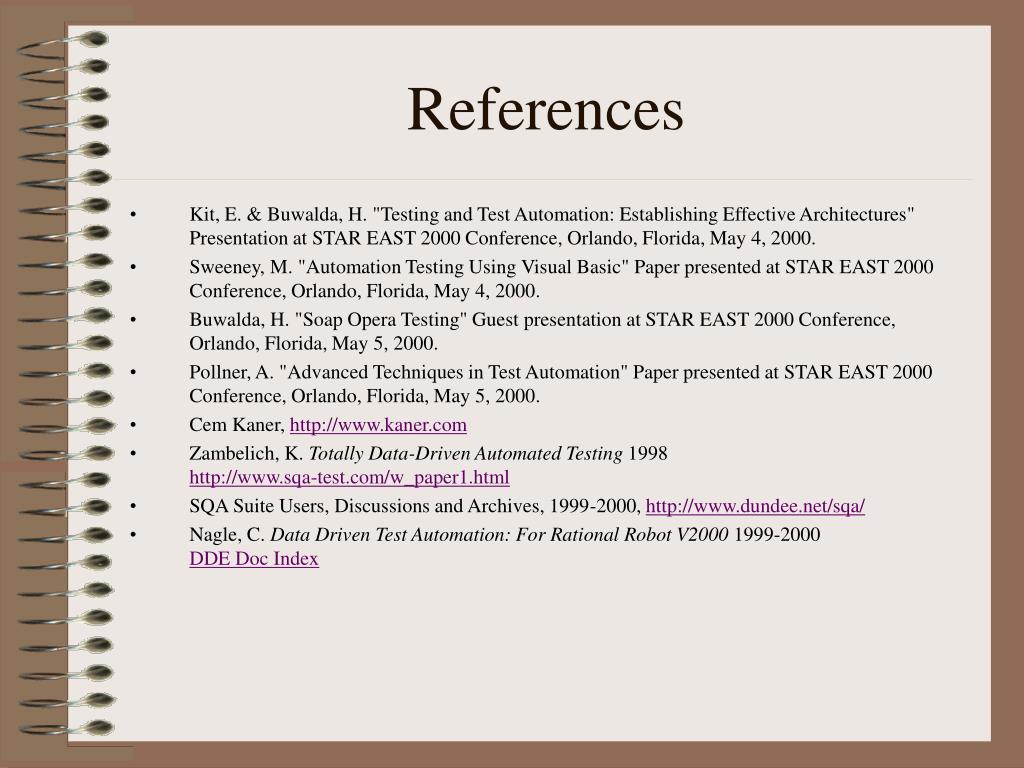

48. References • Kit, E. & Buwalda, H. "Testing and Test Automation: Establishing Effective Architectures" Presentation at STAR EAST 2000 Conference, Orlando, Florida, May 4, 2000. • Sweeney, M. "Automation Testing Using Visual Basic" Paper presented at STAR EAST 2000 Conference, Orlando, Florida, May 4, 2000. • Buwalda, H. "Soap Opera Testing" Guest presentation at STAR EAST 2000 Conference, Orlando, Florida, May 5, 2000. • Pollner, A. "Advanced Techniques in Test Automation" Paper presented at STAR EAST 2000 Conference, Orlando, Florida, May 5, 2000. • Cem Kaner, http://www.kaner.com • Zambelich, K. Totally Data-Driven Automated Testing 1998 http://www.sqa-test.com/w_paper1.html • SQA Suite Users, Discussions and Archives, 1999-2000, http://www.dundee.net/sqa/ • Nagle, C. Data Driven Test Automation: For Rational Robot V2000 1999-2000DDE Doc Index
